venalsol SOLBIS Series User manual

Reminder
We appreciate your purchase!
Please read the instruction manual before installation and keep it handy for future reference.
Aplications
Luminaire with high purity, high brightness molded aluminum heat sink, Nichia SMD chip, with Inventronics constant current driver.
LED printed circuit design for medium and large industrial enterprises: production, open warehouses with half-
height shelves,
workshops, service stations, shopping centers, markets, motorway tolls and similar applications.
Troubleshooting
Problem Possible cause Solutions
LEDs stop working
The powerline is improperly
connected Connect the power cable
The power plug is loose Firming plug the power in
The LED driver malfunctions Replace with a new driver
The LED chip is damaged It can be repaired only by Venalsol.
LEDs flash on and off
The output of the driver is
abnormal Replace with a new driver
The LED chip breaks down It can be repaired only by Venalsol.
1
Guarantee
Venalsol guarantees its products, within the general conditions of supply, provided it is a manufacturing or material defect for a
period of five years from the date of purchase. The guarantee consists in the repair / replacement of the parts or assemblies that
are considered defective. Therefore, it will not apply to items that show damage as a result of not following the instructions for
use correctly, or when the installation has been carried out by non-specialized personnel. Likewise, the damages caused by
improper use of the device and faults produced during transport are excluded.
To make a warranty claim, you must notify your seller in writing, provide a purchase invoice and comply with the other warranty
requirements. It will always be necessary to return the damaged product with its original identification plate of Venalsol Smart
Light and its serial number. Transportation costs are excluded.
1. The decision as to whether the product is defective will be taken by Venalsol, who will check the malfunction of the
product. If Venalsol verifies that the product is defective, it will decide if it has to be repaired or replaced by a new
one. Venalsol reserves the right to use new or repaired products in the process of repair or replacement of the
product under warranty. The product that has been repaired or replaced will be guaranteed during the original
warranty period remaining. The cost of personnel and the cost of the machinery necessary for the replacement is
excluded. The total responsibility of Venalsol regarding the defective product will always be limited to the money paid
by the buyer for that product originally.
2. In case of request of a product in good condition, prior to the shipment of the defective product, in order to facilitate
the substitution work, Venalsol may accept to supply it and this will be billed. This invoice will be paid, if applicable,
once the allegedly damaged product is received and verified. If the warranty requirements are not met, or the
damaged material is not received, 60 days after the previous replacement, the invoice will be charged.
The guarantee will not cover the following circumstances:
1. Damages caused by force majeure such as wars, riots, sabotages, cyclones, earthquakes, floods, explosions, fires, etc.
2. Damages caused by improper use during the delivery period, defects caused by its misuse, wrong treatment or destruction of
the machinery.
3. Disassembly, modification or improper maintenance of repaired products without the authorization of the supplier.
4. Damage caused by the buyer or installer using low quality wiring or other components not compatible with the product.
5. This warranty is not valid if the product is used for different purposes for which it is originally designed.
Read the instructions carefully before you start using the product.
60W - 90W - 120W - 150W
Venalsol Smart Light S.L.
C/ Garbí nº15. - Polígono Industrial Palma de Gandía -46724 - Palma de Gandía
Valencia (España) -Customer service: [phone] [e-mail]
< PRODUCT DATA SHEET
www.venalsol.com
All rights reserved - Copyright ©2017
LED Road lighting SOLBIS®
Instructions

Connection precautions.
1. Disconnect the power supply before installation or maintenance of the light.
2. It is strictly mandatory to connect the earth cable (Yellow / Green) with the ground connection of the installation.
3. Do not touch the power source when the lamp is in operation.
4. To avoid damage, electric shock or fire, do not disassemble or replace the lamp (PCB CHIP LED).
5. To avoid damage, falls, electric shocks or fires, please do not modify or replace the original accessories with others that are not,
without consulting and being authorized by Venalsol beforehand.
6. Only qualified personnel can perform the replacement or installation of the luminaire and make sure that it follows the
instructions in the manual. If the installation is not carried out properly, it can cause falls, electric shocks, fires or other damages.
7. Disconnect the power supply if smoke or odor comes out, as this could result in a fire or electric shock.
8. Consult qualified personnel for inspection and maintenance of the lamp
9. If the wiring of the luminaire itself is damaged, it can only be replaced by Venalsol.
Applicable regulations
It has passed the tests and verifications necessary to obtain the CE Marking. This product complies with
the application standards on Low Voltage (LVD) 2014/35 / EU: EN60598-1: 2015, EN60598-2-24: 2013,
EN60598-2-1: 1989, EN62031: 2008, EN62471: 2008, EN62493: 2010 and Electromagnetic Compatibility
(EMC) 2014/30 / EU: EN61000-3-2: 2014, EN61000-3-3: 2013, EN61547: 2009, EN55015: 2013.
This symbol indicates that the product at the end of its useful life should be removed separately from
other waste, since it is identified as an appliance for electrical use or domestic appliance according to
Royal Decree 208/2005. Therefore, at the end of the use, you must take charge of delivering the
product to a selective collection center or to an authorized waste manager. Venalsol is registered in the
National Registry of Electrical and Electronic Devices with registration number 3493 and is attached to a
Waste Management System for Electrical and Electronic Devices for products with the category of
"lighting devices".
LED Venalsol luminaires are respectful with the environment. They do not contain mercury and the
electronic components used comply with the provisions of the RoHS regulations transposing Royal
Decree 208/2005.
Technical Parameters
Product specifications
60W
90W
120W
150W
Input voltage AC100-277V 50/60Hz Clase I (need a ground)
CRI Ra70
Light Beam Angle (40x150)50º, (40x150)50º, 150º, 150x100º, 60x140º, 110x150º
IP Rating IP66
Dimensions (mm) 531 x 219 x 460 mm
Net weight of the luminaire 7.5 ±0.3kg
Power factor >0.90
Useful life ≥50000Hrs (LM70@35°C)
Operating temperature -30 ~ +50°C
Operating humidity 15% ~ 90%RH
Storage temperature -40 ~ +70°C

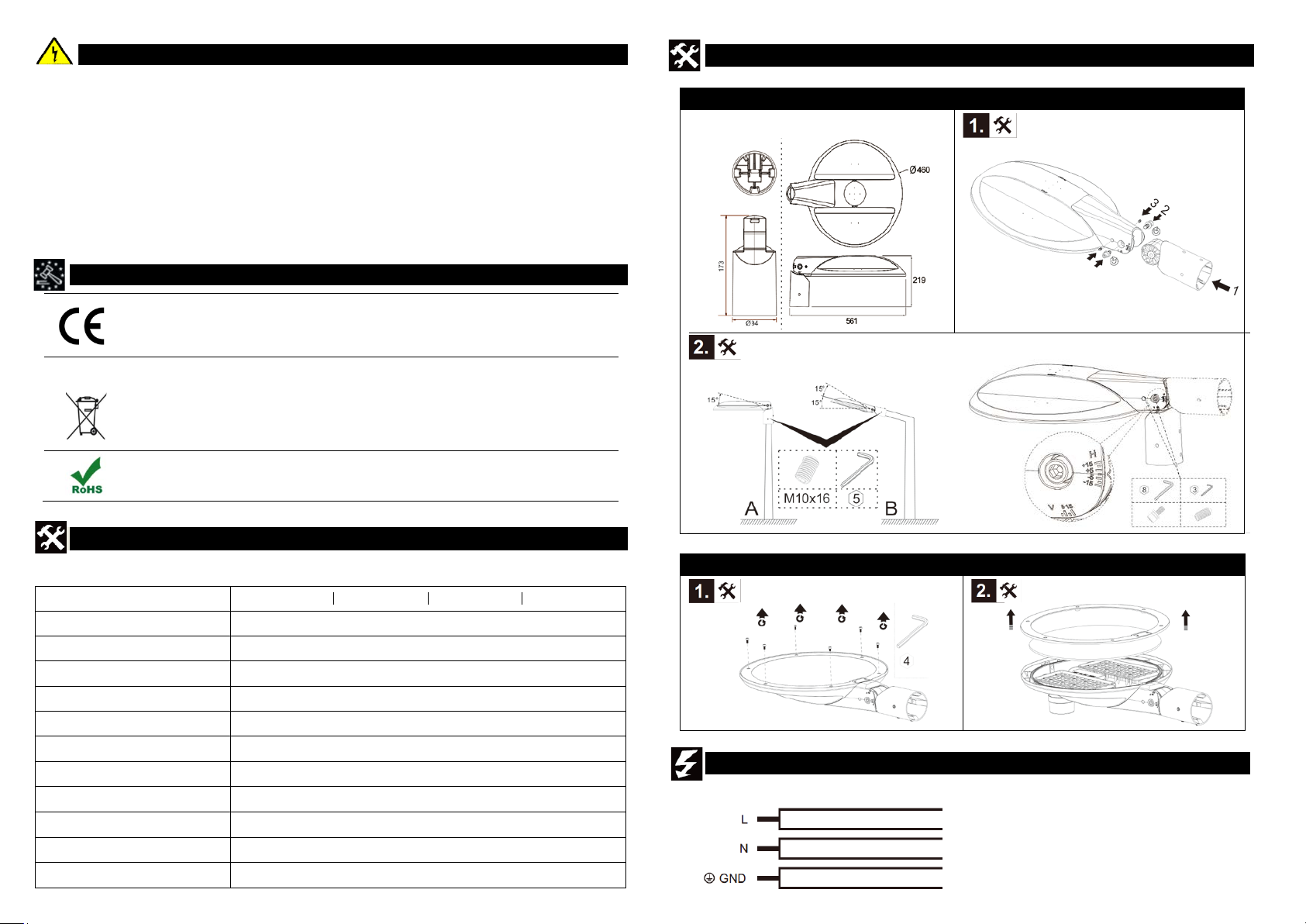

Installation Instructions
A. Dimensions and installation of the luminaire on pole (adjustable angle)
Dimensions (mm)
B. Inspect inside the luminaire
Wiring diagram
Brown
Marrón
Yellow/Green
Blue
Azul
Dim+
Dim-
