VENOM UNIVERSAL PLUG User manual

12
34
5
6
CUT EXISTING CONNECTOR
FROM BATTERY. NOTE:
CUT ONE
WIRE AT A TIME TO PREVENT
SHORTING THE BATTERY.
REMOVE INSULATION
(1/8in or 4mm)
REMOVE 1/8" (4mm) OF
INSULATION FROM END
OF WIRE WITH WIRE
STRIPPERS.
PLACE PLUG ONTO
THE WIRES
NOTE: MAKE SURE
POLARITY IS
CORRECT.
USING A SOLDERING IRON
SOLDER TERMINAL TO WIRE END.
APPLY
HEAT
PULL PLUG TOWARD THE
SOLDERED TERMINALS
UNTIL THE TERMINALS
HAVE SNAPPED INTO
THEIR PROVIDED
SLOTS.
1
2
© Copyright 2012 Venom Group International
Actual product may vary from product shown. Product is subject to change.
NOTE: MAKE SURE TWO
ENDS DO NOT TOUCH.
YOU RISK SHORTING
OUT THE BATTERY.HOLD WIRE DOWN
TO TERMINAL WITH
THE "O" SIDE UP.
DO NOT SOLDERING PAST
TERMINAL BARBS!
NOTE: TOUCH SOLDERING TO END
OF HEATED WIRE, NOT THE IRON.
SOLDER
ASSEMBLED PLUG
1645-2
PATENT PENDING

Venom Group International
14028 N. Ohio Street
Rathdrum, Idaho 83858 USA
Customer Service
800.705.0620
208.762.0620
[email protected]
Australia
PO Box 7325
Alexandria NSW 2015
7

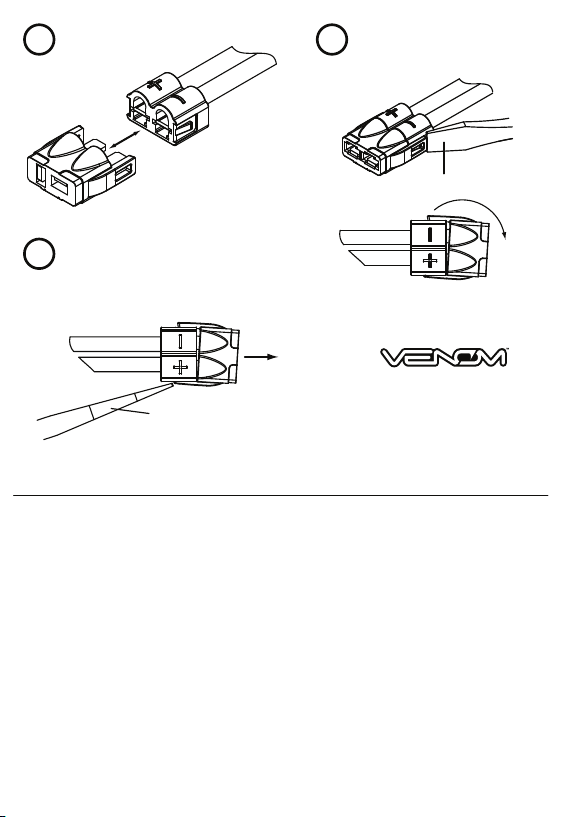

TO ATTACH SIMPLY PUSH
THE PLUG UNTIL IT SNAPS.
8
APPLY PRESSURE TO KEEP PLUG
FROM SNAPPING BACK TOGETHER.
Venom™ Limited Warranty
Venom™ warrants this product to be free of material and workmanship defects when new. If a component is defective or
was not correctly made, Venom™ will, at its sole discretion, repair or replace it free of charge within 90 days from date of
purchase. If you believe a defect became evident only after operation, please contact us to discuss the situation.
A dated & itemized sales receipt must accompany any product returned for warranty work. Before returning any
product, please contact Venom™ Customer Service at 800-705-0620 to receive a Return Merchandise
Authorization Number (RMA#).
GUARANTEE:
We guarantee this product to be free of manufacturing faults and material defects. This product has been
checked and adjusted individually before leaving the manufacturer. Please contact your local hobby shop for
replacement parts and technical support or contact Venom™ Customer Service at 800.705.0620 or
[email protected].
Notice of Rights
All rights reserved. No part of these instructions may be reproduced or transmitted in any form by any means,
electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Venom™.
For information on getting permission for reprints and excerpts, contact [email protected].
Notice of Liability
The information in these instructions is distributed on an “As Is” basis, without warranty. While every precaution
has been taken in the preparation of these instructions, Venom™ does not have any liability to any person or
entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the information
contained in these instructions or by the products described in it.
Prop 65 Warning
This product contains chemicals known to the State of California to cause Cancer, birth defects and other
reproductive harm. Be responsible, dispose of properly.
TO REMOVE A PLUG FLEX
ONE TAB OUT UNTIL
IT CLEARS THE SIDE LATCH.
SCREW
DRIVER
9
FLEX SECOND TAB UNTIL
IT CLEARS THE SIDE LATCH.
PULL PLUG END AWAY
FROM BATTERY.
SCREW DRIVER
