Ventrac EC240 User manual

Operator’s Manual
& Parts Drawings
Sod Cutter
VENTRAC.COM
EC240
Revised 12/14/18
09.10044 Rev. 03
Original Operator’s Manual

2
To the Owner
Contact Information and Product Identication
If you need to contact an authorized Ventrac dealer for information on servicing your product,
always provide the product model and serial numbers.
Please ll in the following information for future reference. See the picture(s) below to nd the
location of the identication numbers. Record them in the spaces provided.
Date of Purchase: __________________________________________________________________
Dealer:___________________________________________________________________________
Dealer Address:____________________________________________________________________
____________________________________________________________________
Dealer Phone Number: ______________________________________________________________
Dealer Fax Number: ________________________________________________________________
Model # (A): ___________________________
Serial # (B): ____________________________
Afx Part/Serial Number label here.
Venture Products Inc. reserves the right to make changes
in design or specications without obligation to make like
changes on previously manufactured products.
B
A
500 Venture Drive
Orrville Oh 44667
www.ventrac.com
View all manuals
Visit ventrac.com/manuals
for the latest version of this
operator’s manual.
A downloadable parts manual
is also available.

TABLE OF CONTENTS
3
INTRODUCTION PAGE 4
Product Description................................................................................................................................4
Why Do I Need an Operator’s Manual? .................................................................................................4
Using Your Manual .................................................................................................................................5
Manual Glossary ....................................................................................................................................5
SAFETY PAGE 6
Safety Decals .........................................................................................................................................6
General Safety Procedures....................................................................................................................7
Training Required...................................................................................................................................7
Personal Protective Equipment Requirements ......................................................................................7
Operation Safety ....................................................................................................................................7
Preventing Accidents..............................................................................................................................8
Keep Riders O󰀨......................................................................................................................................8
Operating On Slopes..............................................................................................................................9
Roadway Safety.....................................................................................................................................9
Truck Or Trailer Transport ......................................................................................................................9
Maintenance.........................................................................................................................................10
Fuel Safety...........................................................................................................................................10
Hydraulic Safety ................................................................................................................................... 11
GENERAL OPERATION PAGE 13
Daily Inspection....................................................................................................................................13
Attaching ..............................................................................................................................................13
Detaching.............................................................................................................................................13
Sod Cutter Operation ...........................................................................................................................13
Setting the Cutting Depth.....................................................................................................................13
SERVICE PAGE 14
Cleaning and General Maintenance.....................................................................................................14
Cutting Blade Replacement .................................................................................................................14
Storage.................................................................................................................................................14
Maintenance Chart...............................................................................................................................14
SPECIFICATIONS PAGE 15
Dimensions ..........................................................................................................................................15
Features...............................................................................................................................................15
PARTS PAGE 16

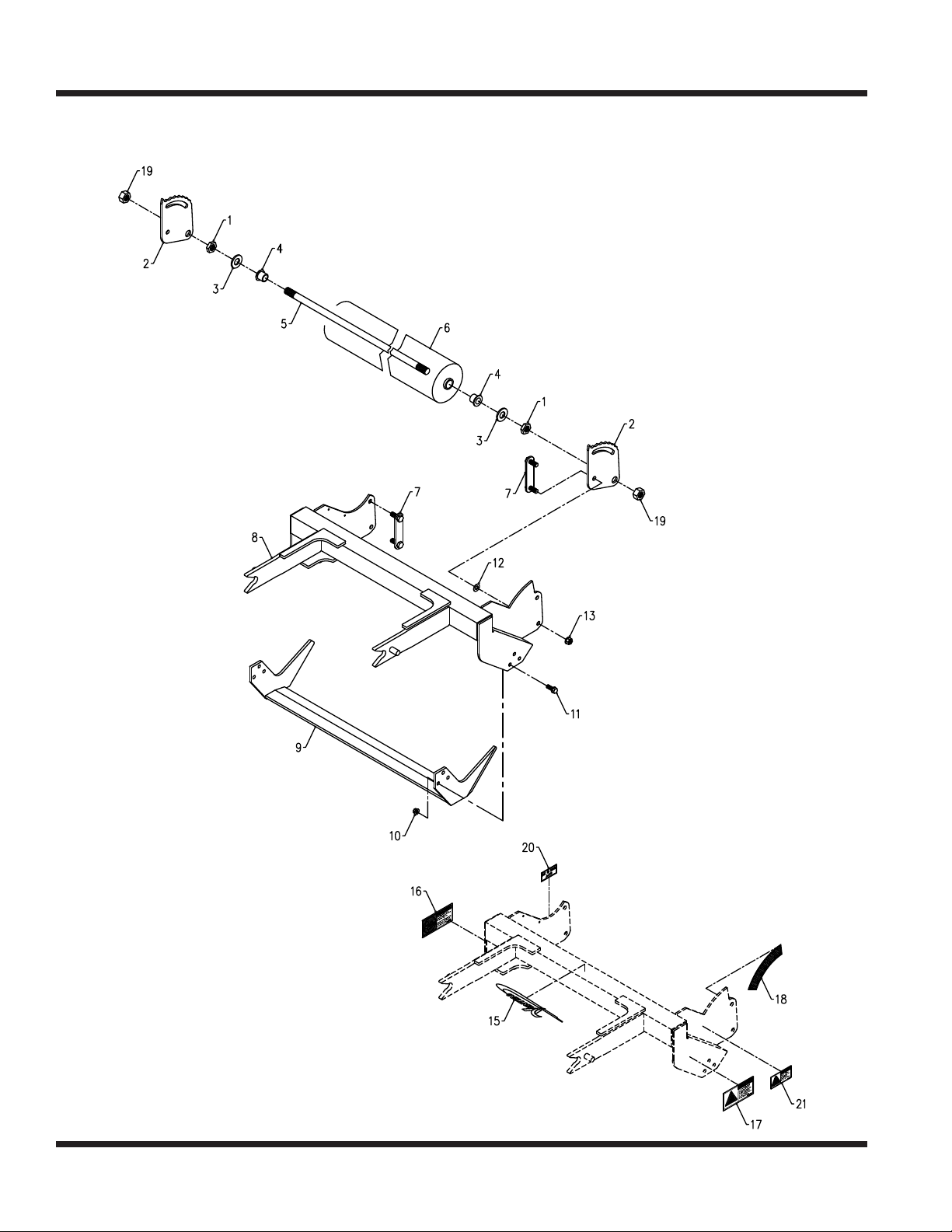

Main Frame, Blade, & Roller................................................................................................................16
WARRANTY PAGE 18

Introduction - 4
INTRODUCTION
Product Description
The EC240 sod cutter is designed to cleanly cut sod for ower beds, walkways, and lawns. With a cutting
depth of 0 - 2-1/2 inches (0 - 6.4 cm), the EC240 can be used to cut thick lush grass or even shave o󰀨 the
last bit of dirt to prepare your work site.
Why Do I Need an Operator’s Manual?
This manual has been created to help you gain the important knowledge of what is needed to safely
operate, maintain, and service your machine. It is divided into sections for convenient reference of the
appropriate section.
You must read and understand the operator’s manual for each piece of Ventrac equipment you own. Read-
ing the operator’s manual will help you become familiar with each specic piece of equipment. Under-
standing the operator’s manual will help you, as well as others, avoid personal injury and/or damage to the
equipment. Keep this manual with the machine at all times. The manual should remain with the machine
even if it is sold. If this manual becomes damaged or unreadable, it should be replaced immediately. Con-
tact your local Ventrac dealer for a replacement.
When using a Ventrac attachment, be sure to read and follow the safety and operating instructions of both
the power unit and the attachment being used to ensure the safest operation possible.
The information in this manual provides the operator with the safest procedures to operate the machine
while getting the maximum use out of the unit. Failure to follow the safety precautions listed in this manual
may result in personal injury and/or damage to the equipment.
Venture Products Inc. is pleased to provide you with your new Ventrac EC240 sod cutter! We hope that Ventrac equipment
will provide you with a ONE Tractor Solution.

INTRODUCTION
Introduction - 5
Using Your Manual
Throughout this manual, you will encounter special messages and symbols that identify potential safety
concerns to help you as well as others avoid personal injury or damage to the equipment.
ATTENTION
This symbol identies potential health and
safety hazards. It marks safety precautions.
Your safety and the safety of others is involved.
SYMBOL DEFINITIONS
There are three signal words that describe the level of safety concern: Danger, Warning, and Caution.
Safety should always be the #1 priority when working on or operating equipment. Accidents are more likely
to occur when proper operating procedures are not followed or inexperienced operators are involved.
Note: Right-Hand and Left-Hand orientations may be referred to at di󰀨erent places throughout this manual.
Right-Hand and Left-Hand is determined as if sitting on the power unit seat facing forward.
SIGNAL WORD DEFINITIONS
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury. This signal word is limited to the
most extreme cases.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury and/or property damage. It may
also be used to alert against unsafe practices.
Manual Glossary
Power Unit A Ventrac tractor or other Ventrac engine powered device that may be operated by itself or
with an attachment or accessory.
Attachment A piece of Ventrac equipment that requires a Power Unit for operation.
Accessory A device that attaches to a Power Unit or Attachment to extend its capabilities.
Machine Describes any “Attachment” or “Accessory” that is used in conjunction with a power unit.

Safety - 6
SAFETY
Safety Decals
The following safety decals must be maintained on your EC240 sod cutter.
Keep all safety decals legible. Remove all grease, dirt, and debris from safety decals and instructional
labels. If any decals are faded, illegible, or missing, contact your dealer promptly for replacements.
When new components are installed, be sure that current safety decals are a󰀩xed to the replacement
components.
Decal Description Part Number Quantity
A Warning, Read Owner’s Manual 00.0217 1
B Warning, Pinch Point 00.0218 1
C Warning, General Safety 00.0220 1
AB
C
A
B
C

SAFETY
Safety - 7
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Training Required
• The owner of this machine is solely responsible for properly training the operators.
• The owner/operator is solely responsible for the operation of this
machine and prevention of accidents or injuries occurring to him/her-
self, other people, or property.
• Do not allow operation or service by children or untrained personnel.
Local regulations may restrict the age of the operator.
• Before operating this machine, read the operator’s manual and under-
stand its contents.
• If the operator of the machine cannot understand this manual, then it
is the responsibility of this machine’s owner to fully explain the material
within this manual to the operator.
• Learn and understand the use of all controls.
• Know how to stop the power unit and all attachments quickly in the event of an emergency.
Personal Protective Equipment Requirements
It is the responsibility of the owner to be sure that the operators use the proper personal protective equip-
ment while operating the machine. Required personal protective equipment includes, but is not limited to,
the following list.
• Wear a certied ear protection device to prevent loss of hearing.
• Prevent eye injury by wearing safety glasses while operating the machine.
• Closed toe shoes must be worn at all times.
• Long pants must be worn at all times.
• When operating in dusty conditions, it is recommended that a dust mask be worn.
Operation Safety
• Inspect machine before operation. Repair or replace any damaged, worn, or missing parts. Be sure
guards and shields are in proper working condition and are secured in place. Make all necessary
adjustments before operating machine.
• Some pictures in this manual may show shields or covers opened or removed in order to clearly illustrate
any instructions. Under no circumstance should the machine be operated without these devices in place.
• Alterations or modications to this machine can reduce safety and could cause damage to the machine.
Do not alter safety devices or operate with shields or covers removed.
• Before each use, verify that all controls function properly and inspect all safety devices. Do not operate
if controls or safety devices are not in proper working condition.
• Check parking brake function before operating. Repair or adjust parking brake if necessary.
• Observe and follow all safety decals.
• All controls are to be operated from the operator’s station only.
• Always wear a seat belt if the machine has a roll cage/bar installed and in upright position.
• Ensure the attachment or accessory is locked or fastened securely to the power unit before operating.
• Ensure that all bystanders are clear of the power unit and attachment before operating. Stop machine if
someone enters your work area.
• Always be alert to what is happening around you, but do not lose focus on the task you are performing.
Always look in the direction the machine is moving.
• Look behind and down before backing up to be sure of a clear path.
• If you hit an object, stop and inspect the machine. Make all necessary repairs before operating machine again.
• Stop operation immediately at any sign of equipment failure. An unusual noise can be a warning of equipment
failure or a sign that maintenance is required. Make all necessary repairs before operating machine again.

SAFETY
Safety - 8
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
• If equipped with a high/low range feature, never shift between high and low range while on a slope.
Always move the machine to level ground and engage the parking brake before shifting range.
• Do not leave machine unattended while it is running.
• Always park the machine on level ground.
• Always shut o󰀨 engine when connecting attachment drive belt to the power unit.
• Never leave the operator’s station without lowering the attachment to the ground, setting the parking
brake, shutting o󰀨 the engine, and removing the ignition key. Make sure all moving parts have come to
a complete stop before dismounting.
• Never leave equipment unattended without lowering the attachment to the ground, setting the parking
brake, shutting o󰀨 the engine, and removing the ignition key.
• Only operate in well-lit conditions.
• Do not operate when there is a risk of lightning.
• Never direct the discharge of any attachment in the direction of people, buildings, animals, vehicles, or
other objects of value.
• Never discharge material against a wall or obstruction. Material may ricochet back towards the operator.
• Use extra caution when approaching blind corners, shrubs, trees, or other objects that may obscure vision.
• Do not run the engine in a building without adequate ventilation.
• Do not touch the engine or the mu󰀪er while the engine is running or immediately after stopping the engine.
These areas may be hot enough to cause a burn.
• Do not change the engine governor settings or over-speed the engine. Operating engine at excessive speed
may increase the hazard of personal injury.
• To reduce the hazard of re, keep the battery compartment, engine, and mu󰀪er areas free of grass, leaves,
excessive grease, and other ammable materials.
Preventing Accidents
• Clear working area of objects that might be hit or thrown from machine.
• Keep people and pets out of working area.
• Know the work area well before operation. Do not operate where traction or
stability is questionable.
• Reduce speed when you are operating over rough ground.
• Equipment can cause serious injury and/or death when improperly used.
Before operating, know and understand
the operation and safety of the power
unit and the attachment being used.
• Do not operate machine if you are not in good physical and
mental health, if you will be distracted by personal devices, or are
under the inuence of any substance which might impair deci-
sion, dexterity, or judgment.
• Children are attracted to machine activity. Be aware of children
and do not allow them in the working area. Turn o󰀨 the machine if
a child enters the work area.
Keep Riders O󰀨
• Only allow the operator on the power unit. Keep riders o󰀨.
• Never allow riders on any attachment or accessory.

SAFETY
Safety - 9
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Operating On Slopes
• Slopes can cause loss-of-control and
tip-over accidents, which can result in
severe injury or death. Be familiar with the
emergency parking brake, along with the
power unit controls and their functions.
• If power unit is equipped with a fold down
roll bar, it must be locked in the upright
position when operating on any slope.
• Use low range (if equipped) when operating
on slopes greater than 15 degrees.
• Do not stop or start suddenly when operating on slopes.
• Never shift between high and low range while on a slope. Always move the power unit to level ground
and engage the parking brake before shifting range or placing the power unit in neutral.
• Variables such as wet surface and loose ground will reduce the degree of safety. Do not drive where
machine could lose traction or tip over.
• Keep alert for hidden hazards in the terrain.
• Stay away from drop-o󰀨s, ditches, and embankments.
• Sharp turns should be avoided when operating on slopes.
• Pulling loads on hills decreases safety. It is the responsibility of the owner/operator to determine loads
that can safely be controlled on slopes.
• Transport machine with attachment lowered or close to the ground to improve stability.
• While operating on slopes, drive in an up and down direction when possible. If turning is necessary
while driving across slopes, reduce speed and turn slowly in the downhill direction.
• Assure a su󰀩cient supply of fuel for continuous operation. A minimum of one-half tank of fuel is recommended.
Roadway Safety
• Operate with safety lights when operating on or near roadways.
• Obey all state and local laws concerning operation on roadways.
• Slow down and be careful of tra󰀩c when operating near or crossing roadways. Stop before crossing
roads or sidewalks. Use care when approaching areas or objects that may obscure vision.
• If there is doubt of safety conditions, discontinue machine operation until a time when
operation can be performed safely.
• When operating near or on roadways, have a Slow Moving Vehicle Emblem clearly
displayed.
Truck Or Trailer Transport
• Use care when loading or unloading machine into a truck or trailer.
• Use full width ramps for loading machine into a truck or trailer.
• The parking brake is not su󰀩cient to lock the machine during transport. Always secure the power unit
and/or attachment to the transporting vehicle securely using straps, chains, cable, or ropes. Both front
and rear straps should be directed down and outward from the machine.
• Shut o󰀨 fuel supply to power unit during transport on truck or trailer.
• If equipped, turn the battery disconnect switch to the O󰀨 position to shut o󰀨 electrical power.

SAFETY
Safety - 10
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Maintenance
• Keep all safety decals legible. Remove all grease dirt, and debris from safety decals and instructional labels.
• If any decals are faded, illegible, or missing, contact your dealer promptly for replacements.
• When new components are installed, be sure that current safety decals are a󰀩xed to the replacement
components.
• If any component requires replacement, use only original Ventrac replacement parts.
• Always turn the battery disconnect to the O󰀨 position or disconnect the battery before performing any
repairs. Disconnect the negative terminal rst and the positive terminal last. Reconnect the positive
terminal rst and the negative terminal last.
• Keep all bolts, nuts, screws, and other fasteners properly tightened.
• Always lower the attachment to the ground, engage parking brake, shut o󰀨 engine, and remove the
ignition key. Make sure all moving parts have come to a complete stop before cleaning, inspection,
adjusting or repairing.
• If the power unit, attachment, or accessory requires repairs or adjustments not instructed in the operator’s
manual, the power unit, attachment, or accessory must be taken to an authorized Ventrac dealer for service.
• Never perform maintenance on the power unit and/or attachment if someone is in the operator’s station.
• Always use protective glasses when handling the battery.
• Check all fuel lines for tightness and wear on a regular basis. Tighten or repair them as needed.
• To reduce the hazard of re, keep the battery compartment, engine, and mu󰀪er areas free of grass,
leaves, and excessive grease.
• Do not touch the engine, the mu󰀪er, or other exhaust components while the engine is running or imme-
diately after stopping the engine. These areas may be hot enough to cause a burn.
• Allow the engine to cool before storing and do not store near an open ame.
• Do not change the engine governor settings or over-speed the engine. Operating engine at excessive
speed may increase the hazard of personal injury.
• Springs may contain stored energy. Use caution when disengaging or removing springs and/or spring
loaded components.
• An obstruction or blockage in a drive system or moving/rotating parts may cause a buildup of stored
energy. When the obstruction or blockage is removed, the drive system or moving/rotating parts may
move suddenly. Do not attempt to remove an obstruction or blockage with your hands. Keep hands,
feet, and clothing away from all power-driven parts.
• Dispose of all uids in accordance with local laws.
Fuel Safety
• To avoid personal injury or property damage, use extreme care in handling gasoline. Gaso-
line is extremely ammable and the vapors are explosive.
• Do not refuel machine while smoking or at a location near ames or sparks.
• Always refuel the machine outdoors.
• Do not store machine or fuel container indoors where fumes or fuel can reach an open
ame, spark, or pilot light.
• Only store fuel in an approved container. Keep out of reach of children.
• Never ll containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers
on the ground away from your vehicle before lling.
• Remove machine from the truck or trailer and refuel it on the ground. If this is not possible, refuel the
machine using a portable container, rather than from a fuel dispenser nozzle.
• Never remove fuel cap or add fuel with the engine running. Allow engine to cool before refueling.
• Never remove fuel cap while on a slope. Only remove when parked on a level surface.
• Replace all fuel tank and container caps securely.

SAFETY
Safety - 11
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
• Do not overll fuel tank. Only ll to bottom of fuel neck, do not ll fuel neck full. Overlling of fuel tank could
result in engine ooding, fuel leakage from the tank, and/or damage to the emissions control system.
• If fuel is spilled, do not attempt to start the engine. Move the power unit away from the fuel spill and
avoid creating any source of ignition until fuel vapors have dissipated.
• If the fuel tank must be drained, it should be drained outdoors into an approved container.
• Dispose of all uids in accordance with local laws.
• Check all fuel lines for tightness and wear on a regular basis. Tighten or repair them as needed.
• The fuel system is equipped with a shut-o󰀨 valve. Shut o󰀨 the fuel when transporting the machine to
and from the job, when parking the machine indoors, or when servicing the fuel system.
Hydraulic Safety
• Make sure all hydraulic connections are tight and all hydraulic hoses and tubes are in good condition.
Repair any leaks and replace any damaged or deteriorated hoses or tubes before starting the machine.
• Hydraulic leaks can occur under high pressure. Hydraulic leaks require special care and attention.
• Use a piece of cardboard and a magnifying glass to locate sus-
pected hydraulic leaks.
• Keep body and hands away from pinhole leaks
or nozzles that eject high pressure hydraulic uid.
Hydraulic uid escaping under high pressure can
penetrate the skin causing serious injury, leading to
severe complications and/or secondary infections
if left untreated. If hydraulic uid is injected into the
skin, seek immediate medical attention no matter
how minor the injury appears.
• Hydraulic system may contain stored energy. Before performing maintenance or repairs on the hydraulic
system, remove attachments, engage parking brake, disengage weight transfer system (if equipped),
shut o󰀨 engine, and remove ignition key. To relieve pressure on the auxiliary hydraulic system, shut o󰀨 the
power unit engine and move the hydraulic control lever left and right before disconnecting the auxiliary
hydraulic quick couplers.
• Dispose of all uids in accordance with local laws.
Fuel Safety (continued)

SAFETY
Safety - 12
EC240 Safety Procedures
• Drive at speeds that are comfortable to you and allow steering ability and power unit stability to be
maintained.
• Clear the work area of all obstacles, hazards, and personnel.
• Keep hands away from pinch points when adjusting the cutting depth.
• The EC240 cutting blade is very sharp. Wear gloves and use caution when installing, removing, adjust-
ing, or handling the cutting blade.
• Do not make sharp turns with the cutting blade in the ground.

Operation - 13
GENERAL OPERATION
Daily Inspection
1.
Always set the parking brake, shut o󰀨 power
unit engine, remove the ignition key, and ensure
all moving parts have come to a complete stop
before inspecting components, or attempting
any repair or adjustment.
Park machine on a level surface, with the engine
shut o󰀨 and all uids cold.
2. Perform a visual inspection of both the power
unit and the sod cutter. Look for loose or miss-
ing hardware, damaged components, or signs
of wear.
3. Inspect hydraulic hoses, hydraulic ttings, and
fuel lines to ensure tight, leak free connections.
4. Inspect the cutting blade for wear and repair as
required.
5. Refer to the power unit operator’s manual.
Check the power unit’s engine oil, hydraulic oil,
cooling system, tire pressure, and fuel level. Add
uid or service as required.
6. Test the power unit’s operator safety interlock
system*.
Attaching
1. Drive the power unit slowly forward into the hitch
arms of the sod cutter. Align the lift arms of the
power unit with the sod cutter hitch arms by rais-
ing or lowering the front hitch and complete the
engagement. NOTE: if the sod cutter will not sit
in an upright position, engage the power unit’s
parking brake and manually place the sod cutter
onto the power unit hitch arms.
2.
CAUTION
Cutting blade is sharp. Wear gloves when you are
handling the sod cutter.
Once completely engaged, close the front hitch
locking lever.*
Detaching
1. Park the power unit on a level surface.*
2. Lower the sod cutter to the ground.
3. Disengage the front hitch locking lever.*
4. Slowly back the power unit away from the sod
cutter or remove the sod cutter manually.
Sod Cutter Operation
Before operation, set the sod cutter to the desired
cutting depth and disengage the power unit’s weight
transfer system (if equipped).
Move the power unit and sod cutter into position and
lower the sod cutter to the ground. Apply light down
pressure to the front hitch (do not place in oat) and
drive forward slowly to begin cutting sod.
NOTE: depending on ground and type of sod, shal-
lower depths may be more di󰀩cult to start the cut.
Work the power unit back and forth to allow the cut-
ting blade to penetrate the root bed.
Keep light down pressure applied to the front hitch and
sod cutter to allow the roller and cutting blade to main-
tain the cutting depth. While making the cutting pass,
adjust the front hitch height as necessary to allow for
uneven ground and changing soil conditions.
If the blade is pushed out of the ground when mak-
ing shallow cuts in dense root networks, change the
roller depth setting for a deeper cut.
Do not make sharp turns with the cutting blade in
the ground.
Setting the Cutting Depth
1. Loosen the ange nuts on the depth adjustment
clamps (A).
2.
A
B
Rotate the roller until the depth indicator points
to the desired depth on the height adjustment
decal (B).
3. Tighten the ange nuts to secure the roller at the
chosen cutting depth.
* Refer to power unit operator’s manual for operation of
power unit controls.

Service - 14
SERVICE
Cleaning and General Maintenance
For best results, and to maintain the nish of the sod
cutter, clean or wash the sod cutter after each use to
remove dirt, grass, and debris buildup. Apply a thin
layer of environmentally friendly vegetable or corn oil
to the cutting blade to prevent rusting.
CAUTION
Cutting blade is sharp. Wear gloves when working
on the cutting blade.
Cutting Blade Replacement
When the cutting blade becomes dull, it will need to
be replaced.
1. Turn the sod cutter upside down on a clean level
surface.
2. Remove the 6) ange bolts (A) that fasten the
cutting blade to the main frame.
3.
A
Remove the old cutting blade and position the
new cutting blade in place.
4. Reinstall the 6) ange bolts and nuts to secure
the cutting blade to the main frame. Torque to
210 in-lbs (24 Nm).
Storage
Preparing the Sod Cutter for Storage
1. Clean the sod cutter.
2. Inspect for loose or missing hardware, damaged
components, or signs of wear. Repair or replace
damaged or worn components.
3. Inspect the cutting blade edges and replace the
cutting blade if it has become dulled.
4. Oil the cutting blade to prevent rusting.
Removing the Sod Cutter from Storage
1. Clean the sod cutter to remove any accumulated
dust or debris.
2. Inspect the sod cutter as instructed in the daily
inspection section of this manual.
Maintenance Chart
Inspect Daily After each
use
Loose or missing hardware
Damaged or worn components
Safety decals
Clean & oil cutting blade
Always set the parking brake, shut o󰀨 power
unit engine, remove the ignition key, and ensure
all moving parts have come to a complete stop
before inspecting components or attempting any
repair or adjustment.
Attention
If any component requires replacement, use only
original Ventrac replacement parts.

Specications - 15
SPECIFICATIONS
Dimensions
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1/4 inches (26 cm)
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1/2 inches (62 cm)
Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 inches (63.5 cm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 pounds (17.2 kg)
Cutting Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 inches (61 cm)
Cutting Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 2-1/2 inches (0 - 6.4 cm)
Features
A heavy duty steel frame
A maintenance free roller
An adjustable roller for easy setting of cutting depth

Illustrated Parts - 16 Use only original Ventrac
replacement parts.
ILLUSTRATED DRAWING
Main Frame, Blade, & Roller
PARTS

PARTS
Illustrated Parts - 17 Use only original Ventrac
replacement parts.
REF. PART NO. DESCRIPTION QTY.
1 .........99.E0076...................NUT, JAM 5/8-11 USS ...................................................... 2
2.........64.1189 ....................BRACKET, ROLLER MOUNT ............................................... 2
3.........95.10 ......................WASHER, FLAT 5/8 SAE ................................................... 2
4.........85.B0065...................BUSHING, 5/8ID X 13/16OD X5/8L ........................................... 2
5.........42.0473 ....................SHAFT, ROLLER MOUNT .................................................. 1
6.........80.0356 ....................ROLLER, SOD CUTTER ................................................... 1
7.........64.1190 ....................CLAMP, DEPTH ADJUSTMENT ............................................. 2
8.........62.1055 ....................FRAME, MAIN............................................................ 1
9.........79.0073 ....................BLADE, 24” SOD BLADE ................................................... 1
10 ........99.SF05 ...................NUT, SRF 5/16-18 USS..................................................... 6
11 .........99.SF0506 .................BOLT, SRF 5/16-18 USS X 3/4 .............................................. 6
12 ........94.06 ......................WASHER, FLAT 3/8 USS ................................................... 4
13 ........99.SF06 ...................NUT, SRF 3/8-16 USS...................................................... 4
15 ........00.0212 ....................DECAL, VENTRAC ORBITAL ............................................... 1
16 ........00.0217 ....................DECAL, WARNING READ OWNERS MAN .................................... 1
17 ........00.0220 ....................DECAL, GENERAL SAFETY ................................................ 1
18 ........00.0226 ....................DECAL, HEIGHT ADJUSTMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
19 ........92.10 ......................NUT, 5/8-11 USS .......................................................... 2
20 ........00.0100 ....................DECAL, MADE IN USA..................................................... 1
21 ........00.0218 ....................DECAL, WARNING - PINCH POINT .......................................... 1
Main Frame, Blade, & Roller

Warranty - 18
LIMITED WARRANTY - VENTRAC COMMERCIAL EQUIPMENT
WARRANTY
Venture Products, Inc., (henceforth referred to as V.P.I.) warrants on the terms and conditions herein, that it will
repair, replace, or adjust any part manufactured by Venture Products Inc., and found by Venture Products, Inc., to be
defective in material and/or workmanship during the applicable warranty term.
All Ventrac commercial equipment purchased and registered on or after January 1, 2019 will carry a 2-year
commercial warranty. The warranty period begins on the date of original customer purchase:
Ventrac Commercial Equipment Warranty Term
2100 SSV & Attachments 2-year
3000 Series Tractors & Attachments 2-year
4000 Series Tractors & Attachments 2-year
All Ventrac add-on kits and accessories such as: 3-point hitch, 12V front & rear power outlets, foot pedal, dual wheel
kit, etc., will be covered under the above warranty periods provided they are installed by an Authorized Ventrac
Dealer. This warranty may be transferred and will carry the remainder of the warranty starting from the original
purchase/registration date with the dealership and/or V.P.I.
The engine warranty is covered by its respective engine manufacturer. Please refer to the engine manufacturer’s
warranty statement that is included in the owner’s manual.
For warranty consideration on Ventrac commercial equipment, including any defective part, must be returned to an
Authorized Ventrac Dealer within the warranty period. The warranty shall extend to the cost to repair or replace (as
determined by V.P.I.) the defective part. The expense of pickup and delivery of equipment, service call drive time
or any transportation expense incurred for warranty repair is the sole responsibility of the owner and is not covered
under warranty by Ventrac and/or V.P.I. Ventrac and V.P.I.’s responsibility in respect to claims is limited to making the
required repairs or replacements, and no claim of breach of warranty shall be cause for cancellation or rescission of
the contract of sale of any Ventrac equipment. Proof of purchase may be required by the dealer to substantiate any
warranty claim. Only warranty work performed and submitted by an Authorized Ventrac Dealer may be eligible for
warranty credit.
This warranty extends only to Ventrac commercial equipment operated under normal conditions and properly serviced
and maintained. The warranty expressly does NOT cover: (a) any defects, damage or deterioration due to normal
use, wear and tear, or exposure; (b) normal maintenance services, such as cleaning, lubrication, oil change; (c)
replacement of service items, such as oil, lubricants, spark plugs, belts, rubber hoses, bearings or other items subject
to normal service replacement; (d) damage or defects arising out of, or relating to abuse, misuse, neglect, alteration,
negligence or accident; (e) repair or replacement arising from operation of, or use of the equipment which is not in
accordance with operating instructions as specied in the operator’s manual or other operational instructions provided
by V.P.I.; (f) repair or replacement arising as a result of any operation from Ventrac equipment that has been altered
or modied so as to, in the determination of V.P.I., adversely a󰀨ect the operation, performance or durability of the
equipment or that has altered, modied or a󰀨ected the equipment so as to change the intended use of the product; (g)
repair or replacement necessitated by the use of parts, accessories or supplies, including gasoline, oil or lubricants,
incompatible with the equipment or other than as recommended in the operator’s manual or other operational
instructions provided by V.P.I.; (h) repairs or replacements resulting from parts or accessories which have adversely
a󰀨ected the operation, performance or durability of the equipment; or (i) damage or defects due to or arising out of
repair of Ventrac equipment by person or persons other than an authorized Ventrac service dealer or the installation of
parts other than genuine Ventrac parts or Ventrac recommended parts.

WARRANTY
Warranty - 19
LIMITED WARRANTY - VENTRAC COMMERCIAL EQUIPMENT
The sole liability of V.P.I. with respect to this warranty shall be the repair and replacement as set forth herein. V.P.I.
shall have no liability for any other cost, loss, or damage. In particular V.P.I shall have no liability or responsibility for:
(i) expenses relating to gasoline, oil, lubricants; (ii) loss, cost or expense relating to transportation or delivery of turf
equipment from the location of owner or location where used by owner to or from any Authorized Ventrac Dealer;
(iii) travel time, overtime, after hours’ time or other extraordinary repair charges or charge relating to repairs or
replacements outside of normal business hours at the place of business of an Authorized Ventrac Dealer; (iv) rental of
like or similar replacement equipment during the period of any warranty repair or replacement work; (v) any telephone
or telegram charges; (vi) loss or damage to person or property other than that covered by the terms of this warranty;
(vii) any claims for lost revenue, lost prot or additional cost or expense incurred as a result of a claim of breach of
warranty; or (viii) attorney’s fees.
The remedies of buyer set forth herein are exclusive and are in lieu of all other remedies. The liability of V.P.I.,
whether in contract, tort, under any warranty, or otherwise, shall not extend beyond its obligation as set forth herein.
V.P.I. shall not be liable for cost of removal or installation nor shall V.P.I. be responsible for any direct, indirect, special
or consequential damages of any nature. In no event shall V.P.I. be liable for any sum in excess of the price received
for the goods for which liability is claimed.
There are no representations or warranties which have been authorized to the buyer of the Ventrac commercial
equipment other than set forth in this warranty. Any and all statements or representations made by any seller of this
equipment, including those set forth in any sales literature or made orally by any sales representative, are superseded
by the terms of this warranty. Any a󰀩rmation of fact or promise made by V.P.I. or any of its representatives to the
buyer which relates to the goods that are the subject to this warranty shall not be regarded as part of the basis of the
bargain and shall not be deemed to create any express warranty that such goods shall conform to the a󰀩rmation or
promise.
No employee, distributor, or representative is authorized to change the foregoing warranties in any way or grant any
other warranty on behalf of V.P.I.
Some states do not allow limitations on how long an implied warranty lasts or allow the exclusion on limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty applies to all Ventrac commercial equipment sold by Venture Products Inc.
