Vents MPA E Series User manual

MPA ... E
USER’S MANUAL
Single-block air supply unit

2
MPA
www.ventilation-system.com
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the MPA unit (-s) and
all its (their) modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to
incorporate the latest technological developments.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means in any information
search system or translated into any language in any form without the prior written permission of the Company.
Safety requirements..................................................................................................................................................................... 3
Purpose................................................................................................................................................................................................ 5
Delivery set........................................................................................................................................................................................ 6
Designation key.............................................................................................................................................................................. 6
Technical data.................................................................................................................................................................................. 7
Design and operating principle........................................................................................................................................... 8
Mounting and set-up.................................................................................................................................................................. 9
Connection to power mains .................................................................................................................................................. 10
Unit control....................................................................................................................................................................................... 19
Storage and transportation regulations.......................................................................................................................... 19
Manufacturer’s warranty........................................................................................................................................................... 20
Certificate of acceptance ........................................................................................................................................................ 21
Seller information.......................................................................................................................................................................... 21
Installation certificate.................................................................................................................................................................. 21
Warranty card ................................................................................................................................................................................. 21
CONTENTS

3
www.ventilation-system.com
SAFETY REQUIREMENTS
• Please read the user’s manual carefully prior to installing and operating the unit.
• All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
• The warnings contained in the user’s manual must be considered most seriously since they
contain vital personal safety information.
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an
injury or unit damage.
• After a careful reading of the manual, keep it for the entire service life of the unit.
• While transferring the unit control, the user’s manual must be turned over to the receiving
operator.
UNIT INSTALLATION AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from
power mains prior to any
installation operations.
• Unpack the unit with care.
• The unit must be grounded!
• While installing the unit, follow
the safety regulations specific
to the use of electric tools.
• Do not change the power
cable length at your own
discretion.
• Do not bend the power cable.
• Avoid damaging the power
cable.
• Do not put any foreign objects
on the power cable.
• Do not lay the power cable of
the unit in close proximity to
heating equipment.
• Do not use damaged
equipment or cables when
connecting the unit to power
mains.
• Do not operate the unit
outside the temperature range
stated in the user’s manual.
• Do not operate the unit
in aggressive or explosive
environments.

4
MPA
www.ventilation-system.com
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
• Do not touch the unit controls
with wet hands.
• Do not carry out the
installation and maintenance
operations with wet hands.
• Do not wash the unit with
water.
• Protect the electric parts of the
unit against ingress of water.
• Do not allow children to
operate the unit.
• Disconnect the unit from
power mains prior to any
technical maintenance.
• Do not store any explosive or
highly flammable substances
in close proximity to the unit.
• When the unit generates
unusual sounds, odour, or
emits smoke, disconnect it
from power supply and contact
the Seller.
• Do not open the unit during
operation.
• Do not direct the air flow
produced by the unit towards
open flame or ignition sources.
• Do not block the air duct when
the unit is switched on.
• In case of continuous
operation of the unit,
periodically check the security
of mounting.
• Do not sit on the unit and
avoid placing foreign objects
on it.
• Use the unit only for its
intended purpose.

5
www.ventilation-system.com
PURPOSE
The unit can be equipped with an adapted automation kit, which includes: a control panel, a control unit, an optotriac to control heater,
a duct temperature sensor, and a differential pressure sensor.
The use of an automation kit allows controlling air flow, temperature (heating), and air filtration, which can significantly save energy.
The unit is intended for filtering, supplying and heating purified intake air in private homes, offices, hotels, cafés, conference halls
and other residential and public spaces.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens and other spaces with
high humidity.
The unit is a component part and is not designed for stand-alone operation.
The unit is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous
materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic
substances, dust, pathogenic germs).
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT
THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED
ACCESS BY UNATTENDED CHILDREN.

6
MPA
www.ventilation-system.com
MPA XXXX E X LCD
Automation
Number of supply voltage phases
1, 3
Heater type
E – electric
Maximum air ow [m3/h]
Unit type
MPA – single-block air supply unit
DELIVERY SET
DESIGNATION KEY
NAME NUMBER
Air handling unit 1 pc.
Control panel (for models with automation) 1 pc.
Duct temperature sensor 1 pc.
User’s manual 1 pc.
Packing box 1 pc.

7
www.ventilation-system.com

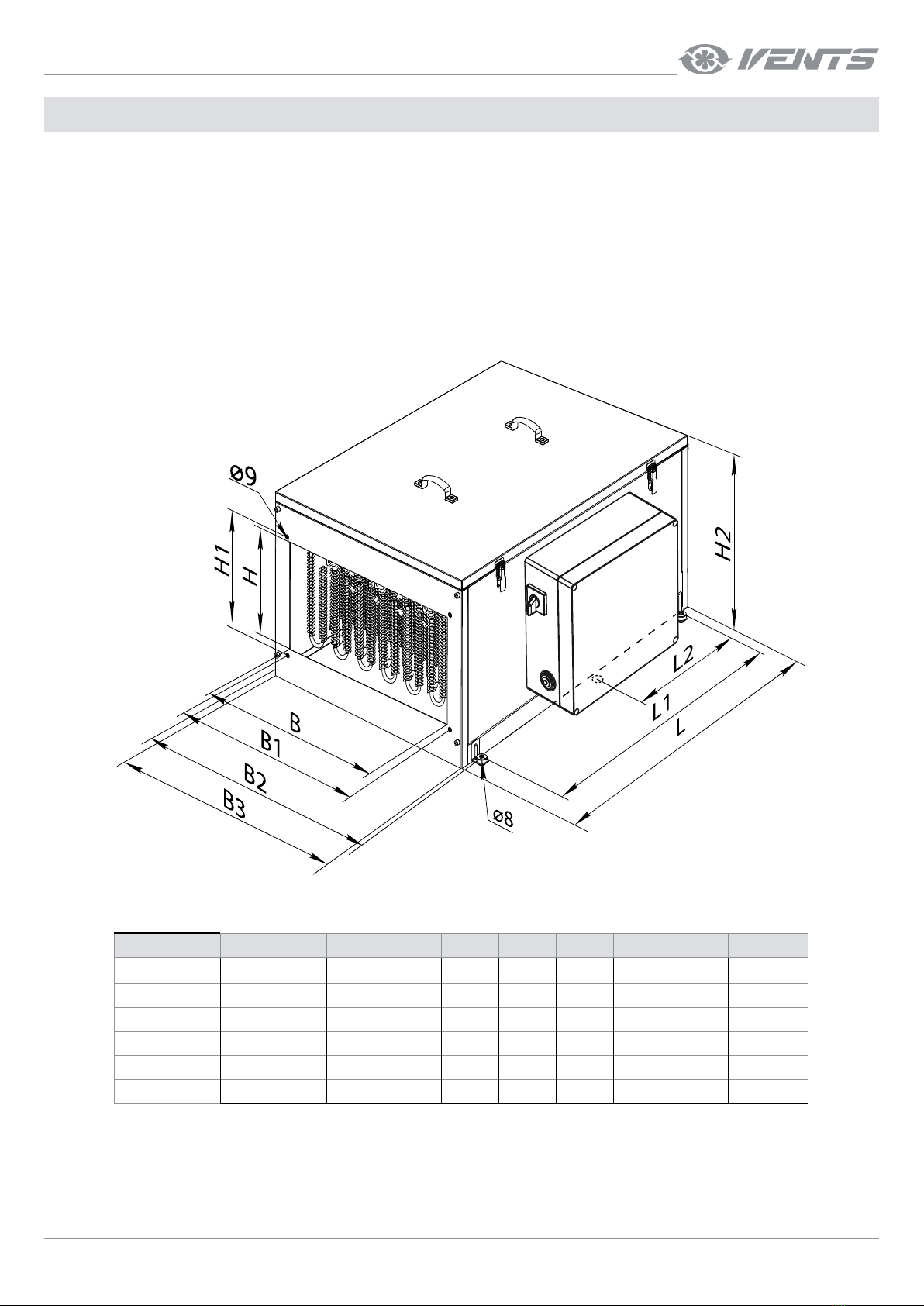

THE OVERALL AND CONNECTION DIMENSIONS OF MPA UNIT
Model В В1 В2 ВЗ Н Н1 Н2 L L1 L2
MPA 800 Е1 400 420 549 500 200 220 352 650 530 –
MPA 1200 ЕЗ 400 420 549 500 200 220 352 650 530 –
MPA 1800 ЕЗ 500 520 649 600 250 270 480 800 680 –
MPA 2500 ЕЗ 500 520 649 600 300 320 480 800 680 –
MPA 3200 ЕЗ 600 620 759 710 300 320 530 1000 880 440
MPA 3500 ЕЗ 600 620 759 710 350 370 530 1000 880 440
TECHNICAL DATA
The unit is designed for application with the ambient temperature ranging from +1 °C to +40 °C and relative humidity up to 80 %.
In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above
the dew point temperature of the transported air.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
• IP22 for the unit connected to the air ducts;
• IP44 for the unit motors.
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.

8
MPA
www.ventilation-system.com
DESIGN AND OPERATING PRINCIPLE
6
The unit allows controlling the air flow, air temperature (preheating) and air filtering.
• Air flow can be adjusted by controlling the fan speed.
• Air heating is provided by an integrated electric heater (item 2).
• The unit is equipped with an air filter with filtering class G4 (item З).
• Hinged (item 4) or removable cover optimally uses the space for installation.
• Unit design allows standard connection to rectangular air ducts of the duct work.
• The unit is equipped with two sensors-thermal switches: one is a safety thermal switch with automatic restart, and the second
one is an emergency thermal switch with manual restart when the RESET button is pressed (pos. 5).
MAIN TECHNICAL PARAMETERS
Model
Voltage
[V] at 50
Hz
Number
of phases
Heater
power
[kW]
Heater
current
[A]
Number
of electric
heating
elements
[pcs]
Fan
power
[W]
Fan current
[A]
RPM
[min-1]
Air flow
[m3/h]
Sound pressure
level at 3 m
distance [dBA]
Weight
[kg]
Maximum
ambient air
temperature
[°C]
MPA 800 Е1 230 1 3.3 14.3 1 245 1.08 1650 800 35 36.2 45
MPA 1200 ЕЗ 400 3 9.9 14.3 3 410 1.8 1850 1200 38 38.9 45
MPA 1800 ЕЗ 400 3 18.0 26.0 3 490 2.15 1100 1800 40 61.5 45
MPA 2500 ЕЗ 400 3 18.0 26.0 3 650 2.84 1000 2500 45 62 45
MPA 3200 ЕЗ 400 3 25.2 36.4 6 1270 2.3 1200 3200 53 69.4 45
MPA 3500 ЕЗ 400 3 25.2 36.4 6 1270 2.3 1200 3500 53 69.3 45

9
www.ventilation-system.com
MOUNTING AND SETUP
READ THE USER’S MANUAL PRIOR TO MOUNTING THE UNIT.
The unit should be mounted so that the arrow on the cover coincides with air flow direction in the system in order to provide access for
maintenance, servicing or replacement work.
Enough space must be provided for the cover to open all the way.
The unit can be mounted on flat surface or suspended on a threaded rod ensuring a secure fixation to prevent unit detachment or falling
down (in consideration of the unit weight and the mating surface material) using all the available L-shaped support brackets with an
antivibration damper attached to the unit base.
The unit is designed for mounting into rectangular air ducts.
• The duct should be connected via a flexible connection to eliminate transfer of noise and random vibrations.
• The dimensions of the connected air duct must be the same as the dimensions of the hole in the unit.
The recommended distance between the unit and other elements of the system must be not less than the diagonal of the unit spigot
(the distance from corner to corner of its air duct part).

10
MPA
www.ventilation-system.com
CONNECTION TO POWER MAINS
DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT
MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED
ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
Model Rated current of the circuit breaker Copper wire cross
section
MPA 800 E1 230 V, 20 A 3x2.5
MPA 1200 EЗ 400 V, 20 A 5x2.5
MPA 1800 EЗ 400 V, 40 A 5x6.0
MPA 2500 EЗ 400 V, 40 A 5x6.0
MPA 3200 EЗ 400 V, 50 A 5x10
MPA 3500 EЗ 400 V, 50 A 5x10
The wire cross sections given in the table are for reference only!
Their selection shall be based on maximum permissible wire heating, which depends on its type, insulation, maximum permissible
current, length of the lead wire and its location (air, wall).
.
Air handling unit
~220-240 V
50 (60) Hz
Air handling unit
~400 V
50 Hz
Single-phase power supply Three-phase power supply
QF – external circuit breaker
XI – terminal block for connecting the wires of the power supply network, as well as external devices - sensors, damper actuator, control
panel, etc.
The automatic circuit breaker location must ensure free access for quick shutdown of the unit.
The required number of wires, their cross-section (mm²), as well as the ratings of the circuit breakers are shown in the table.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
• The unit is rated for connection to 1~220-240 V/50 (60) Hz or 3~400 V/50 Hz power mains according to the wiring diagram.
• The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). The conductor cross-
section selection shall be based on maximum permissible current and maximum permissible wire heating, which depends on
its type, insulation, length and installation method.
• The external power input must be equipped with an automatic circuit breaker QF built into the stationary wiring to open the
circuit in the event of overload or short-circuit. The position of the external automatic circuit breaker must ensure free access
for quick power-off of the unit. The automatic circuit breaker nominal current must exceed the ventilator current consumption,
see the Technical data section or the unit label. It is recommended to select the nominal current of the circuit breaker from the
standard series, following the maximum current of the connected unit. The circuit breaker is not included in the delivery set and
can be ordered separately.

11
www.ventilation-system.com

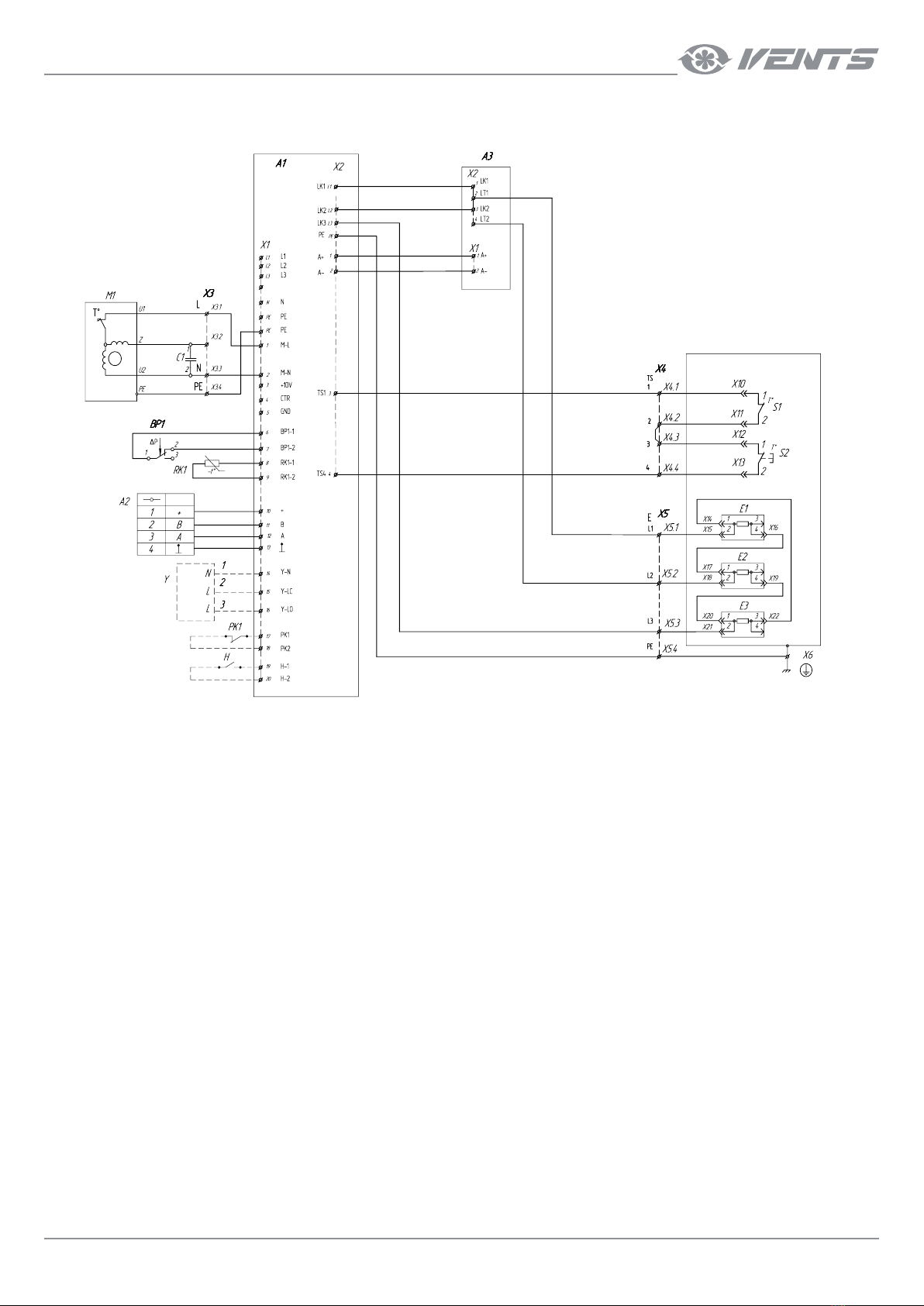

CONNECTION OF EXTERNAL DEVICES FOR MPA 8002500
duct temperature sensor
contacts X1:8, X1:9
signal leads from the
automatic re-extinguishing
system, contacts
Х1:17, Х1:18
humidistat contacts
X1:19, X1:20
control panel contacts
Х1:10, Х1:11, Х1:12, Х1:13
CONTROL BOARD MPA32003500
min. 2m
Control
panel
Duct
temperature sensor

12
MPA
www.ventilation-system.com
GENERAL VIEW AND WIRING DIAGRAMS OF CONTROL UNITS AND EXTERNAL DEVICES MPA 800
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
Fan
blue
broun
black
yellow-green
Dierential pressure sensor
Duct sensor t°
Control panel
Damper actuator
Humidistat
Control unit
Opto-triac control unit
Heater
«RESET»
Fire extinguishing
system contact
Circuit
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
Fan
blue
broun
black
yellow-green
Dierential pressure sensor
Duct sensor t°
Control panel
Damper actuator
Humidistat
Control unit Opto-triac control unit
Heater
«RESET»
Fire extinguishing
system contact
Circuit
MPA 1200

13
www.ventilation-system.com
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
« »
Fan
blue
broun
black
yellow-green
Dierential pressure sensor
Duct sensor t°
Control panel
Damper actuator
Humidistat
Control unit
Opto-triac control unit
Heater
«RESET»
Fire extinguishing
system contact
Circuit
MPA 1800, 2500

14
MPA
www.ventilation-system.com
∆
∆
« »
« » « »
« »
« » « »
« »
« »
« »
blue
broun
black
yellow-
green
Damper actuator
Humidistat
Casing fan
Control unit
Control panel
Opto-triac control unit
See the wiring diagram
Opto-triac control unit
«RESET»
Circuit
Circuit Circuit Circuit Circuit Circuit
Circuit Circuit Temperature sensor
Wiring diagram for dierent types of pressure switches
Circuit Circuit
Circuit
Circuit
Circuit Circuit
Circuit Circuit
Circuit
MPA 3200, 3500

15
www.ventilation-system.com
MPA 3200, 3500 CONTROL UNIT
Contacts for connecting a signal from an automatic Contacts for connecting a humidistat X5:3, X5:4
Contacts for connecting an air damper X5:5, X5:6, X5:7
к X5:5 (1)
к X5:6 (2)
к X5:7 (3)
Damper actuator
re extinguishing circuit X5:1, X5:2
Additional options for external connections through the X5 terminal block are provided:
• connecting a contact of the automatic fire extinguishing system (inscription on the label - «PK1»)
• connecting a humidity sensor contact - humidistat (inscription on the label - «H1»)
• connecting a three-position air damper (inscription on the label - «1», «2», «3»).
When connecting the contact of the automatic fire extinguishing system, remove the jumper between the X5:1 and X5:2 terminals of the
X5 terminal block. In this case, a normally closed «dry contact» is used, which when triggered in case of fire, opens the unit control circuit
from the fire alarm panel and de-energizes it.
The humidistat is connected to the X5:3 and X5:4 terminals of the X5 terminal block. Normally open «dry contact» is used. When it is
closed, the unit switches to maximum speed.
The air damper actuator is connected to the X5:5, X5:6, and X5:7 terminals; «M» (1) contact of the damper actuator – to the X5:5 terminal
(inscription on the sticker «1»); «L» (2) contact – to the X5:6 terminal (inscription «2»); «L» (3) contact – to the Х5:7 terminal (inscription «3»).
The recommended type of damper is KRA (for round or rectangular air ducts) with an LM 230 A actuator (Belimo).

16
MPA
www.ventilation-system.com
MPA800 CONTROL UNIT

17
www.ventilation-system.com
MPA12002500 CONTROL UNIT

18
MPA
www.ventilation-system.com

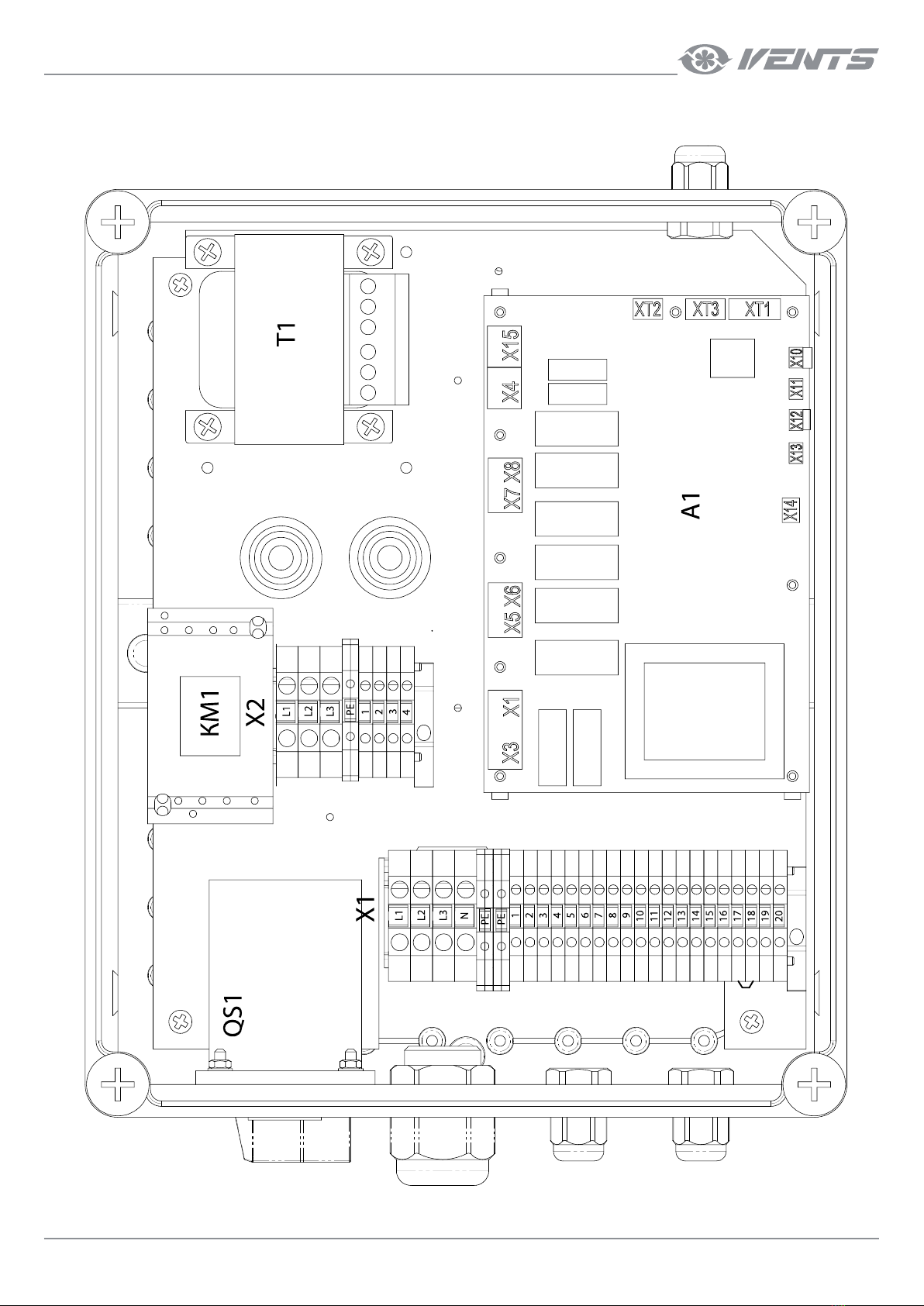

X1 TERMINAL BLOCK OF MPA12002500 CONTROL UNIT
Terminal
marking Circuit External connection
L1 L1 Power supply ~ 400 V
L2 L2 Power supply ~ 400 V
L3 L3 Power supply ~ 400 V
N N Neutral
РЕ РЕ Protective grounding
РЕ РЕ Protective grounding
1 M-L Motor - line
2 M-N Motor - neutral
3 +10V Control circuit EC motor
4 CTR Control circuit EC motor
5 GND Control circuit EC motor
б ВР1-1 Differential pressure sensor
7 ВР1-2 Differential pressure sensor
8 RK1-1 Temperature sensor
9 RK1-2 Temperature sensor
10 + Control panel
11 В Control panel
12 А Control panel
13 – Control panel
14 Y-N Damper actuator
15 Y-LC Damper actuator
16 Y-LO Damper actuator
17 РК1 Normally closed contact of
fire alarm system
18 РК2 Normally closed contact of
fire alarm system
19 Н-1 Normally open contact of
humidistat
20 Н-2 Normally open contact of
humidistat
X1 TERMINAL BLOCK OF MPA800 CONTROL UNIT
Terminal
marking Circuit External connection
L1 L1 Power supply ~ 230 V
N N Power supply ~ 230 V
РЕ РЕ Protective grounding
РЕ РЕ Protective grounding
1 M-L Motor - line
2 M-N Motor - neutral
3 +10V Control circuit EC motor
4 CTR Control circuit EC motor
5 GND Control circuit EC motor
б ВР1-1 Differential pressure sensor
7 ВР1-2 Differential pressure sensor
8 RK1-1 Temperature sensor
9 RK1-2 Temperature sensor
10 + Control panel
11 В Control panel
12 А Control panel
13 Control panel
14 Y-N Damper actuator
15 Y-LC Damper actuator
16 Y-LO Damper actuator
17 РК1 Normally closed contact of
fire alarm system
18 РК2 Normally closed contact of
fire alarm system
19 Н-1 Normally open contact of
humidistat
20 Н-2 Normally open contact of
humidistat

19
www.ventilation-system.com
UNIT CONTROL
The unit is controlled using a remote control panel.
FUNCTIONAL CAPABILITIES
The system allows you to control the performance of the supply fan and has 3 speed levels:
• 1 – minimal ventilation, used on weekends and holidays in non-residential premises or at night in residential premises
• 2 – normal ventilation
• 3 – increased ventilation when additional air flow is required.
The device has the function of maintaining air temperature by a duct sensor or by a sensor in the control panel.
The duct temperature sensor enables the system to select the most suitable operation mode of the electric heating elements for
maintaining a pre-set air temperature in the air duct.
The control panel is also equipped with a temperature sensor thereby allowing the maintenance of the set (user-defined) indoor
temperature at the selected fan speed.
The optimal energy-saving program calculates the heater power required to sustain the indoor temperature with up to 1 °C accuracy
while adjusting the heater power with up to 1 % accuracy.
The system status monitoring program monitors the unit operating parameters and, in the event of dangerous situations (overheating of
the heating elements, critical filter clogging, communication line break), initiates emergency shutdown and sends corresponding signals
to the control panel.
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 ˚С to +40 ˚С and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.

20
MPA
www.ventilation-system.com
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.
