USER’S MANUAL
VUT 2000 PE EC
VUT 3000 PE EC
HEAT RECOVERY AIR HANDLING
UNIT

www.ventilation-system.com
2
Safety requirements 3
Introduction 5
Use 5
Delivery set 5
Designation key 5
Technical parameters 6
Design and operating logic 7
Mounting and set-up 8
Connection to power mains 9
Unit control 10
Maintenance 11
Troubleshooting 12
Storage and transportation rules 13
Manufacturer's warranty 13
Acceptance certicate 14
Seller's information 14
Mounting certicate 14
Warranty card 15
CONTENTS

3
• Read the user’s manual carefully prior to the operation and installation of the heat recovery air handling unit, hereinafter the unit.
• Installation and operation of the unit shall be performed in accordance with the present user’s manual as well as the provisions of all
the applicable local and national construction, electrical and technical codes and standards.
• The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
• Failure to follow the safety regulations may result in an injury or unit damage.
• Read the manual carefully and keep it as long as you use the unit.
• While transferring the unit control the user’s manual must be turned over to the receiving operator.

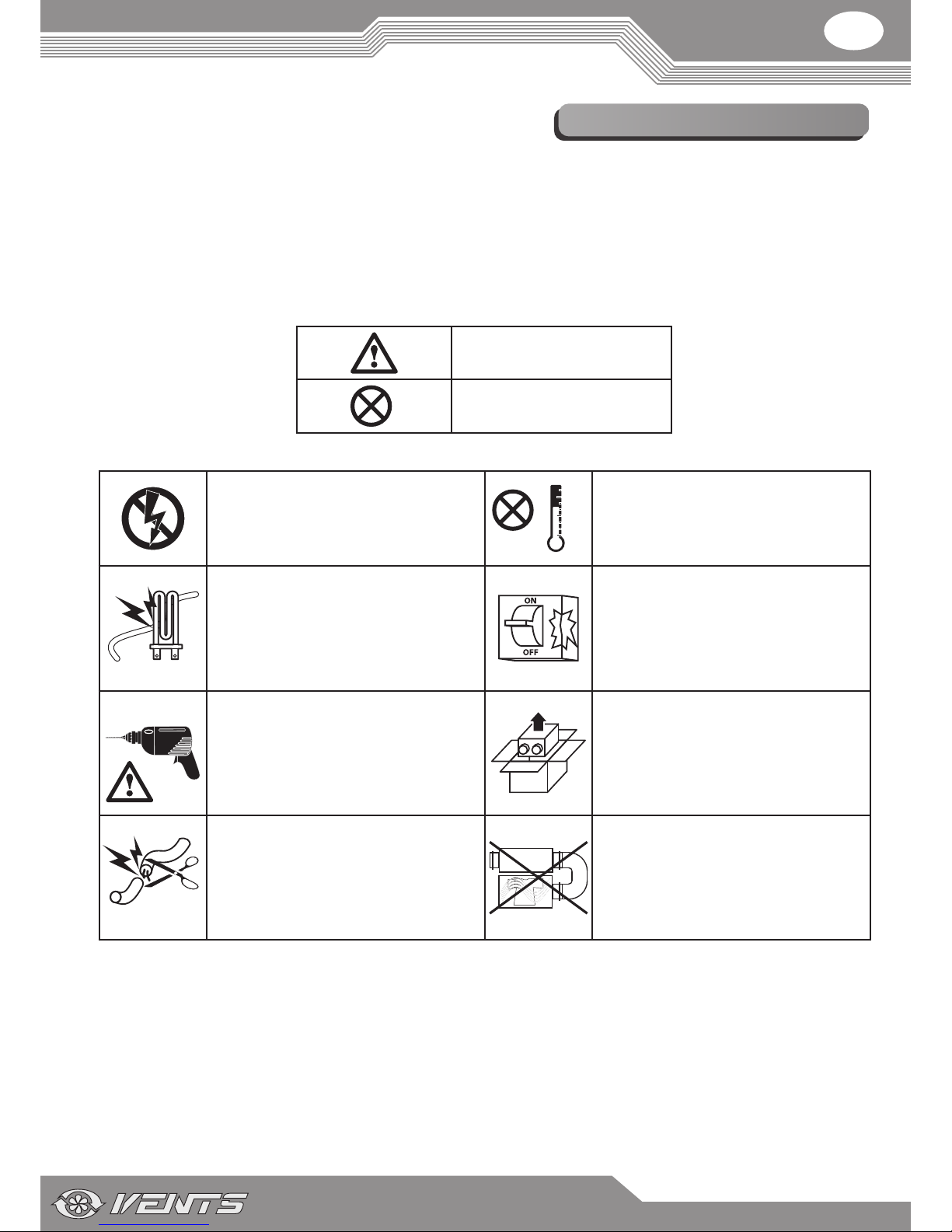

Symbol legend used in the manual:
UNIT MOUNTING SAFETY PRECAUTIONS
WARNING!
DO NOT!
The unit must be disconnected from the power
supply prior to every installation or repair
operation.
The unit must not be operated outside the
temperature range stated in the user's manual or
in aggressive or explosive environments.
Do not position any heating devices or other
equipment in close proximity to the unit power
cord.
Do not use damaged equipment or conductors
to connect the unit to power mains.
While installing the unit follow the safety
regulations specic to the use of electric tools. Unpack the unit with care.
Do not change the power cord length at your
own discretion.
Do not bend the power cord.
Avoid damaging the power cord.
Use the unit only as intended by the
manufacturer.
SAFETY REQUIREMENTS

www.ventilation-system.com
4
UNIT OPERATION SAFETY PRECAUTIONS
Do not touch the unit controls with wet hands.
Do not carry out the unit maintenance with wet
hands.
Do not wash the unit with water. Protect the unit
electric parts from water ingress.
Do not block the air duct when the unit is on.
OFF
ON
Disconnect the unit from power supply prior to
maintenance.
Do not let children operate the unit.
Do not damage the power cable while operating
the unit. Do not put any objects on the power
cable.
Keep combustible gases and inammable
products away of the unit. Do not open the operating unit.
In case of unusual sounds, smoke disconnect the
unit from power supply and contact the service
centre.
Do not let air ow from the unit be directed to
the open ame devices or candles.

5
INTRODUCTION
This user’s manual includes technical description, operation, installation and mounting guidelines, technical data for the heat recovery air
handling unit VENTS VUT PE EC, hereinafter referred as the unit.
USE
THE UNIT IS NOT INTENDED TO BE USED BY CHILDREN, PHYSICALLY OR MENTALLY DISABLED
PERSONS, PERSONSWITH SENSORY DISORDER, PERSONSWITH NO APPROPRIATE QUALIFICATION.
ANY OPERATIONS WITH THE UNIT MUST BE PERFORMED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE SAFETY BRIEFING.
THE UNIT INSTALLATION SITES MUST PREVENT ACCESS BY UNATTENDED CHILDREN.
DELIVERY SET
Unit - 1 item
Control panel - 1 item
User's manual for the air handling unit - 1 item
User's manual for the control panel - 1 item
Packing box - 1 item
Outdoor temperature sensor - 1 item.
DESIGNATION KEY
Control panel
____ — PU SENS 01 with a sensor display
A7 — PU JK 01 with a LCD display
Motor type
EC - electronically commutated motor
Heater type
E - electric heater
Unit type
VUT - heat recovery ventilation
Mounting option
P - suspended mounting
Rated air capacity [m3/h]
VUT ХХХ PE ЕС Х
Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises.
The unit is a component part and is not designed for stand-alone operation.
The unit is designed to ensure mechanical air exchange in houses, offices, hotels, cafés, conference halls, and other utility and public
spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of supply
air.
The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of
chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favorable for the formation of
hazardous substances (toxic substances, dust, pathogenic germs).
Relative humidity of transported air must not exceed +20 °C at an ambient humidity of 80 %.

www.ventilation-system.com
6
TECHNICAL PARAMETERS
UNIT OVERALL DIMENSIONS, MM
UNIT TECHNICAL DATA
Type VUT 2000 PE EC VUT 3000 PE EC
Ø D 314 399
B950 1265
B1 405 563
B2 225 347
B3 500 570
H761 881
H1 367 427
L1400 1835
L1 1453 1888
Type VUT 2000 PE EC VUT 3000 PE EC
Voltage, 50 (60) Hz [V] 3 ~ 400
Max. fan power [W ] 2 items х 420 2 items х 990
Max. fan current [A] 2 items х 2,5 2 items х 1,7
Electric heater power [kW] 12,0 21,0
Electric heater current [A] 17,4 30,0
Total unit power [kW] 12,84 23,0
Total unit current [A] 22,4 33,4
Air capacity [m3/h] 2000 4000
Rotation speed [min -1] 2920 2580
Noise level, 3 m [dB(A)] 58 59
Transported air temperature [°С] from -25 up to +40 from -25 up to +50
Casing material Aluzinc
Insulation 25 mm mineral wool
Filter: extract G4
supply G4
Connecting air duct dia. [mm] Ø 315 Ø 400
Weight [kg] 190 290
Heat recovery eciency up to 75%
Heat exchanger type Cross-ow
Heat exchanger material Aluminium
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up
to 80 %.
In order to prevent condensation on the internal walls of the units, it is necessary that the surface temperature of the casing is 2-3 °C
higher than the dew point temperature of the transported air.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
• IP22 for the unit connected to the air ducts
• IP44 for the unit motors
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.

7
DESIGN AND OPERATING LOGIC
The unit operates as follows:
Warm stale extract air from the room ows through the air ducts to the unit, where it is ltered, then air ows through the heat exchanger
and is exhausted outside by the extract fan through the air ducts.
Clean cold air from outside is moved by the supply fan to the unit, where from it is directed to the supply lter. Then ltered air ows
through the heat exchanger and moves to the room through the air ducts.
Heat energy of warm extract air is transferred to clean intake fresh air from outside and warms it up. Heat recovery minimizes heat energy
losses, energy demand and operating costs for air heating accordingly.
The unit is equipped with a detachable service panel for repair works and preventive maintenance and a cover enabling access to the
control system components.
Intake air
Extract air
Exhaust air
Supply air
Supply fan
Electric heater
Cross-ow heat exchanger
Duct humidity sensor (option)
Extract lter
Control unit case
Extract fan
Drain panBy-pass damper
Supply lter
DESIGN AND OPERATING LOGIC
TOP VIEW
The basic unit delivery set includes a remote control panel for connection to the control system inside the unit casing.
The unit comprises a supply and an extract centrifugal single-inlet fan with forward curved blades and maintenance-free EC motors with
external rotor and built-in overheat protection, a plate cross-ow heat exchanger, an electric heater, a supply and an extract lter.
The supply G4 lter cleans supply air ow and prevents contamination of the unit parts. The extract G4 lter prevents contamination of the
unit components.
Some condensate may be generated during heat recovery. The condensed uid is collected in the drain pan and is removed from the unit
through the drain pipes.

www.ventilation-system.com
8
MOUNTING AND STARTUP
Threaded dowel pin
Nut
Washer
Fixing bracket
Vibration-absorbing
rubber
Nut and lock-nut
UNIT MOUNTING
The unit is designed for suspended mounting by means of the threaded rod xed in the threaded dowel pin.
To attain the best performance of the unit and to minimise turbulence-induced air pressure losses while mounting connect a straight air
duct section on both sides of the unit.
The minimum straight duct section length must be equal to one air duct diameter on air intake side and three times diameter on air exhaust
side.
If the air ducts are not connected or the connected air ducts are too short, protect the unit parts from ingress of foreign objects by covering
the spigots with a protecting grille or other protecting device with mesh width not more than 12.5 mm to prevent uncontrollable access to
the fans.
SAFETY PRECAUTIONS
The unit is designed for mounting on a rigid and stable structure.
The unit is mounted with anchor bolts. Make sure that a mounting construction has sucient load capacity matching the unit weight.
Otherwise reinforce the installation place by beams, etc.
If the threaded bolts used for the unit mounting are too short, the unit can generate abnormal noise and resonate with the ceiling. The
suspended bolts must be long enough to prevent resonating.
If the unit connection place to the spiral seam duct is supposed to be the source of abnormal noise, replace the spiral seam air duct with
the exible one. Optionally the exible connectors may be used to prevent resonating.
CONDENSATE DRAINAGE
The condensate drain pan in the heat
recovery section is equipped with hoses for
removal of the condensed uid outside the unit.
Connect the pipe, U-trap (not included in
delivery package) and sewage collection system
with metal, plastic or rubber connecting pipes.
The pipe slope downwards must be at least 3°.
Fill up the system with water before connecting
the unit to the power mains! The U-trap must
always be lled with water during the unit
operation. Make sure that the water ows freely
into the sewage collection system or otherwise
condensed water may build up in the unit
during the heat exchanger operation and cause
equipment failure and condensed water outow
into the premises.
The condensate drainage system is
designed for normal operation in premises with
air temperatures above 0 °C. If the expected
ambient air temperatures are below 0 °C the
condensate drainage system must be equipped
with heat insulation and pre-heating facilities.
Pipe
U-trap
Sewage system
min 3°
Pipe
Pipe
U-trap
Sewage system
Pipe
Drain pipe
Drain pipe
min 3°
DO NOT CONNECT SEVERAL DRAIN PIPES FROM SEVERAL AIR
HANDLING UNITS TO ONE UTRAP!
DIRECT CONDENSATE OUTSIDE WITHOUT CONNECTION TO DRAIN
SYSTEM IS NOT ALLOWED!

9
OUTDOOR TEMPERATURE SENSOR INSTALLATION
Mounting of the outdoor temperature sensor:
1. Remove two screws from the sensor cover.
2. Take o the cover from the sensor.
3. Install the sensor on the outside wall. The wall must not be
exposed to direct sunlight.
4. Install the sensor cover back.
1
3
2
4
CONNECTION TO POWER MAINS
DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY ELECTRIC INSTALLATION
OPERATIONS.
CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN
WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER DETAILED STUDY OF THE
PRESENT USER’S MANUAL.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE. ANY
INTERNAL CONNECTION MODIFICATIONS ARE NOT ALLOWED AND RESULT IN WARRANTY LOSS.
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Out Gnd E+
Out Gnd E+
A
TE1
t°C
Gnd
+12V
A B
P1
1 2
PK1
Cooler
Power supply
400 V AC
— ELECTRIC SHOCK HAZARD!
B Gnd +12V no c no c L N L N PE N L3 L2 L1
2 1
SM2
2 1
L N L N
SM1
The unit is rated for connection to three-phase ac 400 V / 50 Hz. The unit shall be connected to power supply by means of insulated, durable
and thermal-resistant cords (cables, wires) with respective cross section, in any case no less than 4 mm2. The above cross section is for reference
only. The applicable cable must be selected in consideration of the maximum wire temperature depending on the wire and insulation type, the
maximum current, the lead wire length and its installation method.»
Use copper wires only.
Connect the unit to power mains through the terminal block which is located in the terminal box on the side of the unit, in compliance with
the wiring diagram and the terminal marking. Connect all the control and supply cables in compliance with the terminal marking and polarity!
Connect the unit to power mains through an external thermal-magnetic circuit breaker integrated into the xed wiring system. The trip
current should be not below the current consumption.
Name  Type Wire
Cooler DX cooler NO 2 х 0,75 mm2
SM1 Supply air damper actuator LF230 2 х 0,75 mm2
SM2 Extract air damper actuator LF230 2 х 0,75 mm2
PK1 Contact from re alarm panel NO 2 х 0,75 mm2
P1** Remote control 4 х 0,75 mm2
TE1 Outdoor temperature sensor 3 х 0,75 mm2
1. The unit delivery set includes P1 and TE1 only.
2. ** Maximum connecting cable length is 20 m!

www.ventilation-system.com
10

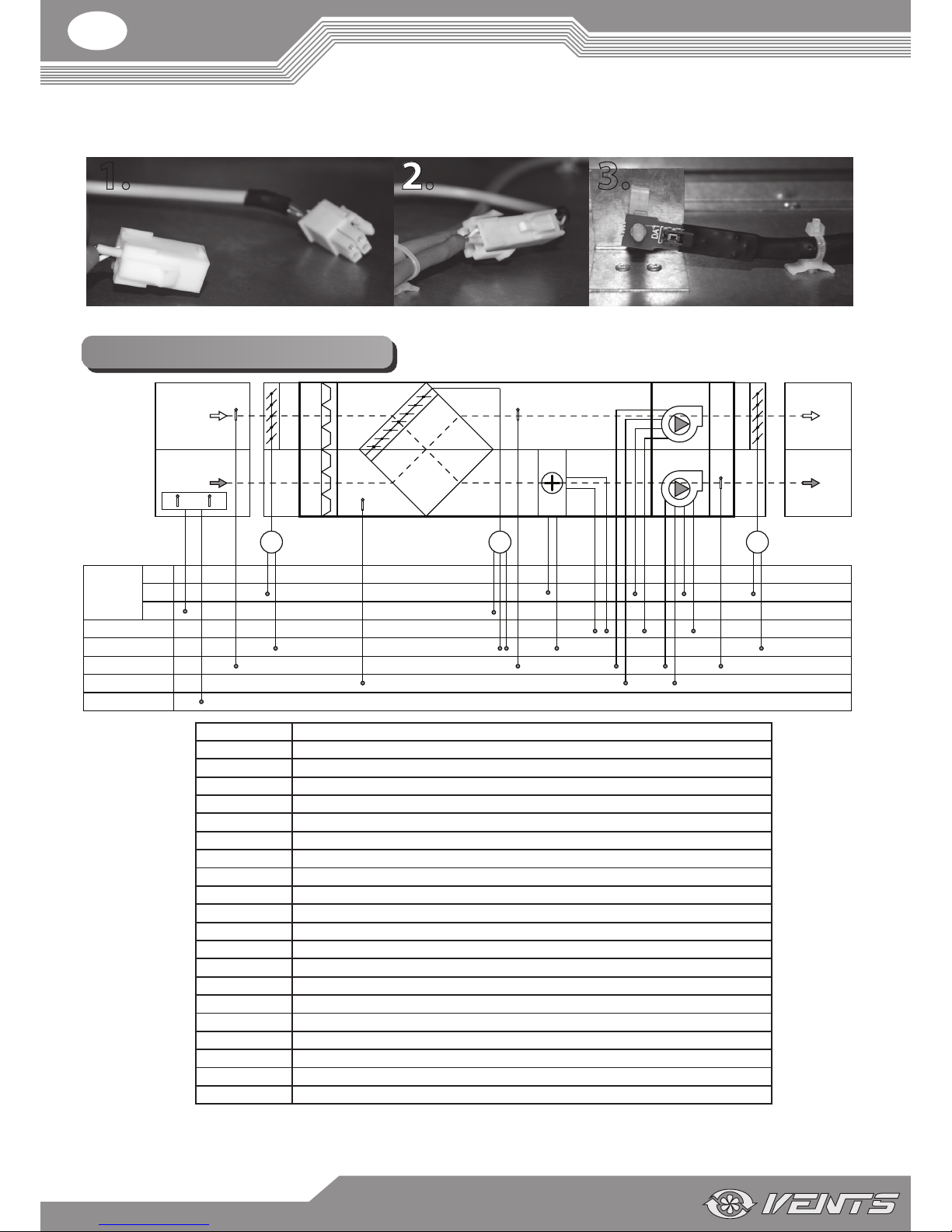

HV1 duct humidity sensor is a special accessory that is not included into the delivery set. To install the sensor connect the humidity sensor
socket connector XS7 to the socket connector XS7 inside the unit. Then x the sensor with the clamp and the holder in the extract air duct
upstream of the heat exchanger.
1. 2. 3.
FUNCTIONAL DIAGRAM
Power
supply
Outside
Inside
Outside
Inside
P1
SM1
TE1
TE6 HV2 HV1
D1 F1 RK1
F2 TS1
TS2
Q1 M1 TE5
Digital input (DI)
Digital output (DO)
Analogue input (AI)
Analogue output (AI)
RS485
12 V AC
230 V AC
24 V AC
TE2 M2 D2
SM2SM3
Designation Name
D1* Supply air damper
D2* Extract air damper
F1 Supply lter
F2 Extract lter
M1 Supply fan
M2 Exhaust fan
P1 Control panel
Q1 Electric air heater
RK1 Plate heat exchanger
SM1* Supply damper actuator
SM2* Extract damper actuator
SM3 Bypass damper electric actuator
TE1 Outer air temperature sensor
TE2 Temperature sensor at heat exchanger outlet
TE5 Duct temperature sensor
TE6 Room air temperature sensor (included in the control panel delivery set)
TS1 Overheat protection thermostat actuated at +60°С with automatic reset
TS2 Overheat protection thermostat actuated at +90°С with manual reset
HV1* Duct humidity sensor
HV2 Indoor humidity sensor
* Not included into the delivery set, available on separate order

11
MAINTENANCE
The recommended maintenance periodicity is 3-4 times per year. The maintenance and servicing routines include regular cleaning and the
following operations:
1. Filter maintenance (3-4 times a year).
Contaminated lters increase air resistance thus impairing supply air volume into the premises. Clean the lters as these get dirty, but at least
3-4 times a year. Use a vacuum cleaner to remove the contamination or use new lters. Change the lters after the second cleaning. New lters can
be purchased from the unit seller.
Filter removing:
1. Unlatch the service panel.
2. Support the service panel with a hand and open it.
3. Remove the lters from the unit.
1 2 3
2. Heat exchanger checking (once a year).
Even regular lter technical maintenance may not completely prevent dirt accumulation on the heat exchanger unit. Clean the heat exchanger
on a regular basis to ensure its high heat recovery eciency. To clean the heat exchanger remove it from the unit and wash it with warm neutral
detergent solution. Re-install the dry heat exchanger back into the unit.
Removing the heat exchangers:
1. Unlatch the service panel.
2. Support the service panels with a hand and open
those.
3. Remove the four screws to take the drain pan o.
4. Remove the nine retaining screws o the heat
exchanger and remove the heat exchanger carefully from
the unit.
1 2
3 4

www.ventilation-system.com
12
3. Fan inspection (once a year).
Even regular technical maintenance of the lters and heat exchanger may not completely prevent dust accumulation in the fans which reduces
the fan capacity and impairs supply air volume into the premises.
Clean the fans with a cloth or a soft brush. Do not use water, aggressive solvents, sharp objects etc. for cleaning not to damage the impeller.
4. Condensate drain checking (once a year).
The drain pipes may get clogged with the extracted particles. Pour some water inside the drain pan and check the pipe for clogging. Clean the
U-trap and drain pipe if required.
5. Extract and supply diuser cleaning (as required).
Remove the diusers and louver shutters and wash these with warm mild detergent solution.
6. Air intake checking (twice a year).
Leaves and other pollutions can clog the supply air grille and reduce the unit performance and supply air volume. Check the supply grille twice
per year and clean it as required.
7. Duct system checking (every 5 years).
Even regular fullling of all the prescribed above maintenance operations may not completely prevent dust accumulation in the air ducts
which reduces the unit performance. The air duct maintenance includes regular cleaning or replacement.
POSSIBLE FAULTS AND TROUBLESHOOTING
Fault Possible reasons Fault handling
The fan does not start
up during the unit
start-up.
No power supply. Make sure the unit is properly connected to power mains,
otherwise troubleshoot a connection error.
Motor is jammed, the impeller are clogged. Turn the unit o. Troubleshoot the motor jam and the
impeller clogging. Clean the blades. Restart the unit.
System alarm. For troubleshooting of the control system errors refer to the
control panel manual.
Circuit breaker tripping
following the unit
turning on.
Overcurrent as a result of short circuit in the
electric circuit. Turn the unit o. Contact the service centre.
Low air ow.
Low set fan speed. Set higher speed.
The lters, the fans or the heat exchanger are
contaminated.
Clean or replace the lters, clean the fans and the heat
exchanger.
The air ducts, diusers, louver shutters, grilles are
clogged or contaminated.
Clean or replace ventilation system components as air ducts,
diusers, louver shutters, grilles.
The air dampers, diusers or louver shutters are
closed.
Make sure the air dampers, diusers or louver shutters are
fully opened.
Low supply air
temperature.
The extract lter is soiled. Clean or replace the extract lter.
The heat exchanger is frozen.
Check the heat exchanger condition. Turn the unit o and
restart it after the heat exchanger freezing danger is no
longer imminent.
Electric heater malfunction. Contact the unit seller for troubleshooting.
High noise, vibration.
The impeller is soiled. Clean the impeller.
The fan or casing screw connection is loose. Tighten the screw connection in the fan or the casing against
stop.
No anti-vibration dampers. Install anti-vibration rubber mounts.
Condensate leakage. The drain line is clogged, damaged or wrong
mounted.
Clean the drain line, if necessary. Check the drain line slant,
inspect the U-trap and make sure the drain line is equipped
with frost protection.
TROUBLESHOOTING

13
STORAGE AND TRANSPORTATION RULES
Store the unit in the manufacturer’s original packing box in a dry ventilated premise at the temperatures from +5 °C up to +40 °C and
relative humidity up to 80%.
Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation and sealing deformation.
Use hoist machinery for handling and storage operations to prevent the unit damage. Full the handling requirements applicable for the
applicable freight type.
Transportation with any vehicle type is allowed provided that the unit is protected against mechanical and weather damage.
Avoid any mechanical shocks and strokes during handling operations.
MANUFACTURER’S WARRANTY
The manufacturer hereby warrants normal operation of the unit over the period of 24 months from the retail sale date provided the user’s
observance of the transportation, storage, installation and operation regulations.
Should any malfunctions occur during the unit operation through the manufacturer’s fault during the warranty period the user is entitled to
elimination of faults by means of warranty repair performed by the manufacturer.
The warranty repair includes work specic to elimination of faults in the unit operation to ensure its intended use by the user within the
warranty period. The faults are eliminated by means of replacement or repair of the complete unit or the faulty part thereof.
The warranty repair does not include:
• Routine maintenance;
• Unit installation / dismantling;
• Unit setup.
To benet from warranty repair the user must provide the unit, the user’s manual with stamped sale date and the payment document certifying
the purchase.
The unit model must comply with the one stated in the user’s manual.
Contact the unit Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to provide the unit with the entire delivery package as stated in the user’s manual or with missing component parts
previously dismounted by the user;
• Mismatch of the unit model and make with the respective details stated on the unit packing and in the user’s manual;
• User’s failure to ensure timely technical maintenance of the unit;
• External damage to the casing (excluding external modications of the unit as required for its installation) and the internal components
of the unit;
• Alteration of the unit design or engineering changes of the unit;
• Replacement and use of the unit assemblies, parts and components not approved by the manufacturer;
• Unit misuse;
• User’s violation of the unit installation regulations;
• User’s violation of the unit management regulations;
• Unit connection to the power pains with a voltage dierent from the one stated in the user’s manual;
• Unit breakdown due to voltage surges in the power mains;
• User’s discretionary repair of the unit;
• Unit repair performed by any persons without the manufacturer’s authorization;
• Expiry of the unit warranty period;
• User’s violation of the established regulations specic to the unit transportation;
• User’s violation of the unit storage regulations;
• Wrongful acts against the unit committed by third persons;
• Unit breakdown due to circumstances of insuperable force (re, ood, earthquake, war, hostilities of any kind, or blockade);
• Missing seals if provided by the user’s manual;
• Failure to provide the user’s manual with the sale date stamp;
• Missing payment document certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USERS’CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT, THE
PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE SALE DATE STAMP.

www.ventilation-system.com
14
Shop name
Address
Phone number
E-mail
Sales date
Seller’s seal
ACCEPTANCE CERTIFICATE
MOUNTING CERTIFICATE
SELLER’S INFORMATION
Product Type Heat recovery air handling unit
Model VUT______PE EC______
Serial Number
Manufacturing Date
is compliant with the technical specications and is hereby declared ready for service.
We hereby declare that the product complies with the essential protection requirements of Electromagnetic Council Directive 2004/108/
EC, 89/336/EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of
the Member States relating to electromagnetic compatibility.
This certicate is issued following test carried out on samples of the product referred to above.
Quality Inspector’s
Stamp
This is to certify delivery of the complete unit with the user's manual. The warranty terms are
acknowledged and accepted.
Customer's signature
VUT ___ PE EC _____ unit has been connected to power mains pursuant to the requirements stated in
the present user's manual.
Company name
Address
Phone number
Installation technician's
full name
Installation date: Signature:
Installation technician’s
company seal
This is to certify that the work specic to the unit installation has been performed in accordance with
all the applicable provisions of local and national construction, electrical and technical codes and
standards. The unit operates normally as intended by the manufacturer.
Signature:

15
Product type Heat recovery air handling unit
Model VUT______PE EC ______
Serial number
Manufacturing date
Sales date
Warranty period
Sales company
Seller’s seal
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
______________________________________________________________________________________________________
WARRANTY CARD

V68-01EN-06
