INSTRUCTION MANUAL
Original instructions for
VEGETABLE CUTTER MACHINE
VC-550 / VC-750
Keep these instructions with the appliance.
You should read this user manual carefully before using the appliance.

Dear Customer,
Thank you for purchasing this appliance. Please take a few minutes before starting
operation of the appliance and read the following operating instructions.
1. Intended use
1.1This machine is designed for commercial used only and must not be used for
household.
1.2The machine is not intended to process for meet, skin, shells or fish scales. Neither use
this machine to cut vegetable or fruit with nut or tough skin. Otherwise, it might lead to
damage of the machine, property or personal injury.
1.3The machine is intended for commercial and indoor use by trained and skilled personnel
familiar with these instructions.
The assortment is made up of 2 different sizes: VC-550/VC-750.
The machine body is built in aluminum and stainless steel for easy cleaning and
maintenance. It has safety features compliant with the applicable safety Directives.
2 Safety regulations
2.1 Safety regulations
2.1.1 This appliance is intended for commercial use only and must not be used for
household.
2.1.2 The appliance must only be used for the purpose for which it was intended and
designed. The manufacturer is not liable for any damage caused by incorrect operation
and improper use.
2.1.3 Keep the appliance and electrical plug away from water and any other liquids. In
the event that the appliance should fall into water, immediately remove plug from the
socket and do not use until the appliance has been checked by a certified technician.
Failure to follow these instructions could cause a risk to lives.
2.1.4 Never attempt to open the casing of the appliance yourself.
2.1.5 Do not insert any objects in the casing of the appliance.
1.1.6 Do not touch the plug with wet or damp hands.
2.1.7 Danger of electric shock! Do not attempt to repair the appliance yourself. In
case of malfunctions, repairs are to be conducted by qualified personnel only.
2.1.8 Never use a damaged appliance! Disconnect the appliance from the electrical
outlet and contact the retailer if it is damaged.
2.1.9 Do not immerse the electrical parts of the appliance in water or other liquids.
Never hold the appliance under running water.
2.1.10 Regularly check the power plug and cord for any damage. If the power plug or
power cord is damaged, it must be replaced by a service agent or similarly qualified

persons in order to avoid danger or injury.
2.1.11 Make sure the cord does not come in contact with sharp or hot objects and keep
it away from open fire. To pull the plug out of the socket, always pull on the plug and not
on the cord.
2.1.12 Ensure that the cord (or extension cord) is positioned so that it will not cause a
trip hazard.
2.1.13 Always keep an eye on the appliance when in use.
2.1.14 Warning! As long as the plug is in the socket the appliance is connected to the
power source.
2.1.15 Turn off the appliance before pulling the plug out of the socket.
2.1.16 Never carry the appliance by the cord.
2.1.17 Do not use any extra devices that are not supplied along with the appliance.
2.1.18 Only connect the appliance to an electrical outlet with the voltage and frequency
mentioned on the appliance label.
2.1.19 Connect the power plug to an easily accessible electrical outlet so that in case of
emergency the appliance can be unplugged immediately. To completely switch off the
appliance pull the power plug out of the electrical outlet.
2.1.20 Always turn the appliance off before disconnecting the plug.
2.1.21 Never use accessories other than those recommended by the manufacturer.
Failure to do so could pose a safety risk to the user and could damage the appliance.
Only use original parts and accessories.
2.1.22 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
2.1.23 This appliance must not be used by children under any circumstances.
2.1.24 Keep the appliance and its cord out of reach of children.
2.1.25 Always disconnect the appliance from the mains if it is left unattended or is not in
use, and before assembly, disassembly or cleaning.
2.1.26 Never leave the appliance unattended during use.
2.2 Special Safety Regulations
2.2.1 The appliance is intended for commercial and indoor use by trained and skilled
personnel familiar with these instructions.
2.2.2 This machine is designed for vegetable or fruit cutting in restaurants, canteens and
similar catering establishments.
2.2.3 Any other use might lead to damage to the appliance or personal injury.
2.2.4 Do not place the appliance on a heating object (gasoline, electric, charcoal cooker,
etc.) Keep the appliance away from any hot surfaces and open flames. Always
operate the appliance on a level, stable, clean, heat-resistant and dry surface.
2.2.5 Danger of injury! Care is needed when operating or cleaning. Wear protective
gloves (not supplied) if necessary.

2.2.6 Caution! Securely route the power cord if necessary, in order to prevent
unintentional tripping over and falling.
2.2.7 Do not use the appliance before it is properly assembled.
2.2.8 This appliance is not intended to be operated by means of an external timer or
separate remote-control system.
2.2.9 Never bypass any safety interlocks on the appliance.
2.2.10 WARNING: ALWAYS switch off the appliance and unplug from electrical power
supply before cleaning, maintenance or storage.
2.2.11 WARNING: ALWAYS keep hands, long hair and clothing away from the moving
parts.
2.2.12 WARNING: Take great care when handling the cutting blade. Wear protective gloves
(not supplied) if necessary.
2.2.13 Allow at least 15cm spacing around the appliance for ventilation purpose during use.
2.2.14 Do not wash the appliance with water or waterjet. Washing with water can cause
leakage and increase the risk of electric shock. No parts are dishwasher safe.
2.2.15 Do not move the appliance while it is under operation. Unplug the appliance when
moving and hold it at the bottom.
2.2.16 Special care should be taken when moving or transporting the appliance due to
heavy weight. With at least 2 people or using a trolley for assistance. Move the
machine slowly, carefully and never be inclined over 45°.
2.2.17 This appliance is equipped with a cord having a grounding wire with a grounding
plug, the plug must be plugged into an outlet that is properly installed and grounded.
3 PRODUCT DESCRIPTION

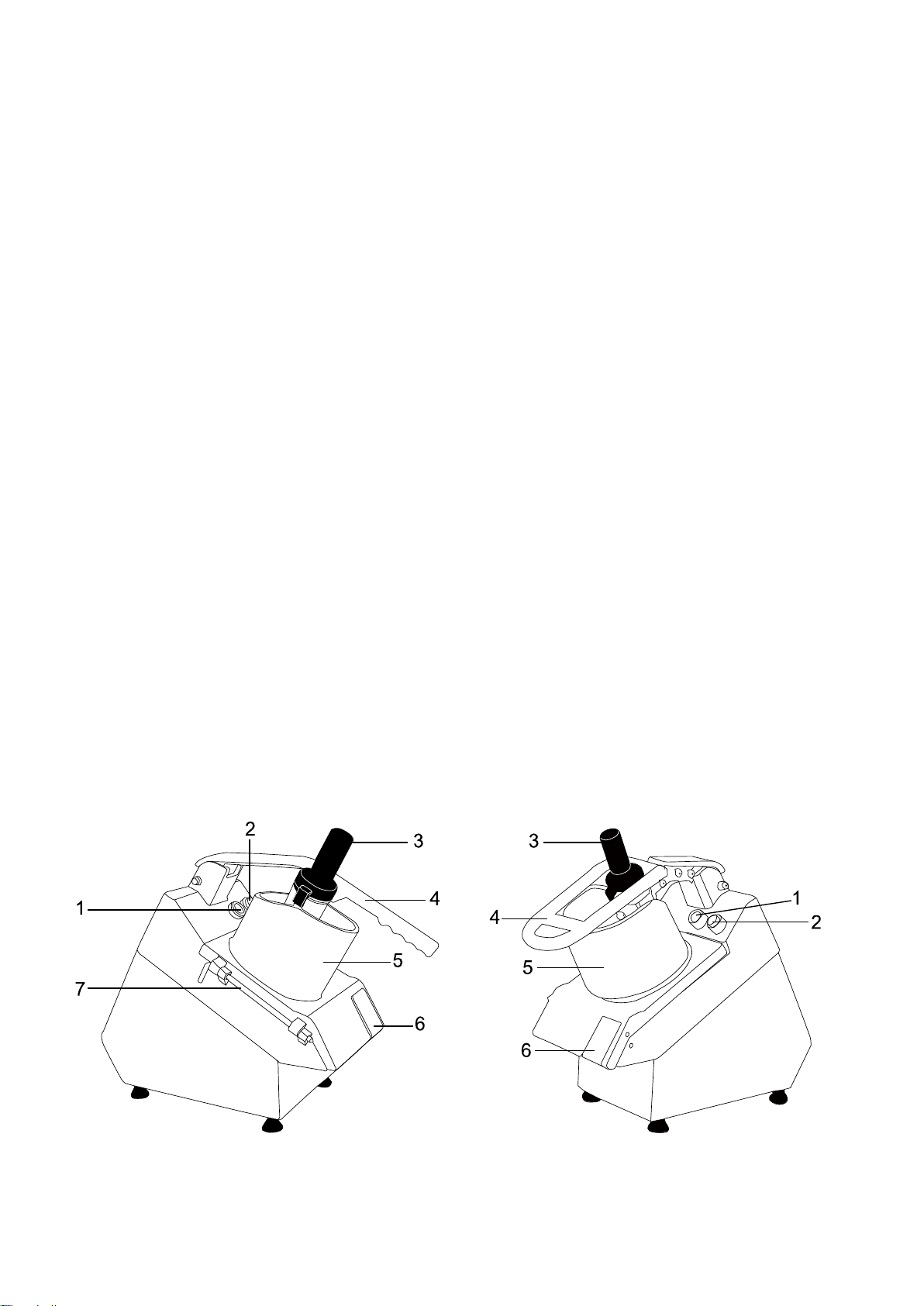

3.1 Parts of description
1. On switch 2. Off switch 3. Pusher 4. Handle bar 5. Hopper 6. Locking handle

7. Hopper lid spindle

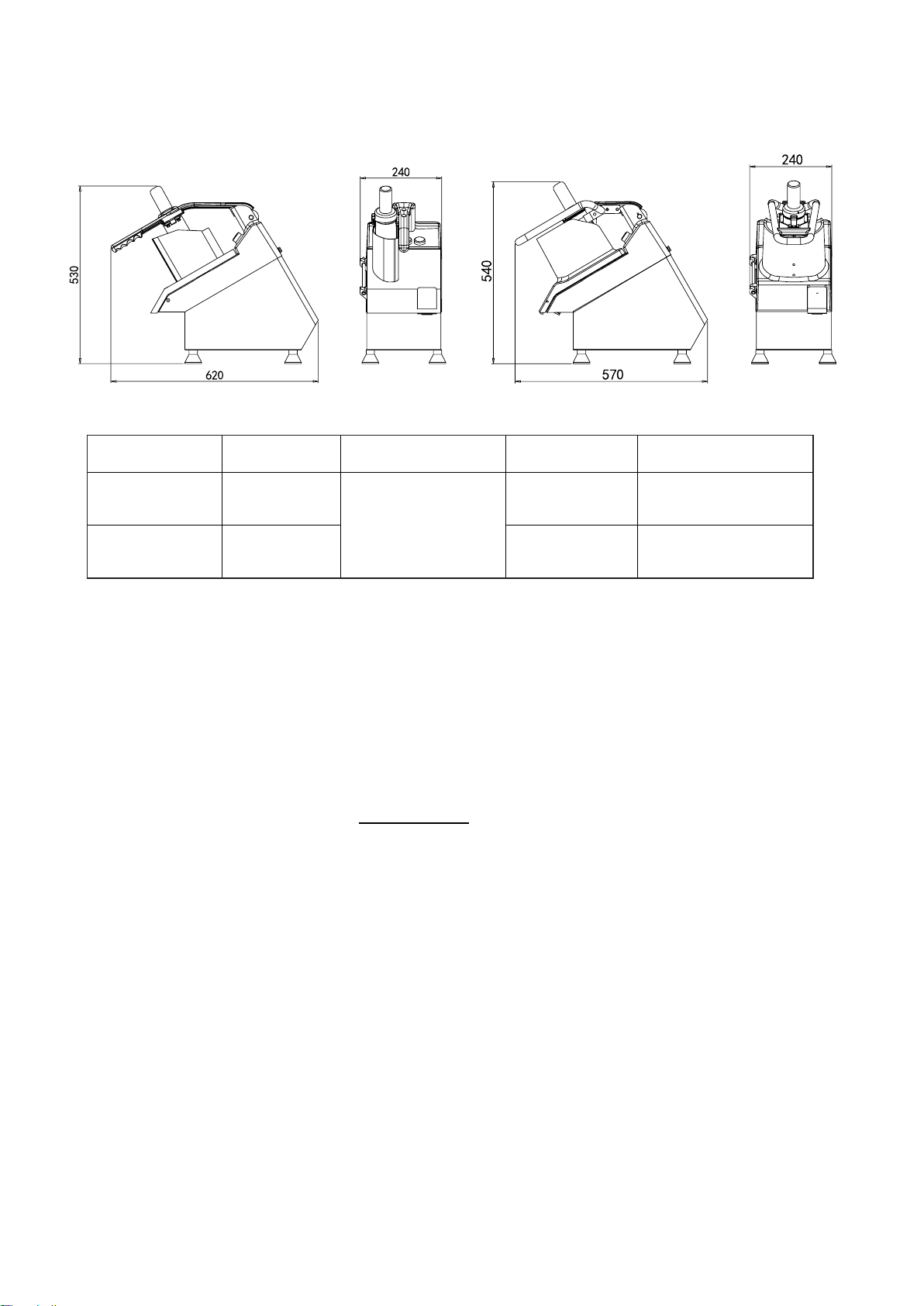

3.2 MAIN TECHNICAL PARAMETERS
Unit: mm
MODEL
POWER
VOLTAGE
N.W./G.W.
PACKING SIZE
VC-550
550W
220V-240V~
50/60Hz
115V~ 60Hz
380V~ 50Hz
24.2/27.2kg
65*31.5*53.5cm
VC-750
750W
24.9/28.2kg
65*32.5*53.5cm
4 INTRODUCTION
4.1 Preparation for first use
4.1.1 Check to make sure the appliance is undamaged. In case of any damage, contact
your supplier immediately and do NOT use the appliance.
4.1.2 Remove all the packing material and protection film (if applicable). Keep the
packaging for future storage.
4.1.3 Clean the appliance, see: 4.6 Cleaning.
4.1.4 Place the appliance on a level and steady surface, unless mentioned otherwise.
4.1.5 Make sure there is enough clearance around the appliance for ventilation purposes.
4.1.6 Position the appliance in such a way that the plug is accessible at all times.
4.1.7 Make sure the power outlet ratings correspond to the specifications printed on the
rating plate.
4.1.8 Make sure that the machine is connected to a grounding system.
4.1.9 Even if safety systems are installed on the machine, prevent approaching moving
parts with hands and do not touch the machine with wet or damp hands.
4.1.10 It is strongly recommended that the operator contact the after sales center if there is
any problem or malfunction occurred. Please do not dismantle the machine or in
place of unauthorized parts.

4.2 The manufacturer will be not responsible for following cases:
4.2.1 If the machine is tampered or safety functions are installed by non-authorized staff.
4.2.2 If the components are replaced by unauthorized parts.
4.2.3 If the instruction in this manual is not carefully followed.
4.2.4 If the machine surfaces are treated with unsuitable substance or solvent.
4.3 Safety devices
4.3.1 Micro-switch: The micro-switch is equipped with a magnet mechanism. The
appliance stops automatically when the upper lid or the outlet lid is opened during
operation.
4.4 INSTALLATION
4.4.1 Packing and unpacking
4.4.1.1 Remove all packaging materials. Keep the packaging for future storage.
4.4.1.2 Ensure the packages you received includes following items: vegetable cutter unit,
five standard cutting discs (one disc is equipped with appliance), ejector, brush,
pusher, spanner (VC-750 only), instruction manual.
4.4.1.3 After unpacking all accessories, lay them on a flat and stable surface.
4.4.1.4 Make sure the delivery contents are complete and free of any damage. If you find
that parts are missing or show damage, do not use the appliance but contact
your dealer.
4.4.1.5 Clean the disc, drain disc and other parts which contact with food.
BE CAREFUL! the blade of disc is very sharp. (Use gloves if necessary, not
supplied)
4.4.1.6 Position the appliance in such a way that the plug is always accessible.
4.4.2 Installation area
The selected machine work setting must be sufficiently lit and have an electric power outlet.
The workplace must be sufficiently large, perfectly level and dry. The machine should be
installed in non-explosive environments. In any case, installation should be carried out by
taking into account any applicable industrial safety regulations in force.

4.4.3 Electric connection
DANGER-CAUTION: Electric connection to the power outlet should be operated by skilled
personnel.
Check for the perfect efficiency of the plant grounding system. Make sure that the line
voltage (V) and frequency (Hz) correspond to the machine ratings (refer to the machine
identification plate and wiring diagram). The machine comes equipped with an electric
cable with plug. Plug the machine into a main wall switch with differential.
4.5 OPERATING
4.5.1 Operating
4.5.1.1 Position the appliance so that the on/off switch is facing the user.
4.5.1.2 Insert the plug into the wall socket.
4.5.1.3 Switch ON the appliance by pressing the “GREEN” button of the ON/OFF switch.
4.5.1.4 Put the vegetable or fruit into the carriage and
adjust the press to hold the materials firmly in
place. Make sure the materials are positioned
against the stop plate.
4.5.1.5 Once the meat has been cut, switch OFF the
appliance by pressing the “RED” button of the
ON/OFF switch.
4.5.2 Setting the discs on the machine
4.5.2.1 Lift up the handle as shown in figure 1, and open the cover.
4.5.2.2 Place the ejector correctly.
4.5.2.3 Place appropriate disc, hook the discs in the correct position.
4.5.2.4 Close the cover and handle.
COVER OPENING figure 1 DISC POSITION figure 2
BE CAREFUL! The blade of disc is very sharp. (Use gloves if necessary, not supplied)

4.5.3 Choice of discs
DISCCHOICE FORVEGETABLECUTTERMACHINE
PARTNO.
SIZE
Shredding
G002
2mm
G003
3mm
G005
4.5mm
G007
7mm
G010
10mm
Slicer (aluminum)
SA002
2mm (three blades)
SA004
4mm (two blades)
SA006
6mm (two blades)
SA008
8mm (single blade)
SA010
10mm (single blade)
Slicer (plastic)
SP002
2mm (three blades)
SP004
4mm (three blades)
Julienne
J303
3x3mm
J404
4x4mm
French Fries
FS808
8x8mm
FS100
10x10mm
Dicing
DS888
8x8x8mm
DS1000
10x10x10mm
DS2000
14x20x20mm
4.5.4 Using the discs
Before starting, always check the cleanliness of the cutting chamber, the drive spindle, the
ejector and the cutting discs.
4.5.4.1 Slicing, shredding and grating
4.5.4.1.1 Mount the ejector onto the flat surface of the drive spindle.
4.5.4.1.2 Mount the required disc (slicing, shredding or other options).

4.5.4.1.3 Turn the disc clockwise to insert the bayonet and keep on turning clockwise until it
reaches the pin.
4.5.4.1.4 To remove the disc, turn it in the opposite direction and lift it using the finger holes
at the edges of the disc.
4.5.4.1.5 Close and lock the cover and handle.
4.5.4.2 Cutting chips or cubes (option)
4.5.4.2.1 Mount the ejector.
4.5.4.2.2 Mount the chips/dice disc in the housing and check for correct fixing (the
assembly area must be clean). The upper edge of the chips/dice disc must be placed
slightly below the top of the body of the device.
4.5.4.2.3 Then mount the slicing disc of the same size as the chips/dice disc and close the
cover.
4.6 Cleaning
4.6.1 Attention: Always unplug the appliance from the
electrical power outlet and let it cool down
completely before cleaning and storage.
4.6.2 Clean the appliance after each use. to ensure
correct operation and long life of the device.
4.6.3 Warning: Never submerge the appliance in water
or other liquids!
4.6.4 Clean the device, in particular the disc assembly.
Only with a damped cloth or sponge in warm water.
Thoroughly remove all remaining foodstuff. Open the cover and loosen pin 1 as
shown in fig.3. Remove the cover and wash with warm running water. Clean the
surfaces with water with soap, alcohol, non-abrasive detergents or with water
without chlorine- or soda-based substances (chlorinated water, hydrochloric acid).
Never use abrasives, steel wool or similar products as they may damage the surface,
coating or body of the device. For cleaning, use non-toxic hygiene products.
4.6.5 Handle with great care.
Note: It is recommended to check the disc, ejector, hopper and body surface for blockage
and residues after each operating cycle.
4.7 Storage
4.7.1 Before reassembling, make sure that all parts are dry. Before storing, remove all
residues from the appliance (incl. the basins), disconnect it from the supply and
clean the appliance and its accessories thoroughly. Use white Vaseline oil (or any
similar product) to protect all parts of the device.
4.7.2 These products, mainly composed of oily substances and detergents, and available
Fig.3

in spray cylinders for easy application, make aluminum surfaces glossy and prevent
moisture and corrosion.
4.7.3 To protect the appliance from dust, cover it with a cloth that allows air circulation
inside the appliance.
5 Circuit diagram
110V~ 60Hz
230V~ 50Hz
380V~ 50Hz
6 Exploded view and spare parts lists

VC-550

VC-750
