Verbatim FWC-02 User manual

Qi Fast Wireless Car Charger
FWC-02
QUICK START GUIDE
1

1 2
1. Only use the product according to the instructions provided.
2. Do not disassemble the product, immerse it in water or expose it to open ames.
3. Do not use the product in high temperature, wet or corrosive environments.
4. Do not use the product in the immediate vicinity of heaters or other heat sources or
in direct sunlight.
5. Ensure that there are no metal parts (for example, a magnetic metal holder place) on
the back of your device whilst charging. Metal can be heated up signicantly by the
charger and may cause damage to your device and/or the wireless charger.
6. Do not put cards with magnetic strips or chips (ID card, credit card etc.) close to the
wireless charger to avoid demagnetization.
7. Keep the wireless charger at least 20 cm away from implanted medical devices, such
as heart pacemakers.
8. Ensure that the wireless charger is clear of airbags, safety areas, controls,
instruments, etc, and the driver’s visibility is not blocked or restricted.
9. Keep the product out of the reach of children.
Safety Notes:

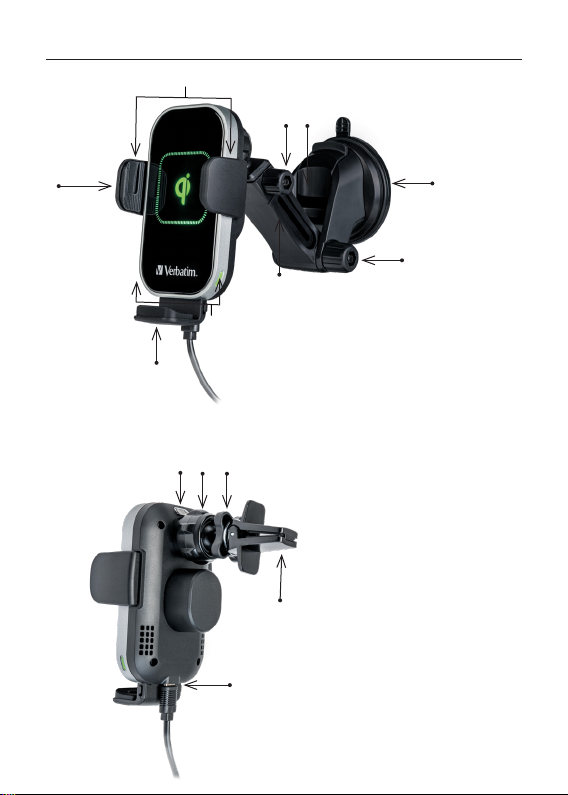

How it works
1. Silicon mat
2. Adjustable side arms
3. Lever
4. Suction cup
5. Pivot knob
6. Telescopic support pole
7. Telescopic knob
8. Indicator lights
9. Adjustable foot
1
2
8
73
4
9
6
5
5
3
12
1. Touch button
2. Angle pivot knob
3. Tightening wheel
4. Air vent clip
5. USB-C charging port
4
2

Mounting options
1. Mounting on suction cup
a. Unscrew angle pivot knob from car charger. Put it over the ball joint adapter.
b. Insert the ball into the socket of the charger in the back.
c. Tighten the angle pivot knob.
2. Mounting on a. Windscreen or b. Dashboard with suction cup
b.
a.
3. Adjusting the telescopic support pole
By turning the pivot knob (5), the telescopic support pole (6) can be moved up/down.
To fix the position, please tighten the pivot knob (5).
By turning the telescopic knob (7), the telescopic support pole (6) can be extended.
To fix the position please tighten the telescopic knob (7).
270° rotation
6
7
b.
a. c.
a.
b.
5
6
a. b.
Please clean the mounting area, lift the lever, push the suction cup firmly against the
windscreen and press the lever to lock.
Find a flat surface and clean the area, lift the lever, push firmly against the dashboard and
press the lever to lock.
a.
b.
Before use of the suction cup holder please peel off the protective paper film off the suction cup.
34

4. Mounting on air vent
Note
a. Unscrew angle pivot knob from car charger and put it over the ball joint adapter. Insert the
ball into the socket of the charger at the back and tighten the pivot knob.
b. Find a place on the air vent and clean the surface.
c. Insert the mount clips in the car air vent and turn the wheel until it is tightened.
At the end of the air vent holder you will find the eagle beak which will bite firmly into the air
outlet and will not fall off. This method of turning and locking the holder is suitable for a lot of cars.
d. Please go ahead with Step 5. (a)-(c) Power connection.
c.
b.
a.
• Confirm your car's air vents are compatible before purchasing.
• 5V / 1A car chargers are not sufficient to power the Verbatim Qi Fast Wireless Car Charger.
• A Quick Charge 3.0 car charger adapter (not included) or a QC 3.0 USB port in your car is
required for Fast Charge Mode.
• Metal attachments, Pop sockets, or credit cards will interfere with charging. Cases which
contain metal will trigger foreign object detection and interrupt charging.
• Please note that your device/smartphone needs to be compatible to Qi Standard, min. 5W.
• Fast Wireless Charging supported with 7.5 W to 15 W (power varies between manufacturers
of your device/smartphone).
345

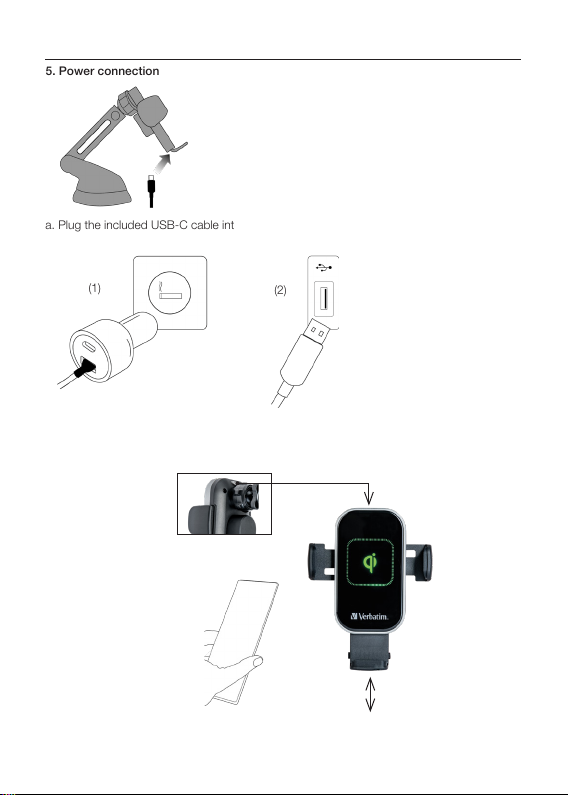

5. Power connection
a. Plug the included USB-C cable into the wireless car charger port.
For fast charging you need a QC 3.0 adapter (not included) or a QC 3.0 capable USB-A
charging port in your car. If using an adapter connect it to the lighter plug (1) and connect
the USB-A end of the cable to the adapter. If a USB-A charging port (2) is available you
can use it directly.
(1) (2)
Touch the button in the top back and place your phone in the car charger, extend the
adjustable foot to align the charging center.
b.
c.
Power connection
56

6. Inserting/removing phone
After you mounted the holder and the car charger is provided with power you can insert
your phone, the arms will close automatically. The phone will automatically start charging
(if the smartphone supports Qi). The green status LED on both sides will switch to blue.
If you want to open the arms while the device is charging and connected to power supply,
you need to touch the button on the top back. After touching the button, the arms will
release your phone so you can take it out.
CAUTION: Never use force to open or close the arms manually as the product is designed
to open and close automatically. Manual adjustment might damage the device.
Input (requirements for adapter): 9V/1.67A; 12V/1.5A-3A
Output: 15W / 10W / 7.5W / 5W (auto-adaptation)
Working frequency: 110 KHz-205KHz
Product standard: Qi
Charging distance: ≤10mm
Charging efficiency: ≤80%
Product dimension: 116mm x 71mm x 54mm
Product material: ABS + PC, surface: toughened glass, fluorescent indicator
Product weight: 127g
Cable: USB-C to USB-A cable, 1m
Protective functions: Over-voltage protection / Over-current protection
Over-temperature protection / Short circuit protection
FOD (foreign object detection)
NPO capacitors: Lower charging temperature and high charging efficiency

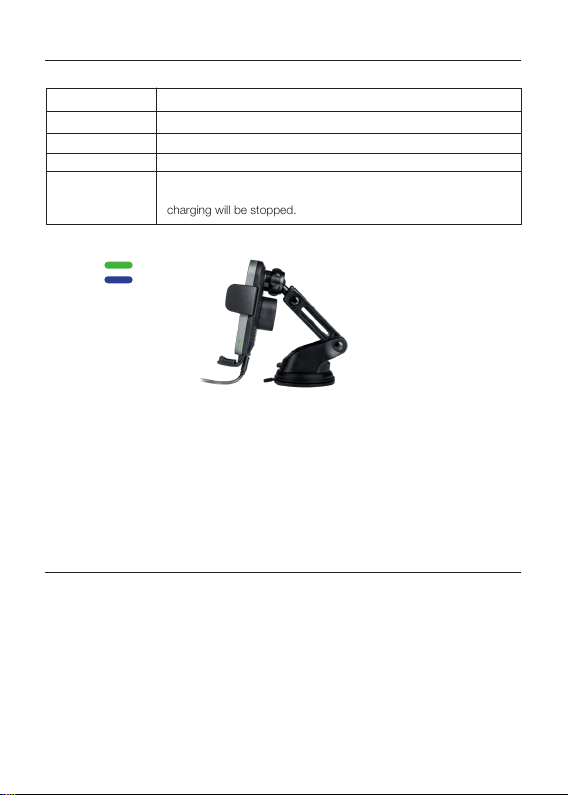

Indicator LED info
Green (on both sides)
Green (on both sides)
Blue (on both sides)
LED will switch from blue to green (on both sides)
If metal or magnetic objects are somewhere on the charger, the
LED will flash green and blue. If foreign objects are detected,
charging will be stopped.
Working mode:
Standby
Charging
Standby mode:
Charging mode:
Charge complete:
Foreign object
detection warning:
Specifications
6

Limited Warranty Terms
Note
Rights
CE Declaration
RoHS Compliance
WEEE Notice
Verbatim GmbH warrants this product to be free from defects in material and workmanship for
a period of 2 years from date of purchase. This warranty excludes batteries. If this product is
found to be defective within the warranty period, it will be replaced at no cost to you. You may
return it with your original cash register receipt to the place of purchase or contact Verbatim.
Product replacement is your sole remedy under this warranty, and this warranty does not
apply to normal wear or to damage resulting from abnormal use, misuse, abuse, neglect or
accident, or to any incompatibility or poor performance due to the specific computer software
or hardware used. VERBATIM WILL NOT BE LIABLE FOR DATA LOSS OR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, HOWEVER CAUSED, FOR BREACH OF
WARRANTIES OR OTHERWISE. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state or country to country.
Verbatim GmbH may at any time revise the content of this user guide without further notice.
Copyright © 2022 Verbatim GmbH. No part of this document may be reproduced in any
form or by any means, for any purpose, without the express written permission of Verbatim
GmbH. All rights reserved. All other brands and product names referenced herein are
property of their respective owners.
Complies with the requirements set out in the Council Directive on the Approximation of
the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EC) and
General Product Safety Directive (2001/95/EC). This declaration applies to all specimens
manufactured identical to the model submitted for testing/evaluation.
This product is in compliance with Directives 2011/65/EU and 2015/683 of the European
Parliament and of the Council of 18th December 2006, on the restriction of the use of hazar-
dous substances in electrical and electronic equipment (RoHS) and its amendments.
Substances of Very High Concern (SVHC) including 224 substances contained in Candidate
List of June 10th 2022 are not present in this product range above permitted levels.
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into
force as European law on 13th February 2003, resulted in a major change in the treatment
of electrical equipment at end-of-life.
The WEEE logo (shown at the left) on the product or on its box indicates that this product
must not be disposed of or dumped with your other household waste.
For more information about electronic and electrical waste equipment disposal,
recovery, and collection points, please contact your local municipal household waste
disposal service or shop from where you purchased the equipment.
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489 V2.3.0 (2022-07)
EN 55032:2015/A11:2020
EN 55035:2017/A11:2020
7

Technical Support
Verbatim QSG 49553 Qi Fast Wireless Charger FWC-02 EN Rev. 22-11
