VERDER AIR VA 8 810.6012 Operation manual

819.6247
Rev. R
INSTRUCTIONS - PARTS LIST
VERDERAIR VA 8 Air-Operated
Diaphragm Pumps
0.7 MPa, 7 bar Maximum Incoming Air Pressure
0.7 MPa, 7 bar Maximum Fluid Working Pressure
* NOTE: Refer to the pump listing on page to determine the Model No of your pump.
Patent Pending
Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Listing 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Kit Listing 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Lists 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Drawing 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Torque Sequence 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions and Mounting Hole Layout 19. . . . . . . . . . . . . . . .
Performance Charts 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Customer/Guarantee 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
INSTRUCTIONS

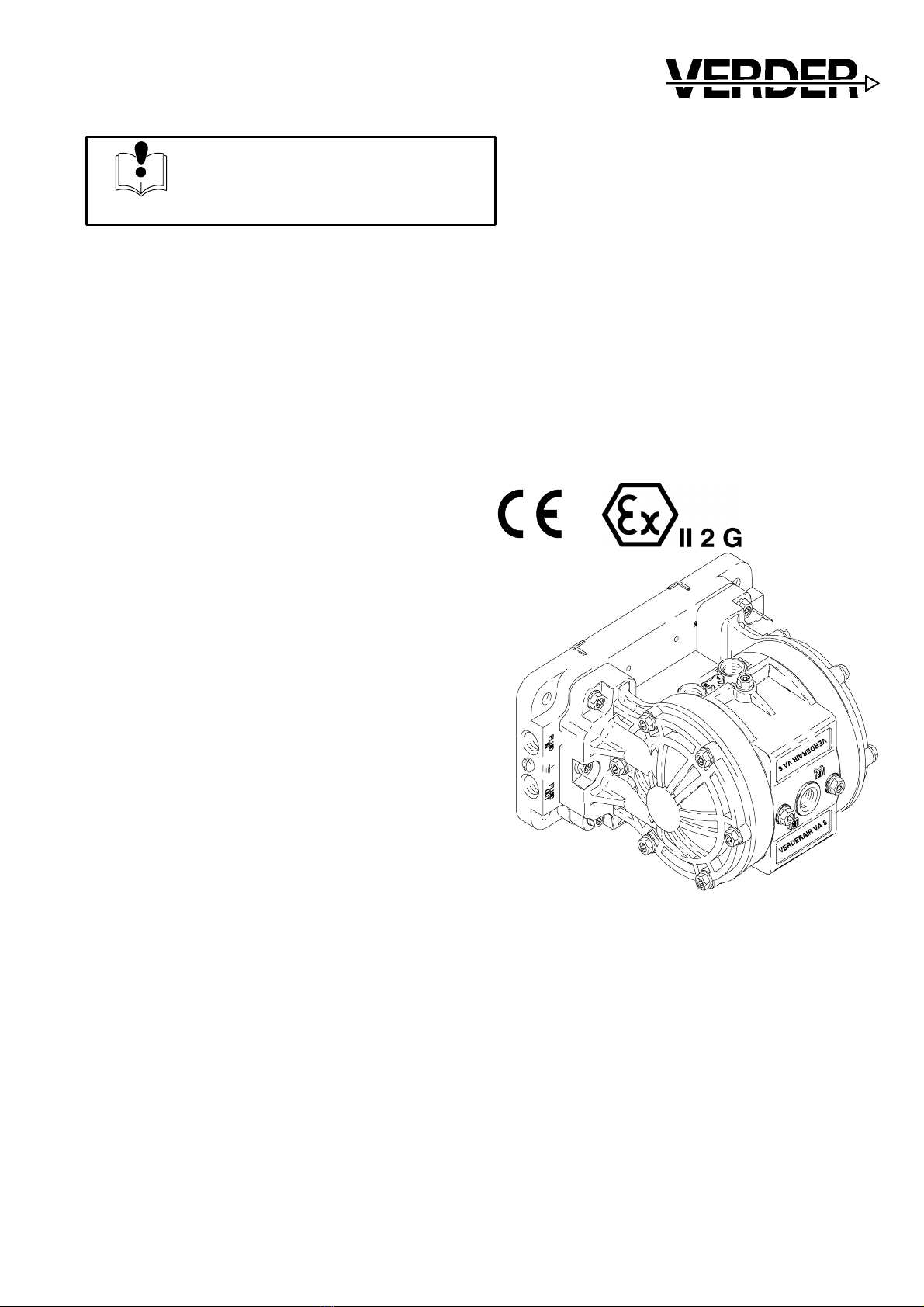

06176
Model 810.6012
shown
Parts

2 819.6247
Warnings
Warning Symbol
Warning
This symbol alerts you to the possibility of serious injury or
death if you do not follow the instructions.
Caution Symbol
Caution
This symbol alerts you to the possibility of damage to or de-
struction of equipment if you do not follow the instructions.
EQUIPMENT MISUSE HAZARD
Any misuse of the equipment or accessories, such as overpressurizing, modifying parts, using incompatible
chemicals and fluids, or using worn or damaged parts, can cause them to rupture and result in splashing in the
eyes or on the skin, other serious injury, or fire, explosion or property damage.
This equipment is for professional use only. Observe all warnings. Read and understand all instruction manu-
als, warning labels, and tags before you operate this equipment. If you are not sure, or if you have questions
about installation or operation, call your VERDER distributor.
Never alter or modify any part of this equipment; doing so could cause it to malfunction.
Check all equipment regularly and repair or replace worn or damaged parts immediately.
Never exceed the recommended working pressure or the maximum air inlet pressure stated on your pump or
in the Technical Data on page 19.
Do not exceed the maximum working pressure of the lowest rated component in your system. This equip-
ment has a 0.7 MPa (7 bar) maximum working pressure at 0.7 MPa (7 bar) maximum incoming air
pressure.
Be sure that all fluids and solvents used are chemically compatible with the wetted parts shown in the
Technical Data on page 19. Always read the manufacturer’s literature before you use fluid or solvent in the
pump.
Never move or lift a pump under pressure. If dropped, the fluid section may rupture. Always follow the
Pressure Relief Procedure on page 7 before you move or lift the pump.
Warning
INSTRUCTIONS

819.6247 3
HAZARDOUS FLUIDS
Improper handling of hazardous fluids or inhaling toxic vapors can cause extremely serious injury or death from
splashing in the eyes, ingestion, or bodily contamination. Observe all the following precautions when you handle
hazardous or potentially hazardous fluids.
Know what fluid you are pumping and its specific hazards. Take precautions to avoid a toxic fluid spill.
Always wear appropriate clothing and equipment, such as eye protection and breathing apparatus, to protect
yourself.
Store hazardous fluid in an appropriate, approved container. Dispose of it according to all Local, State, and
Federal guidelines for hazardous fluids.
Secure the fluid outlet hose tightly into the receiving container to prevent it from coming loose and improperly
draining the fluid.
Pipe and dispose of the exhaust air safely, away from people, animals, and food handling areas. If the dia-
phragm fails, the fluid is exhausted along with the air. See Air Exhaust Ventilation on page 4.
FIRE AND EXPLOSION HAZARD
Static electricity is created by the flow of fluid through the pump and hose. If the equipment is not properly
grounded, sparking may occur. Sparks can ignite fumes from solvents and the fluid being pumped, dust par-
ticles, and other flammable substances, whether you are pumping indoors or outdoors, and can cause a fire or
explosion and serious injury and property damage.
To reduce the risk of static sparking, ground the pump and all other equipment used or located in the work
area. Check your local electrical code for detailed grounding instructions for your area and type of equip-
ment. See Grounding on page 4.
If you experience any static sparking or even a slight shock while using this equipment, stop pumping
immediately. Check the entire system for proper grounding. Do not use the system again until you have
identified and corrected the problem.
Pipe and dispose of the exhaust air safely, away from all sources of ignition. If the diaphragm fails, the fluid is
exhausted along with the air. See Air Exhaust Ventilation on page 4.
Never use a polypropylene or Kynarpump with non-conductive flammable fluids as specified by your local
fire protection code. Refer to Grounding on page 4 for additional information. Consult your fluid supplier to
determine the conductivity or resistivity of your fluid.
Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid being pumped.
Do not smoke in the work area. Do not operate the equipment near a source of ignition or an open flame,
such as a pilot light.
Warning
Comply with all applicable local, state and national fire, electrical and safety regulations.

4 819.6247
Installation
Tightening Threaded Fasteners Before First
Use
After unpacking the pump, and before using it for the first
time, check and retorque all external fasteners. See Service
for torque specifications. See Torque Sequence, page 17,
for torque sequence. After the first day of operation, retorque
the fasteners again. Although pump use varies, a general
guideline is to retorque fasteners every two months.
Use a compatible thread sealant on all male threads. Tighten
all connections firmly to avoid air or fluid leaks.
Caution
To avoid pump damage, do not overtighten the fittings to the
pump.
Grounding
Warning
This pump must be grounded. Before you
operate the pump, ground the system as
explained below. Also read the section FIRE
AND EXPLOSION HAZARD on page 3.
The acetal pump contains stainless steel
fibers which make the wetted parts conduc-
tive. Attaching the ground wire to one of the
grounding locations grounds the wetted
parts.
The polypropylene and Kynarpumps are not conduc-
tive. When you pump conductive flammable fluids, al-
ways ground the entire fluid system. Make sure the fluid
has an electrical path to a true earth ground, see Fig 1.
Never use a polypropylene or Kynarpump with non-con-
ductive flammable fluids as specified by your local fire
protection code.
US Code (NFPA 77 Static Electricity) recommends a con-
ductivity greater than 50 x 10–12 Siemans/meter (mhos/
meter) over your operating temperature range to reduce
the hazard of fire. Consult your fluid supplier to determine
the conductivity or resistivity of your fluid. The resistivity
must be less than 2 x 1012 ohm-centimeters.
To reduce the risk of static sparking, ground the pump and all
other equipment used or located in the pumping area. Check
your local electrical code for detailed grounding instructions
for your area and type of equipment.
Acetal Pump Grounding Instructions
For polypropylene and Kynarpumps, see the warning
above.
Ground all of this equipment.
Pump: Connect a ground wire (A) and clamp, Part No.
819.0157. See Fig. 1. The pump grounding locations are on
the manifold between the inlet and outlet ports. Use the nut
(B) and bolt (C) that are provided with the pump, and install
as follows:
1. Place the nut in the nut catcher on the underside of the
manifold.
2. Insert the bolt through the loop end of the ground wire.
3. Insert the bolt through the hole on the pump manifold
and tighten it into the nut that you positioned in step 1.
4. Connect the clamp end of the ground wire to a true earth
ground.
Fig. 1
A
C
grounding hole
06179A
B
Air and fluid hoses: Use only grounded hoses with a maxi-
mum of 500 ft (150 m) combined hose length to ensure
grounding continuity.
Air compressor: Follow the manufacturer’s recommenda-
tions.
All solvent pails used when flushing: Follow the local code.
Use only grounded metal pails, which are conductive. Do not
place the pail on a non-conductive surface, such as paper or
cardboard, which interrupts the grounding continuity.
Fluid supply container: Follow the local code.
Air Exhaust Ventilation
Warning
TOXIC FLUID HAZARD
Read the USING HAZARDOUS FLUIDS and
FIRE AND EXPLOSION HAZARD sections
on page 3 before you operate this pump.
Be sure the system is properly ventilated for
your type of installation. You must vent the
exhaust to a safe place, away from people,
animals or food handling areas when pump-
ing flammable or hazardous fluids
If the diaphragm ruptures, the fluid being
pumped is exhausted with the air. Place a
container at the end of the air exhaust line to
catch fluid in case the diaphragm ruptures,
and disconnect the pump.

819.6247 5
Installation
Mountings
Caution
The pump exhaust air may contain contaminants. If needed,
ventilate to a remote area to reduce possible fluid contamina-
tion. See Air Exhaust Ventilation on page 4.
Be sure the mounting can support the weight of the
pump, hoses, and accessories, as well as the stress
caused during operation.
For all mountings, be sure the pump is secured with
screws and nuts.
Warning
To reduce the risk of serious injury, splashing in the eyes
or on the skin, and toxic fluid spills, never move or lift a
pump under pressure. If dropped, the fluid section may
rupture. Always follow the Pressure Relief Procedure on
page 7 before you move or lift the pump.
Air Lines
Warning
Bleed-Type Master Air Valve and Fluid Drain Valve
A bleed-type master air valve and a fluid drain valve are
required on your system.
The bleed-type master air valve relieves air trapped be-
tween itself and the pump. Trapped air can cause the
pump to cycle unexpectedly, which could result in serious
bodily injury, including splashing in the eyes, injury from
moving parts, or contamination from hazardous fluids.
The fluid drain valve reduces the risk of serious bodily
injury, including splashing in the eyes or on the skin, or
contamination from hazardous fluids. Install the fluid drain
valve close to the pump’s fluid outlet to relieve pressure in
the hose if the hose becomes plugged.
1. Mount the air line accessories on the wall or on a
bracket. Be sure the air line supplying the accessories
is grounded.
a. The pump speed can be controlled in one of two
ways: To control it on the air side, install an air
regulator. To control it on the fluid side, install a
fluid valve near the outlet.
b. Install a bleed-type master air valve downstream
from the air regulator, and use it to relieve trapped
air. See the Bleed-Type Master Air Valve and
Fluid Drain Valve warning at left. Locate another
bleed-type master air valve upstream from all air line
accessories, and use it to isolate the accessories
during cleaning and repair.
c. The air line filter removes harmful dirt and moisture
from the compressed air supply.
2. Install a flexible air hose between the accessories and
the pump air inlet. Screw the air line fitting into the air
inlet.
3. Do not restrict the exhaust port. Excessive exhaust
restriction can cause erratic pump operation.
Fluid Lines
Fig. 2. On each end of the fluid manifold are a fluid IN port
and a fluid OUT port. NOTE: Make sure the fluid OUT port
on the fluid manifold is mounted up. This will insure proper
pump priming. Fluid-in and fluid-out lines can be connected
on the same end, or opposite ends of the manifold. Plug
ports that are not used (plugs provided).
Fig. 2 06179A

6 819.6247
Installation
Typical Installation
The installation shown in Fig. 3 is only a guide to help select
and install a pump; they are not actual system designs.
Typical installation includes (not supplied by VERDER):
For solenoid operation: four-way, 5-port, 2-position sole-
noid valve with 1/4-in. ports. Schrader BellowsPart
No. C511ABB5 or equivalent.
PLC or timer. Consult your local industrial controls
distributor.
Caution
For solenoid operation, the pump must exhaust through the
solenoid. Failure to exhaust through solenoid could cause the
diaphragms to fail.
06504
Fig. 3
KEY
AVERDERAIR VA 8 pump
B Bleed-type master air valve
(required for pump)
C Air line(s)
E Master air valve (for accessories)
F Air line filter
G Muffler
H Pump air regulator
J Fluid drain valve
(required on fluid outlet side of pump)
L Fluid suction line
N Fluid supply hose
T Bung adapter
U 4-way solenoid
Y Ground wire (required)
See page 4 for installation instructions.
C
J
L
N
T
Y
A
U
Air line to Port A
Air line to Port B
Air line to inlet
Internal Air Valve Operated
Remote Solenoid Operated
E H
B
G
F
Remote Solenoid View
Internal Air Valve View
(shown upright for clarity)
C
J
N
A
L
L
C

819.6247 7
Operation
Pressure Relief Procedure
Warning
To reduce the risk of serious injury, including splashing fluid
in the eyes or on the skin, follow this procedure whenever
you are instructed to relieve pressure, when you shut off
the pump, and before you check, adjust, clean, move, or
repair any system equipment.
1. Shut off air and reserve air to the pump.
2. Open the dispensing valve if the system has one.
3. Open the fluid drain valve to relieve all system pressure,
and have a container ready to catch the drainage.
Flushing the Pump Before First Use
The pump was tested in water. If water could contaminate the
fluid you are pumping, flush it thoroughly with a compatible
solvent. Follow the procedure in Starting and Adjusting the
Pump.
Starting and Adjusting the Pump
Warning
To reduce the risk of serious injury, splashing in the eyes or
on the skin, and toxic fluid spills, never move or lift a pump
under pressure. If the pump is dropped, the fluid section
could rupture. Always follow the Pressure Relief Proce-
dure above before you move or lift the pump.
1. Be sure the pump is properly grounded. Read and follow
the instructions in Grounding on page 4.
2. Check all fittings to be sure they are tight. Be sure to use
a compatible liquid thread sealant on all male threads.
Tighten the fluid inlet and outlet fittings and plugs secure-
ly. Retorque all fasteners before start-up.
3. Place the suction tube (if used) in the fluid to be pumped.
4. Place the end of the outlet hose into an appropriate con-
tainer.
5. Close the fluid drain valve.
6. With the air regulator closed, open all bleed-type master
air valves.
7. If the outlet hose has a dispensing device, hold it open
while continuing with step 8.
8. Slowly open the air regulator until the pump starts to
cycle. Allow the pump to cycle until all air is pushed out
of the lines and the pump is primed.
NOTE: To prime a remote solenoid-operated air
valve, operate the pump at a minimum 60 cpm
rate until the pump is fully primed.
Pump Shutdown
At the end of the work shift, and before you check, adjust,
clean, or repair the system, relieve air and fluid pressure.
Warning
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the Pressure
Relief Procedure at left.

8 819.6247
Maintenance
Lubrication
The air valve is lubricated at the factory and designed to op-
erate without additional lubrication.
If added lubrication is desired, every 500 hours of operation
(or monthly), remove the hose from the pump air inlet and
add two drops of machine oil to the air inlet.
Caution
Do not over-lubricate the pump. Excess oil is exhausted
through the muffler, which could contaminate your fluid sup-
ply or other equipment.
Tightening Threaded Connections
Before each use, check all hoses for wear or damage, and
replace as necessary. Be sure all threaded connections are
tight and free of leaks.
Check fasteners. Tighten or retorque as necessary. Although
pump use varies, a general guideline is to retorque fasteners
every two months. See Service for torque specifications. See
Torque Sequence, page 17, for torque sequence.
Flushing and Storage
Flush the pump to prevent the fluid from drying or freezing in
the pump and damaging it. Always flush the pump and re-
lieve the pressure before storing for any length of time. Use
a compatible solvent.
Warning
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the Pressure
Relief Procedure on page 7.
If you are flushing, run the pump long enough to thoroughly
clean the pump and hoses, close the air regulator, and re-
move the suction hose from the solvent and place it in the
fluid to be pumped.
If you are shutting down the pump, remove the suction hose
from the fluid container, run the pump until the fluid is forced
out of the system, and shut off the air supply immediately.

819.6247 9
Troubleshooting
Relieve the pressure before you check or service the equip-
ment.
Check all possible problems and causes before you disas-
semble the pump.
Warning
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the Pressure
Relief Procedure on page 7.
Internal Air Valve-Operated and Remote Solenoid-Operated Pumps
PROBLEM CAUSE SOLUTION
The pump cycles at stall, or it fails to
hold pressure at stall.
The check valves (20) or o-rings (21)
are leaking.
Replace the check valves and/or
o-rings. See page 13.
The check valves (20) are worn. Replace the check valves. See
page 13.
Debris is stuck between the a check
valve (20) and the seat.
Clean the check valve/seat area. See
page 13.
The pump operates erratically. The suction line is clogged. Inspect and clear the line.
The check valves (20) are sticking or
leaking.
Replace the check valves, or clean and
check the valve/seat area. See page 13.
A diaphragm (30) is ruptured. Replace the ruptured diaphragm. See
page 12.
There are air bubbles in the fluid. The suction line is loose. Tighten the suction line.
A diaphragm (30) is ruptured. Replace the ruptured diaphragm. See
page 12.
The manifold (52) is loose, or the
o-rings (21) are damaged.
Tighten the manifold screws (58).
Replace the o-rings (21). See page 13.
The fluid covers (51) are loose. Tighten the fluid cover screws (58). See
page12 .
There is fluid in the exhaust air. A diaphragm (30) is ruptured. Replace the ruptured diaphragm. See
page 12.
A diaphragm plate (50) is loose. Tighten the diaphragm plate. See
page 12.
The pump exhausts air near the fluid
covers.
The fluid covers (51) are loose, or the
o-rings (57) are damaged.
Tighten the fluid cover screws (58), or
replace the o-rings. See page12.
The pump exhausts air near the air
valve.
The air valve cover screws (14) are
loose.
Tighten the screws. See page 11.
The top (5) and/or side (6) air valve
o-rings are damaged.
Replace these o-rings. See the Parts
Drawing on page 16.
The pump leaks fluid from the check
valves.
The o-rings (21) are leaking, or the
screws (58) are loose.
Replace these o-rings, and tighten the
screws. See page 13.

10 819.6247
Troubleshooting
Internal Air Valve-Operated Pumps Only
PROBLEM CAUSE SOLUTION
The pump will not cycle, or it cycles
once and stops.
The air valve is stuck or dirty.
Not enough air pressure supplied.
Disassemble and clean or repair the air.
Use filtered air.
Increase air pressure supply. Do not ex-
ceed maximum input pressure.
Remote Solenoid-Operated Pumps Only
PROBLEM CAUSE SOLUTION
The pump will not prime or loses prime. The cycle rate is too low.
The check valves (20) are not sealing.
Fluid manifold not mounted with OUT
port up.
Increase cycle rate to 60 cpm.
Inspect the check valves, and replace
them if worn or damaged. See page 13.
Re-mount fluid manifold so OUT port is
up.
The pump leaks air or does not operate. Air is supplied to Port A and Port B at
the same time.
Solenoid exhaust is plugged.
Replace both diaphragms (30).
See page 12.
Check your installation. See page 6.
Ensure that exhaust (G on page 6) is
free of obstructions.

819.6247 11
Service
Service Kits
Service Kits may be ordered separately.
To repair the air valve, order Part No. 819.6249. Parts
included in the Air Valve Service Kit are marked with an
asterisk in the Parts Drawing on page 16, for example (3*).
For fluid section repair section parts, see the Service Kit
Listing on page 14. Parts included in the Fluid Section Ser-
vice Kit are marked with a dagger in the Parts Drawing on
page 16, for example (4).
Servicing the Air Valve

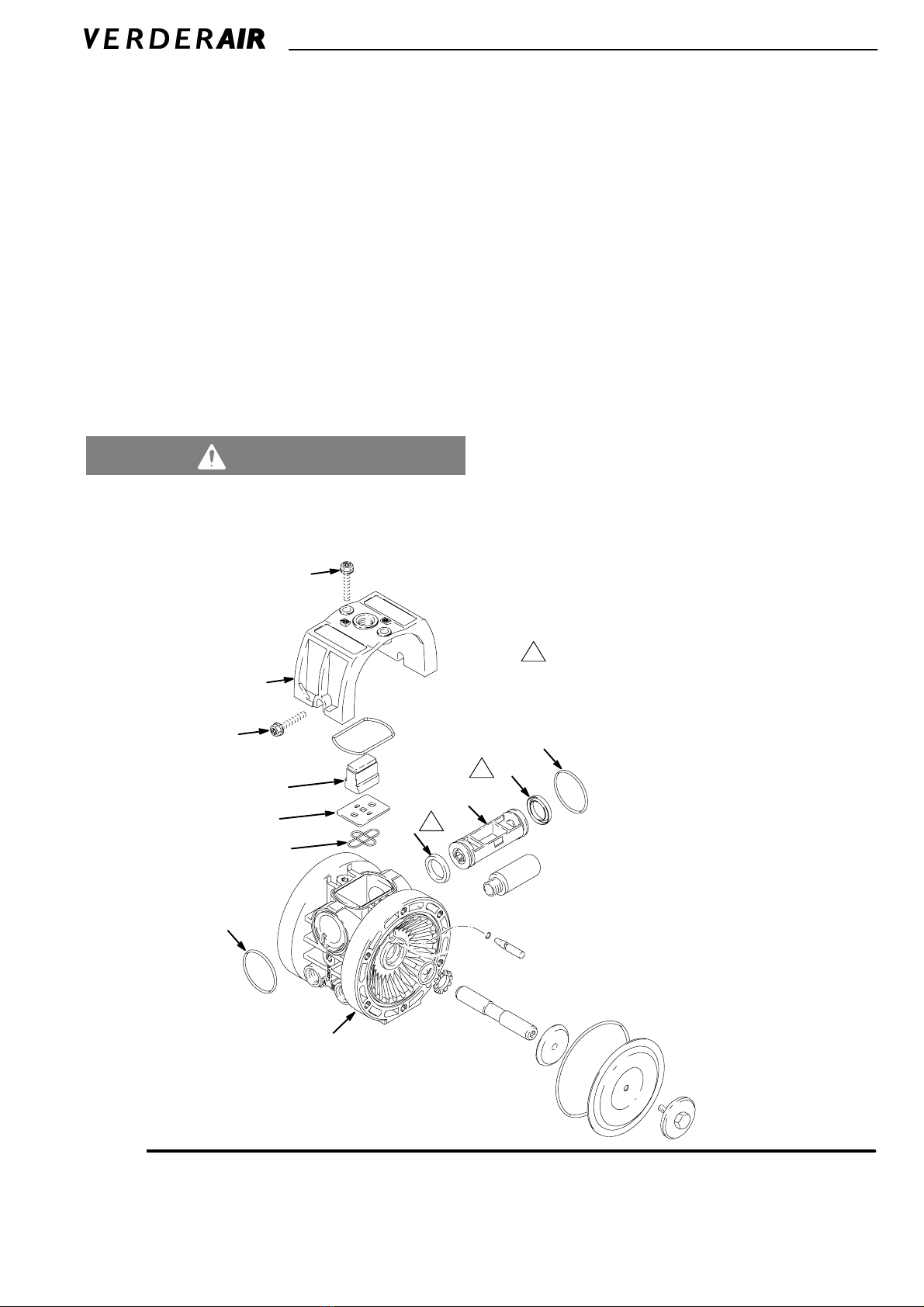

Service the air valve as follows. See Fig. 4.
1. Relieve the fluid pressure, and disconnect air line from
the pump.
Warning
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the Pressure
Relief Procedure on page 7.
2. Remove the four screws (14) that hold the valve
cover (7) on the center housing (1).
3. Remove the valve block (4) and valve carriage (2), and
replace the u-cups (3). Replace the valve carriage and
valve block. When you replace the valve carriage, posi-
tion it all the way to one side or the other.
NOTE: The valve block shown in Fig. 4 is for pumps
with an air-operated air motor. If your pump has
a solenoid-operated air motor, this step does
not pertain. Items 2, 3, 4, 16, and 17 are not
required.
4. Clean any parts that are dirty.
5. To replace the value cover (7), spread cover apart
enough not to damage the square ring packings (6) and
slide cover (7) into the center section.
6. Replace screws (14), and torque the screws to 40 in-lb
(4.5 N.m). See Torque Sequence on page 17.
7. Reconnect the pump.
Fig. 4
14
7
06177C
14
2
4
Lips of u-cups (3) must face toward each other
(toward center of valve carriage (2)).
1
13
31
1
17
16
6
6

12 819.6247
Service
Replacing Diaphragms

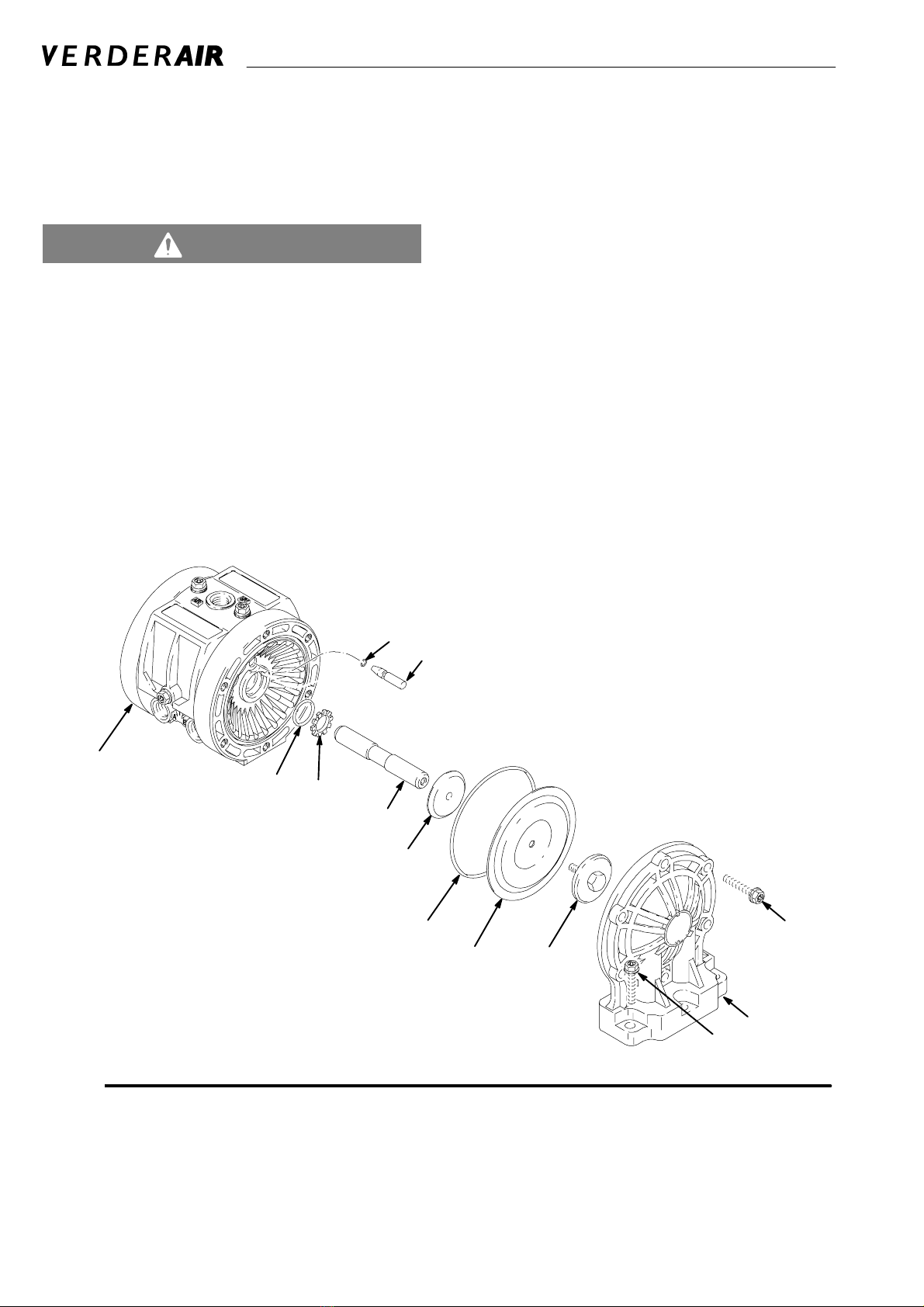

Replace the diaphragms as follows. See Fig. 5 and Fig. 6.
1. Relieve the pressure, and disconnect the air line from
the pump.
Warning
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the Pressure
Relief Procedure on page 7.
2. Remove the eight screws (58) that fasten the two fluid
covers (51) to manifold (52), and remove the fluid cover/
center housing assembly from the manifold.
3. Remove the six screws (58) that fasten each fluid
cover (51) to the center housing (1), and pull the fluid
covers off of the center housing.
4. Remove the diaphragm plates (50) from the shaft (10),
and remove the diaphragms (30), and air-side dia-
phragm plates (11).
5. Remove the diaphragm pins (8), remove and replace the
o-rings (9), and reinstall the diaphragm pins in the center
housing (1).
6. Reinstall the diaphragm shaft (10).
7. Install the new diaphragms (30) with the concave side
toward the center housing (1).
8. Screw the diaphragm plates (50) onto the shaft (10), and
torque to 40 in-lb (4.5 N.m)
9. Replace the fluid covers (51) on the center housing (1),
replace the screws (58) that fasten the fluid covers to the
center housing, and torque the screws to 40 in-lb
(4.5 N.m). See Torque Sequence on page 17.
10. Replace the manifold covers/center housing assembly
on the manifold (52), replace the screws (58) that fasten
the manifold covers/center housing assembly to the
manifold, and torque the screws to 40 in-lb (4.5 N.m)
11. Reconnect the pump.
Fig. 5
50
30
57
8
06180C
58
58
51
1
10
11
9
12 13

819.6247 13

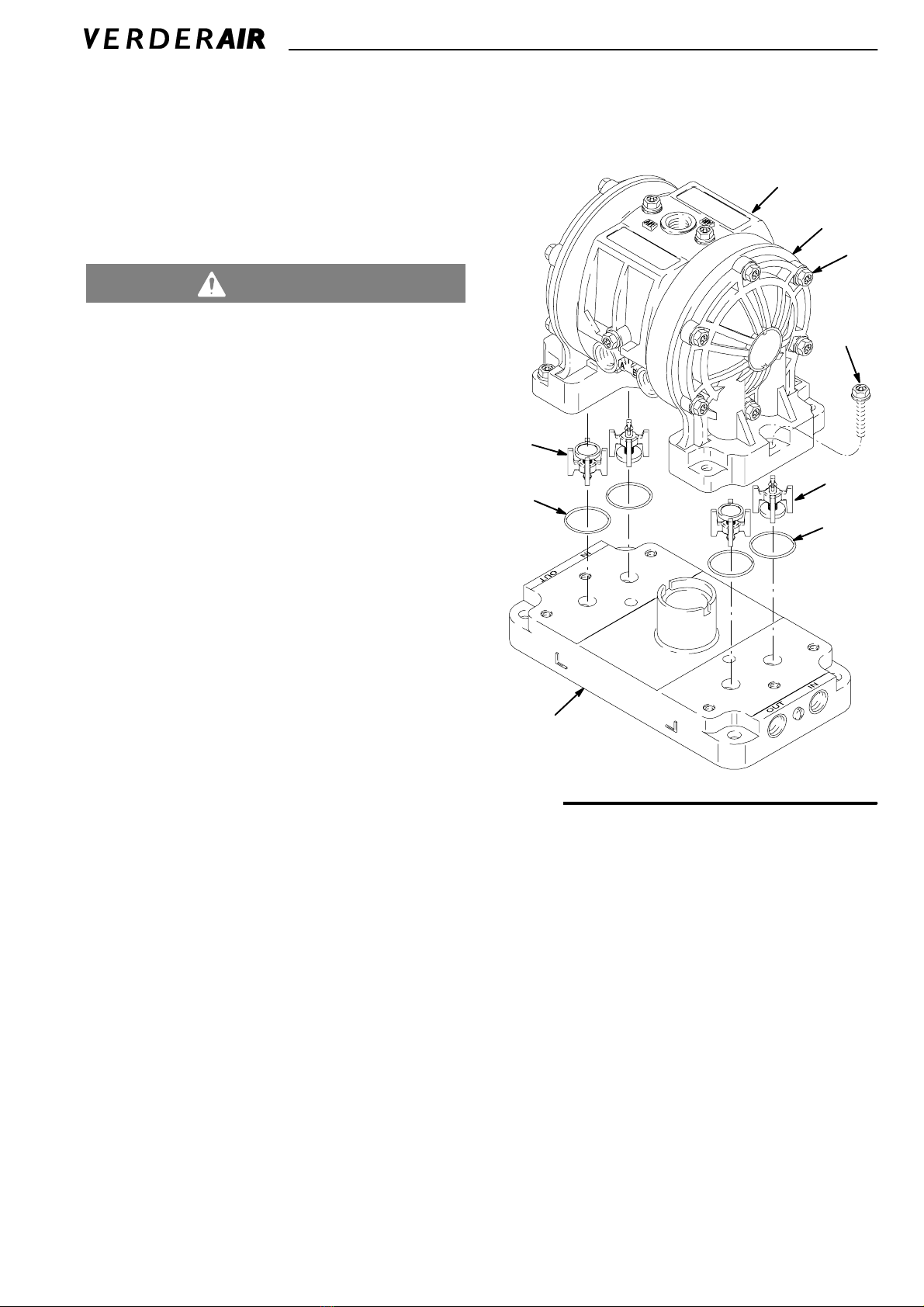

Service
Replacing Check Valves
Replace each pair of check valves as follows. See Fig. 6.
1. Relieve the pressure, and disconnect the air line from
the pump.
Warning
To reduce the risk of serious injury whenever you are
instructed to relieve pressure, always follow the Pressure
Relief Procedure on page 7.
2. Remove the eight screws (58) that hold the fluid cover/
center housing assembly on the manifold (52), and lift
the manifold covers/center housing assembly off of the
manifold (52).
3. Remove and replace the check valves (20), being care-
ful to orient each check valve exactly like the one it
is replacing. Make sure the check valve/seat area is
clean.
4. Remove and replace the sealing o-rings (21). Once com-
pressed, o-rings may not be reused. Make sure the
check valve/seat area is clean.
5. Replace the manifold covers/center housing assembly
on the manifold (52), replace the screws (58) that fasten
the manifold covers/center housing assembly to the
manifold, and torque the screws to 40 in-lb (4.5 N.m).
See Torque Sequence on page 17.
6. Reconnect the pump.
Fig. 6 06178A
52
51
1
58
58
21
20
21
20

14 819.6247

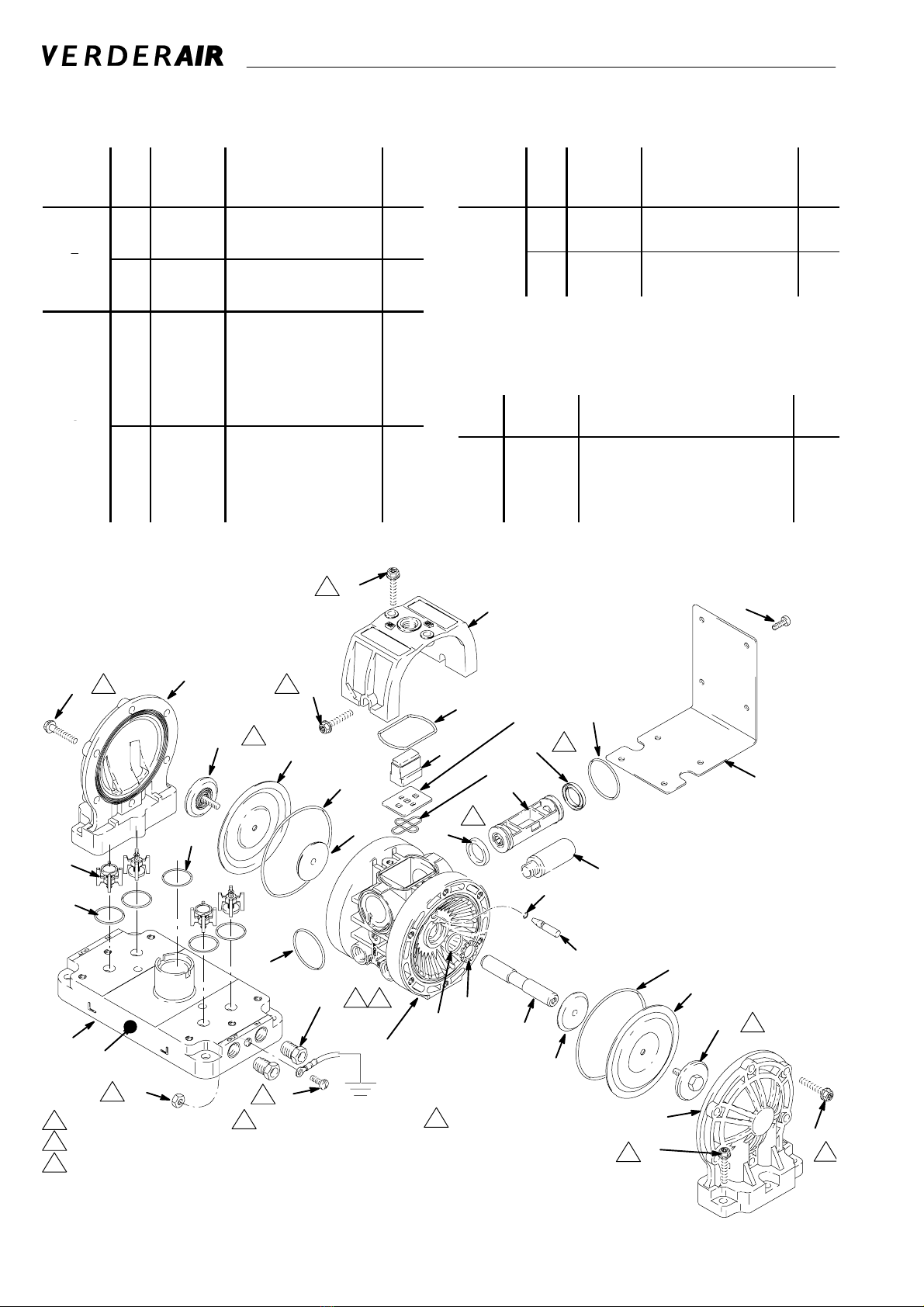

Parts Listing
VERDERAIR VA 8 Polypropylene, Acetal, and KynarPumps, Series B
Your Model No. is marked on the pump’s serial plate. The listing of existing VERDERAIR VA 8 pumps is below:
Standard operation For Solenoid Operation
Ref. Nr.
Fluid
Section
Seats
and
guides Checks Diaphragms
810.6012 AC NUL AC TF
810.6016 PP NUL PP TF
810.6026 KY NUL KY TF
ÁÁÁÁÁ
ÁÁÁÁÁ
810.6996
ÁÁÁÁ
ÁÁÁÁ
AC
ÁÁÁ
ÁÁÁ
NUL
ÁÁÁÁ
ÁÁÁÁ
AC
ÁÁÁÁÁ
ÁÁÁÁÁ
SP
ÁÁÁÁÁ
ÁÁÁÁÁ
810.6997
ÁÁÁÁ
ÁÁÁÁ
PP
ÁÁÁ
ÁÁÁ
NUL
ÁÁÁÁ
ÁÁÁÁ
PP
ÁÁÁÁÁ
ÁÁÁÁÁ
SP
ÁÁÁÁÁ
ÁÁÁÁÁ
810.6998
ÁÁÁÁ
ÁÁÁÁ
KY
ÁÁÁ
ÁÁÁ
NUL
ÁÁÁÁ
ÁÁÁÁ
KY
ÁÁÁÁÁ
ÁÁÁÁÁ
SP
Ref. Nr.
Fluid
Section
Seats
and
guides Checks Diaphragms
810.5997 AC NUL AC TF
810.6001 PP NUL PP TF
810.6011 KY NUL KY TF
ÁÁÁÁ
ÁÁÁÁ
810.6999
ÁÁÁÁ
ÁÁÁÁ
AC
ÁÁÁÁ
ÁÁÁÁ
NUL
ÁÁÁÁ
ÁÁÁÁ
AC
ÁÁÁÁÁ
ÁÁÁÁÁ
SP
ÁÁÁÁ
ÁÁÁÁ
810.7000
ÁÁÁÁ
ÁÁÁÁ
PP
ÁÁÁÁ
ÁÁÁÁ
NUL
ÁÁÁÁ
ÁÁÁÁ
PP
ÁÁÁÁÁ
ÁÁÁÁÁ
SP
ÁÁÁÁ
ÁÁÁÁ
810.7001
ÁÁÁÁ
ÁÁÁÁ
KY
ÁÁÁÁ
ÁÁÁÁ
NUL
ÁÁÁÁ
ÁÁÁÁ
KY
ÁÁÁÁÁ
ÁÁÁÁÁ
SP
AC = Acetal AL = Aluminium KY = Kynar NUL = Null PP = Polypropylene SST = Stainless Steel TF = PTFE SP = Santoprene
Service Kit Listing
Air Valve and Fluid Section Service Kits for VERDERAIR VA 8 Pumps
Service Kits may only be ordered as kits. Parts included in the Air Valve Service Kit are marked with a symbol in the parts list, for
example (2). The list of existing Service Kits is below:
Ref. No Air Motor Seats Checks Diaphragms
819.6027 ALL NUL NUL NUL
819.6028 ALL NUL NUL TF
819.6029 ALL NUL AC NUL
819.6030 ALL NUL AC TF
819.6031 ALL NUL PP NUL
819.6032 ALL NUL PP TF
819.6033 ALL NUL KY NUL
819.6034 ALL NUL KY TF
AC = Acetal KY = Kynar NUL = Null PP = Polypropylene TF = PTFE

819.6247 15
Parts
Air Motor Section
Ref.
No. Part No. Description Qty.
1 819.6900 HOUSING, center 1
2 819.6252 CARRIAGE, valve 1
3 819.6860 SEAL, u-cup 2
4 819.6901 VALVE BLOCK (for pump with
air-operated air motor)
1
5 819.6256 GASKET, molded 1
6 819.7016 Packing, square ring 2
8 819.6258 PIN, actuator 2
9 819.6259 O-RING, packing 2
10 819.6902 SHAFT, diaphragm 1
11 819.7017 PLATE, diaphragm, air side 2
12 819.7018 O-RING, diaphragm shaft 2
13 819.6903 RING, retaining 2
14 819.6263 SCREW, torx 4
15 819.6861 MUFFLER, porous plastic 1
16 819.6904 SEAL, valve plate 1
17 819.6905 PLATE, valve 1
1 819.6906 HOUSING, center 1
10 819.6902 SHAFT, diaphragm 1
11 819.7017 PLATE, diaphragm, air side 1
12 819.7018 O-RING, diaphragm shaft 2
13 819.6903 RING, retaining 2
14 819.6263 SCREW, torx 4
15 819.6861 MUFFLER, porous plastic 1
16 819.6904 SEAL, valve plate 1
17 819.6905 PLATE, valve 1
Fluid Section
Fluid
Section
Material
Ref.
No. Part No. Description Qty.
A
C
7 819.5965 COVER, valve 1
C
E
T
49 819.5970 LABEL, warning 1
T
A
L
50 819.6271 PLATE, diaphragm;
acetal
2
Fluid
Section
Material
Ref.
No. Part No. Description Qty.
A
C
51 819.7019 COVER, fluid; acetal 2
C
E
T
52 819.7020 MANIFOLD; acetal 1
T
A
L
53 819.6272 PLUG, port; acetal 2
L54 819.0186 SCREW, grounding 2
55 819.0185 NUT, hex , grounding 2
57 819.6273 O-RING, packing 2
58 819.6263 SCREW, torx 20
59 819.7021 O-RING, exhaust 1
60 819.6908 BRACKET, mounting 1
61 819.0175 SCREW, machine, pn
hd
4
P
O
7 819.5965 COVER, valve 1
O
L
Y
49 819.5970 LABEL, warning 1
Y
P
R
50 819.6274 PLATE, diaphragm;
polypropylene
2
R
O
P
51 819.7022 COVER, fluid;
polypropylene
2
P
Y
L
52 819.7023 MANIFOLD;
polypropylene
1
L
E
N
E
53 819.6265 PLUG, port;
polypropylene
2
E57 819.6273 O-RING, packing 2
58 819.6263 SCREW, torx 20
59 819.7021 O-RING, exhaust 1
60 819.6908 BRACKET, mounting 1
61 819.0175 SCREW, machine, pn
hd
4
K
Y
7 819.5965 COVER, valve 1
Y
N
A
49 819.5970 LABEL, warning 1
A
R50 819.6275 PLATE, diaphragm;
Kynar
2
51 819.7024 COVER, fluid; Kynar2
52 819.7025 MANIFOLD; Kynar1
53 819.6276 PLUG, port; Kynar2
57 819.6273 O-RING, packing 2
58 819.6263 SCREW, torx 20
59 819.7021 O-RING, exhaust 1
60 819.6908 BRACKET, mounting 1
61 819.0175 SCREW, machine, pn
hd
4

Used on acetal models only. 3Torque to 40 in-lb (4.5 N.m) see
Torque Sequence on page 17
4
Not assembled. These plugs are supplied to plug the two ports in the manifold that are not used.
9
5Torque to 20 in-lb (2.2 N.m).
3*4
21
20
1
* These parts are included in Air Valve Service Kit 819.6249, which may only be purchased as a kit.
These parts are included in Fluid Section Service Kit 819.XXXX which may only be purchased as a kit.
These parts are included in pump with integral air valve only.
2*
1
8
9
50
11
12
7
10 50
51
51
52
54
55
30
30
57
57
58
58
1
1
15
58
3
3
3
Lips of u-cups (3) must face toward each other, toward center of valve carriage (2).
53 9
3*
6*
4*
5*
6*
49
4
3
33
5
06175C
11
14
3
13
59
17*
16*
60
61
These parts cannot be ordered separately. They come preassembled and are included as part of
the Air Valve Service Kit 819.6249.

14
16 819.6247
Parts
Check Valve
Check
Valve
Material
Ref.
No. Part No. Description Qty.
A
C
E
20 819.7027 VALVE, check; acetal 4
E
T
A
L
21 819.6262 O-RING, packing 4
P
O
L
Y
P
R
O
20 819.7028 VALVE, check;
polypropylene
4
O
P
Y
L
E
N
E
21 819.6262 O-RING, packing 4
Check
Valve
Material
Ref.
No. Part No. Description Qty.
K
Y
N
20 819.7029 VALVE, check; Kynar4
N
A
R
21 819.6262 O-RING, packing 4
Diaphragm
Ref.
No. Part No. Description Qty.
30 819.6270 DIAPHRAGM; PTFE
(Standard for VERDERAIR VA
8 pumps)
2
30 819.7069 DIAPHRAGM; Santoprene 2

819.6247 17
Torque Sequence
For proper installation, always follow torque sequence
whenever you are instructed to torque screws.
1. Valve Cover 2. Left/Right Fluid Cover
3. Manifold to Center Section
Front ViewBack View
12
3
4
9
6
7
5
10
8
11, 19
12, 20
13
14
15
16 17
18

18 819.6247

819.6247 19
Technical Data
Maximum fluid working pressure 100 psi. . . . . . . . . . . . . . . . .
0.7 MPa (7 bar)
Maximum/minimum air pressure 100 psi/20 psi. . . . . . . . . . . .
0.7 MPa (7 bar)
0.14MPa (1.4 bar)
Maximum fluid flow 5 gpm (18,9 lpm). . . . . . . . . . . . . . . . . . . .
Maximum pump speed 320(dry) cycles per minute. . . . . . . . .
250(wet) cycles per minute
Volume per stroke*0.006 gal (23 cc). . . . . . . . . . . . . . . . . . . .
Volume per cycle*0.0012 gal (46 cc). . . . . . . . . . . . . . . . . . . .
Maximum suction lift dry 8 to 10 foot. . . . . . . . . . . . . . . . . . . . .
(2,5 to 3 m)
Maximum size pumpable solids 0.06 in (1,5 mm). . . . . . . . . . .
Maximum operating temperature 180F (82C). . . . . . . . . . .
Maximum air consumption 9.0 scfm. . . . . . . . . . . . . . . . . . . . . .
0,252 m3/min.
Air inlet size** 1/4 npt(f)/1/4 bspt(f). . . . . . . . . . . . . . . . . . . . . . .
Fluid inlet size** 1/4 npt(f)/1/4 bspt(f). . . . . . . . . . . . . . . . . . . . .
Fluid outlet size** 1/4 npt(f)/1/4 bspt(f). . . . . . . . . . . . . . . . . . . .
Air exhaust port size** 1/4 npt(f)/1/4 bspt(f). . . . . . . . . . . . . . . .
Weight
Polypropylene pump 2.0 lb (0.9 kg). . . . . . . . . . . . . . . . . . . .
Acetal pump 2.5 lb (1,1 kg). . . . . . . . . . . . . . . . . . . . . . . . . . .
Kynarpump 2.8 lb (1.3 kg). . . . . . . . . . . . . . . . . . . . . . . . . .
Wetted parts (housings, diaphragms, check valves)
Polypropylene pump:
Glass-filled polypropylene, PTFE, polypropylene
Acetal pump:
Acetal with SST fibers, PTFE, acetal
Kynarpump:
Kynar, PTFE, Kynar
Sound power level (pressure) (per ANSI STD S12.1)
at 100 psi (0.7 MPa, 7 bar) 75.5 dBa. . . . . . . . . . . . . . . . . . .
at 70 psi (0.49 MPa, 4.9 bar) 72.0 dBa. . . . . . . . . . . . . . . . .
at 40 psi (0.28 MPa, 2.8 bar) 68.2 dBa. . . . . . . . . . . . . . . . .
Sound power level (intensity) (per ANSI STD S12.1)
at 100 psi (0.7 MPa, 7 bar) 84.5 dBa. . . . . . . . . . . . . . . . . . .
at 70 psi (0.49 MPa, 4.9 bar) 81.1 dBa. . . . . . . . . . . . . . . . .
at 40 psi (0.28 MPa, 2.8 bar) 76.6 dBa. . . . . . . . . . . . . . . . .
*Volume per cycle may vary based on suction condition, discharge head, air pressure, and fluid.
** Hybrid thread allows for either 1/4 npt or 1/4 bspt fitting.
Kynaris a registered trademark of Atochem North America, Incorporated.
Schrader Bellowsis a registered trademark of Schrader Bellows.
Santopreneris a registered trademark of the Monsanto Company.

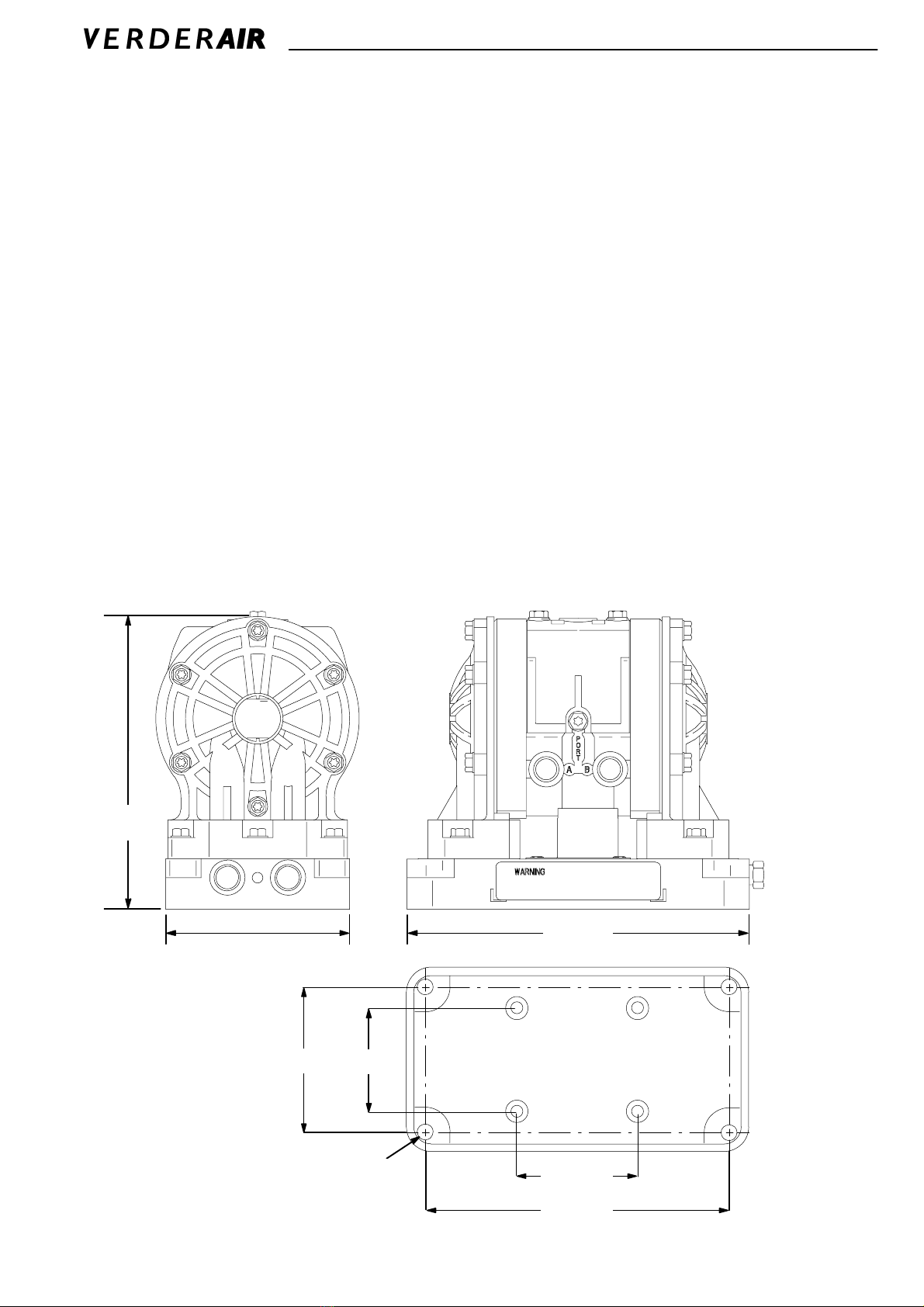

Dimensions and Mounting Hole Layout
6.0 in.
152.4 mm
7449B
3.7 in.
94 mm
Four 0.281 in. (7.14 mm)
diameter holes
6.8 in.
173 mm
2.9 in.
(74 mm)
6.0 in.
(152 mm)
2.375 in.
(60 mm)
2.035 in.
(52 mm)

20 819.6247
Performance Charts
VERDERAIR VA 8 Fluid Outlet Pressure
0.5
(1.9)
2.5
(9.5)
FLUID FLOW - gpm (lpm)
100
(0.7, 7)
Test Conditions: Pump tested in water with inlet submerged.
2
(7.6)
A
B
C
To find Fluid Outlet Pressure (psi/MPa/bar) at a specific fluid flow (gpm/lpm) and operating air pressure
(psi/MPa/bar):
1. Locate fluid flow rate along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet pressure curve.
3. Follow left to scale to read fluid outlet pressure.
80
(0.55, 5.5)
60
(0.41, 4.1)
40
(0.28, 2.8)
20
(0.14, 1.4)
1
(3.8)
1.5
(5.7)
FLUID OUTLET PRESSURE - psi (MPa, bar)
90
(0.62, 6.2)
70
(0.48, 4.8)
50
(0.35, 3.5)
30
(0.21, 2.1)
10
(0.07, 0.7)
0
03
(11.4)
3.5
(13.3)
Fluid Pressure Curves
Aat 100 psi (0.7 MPa, 7 bar) air pressure
Bat 70 psi (0.48 MPa, 4.8 bar) air pressure
Cat 40 psi (0.28 MPa, 2.8 bar) air pressure
