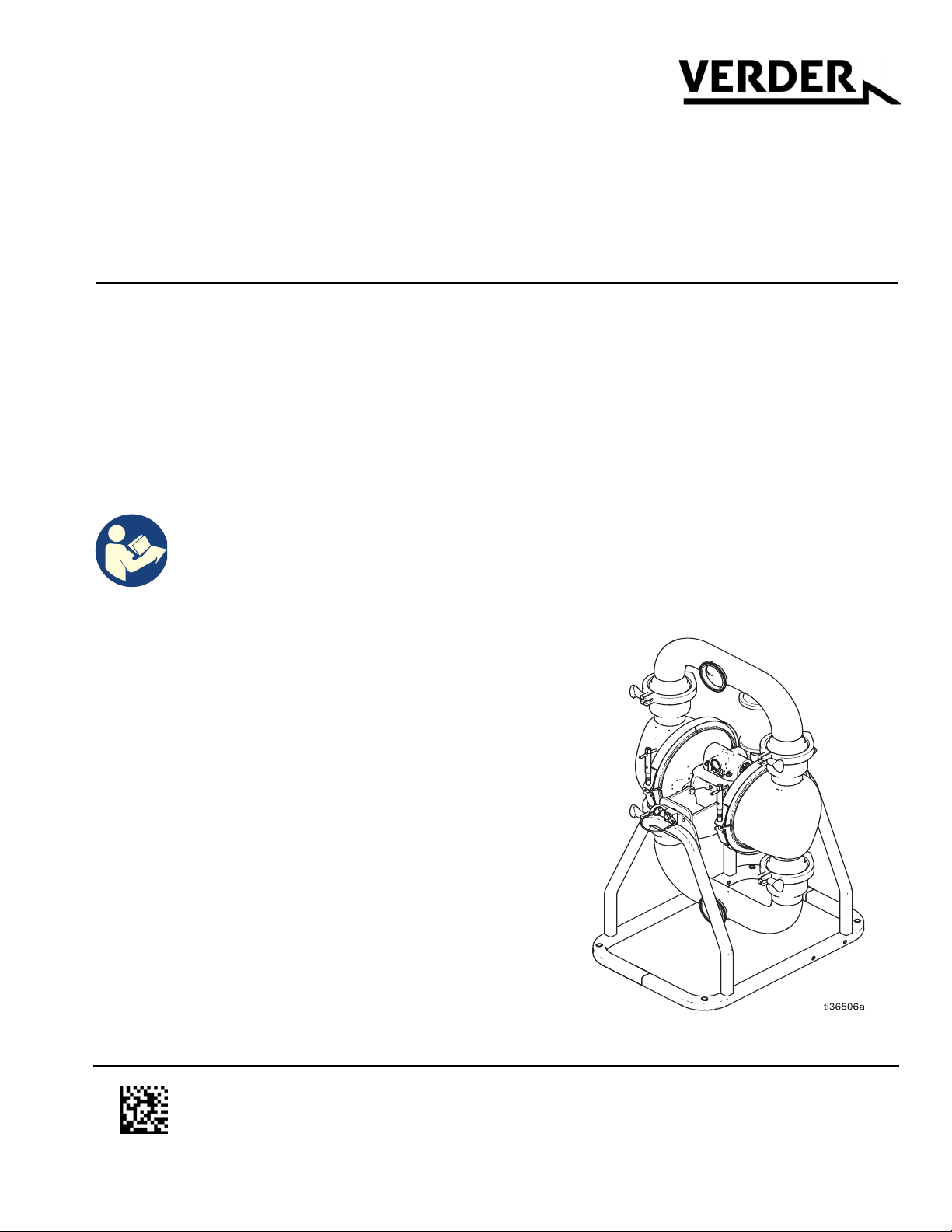

VERDER HI-CLEAN VA-2H80HE Instruction Manual

Operation
Verder HI-CLEAN
Diaphragm Pump
Model VA-2H80HE
For transfer of fluids in sanitary applications. Not approved for use in European explosive
atmosphere locations. For professional use only.
6.9 bar (0.7 MPa, 100 psi) Maximum Fluid Working Pressure
6.9 bar (0.7 MPa, 100 psi) Maximum Air Input Pressure
Important Safety Instructions.
Read all warnings and instructions in
this manual before using the
equipment. Save these instructions.
812.0062
Rev A
EN

2 812.0062
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Configuration Number Matrix . . . . . . . . . . . . . . . . . 5
Material Temperature Range . . . . . . . . . . . . . . . . . . 6
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Information . . . . . . . . . . . . . . . . . . . . . . . 7
Tighten Clamps Before First Use. . . . . . . . . . . . . 7
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Stand and Mounting. . . . . . . . . . . . . . . . . . . . . . . 8
Air Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fluid Suction and Outlet Lines . . . . . . . . . . . . . . . 9
Tips to Reduce Cavitation . . . . . . . . . . . . . . . . . . 9
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . 10
Air Exhaust Ventilation. . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 12
Sanitize the Pump Before First Use . . . . . . . . . . 12
Start and Adjust the Pump . . . . . . . . . . . . . . . . . 13
Pump Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Flushing and Storage . . . . . . . . . . . . . . . . . . . . . 14
Routine Cleaning of Product Contact Section of
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Tightening Connections . . . . . . . . . . . . . . . . . . . 14
Technical Specifications . . . . . . . . . . . . . . . . . . . . 15
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Performance Chart . . . . . . . . . . . . . . . . . . . . . . . 16
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Customer Services/Guarantee. . . . . . . . . . . . . . . . 19
Related Manuals
Manual in
English Description
812.0066 Verder HI-CLEAN Diaphragm Pump, Model
VA-2H80HE, Repair/Parts

Warnings
812.0062 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk.
When these symbols appear in the body of this manual, refer back to these warnings. Additional, product-specific
warnings may be found throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent, in work area can ignite or explode. Solvent flowing through the
equipment can cause static sparking. To help prevent fire or explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static sparking).
• Ground all equipment in the work area. See Grounding instructions.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Use only grounded fluid lines.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are anti-static or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
• Route exhaust away from all ignition sources. If diaphragm ruptures, fluid may be exhausted with air.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause
serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check fluid lines, tubes, and couplings daily. Replace worn or damaged parts immediately.

Warnings
4 812.0062
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request Safety Data Sheet (SDS) from distributor or retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route fluid lines and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend fluid lines or use fluid lines to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using.
• Route exhaust away from work area. If diaphragm ruptures, fluid may be exhausted into the air.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not
limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
WARNING

Configuration Number Matrix
812.0062 5
Configuration Number Matrix
Check the identification plate (ID) for the Configuration
Number of your pump. Use the following matrix to define
the components of your pump.
When you receive your pump, record the 9 character
part number found on the shipping box (e.g., 811.0014):
_____________
Also record the configuration number on the pump ID
plate to assist you when ordering replacement parts:
_____________________________________
ID
NOTE: Some combinations are not possible. Please check with your local supplier.
Sample Configuration Number: VA-2H80HE-XPSTTFTSD8SB21
VA-2H 80HE X P ST TF TS D8 SB 21
Pump
Model
Pump
Size
Wetted Parts Air
Section
Seats Balls Diaphragms Connections Options Certifications
Pump
Model
Pump Size Wetted
Parts Material
Air
Section Material
Seat Material
VA-2H 80HE 80 mm X High Sanitation,
3-A 0.8 μm
P Polypropylene SB Stainless Steel, Buna-N gasket
SE Stainless Steel, EPDM gasket
Y Pharmaceutical,
0.5 μm
ST Stainless Steel, EP-TF gasket
SV Stainless Steel, FKM gasket
Ball Material Diaphragm Material Connections Options Certification
BN Buna-N BN Buna-N T8 TRI-CLAMP 3” 3A 3-A 21 EN 10204
type 2.1
EP EPDM EO EPDM Overmolded D8 DIN 11851 (DN 80) SB Sanitary ball 31 EN 10204
type 3.1
NE Polychloroprene SP Santoprene
SP Santoprene TS PTFE/Santoprene,
2-piece
TF PTFE VT FKM
VT FKM

Configuration Number Matrix
6 812.0062
Material Temperature Range
Approvals
Diaphragm materials coded EO, TO, or TS
combined with TF ball checks are comply with:
EC 1935/2004
Diaphragm materials coded EO or TS combined
with TF ball checks comply with: Class VI
All models are approved to:
All fluid contact materials are FDA compliant and
meet the United States Code of Federal
Regulations (CFR)
Diaphragm/Ball/Seat Material Fluid Temperature Range
Fahrenheit Celsius
FKM Fluoroelastomer (VT) -40° to 275°F -40° to 135°C
Polychloroprene check balls (NE) 0° to 180°F -18° to 82°C
EPDM overmolded diaphragm (EO) -40° to 275°F -40° to 135°C
PTFE overmolded diaphragm (TO) 40° to 180°F 4° to 82°C
PTFE check balls 40° to 220°F 4° to 104°C
2-piece PTFE/Santoprene diaphragms (TS) 40° to 180°F 4° to 82°C
Santoprene (SP) -40° to 180°F -40° to 82°C
Buna-N (BN) 10° to 180°F -12° to 82°C

Installation
812.0062 7
Installation
General Information

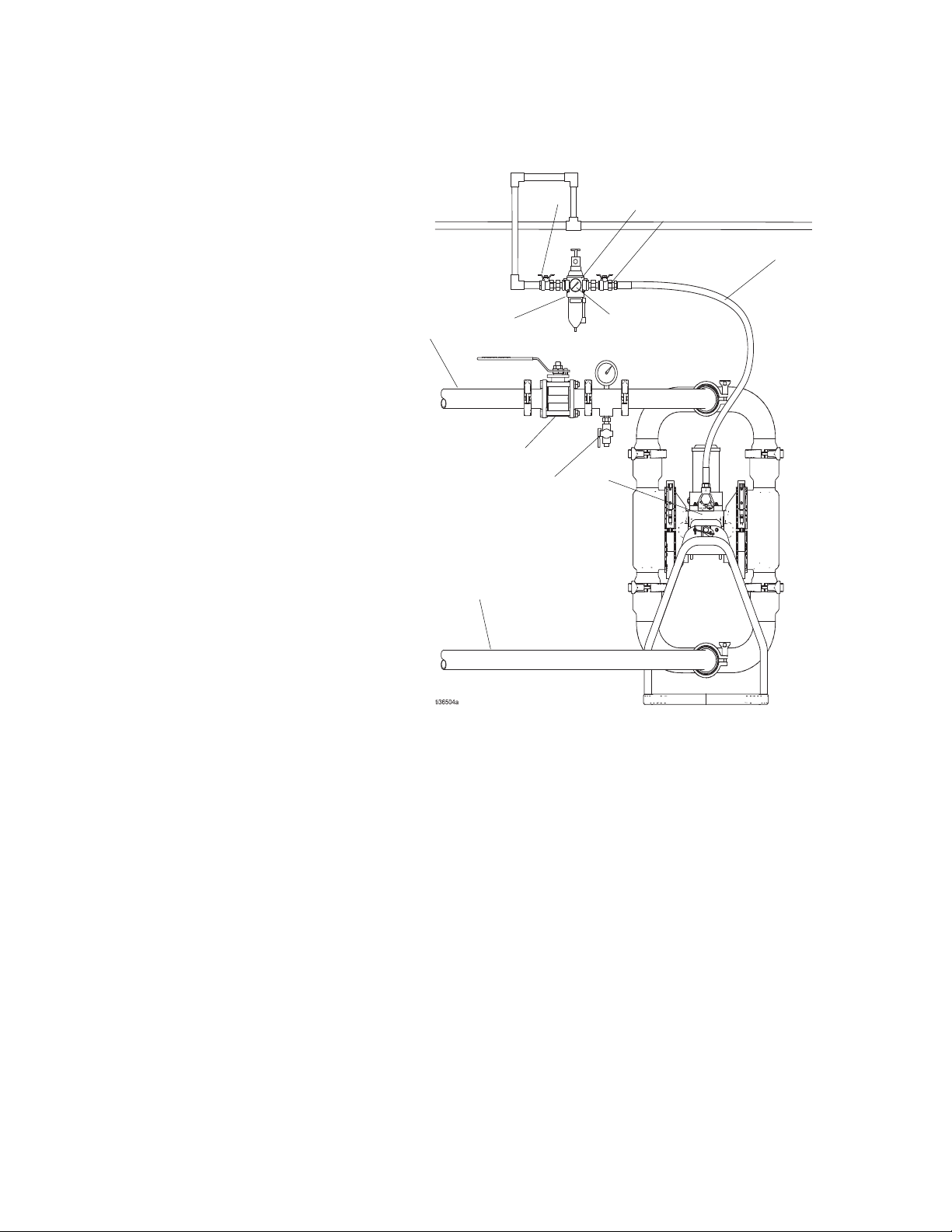

• A typical installation is shown in FIG. 2. It is only a
guide for selecting and installing system
components. Contact your Verder distributor for
assistance in planning a system to suit your needs.
• Always use genuine Verder parts and accessories.
• Reference numbers and letters in parentheses refer
to the callouts in the figures.
Tighten Clamps Before First Use
After you unpack the pump, and before you use it for the
first time, check all clamps, and tighten as necessary.
Grounding
The equipment must be grounded to reduce the risk
of static sparking. Static sparking can cause fumes to
ignite or explode. Grounding provides an escape wire
for the electric current.
•Always ground the entire fluid system as
described below.
• Polypropylene pumps are not conductive and are
not for use with flammable fluids.
• Follow your local codes and regulations.
•Pump: Connect a ground wire and clamp as shown
in FIG. 1. Loosen the grounding screw (W). Insert
one end of a 1.5 mm² (12 AWG) or thicker ground
wire (X) behind the grounding screw and tighten the
screw securely. Connect the clamp end of the
ground wire to a true earth ground. To order a
ground wire and clamp, order part number
819.0157.
X
WTI4736A
FIG. 1: Ground Wire Connection
•Air and fluid lines: Use only conductive lines with a
maximum of 150 m (500 ft ) combined line length to
ensure grounding continuity. Check electrical
resistance of lines. If total resistance to ground
exceeds 29 megohms, replace line immediately.
•Fluid supply container: Follow the local codes and
regulations.
•Pails for solvents and sanitizing solution used when
flushing: Follow local codes and regulations. Use
only conductive metal pails, placed on a grounded
surface. Do not place the pail on a nonconductive
surface, such as paper or cardboard, which
interrupts grounding continuity.

Installation
8 812.0062
Stand and Mounting
For pumps that are provided with a stand, the pump
must be mounted to the stand before securing the pump
to the mounting surface. Ensure that the pump is
securely mounted to the stand.
1. Ensure that the mounting surface is level and can
support the weight of the pump, lines, and
accessories, as well as the stress caused during
operation.
2. Mount the pump and stand assembly on a level
surface and secure the assembly to the mounting
surface. See Technical Specifications, page 15,
for dimensions of the mounting holes for your pump.
NOTE: For ease of operation and service, mount
the pump so the air valve cover, air inlet, and fluid
inlet and outlet ports are easily accessible.
Air Line
1. Install the air line accessories as shown in FIG. 2.
Verify that the air line supplying the accessories is
grounded.
a. Install an air regulator (C) and air pressure
gauge (V) to control the fluid pressure. The fluid
outlet pressure will be the same as the setting of
the air regulator.
b. Locate one bleed-type master air valve (B)
close to the pump and use it to relieve trapped
air. Locate the other master air valve (E)
upstream from all air line accessories and use it
to isolate them during cleaning and repair.
c. The air line filter (F) removes harmful dirt and
moisture from the compressed air supply.
2. Install a conductive, grounded, flexible air supply
line (A) between the accessories and the 3/4 npt(f)
pump air inlet (M).
The pump is very heavy (see Technical
Specifications on page 15 for specific weights). If the
pump must be moved, follow the Pressure Relief
Procedure on page 12 and have two people lift the
pump by grasping the outlet manifold securely, or use
appropriate lifting equipment. Never have one person
move or lift the pump.
A bleed-type master air valve (B) is required in the
system to relieve air trapped between this valve and
the pump. Trapped air can cause the pump to cycle
unexpectedly, which could result in serious injury,
including splashing in the eyes or on the skin. See
FIG. 2.

Installation
812.0062 9
Fluid Suction and Outlet Lines
For best sealing results, use a standard tri-clamp or DIN
style sanitary gasket of a flexible material such as
EPDM, Buna-N, fluoroelastomer, or silicone.
NOTE: Compliance with 3A sanitary standards requires
DIN connections to use certain gaskets. See CCE
Coordination Bulletin Number 2011-3.
1. Install flexible, conductive fluid lines (G and L).
2. Install a fluid drain valve (J) close to the pump fluid
outlet. See FIG. 2.
3. Install a fluid shutoff valve (K) in the fluid outlet line
(L) downstream from the fluid drain valve (J).
NOTE: For best results, always install the pump as
close as possible to the material source. See the
Technical Specifications, page 15, for maximum
suction lift (wet and dry).
Tips to Reduce Cavitation
Cavitation in a diaphragm pump is the formation and
collapse of bubbles in the pumped liquid. Frequent or
excessive cavitation can cause serious damage,
including pitting and early wear of fluid chambers, balls,
and seats. It may result in reduced efficiency of the
pump. Cavitation damage and reduced efficiency both
result in increased operating costs.
Cavitation depends on the vapor pressure of the
pumped liquid, the system suction pressure, and the
velocity pressure. It can be reduced by changing any of
these factors.
1. Reduce vapor pressure: Decrease the temperature
of the pumped liquid.
2. Increase suction pressure:
a. Lower the installed position of the pump relative
to the liquid level in the supply.
b. Reduce the friction length of the suction lines.
Remember that fittings add friction length to the
lines. Reduce the number of fittings to reduce
the friction length.
c. Increase the diameter of the suction lines.
d. Ensure the inlet fluid pressure does not exceed
25% of the outlet working pressure.
3. Reduce liquid velocity: Slow the cyclic rate of the
pump.
Pumped liquid viscosity is also very important but
normally is controlled by factors that are process
dependent and cannot be changed to reduce cavitation.
Viscous liquids are more difficult to pump and more
prone to cavitation.
Verder recommends taking all of the above factors into
account in system design. To maintain pump efficiency,
supply only enough air to the pump to achieve the
required flow.
Verder distributors can supply site-specific suggestions
to improve pump performance and reduce operating
costs.
A fluid drain valve (J) is required to relieve pressure in
the fluid outlet line if it is plugged. The drain valve
reduces the risk of serious injury, including splashing
in the eyes or on the skin, when relieving pressure.
NOTICE
The pump can be damaged if flexible fluid lines are
not used. If hard-plumbed fluid lines are used in the
system, use a short length of flexible, conductive fluid
line to connect to the pump.

Installation
10 812.0062

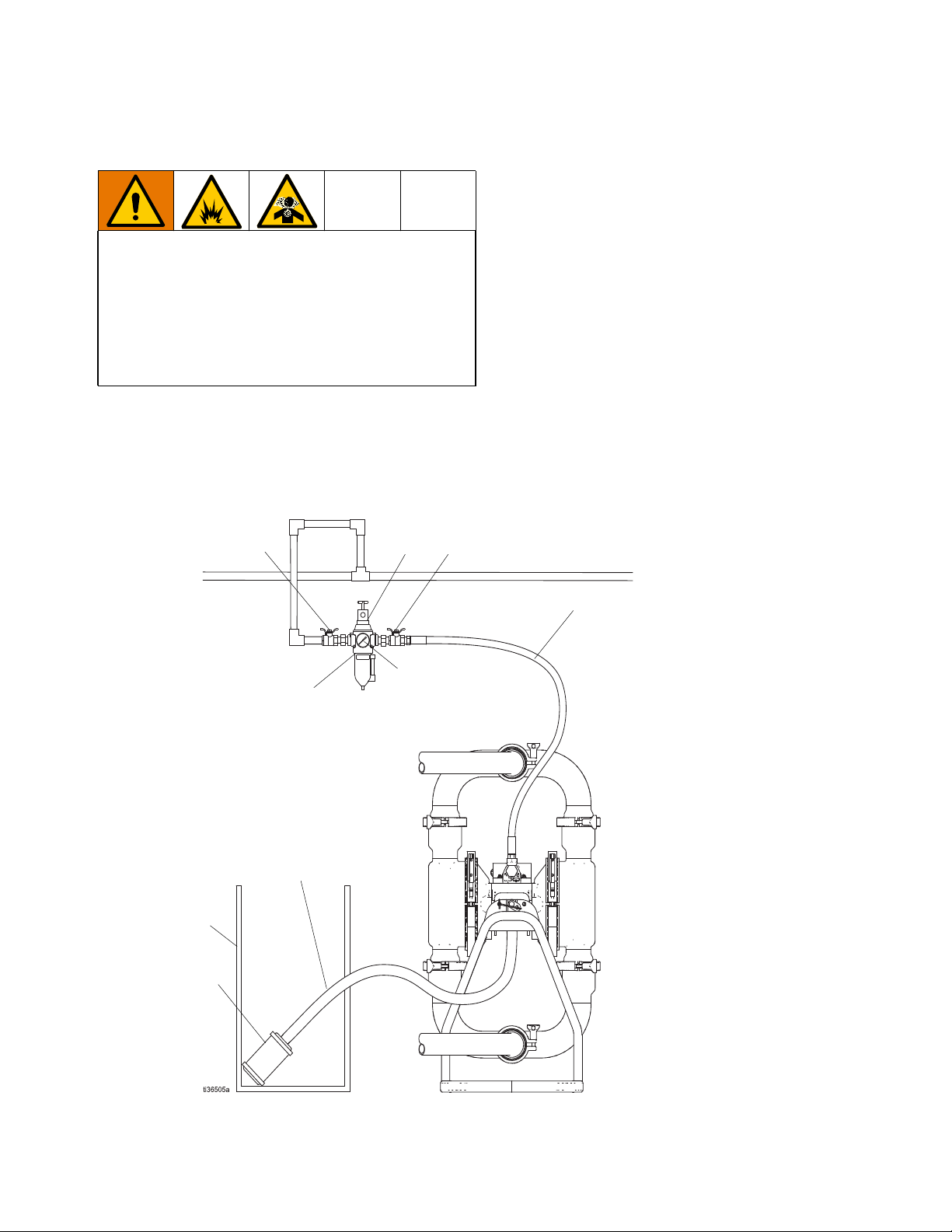

Typical Installation
Key:
A Air supply line
B Bleed-type master air valve (for pump)
(required, not supplied)
C Air regulator (required, not supplied)
E Master air valve (for accessories)
F Air line filter
G Flexible fluid suction line
J Fluid drain valve (required, not supplied)
K Fluid shutoff valve (required, not supplied)
L Flexible fluid outlet line
M 3/4 npt(f) air inlet (provided)
V Air pressure gauge (required, not supplied)
Items not provided unless noted.
E
F
B
C
A
K
L
J
G
M
V
FIG. 2: Typical Floor-Mount Installation

Installation
812.0062 11
Air Exhaust Ventilation
NOTE: The pump exhaust air may contain
contaminants. Ventilate to a remote area if the exhaust
could contaminate your fluid supply.
NOTE: The air exhaust port is 3/4 npt(f). Do not restrict
the air exhaust port. Excessive exhaust restriction can
reduce pump performance.
To provide a remote exhaust:
1. Remove the muffler (P) from the pump air exhaust
port. See FIG. 3.
2. Install a conductive, grounded air exhaust line (T)
and connect the muffler (P) to the other end of the
line. The minimum size for the air exhaust line is 1.0
in. ID. If a line longer than 4.57 m (15 ft) is required,
use a larger diameter line. Avoid sharp bends or
kinks in the line.
3. Place a conductive, grounded container (U) at the
end of the air exhaust line to catch fluid in case of a
diaphragm rupture. See FIG. 3.
FIG. 3: Venting Exhaust Air
Be sure the system is properly ventilated for your type
of installation. You must vent the pump air exhaust to
a safe place, away from people, animals, food
handling areas, and all sources of ignition when
pumping flammable or hazardous fluids. Diaphragm
rupture can cause the fluid being pumped to exhaust
with the air. Place a grounded container at the end of
the air exhaust line to catch the fluid. See FIG. 3.
P
U
T
A
B
C
F
E
Key:
A Air supply line
B Bleed-type master air valve
(for pump) (required, not
supplied)
C Air regulator (required, not
supplied)
E Master air valve (for
accessories)
F Air line filter
P Muffler
T Grounded air exhaust line
U Container for remote air
exhaust
V Air pressure gauge (required,
not supplied)
Items not supplied unless noted.
V

Operation
12 812.0062
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure when-
ever you see this symbol.
1. Close the master air valve (A) to shut off the air to
the pump.
2. Open outbound fluid valve to relieve fluid pressure
from the pump.
a. For simple transfer applications, open either
the fluid shutoff valve (J) or the fluid drain valve
(K).
b. For circulating applications, ensure that the
fluid shutoff valve (J) is closed and open the
fluid drain valve (K).
Sanitize the Pump Before First
Use
NOTE: The pump was built and tested using a food
grade lubricant.
Properly sanitize the pump before first use. The user
must determine whether to disassemble and clean
individual parts or simply flush the pump with a
sanitizing solution.
To simply flush the pump with a sanitizing solution,
follow the steps under Start and Adjust the Pump,
page 13, and Flushing and Storage, page 14. To
disassemble and clean individual parts, refer to the
appropriate Repair manual.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as splashing fluid, follow the
Pressure Relief Procedure when you stop dispensing
and before cleaning, checking, or servicing the
equipment.

Operation
812.0062 13
Start and Adjust the Pump
1. Confirm that the pump is properly grounded. See
Grounding, page 7.
2. Check and tighten all pump clamps and fluid
connections before operating the equipment.
Replace worn or damaged parts as necessary.
3. Connect a flexible fluid suction line (G) from the fluid
to be pumped to the pump fluid inlet.
4. Connect the flexible fluid outlet line (L) to the pump
fluid outlet and route the line to the end container.
5. Close the fluid drain valve (J).
6. Turn the air regulator (C) knob to the lowest air
pressure setting and open the bleed-type master air
valve (B).
7. If the fluid outlet line (L) has a dispensing device,
hold it open while continuing with the following step.
8. To prime the pump, slowly increase air pressure
with the air regulator (C) until the pump starts to
cycle. Do not exceed the maximum operating air
pressure as listed in the Technical Specifications,
page 15. Allow the pump to cycle slowly until all air
is pushed out of the fluid lines and fluid exits the
outlet line (G).
NOTE: If the fluid inlet pressure to the pump is more
than 25% of the outlet working pressure, the ball check
valves will not close fast enough, resulting in inefficient
pump operation. Inlet fluid pressure higher than 25% of
the outlet working pressure will also shorten diaphragm
life. Approximately 0.21-0.34 bar (0.02-0.03 MPA,
3-5 psi) fluid inlet pressure should be adequate for most
materials.
Pump Shutdown
At the end of each work shift, perform the Pressure
Relief Procedure, page 12.
Flush the pump if necessary. See Flushing and
Storage, page 14.

Maintenance
14 812.0062
Maintenance
Lubrication
The pump is lubricated at the factory. It is designed to
require no further lubrication for the life of the pump.
There is no need to add an inline lubricator under
normal operating conditions.
The air valve is designed to operate unlubricated. If
lubrication is desired, every 500 hours of operation (or
monthly) remove the line from the pump air inlet and
add two drops of machine oil to the air inlet.
Flushing and Storage
• Flush before fluid can dry or freeze in the
equipment, at the end of the day, before storing,
and before repairing equipment.
• Flush at the lowest pressure possible. Check
connectors for leaks and tighten as necessary.
• Flush with a sanitizing solution that is compatible
with the fluid being dispensed and the equipment
wetted parts.
• Flushing schedule will vary based on particular
uses.
• Always cycle the pump during the entire flushing
process.
Always perform the Pressure Relief Procedure, page
12, and flush the pump before storing it for any length of
time.
1. Insert suction tube into sanitizing solution.
2. Open air regulator (B) to supply low pressure air to
the pump.
3. Run the pump for enough time to thoroughly clean
the pump and lines.
4. Close the air regulator.
5. Remove the suction line from the sanitizing solution
and drain pump.
Routine Cleaning of Product
Contact Section of Pump
NOTE: The pump and the system should be cleaned in
accordance with your state sanitary standard codes and
local regulations.
1. Flush the system. See Flushing and Storage.
2. Follow the Pressure Relief Procedure, page 12.
3. If disassembly of the pump is required for cleaning,
refer to the appropriate repair manual.
4. Using a brush or other C.O.P. methods, wash all
product contact pump parts with a sanitizing
solution at the manufacturer’s recommended
temperature and concentration.
5. Rinse these parts again with water and allow parts
to completely dry.
6. Inspect the parts and re-clean any soiled parts.
7. Immerse all product contact parts in an approved
sanitizer before assembly. Leave the parts in the
sanitizer, taking them out only one by one as
needed for assembly.
8. Lubricate the clamps, clamping surfaces, and
gaskets with waterproof sanitary lubricant.
9. Circulate the sanitizing solution through the pump
and the system prior to use. Cycle the pump as the
sanitizing solution is circulated.
Tightening Connections
Before each use, check and tighten all pump clamps
and fluid connections before operating the equipment.
Replace worn or damaged parts as necessary.
NOTICE
Do not over-lubricate the pump. Lubricant is
exhausted through the muffler and could contaminate
your fluid supply or other equipment. Excessive
lubrication can also cause the pump to malfunction.

Technical Specifications
812.0062 15
Technical Specifications

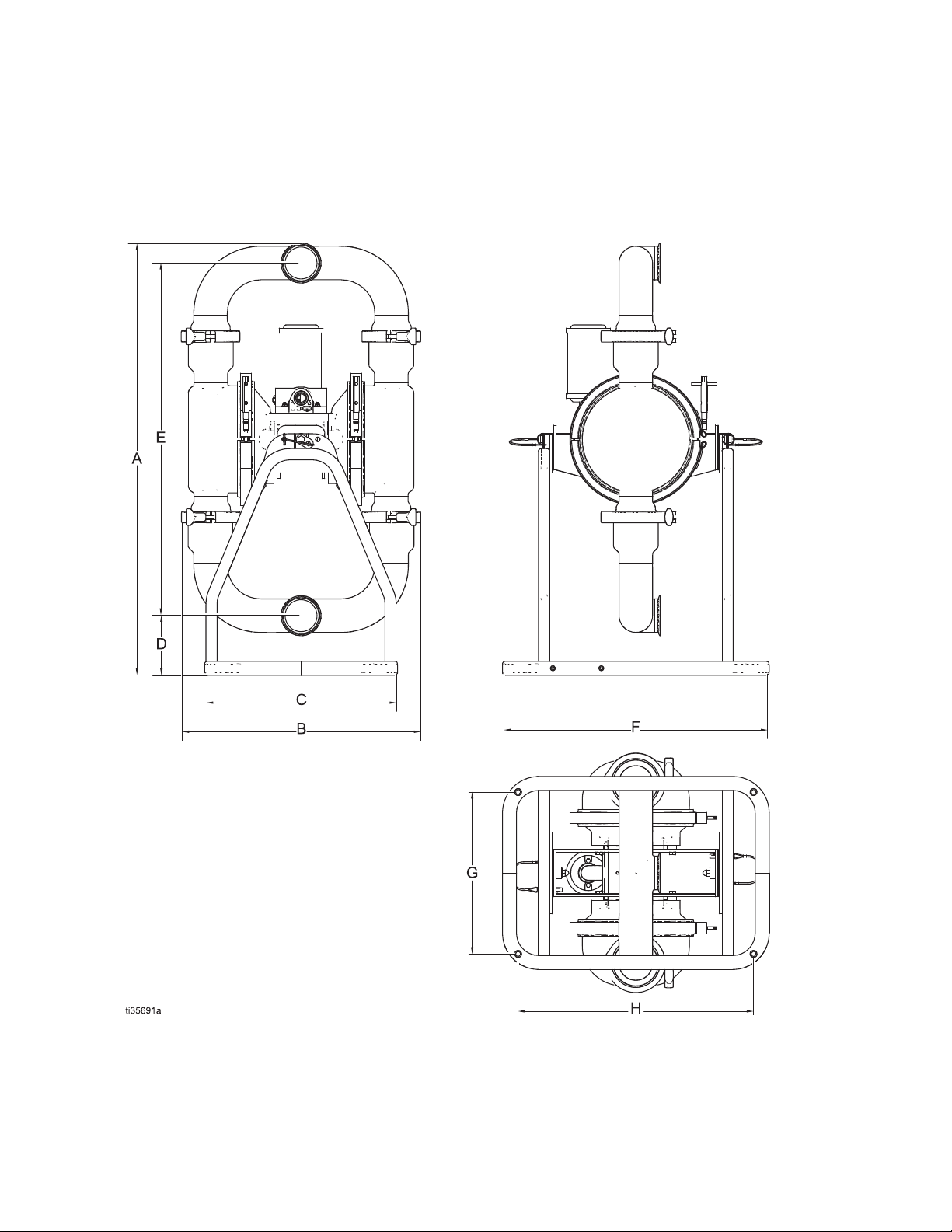

Dimensions
A 98.1 cm (38.63 in)
B 54.5 cm (21.44 in)
C 43.8 cm (17.25 in)
D 13.5 cm (5.33 in)
E 80.0 cm (31.51 in)
F 60.5 cm (23.83 in)
G 37.1 cm (14.6 in)
H 53.4 cm (21.04 in)
Weight: 56.2 kg (124 lbs)

Technical Specifications
16 812.0062
Performance Chart
FLUID FLOW – lpm (gpm)
Pump tested in water with
inlet submerged
AIR PRESSURE
C7 bar air (100 psi, 0.7 MPa)
B4.8 bar air (70 psi, 0.48 MPa)
A2.8 bar air (40 psi, 0.28 MPa)
FLUID OUTLET PRESSURE bar (psi, MPa)
AIR CONSUMPTION m3/min (scfm)
A
B
C
0
0
20
(1.4, 0.14)
40
(2.8, 0.28)
60
(4.1, 0.41)
80
(5.5, 0.55)
100
(6.9, 0.69)
120
(8.3, 0.83)
140
(9.7, 0.97)
100
(379)
150
(568)
200
(757)
250
(946)
300
(1136)
50
(189)
0
0
50
(1.34)
100
(2.68)
150
(4.02)
200
(5.36)
250
(6.70)
300
(8.03)
350
(9.36)
A
B
C
100
(379)
150
(568)
200
(757)
250
(946)
300
(1136)
50
(189)
FLUID FLOW – lpm (gpm)
9.7
(140, 0.97)
8.3
(120, 0.83)
6.9
(100, 0.69)
5.5
(80, 0.55)
4.1
(60, 0.41)
2.8
(40, 0.28)
1.4
(20, 0.14)
0
0189
(50)
379
(100)
568
(150)
757
(200)
946
(250)
1136
(300)
0189
(50)
379
(100)
568
(150)
757
(200)
946
(250)
1136
(300)
9.36
(350)
8.03
(300)
6.70
(250)
5.36
(200)
4.02
(150)
2.68
(100)
1.34
(50)
0
To find Fluid Outlet Pressure
(bar/psi/MPa) at a specific fluid flow (lpm/gpm) and
operating air pressure (bar/psi/MPa):
1. Locate fluid flow rate along bottom of chart.
2. Follow vertical line up to intersection with selected
fluid outlet pressure curve.
3. Follow left to scale to read fluid outlet pressure.
To find Pump Air Pressure
(m3/min or scfm) at a specific fluid flow (lpm/gpm) and
operating air pressure (bar/psi/MPa):
1. Locate fluid flow rate along bottom of chart.
2. Read vertical line up to intersection with selected air
consumption curve.
3. Follow left to scale to read fluid outlet pressure.

Technical Specifications
812.0062 17
Technical Data
9HUGHU9HUGHU
9HUGHU +,+, +, &/($1&/($1 &/($1 'LDSKUDJP'LDSKUDJP 'LDSKUDJP 3XPS3XPS 3XPS 0RGHO0RGHO 0RGHO 9$9$ 9$ ++(++( ++(
8686
86 0HWULF0HWULF
0HWULF
0D[LPXP ᚐXLG ZRUNLQJ SUHVVXUH  SVL  03D  EDU
$LU SUHVVXUH RSHUDWLQJ UDQJH  WR  SVL  WR  03D 
WR  EDU
$LU LQOHW VL]H  LQ QSWI
0D[LPXP VXFWLRQ OLIW UHGXFHG LI EDOOV GRQಬW VHDW ZHOO
GXH WR GDPDJHG EDOOV RU VHDWV OLJKWZHLJKW EDOOV RU
H[WUHPH VSHHG RI F\FOLQJ
:HW  IW
'U\  IW
:HW  P
'U\  P
0D[LPXP VL]H SXPSDEOH VROLGV  LQ  PP
0LQLPXP DPELHQW DLU WHPSHUDWXUH IRU RSHUDWLRQ DQG
VWRUDJH
127(127(
127( ([SRVXUH WR H[WUHPH ORZ WHPSHUDWXUHV PD\
UHVXOW LQ GDPDJH WR SODVWLF SDUWV
r ) r &
)OXLG GLVSODFHPHQW SHU F\FOH  JDOORQV  OLWHUV
0D[LPXP IUHHᚐRZ GHOLYHU\  JSP  OSP
0D[LPXP SXPS VSHHG  FSP
:HLJKW:HLJKW
:HLJKW
$OO PRGHOV  OEV  NJ
)OXLG)OXLG
)OXLG ,QOHW,QOHW ,QOHW DQGDQG DQG 2XWOHW2XWOHW 2XWOHW 6L]H6L]H 6L]H
6WDLQOHVV 6WHHO  LQ VDQLWDU\ ᚐDQJH RU  PP ',1  PDOH WKUHDG
1RLVH1RLVH
1RLVH 'DWD'DWD 'DWD
6RXQG 3RZHU PHDVXUHG SHU ,62ದ
DW  EDU  SVL ᚐXLG SUHVVXUH DQG IXOO ᚐRZ  G%D
DW  EDU  SVL ᚐXLG SUHVVXUH DQG  FSP  G%D
6RXQG 3UHVVXUH >WHVWHG  IW  P IURP HTXLSPHQW@
DW  EDU  SVL ᚐXLG SUHVVXUH DQG IXOO ᚐRZ  G%D
DW  EDU  SVL ᚐXLG SUHVVXUH DQG  FSP  G%D
:HWWHG:HWWHG
:HWWHG 3DUWV3DUWV 3DUWV
:HWWHG SDUWV LQFOXGH PDWHULDOV FKRVHQ IRU VHDW EDOO DQG GLDSKUDJP RSWLRQV  VWDLQOHVV VWHHO
1RQZHWWHG SDUWV
1RQZHWWHG H[WHUQDO SDUWV LQFOXGH QLFNHOSODWHG DOXPLQXP 1\ORQ VHULHV VWDLQOHVV VWHHO  VWDLQOHVV
VWHHO 9+% DFU\OLF

Technical Specifications
18 812.0062
Notes

Customer Services/Guarantee
812.0062 19
Customer Services/Guarantee
CUSTOMER SERVICES
If you require spare parts, please contact your local distributor, providing the following details:
•Pump Model
•Type
•Serial Number, and
•Date of First Order.
GUARANTEE
All VERDER pumps are warranted to the original user against defects in workmanship or materials under
normal use (rental use excluded) for two years after purchase date. This warranty does not cover failure of
parts or components due to normal wear, damage or failure which in the judgement of VERDER arises
from misuse.
Parts determined by VERDER to be defective in material or workmanship will be repaired or replaced.
LIMITATION OF LIABILITY
To the extent allowable under applicable law, VERDER’s liability for consequential damages is expressly
disclaimed. VERDER’s liability in all events is limited and shall not exceed the purchase price.
WARRANTY DISCLAIMER
VERDER has made an effort to illustrate and describe the products in the enclosed brochure accurately;
however, such illustrations and descriptions are for the sole purpose of identification and do not express or
imply a warranty that the products are merchantable, or fit for a particular purpose, or that the products will
necessarily conform to the illustration or descriptions.
PRODUCT SUITABILITY
Many regions, states and localities have codes and regulations governing the sale, construction, installa-
tion and/or use of products for certain purposes, which may vary from tline in neighboring areas. While
VERDER attempts to assure that its products comply with such codes, it cannot guarantee compliance,
and cannot be responsible for how the product is installed or used. Before purchasing and using a product,
please review the product application as well as the national and local codes and regulations, and be sure
that product, installation, and use complies with them.
Original instructions. This manual contains English.
Revision A, August 2020

Customer Services/Guarantee
20 812.0062
Austria
Verder Austria
Eitnergasse 21/Top 8
A-1230 Wien
AUSTRIA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Belgium
Verder nv
Kontichsesteenweg 17
B–2630 Aartselaar
BELGIUM
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
China
Verder Shanghai Instruments and Equipment Co., Ltd
Building 8 Fuhai Business Park No. 299
Bisheng Road, Zhangjiang Hiteck Park
Shanghai 201204
CHINA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Bulgaria
Verder Bulgaria Ltd
Vitosh department,
Manastriski Livadi Zapad
district,
110 Bulgaria Blvd., 2-nd
Floor, apt. 15-16,
1618 - Sofia
BULGARIA
Tel: [phone]
Fax: [phone]
email: [email protected]
Czech Republic
Verder s.r.o.
Vodnanská 651/6 (vchod
Chlumecka 15)
198 00 Praha 9-Kyje
CZECH REPUBLIC
Tel: [phone]
Web: http://www.verder.cz
e-mail: [email protected]
France
Verder France
$OOéH5RVD/X[HPERXUJ
Immeulde Arizona
95610 Eragny sur Oise
FRANCE
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Germany
Verder Deutschland GmbH
Retsch-Allee 1-5
42781 Haan
GERMANY
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Hungary
Verder Hongary Kft
Budafoke ut 187 - 189
HU-1117 Budapest
HUNGARY
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
India
Verder India Pumps Pvt
Ltd.
Plot No-3B, D-1 Block,
MIDC Chinchwad,
Pune - 411019
INDIA
e-mail: [email protected]
www.verder.co.in
Italy
Verder Italia
Via Maestri Del lavoro, 5
02100 Vazia, Rieti
ITALY
Tel: [phone]
e-mail: [email protected]
Korea
Verder Korea
15-26, Beodeul-ro 1362
Paltan-myun, Hwaseong-si
Gyeonggi-do, 18578
KOREA
Tel: [phone]
e-mail: [email protected]
The Netherlands
Verder BV
Leningradweg 5
NL 9723 TP Groningen
THE NETHERLANDS
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Poland
Verder Polska
ul.Porcelanowa 23
PL–40 036 Katowice
POLAND
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Romania
Verder România
Drumul Balta Doamnei
no 57-61
Sector 3
CP 72-117
032624 Bucuresti
ROMANIA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Slovak Republik
Verder Slovakia s.r.o.
Silacska 1
SK-831 02 Bratislava
SLOVAK REPUBLIK
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
South Africa
Verder SA
197 Flaming Rock Avenue
Northlands Business Park
Newmarket Street
ZA Northriding
SOUTH AFRICA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Switzerland
Verder Deutschland GmbH
Sales Switzerland
Retsch-Allee 1–5
D-42781 Haan
GERMANY
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
United Kingdom
Verder UK Ltd.
Unit 3 California Drive
Castleford, WF10 5QH
UNITED KINGDOM
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
United States of America
Verder Inc.
312 Corporate Parkway
Suite 101
Macon, GA 31210
USA
Tel: [phone]
Fax: [phone]
e-mail:
[email protected]
