VERDER VERDERAIR VA-E50 Instruction Manual

Operation
VERDERAIR VA-E50
Electric-Operated Diaphragm
Pump
859.0761
Rev.A
EN
2–Inch pumps with electric drive for fluid transfer applications.
Not approved for use in explosive atmospheres or hazardous locations unless otherwise stated. See
Approvals page for more information. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and in your
Repair/Parts manual. Save these instructions.
Maximum Working Pressure: 7 bar (0.7
MPa, 100 psi)
See page 8 for approvals.

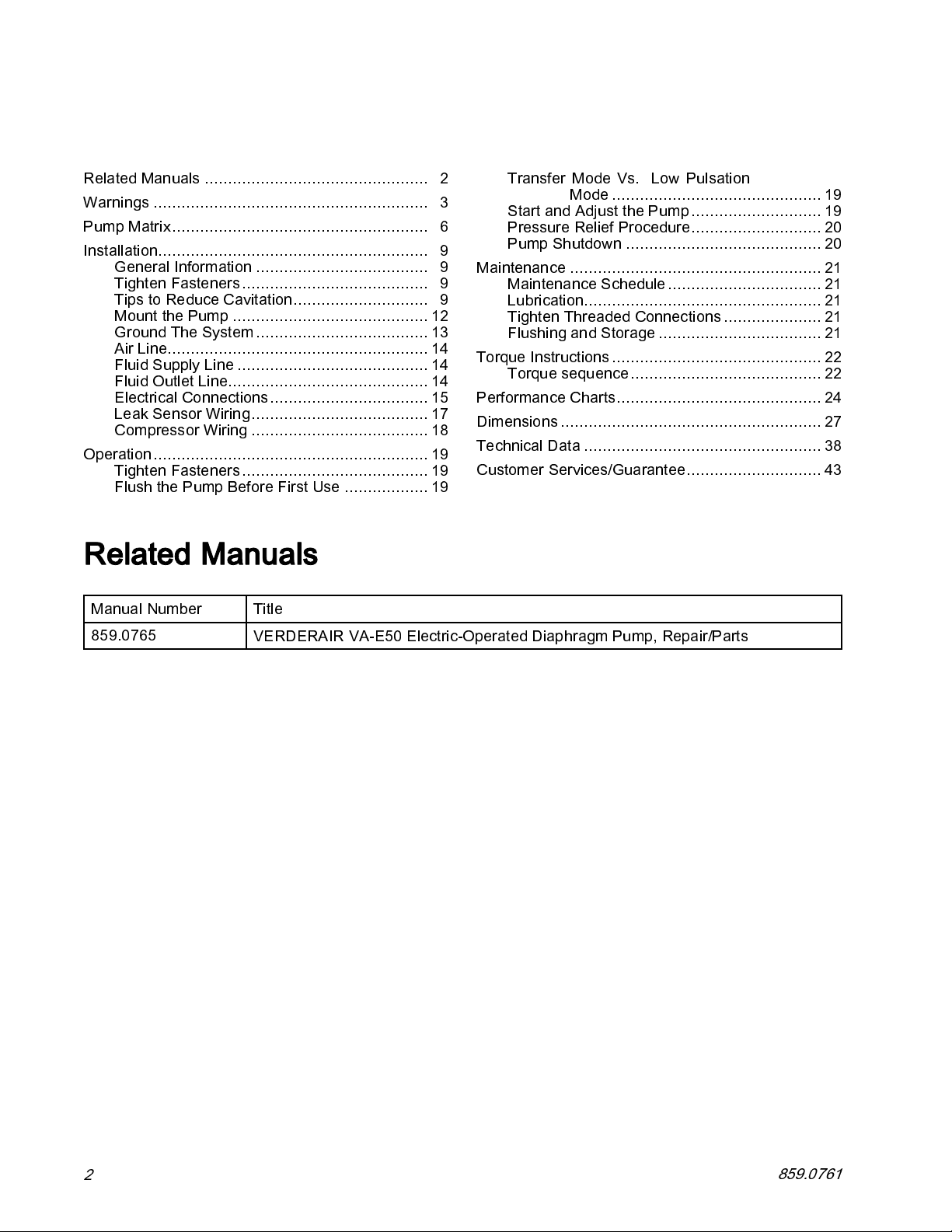

Contents
Related Manuals ................................................ 2
Warnings ........................................................... 3
Pump Matrix....................................................... 6
Installation.......................................................... 9
General In ormation ..................................... 9
Tighten Fasteners........................................ 9
Tips to Reduce Cavitation............................. 9

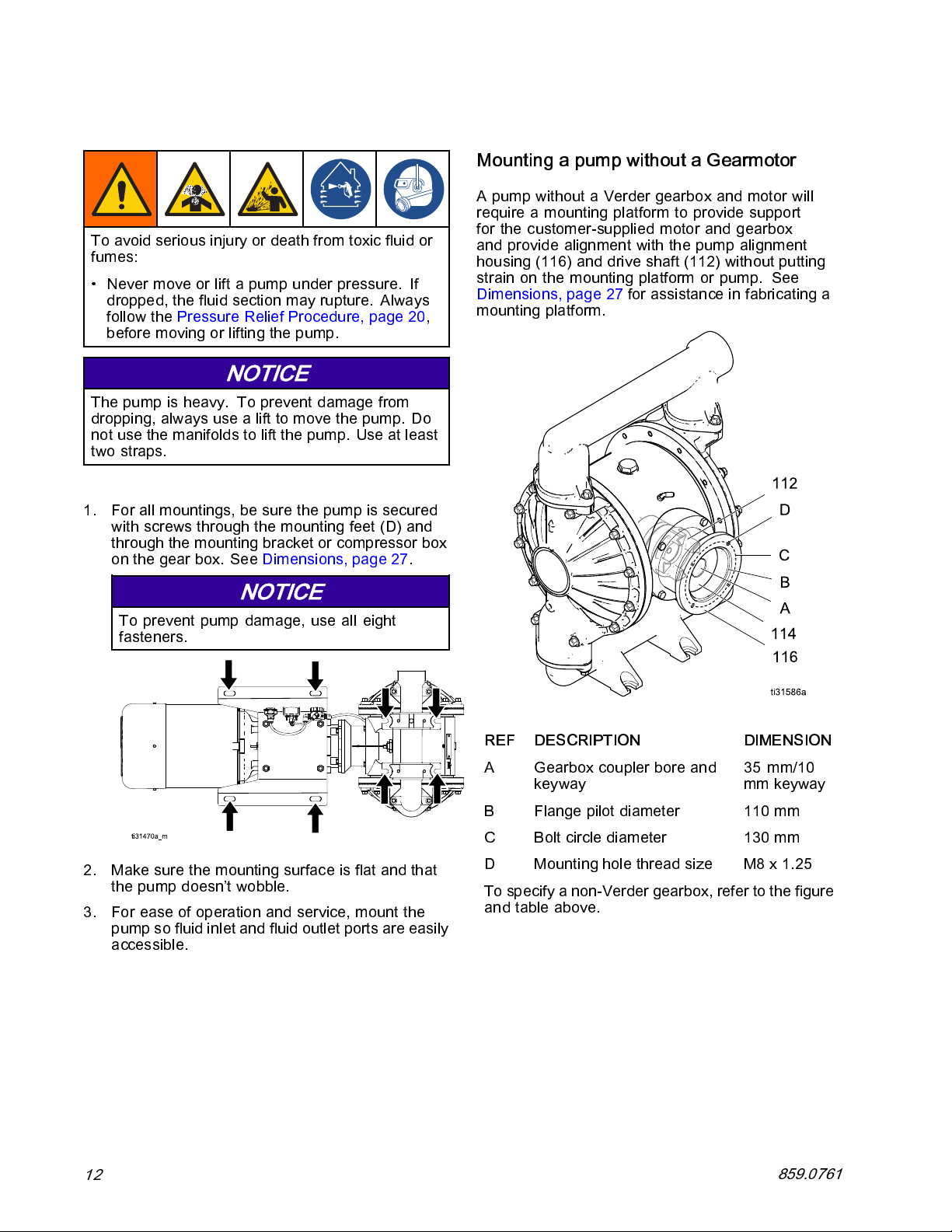

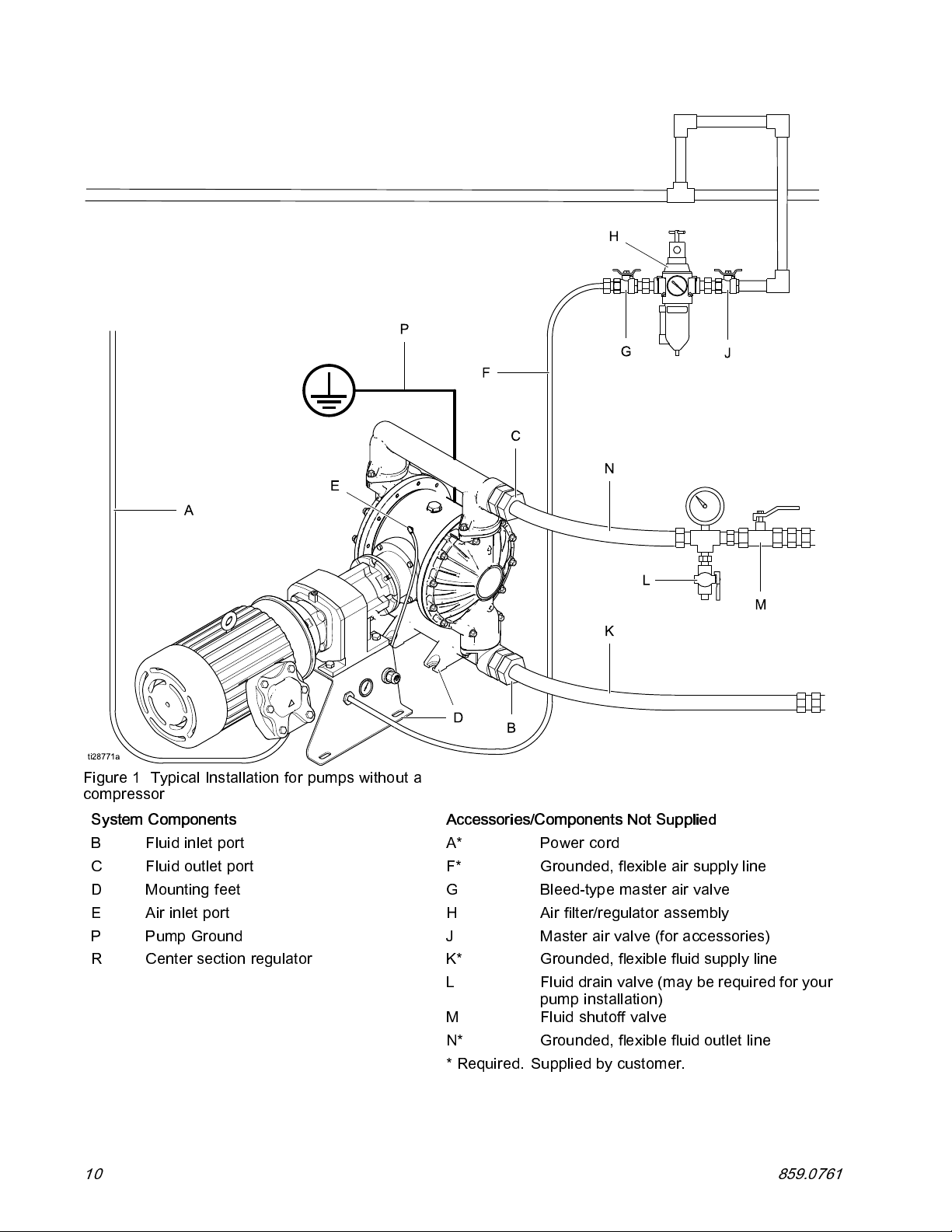

Mount the Pump .......................................... 12

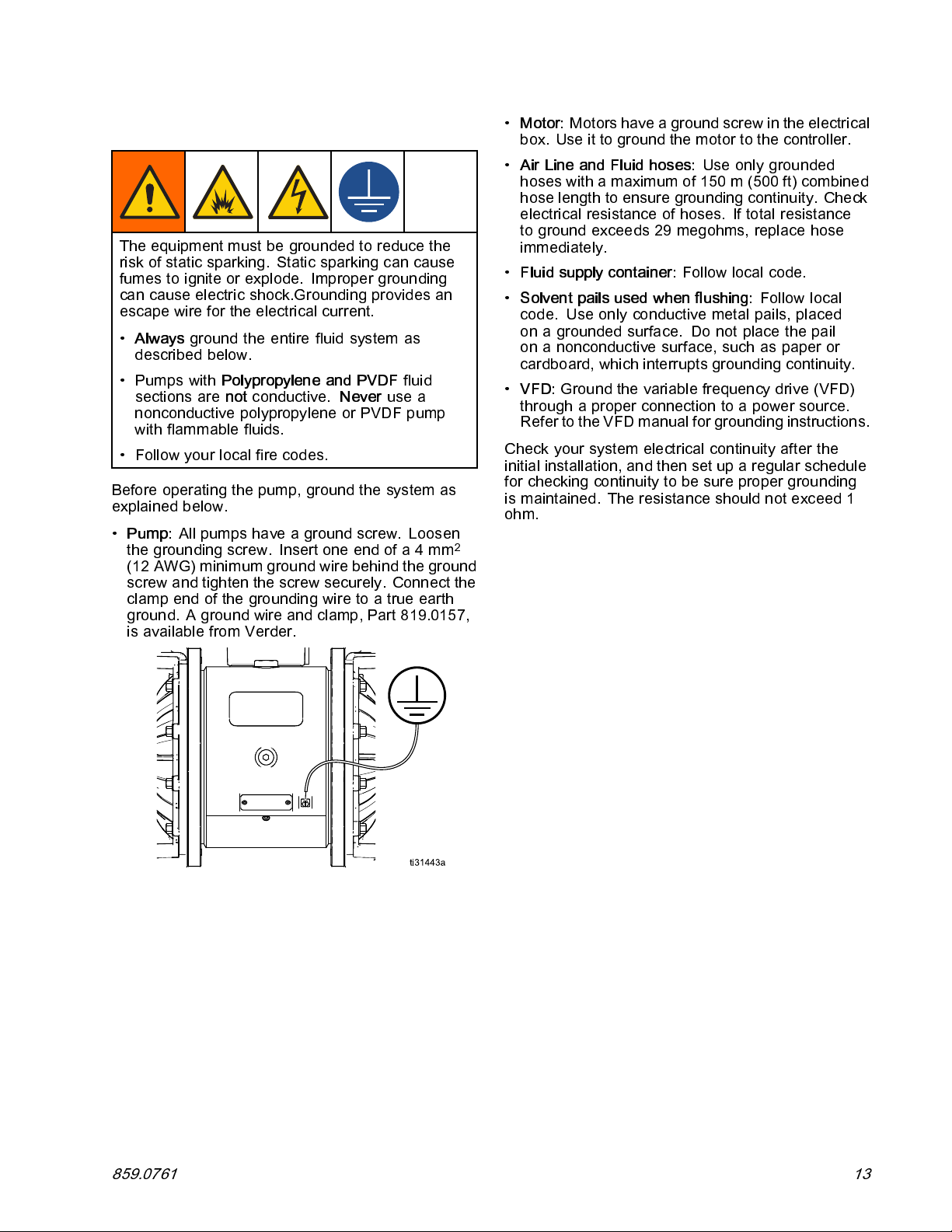

Ground The System..................................... 13
Air Line........................................................ 14

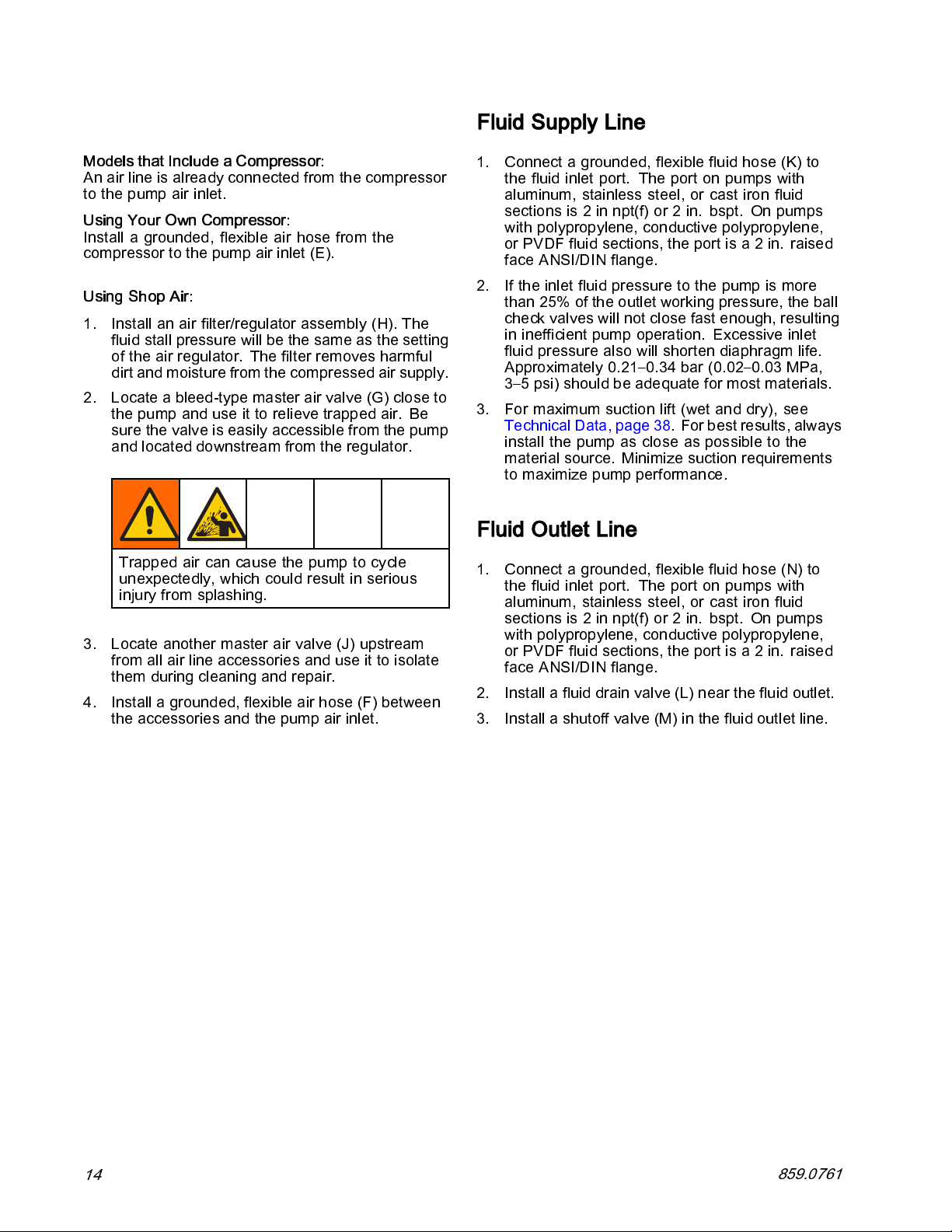

Fluid Supply Line ......................................... 14
Fluid Outlet Line........................................... 14

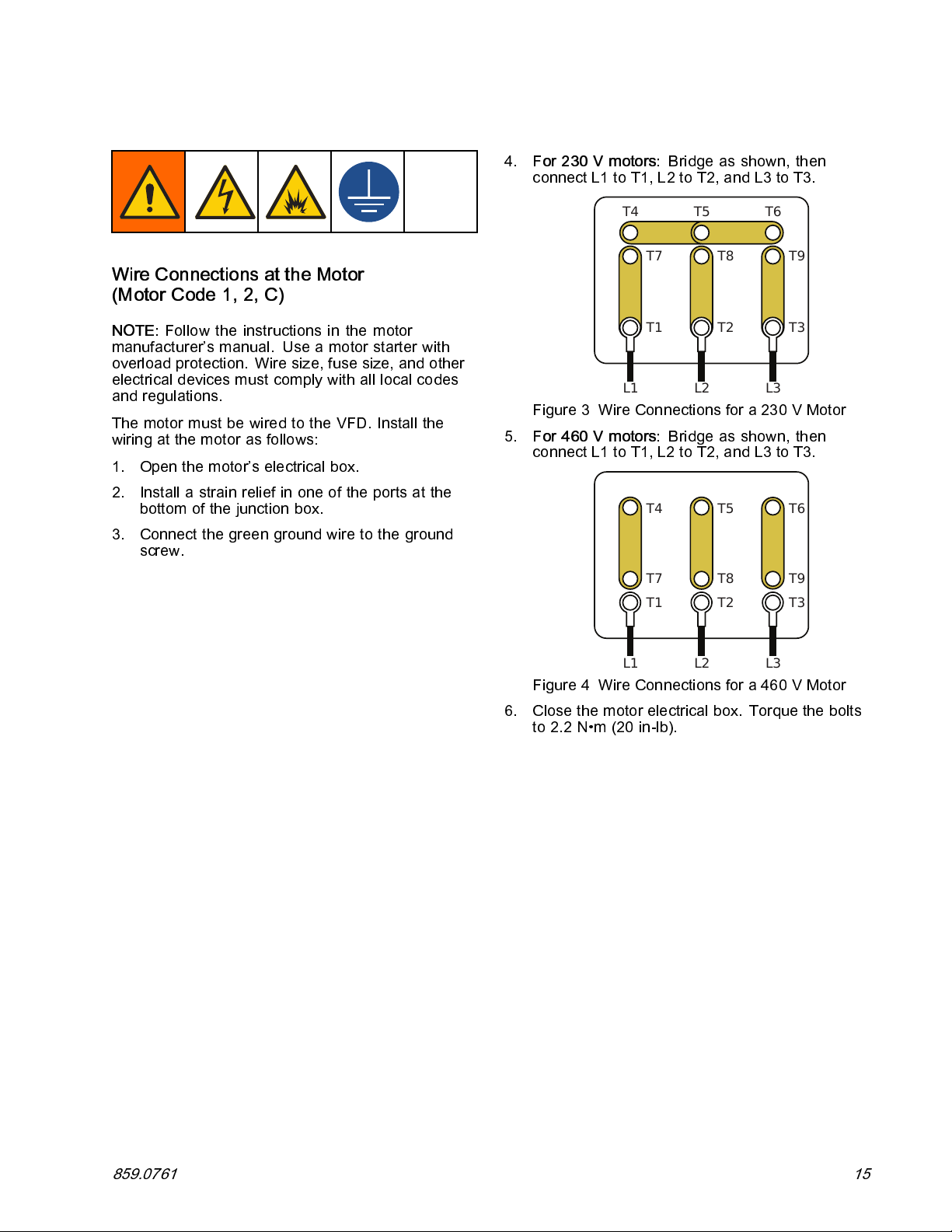

Electrical Connections.................................. 15
Leak Sensor Wiring...................................... 17
Compressor Wiring ...................................... 18
Operation........................................................... 19

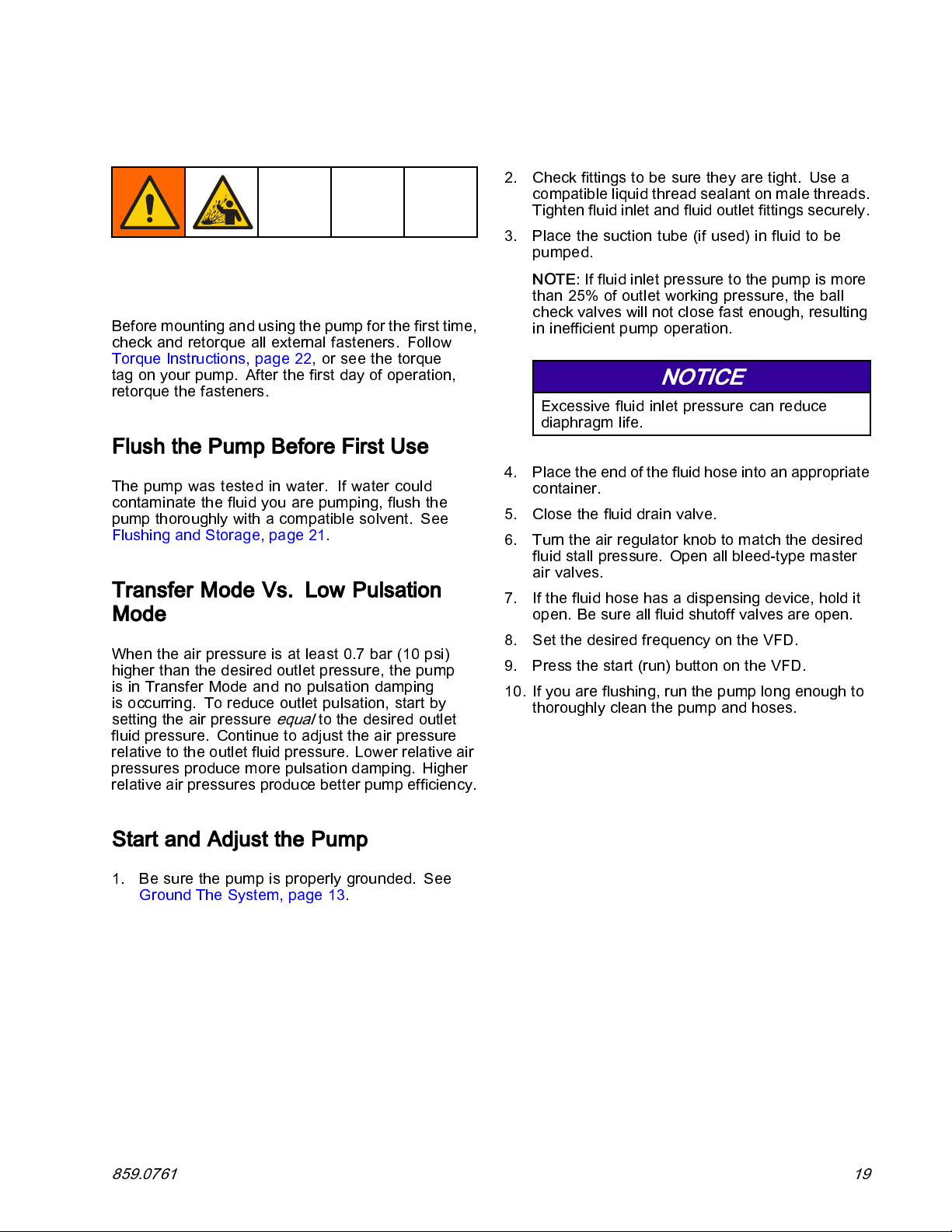

Tighten Fasteners........................................ 19
Flush the Pump Be ore First Use .................. 19
Trans er Mode Vs. Low Pulsation
Mode ............................................. 19
Start and Adjust the Pump............................19
Pressure Relie Procedure............................ 20
Pump Shutdown .......................................... 20
Maintenance ...................................................... 21
Maintenance Schedule................................. 21
Lubrication................................................... 21
Tighten Threaded Connections..................... 21
Flushing and Storage ................................... 21
Torque Instructions............................................. 22
Torque sequence......................................... 22
Per ormance Charts............................................ 24
Dimensions........................................................ 27
Technical Data ................................................... 38
Customer Services/Guarantee............................. 43
Related Manuals
Manual Number Title
859.0765 VERDERAIR VA-E50 Electric-Operated Diaphragm Pump, Repair/Parts
28 9.0761

Warnings
Warnings

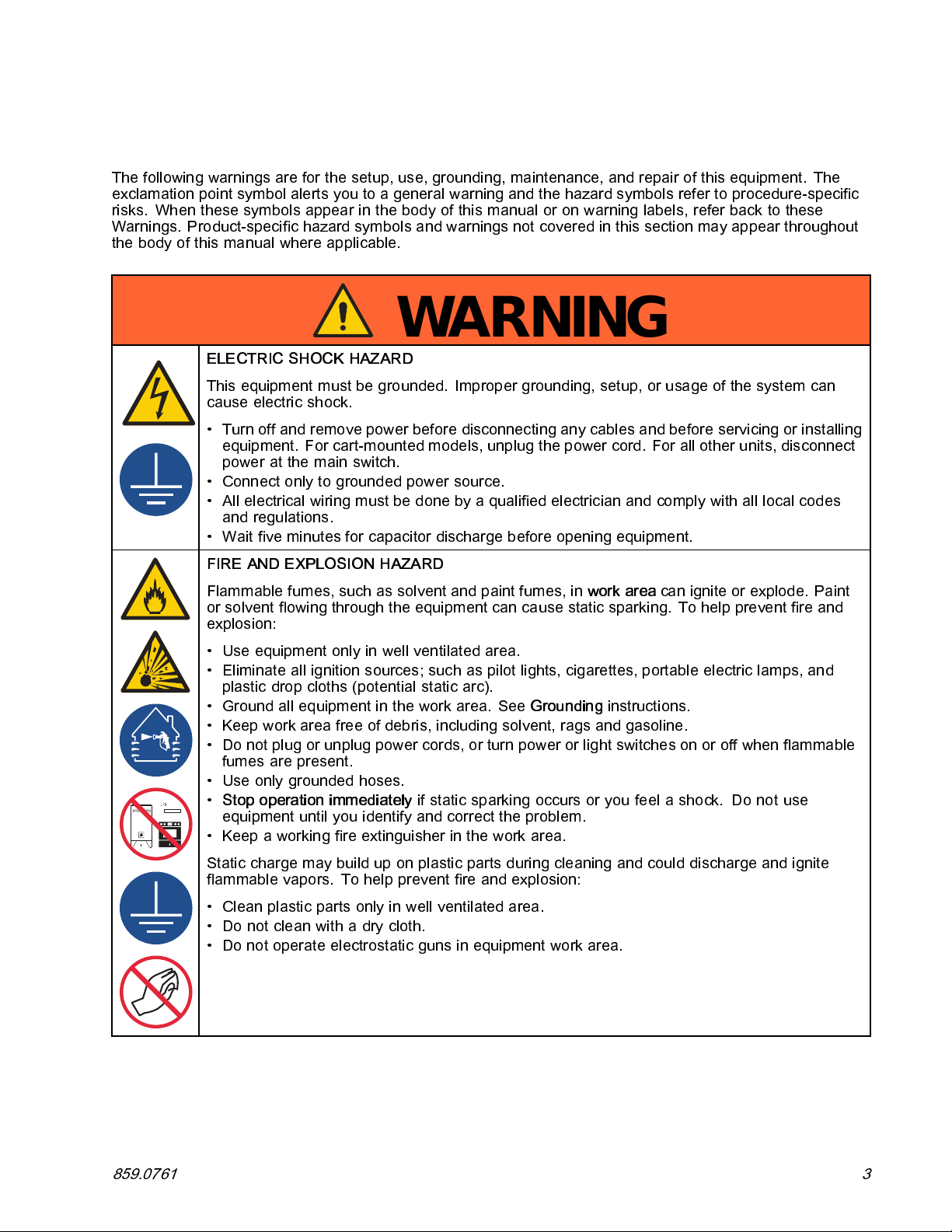

The ollowing warnings are or the setup, use, grounding, maintenance, and repair o this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols re er to procedure-specific
risks. When these symbols appear in the body o this manual or on warning labels, re er back to these
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body o this manual where applicable.
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage o the system can
cause electric shock.
• Turn o and remove power be ore disconnecting any cables and be ore servicing or installing
equipment. For cart-mounted models, unplug the power cord. For all other units, disconnect
power at the main switch.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes
and regulations.
• Wait five minutes or capacitor discharge be ore opening equipment.
FIRE A D EXPLOSIO HAZARD
Flammable umes, such as solvent and paint umes, in work area canigniteorexplode.Paint
or solvent flowing through the equipment can cause static sparking. To help prevent fire and
explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Ground all equipment in the work area. See Grounding instructions.
• Keep work area ree o debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or o when flammable
umes are present.
• Use only grounded hoses.
• Stop operation immediately i static sparking occurs or you eel a shock . Do not use
equipment until you identi y and correct the problem.
• Keep a working fire extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge and ignite
flammable vapors. To help prevent fire and explosion:
• Clean plastic parts only in well ventilated area.
• Donotcleanwithadrycloth.
• Do not operate electrostatic guns in equipment work area.
8 9.0761 3

Warnings
WARNING

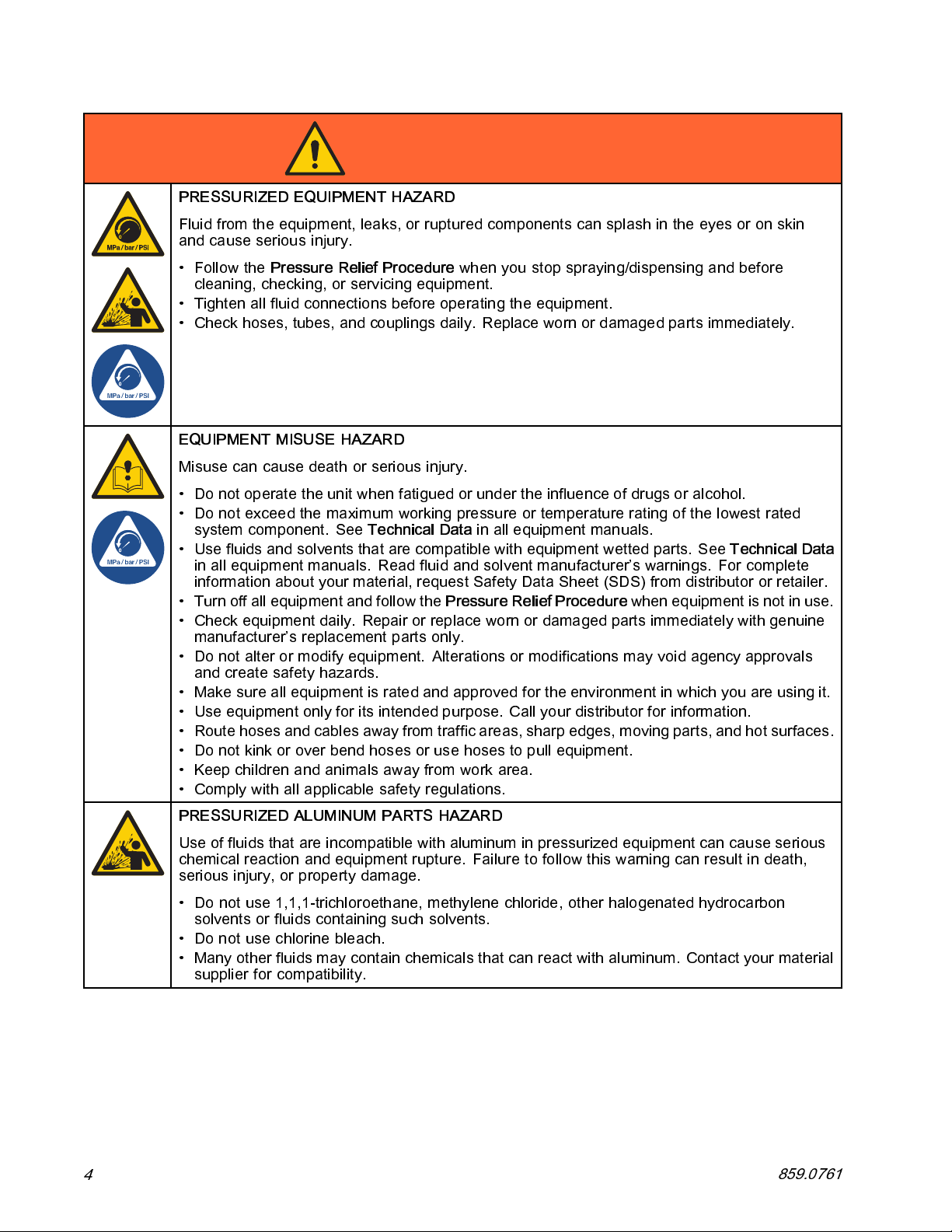

PRESSURIZED EQUIPME T HAZARD
Fluid rom the equipment, leaks, or ruptured components can splash in the eyes or on skin
and cause serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and be ore
cleaning, checking, or servicing equipment.
• Tighten all fluid connections be ore operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
EQUIPME T MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when atigued or under the influence o drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating o the lowest rated
system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manu acturer’s warnings. For complete
in ormation about your material, request Sa ety Data Sheet (SDS) rom distributor or retailer.
• Turn o all equipment and ollow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manu acturer’s replacement parts only.
• Do not alter or modi y equipment. Alterations or modifications may void agency approvals
and create sa ety hazards.
• Make sure all equipment is rated and approved or the environment in which you are using it.
• Use equipment only or its intended purpose. Call your distributor or in ormation.
• Route hoses and cables away rom tra fic areas, sharp edges, moving parts, and hot sur aces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away rom work area.
• Comply with all applicable sa ety regulations.
PRESSURIZED ALUMI UM PARTS HAZARD
Use o fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to ollow this warning can result in death,
serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material
supplier or compatibility.
48 9.0761

Warnings
WARNING

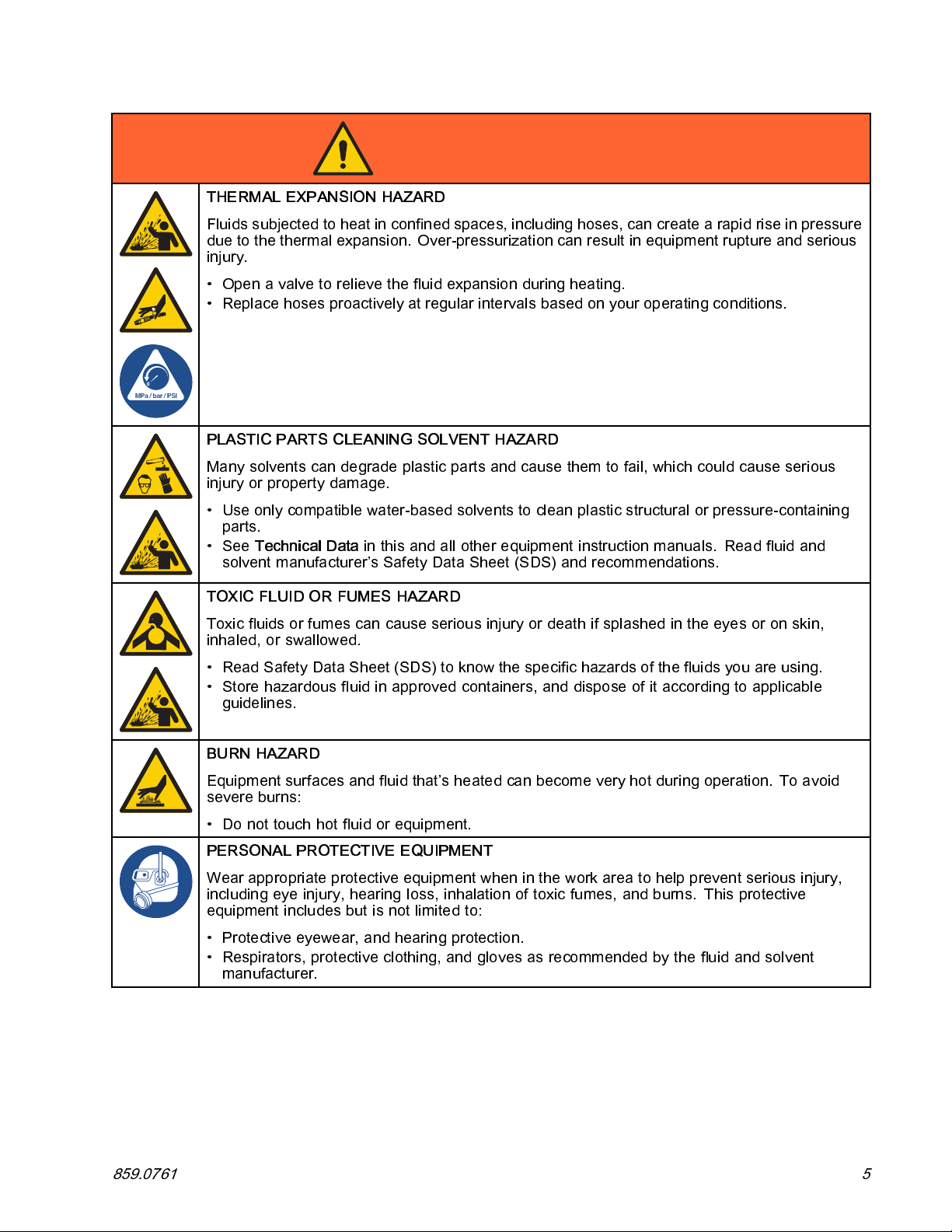

THERMAL EXPA SIO HAZARD
Fluidssubjectedtoheatinconfinedspaces,includinghoses,cancreatearapidriseinpressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious
injury.
• Openavalvetorelievethefluidexpansionduringheating.
• Replace hoses proactively at regular intervals based on your operating conditions.
PLASTIC PARTS CLEA I G SOLVE T HAZARD
Many solvents can degrade plastic parts and cause them to ail, which could cause serious
injury or property damage.
• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.
•See Technical Data in this and all other equipment instruction manuals. Read fluid and
solvent manu acturer’s Sa ety Data Sheet (SDS) and recommendations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or umes can cause serious injury or death i splashed in the eyes or on skin,
inhaled, or swallowed.
• Read Sa ety Data Sheet (SDS) to know the specific hazards o the fluids you are using.
• Store hazardous fluid in approved containers, and dispose o it according to applicable
guidelines.
BUR HAZARD
Equipment sur aces and fluid that’s heated can become very hot during operation. To avoid
severe burns:
• Do not touch hot fluid or equipment.
PERSO AL PROTECTIVE EQUIPME T
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation o toxic umes, and burns. This protective
equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manu acturer.
8 9.0761

Pump Matrix
Pump Matrix
Check the identification plate (ID) or the
Configuration Number o your pump. Use the
ollowing matrix to define the components o your
pump.
Sample Configuration umber: VA-E50 AA HY AC HY TB AC5K5
VA-E50 AAHY AC HY TB AC5K5
Pump Model Fluid Section
Material Drive Section Material Check Valve Seats Check Valve Balls Diaphragm Connections Options
OTE: Some combinations are not possible. Please check with your local supplier or the pump configurator
on www.verderair.com.
Pump Fluid Section Material Drive Section Material Check Valve Seats
VA-E50 A
Aluminum
A
Aluminum
GE
Geolast
C
Conductive
Polypropylene
S
Stainless Steel
HY
TPE
I
Cast Iron
KY
PVDF
K
PVDF
PP
Polypropylene
P
Polypropylene
SP
Santoprene
S
Stainless Steel
SS
Stainless Steel
68 9.0761

Pump Matrix
Balls Diaphragm Connections Options
AC
Acetal
GE
Geolast
FC-H
Center Flange,
Horizontal
Outlet
A15K5
Standard AC Induction Motor
(High Speed Gear Ratio) with
1 0V Air Compressor
GE
Geolast
HY
TPE
FC-V
Center Flange,
Vertical Outlet
A25K5
Standard AC Induction Motor
(High Speed Gear Ratio) with
0V Air Compressor
HD
440C Stainless
Steel
SP
Santoprene
FE
End Flange
DIN/ANSI
AC5K5
Standard AC Induction Motor
(High Speed Gear Ratio)
HY
TPE
TF
PTFE /
Polychloroprene
–Piece
TB
Threaded BSP
AF5K5
Flameproof AC Induction Motor
(High Speed Gear Ratio)
W
Polychloro-
prene
Weighted
T
Threaded NPT
AX5K5
ATEX AC Induction Motor (High
Speed Gear Ratio)
SP
Santoprene
B14K0
Standard AC Induction Motor
(Medium Speed Gear Ratio) with
1 0V Compressor
SS
316 Stainless
Steel
B24K0
Standard AC Induction Motor
(Medium Speed Gear Ratio) with
0V Compressor
TF
PTFE
BC4K0
Standard AC Induction Motor
(Medium Speed Gear Ratio)
BF4K0
Flameproof AC Induction Motor
(Medium Speed Gear Ratio)
BX4K0
ATEX AC Induction Motor
(Medium Speed Gear Ratio)
C12K2
Standard AC Induction Motor (Low
Speed Gear Ratio) with 1 0V
Compressor
C22K2
Standard AC Induction Motor (Low
Speed Gear Ratio) with 0V
Compressor
CC2K2
Standard AC Induction Motor (Low
Speed Gear Ratio)
CF2K2
Flameproof AC Induction Motor
(Low Speed Gear Ratio)
CX2K2
ATEX AC Induction Motor (Low
Speed Gear Ratio)
WG
No Motor, No Gearbox
8 9.0761 7

Pump Matrix

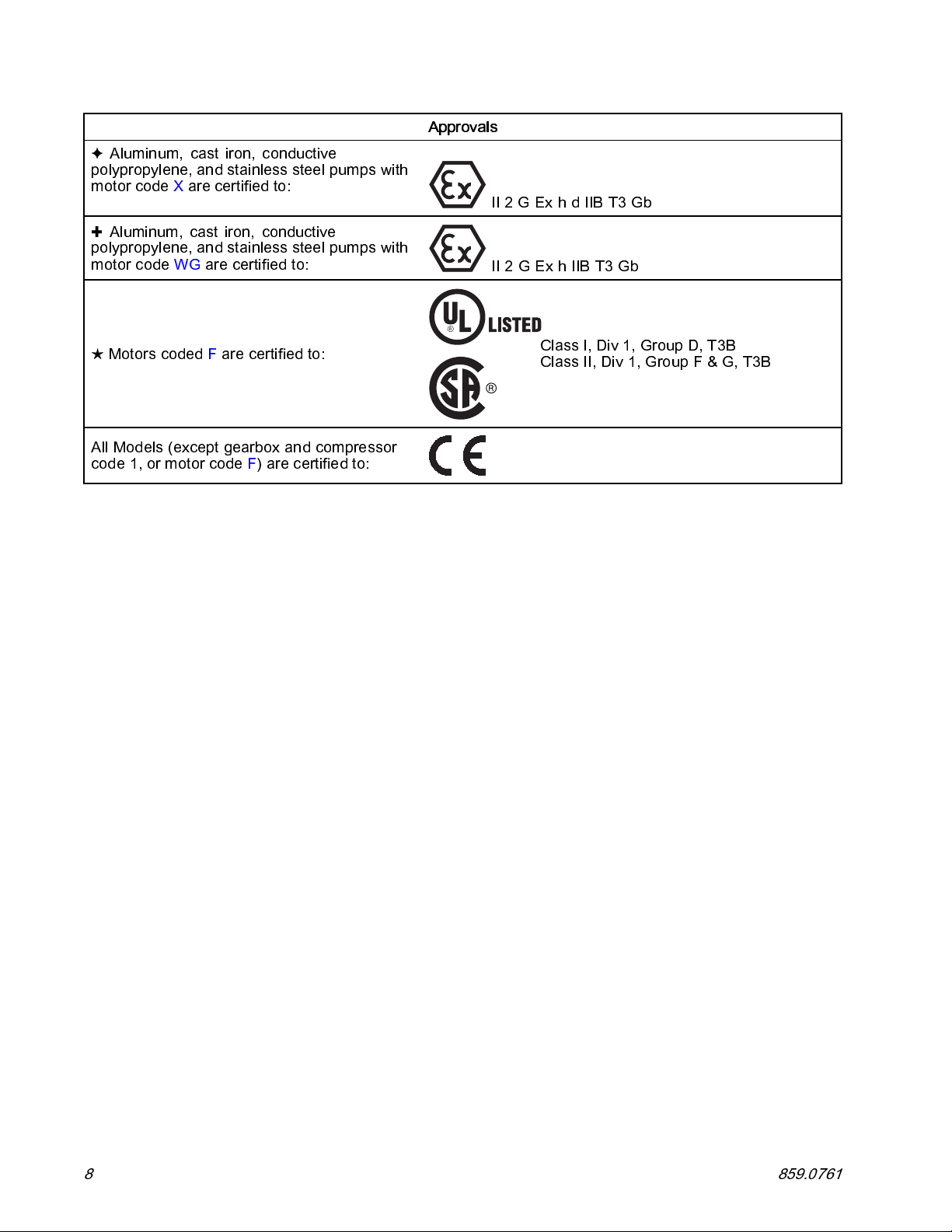

Approvals
✦ Aluminum, cast iron, conductive
polypropylene, and stainless steel pumps with
motor code Xarecertifiedto: II2GExhdIIBT3Gb
✚ Aluminum, cast iron, conductive
polypropylene, and stainless steel pumps with
motor code WG are certified to: II 2 G Ex h IIB T3 Gb
★ Motors coded Fare certified to: Class I, Div 1, Group D, T3B
Class II, Div 1, Group F & G, T3B
All Models (except gearbox and compressor
code 1, or motor code F) are certified to:
88 9.0761

Installation
Installation
Installation o this equipment involves potentially
hazardous procedures. Only trained and qualified
personnel who have read and who understand
the in ormation in this manual should install this
equipment.
• All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations
General Information
The Typical Installation shown is only a guide
or selecting and installing system components.
Contact your Verder representative or assistance in
planning a system to suit your needs. Always use
Genuine Verder Parts and accessories. Be sure all
accessories are adequately sized and pressure rated
to meet the system’s requirements.
Re erence letters in the text, or example (A), re er to
the callouts in the figures.
Tighten Fasteners
Be ore mounting and using the pump or the first time,
check and retorque all external asteners. Follow
Torque Instructions, page 22, or see the torque
tag on your pump. A ter the first day o operation,
retorque the asteners.
Tips to Reduce Cavitation
Cavitation in a double diaphragm pump is the
ormation and collapse o bubbles in the pumped
liquid. Frequent or excessive cavitation can cause
serious damage, including pitting and early wear o
fluid chambers, balls, and seats. It may result in
reduced e ficiency o the pump. Cavitation damage
and reduced e ficiency both result in increased
operating costs.
Cavitation depends on the vapor pressure o the
pumped liquid, the system suction pressure, and the
velocity pressure. It can be reduced by changing any
o these actors.
1. Reduce vapor pressure: Decrease the
temperature o the pumped liquid.
2. Increase suction pressure:
a. Lower the installed position o the pump
relative to the liquid level in the supply.
b. Reduce the riction length o the suction
piping. Remember that fittings add riction
length to the piping. Reduce the number o
fittings to reduce the riction length.
c. Increase the size o the suction piping.
OTE: Be sure the inlet fluid pressure does not
exceed 25 % o the outlet working pressure.
3. Reduce liquid velocity: Slow the cyclic rate o
the pump.
Pumped liquid viscosity is also very important but
normally is controlled by actors that are process
dependent and cannot be changed to reduce
cavitation. Viscous liquids are more di ficult to pump
and more prone to cavitation.
Verder recommends taking all the above actors
into account in system design. To maintain pump
e ficiency, supply only enough power to the pump to
achieve the required flow.
Verder distributors can supply site specific
suggestions to improve pump per ormance and
reduce operating costs.
8 9.0761 9

Installation
Figure 1 Typical Installation or pumps without a
compressor
System Components Accessories/Components ot Supplied
B Fluid inlet port A* Power cord
C Fluid outlet port F* Grounded, flexible air supply line
D Mounting eet G Bleed-type master air valve
E Air inlet port H Air filter/regulator assembly
P Pump Ground J Master air valve ( or accessories)
R Center section regulator K* Grounded, flexible fluid supply line
L Fluid drain valve (may be required or your
pump installation)
MFluid shuto valve
N* Grounded, flexible fluid outlet line
* Required. Supplied by customer.
10 8 9.0761

Installation
Figure 2 Typical installation o a pump with
compressor
System Components Accessories/Components ot Supplied
B Fluid inlet port A* Power cord
CFluid outlet port F* Power cord to compressor
DMounting eet K* Grounded, flexible fluid supply line
E Air inlet port L Fluiddrainvalve(mayberequired oryour
pump installation)
JCenter section regulator MFluid shuto valve
PPump Ground N* Grounded, flexible fluid outlet line
* Required. Supplied by customer.
8 9.0761 11

Installation
Mount the Pump
To avoid serious injury or death rom toxic fluid or
umes:
• Never move or li t a pump under pressure. I
dropped, thefluidsectionmayrupture.Always
ollow the Pressure Relie Procedure, page 20,
be ore moving or li ting the pump.
NOTICE
Thepumpisheavy. To prevent damage rom
dropping, always use a li t to move the pump. Do
not use the mani olds to li t the pump. Use at least
two straps.
1. For all mountings, be sure the pump is secured
with screws through the mounting eet (D) and
through the mounting bracket or compressor box
on the gear box. See Dimensions, page 27.
NOTICE
To prevent pump damage, use all eight
asteners.
2. Make sure the mounting sur ace is flat and that
the pump doesn’t wobble.
3. For ease o operation and service, mount the
pump so fluid inlet and fluid outlet ports are easily
accessible.
Mounting a pump without a Gearmotor
A pump without a Verder gearbox and motor will
require a mounting plat orm to provide support
or the customer-supplied motor and gearbox
and provide alignment with the pump alignment
housing (116) and drive sha t (112) without putting
strain on the mounting plat orm or pump. See
Dimensions, page 27 or assistance in abricating a
mounting plat orm.
REF DESCRIPTIO DIME SIO
AGearbox coupler bore and
keyway 35 mm/10
mm keyway
B Flange pilot diameter 110 mm
CBolt circle diameter 130 mm
D Mounting hole thread size M8 x 1.25
To speci y a non-Verder gearbox, re er to the figure
and table above.
12 8 9.0761

Installation
Ground The System
The equipment must be grounded to reduce the
risk o static sparking. Static sparking can cause
umes to ignite or explode. Improper grounding
can cause electric shock.Grounding provides an
escape wire or the electrical current.
• Always groundtheentirefluidsystemas
described below.
•Pumpswith
Polypropylene and PVDF fluid
sections are not conductive. ever use a
nonconductive polypropylene or PVDF pump
with flammable fluids.
•Followyo
ur local fire codes.
Be ore operating the pump, ground the system as
explained below.
• Pump: All pumps have a ground screw. Loosen
the grounding screw. Insert one end o a 4 mm
2
(12 AWG) minimum ground wire behind the ground
screw and tighten the screw securely. Connect the
clamp end o the grounding wire to a true earth
ground. A ground wire and clamp, Part 819.0157,
is available rom Verder.
• Motor: Motors have a ground screw in the electrical
box. Use it to ground the motor to the controller.
• Air Line and Fluid hoses: Use only grounded
hoses with a maximum o 150 m (500 t) combined
hose length to ensure grounding continuity. Check
electrical resistance o hoses. I total resistance
to ground exceeds 29 megohms, replace hose
immediately.
• Fluid supply container: Follow local code.
• Solvent pails used when flushing: Follow local
code. Use only conductive metal pails, placed
on a grounded sur ace. Do not place the pail
on a nonconductive sur ace, such as paper or
cardboard, which interrupts grounding continuity.
• VFD: Ground the variable requency drive (VFD)
through a proper connection to a power source.
Re er to the VFD manual or grounding instructions.
Check your system electrical continuity a ter the
initial installation, and then set up a regular schedule
or checking continuity to be sure proper grounding
is maintained. The resistance should not exceed 1
ohm.
8 9.0761 13

Installation
Air Line
Models that Include a Compressor:
An air line is already connected rom the compressor
to the pump air inlet.
Using Your Own Compressor:
Install a grounded, flexible air hose rom the
compressor to the pump air inlet (E).
Using Shop Air:
1. Install an air filter/regulator assembly (H). The
fluid stall pressure will be the same as the setting
o the air regulator. The filter removes harm ul
dirt and moisture rom the compressed air supply.
2. Locateableed-typemasterairvalve(G)closeto
the pump and use it to relieve trapped air. Be
sure the valve is easily accessible rom the pump
and located downstream rom the regulator.
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious
injury rom splashing.
3. Locate another master air valve (J) upstream
rom all air line accessories and use it to isolate
them during cleaning and repair.
4. Install a grounded, flexible air hose (F) between
the accessories and the pump air inlet.
Fluid Supply Line
1. Connect a grounded, flexible fluid hose (K) to
the fluid inlet port. The port on pumps with
aluminum, stainless steel, or cast iron fluid
sections is 2 in npt( ) or 2 in. bspt. On pumps
with polypropylene, conductive polypropylene,
or PVDF fluid sections, the port is a 2 in. raised
ace ANSI/DIN flange.
2. I the inlet fluid pressure to the pump is more
than 25% o the outlet working pressure, the ball
check valves will not close ast enough, resulting
in ine ficient pump operation. Excessive inlet
fluid pressure also will shorten diaphragm li e.
Approximately 0.21–0.34 bar (0.02–0.03 MPa,
3–5 psi) should be adequate or most materials.
3. For maximum suction li t (wet and dry), see
Technical Data, page 38. For best results, always
install the pump as close as possible to the
material source. Minimize suction requirements
to maximize pump per ormance.
Fluid utlet Line
1. Connect a grounded, flexible fluid hose (N) to
the fluid inlet port. The port on pumps with
aluminum, stainless steel, or cast iron fluid
sections is 2 in npt( ) or 2 in. bspt. On pumps
with polypropylene, conductive polypropylene,
or PVDF fluid sections, the port is a 2 in. raised
ace ANSI/DIN flange.
2. Install a fluid drain valve (L) near the fluid outlet.
3. Install a shuto valve (M) in the fluid outlet line.
14 8 9.0761

Installation
Electrical Connections
Wire Conne tions at the Motor
(Motor Code 1, 2, C)
OTE: Follow the instructions in the motor
manu acturer’s manual. Use a motor starter with
overload protection. Wire size, use size, and other
electrical devices must comply with all local codes
and regulations.
The motor must be wired to the VFD. Install the
wiring at the motor as ollows:
1. Open the motor’s electrical box.
2. Install a strain relie in one o the ports at the
bottom o the junction box.
3. Connect the green ground wire to the ground
screw.
4. For 230 V motors: Bridge as shown, then
connect L1 to T1, L2 to T2, and L3 to T3.
T4 T5 T6
L2 L3L1
T7 T8 T9
T1 T2 T3
Figure 3 Wire Connections or a 230 V Motor
5. For 460 V motors: Bridge as shown, then
connect L1 to T1, L2 to T2, and L3 to T3.
T4 T5 T6
L2 L3L1
T7 T8 T9
T1 T2 T3
Figure 4 Wire Connections or a 460 V Motor
6. Close the motor electrical box. Torque the bolts
to 2.2 N•m (20 in-lb).
8 9.0761 1

Installation
Wire Conne tions at the ATEX Motor
(Motor Code X)
Install the wiring at the motor as ollows:
1. Open the motor’s electrical box.
2. Install wiring system with proper connections to
the motor electrical box.
3. Connect the green ground wire to the ground
screw.
4. For 400V Wiring: Bridge as shown, then connect
wire L1 to U1, L2 to V1, and L3 to W1.
W2 U2 V2
L2 L3L1
U1 V1 W1
Figure 5 Connections or 400V Wiring
5. For 230V Wiring: Connect wire L1 to U1, L2 to
V1, and L3 to W1. Bridge as shown.
W2 U2 V2
L2 L3L1
U1 V1 W1
Figure 6 Connections or 230V Wiring
6. Torque terminals to 2.3 N•m (20 in-lb).
7. Close the motor electrical box. Torque the
screws to 2.3 N•m (20 in-lb).
8. Connect thermostat wires P1 and P2 to external
overload detection. Thermostat is NC (normally
closed).
Wire Conne tions at the Flameproof Motor
(Motor Code F)
Install the wiring at the motor as ollows:
1. Open the motor’s electrical box.
2. Install wiring system with proper connections to
the motor electrical box.
3. Connect the green ground wire to the ground
screw.
4. For 460V Wiring: ConnectwireL1toT1,L2to
T2, and L3 to T3, and bridge the other wires, as
shown.
T1
T2
T3
L1
L2
L3
T4
T7
T5
T8
T6
T9
Figure 7 Connections or 460V Wiring
5. For 230V Wiring: Bridge the wires as shown.
Then, connect L1 to T1/T7, L2 to T2/T8, and L3
to T3/T9.
T1
T7
T2
L1
L2
L3
T8
T3
T9
T4
T5
T6
Figure 8 Connections or 230V Wiring
6. Connect thermostat wires P1 and P2 to external
overload detection. Thermostat is NC (normally
closed).
7. Close the motor electrical box. Torque the
screws to 2.3 N•m (20 in-lb).
16 8 9.0761

Installation
Leak Sensor Wiring
Follow these instructions to wire the Leak Sensor to
aVFD.
OTE : The leak sensor is designed to operate as
a normally-closed circuit.
1. Turn o power to the VFD.
2. Open the access cover on the VFD.
3. For a Verder VFD, per orm the ollowing:
a. Wireoneleadtoterminal4ontherail.
b. Wire a second lead to terminal 13A on the
rail.
c. Close the access cover.
d. Turn on power to the VFD.
e. Go to screen P121.
. Change the value to 21 and press the Mode
button.
4. For a non-Verder VFD, per orm the ollowing:
a. Attach the two leads to the detection circuit
in the VFD.
OTE : Re er to the VFD manual or proper
connection points.
b. Close the access cover.
c. Turn on power to the VFD.
d. Configure the VFD to monitor the leak sensor
circuit.
5. Re er to the VFD manual or in ormation on how
to configure the VFD to generate a ault or stop
the pump when a leak is detected.
8 9.0761 17

Installation
Compressor Wiring
To avoid injury rom fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
Follow these instructions to wire Verder Compressor
859.0504 (120V) or 859.0505 (240V).
OTE: Use only copper wire with an insulation rating
o 75°C or higher.
1. Remove the cover rom the compressor’s
electrical box.
2. Install wiring system with proper connections (i.e.
conduit/fittings, power cable/cable grip) to the
compressor electrical box.
3. Connect line power (120VAC or 240 VAC,
depending on your compressor) to L1 and L2/N.
Connect supply ground to . Use minimum
4mm
2
(12AWG)wirewhenthesystemis
configured or a 16A circuit and 2.5 mm
2
(14
AWG) when configured or a 12A circuit. Torque
terminals to 1.2 N•m (10 in-lb).
4. Reinstall the cover o the electrical box. Torque
screws to 6.8 N•m (60 in-lb).
Figure 9
L1
L2
A
KEY
A To power supply
18 8 9.0761

Operation
Operation
Tighten Fasteners
Be ore mounting and using the pump or the first time,
check and retorque all external asteners. Follow
Torque Instructions, page 22, or see the torque
tag on your pump. A ter the first day o operation,
retorque the asteners.
Flush the Pump Before First Use
The pump was tested in water. I water could
contaminate the fluid you are pumping, flush the
pump thoroughly with a compatible solvent. See
Flushing and Storage, page 21.
Transfer Mode Vs. Low Pulsation
Mode
When the air pressure is at least 0.7 bar (10 psi)
higher than the desired outlet pressure, the pump
is in Trans er Mode and no pulsation damping
is occurring. To reduce outlet pulsation, start by
setting the air pressure equal to the desired outlet
fluid pressure. Continue to adjust the air pressure
relative to the outlet fluid pressure. Lower relative air
pressures produce more pulsation damping. Higher
relative air pressures produce better pump e ficiency.
Start and Adjust the Pump
1. Be sure the pump is properly grounded. See
Ground The System, page 13.
2. Check fittings to be sure they are tight. Use a
compatible liquid thread sealant on male threads.
Tighten fluid inlet and fluid outlet fittings securely.
3. Placethesuctiontube(i used)influidtobe
pumped.
OTE: I fluid inlet pressure to the pump is more
than 25% o outlet working pressure, the ball
check valves will not close ast enough, resulting
in ine ficient pump operation.
NOTICE
Excessivefluidinletpressurecanreduce
diaphragm li e.
4. Placetheendo thefluidhoseintoanappropriate
container.
5. Close the fluid drain valve.
6. Turn the air regulator knob to match the desired
fluid stall pressure. Open all bleed-type master
air valves.
7. I the fluid hose has a dispensing device, hold it
open. Be sure all fluid shuto valves are open.
8. Set the desired requency on the VFD.
9. Press the start (run) button on the VFD.
10. I you are flushing, run the pump long enough to
thoroughly clean the pump and hoses.
8 9.0761 19

Operation
Pressure Relief Procedure
Follow the Pressure Relie Procedure
whenever you see this symbol.
This equipment stays pressurized until pressure
is relieved manually. To help prevent serious
injury rom pressurized fluid, such as splashing
in the eyes or on skin, ollow the Pressure Relie
Procedure when you stop pumping and be ore you
clean, check, or service the equipment.
1. Remove power rom the system.
2. Open the dispensing valve, i used.
3. Openthefluiddrainvalve(L),i used,torelieve
fluid pressure. Have a container ready to catch
the drainage.
4. Shut o the air supply to the pump.
5. Back out center section regulator to relieve air
pressure in center section.
Pump Shutdown
At the end o the work shi t and be ore you check,
adjust,clean,orrepairthesystem, ollowthe
Pressure Relie Procedure, page 20.
20 8 9.0761
