Veripos LD5 User manual

LD5 (C Variant)
Operations
Manual
VERIPOS

Rev No:
A3
Page 2
Date:
23.03.2019
LD5 (C Variant) Operation Manual
A3
28.03.2019
Heading updates
JTF
DB
RR
-
A2
05.01.2017
Minor updates
AR
VA
RR
-
A1
08.12.2016
Approved for release
AR
VA
RR
-
REVISION
DATE
DESCRIPTION
ORIGINATOR
CHECKED
APPROVED
CLIENT
APPR
Document Title:
LD5 (C Variant) Operations Manual
File Ref:
AB-V-MA-00605

Rev No:
A3
Page 3
Date:
23.03.2019
LD5 (C Variant) Operation Manual
Table of Contents
1INTRODUCTION......................................................................................................3
1.1 GENERAL ..............................................................................................................3
1.2 SCOPE ..................................................................................................................3
1.2.1 Contents.............................................................................................3
1.3 TERMS AND ABBREVIATIONS....................................................................................4
1.4 DOCUMENTCONVENTIONS......................................................................................5
1.4.1 Typographicalconventions .................................................................5
1.4.2 Special notices ...................................................................................5
1.5 VERIPOSHELPDESK............................................................................................6
1.6 VERIPOSONLINE SUPPORT SYSTEM (VOSS).......................................................6
1.7 ENABLINGTHE EQUIPMENTFOR USE ........................................................................6
1.8 WASTE ELECTRICAL AND ELECTRONICEQUIPMENT....................................................7
1.9 DISCLAIMER...........................................................................................................8
2LD5 OPERATION.....................................................................................................9
2.1 LD5 VARIANTS ......................................................................................................9
2.1.1 Available LD5 Variants.......................................................................9
2.1.2 Identifying LD5 Hardware Variant ....................................................10
2.2 SATELLITE CONSTELLATIONS ................................................................................11
2.3 VIEWS AND CONTROLS .........................................................................................12
2.4 LD5START UP .....................................................................................................14
2.5 L-BAND RECEIVER ...............................................................................................15
2.5.1L-Band > Status > Module Info.........................................................15
2.5.2 L-Band > Status > Device Status.....................................................15
2.5.3 L-Band > Config > RTCM Stations...................................................15
2.5.4L-Band > Config > Beam selection...................................................16
2.5.5 L-Band > Config > Antenna Bias......................................................16

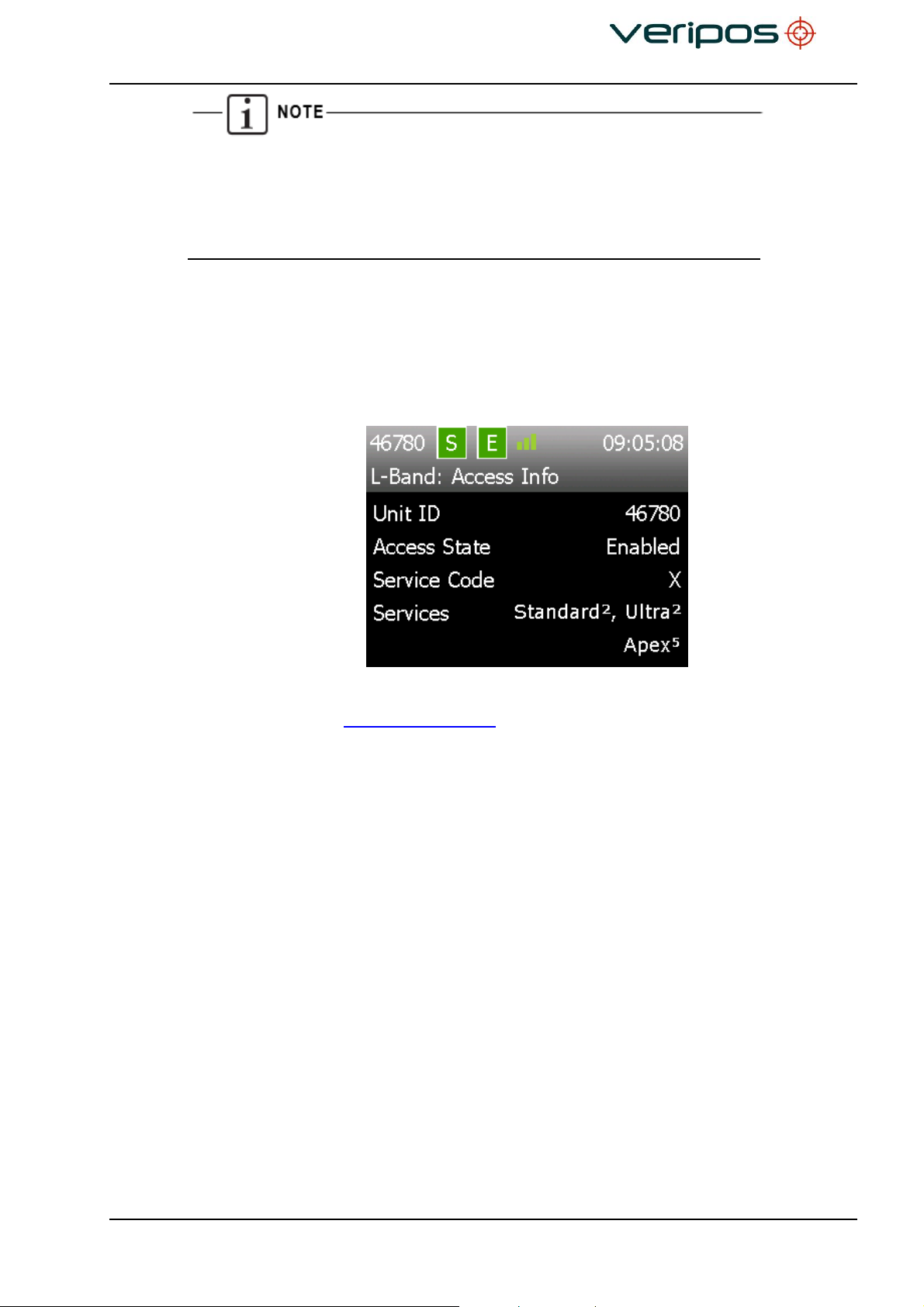

2.5.6 L-Band > Access Info .......................................................................17
2.5.7 L-Band > Help ..................................................................................17
2.6 GNSSRECEIVER.................................................................................................18
2.6.1 GNSS > Status > Module Info..........................................................18
2.6.2 GNSS > Status > SV Info.................................................................19
2.6.3 GNSS > Status > Position Info.........................................................20
2.6.4 GNSS > Status > DOP Values.........................................................21
2.6.5 GNSS > Status > Masks ..................................................................21
2.6.6 GNSS > Config.................................................................................22
2.6.7 GNSS > Config > PPS......................................................................22
2.6.8 GNSS > Config > PPP Config ..........................................................22
2.6.9 GNSS > Config > SBAS ...................................................................23
2.6.10 GNSS > Config > NMEA > NMEAa (or) NMEAb............................24
2.6.11 GNSS > Config > NMEA > Config..................................................25
2.6.12 GNSS > Config > Channel Config..................................................25
2.6.13 GNSS > Config > Heading C-O......................................................26
2.6.13 GNSS > Help..................................................................................27
2.7 MF BEACON (IALA) RECEIVER.............................................................................28
2.7.1 MF > Status > Module Info...............................................................28
2.7.2 MF > Status > Device Status............................................................28
2.7.3 MF > Config > Mode.........................................................................28
2.7.4 MF > Config > Manual Tune.............................................................29
2.7.5 MF > Config > Station Tune .............................................................30
2.7.6 MF > Config > Antenna Bias ............................................................30
2.7.7 MF > Help.........................................................................................30
2.8 LD5 CONFIG .......................................................................................................31
2.8.1 Config > I/O ......................................................................................31
2.8.2 Config > I/O > COM1 (or) COM2 / COM3........................................31
2.8.3 Config > I/O > COM X > Ext RTCM .................................................33
2.8.4 Config > I/O > Network.....................................................................33
2.8.5 Config > Reboot ...............................................................................34

Rev No:
A3
Page 4
Date:
23.03.2019
LD5 (C Variant) Operation Manual
2.8.6 Config > Admin.................................................................................34
2.8.7 Config > Config.................................................................................34
2.8.8 Config > USB Mode .........................................................................34
2.9 LD5 GNSS HEADING ............................................................................................35
2.9.1 Enabling the GNSS Heading Feature..............................................36
3VERIPOS SOFTWARE COMPATIBILITY.............................................................37
4TROUBLESHOOTING...........................................................................................38
4.1 OVERVIEW OF TROUBLESHOOTING ........................................................................38
4.1.1 Hardware..........................................................................................38
4.1.2 Power faults......................................................................................38
4.1.3 Enable/disablefaults.........................................................................39
4.1.4 L-Band signal faults..........................................................................39
4.1.5 GNSS Signalfaults...........................................................................41
4.1.6 GNSS Headingfaults .......................................................................41
4.2 VERIPOS HELPDESK..........................................................................................43
5REFERENCE INFORMATION...............................................................................44
5.1 SERVICE ACCESS LICENCE AND ENABLING PROCESS...............................................44
5.1.1 Service access license .....................................................................44
5.1.2 Enabling Process..............................................................................44
5.2 GLOBAL COVERAGE CHART ..................................................................................45
5.3 COMPORTS........................................................................................................46
5.3.1 LD5 COM and IP sockets.................................................................46
5.4 LD5 MENU STRUCTURE........................................................................................47
5.5 NMEA SENTENCES .............................................................................................51
6CONTACT INFORMATION....................................................................................61
6.1 VERIPOS H ELPDESK ..........................................................................................61
6.2 VERIPOS OFFICE LOCATIONS ............................................................................61
6.2.1 VERIPOS UK ...................................................................................61
6.2.2 Additional VERIPOS Offices.......................................................................61

Rev No:
A3
Page 3
Date:
23.03.2019
LD5 (C Variant) Operation Manual
1 Introduction
1.1 General
For installationguidance please see the LD5 InstallationManual.
An LD5 Quick Guide is also available, which provides basic information regarding LD5
menus, data outputs etc.
The latest copies of all LD5 related manuals can be downloaded from the VERIPOS
Online Support System (VOSS).
Throughout this manual, references will be made to the VERIPOS Helpdesk. The
Helpdesk is provided by VERIPOS as the first point of contact for technical enquiries and
assistance. It is manned 24 hours per day, 365 days per year.
Details canbefoundin the Contact Information chapter.
1.2 Scope
This LD5 (C Variant) Operations Manual provides information on setting up the unit,
beam selection and enabling, as well as configuring the COM and IP ports.
This should not be confused with the LD5 (A Variant or B Variant) Operations
Manual, as the operation and capabilities of each differs.
1.2.1 Contents
Chapter Contents
1. Introduction Discusses the purpose and target group for the
manual. It also contains a list of used
abbreviations and a specification of the document
conventions.
2. Operation Describes the interfaces in detail, the initial
start-up, the status indicators and possible
corrective actions and how to shut the system
down.
3. Compatible Software Describes the VERIPOS visualisation software
which is compatible with the LD5-C.
4. Troubleshooting Describes basic fault tracing and a detailed
description on how to report problems or
operating queries to the VERIPOS Helpdesk.
5. Reference information Additional information such as additional
configuration, station ID listings.
6. Contact information Contains contact information details about the
VERIPOS Helpdesk and VERIPOS offices
worldwide.

Rev No:
A2
Page 4
Date:
05.01.2017
LD5 (C Variant) Operation Manual
1.3 Terms and abbreviations
APEX A VERIPOSPPP service using GPS
APEX² A VERIPOSPPP service using GPS and GLONASS
APEX5A VERIPOSPPP service using GPS, GLONASS, Galileo, BeiDou and
QZSS
BeiDou Chinese GNSS constellation
DGPS Differential GPS
DGNSS Differential GNSS
DOP Dilution of Precision
DQI Differential Quality Indicator
Galileo European GNSS constellation
Ghz Gigahertz
GLONASS Global Navigation Satellite System –Russian equivalent to GPS
GPS Global Positioning System
GNSS Global Navigation Satellite System
HDOP Horizontal Dilution of Precision
Hz Hertz
IMU Integrated Mobile Unit
L-Band Radio frequency band, 1GHz to 2GHz, as used for VERIPOScorrection
data transmitted from communication satellites
LAN Local Area Network
Lat Latitude
LD5 Type of VERIPOS IMU
Lon Longitude
MF Medium Frequency radio band,300kHzto 3MHz, as used to transmit IALA/
Beaconcorrection data from land stations
MHz Megahertz
MMI Man Machine Interface
MSL Mean Sea Level
NMEA National Marine Electronics Association
N/A Not applicable
PDOP Position Dilution of Precision
PPP Precise Point Positioning
PPS Pulse per Second
PRN Pseudo Random Noise
Quantum New VERIPOSvisualisation software
QZSS Quasi-Zenith Satellite System (Japanese GNSS constellation)
RoHS Restrictions of Hazardous Substances
RTCM Radio Technical Commission for Maritime Services
SAL Service Access License
SBAS Satellite Based AugmentationSystem (for example WAAS/USA.
EGNOS/Europe and MSAS/Asia)
SNR Signal to Noise Ratio
Standard / Std VERIPOSSingle Frequency DGPS System using GPS
Std² VERIPOSSingle Frequency DGPS System using GPS and GLONASS
SV Space Vehicle
Ultra VERIPOSPPP DGNSS service using GPS
Ultra² VERIPOSPPP DGNSS service using GPS and GLONASS
USB Universal Serial Bus
UTC Coordinated Universal Time
VDOP Vertical Dilution of Precision
VERIPOS Global DGPS service provider
VOSS VERIPOS Online Support System
WAAS Wide Area Augmentation System (SBAS implementation in USA)
WEEE Waste Electrical and Electronic Equipment

Rev No:
A2
Page 5
Date:
05.01.2017
LD5 (C Variant) Operation Manual
1.4 Document conventions
1.4.1 Typographical conventions
Italic or bold text is used to emphasizecertain parts of the information.Italic
is also used in cross-referencesto other parts of the document.
Bold text is also used for indicators and touch screen “push-button”
commands.
“Text within quotes” is used when display screens are mentioned in text.
Monospace text is used for input/output strings to/from the device.
1.4.2 Special notices
WARNING
A warning indicates the risk of bodily harm or serious damage to the
hardware.
CAUTION
A caution indicates the risk of damaging the hardware.
NOTE
A note shows important information that helps you make better use of the
system.

Rev No:
A2
Page 6
Date:
05.01.2017
LD5 (C Variant) Operation Manual
1.5 VERIPOS Helpdesk
For initial assistance with troubleshooting see the Troubleshooting section in this
manual. If the troubleshooting section does not resolve the issue, contact the
VERIPOS Helpdesk for further assistance.
VERIPOS encourageall users to promptly report problems or operating queries to
the Helpdesk so that they may receive assistance with fault reports and technical
enquiries.
The VERIPOS Helpdesk is manned 24 hours per day, 365 days per year and is the first
point of contact for technical enquiries and fault reports.
The Helpdesk are trained to provide direct assistance with most queries and problems
and can escalate complex issues to other operational teams where required.
1.6 VERIPOS Online Support System (VOSS)
VERIPOShave an online customer support system known as VOSS, which provides a
system for raising tickets which are automatically routed to the VERIPOS Helpdesk.
Additionally, VOSS provides technical documentation, VERIPOS software and an FAQ
knowledge base.
1.7 Enabling the equipment for
use
VERIPOS correction signals are provided as a chargeable service.
In order for equipmentto decode correctionsand output positions, it must be enabled.
The enable/disable procedure is detailed in section Enabling Process.
When VERIPOS services are not required some contracts may allow for disabling
the service to avoid charges.
To use VERIPOS correction signals a contract between the user’s company and the
VERIPOS Operations department (knownasServiceAccessLicense, or SAL) mustbe in
place.
To avoid delays, users should record the SAL number associated with the
VERIPOS equipment.
The Helpdesk is not authorised to issue a code unless an active SAL
exists.

Rev No:
A3
Page 7
Date:
16.11.2018
LD5 (C Variant) Operation Manual
1.8 Waste electrical and electronic equipment
The Waste Electrical and Electronic Equipment Directive (hereinafter referred to as the
“WEEE directive”) places an obligation on EU-based manufacturers, distributors, retailers
and importers to take back electronic products at the end of their useful life. A sister
directive, RoHS (Restriction of Hazardous Substances) complements the WEEE directive
by banning the presence of specific hazardous substances in the products at the design
phase. The WEEE directive covers all VERIPOS products imported into the EU as of
August 13 2005. EU-based manufacturers, distributors, retailers and importers are
obliged to finance the costs of recovery from municipal collection points, reuse, and
recycling of specified percentages per the requirements contained in the WEEE
Directive.
Instructions for disposal of WEEE by users in the European Union
Products which have the undernoted symbol located on either the product itself or its
packaging indicates that the product must not be disposed of with other waste. Instead, it
is the user’s responsibility to dispose of the product by handing it over to a designated
collection point for the recycling of WEEE.
The separate collection and recycling of your WEEE at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about recycling centres, please
contact the local city office, the household waste disposal service or the product supplier.
.

Rev No:
A3
Page 8
Date:
16.11.2018
LD5 (C Variant) Operation Manual
1.9 Disclaimer
Veripos Limited (hereinafter referred to as “Veripos”) has taken every care in the preparation of the
content of this Manual (“Manual”). This Manual and its contents are provided “as is” without any
representations or warranties of any kind, express or implied. Veripos makes no representations or
warranties in relation to this Manual and the content provided herein, including but not limited to the
safety, suitability, inaccuracies or typographical errors of this Manual. Thereare inherent dangers in the
use of any software, and the end user is solely responsible for determining whether the relevant
software provided by Veripos and this Manual are compatible with the end user’s equipment and other
software installed on such equipment. End user is also solely responsible for the protection of their
equipment and the backup of data.
Veripos reserves the right at its sole discretion, but without any obligation, to make amendments or
improvements to, or withdraw or correct any error(s) or omission(s) in any portion of the Manual without
notice. Although Veripos makes a reasonable effort to include accurate and up to date information,
Veripos does not warrant or represent that this Manual and its contents are current, complete, accurate
and/or free from errors or omissions. Veripos does not accept any responsibility or liability for the
accuracy, content, completeness, legality or reliability of this Manual and the content provided herein.
Veripos accepts no responsibility for any damage or injury to any system, vessel or personnel caused
by drawings, instructions or procedures not prepared by Veripos.
If you have any questions or comments about this Manual, please contact us at: [e-mail].
The software described in this document is furnished under a licence agreement and/or non-disclosure
agreement. The software may be used or copied only in accordance with the terms of such agreement.
It is against the law to copy the software on any medium except as specifically provided for in the license
or non-disclosure agreement.
Copyright © 2019 Veripos Limited
All rights reserved. No part of this Manual and its contents may be reproduced, copied, re-engineered,
adapted, redistributed, published, commercially exploited or transmitted in any form, by any means,
electronic or mechanical, including photocopying or recording, without the express prior written
permission of Veripos. Applications for any written permission should be addressed to Veripos House,
1B Farburn Terrace, Dyce, Aberdeen, AB21 7DT, United Kingdom.
Unauthorised reproduction, copying, re-engineering, adaptation, redistribution, publication or
commercial exploitation of this Manual or its contents may be subject to criminal as well as civil
sanctions under the applicable laws. Where Veripos’ intellectual property rights are alleged to be
infringed by the end user, Veripos will seek to enforce its intellectual property rights in the civil or criminal
courts to the fullest extent possible. Where reproduction, copying, re-engineering, adaptation,
redistribution, publication or commercial exploitation of this Manual or its contents has been permitted
by Veripos in accordance with this disclaimer, then no changes in the Manual or deletion of any kind to
the Manual will be made by end user. End user acknowledges that it does not acquire any ownership
rights by accessing, viewing or utilising this Manual and agrees that it shall not hold itself out to any
third party as having any ownership rights to this Manual.
The end user shall save, indemnify, defend and hold Veripos harmless on written demand, from all
claims, losses, damages, costs (including legal costs), expenses and liabilities of any kind and nature,
invoked against Veripos by any third party, for or arising out of, any alleged infringement of any
proprietary or protected right arising out of or in connection with the use of this Manual by the end user
and/or in connection with any representation to third parties of ownership of any kind with respect to
this Manual by the end user.
Veripos ® Veripos Limited
All other brand names are trademarks of their respective holders.

Rev No:
A3
Page 9
Date:
16.11.2018
LD5 (C Variant) Operation Manual
2 LD5 Operation
The controls for working with the LD5 are all available on the front panel. The LD5 control
panel is used to configure the unit using the main screen display.
2.1 LD5 Variants
2.1.1 Available LD5 Variants
There are various LD5 IMU variants available. The variants depict the hardware installed
in the unit. In addition to the common variants, there are also Mod variants which allow
the use of different antenna configurations.
The 'C' variants are fitted with NovAtel GNSS receiver cards.
The GNSS constellations which can be used in the VERIPOS solutions calculated by your
LD5 will depend on the LD5 variant and the VERIPOS service which the LD5 is enabled
for.

Rev No:
A3
Page 10
Date:
16.11.2018
LD5 (C Variant) Operation Manual
The table below shows the various LD5-C options which are available, depending on the
user’s requirements:
Hardware
Product
Name
OEM card content
Antenna
Designation
Connection
Dedicated
Combined
C2
LD5
L-Band Demodulator,
Novatel OEM 617D
GNSS Receiver
•L-Band
ANT
•GNSS
•GNSS
Heading
AUX
C2-Mod1
LD5 Mod1
L-Band Demodulator,
Novatel OEM 617D
GNSS Receiver
•L-Band
ANT
•GNSS
BEACON
•GNSS
Heading
AUX
C3
LD5 with MF
option
L-Band Demodulator,
Novatel OEM 617D
GNSS Receiver, MF
Receiver
•L-Band
ANT
•GNSS
•GNSS
Heading
AUX
•MF
BEACON
C3-Mod1
LD5 with MF
option Mod1
L-Band Demodulator,
Novatel OEM 617D
GNSS Receiver, MF
Receiver
•L-Band
ANT
•MF
•GNSS
BEACON
•GNSS
Heading
AUX
C3-Mod2
LD5 with MF
option Mod2
L-Band Demodulator,
Novatel OEM 617D
GNSS Receiver, MF
Receiver
•L-Band
ANT
•MF
BEACON
•GNSS
•GNSS
Heading
AUX
*C and C HDT variants have the same hardware and antenna connections. C
variants can have the GNSS heading option enabled by applying a heading license,
thus making them C3 HDT’s. With applying the license, it then enables the AUX
connector for use with an antenna to compute Heading on the GNSS receiver.
An on-screen icon for each optional receiver module(GNSSor MFBeacon)will only be
shown when the module is fitted. For example, an LD5-C2 will not have an MF
receiver card installed, therefore no MF related options shall be displayed within the
LD5 menus.
2.1.2 Identifying LD5 Hardware Variant
The variant can be checked via the Config > Config menu:
A3 Variant
C3 Variant

Rev No:
A3
Page 11
Date:
16.11.2018
LD5 (C Variant) Operation Manual
2.2 Satellite constellations
LD5-C’s are fitted with GNSS cards which are capable of tracking multiple GNSS
constellations, allowing users to utilize the VERIPOS Apex5service.
The constellations which can be used in the LD5-C variant are:
•GPS (American GNSS System)
•GLONASS (Russian GNSS System)
•Galileo (European GNSS System)
•BeiDou (Chinese GNSS System)
•QZSS (Japanese GNSS System)
To utilize the above Apex5service, the LD5 must be subscribed to this service.

Rev No:
A3
Page 12
Date:
16.11.2018
LD5 (C Variant) Operation Manual
2.3 Views and controls
1 Adjust screen darker
2 Adjust screen brighter
3 L-Band Signal Strength Indicator
4 Power indicator
5 Navigation panel. Arrow keys are used to move through menu
items and tick key (✓) is used to accept an item.
6 Home
7 Return
8 User code (5 digits)
9 Receiver card icons (3 max.)

Rev No:
A3
Page 13
Date:
16.11.2018
LD5 (C Variant) Operation Manual

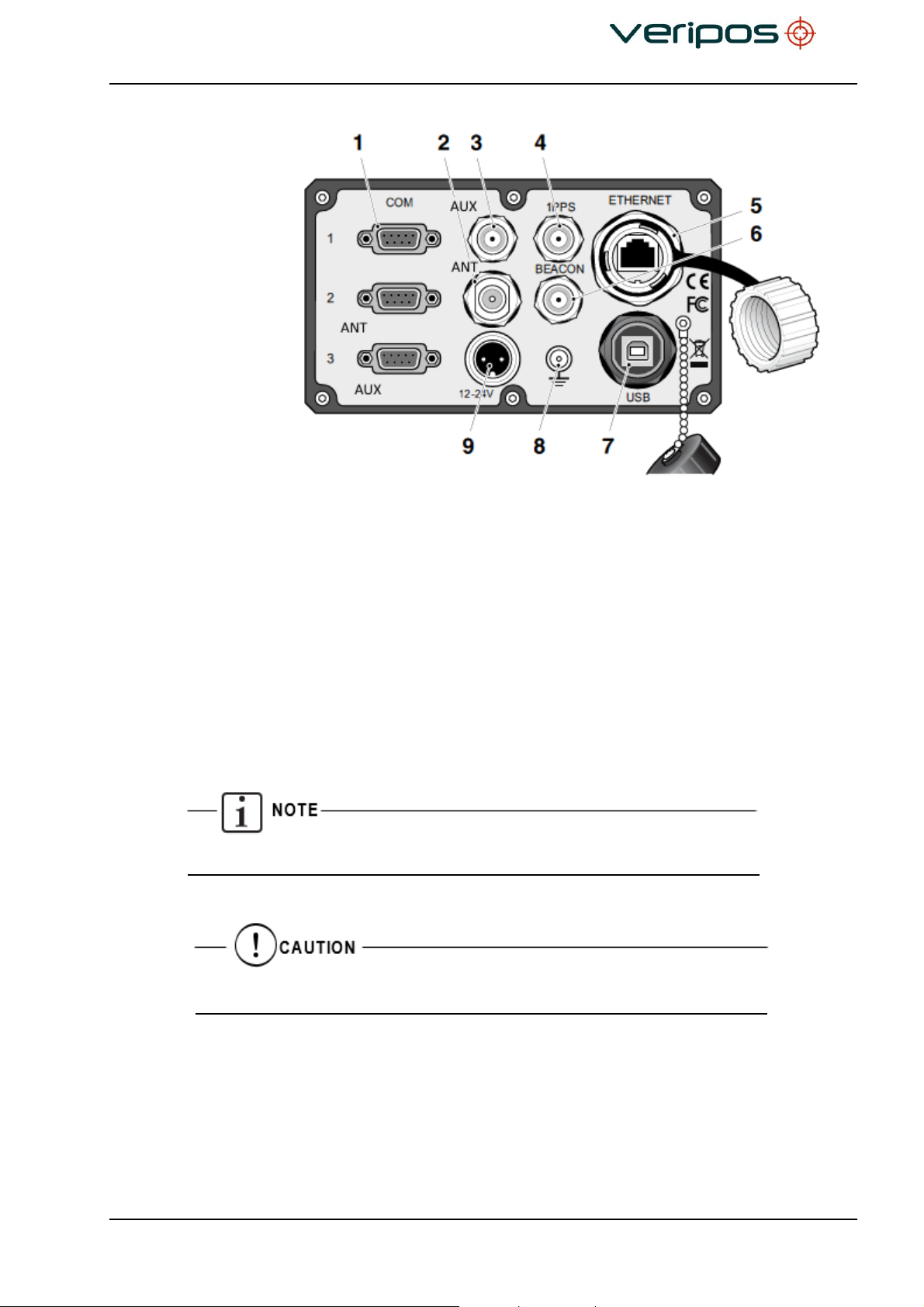

LD5 Rear Panel Connectors
1 COM ports 1 to 3, RS232 or 422, 9-pin D type female connector
2 *‘ANT’ N-type antenna connector (Main GNSS & L-Band input)
3 ’AUX’ input TNC connector (Auxillary GNSS for Heading which is
available when licensed)
4 ‘1PPS’output BNC connector
5 Ethernet RJ45 connector **
6 *‘BEACON’ TNC antenna connector (MF correction input)
7 USB type B connector **
8 Grounding point
9 DC power connector (12–24 VDC)
*Standard (non-mod) LD5. Function of connector will differ on Mod LD5’s.
**Do not connect devices to LD5 without first performing a virus scan!

Rev No:
A3
Page 14
Date:
16.11.2018
LD5 (C Variant) Operation Manual
2.4 LD5 Start up
Where required, refer to the LD5 Installation Manual and the Antenna & Coaxial cable
Installation Guide.
Plug in power to the rear of the unit.Wait a few minutes while a self-test is performed.
Following successful test you will see the Home screen, as shown below. The LD5
may be disabled when first powered up. If the unit is disabled the L-Band, GNSS and
Enabled indicator icons will be red.
To receive correction data, connectiontoa VERIPOS L-Band beam is required.Once a
suitable beam has been selected and signal synchronisation achieved, the unit can
be enabled by the 6.1 VERIPOS Helpdesk.
If there is a problem, refer to the Troubleshootingchapter in this manual.
1. Unit user code (5 digits)
2. L-Band Sync indicator
3. Unit Enabled indicator
4. L-Band signal strength indicator
5. LD5 time display (UTC)
6. Indicator and access to L-Band card controls
7. Indicator and access to GNSS card controls
8. Indicator and access to MF card controls (C3
variants only)
9. Access to configuration controls
The Home screen of the LD5 screen displays the Unituser code number(1), ‘Sync’(2)and
‘Enabled’ (3)indicators (Green = OK, Red = No sync / Disabled respectively).
The L-Band signal strength indicator (4), has three states:
No. of Signal Strength Bars
Signal Strength (dB/Hz)
0
0 (No sync)
1
<32.5
2
32.5 –36.5
3
>36.5
Time (5) shown is in universal time coordinated format (UTC).
The receiver card icons, L-Band (6), GNSS (7) and MF (8), give access to card status
information and configuration controls. The icon colour will change between red or green,
depending on the status of the service. Some LD5 units may not have all cards fitted and
only when a receiver card is present will it appear on the Home screen.
Configuration of each installed receiver card is achieved using the arrows, return, Home
and tick buttons. These are located on the control pad found on the right-hand side of the
LD5 front panel.

Rev No:
A3
Page 15
Date:
16.11.2018
LD5 (C Variant) Operation Manual
2.5 L-Band receiver
This menu provides access to Beam Selection, Access Code, RTCM Station selection,
antenna voltage and L-Band Status information.
2.5.1 L-Band > Status > Module Info
This page displays the following information regarding the L-Band card:
•Firmware version
•Decoder version
•Bootloader version
VERIPOS may request these details during support queries.
2.5.2 L-Band > Status > Device Status
This view allows the user to review the status of SNR, Beam, Frame Sync, Signal Lock
and whether the LD5 is enabled or not
To view the L-Band signal status, from the Home screen select L-Band > Status >
Device Status.
2.5.3 L-Band > Config > RTCM Stations
To enable or disable reference stations, from the Home screen select L-Band > Config >
RTCM Stations and select from RTCMa or RTCMb.

Rev No:
A3
Page 16
Date:
16.11.2018
LD5 (C Variant) Operation Manual
Use the right/left navigation arrows to view more stations. To enable or disable stations,
move the cursor to the appropriate box using the arrow keys. Then use the tick (✓) key to
toggle stations between enabled (green) and disabled (red).
Referencestationson RTCMa are used internallyand are also available for output to other
devices. VERIPOS recommend in most cases that are stations are enabled. The LD5 will
automatically use the closest six stations in internal position computations.
2.5.4 L-Band > Config > Beam selection
This step describes how to select a satellite beam to receive VERIPOS correction data.
If you are unsure of which VERIPOS beam(s) cover the area of operations, a chart
showing beam names and coverage footprints is available in the Reference
Information chapter. Up to date beam coverage charts are also available on VOSS.
Additionally the free software VeriChart is also available. It allows VERIPOS users to
generate more refined charts based on vessel position and includes the relative
azimuths and elevations of available beams.
From the Home screen use the navigation panel keys to select L-Band > Config >
Beam Selection
Use the arrow keys to navigate to a beam appropriate for your region and select using
the tick button. Select (using tick again) a second time to switch to the beam.
The ‘S’ (Sync) icon will turn from red to green when a usable beam has been
selected and beam synchronisation has been successful.
2.5.5 L-Band > Config > Antenna Bias
The antenna bias menu allows the antenna voltage to be turned On or Off, out from the
ANT connection at the rear of the LD5. When using a VERIPOS supplied antenna, the
antenna voltage should normally be On, as the antenna requires power to operate.
However, when the LD5 is connected to a vessel tracking dish such as a Fleet system,
the voltage may be turned Off.

Rev No:
A3
Page 17
Date:
16.11.2018
LD5 (C Variant) Operation Manual
The function of the ANT antenna connection will vary depending on the LD5 variant. For
example, on an LD5-C3, the ANT connector is used for L-Band and GNSS. On an LD5-
C3 Mod 2, the ANT connector is only used for L-Band.
Please refer to Section 2.1 for further information regarding LD5 variants and Mods.
2.5.6 L-Band > Access Info
If the LD5 has beam sync and is enabled the Home screen “E” symbol will appear as
green. If the unit has sync but the unit is disabled, navigate to Home > L-Band > Access
Info to view your LD5 Access Information:
The unit “Enabled”(or) “Disabled”Access State will be highlighted here. If the unit is
disabled contact the VERIPOS Helpdesk with Unit ID, Vessel Name, Client Name and
SAL Number to enable.
2.5.7 L-Band > Help
This screen shows VERIPOS website details, where product support and manuals are
available.

Rev No:
A3
Page 18
Date:
16.11.2018
LD5 (C Variant) Operation Manual
2.6 GNSS Receiver
The LD5 GNSS card, status information and configuration settings are accessed
from the Home screen.
2.6.1 GNSS > Status > Module Info
This screen shows the firmware installed on the GNSS receiver. From the Home
screen select GNSS > Status > Module Info.
The Module Info page displays the following information:
•Name Model of NovAtel GNSS card fitted
•Firmware GNSS firmware version number
•Serial Serial number of GNSS card
•Bootloader GNSS card bootloader version
•Models Indicates GNSS card permissions.
LD5-C Model Number Details
The model numbering can be broken down as follows:
