DUG_Sensor Leakage Wireless_ELKO-00 3

Safety information
Safety information
Important information
Read these instructions carefully and look at the equipment to become familiar
with the device before trying to install, operate, service, or maintain it. The
following special messages may appear throughout this manual or on the
equipment to warn of potential hazards or to call attention to information that
clarifies or simplifies a procedure.
The addition of either symbol to a “Danger” or “Warning” safety label indicates
that an electrical hazard exists which will result in personal injury if the
instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that accompany this symbol to avoid possible
injury or death.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
Failure to follow these instructions will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury.
4 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless
SmartSensor Leakage Wireless
EKO07218
About the device
The SmartSensor Leakage Wireless (hereinafter referred to as Water Leakage
Sensor) has two sensing pads at the bottom of the body that activates when water
is present between the pads. The pads are close to the floor surface when the
sensor is placed in its operating position.
When the sensor is connected to the ELKO SmartHUB and detects water on the
floor, the sensor sends out a sound alarm and reports the event to the app via
ELKO SmartHUB. The sound alarm stops when the sensor is removed from the
water contact.
TIP: The water leakage sensor will sound an alarm even if it is not connected
to the ELKO SmartHUB.

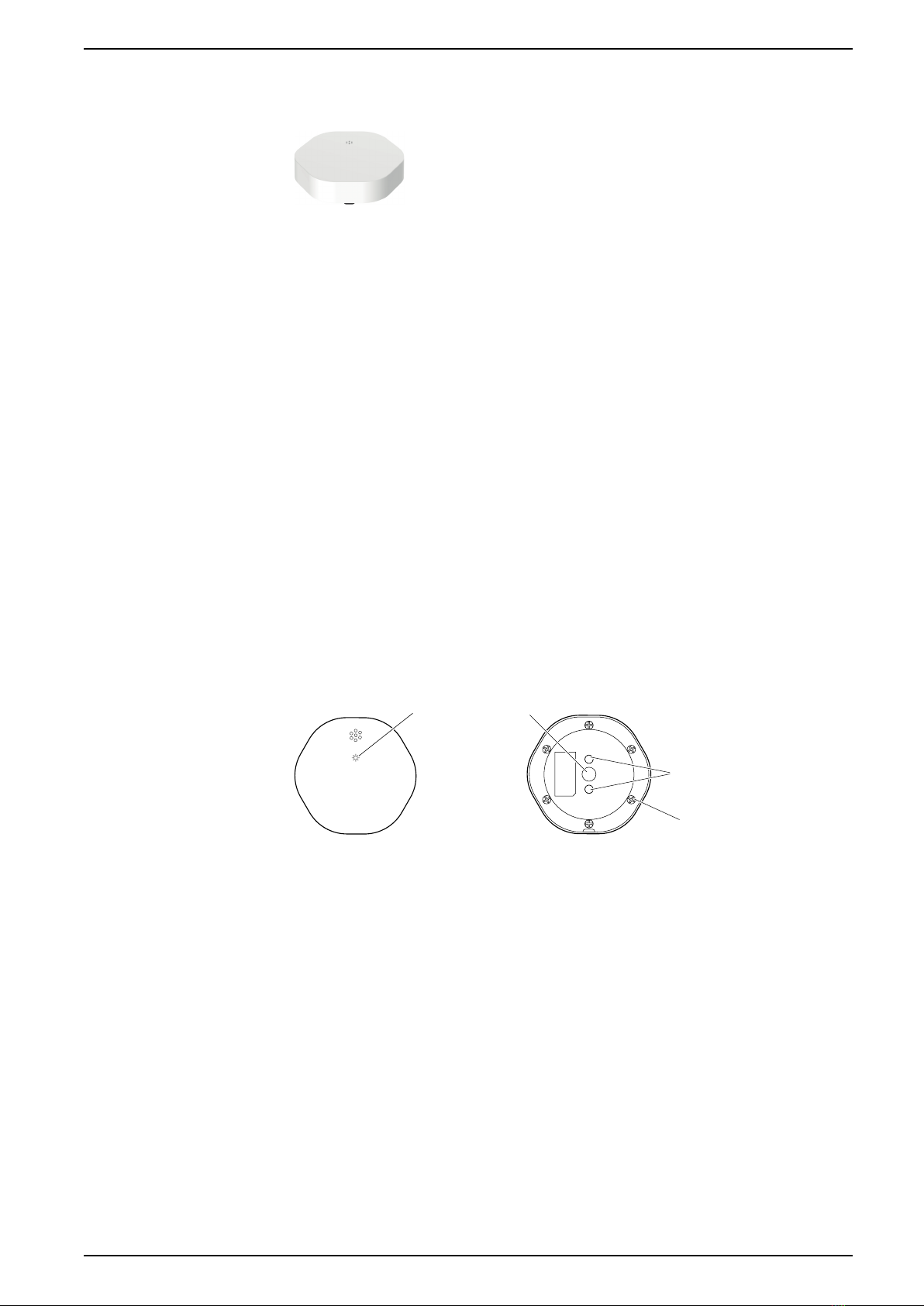

Operating elements
A. Status LED
B. Function key
C. Sensing pads
D. Battery cover screws
B
C
D
A
Installing the device
Refer to the installation instruction supplied with this product.
See SmartSensor Leakage Wireless.
Pairing the device
Using the ELKO Smart app, pair your device with the ELKO SmartHUB to access
and control the device. You can either add the device manually or do an auto-scan
to pair it.
DUG_Sensor Leakage Wireless_ELKO-00 5

SmartSensor Leakage Wireless
Pairing device manually
To pair the device manually:
1. On Home page, tap +.
2. Tap , select the required ELKO SmartHUB on the slide-up menu.
3. Select an option to add the device(A):
–Add Device with Install Code
–Add Device without Install Code
Add Device
Install Code is Recommended
Add Device without Install Code
A
TIP: It is highly recommended to add the device with install code.
4. To pair the device with an install code, tap Add Device with Install Code to
display the slide-up menu. Select any one of the options (B):
–Scan Install Code - you can scan the device for the install code.
–Enter Install Code Manually - you can manually enter the install code
from the device.
After pairing the device with install code, proceed to Step 6.
Add Device
Install Code is Recommended
Add Device without Install Code
Add Device
Install Code is Recommended
B
5. To pair the device without install code, tap Add Device without Install Code.
6 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless

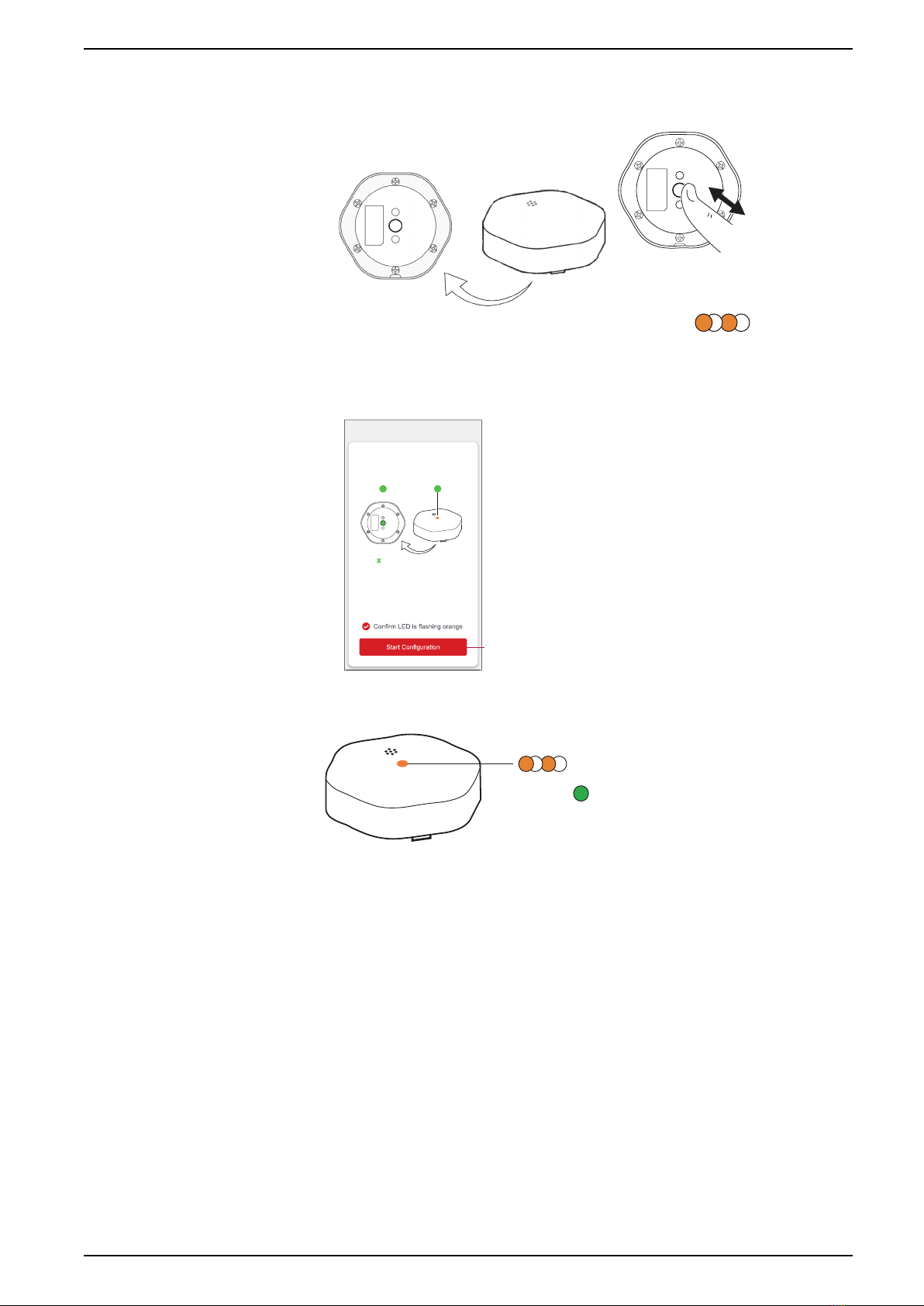

6. On the rear side of the sensor, short press (< 0,5 s) the function key 3 times
on the device.
3× < 0,5 s
↓
The LED blinks orange.
7. In the app, select Confirm LED is Flashing Orange and tap Start
Configuration (C).
Cancel
How to pair device
Short-press function key 3 times.
1 2
3
C
8. After a few seconds, a solid green LED indicates that the device has been
successfully paired to the ELKO SmartHUB.
…
9. Tap Done when the pairing is successful.
DUG_Sensor Leakage Wireless_ELKO-00 7

SmartSensor Leakage Wireless
Pairing device with auto scan
Pairing the device with auto scan automatically discovers the device when the
corresponding device is powered on.
1. On the Home page, tap +.
2. Tap Auto scan > Confirm.
3. Enable permissions to Access location and Wi-Fi for scanning device and
tap Start scanning.
NOTE: If you have multiple hubs, do Step 4 or proceed to Step 5.
4. Tap Select hub and select the ELKO SmartHUB from the slide-up menu.
5. Short press the setup/reset button 3 times (< 0,5 s) and wait for a few
seconds until the device search is complete.
The LED blinks orange.
TIP: If you want to pair multiple devices at once, perform step 5 on each
device and wait for a few seconds for them to be detected.
6. Tap Next (A) and select Water Leakage Sensor.
Auto Scan
Available devices found
Next A
Water
sensor
7. Once the device is added successfully, tap Done.
8 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless
Configuring the device
Changing the device icon
You can change the device icon using the ELKO Smart app.
1. On the Home page, select the device for which you wish to change the icon.
2. At the top-right corner of the screen, tap .
3. Tap edit next to the device name.
4. Tap Icon to view the menu.
5. In the slide-up menu, select any one of the following (A) to change the device
icon:
–Take photo - allows you to click a photo from the mobile camera.
–Select from Icon Library - allows you to select an icon from the app
library.
–Select from Album - allows you to select a photo from the mobile gallery.
DUG_Sensor Leakage Wireless_ELKO-00 9

SmartSensor Leakage Wireless
Renaming the device
You can rename the device using the ELKO Smart app.
1. On the Home page, select the device for which you wish to rename.
2. At the top-right corner of the screen, tap .
3. Tap edit next to the device name.
4. Tap Name, enter the new name (A) and then tap Save.
Name
Name
Save
Rename
A
Changing the device location
You can change the device location using the ELKO Smart app.
1. On the Home page, select the device for which you wish to change the
location.
2. At the top-right corner of the screen, tap .
3. Tap edit next to the device name.
4. Tap Location.
5. Select the desired location from the list (A) and then tap Save.
Device location Save
Living Room
Dining Room
Kids Room
Study Room
Master Bedroom
A
10 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless
Removing the device
You can remove a device from the device list using the ELKO Smart app,
To remove the device:
1. On the Home page, tap All devices >Water Leakage Sensor.
2. Tap to display more details.
3. Tap Remove and Factory Reset Device (A) and tap Confirm.
Water Leakage Sensor
More
Others
Moment and Automation
FAQ & Feedback
Add to home Screen
No updates available.
A
TIP: On the Home page, you can tap and hold the Water Leakage
Sensor to remove the device.
NOTE: By removing the device, you will reset the device. If you still have
a problem with the reset, then refer to resetting the device, page 11.
Resetting the device
You can reset the sensor to factory default manually.
To reset the sensor:
Short-press the function key three times (<0.5 s) and then long-press the function
key once (>10 s), the LED blinks red after 10 s, and then release the function key.
Upon successful reset of the sensor, the LED stops blinking. Then, the sensor
restarts and blinks green for a few seconds.
NOTE: After reset, the LED turns off to save the battery.
3× < 0,5 s + 1 ↓
…
× 10 s
↓
× 7
DUG_Sensor Leakage Wireless_ELKO-00 11

SmartSensor Leakage Wireless
Using the device
On the Home page, tap All devices >Water Leakage Sensor to access the
control panel.

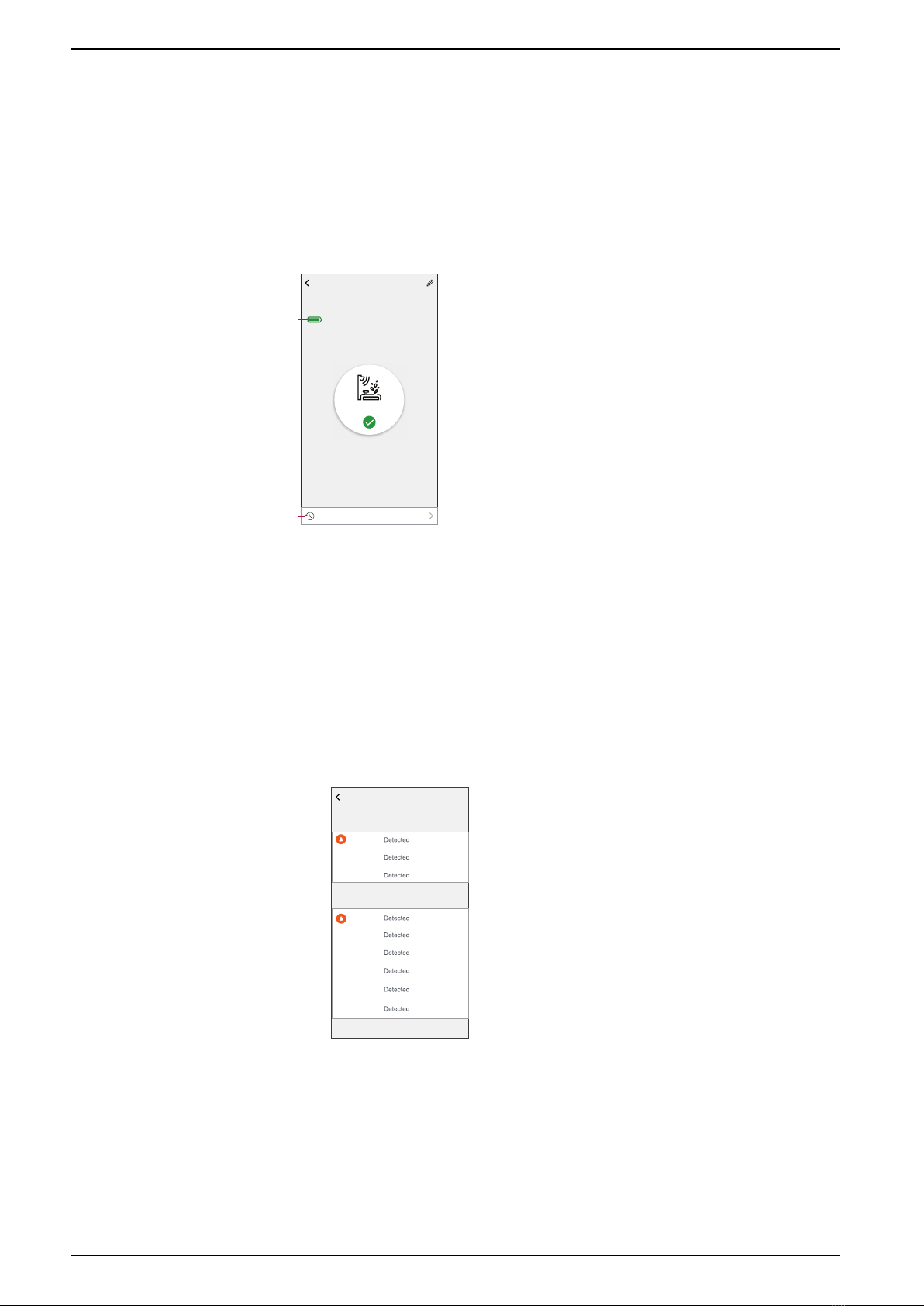

On the Sensor control panel page, you can see the following:
• Battery level (A)
• Water leakage status (B)
• History (C)
History
Water Leakage Sensor
A
C
B
Checking the device history
You can monitor the water leakage detection by accessing the device history in
the ELKO Smart app.
To see the device history:
1. On the Home page, tap All devices >Water Leakage Sensor.
2. On the device control panel page, tap History.
3. In the History page, you can see the date and time when the water leakage
was detected.
History
15:42:47
15:41:55
15:41:24
21:50:17
21:49:15
21:46:02
21:45:25
21:44:28
21:43:56
2021-09-24
2021-09-23
12 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless
Creating an automation
An automation allows you to group multiple actions that are usually done together,
triggered automatically or at scheduled times. By using the ELKO Smart app, you
can create automations based on your needs.
1. On the Home page, tap the .
2. Go to Automation >+to create an automation.
3. Tap Edit name , enter the name of the automation (A) and tap Save.
TIP: You can choose the cover image that represents your automation by
tapping .
Automation settings
Cancel Save
Any condition is met
Add Condition
Action
Add Task
All-Day
(0/10)
(Added 0/80)
My Automation
Automation settings
Cancel
Save
Any condition is met
Action
Add Task
All-Day
(0/10)
Edit name
Save
A

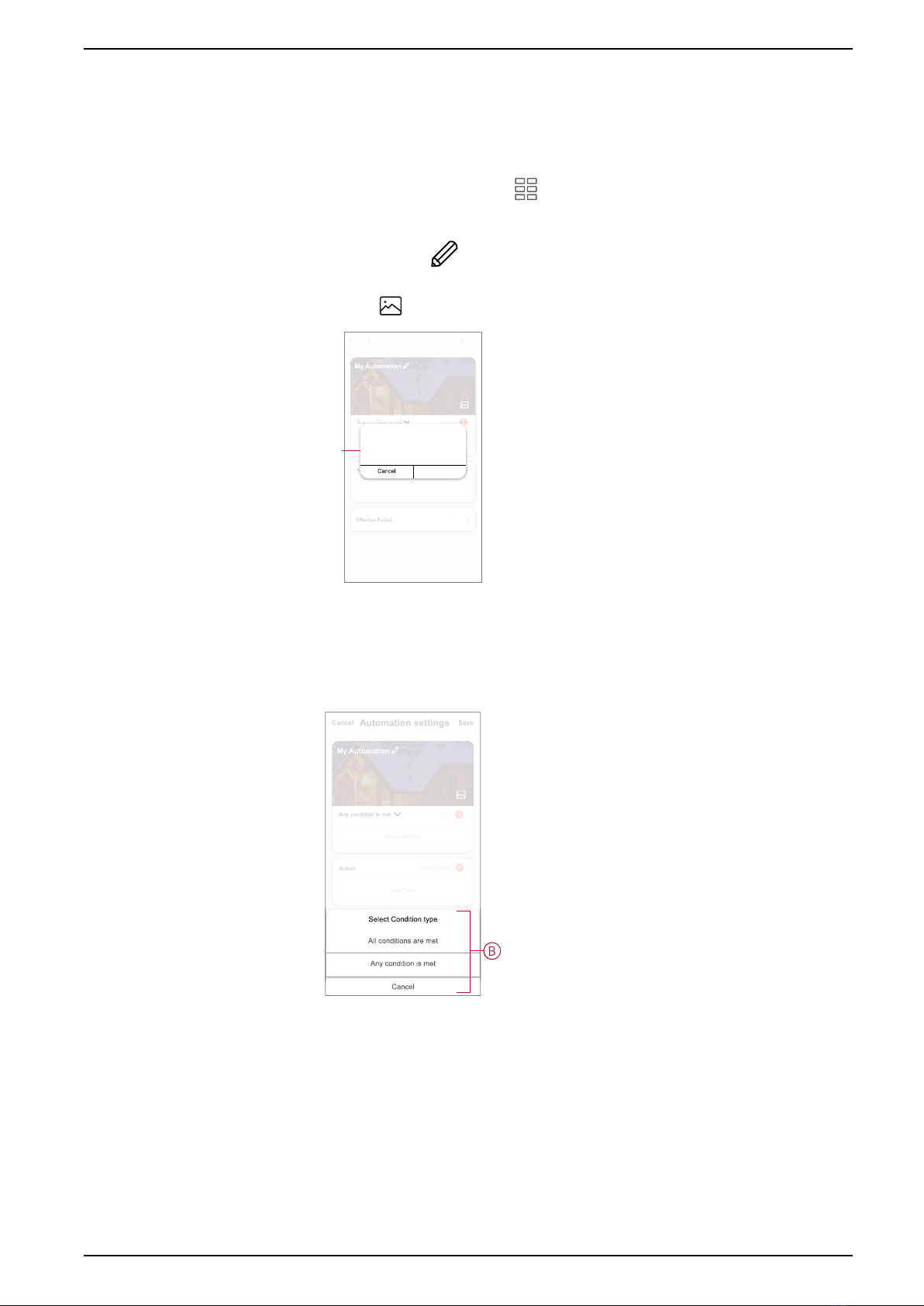

4. Tap Any condition is met to select any one of the condition type (B):
–All conditions are met- The automation is triggered when all the
conditions are met.
–Any condition is met- The automation is triggered when at least one
condition is met.
5. Tap Add Condition to display the slide-up menu.
DUG_Sensor Leakage Wireless_ELKO-00 13

SmartSensor Leakage Wireless

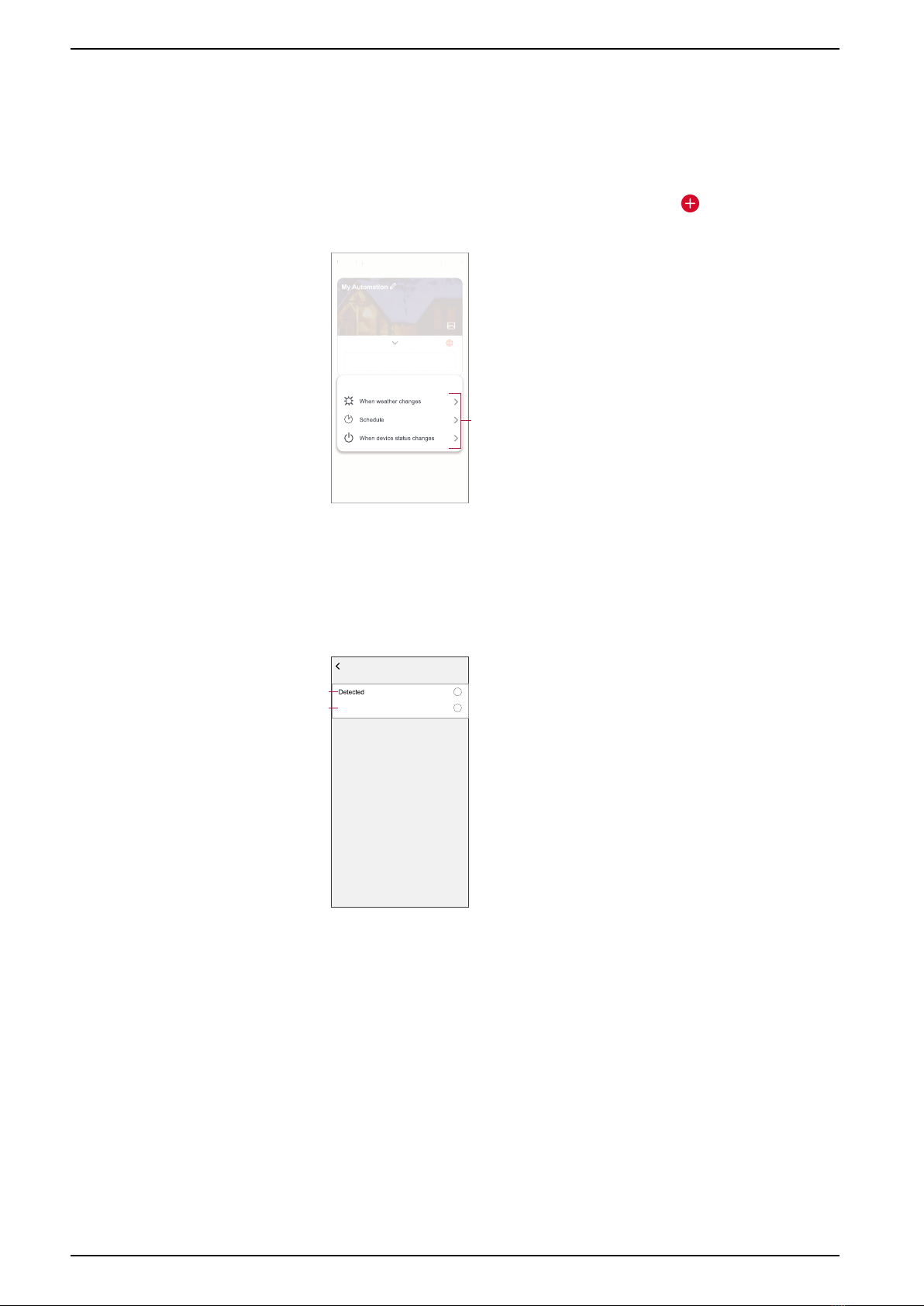

6. In the Add Condition menu, you can do either or all of the following options
(C):
–When weather changes - Select the various weather settings
–Schedule - Set the time and day
–When device status changes - Select the device and it’s function
NOTE: You can add one or more conditions using .
.
Any condition is met
Add Condition
(0/10)
My Automation
Automation settings
Cancel Save
Any condition is met
Add Condition
(0/10)
Automation settings
Cancel
Save
Add Condition
C
7. Tap When device status changes >Water Leakage Sensor >Water
detection state to select either or all of the functions to add in the
automation:
–Detected - When the Sensor detects water leakage (D)
–Normal - When the Sensor goes back to its original state after the leakage
was detected (E)
Water Detection State
Normal
D
E
8. Tap Add task to display the slide-up menu.
14 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless

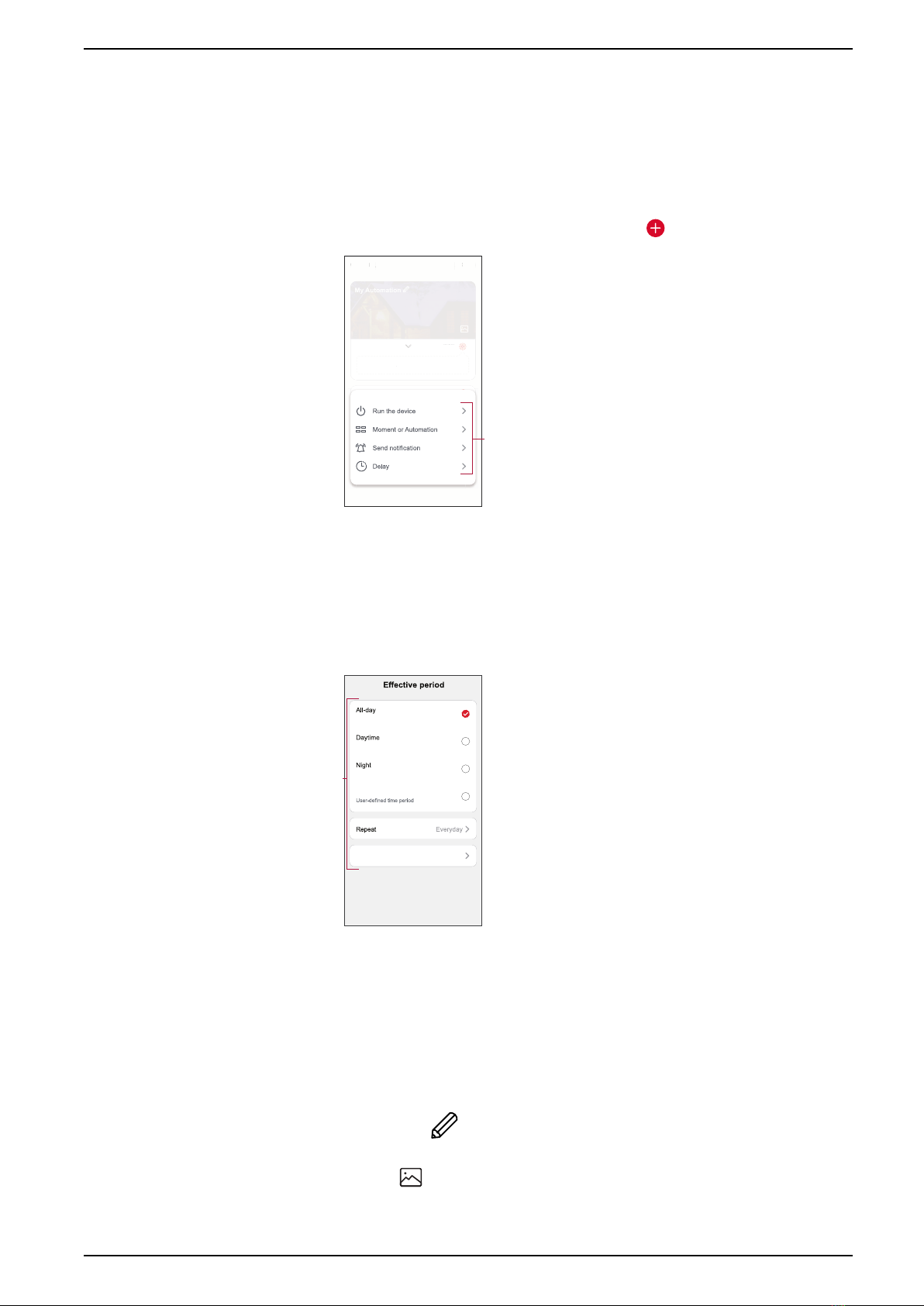

9. In the Add task menu, you can do either or all of the following options (F):
–Run the device- Select the devices that you want to trigger.
–Moment or Automation- Select the moment which you want to trigger or
select the automation that you want to enable or disable.
–Send notification- Turn on notification for the automation.
–Delay - Set the delay time.
NOTE: You can add one or more actions using .
Any condition is met
Add Condition
Action
Add Task
All-Day
(0/10)
(Added 0/80)
My Automation
Automation settings
Cancel Save
Any condition is met
Add Condition
(0/10)
Automation settings
Cancel
Save
Add task
F
10. Tap on Effective period to set the time range for the automation. You can
select any one of the following (G):
–All-day - 24 hours
–Daytime - From sunrise to sunset
–Night - From sunset to sunrise
–Custom - User defined time period
Next
G
24 hours
From sunrise to sunset
From sunset to sunrise
Custom
City
11. Once all the actions and conditions are set, tap Save.
Example of an automation
This demonstration shows you how to create an automation to get notification on
your app when the water leakage is detected.
1. Go to Automation >+to create an automation.
2. Tap Edit name , enter the name of the automation and tap Save.
TIP: You can choose the cover image that best represents your automation
by tapping .
3. Tap Add Condition >When device status changes >Water Leakage
Sensor.
DUG_Sensor Leakage Wireless_ELKO-00 15

SmartSensor Leakage Wireless
4. Tap Water detection state >Detected and tap Next.
5. Tap Add task >Send notification and select Notifications (A).
6. Tap Next.
Next
Multiple items selectable
A
7. In the Automation Settings page, tap Save.
dit name
Action
(1/10)
(1/80)
On
Cancel Save
Once the automation is saved, it is visible on the Automation tab. You can
tap the toggle switch on the automation to enable it.
Editing an automation
To edit an automation:
1. On the Automation tab, locate the automation you want to edit and tap .
2. On the Edit page, you can tap each item (such as dimmer, shutter, delay,
temperature, etc.) to change the settings.
TIP:
• You can add one or more actions using .
• To delete an existing condition or action, slide each item towards left
and tap Delete.
Deleting an automation
To delete an automation:
1. On the Automation tab, locate the automation that you want to delete and
then tap .
16 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless
2. Tap Delete and tap Ok.
NOTE: After deleting an automation, the device action can no longer be
triggered.
Replacing the batteries

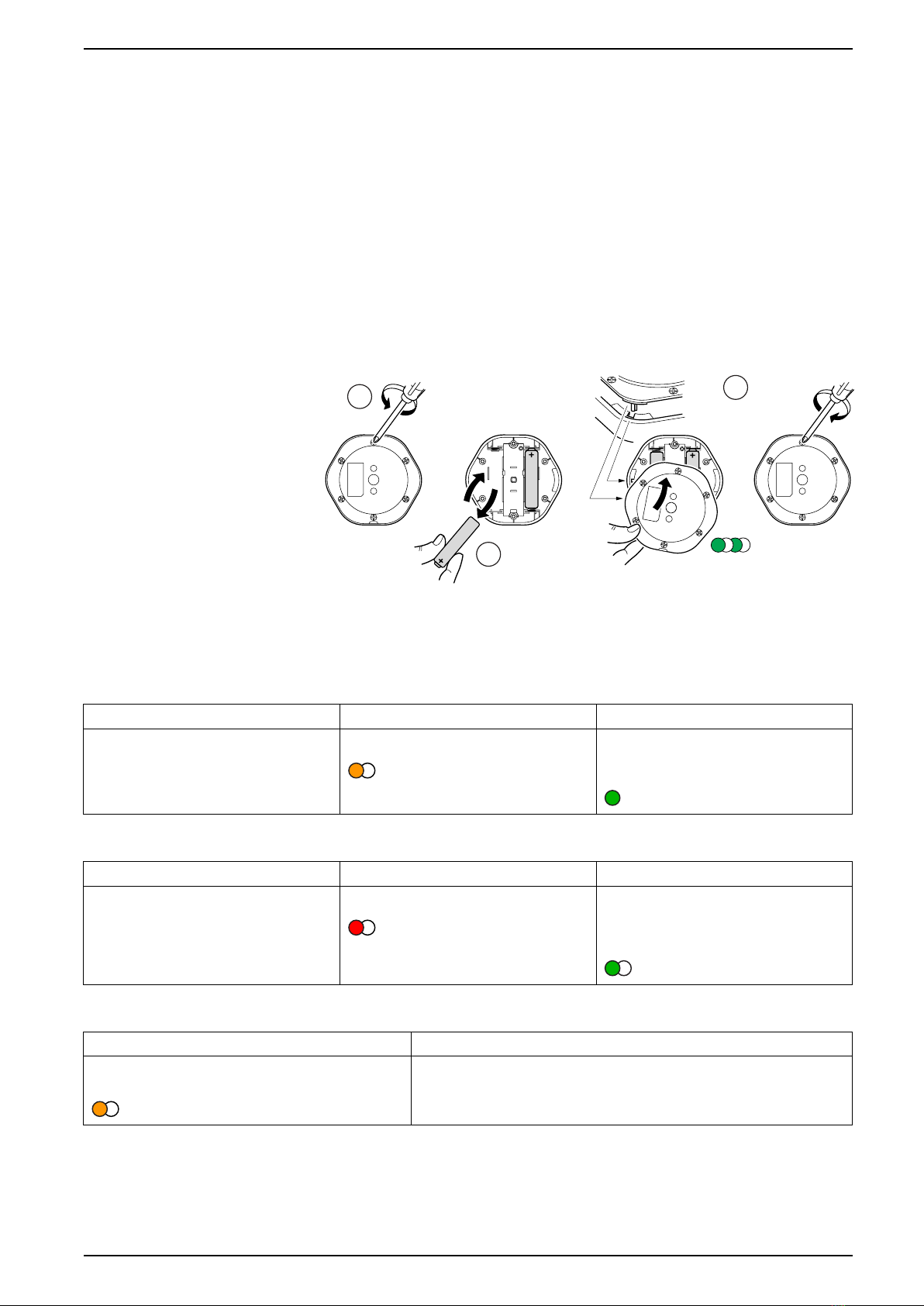

1. Use a screwdriver to remove the six screws from the battery cover to access
the batteries.
2. Make sure you replace the batteries with the correct polarity.
3. Secure the battery cover and tighten the six screws using a screwdriver.
The LED blinks green seven times and then stops blinking.
IMPORTANT: Dispose used batteries, as per statutory regulations.
×6 ×6
×7
1
2
3
LED Indications
Pairing
User Action LED Indication Status
Press the function key 3 times LED blinks amber orange, once per second. Pairing mode is active for 30 seconds.
When pairing is completed, LED glows
green for some time before turning Off.
Resetting
User Action LED Indication Status
Press the function key 3 times and hold it
down once for > 10 s.
After 10 s, the LED starts blinking red. The sensor is in reset mode. It is reset to the
factory settings after 10 seconds. The
sensor then restarts and the LED starts
blinks green before turning Off.
Battery level
LED Indication Status
LED blinks amber orange once per minute with a beep
sound.
The battery is low (< 10%), replace the battery, page 17.
NOTE: A notification pop-up will appear on the app.
DUG_Sensor Leakage Wireless_ELKO-00 17

SmartSensor Leakage Wireless
Troubleshooting
Symptom Possible cause Solution
The sensor triggers the automation/
schedule, but does not show the status on
the app.
The sensor may be undergoing an over-the-
air (OTA) firmware update.
Wait for the firmware update to complete
and then check that the sensor is reporting
status.
NOTE: The firmware update runs in the
background.
LED blinks amberorange with a beep
sound.
The sensor battery is low or drained. Replace the battery in the device, page 17
NOTE: A notification pop–up will
appear on the app.
Technical data
Battery 3 VDC, LR03 AAA × 2
Battery life Up to 5 years (may vary based on the usage, frequency of firmware update and
environment)
Nominal power ≤ 90 mW
Operating frequency 2405 - 2480 MHz
Max. radio-power transmitted ≤ 9 dBm
IP rating IP44
Operating temperature −10 °C to 50 °C
Relative humidity 10 % to 95 %
Sound level ≥ 70 dB at 3 m distance
Dimensions (H × W × D) 70.8 × 68.68 × 18.96 mm
Communication protocol Zigbee 3.0 certified
18 DUG_Sensor Leakage Wireless_ELKO-00

Trademarks
This guide makes reference to system and brand names that are trademarks of their
relevant owners.
• Zigbee®is a registered trademark of the Connectivity Standards Alliance.
• Apple®and App Store®are brand names or registered trademarks of Apple Inc.
• Google Play™ Store and Android™ are brand names or registered trademarks
of Google Inc.
• Wi-Fi®is a registered trademark of Wi-Fi Alliance®.
Other brands and registered trademarks are the property of their respective owners.

ELKO AS
Sandstuveien 68, 0680 OsloPb 6598 Etterstad, 0607 Oslo
Norway
[phone]
[email protected]
www.elko.no
As standards, specifications, and design change from time to time,
please ask for confirmation of the information given in this publication.
© 2023 – 2023 ELKO AS. All rights reserved.
DUG_Sensor Leakage Wireless_ELKO-00
