Verizon 4G LTE Specification sheet

Get to Know
Your Device
4G LTE BROADBAND ROUTER WITH VOICE

FRONT VIEW
The Verizon 4G LTE Broadband Router with Voice is a wireless device that
delivers Internet connectivity and telephone service. You can make a phone
call and simultaneously provide network and Internet connectivity for up to 10
devices via Wi-Fi and up to 3 devices via Ethernet. Refer to this guide for setup
and usage tips.
NOTE: A voice plan is not required for E911 calls. Emergency service is available regardless of
your service plan.
Power on/off button
Network indicator
Wi-Fi indicator
Local Area Network
(LAN) indicator
WPS button
Scroll left/right
Select button

DISPLAY
ICON STATUS ICON MENU/CAROUSEL
Voice mail messages Wi-Fi name/password
Connected devices Connected devices
Data signal strength indicator* Voice signal strength indicator*
Network activity indicator Data signal strength indicator*
Internet connectivity indicator Battery charge indicator
Network roaming indicator Software update
Voice signal strength indicator* About
Home
Data usage*
*NOTE: Voice and Data availability is dependent upon the selected price plan.

LED STATES
LED COLOR-STATE DESCRIPTION
Power
button Blue-solid Normal operation
Blue-blinking Battery is charging
Red-solid No AC power. Device operating on battery only
Internet
indicator Red-solid Indicates internet connectivity
Unlit Indicates no internet connectivity
Wi-Fi
indicator Blue-solid Wi-Fi user(s) connected but not transmitting or
receiving
Blue-blinking Wi-Fi user(s) connected and transmitting or receiving
Unlit No Wi-Fi user(s) are connected
LAN
indicator Blue-solid User(s) connected but not transmitting or receiving
Blue-blinking User(s) connected and transmitting or receiving
Unlit No user(s) connected
WPS
button Amber-blinking Searching for wireless devicesto connect via WPS. You
have two minutes to start WPS on your wireless device
Green-solid WPS connection successful
Red-blinking Router could not find the wireless device. Try again to
establish the WPS connection

BACK VIEW
**NOTE: Future feature
Optional antenna port 1
Optional antenna port 2
Phone port 1
Phone port 2
Home Security port**
Ethernet port 1
Ethernet port 2
Ethernet port 3
Power port
Desktop stand
Top cover
Battery cover

BEFORE YOU BEGIN

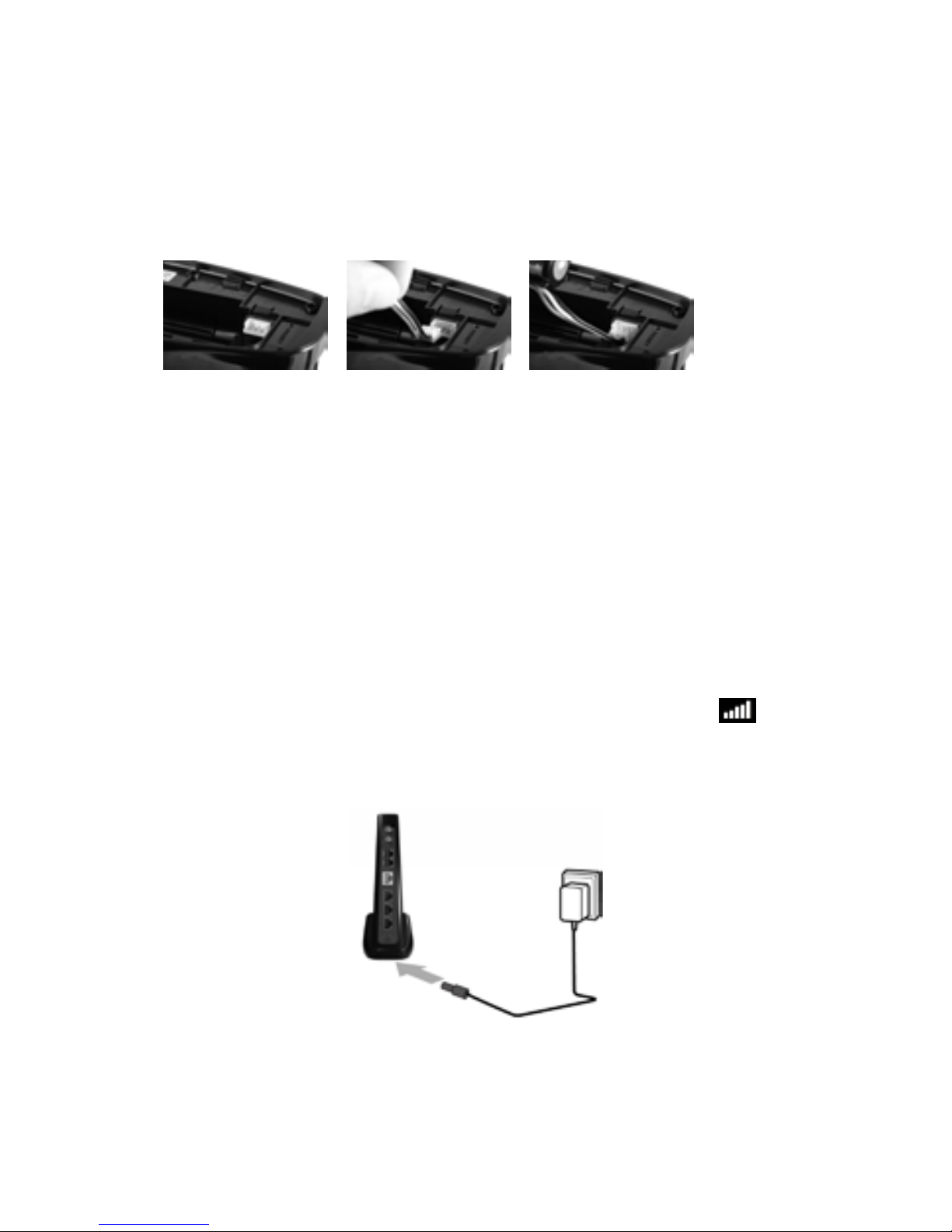

STEP 1: INSTALL THE BATTERY
1. Remove the battery cover on the underside of the device.
2. Plug in and insert the battery, keeping the red cable to the center of the device
and the metal contacts facing up, then replace the battery cover.
STEP 2: PLUG IN THE POWER CORD
1. Plug the power cord into the device power port.
2. Plug the power adapter into an AC wall outlet. The device will power on and
guide you through a welcome process for connecting via Wi-Fi. Once complete,
verify at least one bar of the voice signal strength indicator ( ) is lit. If not,
move device to an alternative location that provides a stronger signal.
WARNING! Be sure to use the power cord that came with your device to avoid damage that
may void the warranty.
2
1

STEP 3: CONNECTING YOUR TELEPHONE
This device provides ports for up to two telephones. Both ports use the same
telephone number.
1. Unplug your telephone’s cord from your wall’s telephone jack.
WARNING! Do not plug this device into your telephone wall jack.
2. Plug the end of the telephone cord that was just removed from the wall jack
into one of the two phone ports on the back of the device. The other end of
the cord must remain plugged into the back of your telephone’s base unit.
NOTE: The telephone and telephone cord are sold separately. Rotary, pulse dialing, and Voice over
IP (VoIP) phones are not supported.
IMPORTANT!
If the device is in active mode and running on the battery alone, only voice calls are
supported.
If the Power button is pressed and held, the device will enter charging mode. When
in charging mode, the device screen displays the battery charge indicator ( ). To
resume normal operation, press the Power button. To completely turn off the device,
disconnect from AC power.

STEP 4: INITIAL ACTIVATION
Transferring Your Existing Number
Customers transferring a phone number will not be able to send or receive calls on the 4G
LTE Broadband Wireless Router with Voice until the transfer process is complete. This
process can take 2–10 business days.
To check the status of your transfer, visit www.verizonwireless.com/lnp or call
[phone].
Activating a New Number
Your device automatically activates the new number after the device is powered
on, as long as network coverage is available. Make a call to test service.
NOTE: If you are not subscribed to a plan with voice service and would like to add this feature, dial
*611 to sign up for service.
IMPORTANT!
• A voice plan is required to make and receive calls.
• Customers may need to use the three-digit Area Code when dialing local
and long distance numbers.
SETTING UP VOICE MAIL
To set up and manage your voice mail, dial *86 and follow the system prompts.
For more details about your voice mail service, visit
www.verizonwireless.com/voicemail.

CONNECTING INTERNET/NETWORK DEVICES
You can connect up to three wired devices such as laptops, printers and gaming
consoles via Ethernet.
1. Plug the end of an Ethernet cable* into one of the three Ethernet ports.
2. The other end of the cable must remain plugged into the Ethernet port of the
device you wish to connect.
* Sold separately
Connect up to three
devices via Ethernet

SYSTEM REqUIREMENTS FOR WI-FI CONNECTIVITY
To connect wirelessly to your 4G LTE Broadband Router with Voice, devices
such as laptops and tablets must be Wi-Fi capable.
• Compatible with all major operating systems.
• Works with the latest versions of browsers, including Android™, Chrome™,
Firefox®, Internet Explorer®, Safari™ and Mobile Safari™.
PASSWORDS
Your default Wi-Fi Network Name (SSID) and Wi-Fi Password will appear on
the 4G LTE Broadband Router with Voice display upon initial power up. You can
also access your Wi-Fi Name and Wi-Fi Password using the following steps:
1. Power on your 4G LTE Broadband Router with Voice.
2. On the device screen, select Menu and open the Wi-Fi Name and Password
option.
3. Select Open to display the Wi-Fi Name/Password.
To access your Admin Password for the 4G LTE Broadband Router with Voice
Web Interface:
1. Select Menu and select the About option.
2. Select Open > More > More to display the Web Interface Admin Password.
NOTE: Your default Wi-Fi and Web Interface Admin Password are the same. To change the Wi-Fi
Password, follow the instructions in ACCESSING ADVANCED SETTINGS.
