Vermont Castings 30ILDVNV User manual

20306755 11/14 Rev. 1
0511
ILDV cover
9/08
ILDV Series Direct Vent Gas Fireplace Insert
Installation and Operating Instructions
Models: 30ILDVNV, 30ILDVPV
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for
future reference.
• Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the re department.
• Installation and service must be performed
by a qualied installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER
CERTIFIED
S
AFETYBARRIER

220306755
30ILDV Series Gas Fireplace Insert CONTENTS
Thank you and congratulations on your purchase of a
Vermont Castings Group Gas Fireplace Insert
PLEASE READ THE INSTALLATION AND OPERATION INSTRUCTIONS BEFORE USING THE APPLIANCE!
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible re hazard and will void the warranty.
Important Safety Information ......................................3
Code Approval .........................................................4
Product Features
Product Specications .............................................5
Gas Pressures .........................................................5
Gas Specications ...................................................5
High Elevations ........................................................5
Insert Dimensions ........................................................6
Installation Information................................................7
Before You Start.......................................................7
Insert Applications....................................................7
Clearances ....................................................................8
Insert Clearances.....................................................8
Mantel Clearances ...................................................8
Hearth Requirements...............................................8.
Insert Placement ......................................................9.
Zero-Clearance Fireplace Requirements.................9
Venting Installation.....................................................10
Venting Requirements............................................10
Installation Precautions..........................................10
Altitude Considerations ..........................................11
Venting Congurations...........................................12
Manifold Removal and Installation .........................13
Insert Installation........................................................14
Check Gas Type.....................................................14
Install Gas to Insert Location .................................14
Installation Items Needed ......................................14
Check Gas Pressure..............................................16
Electrical Installation ..............................................16
Electrical Wiring .....................................................16
Remote Wall Mounted Switch ................................17
Hand Held Remote Control....................................17

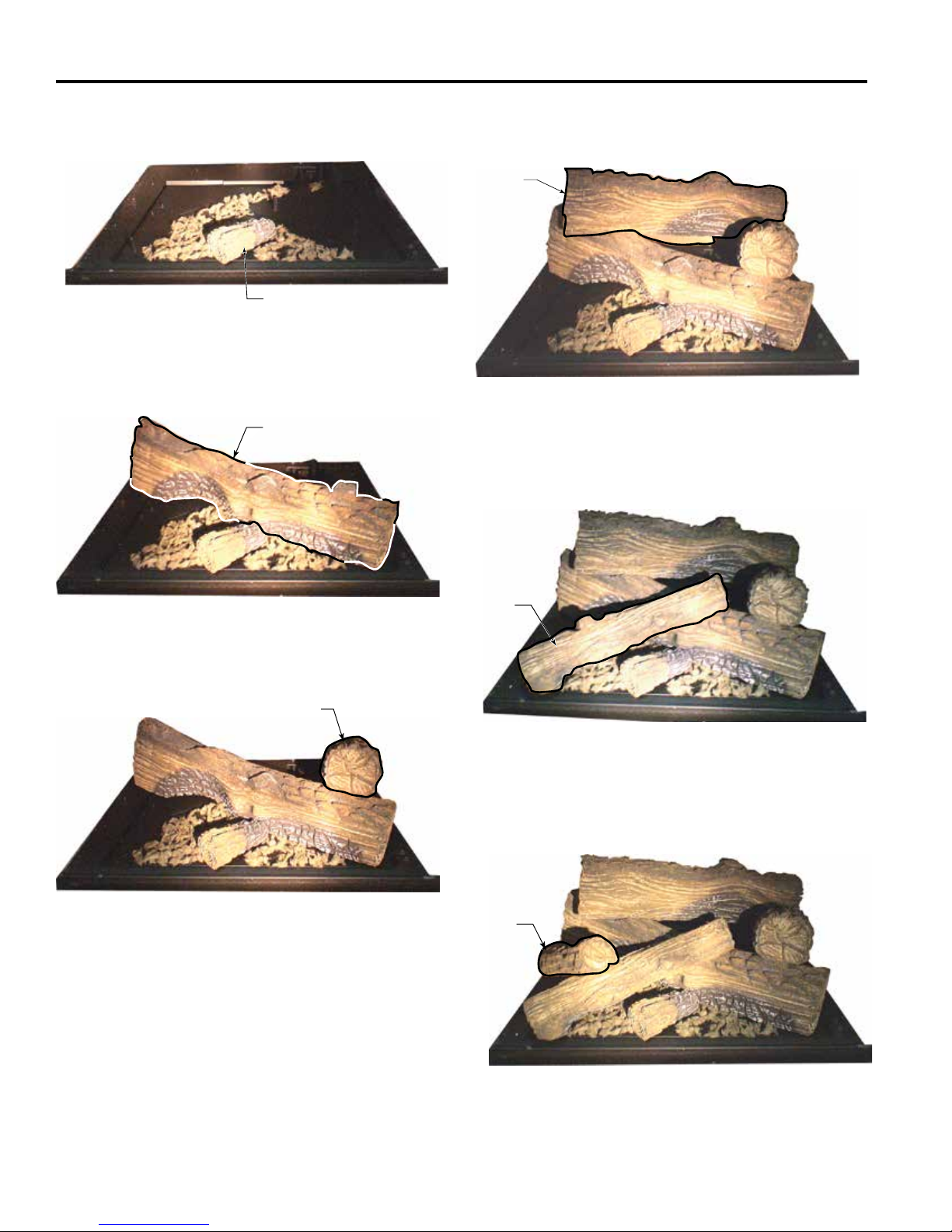

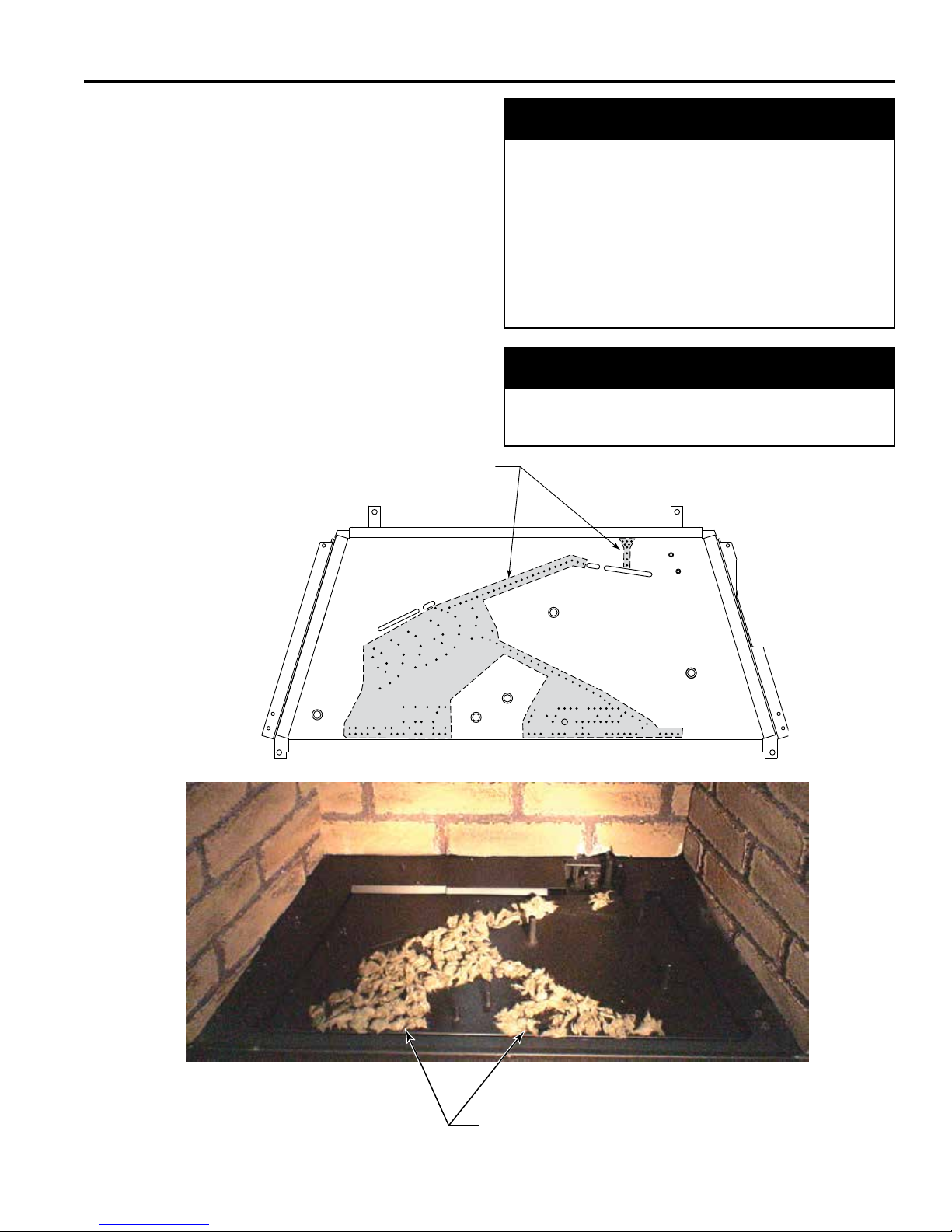

Log Placement .......................................................18
Surround Installation ..............................................19
Operating Instructions...............................................22
Lighting Pilot for the First Time ..............................22
Lighting Burner.......................................................24
To Turn Off Gas......................................................24
Adjusting Blower Speed.........................................24
Air Shutter Adjustment ...........................................25
Final Installation .........................................................26
Safety Barrier Installation.......................................26
Blower Replacement..............................................27
Blower Parts...........................................................28
Cleaning and Maintenance ........................................29
Venting System ......................................................29
Cleaning Glass.......................................................29
Pilot and Burner Flames ........................................29
Firebox Cleaning....................................................30
Yearly Service Procedure.......................................31
Troubleshooting .........................................................32
Replacement Parts .....................................................33
Optional Accessories .............................................35
For Massachusetts Residents ONLY ........................38
Warranty ......................................................................39
Efciencies..................................................................40

3
20306755
30ILDV Series Gas Fireplace Insert
IMPORTANT SAFETY INFORMATION
4. Never install the replace
•in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 36" from the front, top,
or sides of the replace
• in high trafc areas
•in windy or drafty areas
5. This replace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Carefully supervise young children when they are in
the room with replace.
7. Do not modify replace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating replace.
8. Turn replace off and let cool before servicing, install-
ing, or repairing. Only a qualied service person should
install, service, or repair the replace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning replace.
10. Have venting system inspected annually by a qualied
service person. If needed, have venting system cleaned
or repaired. Refer to Cleaning and Maintenance, Page
31.
11. Keep the area around your replace clear of combus-
tible materials, gasoline, and other ammable vapor and
liquids. Do not run replace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around replace.
12. Do not use this replace to cook food or burn paper or
other objects.
13. Never place anything on top of replace.
This replace is a vented product. This replace must be
properly installed by a qualied service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualied service person with glass
door properly seated and sealed, combustion leakage can
occur.
CARBON MONOXIDE POISONING: Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the re-
place may not have been installed properly. Get fresh air
at once! Have the replace inspected and serviced by a
qualied service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the inuence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.
2. For propane/LP replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/LP
supply tank(s) outdoors. To prevent performance prob-
lems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
•shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference .
WARNING
• Read this owner’s manual carefully and completely before trying to assemble, operate, or service this replace.
• Any change to this replace or its controls can be dangerous.
• Improper installation or use of this replace can cause serious injury or death from re, burns, explosions, electrical
shock and carbon monoxide poisoning.appliance, when installed, must be electrically grounded in accordance with
local codes or in the absence of local codes, with the National Electrical Code ANSI/NFPA 70 (latest edition) and
Canadian Electrical Code, CSA C22.1.

420306755
30ILDV Series Gas Fireplace Insert IMPORTANT SAFETY INFORMATION
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. Do not use replace if any part has been exposed to
or has been under water. Immediately call a qualied
service technician to inspect the appliance and replace
any part of the control system and any gas control
which as been submerged in water.
18. Do not operate replace if any log is broken.
19. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
replace.
20. Do not operate the replace with glass door removed,
cracked, or broken.
CODE APPROVAL
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO:
ANSI Z21.88-2014/CSA 2.33-2014 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/
NCSBCS A225.1, or Standard for Gas Equipped Rec-
reational Vehicles and Mobile Housing, CSA Z240.4.
Nous recommandons que nos
appareils de chauffage au gaz
soient installés et entretenus par
des professionnels qui ont été
accrédités aux È.U. par le National
Fireplace Institute ® (NFI) comme
étant des spécialistes du NFI en
matièred’appareils de chauffage
au gaz.
IMPORTANT:
PLEASE READ THE FOLLOWING
CAREFULLY
It is normal for replaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING
CAREFULLY
It is not unusual for gas replaces to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your replace
for at least ten (10) hours the rst time you use it.
Place the fan switch in the “OFF” position during
this time.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER
WARNING
Never connect unit to private (non-utility) gas wells. This
gas is commonly known as wellhead gas.

5
20306755
30ILDV Series Gas Fireplace Insert
PRODUCT FEATURES
• This appliance has been certied for use with either
natural or propane gas. Refer to the appropriate data
plates.
•This appliance is not for use with solid fuels.
•The appliance is approved for bedroom or bedsitting
room installations.
•The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
•This appliance is mobile home approved.
•The appliance must be properly connected to a venting
system.
•The appliance is not approved for closet or recessed
installations.
PRODUCT SPECIFICATIONS

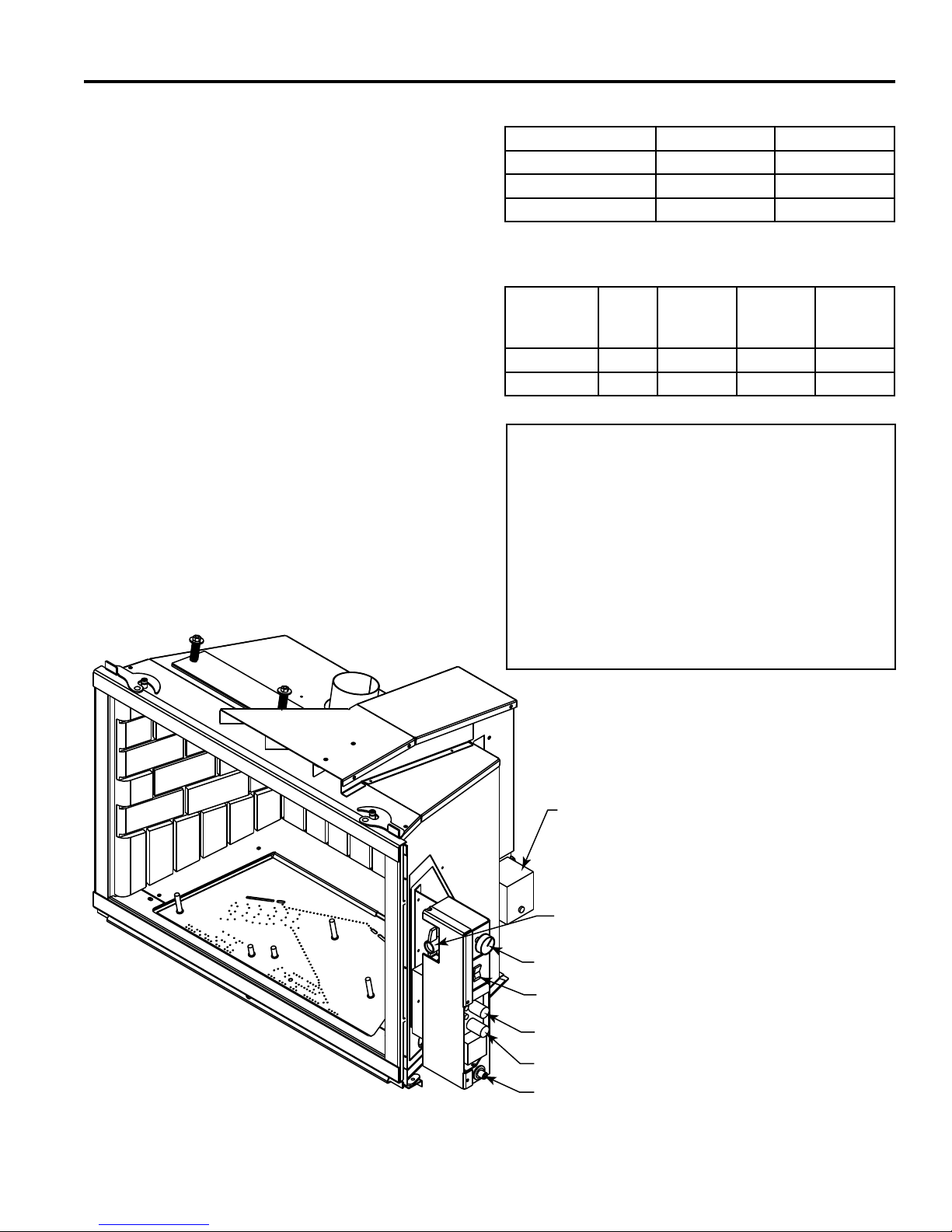

Figure 1 -
ILDV Series Fireplace Insert
FP1919
ILDV parts
9/08
Blower
Blower Knob
ON/OFF
Switch
OFF/Pilot/ON
Knob
HI/LO Knob
Piezo
Gas Shut-
Off Valve
GAS PRESSURES
GAS SPECIFICATIONS & ORIFICE SIZE
NOTE: The ILDV Series replace
inserts work without any electrical
supply. The blower must be attached
to 110/120V AC.
Natural Gas Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
Model Fuel
Max.
Input
BTU/h
Min.
Input
BTU/h
Orice
size
30ILDVNV Nat. 30,000 20,500 #37
30ILDVPV LP 30,000 23,000 #51
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370 m)
above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installation must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installation at elevations above
4,500 feet (1,370 m).

620306755
30ILDV Series Gas Fireplace Insert INSERT DIMENSIONS
IHG
J
K
L
C
DF
E
0511
ILDV dims
9/08
A
B
Figure 2
ILDV Fireplace Insert Dimensions
REF. 30ILDV
A 251⁄4" (641 MM)
B 163⁄16" (411 MM)
C 145⁄8" (372 MM)
D 281⁄8" (714 MM)
E 203⁄4" (527 MM)
F 61⁄4" (159 MM)
G 203⁄16" (513 MM)
H 97⁄8" (251 MM)
I 4" (102 MM)
J 23⁄16" (56 MM)
K75⁄8" (194 MM)
L 3" (76 MM)
INSERT DIMENSIONS

7
20306755
30ILDV Series Gas Fireplace Insert
GENERAL INSTALLATION INFORMATION
BEFORE YOU START
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that all
listed parts have been received.
The following factors should be taken into consideration:
• This insert should have sufcient access for its safe
operation and maintenance.
•The ow of combustion and ventilation air must not be
obstructed.
•Minimum clearances to combustibles, such as mantels,
must be maintained. Refer to Pages 8 and 9, Figures 3
and 4.
•Never obstruct the front opening of the insert.
•Do not install in the vicinity where gasoline or other
ammable liquids may be stored.
•These units can be installed in a bedroom. Refer to
National Fuel Gas Code ANSI Z233.1/NFPA 54 (current
edition), the Uniform Mechanical Code (current edi-
tion), and Local Building Codes for specic installation
requirements.
IMPORTANT: Your direct vent insert was designed to
be installed in an existing wood burning replace. The
location and clearances are subject to local building
codes.
INSERT APPLICATIONS
Before installing the gas replace insert, consider the
functioning needs of the replace. Conrm the size of the
replace cavity, the design of the chimney, and the avail-
ability of the gas supply and electricity for the insert fan.
IMPORTANT: Your direct vent insert is designed to be
only vented vertically with a minimum height of 10 feet.
When the unit is installed into a wood burning replace,
the minimum distance the mantel can be placed above the
replace is governed by local building codes applicable to
wood burning replaces. Consult local authorities having
jurisdiction for these clearances. The underside of the
mantel will become warm. Use only nishes which are heat
resistant and do not discolor.

820306755
30ILDV Series Gas Fireplace Insert
12” (305 mm)
Maximum Depth
12”
(305 mm)
Side Wall
Combustible Mantel
Top Facing
Side Facing
3/4” (19 mm)
Maximum Depth
Combustible Facing
42” (1067 mm)
Minimum
10” (254 mm)
Minimum
12” (305 mm)
Minimum
FP1947
insert clearances
9/08
9”
(228 mm)
CLEARANCES
INSERT CLEARANCES
No combustibles (ie: drapes, doors) may be within, or
swing within 36" of the front of the insert.
MANTEL CLEARANCES
NOTE: The combustible area above the facing must
not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel
requirements listed in this manual.
FP1947
Figure 3
Mantel Clearances
NOTE: Side clearance to com-
bustibles is 10" (254 mm) from
opening whether it is side wall
or mantel legs.
HEARTH REQUIREMENTS
The insert must be installed on a noncombustible hearth
extending a minimum of 12" from the replace opening
(local codes may require a larger hearth). The hearth must
also extend to both sides of the face (Refer to the table
on Page 7).
WARNING
The dimensions shown on Pages 8 and 9, Figures 3 and
4, are minimum clearances to maintain when installing
this heater. Follow these instructions carefully to ensure
safe installation. Failure to follow instructions exactly can
create a re hazard.

9
20306755
30ILDV Series Gas Fireplace Insert
CLEARANCES
INSERT PLACEMENT
•The insert must be placed within a code-conforming
masonry replace or a tested and listed zero-clear-
ance (UL-127, solid fuel) replace. Repair any replace
damage prior to installation.
•Because the insert uses a circulation blower, clean the
replace, smoke shelf and chimney before installing.
•This heater may be placed in a bedroom. Please be
aware of the large amount of heat this appliance pro-
duces when determining a location.
fp1959
FIREBOX DIMS
15¹⁄₈”
(384 mm)
22¹⁄₂”
(572 mm) 14”
(356 mm)
18”
(457 mm)
18”
(457 mm)
21”
(533 mm)
16”
(406 mm)
28”
(711 mm)
23”
(584 mm)
23¹⁄₂”
(597 mm)
16¹⁄₂”
(419 mm)
31”
(787 mm)
ILDV20
ILDV30
ILDV40
30ILDV
Figure 4
Minimum Openings
ZERO-CLEARANCE (METAL) FIREPLACE
REQUIREMENTS
•The damper and grate must be removed.
• The smoke shelf, internal bafes, screen, refractory and
metal or glass doors may be removed (if applicable) .
•Do not remove or alter the insulation or any structured
rigid frame members (metal sides, oor, door frames,
face of the replace, etc.).
IMPORTANT: Please review the following carefully.
It is normal for inserts fabricated of steel to give off some
expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your insert to give off some odor the
rst time it is burned. This is due to the curing of the paint
and any undetected oil from the manufacturing process.
Please ensure that your room is well ventilated. OPEN
ALL WINDOWS DURING INITIAL BURN OFF/CURING
PHASE.
Burn your insert for at least six (6) hours on "HIGH" the
rst time you use it. Place the fan in the "OFF" position
during this time.
Fp1921
zero clearance requirements
9/08
Insulation
Damper
Smoke
Shelf
Masonry Lining or Refractory
Screen
Metal or Glass Doors
Internal
Bafes
Masonry Lining or Refractory
Grate
Figure 5
Metal Fireplace Zero-Clearance Requirements
WARNING
• Installer must attach red warning plate to the inside of the
rebox of replace with screws supplied.
• Do not cut any sheet metal parts of the replace in which
this gas replace insert is installed. THIS IS STRICTLY
PROHIBITED!
• If factory-built fireplace has no gas access hole(s)
provided, drill a 1.5" (37.5 mm) or less through lower sides
or bottom of rebox. You must plug the access hole with
noncombustible insulation after gas supply line has been
installed.
• If your factory-built replace has air passages on the
face for zero clearance, DO NOT BLOCK THESE
PASSAGES!

10 20306755
30ILDV Series Gas Fireplace Insert VENTING INSTALLATION
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installa-
tion. The installer must make sure to select the proper vent
system for installation. Before installing vent kit, the installer
must read this insert manual and vent kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
•Wear gloves and safety glasses for protection.
•Use extreme caution when using ladders or when
on rooftops.
•Be aware of electrical wiring locations in walls and
ceiling.
The following actions will void the warranty on your vent-
ing system:
•Installation of any damaged venting component.
•Unauthorized modication of the venting system.
•Installation of any component part not manufactured
or approved by Vermont Castings Group.
•Installation other than permitted by these instruc-
tions.
NOTICE
Failure to follow these instructions will void the
warranty.
VENTING REQUIREMENTS
•The exhaust vent must reline the entire length of
chimney and terminate above chimney top.
•Vent must meet all vent manufacturer's requirements
when installed.
•Make sure you have the following before installing
unit:
•3" and 3" UL 1777 Listed gas liner for air inlet and
exhaust.
•Vertical Terminations kits: HEDV32T812,
HEDV32T1212, HEDVRT, AI31TK33A
FP1922
vent requirements
9/08
Maximum Height 40'
(12.9 m)
Minimum Height 10'
(3 m)
Exhaust
Inlet
FP1922
WARNING
• Make sure the exhaust pipe on heater connects to
exhaust portion of cap. Attach ex liners. Figure 6
• Do not crimp or rupture liner when bending it into
chimney offsets.
WARNING
Read all instructions completely and thoroughly before
attempting installation. Failure to do so could result in
serious injury, property damage or loss of life. Operation
of improperly installed and maintained venting system
could result in serious injury, property damage or loss
of life.
WARNING
This insert must be vented to the outside. The venting
system must NEVER be attached to a chimney serving
a separate solid fuel burning appliance. Each gas
appliance must use a separate vent system. Do not use
common vent systems.
Figure 6
Venting Unit

11
20306755
30ILDV Series Gas Fireplace Insert
VENTING INSTALLATION
ALTITUDE CONSIDERATIONS
This heater has been tested at altitudes ranging from sea
level to 4,500 feet (1,370 m). In this testing, heater with
standard orice burns correctly with just an air shutter
adjustment. If you need to resize orice for use at high
altitude, contact your dealer.
High Temp
Silicone
FP1923
exhaust pipe
9/08

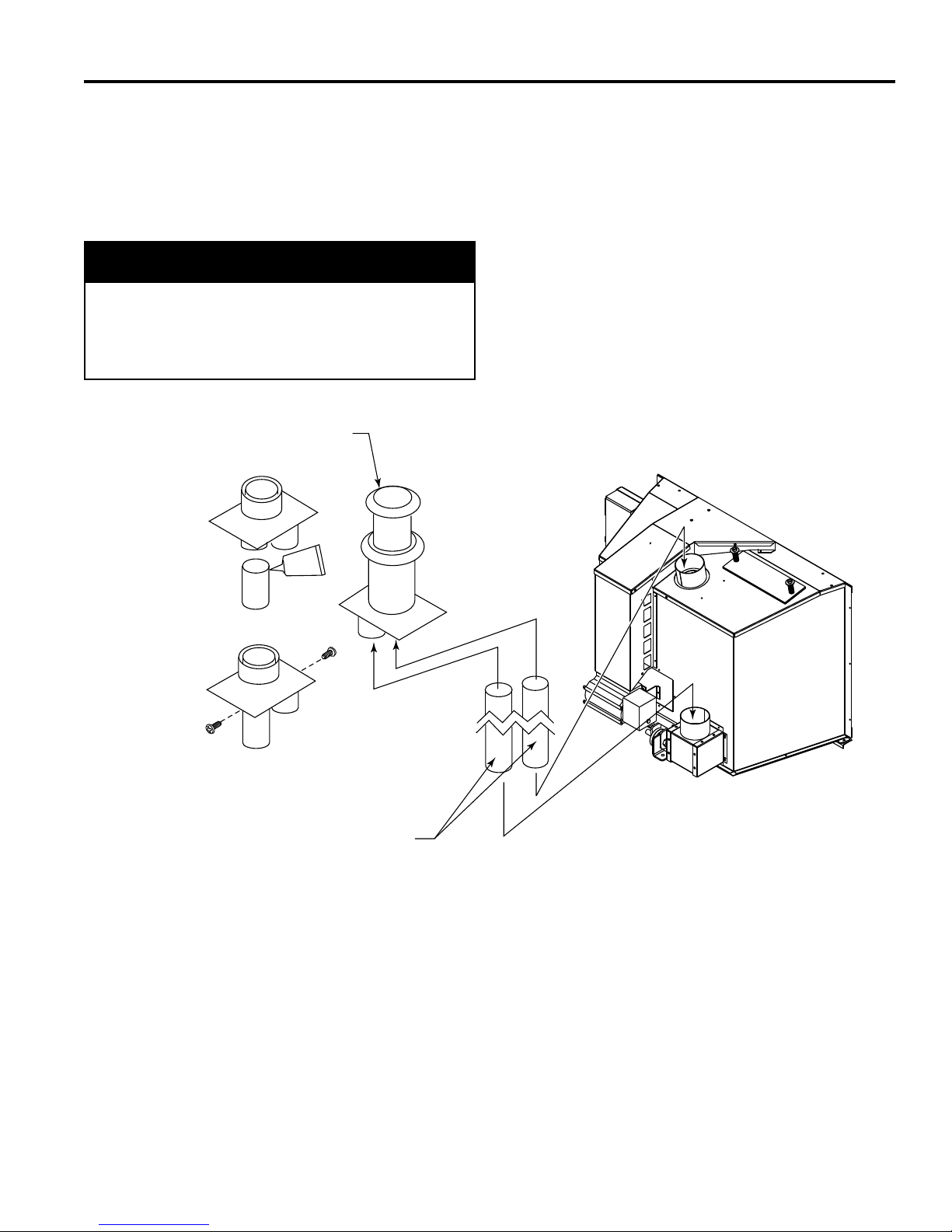

3" and 3" UL 1777 Gas
Liner
Apply high-temperature silicone to
lines on both ends and secure with
two (2) screws
Termination Kit
(Refer to Page 12)
Figure 7
Connecting Vent Pipe to Heater
FP1923
WARNING
Failure to adjust air shutter properly may lead to improper
combustion which can create a safety hazard. Consult
your dealer or installer if you suspect an improperly
adjusted air shutter.

12 20306755
30ILDV Series Gas Fireplace Insert VENTING INSTALLATION
VENTING CONFIGURATIONS
FP1924
inlet exhaust reline
9/08
Exhaust
Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors from
chimney entering room.
UL 127 Solid
Fuel Z.C Fire-
box
Figure 8
Inlet and Exhaust Reline
NOTE: You may use either reline conguration with a masonry
or zero-clearance replace.
FP1924
3" (75 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm)
Inlet
Termination Kits (Refer to Page 12)

13
20306755
30ILDV Series Gas Fireplace Insert
INTAKE MANIFOLD VENT INSTALLATION
Before insert is placed back into replace opening, attach intake
ex pipe to intake manifold, located in rear lower left corner with
hose clamp (not supplied) or other approved method.
EXHAUST MANIFOLD REMOVAL AND VENT
INSTALLATION
The exhaust manifold is shipped attached to insert. It may be
removed to allow tight installation.
1. Remove glass door assembly following instructions on Page
18, Figure 16.
2. Lightly tap on ange of exhaust bafe assembly towards you
until disengaged. Remove bafe, manifold and gasket from
unit. Figure 9
3. Attach the slotted bafe plate. Figure 10

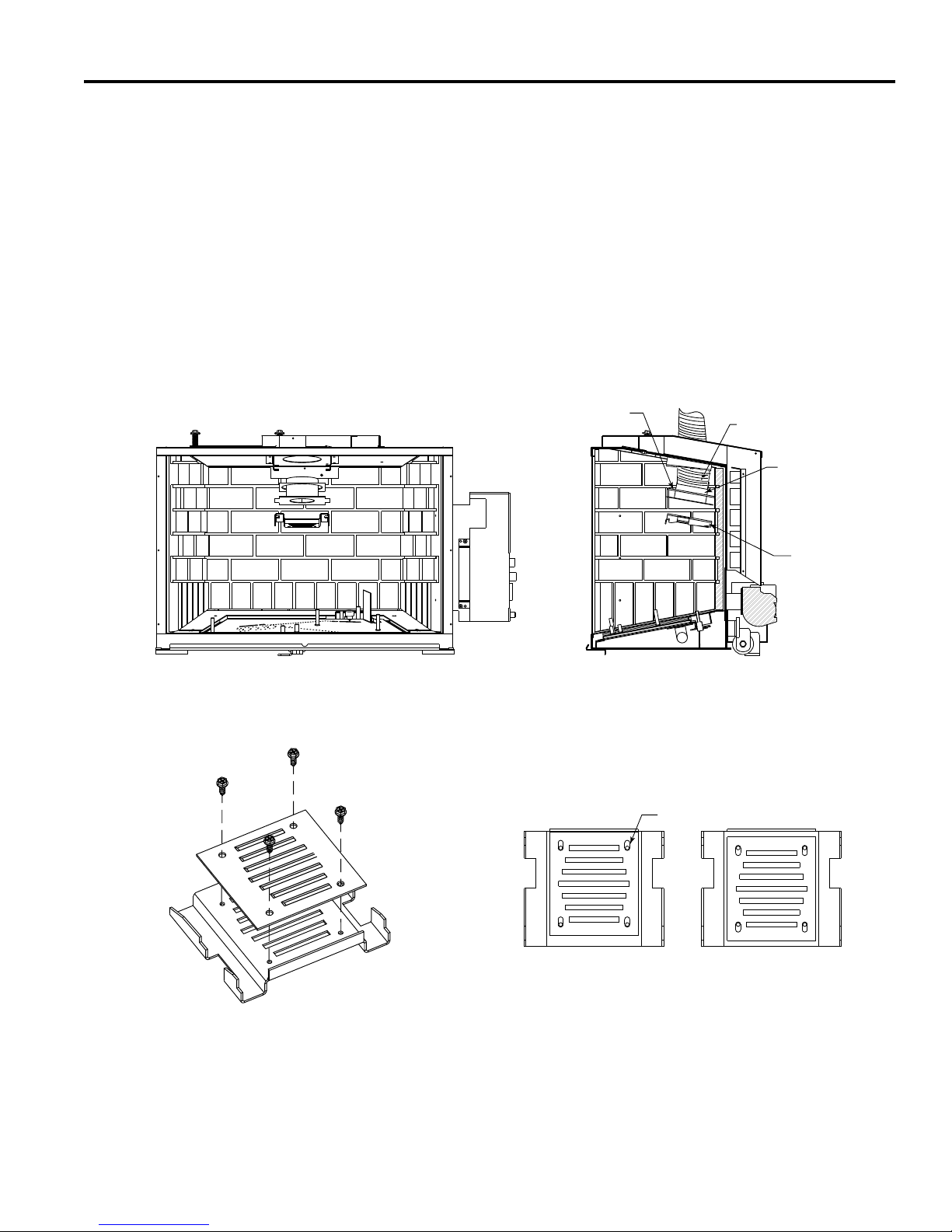

Figure 9 -
Remove Manifold and Attach to Flex Vent
FP1960
manifold assembly
9/08
Gasket
Manifold
Bafe
Assembly
FP1960
Front View Side View
Flex Vent
Figure 10 -
Bafe Assembly and Adjustment
FP1961
baffle adjustment
9/08
Loosen Four (4) Screws to Adjust
Bottom View
Closed Position
Bottom View
Open Position
FP1961
30ILDV - Bafe Plate
30ILDV: Adjust for extended vertical applications.
4. Feed exhaust ex through hole on top of insert and attach to
manifold with hose clamp (not provided) or other approved
methods (check local codes). Insure the gasket is in place
before securing the ex to the manifold.
5. Re-attach exhaust bafe and manifold assembly in reverse
order of Step 2.
6. Re-attach glass door in reverse order.
NOTE: The 30ILDV has an adjustable bafe and may be adjusted
as needed by loosening four (4) screws. Figure 10
VENTING INSTALLATION

14 20306755
30ILDV Series Gas Fireplace Insert INSERT INSTALLATION
CHECK GAS TYPE
Use proper gas type for the insert you are installing. If you
have conicting gas type, do not install insert. See dealer
where you purchased the insert for proper insert according
to your gas type.
INSTALL GAS PIPING TO INSERT
LOCATION
INSTALLATION ITEMS NEEDED
Make sure you have the items listed below before installing
appliance.
•Tee joint •Pipe wrench
•Piping (check local codes) •Test gauge connection*
•External regulator (supplied by installer)
•Sealant (resistant to propane/LP gas)
•Sediment trap (optional but recommended)
• approved exible gas line with gas connector (if allowed
by local codes — not provided)
* A CSA design-certied equipment shutoff valve with
1/8" NPT tap is an acceptable alternative to test gauge
connection. Purchase the CSA design-certied equip-
ment shutoff valve from your dealer.
For propane/LP connections only, the installer must supply
an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas
pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regula-
tor damage could occur. Install external regulator with the
vent pointing down as shown in Figure 11. Pointing the vent
down protects it from freezing rain or sleet.
FP1930
external regulator
9/08
External
Regual-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 11 - External Regulator with Vent
Pointing Down (Propane/LP Only)
For propane/LP units, never connect insert directly
to the propane/LP supply. This burner system
requires an external regulator (not supplied). Install
the external regulator between the burner system
and propane/LP supply.
CAUTION
Use only new black iron or steel pipe. Internally
tinned copper or copper tubing can be used per
National Fuel Gas Code, Section 2.6.3, providing gas
meets hydrogen sulde limits, and where permitted
by local codes. Gas piping system must be sized to
provide minimum inlet pressure (listed on data plate)
at the maximum ow rate (BTU/hr). Undue pressure
loss will occur if the pipe is too small.
CAUTION
WARNING
A qualied installer or service person must connect
appliance to gas supply. Follow all local codes.

15
20306755
30ILDV Series Gas Fireplace Insert
INSERT INSTALLATION
NOTE: The gas line connection may be made using 1/2"
rigid tubing or an approved ex connector. Since some
municipalities have additional local codes it is always best
to consult your local authorities and the current edition of
the National Fuel Gas Code ANSI.Z223.1, NFPA54. In
Canada CSA-B149 (1 or 2) Installation Code.
A listed manual shutoff is factory installed upstream of
appliance. Union tee and plugged 1/8" NPT pressure tap-
ping point should be installed upstream of the appliance.

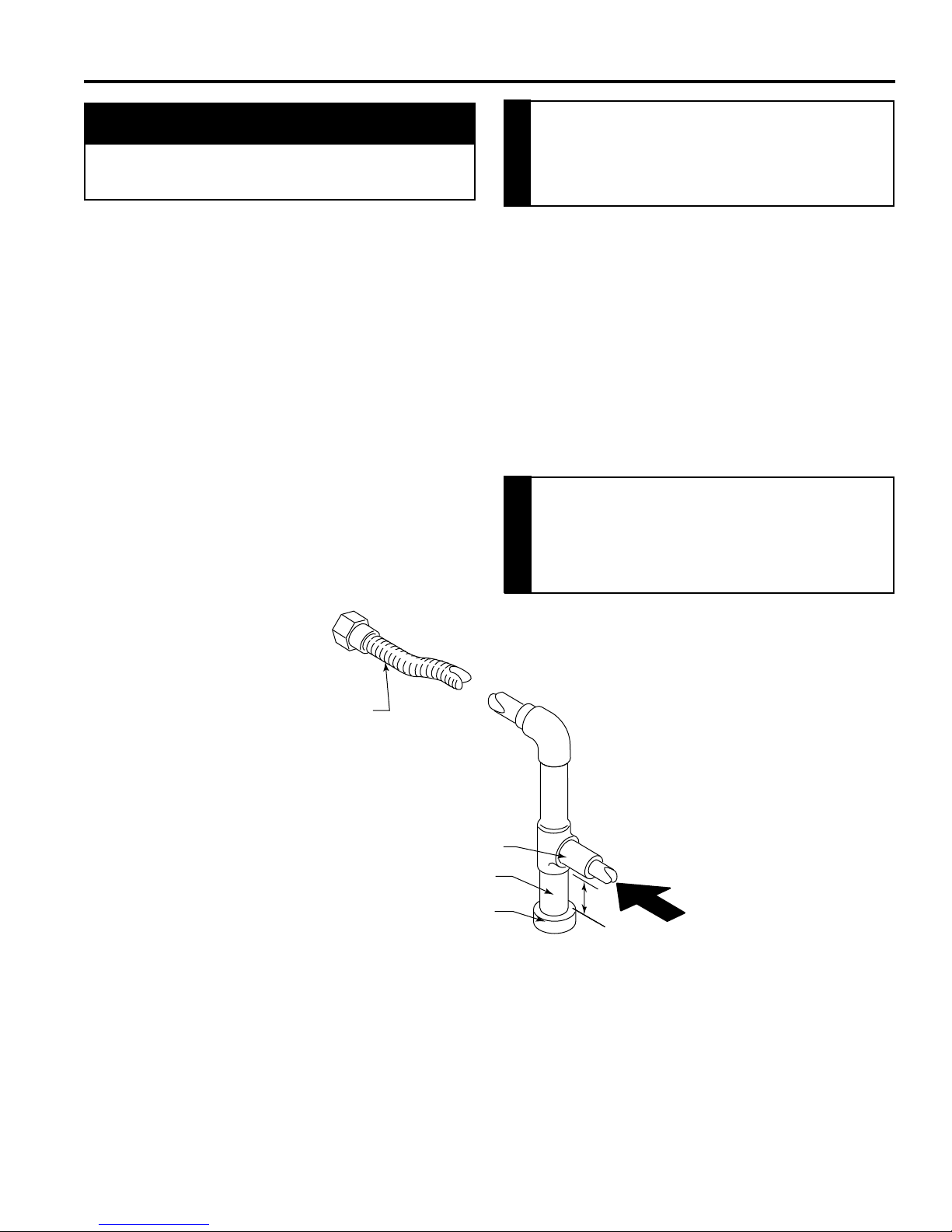

Figure 12
IMPORTANT: The main gas valve is for turning on or
shutting off the gas to the insert.
Check your building codes for any special requirements
for locating equipment shutoff valve to inserts.
Natural Gas
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
Propane/LP
From External Regulator
(11" w.c. to 13" w.c. Pressure)
3" Minimum
FP1931
gas connection
9/08
Approved Flexible
Gas Line Supplied
with Appliance
Tee Joint
Pipe Nipple
Cap
Figure 12 -
Gas Connection
A manual shut-off valve is factory installed upstream
of the appliance. Union tee and plugged 1/8" NPT
pressure tapping point should be installed upstream
of the appliance. Figure 12
CAUTION
Use pipe joint sealant that is resistant to liquid
petroleum (LP) gas.
CAUTION
Apply pipe joint sealant lightly to threads. This will prevent
excess sealant from going into pipe. Excess sealant in pipe
could result in clogged burner system valves.We recom-
mend that you install a sediment trap/drip leg in supply
line as shown in Figure 12. Locate sediment trap/drip leg
where it is within reach for cleaning. Install in piping system
between fuel supply and burner system. Locate sediment
trap/drip leg where trapped matter is not likely to freeze. A
sediment trap traps moisture and contaminants. This keeps
them from going into the burner system gas controls. If
sediment trap/drip leg is not installed or is installed wrong,
burner system may not run properly.
WARNING
Only persons licensed to work with gas piping may make
the necessary gas connections to this appliance.

16 20306755
30ILDV Series Gas Fireplace Insert
CHECKING GAS PRESSURE
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the replace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. Install and attach ex line provided with on this appliance
to 1/2" gas line.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
replace for leaks. Use a soap and water solution or a
gas sniffer.
4. To adjust ame height, turn HI/LO knob to HI to get
maximum pressure to burner. Turn HI/LO knob to LO
to get minimum pressure.
5. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point. Turn unit to high.
Figure 13. After taking pressure reading, be sure and
turn captured screw clockwise rmly to reseal. Do not
over torque. Check test points for gas leaks with a soap
and water solution or an electronic gas leak detector.
FP1932
valve regulator with knobs
Pressure
Test "IN"
Pressure Test
"OUT"
HI/LO Knob Pilot Adjustment Screw
FP1932
Figure 13 -
Gas Pressure Check at Gas Valve
ELECTRICAL WIRING
This insert will work without any electrical supply. Elec-
tricity is only needed to operate blower.
Verify proper operation after servicing.
Label all wires before disconnecting when servicing
controls. Wiring errors can cause improper and
dangerous operation.
CAUTION
WARNING
Do not use open ame to check for gas leaks.
WARNING
Electrical connections should only be performed by a
qualied, licensed electrician. Main power must be off
when connecting to main electrical power supply or
performing service. All wiring shall be in compliance
with all local, city and state codes. The appliance, when
installed, must be electrically grounded in accordance
with local codes, or in the absence of local codes, with
the National Electrical Code ANSI/NFPA 70 (latest
edition) and Canadian Electrical Code, CSA C22.1.
INSERT INSTALLATION

17
20306755
30ILDV Series Gas Fireplace Insert
REMOTE WALL MOUNTED SWITCH
A remote wall switch and up to fteen (15) feet of 18 Ga.
wire may be used with this appliance. Attach the wall
switch in a junction box at the desired location on the wall.
Figure 14.
NOTE: Extended lengths of wire may cause the replace
not to function properly. Longer length of wire is permitted
if the wire is made out of larger gauge (diameter) wire.
Always check with local code.
PILOT HI
LO
ON
OFF
FP1933
wall switch wiring
Figure 14 -
Wiring Diagram for Wall Switch
Sparker
Thermocouple
Piezo Igniter
Thermopile
Pilot Assembly
Switch
Millivolt
Valve
TH
TP
TH/TP
ON OFF
Optional 15'
Wall Switch
Optional
Remote Control
ON
OFF
ON
OFF
HAND HELD REMOTE CONTROL
The remote control receiver may be installed in the control
panel by removing the ON/OFF switch and the knock-out
plate. Slide the receiver into the space where the knock-out
plate was removed. Refer to remote instructions for wiring
and operation.
FP2177
remote receiver
Figure 15 -
Remote Receiver
FP2177
Remote
Receiver
INSERT INSTALLATION

18 20306755
30ILDV Series Gas Fireplace Insert INSERT INSTALLATION

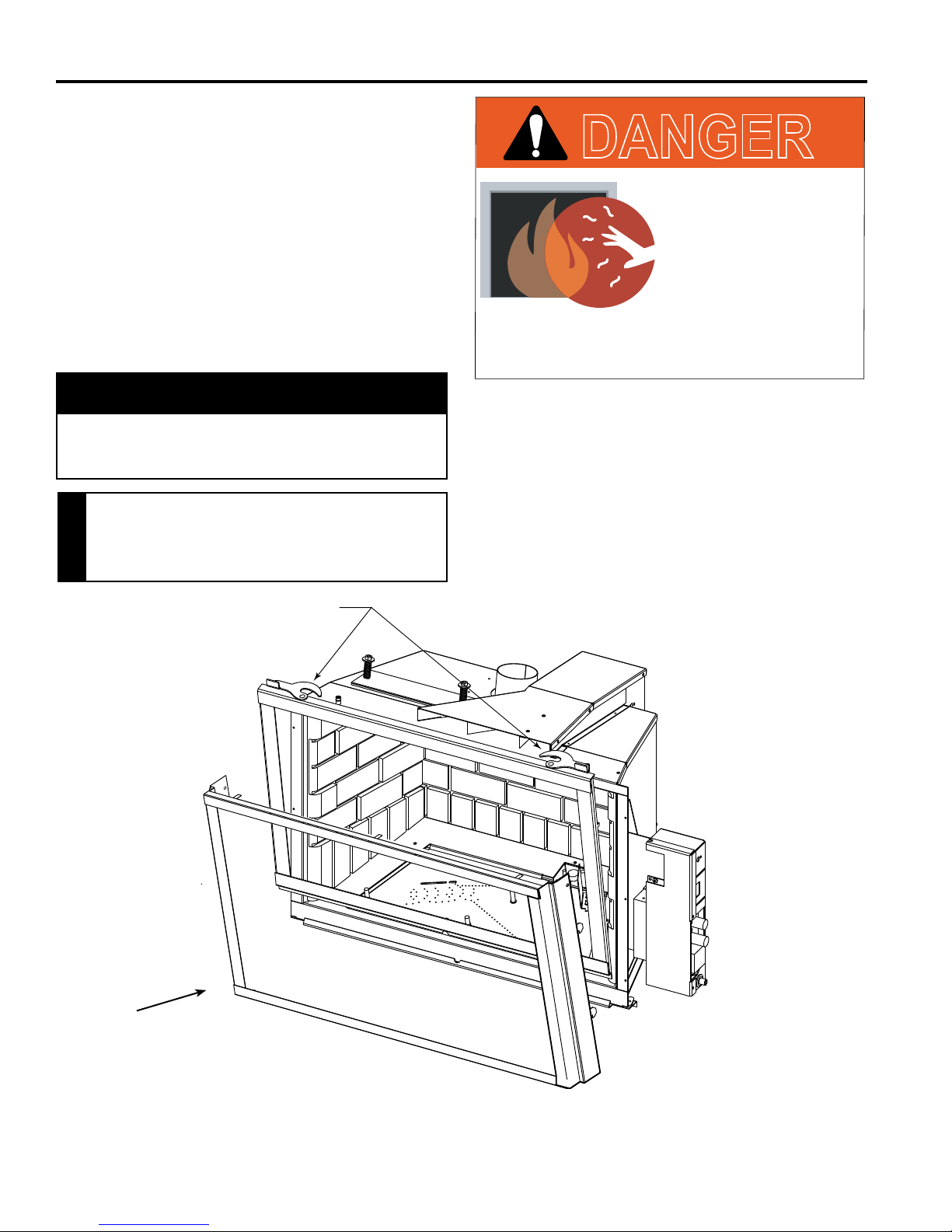

GLASS FRAME REMOVAL
NOTE: If the safety barrier is in place, you must rst remove
it before you remove the glass frame. To remove the
barrier, simply lift up and pull out until the tabs are clear
of their corresponding slots on the rebox. Then proceed
to remove the glass frame by following the steps below.
1. Carefully remove upper ligree by pulling straight out.
2. Remove glass frame from insert by releasing two latches
on top of insert and lifting the door up and off the unit.
Figure 16
3. Set glass frame aside.
4. Re-install in reverse order.
Always use gloves when handling broken glass.
CAUTION
WARNING
Make sure the glass panel edges do not touch any metal
parts during thermal expansion.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER
install glass frame
12/14
Glass Frame
Latches
Figure 16 -
Glass Frame Removal
Safety Screen
Barrier

19
20306755
30ILDV Series Gas Fireplace Insert
Before you begin - This unit is supplied with six (6) ceramic
ber logs. Do not handle these logs with your bare hands.
Always wear gloves to prevent skin irritation from ceramic
bers. After handling the logs, wash your hands gently with
soap and water to remove any traces of bers.
INSTALLING LOGS AND ROCK WOOL (EMBER
MATERIAL) IN FIREBOX
1. Break up rock wool (ember material) into dime-sized
pieces. Place evenly as shown. Do not exceed 1" layer
covering all round burner ports. Refer to Figures 17a
and 17b.
2. Do not cover rectangular slots located at rear of burner.
LG536
ILDV
ember material
9/08
Ember Material
Figure 17b -
Place Ember Material
FP1968
ember material area
9/08
Ember Material Area
Figure 17a -
Ember Material Area
WARNING
Do not use the entire bag of rock wool to cover burner
area.
WARNING
The positioning of the logs is critical to the safe and
clean operation of this heater. Sooting and other
problems may result if the logs are not properly and
rmly positioned in the appliance. Never add additional
logs or embellishments such as pine cones or vermiculite
to the heater. Only use the logs supplied with the unit.
Failure to position the parts in accordance with diagrams
below or to use only parts specically approved for this
heater may result in property damage or personal injury.
LOG PLACEMENT
INSERT INSTALLATION

20 20306755
30ILDV Series Gas Fireplace Insert INSERT INSTALLATION
6. Position log #3 so that the bottom right end is resting
on the pad on log #2 and the left end is resting on the
at spot on log #1. Figure 21
7. Align log #4 hole to the burner pin and rest on log #1.
Figure 22
8. Align the cutout on the bottom of log #5 and t it into
log #4. Figure 23
3. Align the two pin holes on Log #6 onto the burner. Figure
18
4. Place log #1 by aligning the holes to the burner pin.
Figure 19
5. Position log #2 so that it is resting on log #1. Figure 20
LG538
ILDV log #1
9/08
Log #1
Figure 19 -
Place Log #1
LG539
ILDV log #2
9/08
Log #2
Figure 20 -
Place Log #2
LG537
ILDV log 6
9/08
Log #6
Figure 18 -
Place Log #6
LG540
ILDV log #3
9/08
Log #3
Figure 21 -
Place Log #3
LG541
ILDV log #4
9/08
Log #4
Figure 22 -
Place Log #4
LG542
ILDV log #5
9/08
Log #5
Figure 23 -
Place Log #5
