VCFDVI31 Gas Fireplace Insert
Product Specications .............................................5
High Elevations ........................................................5
Gas Pressures .........................................................5
Gas Specications ...................................................5
Before You Start .......................................................7
Insert Applications ....................................................7
Clearances ...............................................................7
Insert Clearances .....................................................8
Mantel Clearances ...................................................8
Hearth Requirements ...............................................8
Insert Placement ......................................................9
Remove Command Center Bracket .........................9
Zero-Clearance Fireplace Requirements ...............10
Installation Precautions ..........................................11
Venting Requirements ............................................11
Altitude Considerations ..........................................12
Venting Congurations ...........................................13
Glass Frame Removal ...........................................14
Engine Installation ..................................................15
Log Support Installation .........................................17
Brick Panel Installation ...........................................17
Intake/Exhaust Manifold Removal & Vent Install ...18
Check Gas Type.....................................................19
Install Gas to Insert Location .................................19
Installation Items Needed ......................................19
Gas Shutoff Tool .....................................................21
Electrical Wiring .....................................................22
For Your Safety Read Before Lighting ...................26
Operating Instructions ............................................27
To Turn Off Gas ......................................................27
Adjust the Air Shutter (Front Burner) ......................28
Adjust the Air Shutter (Rear Burner) ......................29
Touch Screen Remote Control Operation ..............33
Venting System ......................................................39
Cleaning Glass .......................................................39
Pilot and Burner Flames ........................................39
Firebox Cleaning ....................................................40
Yearly Service Procedure .......................................41
Optional Accessories .............................................45
20304166
VCFDVI31 Gas Fireplace Insert
3
4. Never install the replace
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 36" from the front, top,
or sides of the replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Carefully supervise young children when they are in
the room with replace.
7. Do not modify replace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating replace.
8. Turn replace off and let cool before servicing, install-
ing, or repairing. Only a qualied service person should
install, service, or repair the replace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning replace.
10. Have venting system inspected annually by a qualied
service person. If needed, have venting system cleaned
or repaired. Refer to Cleaning and Maintenance, Page
39.
11. Keep the area around your replace clear of combus-
tible materials, gasoline, and other ammable vapor and
liquids. Do not run replace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around replace.
12. Do not use this replace to cook food or burn paper or
other objects.
13. Never place anything on top of replace.
This replace is a vented product. This replace must be
properly installed by a qualied service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualied service person with glass
door properly seated and sealed, combustion leakage can
occur.
Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the re-
place may not have been installed properly. Get fresh air
at once! Have the replace inspected and serviced by a
qualied service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the inuence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.
2. For propane/LP replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/LP
supply tank(s) outdoors. To prevent performance prob-
lems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
420304166
VCFDVI31 Gas Fireplace Insert
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. Do not use replace if any part has been exposed to
or has been under water. Immediately call a qualied
service technician to inspect the appliance and replace
any part of the control system and any gas control
which as been submerged in water.
18. Do not operate replace if any log is broken.
19. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
replace.
20. Do not operate the replace with glass door removed,
cracked, or broken.
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
TESTED TO:
ANSI Z21.88-2009/CSA 2.33-2009 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard,
or when such a standard is not applicable, the
, or
.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
It is normal for fireplaces fabricated of steel
to give off some expansion and/or contraction
noises during the start up or cool down cycle.
Similar noises are found with your furnace heat
exchanger or car engine.
It is not unusual for gas replaces to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
It is recommended that you burn your replace
for at least ten (10) hours the rst time you use it.
Place the fan switch in the “OFF” position during
this time.
20304166
VCFDVI31 Gas Fireplace Insert
5
• This appliance has been certied for use
with either natural or propane gas. Refer
to the appropriate data plates.
• This appliance is not for use with solid
fuels.
• The appliance is approved for bedroom or
bedsitting room installations.
• The appliance must be installed in accor-
dance with local codes if any. If none exist
use the current installation code. ANSI
Z223.1/NFPA 54 in the USA, CSA B149
in Canada.
• This appliance is mobile home appr-
oved.
• The appliance must be properly connected
to a venting system.
• The appliance is not approved for closet
or recessed installations.
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370 m)
above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installation must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installation at elevations above
4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
VCFDVI31LENTSC Nat. 31,000 22,500 1.75 mm #46
VCFDVI31LENTSC LP 29,000 24,000 #56 1.1 mm
FP2946

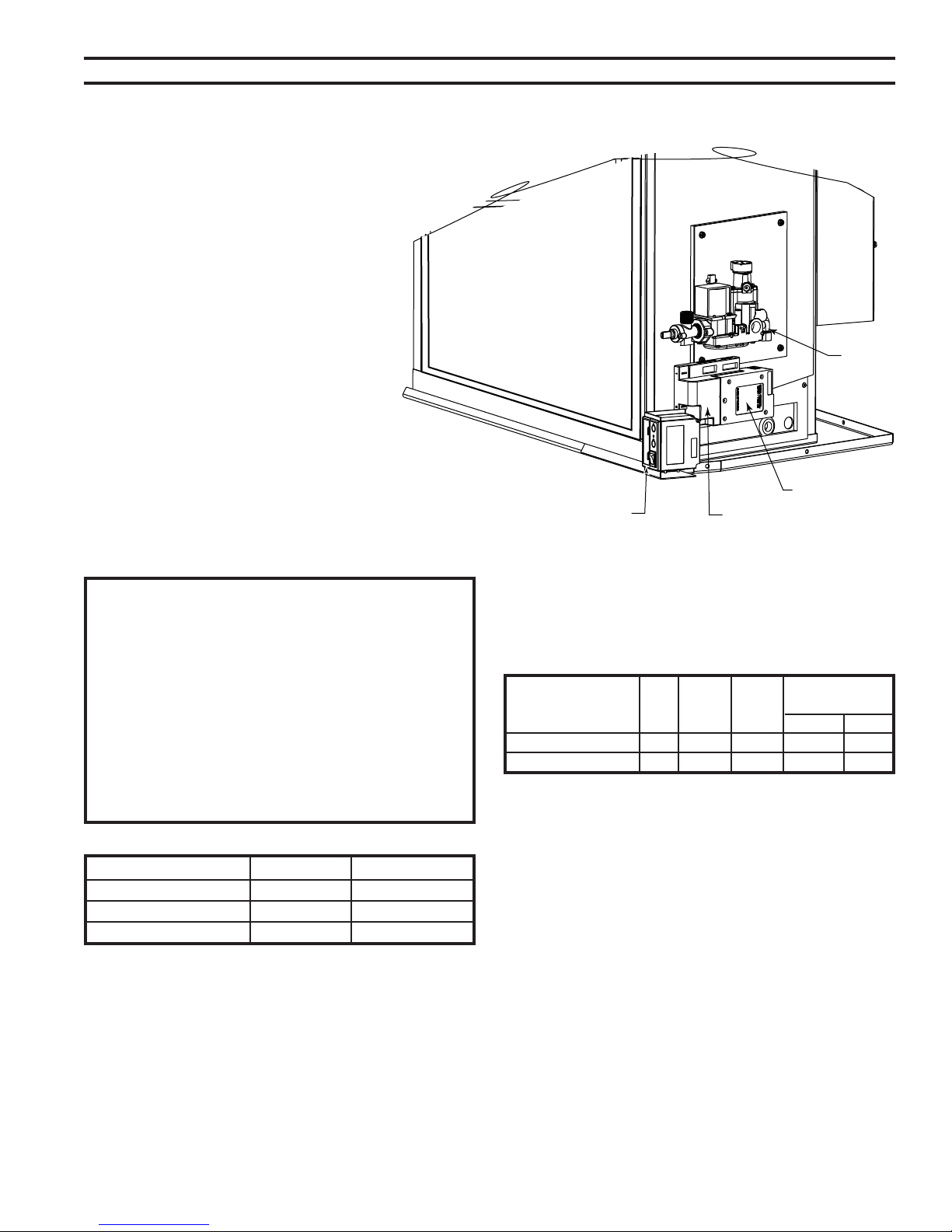

ICFDV insert controls
Figure 1 -
VCFDVI31 Series Fireplace Insert Controls
Control Board
AC Module
Gas
Valve
Command
Center
FP2946
620304166
VCFDVI31 Gas Fireplace Insert
2256QE” (560 mm)
1156QE”
(303 mm)
1056”
(257 mm)
26QE”
(56 mm)
556QE”
(144 mm)
1656"
(410 mm)
246QE” (621 mm)
2756” (689 mm) 256M”
(57 mm)
2156QE"
(535 mm)
4164

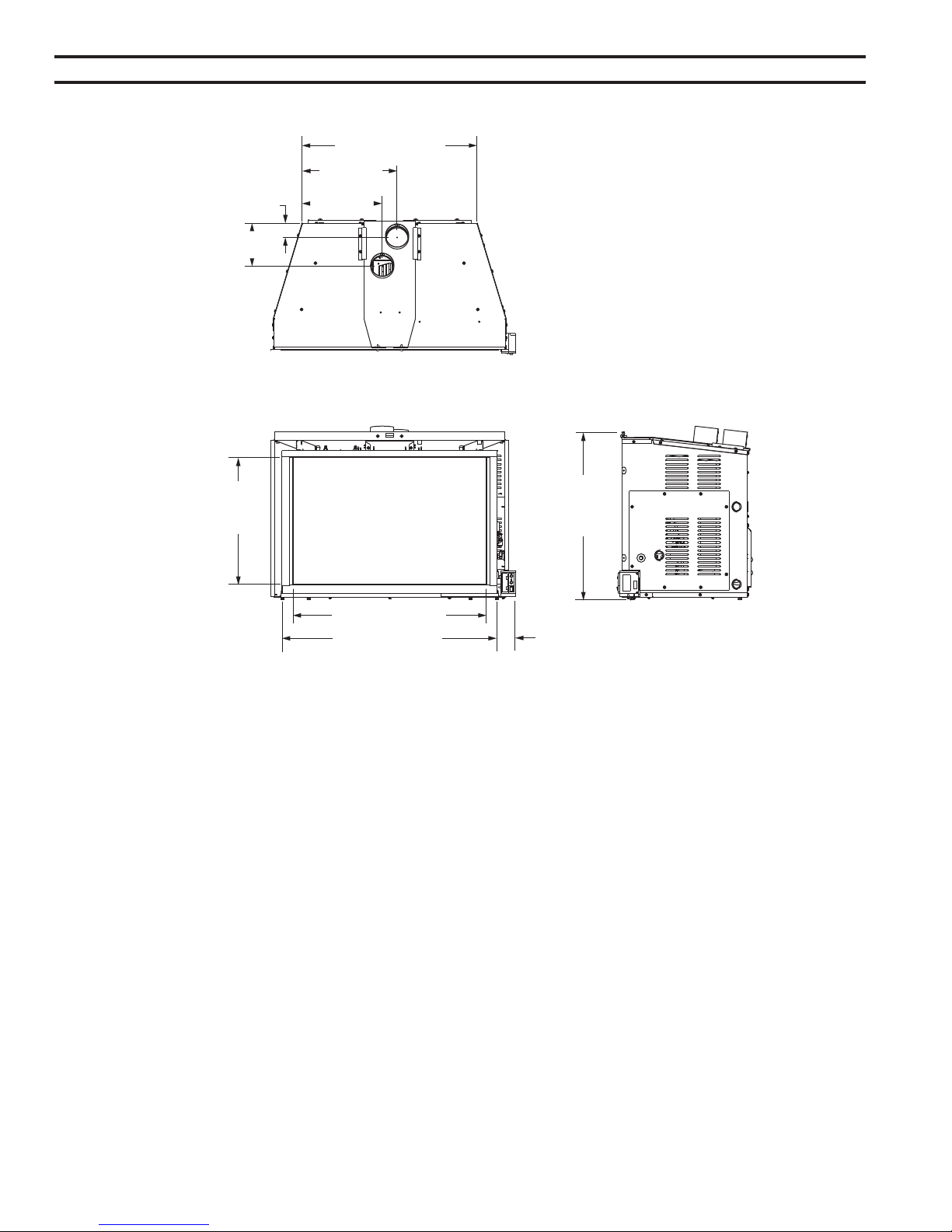

ICFDV insert dims
Figure 2 -
VCFDVI31 Fireplace Insert Dimensions
20304166
VCFDVI31 Gas Fireplace Insert
7
Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all con-
tents for shipping damage and immediately inform your dealer if any damage is found. Do
not install any unit with damaged, incomplete, or substitute parts. Check your packing list to
verify that all listed parts have been received.
The following factors should be taken into consideration:
• This insert should have sufcient access for its safe operation and maintenance.
• The ow of combustion and ventilation air must not be obstructed.
• Minimum clearances to combustibles, such as mantels, must be maintained. Refer to Pages
8 and 9, Figures 3, 4 and 5.
• Never obstruct the front opening of the insert.
• Do not install in the vicinity where gasoline or other ammable liquids may be stored.
• These units can be installed in a bedroom. Refer to National Fuel Gas Code ANSI Z233.1/
NFPA 54 (current edition), the Uniform Mechanical Code (current edition), and Local Build-
ing Codes for specic installation requirements.
.
Before installing the gas replace insert, consider the functioning needs of the replace. Con-
rm the size of the replace cavity, the design of the chimney, and the availability of the gas
supply and electricity for the insert fan.
When the unit is installed into a wood burning replace, the minimum distance the mantel
can be placed above the replace is governed by local building codes applicable to wood
burning replaces. Consult local authorities having jurisdiction for these clearances. The
underside of the mantel will become warm. Use only nishes which are heat resistant and
do not discolor.
The dimensions shown on Pages 8 and 9, Figures 3 and 4, are mini-
mum clearances to maintain when installing this heater. Follow these
instructions carefully to ensure safe installation. Failure to follow
instructions exactly can create a re hazard.
820304166
VCFDVI31 Gas Fireplace Insert
No combustibles (ie: drapes, doors) may be within, or swing within 36" of the front of the insert.
The insert must be installed on a noncombustible hearth extending a minimum of 10" (254 mm)
from the replace opening (local codes may require a larger hearth). The hearth must also extend
to both sides of the face.
FP2959
Figure 3 -
Mantel Clearances
Side clearance
to combustibles is 10"
(254 mm) from opening
whether it is side wall or
mantel legs.
12"
(305 mm)
10"
(254 mm)
12" (305 mm)
4"
(101 mm) 3/4” (19 mm)
9"
(229 mm)
FP2965
mantel clearance
Finish Wall
FP2965
Figure 4 -
Mantel Clearances
Fireplace Insert
Opening
12” (305 mm)
Maximum Depth
12”
(305 mm)
Side Wall
Combustible Mantel
Top Facing
Side Facing
3/4” (19 mm)
Maximum Depth
Combustible Facing
10” (254 mm)
Minimum
10” (254 mm)
Minimum
FP2964
insert clearances
9”
(228 mm)
Noncombustible
Material Required
up to 9" Above
Fireplace Opening
20304166
VCFDVI31 Gas Fireplace Insert
9
• The insert must be placed within a code-conforming
masonry replace or a tested and listed zero-clear-
ance (UL-127, solid fuel) replace. Repair any replace
damage prior to installation.
• Because the insert uses a circulation blower, clean the
replace, smoke shelf and chimney before installing.
• This heater may be placed in a bedroom. Please be
aware of the large amount of heat this appliance pro-
duces when determining a location.
Figure 5 -
Minimum Openings
fp2966
FIREBOX DIMS
226”
(568 mm)
206M”
(527 mm)
166M”
(426 mm)
*306M”
(781 mm)
*29N\m" (759 mm) with
control box and bracket
removed.
In order to t insert into a smaller opening, the command
center bracket may be removed. Refer to Pages 6 and 9
for dimensions.
If the bracket is removed, the small 2" deep, three-sided
surround, model ICF30S3B is required to mount command
center. Refer to surround instructions.
1. Remove command center from bracket by sliding out
to the right. Figure 6
2. Carefully lay unit on its back. Remove two (2) screws
holding bracket to insert. Figure 7
Fp2976
SCS Bracket
Command
Center
Command Center Bracket
FP2976
Figure 6
FP2980
remove bracket screws
Command
Center Bracket
Remove
Screws
Bottom of
Unit
FP2980
Figure 7
10 20304166
VCFDVI31 Gas Fireplace Insert
• The damper and grate must be removed.
•
The smoke shelf, internal bafes, screen, refractory and
metal or glass doors may be removed (if applicable)
.
• Do not remove or alter the insulation or any structured
rigid frame members (metal sides, oor, door frames,
face of the replace, etc.).
Please review the following carefully.
It is normal for inserts fabricated of steel to give off some
expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your insert to give off some odor the
rst time it is burned. This is due to the curing of the paint
and any undetected oil from the manufacturing process.
Burn your insert for at least six (6) hours on "HIGH" the
rst time you use it. Place the fan in the "OFF" position
during this time.
&P
ZEROCLEARANCEREQUIREMENTS
Insulation
Damper
Smoke
Shelf
Masonry Lining or Refractory
Screen
Metal or Glass Doors
Internal
Bafes
Masonry Lining or Refractory
Grate
Figure 8 -
Metal Fireplace Zero-Clearance Requirements
20304166
VCFDVI31 Gas Fireplace Insert
11
Consult local building codes before beginning the installa-
tion. The installer must make sure to select the proper vent
system for installation. Before installing vent kit, the installer
must read this insert manual and vent kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when
on rooftops.
• Be aware of electrical wiring locations in walls and
ceiling.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured
or approved by MHSC.
• Installation other than permitted by these instruc-
tions.
• The exhaust vent must reline the entire length of chim-
ney and terminate above chimney top.
• Vent must meet all vent manufacturer's requirements
when installed.
• Make sure you have the following before installing
unit:
• 3" and 3" UL 1777 Listed gas liner for air inlet and
exhaust.
• Vertical Terminations kits: HEDV32T812,
HEDV32T1212

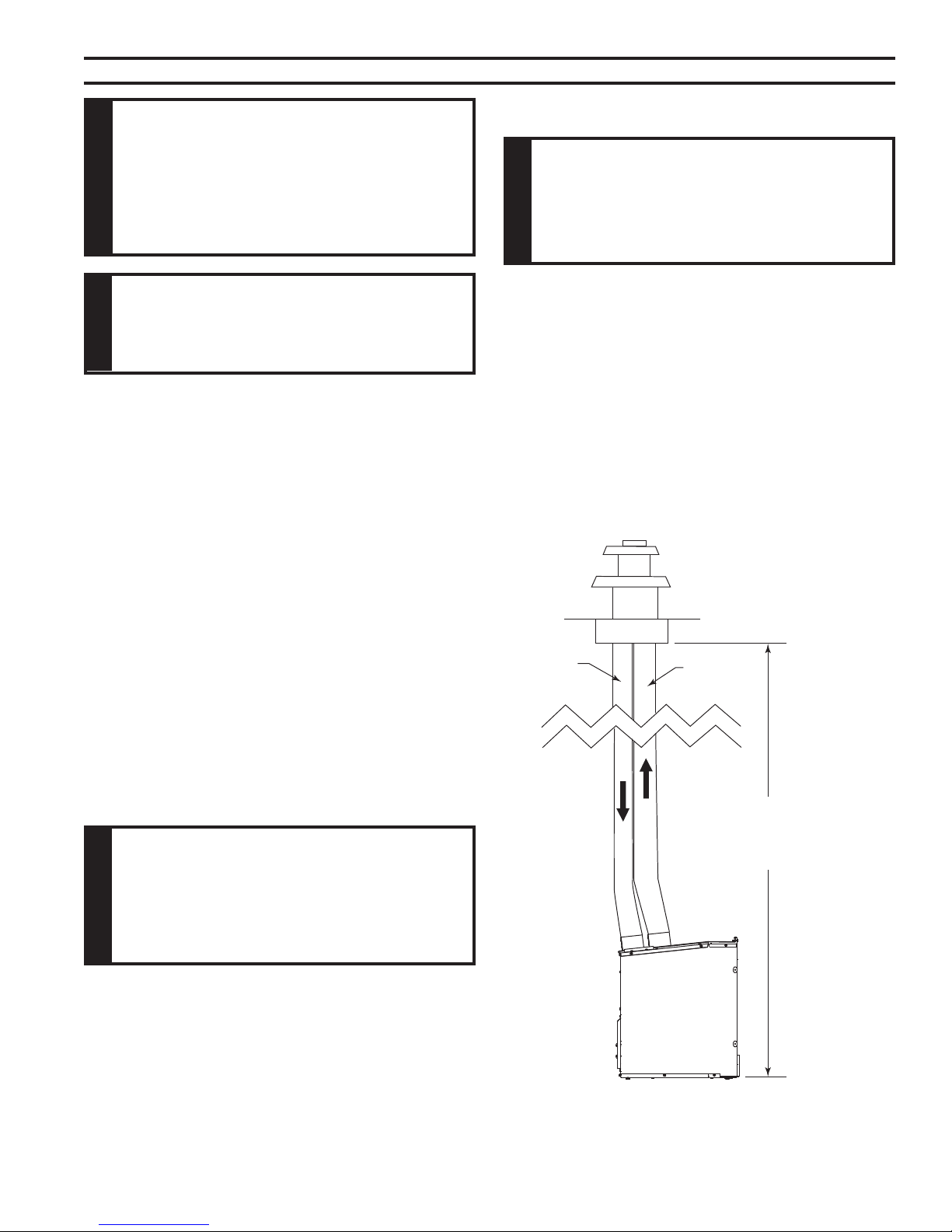

Figure 9 -
Venting Unit
FP2947
vent requirements
Maximum Height 40'
(12.9 m)
Minimum Height 10'
(3 m)
Exhaust
Inlet
FP2947
Figure 9
12 20304166
VCFDVI31 Gas Fireplace Insert
This heater has been tested at altitudes ranging from sea level to 4,500 feet (1,370 m). In this
testing, heater with standard orice burns correctly with just an air shutter adjustment. If you need
to resize orice for use at high altitude, contact your dealer.
High Temp
Silicone
FP2948
exhaust pipe
3" and 3" UL 1777 Gas
Liner
Apply high-temperature silicone to
lines on both ends and secure with
two (2) screws
Termination Kit
(Refer to Page 11)

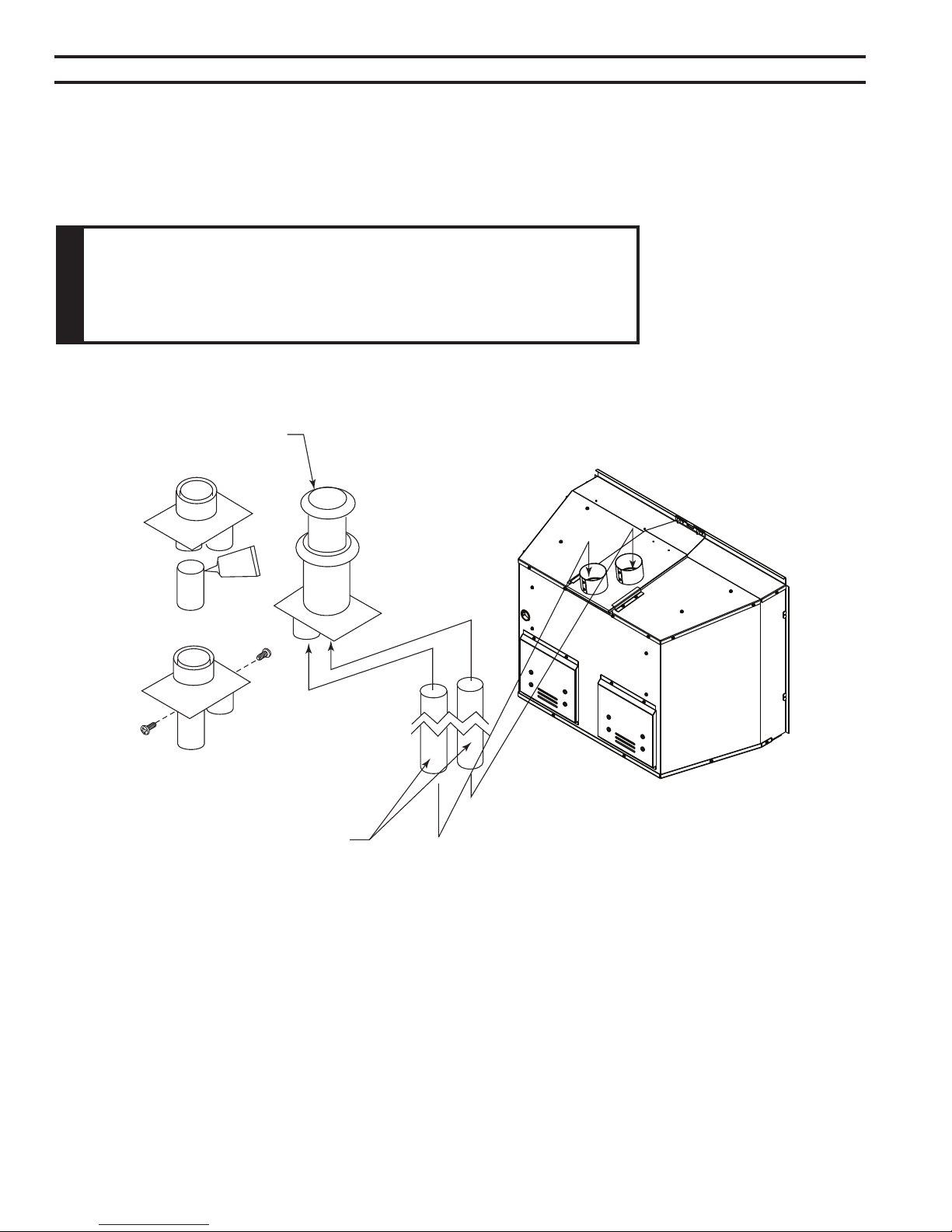

Figure 10 -
Connecting Vent Pipe to Heater
FP2948
20304166
VCFDVI31 Gas Fireplace Insert
13
FP2949
inlet exhaust reline
Exhaust
Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors from
chimney entering room.
UL 127 Solid
Fuel Z.C Fire-
box
Figure 11 -
Inlet and Exhaust Reline
You may use either reline conguration with a masonry
or zero-clearance replace.
FP1924
3" (75 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm) Inlet
Termination Kits (Refer to Page 11)
14 20304166
VCFDVI31 Gas Fireplace Insert

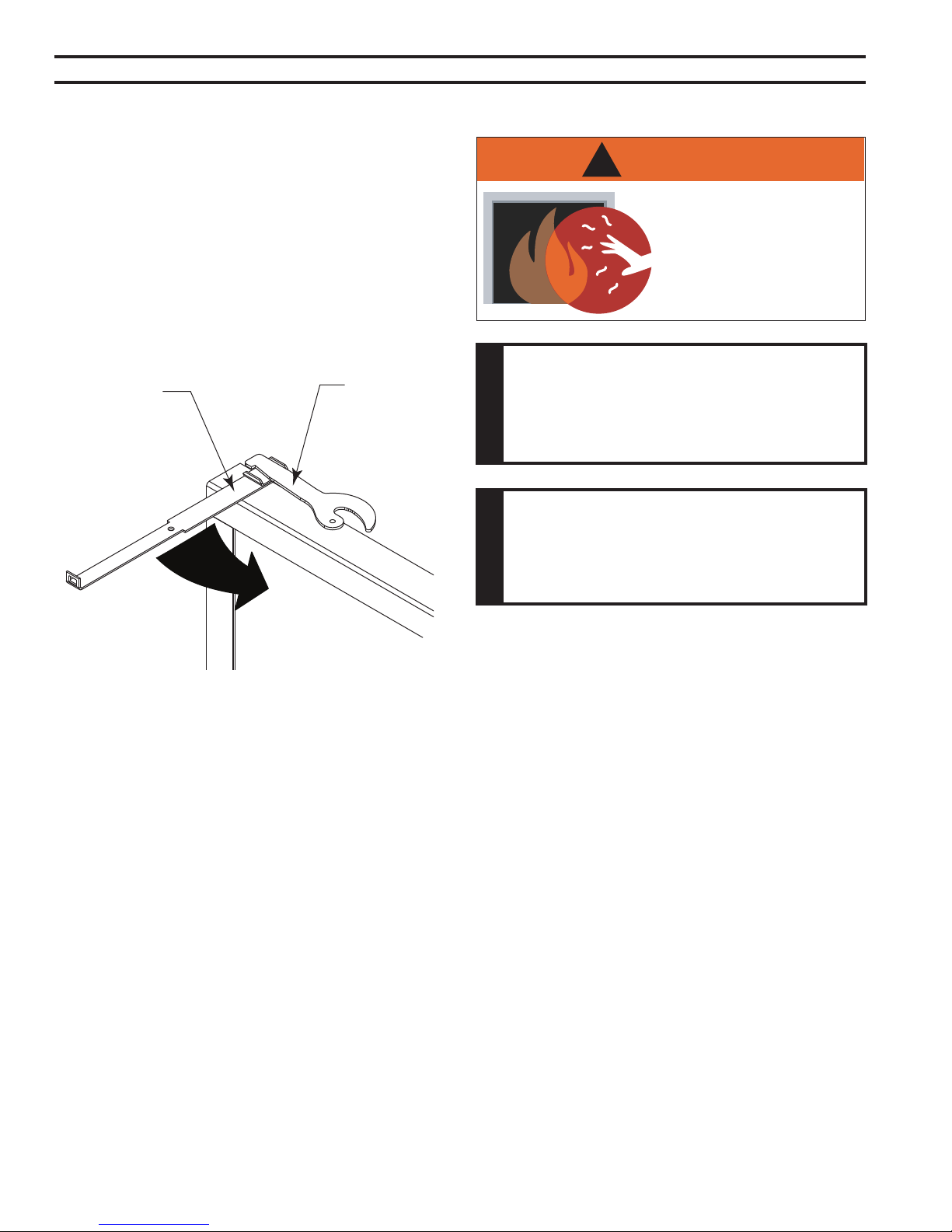

1. Before installation, the glass frame removal tool must
be removed from the side of the unit. As you face the
front of the unit, the glass frame removal tool is located
on the right side.
2. Remove the screw securing the tool to the unit. remove
tool and replace screw.
3. Use the large end of the tool to unlatch the two (2) glass
frame latches.
4. Pull glass frame away from unit and lift up and away.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Fp2967
glass frame latch tool
Glass Frame
Removal Tool
Glass Frame
Latch
Figure 12 -
Use Tool (provided) to Release Glass
Frame Latches
FP2967
20304166
VCFDVI31 Gas Fireplace Insert
15
It is easier to install the engine into the insert before
the insert is installed into replace or approved rebox.

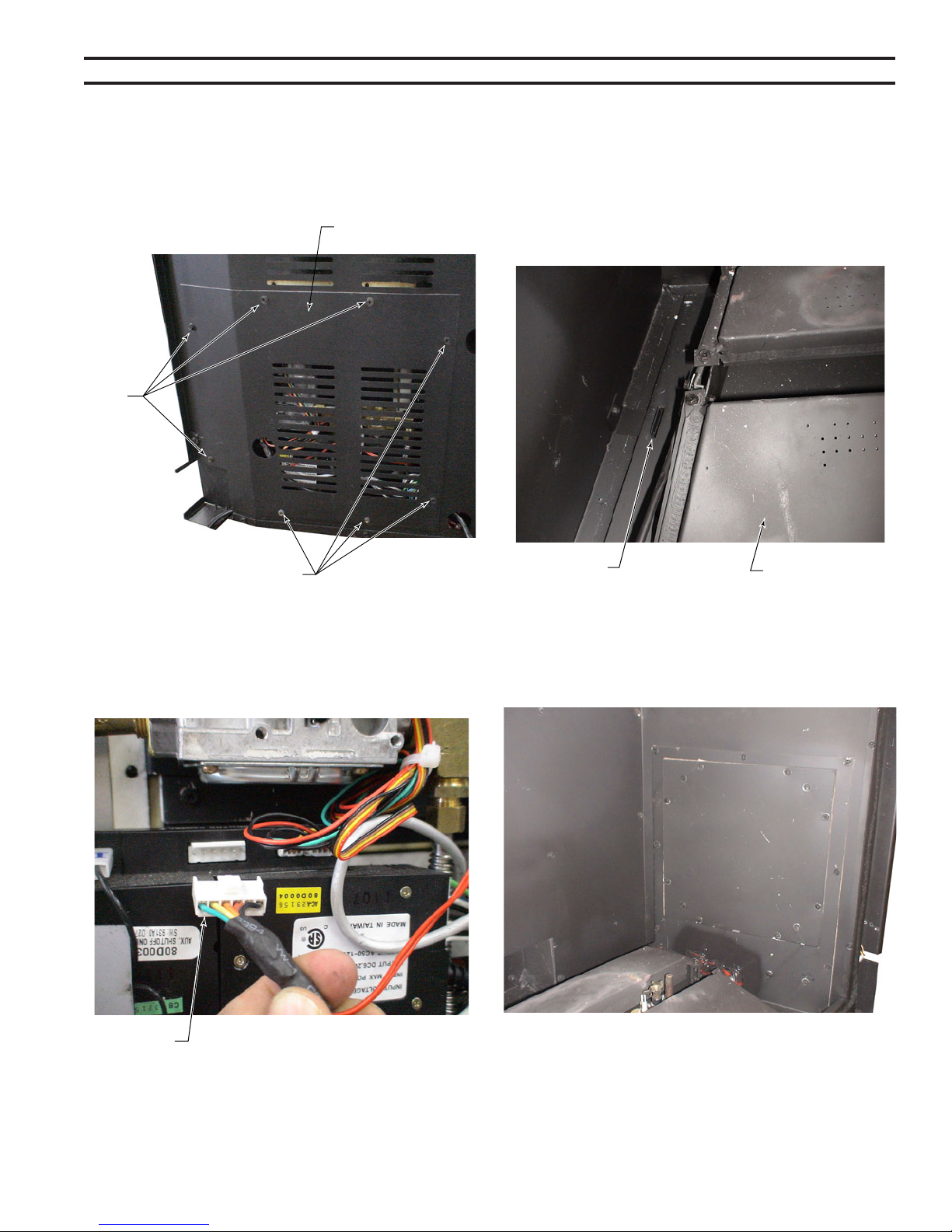

1. Remove panel on right outside of insert by removing
eight (8) screws. Retain panels and screws. Figure
13
FP2968
side access panel
Side Panel
Remove
Screws
Remove Screws
FP2968
Figure 13 -
Remove Eight (8) Screws and Access Panel
2. Carefully remove engine assembly from packaging.
3. Disconnect command center cable from control board
by disconnecting six-pin connector. Set aside. Figure
14
FP2969
6pin connector
Six-Pin
Connector
FP2969
Figure 14 -
Disconnect Command Center Cable
4. Carefully insert engine in large opening on inside of
rebox. Be careful not to damage gasket material on
back of engine panel. Make sure all wiring and associ-
ated fuel lines are completely through opening and are
not pinched.
5. Place slot on left side of engine bottom onto bracket
on left side of rebox to prevent engine from shifting.
Figure 15
FP2970
engine side slot
Slot Engine
FP2970
Figure 15 -
Place Slot onto Bracket
6. Use seven (7) screws found in log support bracket/
grate packaging to attach the side of the engine base
to the side of the rebox. Figure 16
FP2971
inside view
Figure 16
16 20304166
VCFDVI31 Gas Fireplace Insert
7. Run exible fuel line from valve through one of the two
openings located in upper right rear corner of the insert
rebox. Figure 17
FP2972
fuel line
Flexible Fuel Line
FP2972
Figure 17 -
Flexible Fuel Line Location
8. Locate the black and white wires marked 'BLOWER'
on the rear of the control board. Connect the female
terminals to the male terminals (coming from the blow-
ers) at the bottom right rear corner of the insert. Figure
18
9. Locate the black and white wires marked 'LIGHT'.
Connect the female terminals to the male terminals
coming from the overhead light. Figure 18
FP2973
wires
Figure 18
FP2973
10. To connect the three-pronged electric cord, remove the
plastic grommet from lower right side corner of insert.
Insert plug end of electric cord through hole in insert
and through plastic grommet. Slide grommet down
electrical cord and reinstall. Figure 19
FP2974
grommet
Plastic Grommet
FP2974
Figure 19 -
Remove Plastic Grommet
11. Take command center cable disconnected in Step 3
and insert pin connector and loose end of cable to
the inside of the outer wrapper. Reconnect the six-pin
connector to the control board. With the buttons and
switch of the command center to the left, insert the
command center into the bracket on the lower right
corner of insert by sliding grooves on outer housing
of command center into the two (2) protrusions on the
bracket. Figure 20
FP2975
pin connector
Figure 20
FP2975
12. Make sure all cables, wires, lines, etc. are inside the
cavity of the outer shell of the insert. Reinstall the panel
removed in Step 1.
13. You may now plug in the electrical cord and attach the
exible fuel line to the incoming gas supply line.
20304166
VCFDVI31 Gas Fireplace Insert
17
Fp2976
SCS Bracket
Command
Center
Command Center Bracket
FP2976
Figure 21 -
Install Command Center into
Command Center Bracket
1. Remove log support bracket and grate from packaging
in the engine assembly/log box.
2. Install log support bracket by installing two (2) screws
provided into holes in rear wall of insert chamber. Install
one (1) screw into hole in left and right sides of insert
chamber. Figure 22
Figure 23
1, Rear Panel 2, Upper Brick Retainer Brackets
1, Left Panel 2, Lower Brick Retainer Brackets
1, Right Panel 2, Front Brick Retainer Brackets
4, Self-tapping Screws
1. Remove brick panels and retainers from packaging.
2. Remove two (2) screws on each side of front edge of
chamber.
3. Install one (1) front brick retainer bracket on each side
with the screws removed in Step 2.
4. Carefully set rear brick panel with notch up on log sup-
port.
5. Carefully place right or left side brick panel in place
making sure front edge of brick is behind the front brick
retainer bracket.
6. Using self-tapping screw, install upper brick retainer
bracket (with two (2) holes and slot with the long side
down into the top of the inner chamber.
7. Using self-tapping screw, install lower brick retainer
bracket (smaller bracket) into the log support bracket
centered on brick panel.
8. Repeat Steps 6 & 7 for remaining side.
FP2981
log support
Log Support
Mounting Holes
Log Support
with Grate
FP2981
Figure 22
FP2982

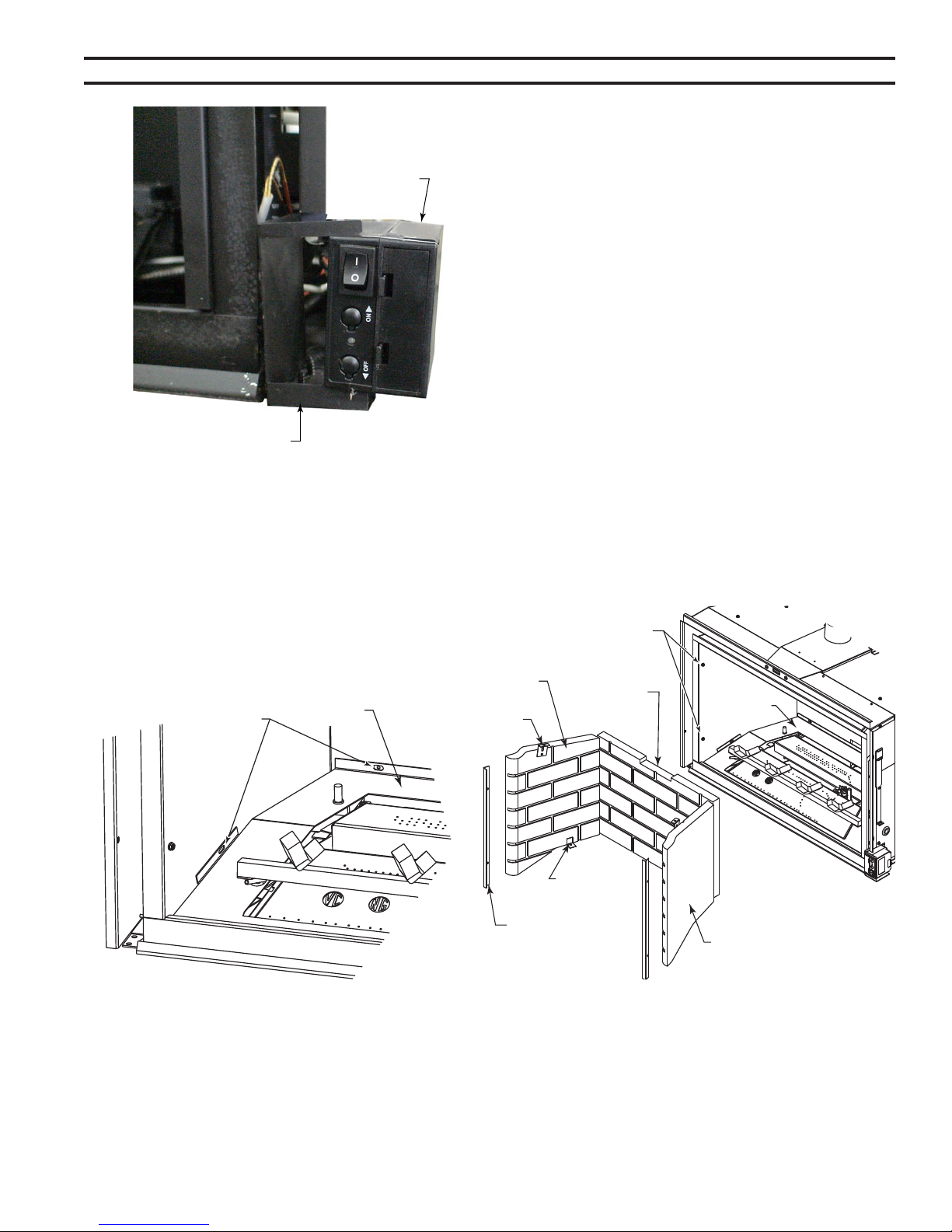

install brick panels
Remove Screws
Rear Brick Panel
with Notch Up
Upper Brick
Retainer Bracket
Lower Brick
Retainer
Bracket
Front Brick
Retainer Right Brick
Panel
Left Brick
Panel
FP2982
Figure 23 -
Install Brick Panels
The replace must have an approved brick
kit or porcelain panel kit installed before operation.
18 20304166
VCFDVI31 Gas Fireplace Insert
The intake/exhaust manifold is shipped attached to insert.
It may be removed to allow tight installation.
1. Unfasten the two (2) machine screws on the face of the
unit and release the plate assembly by sliding the plate
back.
2. Attach the exhaust and the intake ex pipes to the collar
on the plates with a hose clamp (not provided) or other
approved methods (check local codes).
The unit is shipped from the factory as a natural gas unit
with the bafe installed. The bafe should be sufcient for
venting up to 20 feet (6 m) off the top of the unit. An extra
bafe plate is shipped with the unit for installations of 20
feet and above.
Remove four (4) screws holding bafe plate. Add extra
bafe pate and reinstall screws. Align slots in bafe plates
so the slots are closed. Retighten screws.
For propane (LP) units the bafe assembly is com-
pletely removed for venting under 20 ft. (6 m). For venting
20 ft. and above, the bafe assembly is to be used with
only one (1) bafe plate installed. Figure 26
FP1961
baffle adjustment
9/08
Loosen Four (4) Screws to Adjust
FP1961
Figure 26 -
Bafe Assembly and Adjustment
3. Slide plate assembly back in place under locating
tabs.
4. While sliding unit in place, if necessary the glass latch/
shutoff tool can be used to help place the plate assem-
bly. Using the small end of the tool, insert it in the square
notch in top front of rebox. Hook the plate assembly
with tool and pull forward into place while sliding rebox
to the rear. Figure 25
5. Reinstall and tighten machine screws.
FP2977
latch tool plate assy
Plate
Assembly
Latch Tool FP2977
Figure 25
FP2979
intake exhaust
Figure 24
Machine
Screws
Intake Collar
Exhaust/Intake
Slide Plate
Assembly
FP2979
Exhaust Collar
20304166
VCFDVI31 Gas Fireplace Insert
19
Use proper gas type for the insert you are installing. If you have conicting gas type, do not
install insert. See dealer where you purchased the insert for proper insert according to your
gas type.
Make sure you have the items listed below before installing appliance.
• External regulator (supplied by installer) • Piping (check local codes) • Test gauge connection*
• Sealant (resistant to propane/LP gas) • Sediment trap (optional but recommended)
• Tee joint • Pipe wrench
• approved exible gas line with gas connector (if allowed by local codes — not provided)
* A CSA design-certied equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase the CSA design-certied equipment shutoff valve from your dealer.
For propane/LP connections only, the installer must supply an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 13 inches of wa-
ter. If you do not reduce incoming gas pressure, burner system regulator damage could occur. Install external
regulator with the vent pointing down as shown in Figure 27. Pointing the vent down protects it from freezing
rain or sleet.
&0

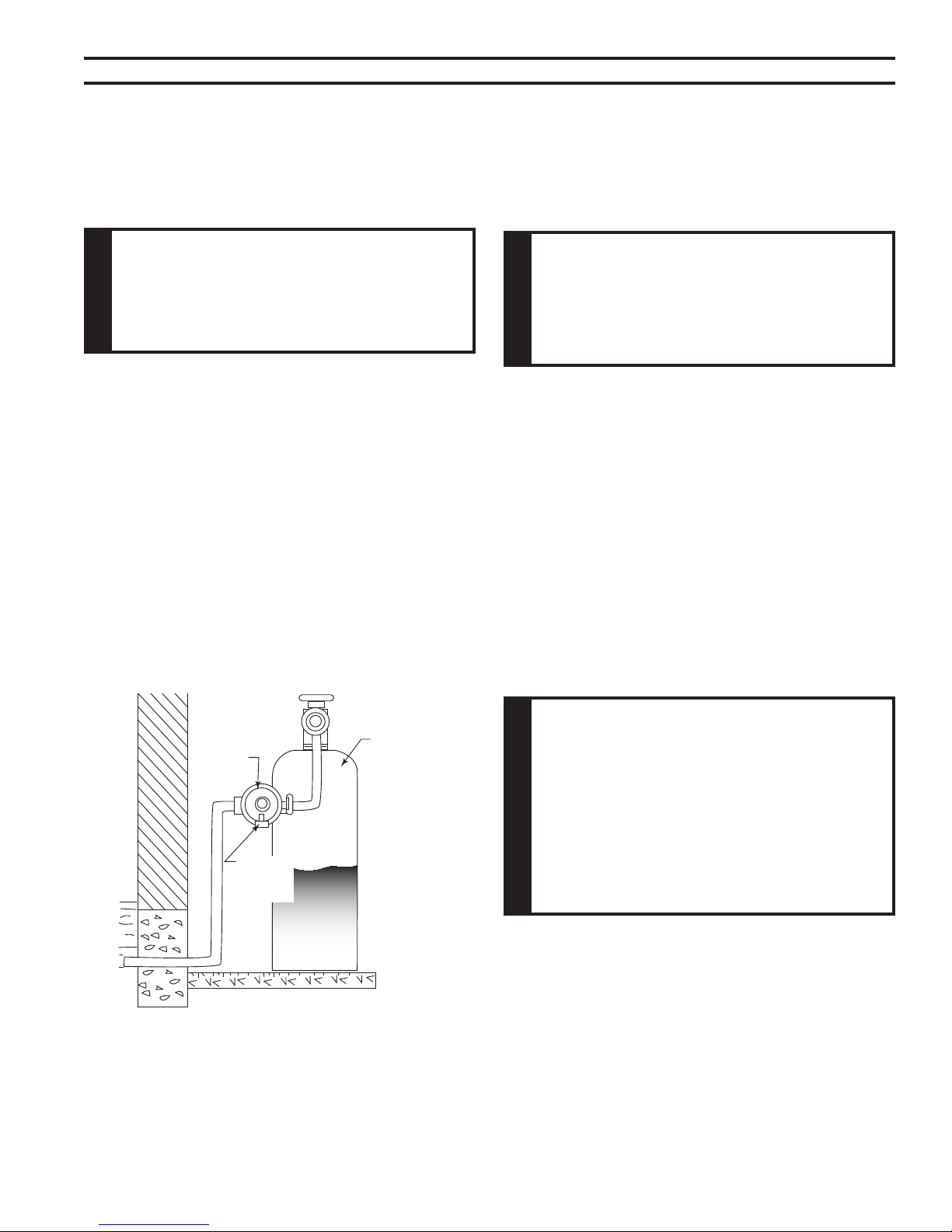

EXTERNALREGULATOR
External
Regual-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 27 -
External Regulator with Vent Pointing Down
(Propane/LP Only)
20 20304166
VCFDVI31 Gas Fireplace Insert
A listed manual shutoff is factory installed upstream of appliance. Union tee and plugged 1/8"
NPT pressure tapping point should be installed upstream of the appliance. Figure 28
The main gas valve is for turning on or shutting off the gas to the insert.
Check your building codes for any special requirements for
locating equipment shutoff valve to inserts.
Apply pipe joint sealant lightly to threads. This will prevent
excess sealant from going into pipe. Excess sealant in pipe
could result in clogged burner system valves.
We recommend that you install a sediment trap/drip leg in
supply line as shown in Figure 28. Locate sediment trap/drip
leg where it is within reach for cleaning. Install in piping system between fuel supply and burner
system. Locate sediment trap/drip leg where trapped matter is not likely to freeze. A sediment
trap traps moisture and contaminants. This keeps them from going into the burner system
gas controls. If sediment trap/drip leg is not installed or is installed wrong, burner system may
not run properly.
NOTE : The gas line connection may be made using 1/2" rigid tubing or an approved
ex connector. Since some municipalities have additional local codes it is always best
to consult your local authorities and the current edition of the National Fuel Gas Code
ANSI.Z223.1, NFPA54. In Canada CSA-B149 (1 or 2) Installation Code.
3" Minimum
FP1931

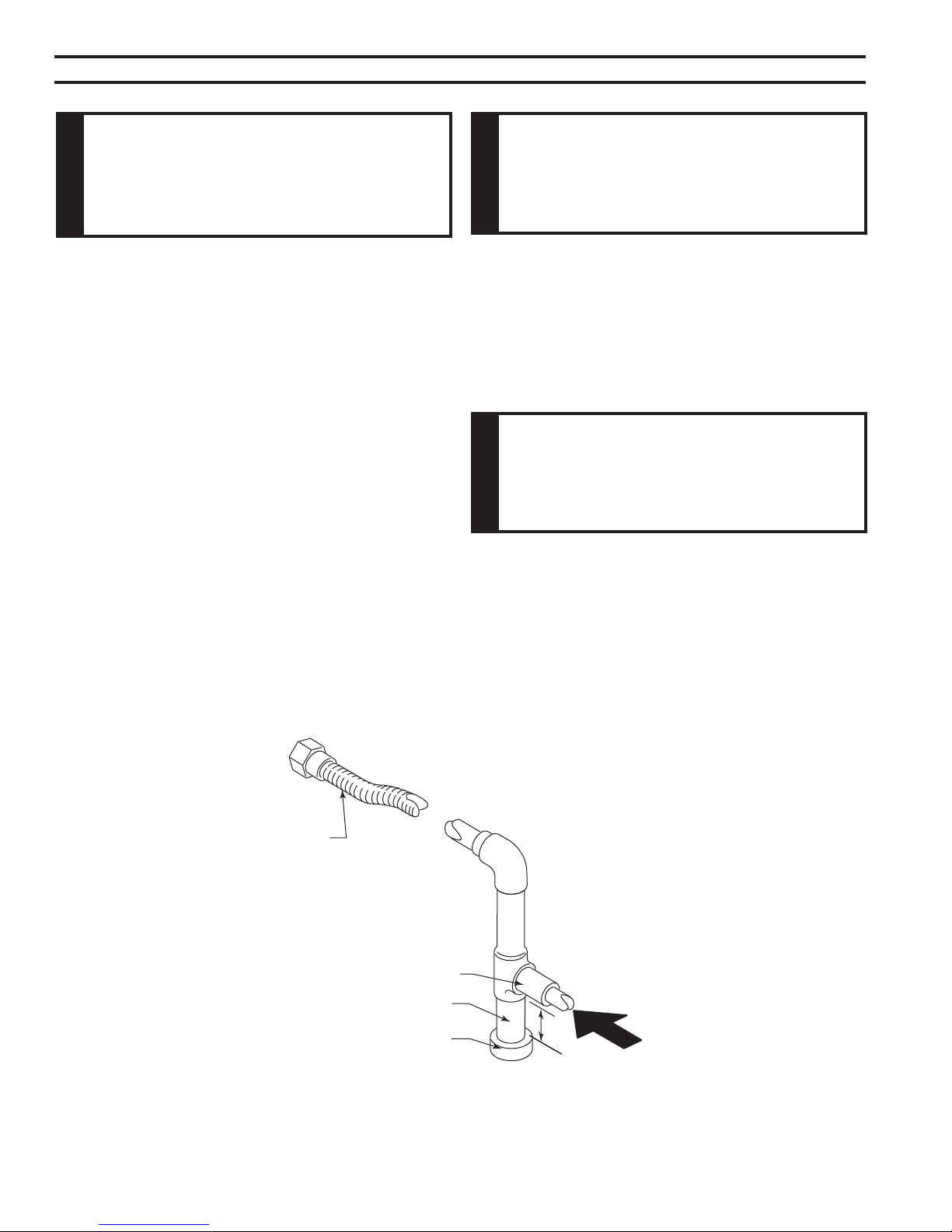

gas connection
9/08
Approved Flexible
Gas Line Supplied
with Appliance
Tee Joint
Pipe Nipple
Cap
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
From External Regulator
(11" w.c. to 13" w.c. Pressure)
Figure 28 -
Gas Connection
Figure 28
Table of contents
Other Vermont Castings Indoor Fireplace manuals
Vermont Castings
Vermont Castings Stratton Mounting instructions
Vermont Castings
Vermont Castings Resolution VHLDV500 User manual
Vermont Castings
Vermont Castings OXDV30NV Mounting instructions
Vermont Castings
Vermont Castings BHDR36 RN User manual
Vermont Castings
Vermont Castings MONTPELIER II MONTP-II-CB User manual
Vermont Castings
Vermont Castings Encore 2547CE User manual
Vermont Castings
Vermont Castings Stratton User manual
Vermont Castings
Vermont Castings EWF36A Mounting instructions
Vermont Castings
Vermont Castings RFSDV22 Mounting instructions
Vermont Castings
Vermont Castings WR2500X02 User manual
Vermont Castings
Vermont Castings 300DVB(N/P)(V/SC)7SB User manual
Vermont Castings
Vermont Castings KSTDV500 User manual
Vermont Castings
Vermont Castings Wood Fireplace User manual
Vermont Castings
Vermont Castings WinterWarm Fireplace Insert or System User manual
Vermont Castings
Vermont Castings SB100 User manual
Vermont Castings
Vermont Castings VWDV70NTSCSB User manual
Vermont Castings
Vermont Castings Savannah SSI30 User manual
Vermont Castings
Vermont Castings R18CFL User manual
Vermont Castings
Vermont Castings Acclaim User manual
Vermont Castings
Vermont Castings ExtremeView 33XDV User manual
Popular Indoor Fireplace manuals by other brands
Travis Industries
Travis Industries 864 HO NB installation manual
Valor
Valor PORTRAIT 530INI Installation & owner's manual
Paramount Fitness
Paramount Fitness DD5 owner's manual
Quadra-Fire
Quadra-Fire PELLET INSERT CB1200MI-MBK owner's manual
SEI
SEI FA982900TX Assembly instructions
Martin
Martin SF42 Series Installation, operation and maintenance manual
Masport
Masport P36-NG3 Owners & installation manual
Faber
Faber NIGHT 13 Service manual
Muskoka
Muskoka Stewart Assembly instructions
Nobis
Nobis A13 V ZENITH Installation, use and maintenance manual
Superior
Superior BC-36-2 installation instructions
Desa
Desa VT32P Series OWNER'S OPERATION AND INSTALLATION MANUAL
AFLAMO
AFLAMO IMPERIAL AV-WM36IMP owner's manual
Napoleon
Napoleon EPA 1150 Installation and operating instructions
Jolly Mec
Jolly Mec BRERA Instructions for installation, use and maintenance manual
Napoleon
Napoleon Vector Series installation manual
Austro Flamm
Austro Flamm Ruby User instructions
Golden Blount
Golden Blount LFP9618 Installation and operating instructions
