Vermont Castings LHER20 User manual

10005360 6/03 Rev. 0
•Installation and service must be performed
by a qualified installer, service agency or
your gas supplier.
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
FOR YOUR SAFETY
What to Do if You Smell Gas:
•Do not try to light any appliance.
•Do not touch any electric switch.
•Do not use any phone in your building.
•Immediatelycallyourgassupplierfromyour
neighboursphone.Followthegassuppliers
instructions.
•Ifyoucannotreachyourgassuppliercallthe
fire department.
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,PERSONAL INJURY OR LOSS OF LIFE.
Installation Instructions & Homeowner's Manual
Natural Vent Insert
Models: LHER20
LHEC20
LHEC30
INSTALLER: DO NOT DISCARD THIS MANUAL - Leave For Homeowner
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
CERTIFIED
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
Vermont Castings, Majestic Products

2
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Table of Contents
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THIS APPLIANCE.
Thank you and congratulations on your purchase of a Vermont Castings fireplace insert.
IMPORTANT - Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the manufacturers' warranty.
Installation Instruction
Important Curing/Burning Instructions............................................................................................... 3
Locating Your Fireplace Insert .......................................................................................................... 3
Insert Applications ............................................................................................................................. 3
Fireplace & Trim Dimensions ............................................................................................................ 4
Mantels.............................................................................................................................................. 5
Framing & Finishing .......................................................................................................................... 5
Zero Clearance Applications ............................................................................................................. 5

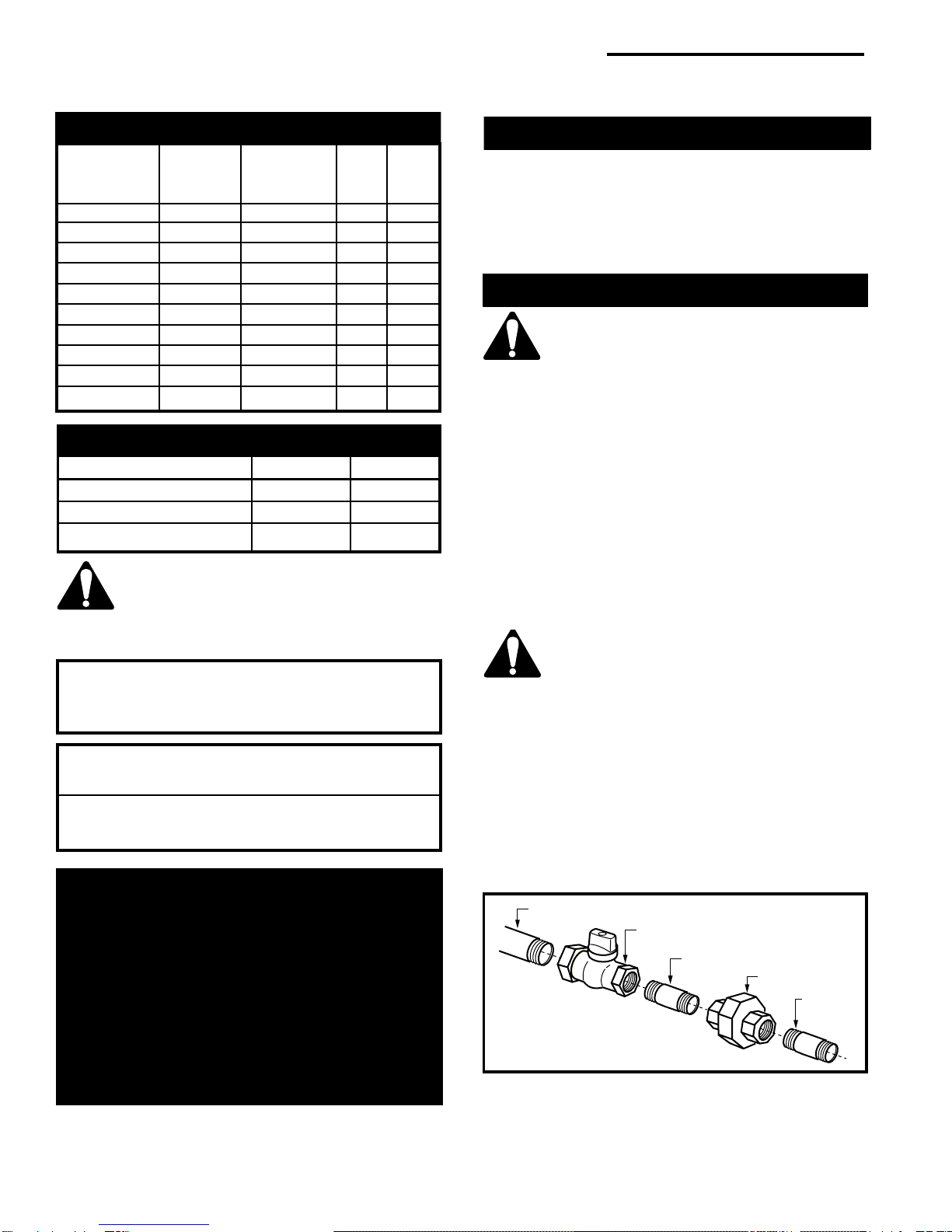

Gas Specifications ............................................................................................................................ 6
Gas Inlet & Manifold Pressures......................................................................................................... 6
High Elevations ................................................................................................................................. 6
Preparation........................................................................................................................................ 6
Gas Line Installation.......................................................................................................................... 6
Gas Supply Pressures ...................................................................................................................... 7

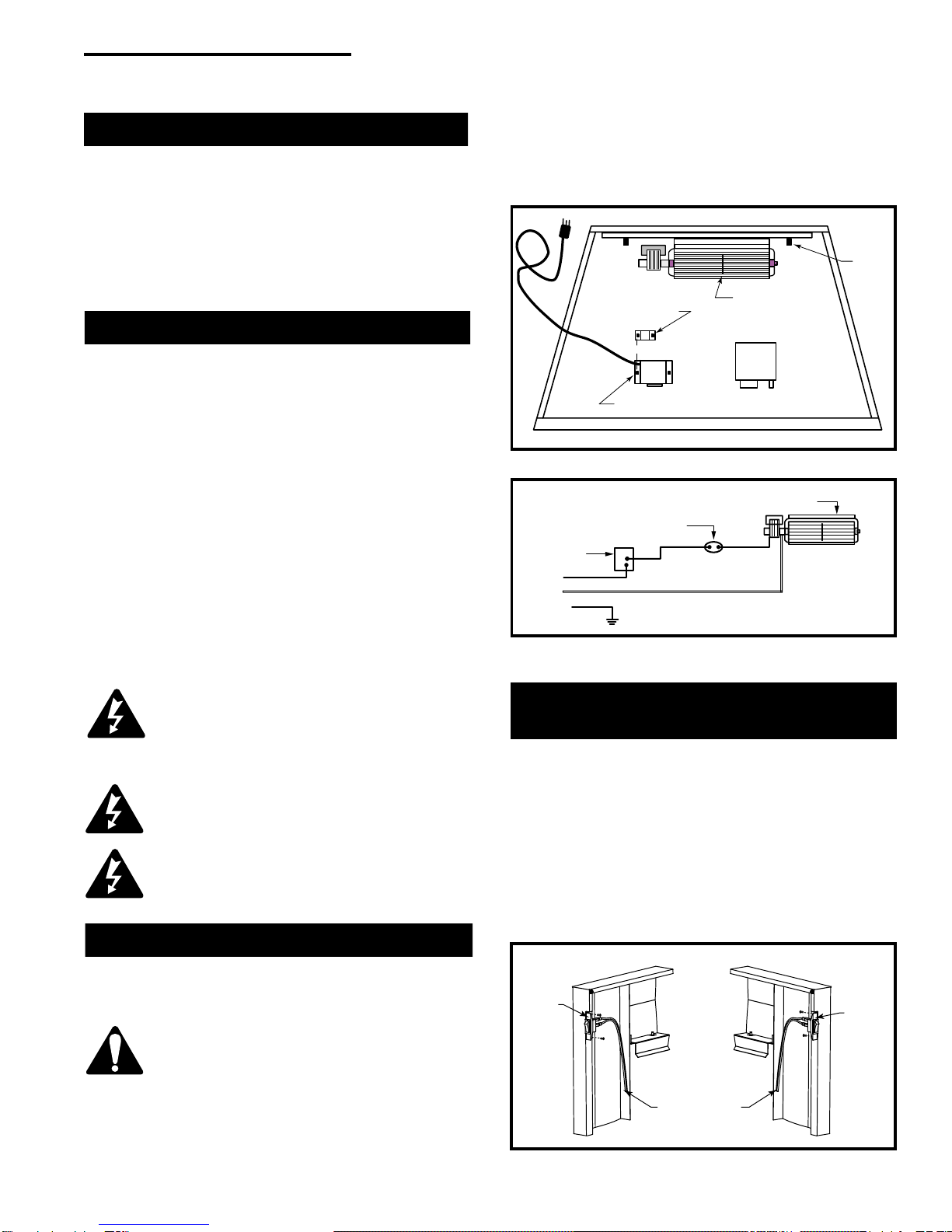

Fan Kit ............................................................................................................................................... 7
Fan Removal Instructions ................................................................................................................. 7
Installation of Trim Switch for RN/RP Gas Valves............................................................................. 7

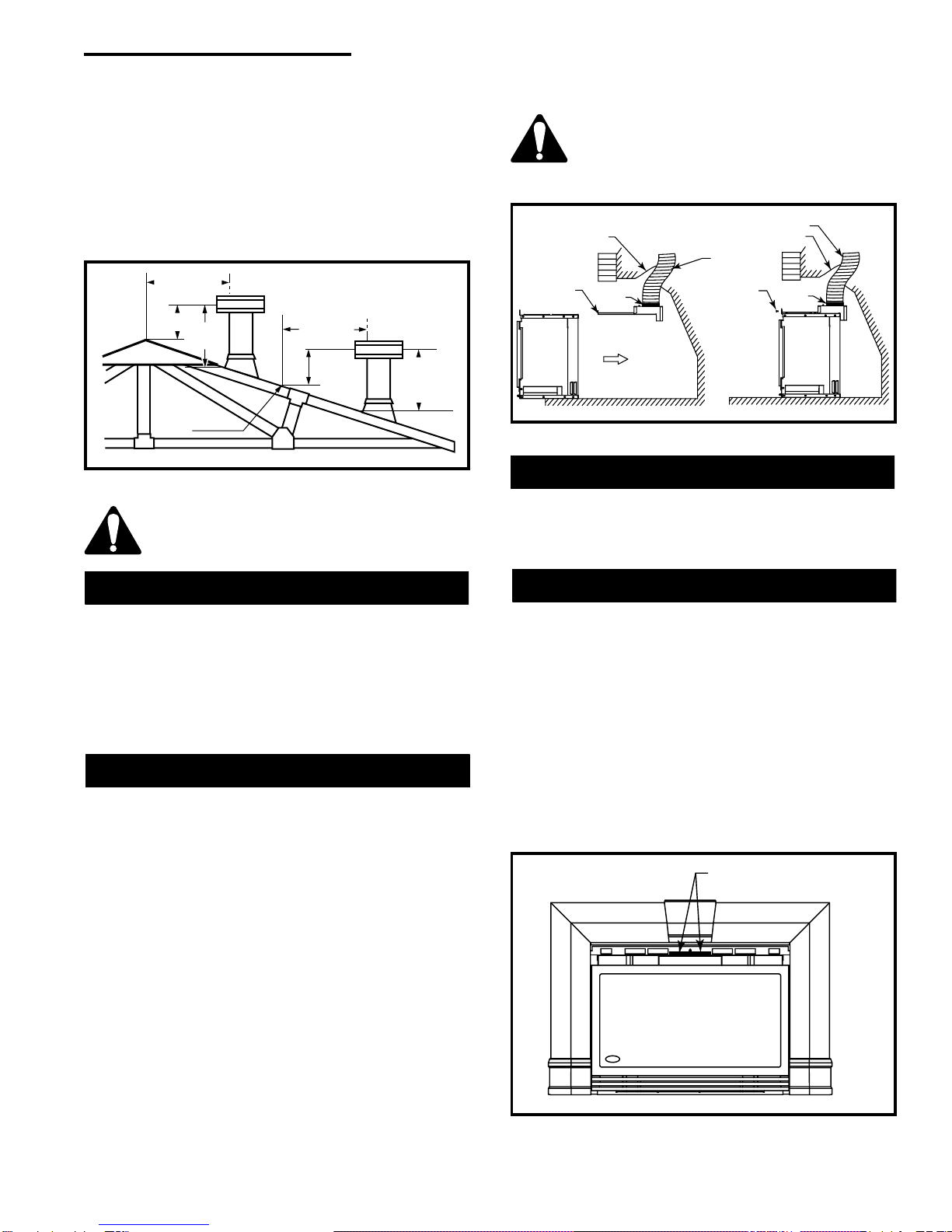

Venting and Installation ..................................................................................................................... 8
Common Flue Installations................................................................................................................ 9
Liner Installation ................................................................................................................................ 9
Draft Relief Opening.......................................................................................................................... 9
Test Chimney Draw........................................................................................................................... 9
Vent Safety System......................................................................................................................... 10

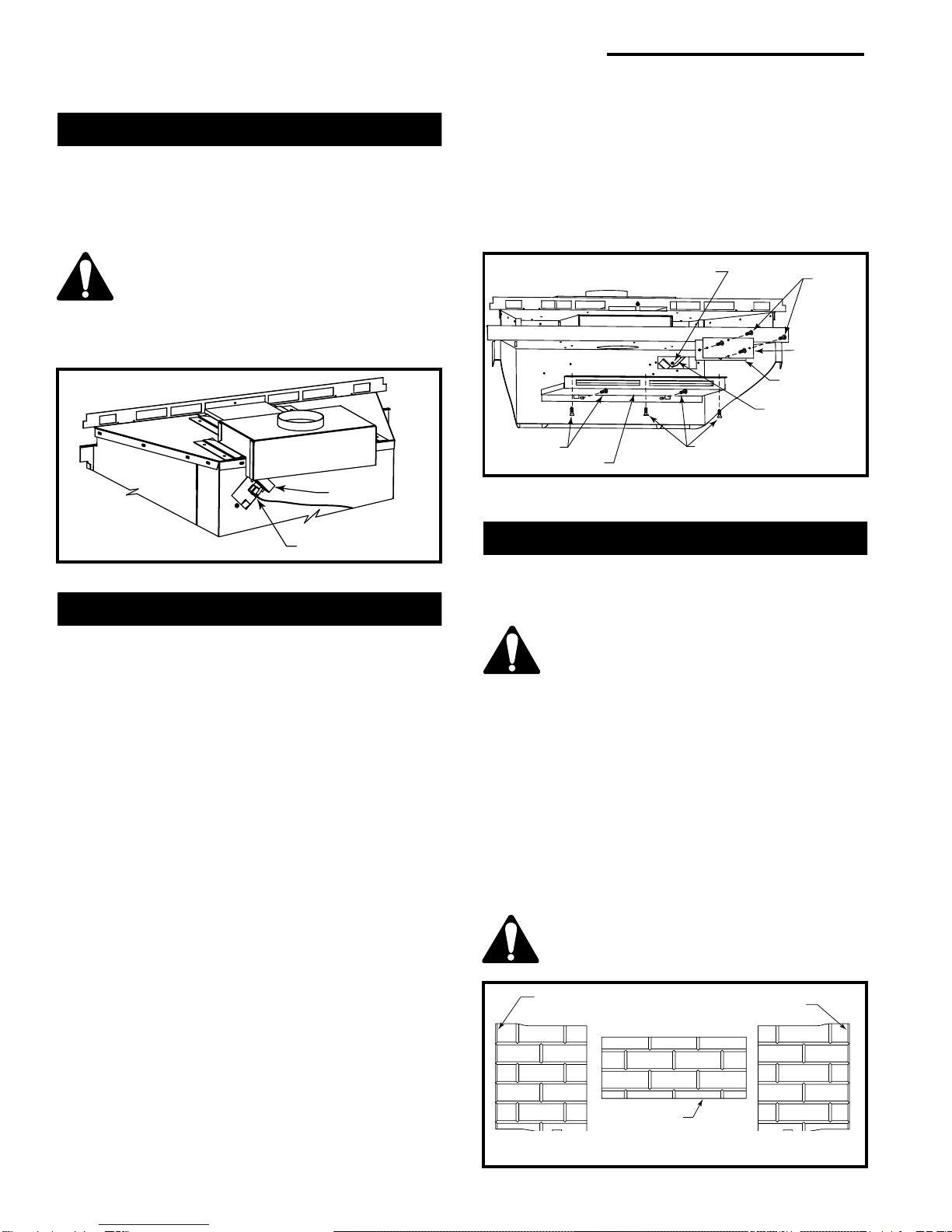

Vent Safety Switch Access ............................................................................................................. 10
Ceramic Refractory Installation ....................................................................................................... 10
Operating Instructions
General Glass Information ............................................................................................................. 11
Louvre Removal .............................................................................................................................. 11
Glass Cleaning ................................................................................................................................ 11
Glass Frame Removal..................................................................................................................... 11
Log & Burner Lava Rock Installation ............................................................................................... 11
Large Lava Rock Placement ........................................................................................................... 12
Flame Adjustment ........................................................................................................................... 12
Flame Characteristics...................................................................................................................... 12
First Firing ....................................................................................................................................... 13

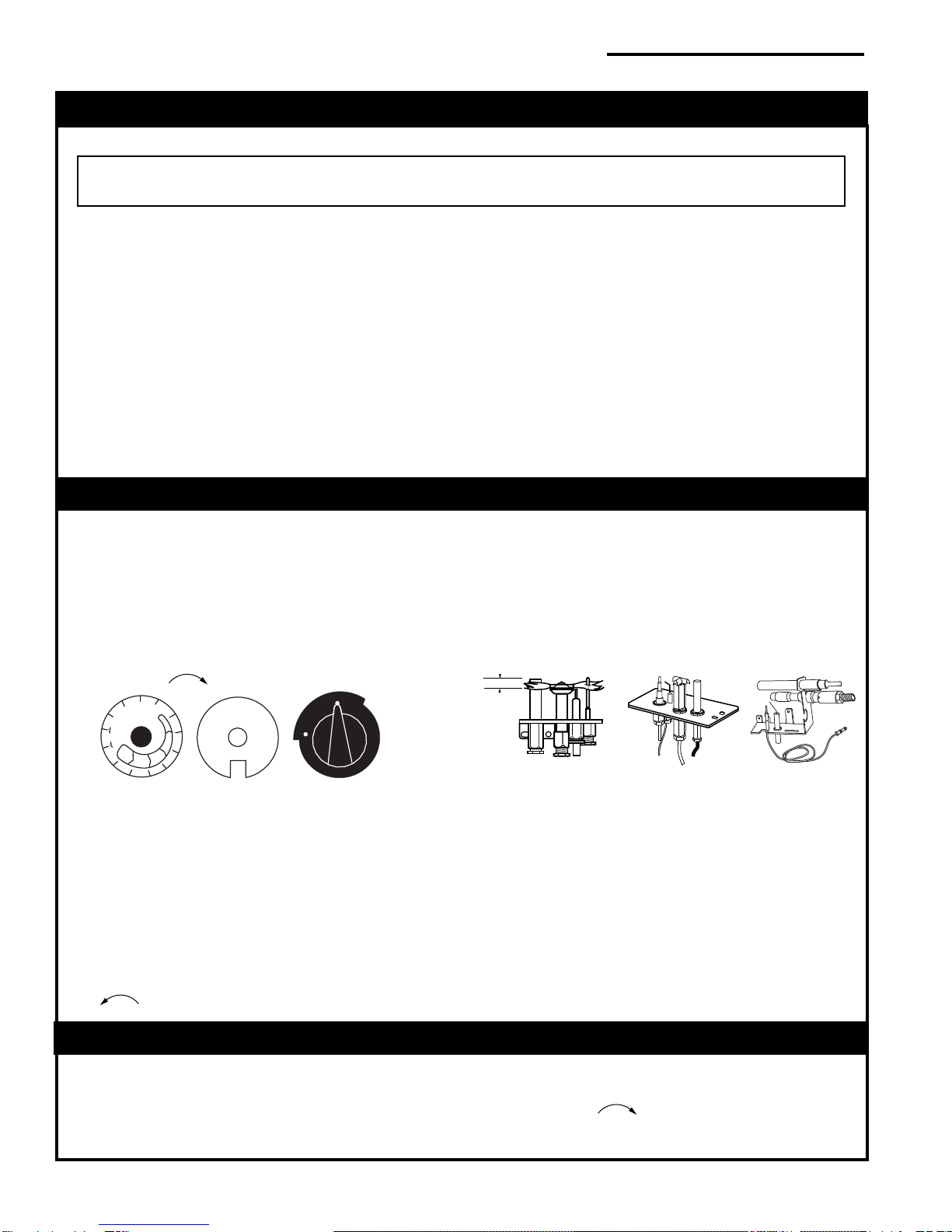

Lighting & Operating Instructions .................................................................................................... 14
Troubleshooting Gas Control (820 Millivolt Gas Valve) .................................................................. 15
Troubleshooting Gas Control (Honeywell) ..................................................................................... 16
Instructions for RF Comfort Control Valve ...................................................................................... 17
Maintenance
Cleaning the Standing Pilot Control System ................................................................................... 21
Trim Cleaning .................................................................................................................................. 21
Replacement Parts.............................................................................................................................................. 22
Optional Accessories
Remote Controls ............................................................................................................................. 25
Zero Clearance Kit .......................................................................................................................... 25
Trim Options.................................................................................................................................... 25
Warranty .............................................................................................................................................................. 26
EnerGuide............................................................................................................................................................ 28

3
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
This gas appliance should be installed by a qualified installer
in accordance with local building codes and with current CSA-
B149.1 Installation codes for Gas Burning Appliances and
Equipment.
FOR U.S. Installations follow local codes and/or the current
National Fuel Gas Code ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION OF
YOUR GAS FIREPLACE PLEASE NOTE THE
FOLLOWING:
1. This appliance gives off high temperatures and should be
located out of high traffic areas and away from furniture
and draperies.
2. Children and adults should be alerted to the hazards of the
high surface temperatures of this appliance and should
stay away to avoid burns or ignition of clothing.
3. Children should be carefully supervised when they are in
the same room as your appliance.
4. Under no circumstances should this appliance be modified.
Parts removed for servicing should be replaced prior to
operating this appliance again.
5. Installation and any repairs to this appliance should be
carried out by a qualified service person. A professional
service person should be contacted to inspect this appli-
ance annually. Make it a practice to have all of your gas
appliances checked annually. More frequent cleaning may
be required due to excess lint and dust from carpeting,
bedding material, etc.
6. Control compartments, burners and air passages in this
appliance should be kept clean and free of dust and lint.
Make sure that the gas valve and pilot light are turned off
before you attempt to clean this unit.
7. The venting system (chimney) of this appliance should be
checked at least once a year and if needed your venting
system should be cleaned.
8. Keep the area around your appliance clear of combustible
materials, gasoline and other flammable vapor and liquids.
This appliance should not be used as a drying rack for
clothing, nor should Christmas stockings or decorations be
hung in the area of it.
9. Under no circumstances should any solid fuels (wood, coal,
paper or cardboard etc.) be used in this appliance.
10.Whether the zero clearance kit is installed directly on
carpeting, vinyl tile or any combustible material other than
wood, this heater must be installed on a metal or wood
panel extending the full width and depth of the heater. The
insert can not be installed directly onto or into
combustibles.
Installation & Operating Instructions
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for fireplaces fabricated of steel to give off
someexpansionand/or contractionnoises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your Vermont Castings, Majestic
Products gas fireplace to give off some odor the first
time it is burned. This is due to the curing of the paint
andanyundetectedoilfromthemanufacturingprocess.
Please ensure that your room is well ventilated -
open all windows.
It is recommended that you burn your Vermont
Castings, Majestic Products fireplace for at least ten
(10)hoursthefirsttimeyouuseit. Ifoptionalfankithas
been installed, place fan in the "OFF" position during
this time.
Locating Your Gas Fireplace Insert with
Zero Clearance Kit
Proposition 65 Warning: Fuels used in gas,
woodburning or oil fired appliances, and the products
of combustion of such fuels, contain chemicals known
to the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
C
D
B
EA
F
X
X
X
FP1249

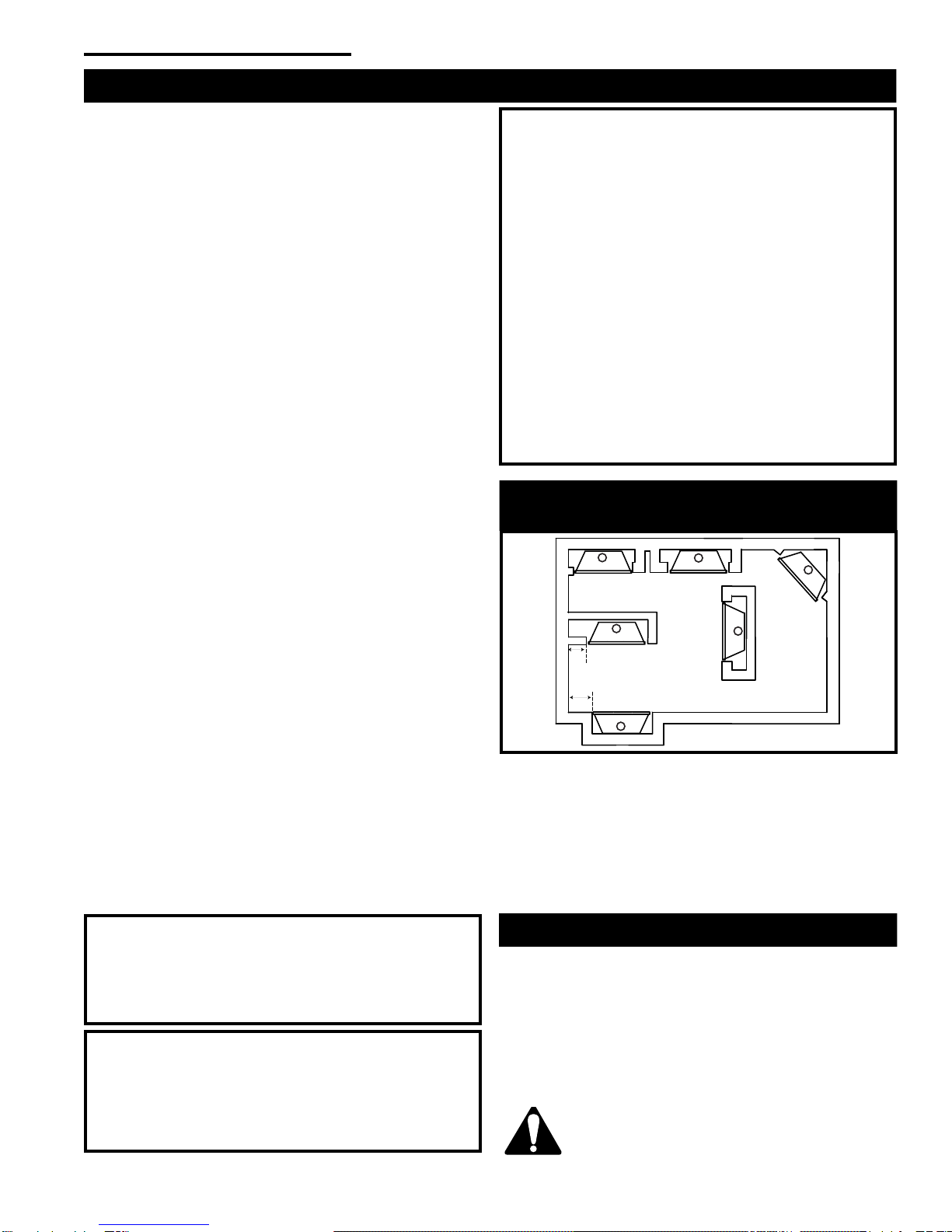

Fig. 1 Locating unit with zero clearance kit.
A) Flat on wall B) Cross corner
C) Island D) *Room divider
E) *Flat on wall corner F) Chase installation
NOTE: (Fig. 1)
* When you install your Vermont Castings, Majestic Products
fireplace in (D) Room divider or (E) Flat on wall corner positions,
a minimum of 6 (X) inches (153mm) clearance must be main-
tainedfromthe perpendicular wall and the outeredge ofthe trim.
Before installing the gas fireplace insert, consideration
must be given to the functioning needs of the fireplace.
The size of the fireplace cavity (min. 25¹⁄₄"W x 17¹⁄₄"H x
13¹⁄₂" D for the LHEC20 and LHER20, 28³⁄₄"W x 21"H x
15¹⁄₂"D for LHEC30 ), the design of the chimney for
effective venting should be determined. The availability of
the gas supply as well as electricity for the insert fan
must be confirmed.
Your Natural Vent Insert unit is designed to
be vented vertically with a minimum height
of 12 feet and a maximum vertical height of
35 feet.
Insert Applications
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate.

4
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
N
O
P
E
M
F
U
S
R
QVT

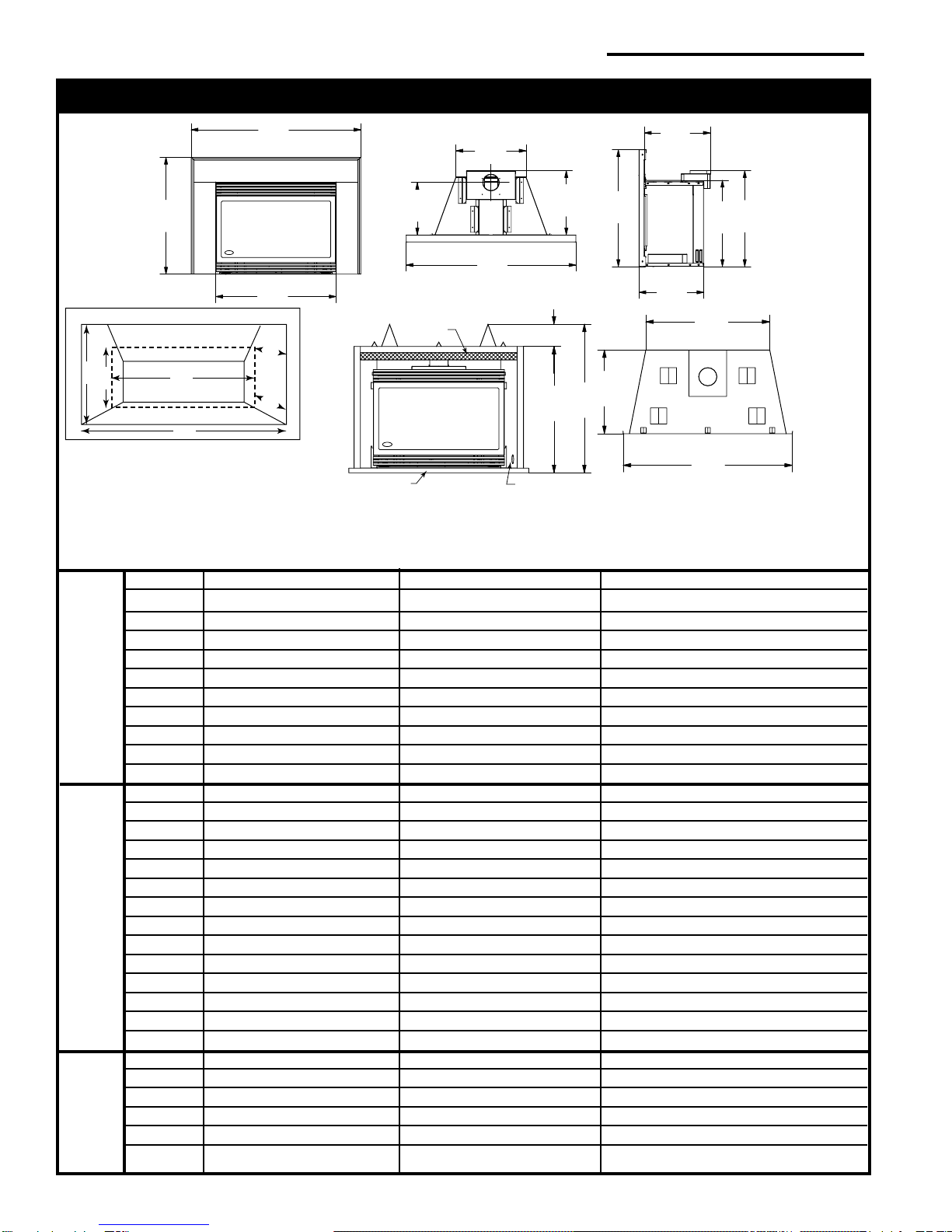

Q - Fireplace opening height
R - Fireplace opening width
S - Depth of insert
T - Firebox width at insert depth(S)
LHEC20 LHER20 LHEC30
A-1 20⁷⁄₈"(530mm) 20⁷⁄₈"(530mm) 26³⁄₄"(680mm)
B-1 30³⁄₄"(781mm) 30³⁄₄"(781mm) 38¹⁄₄"(972mm)
A-2 24¹⁄₄"(616mm) 24¹⁄₄"(616mm) 28³⁄₁₆"(716mm)
B-2 37¹⁄₂"(952mm) 37¹⁄₂"(952mm) 41" (1042mm)
A-3 24¹⁄₄"(616mm) 24¹⁄₄"(616mm) 28¹⁄₄"(717mm)
B-3 38¹⁄₈"(968mm) 38¹⁄₈" (968mm) 41¹¹⁄₁₆"(1059mm)
A-4 20³⁄₄"(527mm) 20³⁄₄"(527mm) 24³⁄₄"(629mm
B-4 30⁷⁄₈"(784mm) 30⁷⁄₈"(784mm) 34⁷⁄₁₆"(875mm)
A-5 28" (711mm) 28" (711mm) 32¹⁄₄"(819mm)
B-5 45" (1143mm) 45" (1143mm) 49" (1245mm)
C25⁵⁄₈"(651mm) 25⁵⁄₈"(651mm) 29³⁄₁₆"(741mm)
D16¹⁄₂"(419mm) 16" (406mm) 16⁷⁄₈"(428mm)
E35" (889mm) 35" (889mm) 35" (889mm)
F26⁵⁄₈"(676mm) 26⁵⁄₈"(676mm) 26⁵⁄₈"(676mm)
G13" (331mm) 14" (355mm) 15¹⁄₂"(394mm)
H17" (432mm) 17¹⁄₄"(438mm) 20³⁄₄"(527mm)
I13³⁄₈"(340mm) 13¹⁄₈"(333mm) 16" (406mm)
J19¹⁄₈"(486mm) 19³⁄₈"(492mm) 23¹⁄₄"(590mm)
K15" (381mm) 15" (381mm) 17" (432mm)
L10¹⁄₂"(266mm) 11¹⁄₂"(292mm) 12³⁄₄"(324mm)
M8¹⁄₂"(216mm) 8¹⁄₂"(216mm) 8¹⁄₂"(216mm)
N37¹⁄₄"(946mm) 37¹⁄₄"(946mm) 37¹⁄₄"(946mm)
O19¹⁄₈"(486mm) 19¹⁄₈"(486mm) 19¹⁄₈"(486mm)
P27¹⁄₄"(692mm) 27¹⁄₄"(692mm) 27¹⁄₄"(692mm)
Q17¹⁄₄"(438mm) 17¹⁄₄"(438mm) 21" (533mm)
R25¹⁄₄"(641mm) 25¹⁄₄"(641mm) 28³⁄₄"(730mm)
S13¹⁄₂"(343mm) 14" (355mm) 16" (406mm)
T17" (432mm) 17" (432mm) 17³⁄₄"(451mm)
U13³⁄₄"(349mm) 14" (355mm) 16" (406mm)
V18" (457mm) 18" (457mm) 21⁵⁄₁₆"(541mm)
1=LHESSB
2=LHESLB/LHEABSL/LHESLGA
3=LHECSLB/LHECSLMB/LHECSLSA
4=LHEACNSS
5=LHETCK
T
R
I
M
F
I
R
E
P
L
A
C
E
M
I
N
I
M
U
M
O
P
E
N
I
N
G
Fireplace & Trim Dimensions
Minimum Fireplace
Insert Opening
U - Firebox depth at insert back height (V)
V - Insert back height
NOTE: LHESLGA is only available for
Model LHEC30
B
C
K
J
I
A
A
B
G
D
L
H
Insulation
Gas Inlet KnockoutAir Circulating Channel
Zero Clearance Kit

5
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
When the unit is installed into a woodburning fireplace,
the minimum distance the mantel can be placed above
the fireplace is governed by local building codes
applicable to woodburning fireplaces. Consult local
authorities having jurisdiction for these clearances.
For applications requiring the use of a Zero Clearance
Kit, the minimum height a mantel can be installed
above the fireplace is 24" (610mm) from the top of the
upper louvres. The maximum mantel depth is 8"
(200mm). (Fig. 2)
The underside of the mantel will become
warm. Use only finishes which are heat
resistant and do not discolor.
Mantels
24" Min.
(610mm)
FP1325
Fig. 2 Minimum mantel height above fireplace.
Framing & Finishing
For Zero Clearance Kit applications, it is important to
determine the finished facing material before beginning
to frame. This will allow for the thickness of the finishing
material between the frame and the fireplace trim.
Similarly, consideration must be given to the 1" inch
depth of the air inlet channel sitting on the fireplace
base. Finishing material for the hearth should be flush
with the top of the air inlet channel.
If the fireplace is installed at floor level a noncombus-
tible hearth must extend a minimum 12" (305mm) in
front of the fireplace.
If the fireplace is recessed into the wall and at least 12"
(305mm) above floor level, no hearth is required.
The use of wallpaper adjacent to this
fireplace is not recommended as high
temperatures given off by this fireplace
may adversely effect the binders in the
adhesive used to apply the wallpaper.
NOTE: Insulating around the fireplace will result in
overheating and possible malfunctioning of the circulat-
ing fan.
Zero Clearance Applications
An alternate air supply is recommended
with this component.
For installation other than in existing woodburning
fireplaces such as new construction or renovation
projects, a Zero Clearance Kit must be used. The kit
enables these inserts to be installed in combustible
environments. Whenever using a Zero Clearance Kit,
consideration must be given to the dimensions of the
Zero Clearance Kit and the requirements of the Air Kit.
NOTE: If a Zero Clearance Kit is required for mod-
els LHEC20/LHER20/LHEC30 Natural Vent Inserts,
only the Vermont Castings, Majestic Products zero
clearance kit HEZC is approved to be used. When
using the HEZC with insert models LHEC20 or
LHER20, the Trim Closure Kit, LHE20TCK, must
also be installed.
35"
(889mm)
37¹⁄₄" (946mm)
27¹⁄₄" (692mm)
19¹⁄₈"
(486mm)
Air Inlet Channel
Drywall
Finish Wall Decorative Trim Kit FP1351
Fig. 3 LHE insert framing dimensions.

6
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Natural LP
Minimum Inlet Pressure 5.5" W.C.11.0" W.C.
Maximum Inlet Pressure 14.0" W.C. 14.0" W.C.
Manifold Pressure 3.5" W.C. 10.0" W.C.
Gas Inlet & Manifold Pressures
Do not use this appliance if any part of it
has been under water. Immediately call a
qualified service technician to inspect the
unit and replace any part of the control
which has been under water.
LHEC20 / LHER20 / LHEC30
Certified To
ANSI Z 21.88-2002 / CSA 2.33-2002
Vented Gas Fireplace Heaters
Preparation
Before beginning, remove glass door and logs from
unit. Also check to make sure there is no hidden
damage to the unit. Take a minute and plan out the
gas,venting and electrical route. It is best to start with
the gas line first followed by the chimney liner. (Refer to
Page 9)
Gas Line Installation
When purging the gas line, the front
glass must be removed.
If gas piping from the source to the heater location has
not been accomplished, install the required pipe.
Consult local plumbing code to assure proper pipe size.
The gas pipeline can be brought in through the rear or
the base of the heater.
NOTE: The gas line connection can be made of either
properly tinned 3/8" copper tubing, 1/2" rigid pipe or an
approved flex connector then reduced to 3/8" to the
heater. Some municipalities have additional local
codes, it is always best to consult your local authority
and the CSA- B149.1 installation code.
U.S. Installations consult the current National Fuel
Gas Code, ANSI Z223.1
Always check for gas leaks with a mild
soap and water solution. Do not use an
open flame for leak testing.
The gas control is equipped with a captured screw type
pressure test point, therefore it is not necessary to
provide a 1/8" test point up stream of the control.
When using copper or flex connector, use only
approved fittings. Always provide a union when using
black iron pipe so the gas line can be easily
disconnected for burner or fan servicing. See gas
specifications for pressure details and ratings. NOTE:
If flex connector is used, it must be kept inside of the
heater.
Gas Specifications
Max. Min.
Input Input
Model Fuel Gas Control Btu/h Btu/h
LHEC20RN Natural Gas Millivolt Hi/Lo 20,000 14,000
LHEC20RP Propane Gas Millivolt Hi/Lo 20,000 15,000
LHEC20RFN Natural Gas Comfort Control 20,000 14,000
LHEC20RFP Propane Gas Comfort Control 20,000 15,000
LHER20RN Natural Gas Millivolt Hi/Lo 20,000 14,000
LHER20RP Propane Gas Millivolt Hi/Lo 20,000 15,000
LHEC30RN Natural Gas Millivolt Hi/Lo 30,000 21,000
LHEC30RP Propane Gas Millivolt Hi/Lo 30,000 22,500
LHEC30RFN Natural Gas Comfort Control 30,000 21,000
LHEC30RFP Propane Gas Comfort Control 30,000 22,500
These gas inserts are approved for installation in
solid fuel burning masonry or zero clearance
fireplaces.
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
1/2" Gas Supply 1/2" x 3/8" Shut Off Valve
3/8" Nipple 3/8" Union
FP297
Fig. 4 Typical gas supply installation.
3/8"
Nipple

7
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Gas Supply Pressures
This heater must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure equal to or less than 1/2
psig (3.45kPa).
The heater and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.45kPa).
115 volt, 60 Hz. 56w (Model FK24)
NOTE: The LHER20 is not designed for a fan kit.
The fan kit includes the following: fan, temperature
sensor, speed control and a 6 ft. cord. The following
explains how to start and set the fan for automatic
operation.
1. Plug in the electrical cord.
2. Start gas fire - see lighting procedures.
3. Turn on fan speed control.
4. Wait until the unit has warmed up sufficiently to
activate the temperature sensor, approx. 5-10
minutes.
5. Once fan starts, adjust speed control to desired fan
speed. The fan will now automatically come on every
time the fireplace is in operation. Should the fan not
be needed simply turn off the speed control.
The appliance, when installed must be
electrically connected and grounded in
accordance with local codes or, in the
absence of local codes, with the current
CSA C22.1 Canadian Electrical Code.
U.S. Installations, follow local codes and
the National Electrical Code, ANSI/NFPA
No. 70.
Should this fan require servicing, the
power supply must be disconnected. For
rewiring of any replacement components
refer to Figure 6.
Fan Removal Instructions
1. Turn off gas and electricity.
2. Remove the front glass.
3. Remove the logs.
CAUTION: Logs may be hot!
4. For Model LHEC20: remove burner assembly and
bracket rear log. For Model LHEC30: remove
bracket rear log and cover fan.
Fan Kit
5. Remove the fan mounting nuts (2 nuts). (Fig. 5)
6. Slip off the electrical connector at the motor.
7. Lift out the fan.
8. To reinstall reverse procedure.
Thermal Sensor is
Attached to Burner
Base Fan is Installed at
the Back of the
Air Intake Box
Fan Speed Control/Junction Box
Screw
Stud
Screw Stud
FP1252
Fig. 5 Fan location.
Fan
Temperature Sensor
Speed
Control
Black
White
Ground FP394
Fig. 6 Wiring diagram RN/RP. NOTE: For comfort valve
wiring diagram refer to Page 18, Figure 27.
Installation of Trim Switch
for RN/RP Gas Valves
1. Thread wire through openings on the right side of
fireplace. Donotcutwireorinsulationonmetaledges.
2. Insert ON/OFF switch with wiring assembly into the
bracketswitchwiththepre-punchedopening mounted
on the right side of the trim. (Fig. 7)
3. For left side installation, relocate the bracket switch
to the left side of the trim kit and repeat Step 2. (Fig.
8)

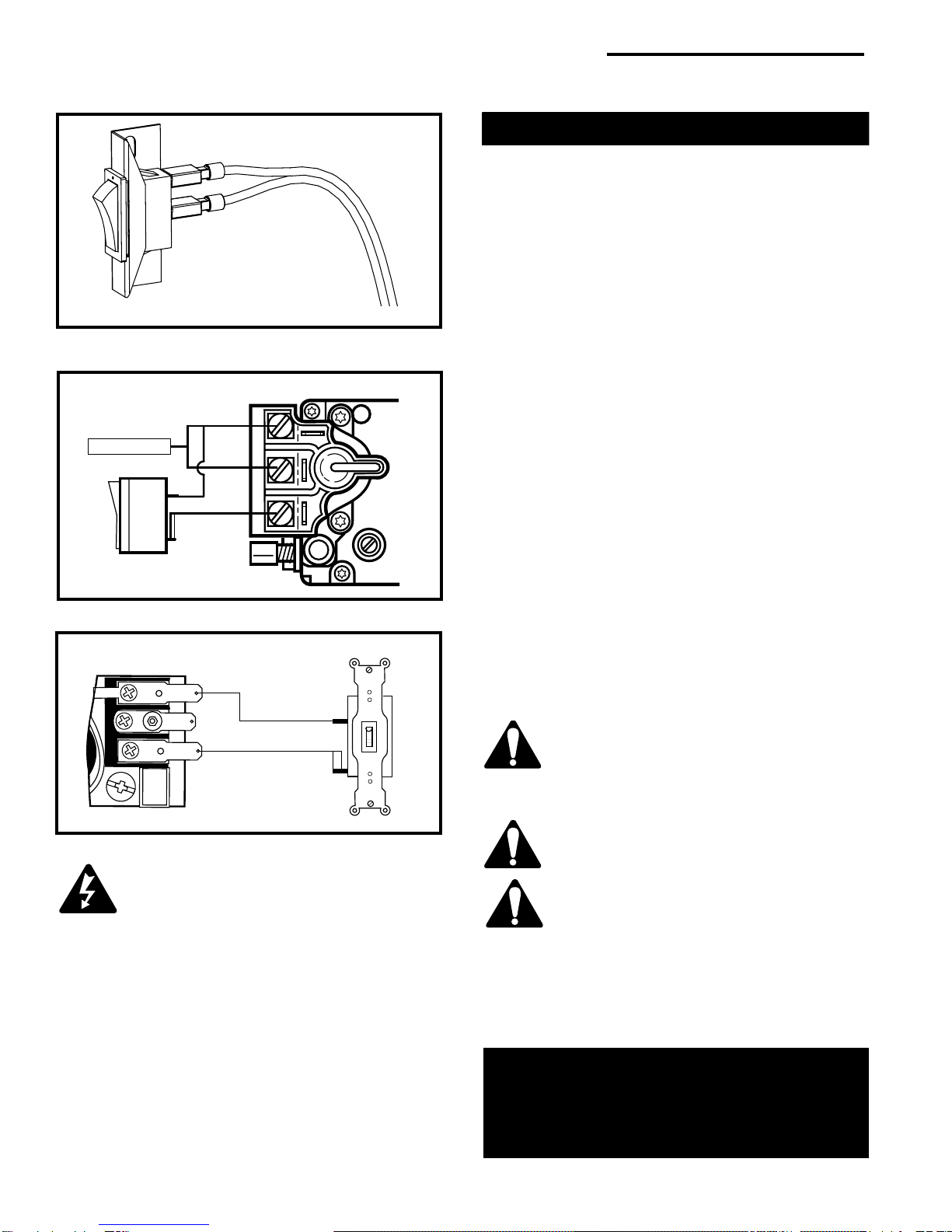

4. Connect wiring from the switch to the gas valve (Fig.
9a & b).
Left Side Installation
Right Side Installation
On/Off
Switch
Assembly
Wiring from
Millivolt Gas
Valve
Fig. 7 Insert ON/OFF switch with wiring assembly into
bracket switch.
On/Off
Switch
Assembly
FP1330

8
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Installer must attach red warning plate
with screws supplied with the gas fire-
place insert to the inside of the firebox of
the fireplace into which the gas fireplace
insert is installed.
Cutting any sheet metal parts of the
fireplace, in which the gas fireplace insert
is to be installed, is prohibited.
If the factory-built fireplace has no gas
access hole(s) provided, an access hole
of 1.5 inch (37.5mm) or less may be
drilled through the lower sides or bottom
of the firebox in a proper workmanship-
like manner. This access hole must be
plugged with a noncombustible insula-
tion after the gas supply line has been
installed.
Venting Installation
1. The fireplace may be installed in and vented through
any solid fuel fireplace that has a minimum fireplace
opening 25¹⁄₄"W x 17¹⁄₂" H x 13¹⁄₂"D for LHEC20 and
LHER20 or 28³⁄₄"W x 21"H x 15¹⁄₂"D for LHEC30 and
has been installed in accordance with the National,
Provincial/State and local building codes and is
constructed of noncombustible materials.
2. In order to gain minimum gas insert fireplace
opening requirement, if the fire brick refractory is
removed from a factory built fireplace, a minimum of
1/4" air space is required between the gas insert
fireplace's outer casing and the inner wall of the
factory built fireplace.
3. In order to obtain the best performance, safety and
efficiency for the gas insert fireplace, the LHEC30
gas insert must be installed with an approved 4"
diameter flue liner. The LHER20 and LHEC20
should be installed with an approved 3" diameter flue
liner as per current CSA-B149.1 or National Fuel
Gas Code ANSI Z223.1.
4. Any flue damper must be removed or blocked open.
5. The chimney must be clean and in good working
order and constructed of noncombustible materials.
6. Make sure that all chimney cleanouts fit properly so
air cannot leak into the chimney.
7. Install the appliance without trim frame and make all
gas fittings and electrical connections.
8. Install the decorative trim frame. Please refer to the
Frame Assembly instructions.
CAUTION: Do not wire millivolt remote
wall switch for gas fireplace to a 120v
power supply.
P
I
L
O
T
THTP
TP
TH
SIT Valve
Thermopile
FP382a
Fig. 9a On/Off switch or millivolt thermostat.
TPTH TH
TP
FP1218
Fig. 9b On/Off switch wiring.
Honeywell Valve
Fig. 8 For left side installation, reverse switch position in
bracket.
FP1331
WARNING
Some factory-built fireplaces have air passages
on face of fireplace for zero clearance capabilities.
Under no circumstances should these passages
be blocked.

9
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Zero clearance kit minimum clearance to combustibles
materials is 1" (25mm) for B Vent (use of single wall
vent is not allowed.)
As with any natural drafted appliances, the vent cap
must always extend a minimum of 2' (610mm) above
any structure within a 10' (3m) horizontal plane. (Fig.
10)
2’ Min.
2’
(610mm)
Min.
3’
Min.
0 To10’
3’
(914mm)
Min.
0 To10’
Reference
Point
(3m)
Fig. 10 Example of the 2', 3', 10' rule.
AC246a
A minimum 12' (3.7m) vent height is
required to effectively vent these fire-
places.
Common Flue Installations
In some areas it is possible to vent more than one gas
appliance into the same flue. You must ensure that the
flue being shared has the proper capacity to handle
both appliances. Check installation codes for venting
capacity information.
As always it is best to check with the authority having
jurisdiction prior to commencement of the installation.
Liner Installation
Insert liner from top of chimney through the damper
opening and attach to 3" flue collar for LHEC20 and
LHER20 and 4" flue collar for LHEC30. For best results
use three (3) sheet metal screws and a hose clamp.
For natural draft inserts, packing noncombustible
fiberglass insulation around the liner in the damper area
will isolate the fireplace cavity from the chimney and
prevent drafts and noises during operation.
In case the fireplace opening is only minimum height
(17¹⁄₄" (438mm) for LHEC20 and LHER20; 21" (533mm)
for LHEC30) and access from the front is not possible,
remove the flue collar plate - unscrew and slide out from
the back of the unit. Now attach the liner to the flue
collar, lift up and slide flue collar plate back onto the unit
top. It is important that the plate is completely inserted
and the front screw is fastened again in order to line up
the flue outlet and the liner properly. (Fig. 11)
If the fireplace lintel is wider than 8"
(205mm), the height of the fireplace
opening must be 25" (635mm) to allow for
a 90°offset elbow to be installed.
Draft Relief Opening
This insert is equipped with a draft-relief opening which
receives its dilution air supply through the opening at
the back of the insert. These openings must not be
obstructed or entered any way. (Fig. 12)
Test Chimney Draw
1. A "Chimney Draw" test must be conducted before
the installation is complete.
2. Close all doors and windows in the home and start
exhaust fans in he kitchen and bathroom.
3. Light unit and operate for 5 minutes.
4. Hold an ignited match or cigarette in front of the unit.
Refer to drawing for the location of the draft hood
opening. (Fig. 12)
5. Check to make sure smoke from the match or
cigarette is drawn into the fireplace. If it is not, turn
the unit off and check for causes creating the lack of
adequate draft.
Damper
Draft
Hood Clamp
Chimney
Liner
Screw
Damper
Chimney Liner
Clamp
ST1354
Fig. 1 Remove flue collar plate and attach to flue collar.
Fig. 12 Hold an ignited match in front of fireplace.
Test for draft at these two
openings.
FP1355

10
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Ceramic Refractory Installation
1. Remove front glass.
2. Remove logs from unit.
3. Remove refractory from package.
Refractory are fragile and must be han-
dled with care. Where at all possible, two
hands should be used when handling.
4. Take center refractory and tilt so bottom edge seats
onto the rear log bracket at the back wall of the
fireplace. (Fig. 15)
5. Press center refractory to back side of fireplace and
hold in place.
6. Take left or right refractory and align it so leading
edge faces outward. (Place refractory in fireplace
side and slide it back to support the center refrac-
tory.)
7. Repeat step 6 for remaining side refractory.
8. Fasten bracket supports against refractory top to
hold side in place.
When side refractory is installed cor-
rectly, the center refractory will be sup-
ported by the side refractory.
Leading Edge Leading Edge
Left Side Right Side
Center FP1329
Fig. 15 Ceramic refractory.
Bottom Edge
Blocked Flue Shut Off System
These inserts are equipped with a blocked flue shut off
switch. This switch is factory installed, wired and tested.
Check and make sure the switch and wires are in the
proper position. The shut off switch is heat activated
and wired in series with the pilot system. (Fig. 13)
Operation of this fireplace when not
connected to a properly installed and
maintained venting system or tampering
with the blocked flue shut-off system can
result in carbon monoxide (CO) poison-
ing and possible death.
Blocked Flue Shut Off Switch Access
The shut off switch system of these inserts is designed
to be accessed from either inside the combustion
firebox chamber or outside at the back of the inserts
fireplace.
Access to the shut off switch from outside of the
insert
1. Turn off the unit and let it cool down if it has been
operating.
2. Shut off the gas and the electrical source to the
fireplace.
3. Disconnect the gas line and the draft hood of the
fireplace.
4. Slide the fireplace out.
Access to the shut off switch directly from inside
the combustion firebox chamber.
1. Turn off the unit and let it cool down if it has been
operating.
2. Remove the log set and remove the ceramic refrac-
tory if installed.
3. Remove the firebox baffle. (Fig. 14)
4. Remove the shut off switch cover fastened with four
(4) screws located at the right upper corner of the
firebox.
5. This time you can access the shut off switch assem-
bly through the rectangular opening. Remove the
screw that secures the switch assembly. Holding the
bracket switch carefully pull out the entire switch
assembly.
NOTE: The shut off switch cover was attached with the
gasket cover. Before installing the gasket cover back in
place, inspect and make sure the gasket is not dam-
aged. If the gasket is damaged, install a new gasket.
Screws
Cover
Safety
Switch
Gasket Cover
Safety Switch
Bracket Shut
Off Switch
Screw must be removed prior
to pulling the switch assembly
Screws
Firebox Baffle
Screws FP1352
Fig. 14 Access to the blocked flue shut off swtich from inside
combustion chamber.
Blocked Flue Shut Off
Switch
Bracket
FP1356
Fig. 13 Blocked flue shut off switch location.

11
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Operating Instructions
General Glass Information
Only ceramic glass approved by Vermont
Castings, Majestic Products may be used
for replacement on this unit.
1. The use of substitute glass will void all product
warranties.
2. Care must be taken to avoid breakage of the glass.
3. Under no circumstances should this appliance be
operated without glass properly installed, or with any
cracked or broken glass. Replacement of any glass
assembly as supplied by the manufacturer should be
done by a licensed qualified service person.
Louvre Removal
To remove
louvre, lift louvre
up and then pull
out.
(Fig. 16)
Glass Cleaning
It will be necessary to clean the glass periodically.
During start-up condensation, which is normal, forms
on the inside of the glass and causes lint, dust and
other airborne particles cling to the glass surface. Also
initial paint curing may deposit a slight film on the
glass. It is therefore recommended that the glass be
cleaned two or three times with a non-ammonia
household cleaner and warm water (we recommend
gas fireplace glass cleaner). After that the glass should
be cleaned two or three times during each heating
season depending on the circumstances present.
Clean glass after first two weeks of
operation.
Glass Frame Removal
1. Remove two (2) screws at the bottom of the frame.
(Fig. 17)
2. Lift up and unhook glass frame at the top.
Log Installation and Burner Lava Rock
1 . Remove glass frame. (See "Glass Removal" section)
2. Remove logs from packaging.
3. Place logs according to the model instructions
below:
LHEC20, LHER20 (Figs. 18)
a. Place rear left log (JR7). Use the log's bottom
holes to locate it onto one pin stud of the rear log
bracket on the left and the other end of the log
will sit on top of the lid of the left log support.
b. Place rear right log (JR8). Use the log's bottom
holes to locate it onto the two (2) pin studs of the
rear log bracket on the right.
c. Place the front left log (JR9). Position the log
notch against the second grate from the left, and
the other edge of the log on top of the rear left log
notch. Ensure the log is secure in place.
d. Place the front right log (JR10). Position the log
notch against the third grate from the right, and
the other edge of the log on top of the rear right
log notch. Ensure the log is secure in place.
e. Place the burner lava rock on the front area of the
burner housing. (Fig. 18)
1.
2.
Louvre
Glass Panel
FP444
Fig. 16 Louvre removal.
Machine Screw FP1353
Fig. 17 Remove glass frame.
JR9
JR7 JR8
JR10
LG285
Burner Lava Rock
Fig. 18 LHEC20 and LHER20 log and lava rock placement.
Front Grate

12
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
LG287
Fig. 23 Correct burner flame appearance for LHEC20 and
LHER20.
3/8" - 1/2"
SIT Pilot
PSE Pilot
F584-703
Fig. 22 Correct pilot flame appearance.
Flame Adjustment (RN/RP Models)
For fireplaces equipped with HI/LO valves, flame
adjustment is accomplished by rotating the HI/LO
adjustment knob located near the center of the gas
control. (Figs. 20 or 21)
LO
HI
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
Fig. 20 Flame adjustment knob for Honeywell Valve.
Honeywell Valve
L
O
H
I
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
SIT Valve
Fig. 21 Flame adjustment knob for SIT Valve.
It is important to periodically perform a visual check of
the pilot and the burner flames. Compare them to the
Figure 22 and Figure 23 or 24. If any of the flames
appear abnormal call a service person.
Flame Characteristics
Large Lava Rock Placement
The large lava rock provided with this fireplace should
be placed on the firebox base on either side of the
burner assembly.
Under no circumstances should these
lava rocks be placed on top of the burner
assembly.
LHEC30 (Fig. 19)
a. Place the rear center log (KR24). Use the log's
bottom holes to locate it onto the two (2) pin studs
of the rear log bracket on the center.
b. Place rear left log (KR22). Use the log's bottom
holes to locate it onto the two (2) pin studs of the
rear log bracket on the left.
c. Place rear right log (KR23). Use the log's bottom
holes to locate it onto the two (2) pin studs of the
rear log bracket on the right.
d. Place the front left log (KR25). Position the log
notch against the second grate from the left, and
the other edge of the log on top of the rear left log
notch. Ensure the log is secure in place.
e. Place the front right log (KR26). Position the log
notch against the third grate from the right, and
the other edge of the log on top of the rear right
log notch. Ensure the log is secure in place.
f. Place the burner lava rock on the front area of the
burner housing. (Fig. 19)
KR22
KR25
KR24
KR23
KR26
Burner Lava
Rock
Fig. 19 LHEC30 log and lava rock placement.
Front Grate
LG286

13
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
First Firing
Upon completing the gas line connection, a small
amount of air will be in the lines. When first lighting unit
with pilot light, it will take a few minutes to purge them-
selves of this air. Once the purging is complete, the
pilot and burner will light and operate as indicated in the
instruction manual. Subsequent lightings of the heater
will not require such purging.
When lit for the first time, the appliance will emit a slight
odor for awhile. This is due to paint and lubricants used
in the manufacturing process. After each lighting, vapor
may condense and fog the glass; this moisture disap-
pears within a few minutes of burning.
LG288
Fig. 24 Correct burner flame appearance for LHEC30.

14
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
3. Open control access panel.
4. Push in gas control knob slightly and turn
clockwise to "OFF". Do not force.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn off all electrical power to the fireplace.
3. For MN/MP/TN/TP appliances ONLY, go on to
Step 4. For RN/RP appliances turn the On/Off
switch to “OFF” position or set thermostat to
lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to "OFF".
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly depress-
ing the piezo spark ignitor until a flame appears.
Continue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes
out, repeat steps 5 through 8.
FOR YOUR SAFETY READ BEFORE LIGHTING
instructions.
•If you cannot reach your gas supplier, call
the Fire Department
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call a
qualified service technician. Applying force or any
attempted repair may result in a fire or explosion.
D. Do not use this fireplace if any part has been under
water. Immediately call a qualified service techni-
cian to inspect the heater and to replace any part of
the control system and any gas control which has
been under water.
A. This heater has a pilot which must be lit manu-
ally. When lighting the pilot follow these instruc-
tions exactly.
B. BEFORE LIGHTING smell all around the heater
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any fireplace
•Do not touch any electric switch
•Do not use any phone in your building
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
To Turn Off Gas To Heater
Lighting And Operating Instructions
1. Turn the On/Off switch to "OFF" position or set
the thermostat to lowest setting.
2. Turn off all electric power to the fireplace if
service is to be performed.
Lighting Instructions
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you
smell gas, STOP! Follow "B" in the safety
information above. If you do not smell gas, go
to the next step.
7. Remove glass door before lighting pilot. (See
Glass Frame Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to "PILOT".
•If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to " " and call your
service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. For RN/RP appliances turn the On/Off switch to
“ON” position or set thermostat to desired setting.
14. Turn on all electrical power to the fireplace.
WARNING:If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Euro SIT SIT NOVA Honeywell
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
5
4
3
2
1
O
F
F
P
i
l
o
t
3/8" - 1/2"

15
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
WARNING: Before doing any gas control service work, remove glass front.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1.Spark ignitor will not light A. Defective or misaligned Using a match, light pilot. If pilot lights, turn off
electrode at pilot. pilot and push the red button again. If pilot will not
light - check gap at electrode and pilot-should be
1/8" to have a strong spark.
B. Defective ignitor (Push Button) Push Piezo Ignitor Button. Check for spark at
electrode and pilot. If no spark to pilot, and elec
trode wire is properly connected, replace ignitor.
2.Pilot will not stay lit after A. Defective pilot generator Check pilot flame. Must impinge on thermo
carefully following lighting (thermocouple), remote wall couple/thermopile. Note: this pilot burner assem
instructions. switch. bly utilizes both-a thermocouple and a thermopile.
The thermocouple operates the main valve
operation (On and Off). Clean and or adjust pilot for
maximum flame impingement on thermopile and
thermocouple.
B. Defective automatic valve Turn valve knob to “Pilot”. Maintain flow to pilot;
milivolt meter should read greater than 10 mV. If
the reading is okay and the pilot does not stay on,
replace the gas valve. Note: An interrupter block
(not supplied) must be used to conduct this test.
3.Pilot burning, no gas to A. Wall switch or wires defective Check wall switch and wires for proper connec
main burner tions. Jumper wire accross terminals at wall
switch, if burner comes on, replace defective wall
switch. If okay, jumper wires across wall switch
wires at valve, if burner comes on, wires are faulty
or connections are bad.
B. Thermopile may not be 1. Be sure wire connections from thermopile at
generating sufficient gas valve terminals are tight and thermopile is
millivoltage. fully inserted into pilot bracket.
2. One of the wall switch wires may be grounded.
Remove wall switch wires from valve terminals if
pilot now stays lit, trace wall switch wiring for
ground. May be grounded to fireplace or gas
supply.
3. Check thermopile with millivolt meter. Take
reading at thermopile terminals of gas valve.
Should read 250-300 millivolts (minimum 150)
while holding valve knob depressed in pilot
position and wall switch “Off”. Replace faulty
thermopile if reading is below specified minimum.
C. Plugged burner orifice. Check burner orifices for debris and remove.
D. Defective automatic valve Turn valve knob to “On”, place wall switch to “On”
operator. millivolt meter should read greater than 100 mV. If
the reading is okay and the burner does not come
on, replace the gas valve.
4.Frequent pilot outage A. Pilot flame may be too low Clean and/or adjust pilot flame for maximum flame
problem. or blowing (high) causing the impingement on thermopile and thermocouple.
pilot safety to drop out.
B. Possible blockage of the vent Check the vent terminal for blockage (recycling the
terminal. flue gases)
Troubleshooting the Gas Control System
NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position.
SIT NOVA 820 Millivolt Valve

16
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Gas Supply On Supply Line Hooked Up
Shutoff Valve Open
NO
NO
NO
NO
Lockout Has Engaged. Wait
60 Seconds And Try Again.
For Spark At Electrode While
Depressing Piezo 1/8" Gap To
Pilot Hood Needed.
All Wiring Connections
Replace Piezo Ignitor
For Air In The Lines
Thermopile Needs A Minimum
325mv. Adjust Pilot Flame Height.
All Wiring Connections.
Replace Thermopile
Thermocouple Needs A Minimum
of 14mv.
Defective Valve. Turn To Pilot,
Meter Should Read Greater Than
100 Mv. If Not, Replace.
Pilot Lights With
Piezo Ignitor
YES
YES
YES
YES
Pilot Stays Lit
Pilot Lights Main
Burner
System OK.
START
CHECK
Valve Is Turned On
On/off Switch Is Not Turned On.
Watch For Grounded Wires!
Thermopile Needs A Minimum
325mv.
Plugged Burner Orifice.
Troubleshooting the Gas Control System
Honeywell Millivolt Valve

17
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Instructions for RF Comfort Control Valve
The Comfort Control Valve allows remote control of
temperature, fan and flame appearance.
NOTE: The antenna should hang in free air away from
grounded metal.
Operation
1. If the manual switch is in remote position, switch it to
LOCAL. (Fig. 25)
2. Turn the pilotstat knob counterclockwise from OFF
to the PILOT position, push the knob down, and hold
in position. The pilot valve opens and allows gas to
flow to the pilot burner.
3. Push plunger on the piezo until the pilot burner is lit.
When the pilot burner is lit, the LED on the control
will come on after approximately 40 seconds and will
be continuously red. When the light turns off which
will be approximately 10 seconds after it has been
continuously red, the receiver/valve is fully powered.
4. Release the knob. The shaft will move upward. The
pilot burner should now stay burning. If the pilot
burner goes out, repeat step 2.
5. Turn the knob counterclockwise to the ON position. If
the manual switch is in the LOCAL position, the main
burner will turn on immediately.
6. ON the initial use of a transmitter, a recognition
operation is required between the receiver/valve and
transmitter. Change the switch from LOCAL to
REMOTE. Press the fan or flame button on the
transmitter within 30 seconds. The LED will blink
indicating the transmitter will now work with the
receiver/valve. If the switch continues in the RE-
MOTE position, the transmitter will now control the
main valve, flame modulation level and fan control.
7. If the manual switch is in the LOCAL position, the
valve will be at the highest fixed pressure setting.
The transmitter will control the fan only.
Shut Off Procedure
If the manual switch is in the REMOTE position, the
transmitter can shut off the main burner and fan.
However, the control is still on and a command from the
transmitter can turn on the main burner or fan.
To shut off the system, turn the pilotstat knob clockwise
to the OFF position. This action closes the main gas
and safety valves. The transmitter cannot turn on the
main burner or fan.
Transmitter Operation
Off Mode
In the OFF mode, the fireplace flame and fan are off,
the display will show OFF and displays the room
temperature. If the receiver is in REMOTE mode, the
fireplace will shut off.
On (Manual) Mode
In the ON mode, the room temperature, flame and fan
levels will be shown. MANUAL will appear next to both
the flame and fan icons.
When the control is in the ON mode, the flame and fan
levels, and delay timer are changed with the up and
down buttons. To change the flame level, press the
flame button followed by an arrow key. To change the
fan level, press the fan key followed by an arrow key.
Pushing the arrow key once will change the level by
one unit.
LOCAL
REMOTE
ON
•
PILOT
OFF
•
LED
Piezo Ignitor
Local/Remote
Switch Pilotstat Knob
LED
Antenna
Fig. 25 Comfort conrol valve.
FP1037
Display
Room Temperature
Set Temperature
Flame Height Level
Fan Speed Level
Countdown Timer
Low Battery
Flame
Up Increases Flame
Height, Fan Speed
Timer, or Set Point
Down
Decrease
Flame, Fan
Speed Timer
or Set Point
Mode
Auto
On
Off
Countdown
Timer
Fan
Fig. 26 Transmitter diagram.
FP1039

18
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Delay Timer Mode
The shut off delay timer has a maximum of 2 hours and
a minimum of zero minutes. To change the timer level,
press the time key followed by an arrow key. Pushing
the key once will change the timer by 10 minutes.
Auto Mode
In the AUTO mode, the room temperature, set tempera-
ture, flame and fan levels will be shown. AUTO will
appear next to both the flame and fan icons.
When the control is in the AUTO mode, the main burner
will turn on/off or modulate based on the heat needed to
maintain the set temperature. The flame level will
change automatically to optimize the heat output
needed to maintain the set temperature. To change the
set temperature, press the up or down key. Pushing a
key once will change the temperature by one degree.
In the AUTO mode, the fan speed will increase with
increasing flame height or decrease with decreasing
flame height. “AUTO” is displayed next to the flame and
fan icons.
Fan Override During Auto Mode
If a lower or higher fan speed is desired when operating
in the AUTO mode, the fan speed can be overridden by
pushing the fan button followed by the up or down key.
Pushing a key once will change the fan level by one
unit. In this mode “AUTO” is displayed next to the flame
icon and “MANUAL” is displayed next to the fan icon.
Change Between F/C Temperature Units
Push the up and down arrow keys simultaneously for at
least 3 seconds to toggle between Fahrenheit and
Celsius units.
Disable Thermostat Function
To disable the thermostat function in the AUTO mode,
push the time and down keys simultaneously for at
least 3 seconds.
To Change Batteries
1. Remove cover on the backside of the transmitter.
Install 3 AAA batteries as shown and reattach cover.
2. Once steps 1-3 in OPERATION are completed,
receiver/valve and transmitter are now ready. Press
any button on transmitter for recognition process to
occur between the receiver/valve and transmitter.
3. Use functions as described in TRANSMITTER
section.
FAN
Antenna
Red
White
Red
White
Pilot
Assembly Fan
Valve
(Bottom View)
White Dots
FP1038
Fig. 27 Comfort Valve wiring diagram.
Troubleshooting
1. Locate LED light on valve.
2. LED will blink after every valid command received by
the transmitter; this is not an error.
3. Failure codes may occur anytime after pilot burner is
lit.
4. Sequence is failure code followed by light not
blinking for 30 seconds.
5. In the event of multiple failure codes, next failure
code follows previous failure code by approximately
3 seconds.
If an Error Code 3 is observed while performing the
testing, complete the following:
1. Make sure the spade connectors are pushed all the
way on. If the Error Code 3 is still showing, then go
to the next step.
2. Switch the front two thermopile leads with the back
two. Be sure the white lead is connected to the
spade with the white dot next to it. If the Error Code
3 is still showing, replace the thermopiles.
If an Error Code 8 is observed while performing the
testing, complete the following:
1. Confirm the valve is not in REMOTE mode.
•If the valve is producing Error Code 8 and in
REMOTE mode, the valve is defective and should
be replaced.
•If the valve is in LOCAL mode and producing
Error Code 8, then go to the next step.

19
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
LED Count Service Action
8Replace valve
7Confirm stepper motor connection
exists
5Confirm fan connection exists and
works
4Confirm gas type; jumper in place
3Replace thermopiles
2Turn fan ON
NOTE: Some keys are not active.
2. Slide the Remote/Local switch to REMOTE and
teach the valve a transmitter (refer to Item 6, page
1). The Error Code will clear itself after approxi-
mately 1¹⁄₂ minutes and return to normal operation.
If the setting is above
room temperature on
the transmitter, does the
main valve and fan turn
on?
If the setting is below
room temperature on
the transmitter, does
the main valve and fan
turn off?
Turn pilotstat knob to
OFF to turn valve
completely off
Auto Path
Yes
Yes
No
If the manual switch is
set to REMOTE, press
the mode button to
display AUTO on the
transmitter. Does the
transmitter display the
room and temperature
setting?
Move switch from
LOCAL to RE-
MOTE. Press any
key within 30
seconds.
No

20
10005360
Vermont Castings, Majestic Products LHE Natural Vent Insert
Light pilot burner
Set manual switch
to local or remote
Release pilotstat
knob
Turn pilotstat knob
from PILOT to ON
If manual switch is
set to LOCAL, did
main burner light?
Transmitter
controls fan
Turn pilotstat knob
to PILOT to turn
off main burner
Turn pilotstat knob
to OFF to turn
valve completely
off
Comfort Valve system control sequence of operation with transmitter
Did the LED stop
blinking? Review LED
failure analysis
Five minute wait
period
Cycle switch once
and leave in
remote. Press any
key on transmitter
for recognition
operation
Local Path
Move switch from
local to remote.
Press any key on
transmitter. Move
switch back to
local
Yes
Yes
If the manual switch
is set to REMOTE,
press the mode
button to display
"ON". Does transmit-
ter control the main
burner and fan?
Does transmitter
change levels of
flame height, fan
speed and set
temperature?
Set levels of flame
height and fan to
“0” to shut off main
burner and fan
Turn pilotstat knob
to OFF to turn
valve completely
off
On Path
Move switch from
manual to remote.
Press any key on
transmitter.
Yes
Yes
No
No
Choose Local or
Remote path. Set
switch to manual or
remote
Yes
No
