Designer Series Direct Vent Gas Fireplace
Installation and Operating Instructions
Models: STLDV(N/P)SCSB, PFLDV(N/P)SCSB, CRLDV(N/P)SCSB, CLLDV(N/P)SCSB
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for
future reference.
• Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the re department.
• Installation and service must be performed
by a qualied installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER
CERTIFIED
S
AFETYBARRIER

220306750
Designer Series Direct Vent Gas Fireplace CONTENTS
Important Safety Information .....................................3
Code Approval..................................................................4
Installation Information...............................................5
Product Specications......................................................5
High Elevations ................................................................5
Gas Pressures..................................................................5
Gas Specications & Orice Size.....................................5
Fireplace Dimensions.......................................................6
STLDV Framing................................................................8
CRLDV/CLLDV Framing ..................................................9
PFDV Framing................................................................10
Before You Start ............................................................. 11
Items Required for Installation........................................11 ..
Firebox Framing .............................................................11
Fireplace Location..........................................................12
Clearances .....................................................................13
Venting Installation....................................................14
Installation Precautions ..................................................14
Optional Top Vent Applications.......................................14
Vent Pipe Clearances.....................................................16
Installation Planning .......................................................17
Horizontal & Vertical Termination ...................................17
Termination Location ......................................................18
Vent Graph .....................................................................19
Rear Wall Vent Installation .............................................20
Horizontal w/Vertical Rise Applications ..........................22
Below Grade Installation ................................................24
Vertical Through-the-Roof Applications ..........................25
Installation for Vertical Termination.................................26
Flex Vent Installation ......................................................28
Fireplace Installation.................................................31
Check Gas Type.............................................................31
Install Gas Piping ...........................................................32
Check Gas Pressure .....................................................33
Electrical Installation.......................................................33
Junction Box Wiring........................................................34
Command Center Wall Installation.................................34
Wall Switch Installation...................................................34
Signature Command Wiring Diagram.............................35
Optional Fan/Blower Systems .......................................36
Signature Command Single Blower BLOTSTSC ...........36
Automatic Dual Thermostat Blower BLOTBLDV............37
Automatic Single Thermostat Blower BLOTDL ..............37
Glass Frame Removal....................................................38
Rockwool Placement......................................................39
Log Placement ...............................................................40
Safety Barrier Installation ...............................................42
Operating Instructions..............................................43
Safety Information ..........................................................43
Operating Instructions ....................................................44
To Turn Off Gas to Appliance .........................................44
Signature Command System Operation..................45
Cleaning and Maintenance .......................................48
Burner, Pilot and Control Compartment .........................48
Pilot Flame .....................................................................48
Burner Flame..................................................................48
Venting System ..............................................................49
Glass Door .....................................................................49
Logs................................................................................49
Rock Wool .....................................................................49
Troubleshooting ........................................................50
Signature Command System .........................................50
Replacement Parts ....................................................51
Firebox Components......................................................51
Signature Command System .........................................52
Logs................................................................................54
Brick ...............................................................................54
Venting Components ......................................................56
Massachusetts Residents Only................................60
Warranty .....................................................................61
Efciencies.................................................................64
Thank you and congratulations on your purchase of an
Vermont Castings Group Fireplace.
PLEASE READ THE INSTALLATION AND OPERATION INSTRUCTIONS BEFORE USING THE APPLIANCE!
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible re hazard and will void the warranty.

20306750 3
Designer Series Direct Vent Gas Fireplace
4. Never install the replace
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 42" from the front, top,
or sides of the replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to acci-
dental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict
access to a replace or stove, install an adjustable
safety gate to keep toddlers, young children and other
at risk individuals out of the room and away from hot
surfaces.
7. Do not modify replace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating replace.
8. Turn replace off and let cool before servicing, install-
ing, or repairing. Only a qualied service person should
install, service, or repair the replace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning replace.
10. Have venting system inspected annually by a qualied
service person. If needed, have venting system cleaned
or repaired. Refer to Cleaning and Maintenance, Page
48.
11. Keep the area around your replace clear of combus-
tible materials, gasoline, and other ammable vapor and
liquids. Do not run replace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around replace.
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference .
IMPORTANT SAFETY INFORMATION
This replace is a vented product. This replace must be
properly installed by a qualied service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualied service person with glass
door properly seated and sealed, combustion leakage can
occur.
CARBON MONOXIDE POISONING: Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the re-
place may not have been installed properly. Get fresh air
at once! Have the replace inspected and serviced by a
qualied service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the inuence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.
2. For propane/LP replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/LP
supply tank(s) outdoors. To prevent performance prob-
lems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
•shut off gas supply.
•do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• Read this owner’s manual carefully and completely before trying to assemble, operate, or service this
replace.
• Any change to this replace or its controls can be dangerous.
• Improper installation or use of this replace can cause serious injury or death from re, burns,
explosions, electrical shock and carbon monoxide poisoning.
WARNING

420306750
Designer Series Direct Vent Gas Fireplace IMPORTANT SAFETY INFORMATION
12. Do not use this replace to cook food or burn paper or
other objects.
13. Never place anything on top of replace.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood oor-
ing, you must set appliance on a metal or wood panel
or hearth pad extending the full width and depth of the
appliance.
18. Do not use replace if any part has been exposed to
or has been under water. Immediately call a qualied
service technician to inspect the appliance and replace
any part of the control system and any gas control which
as been submerged in water.
19. Do not operate replace if any log is broken.
20. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
replace.
21. Do not operate the replace with glass door removed,
cracked, or broken.
CODE APPROVAL
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO:
ANSI Z21.88-2014 / CSA 2.33-2014 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/
NCSBCS A225.1, or Standard for Gas Equipped Recre-
ational Vehicles and Mobile Housing, CSA Z240.4.
WARNING
Never connect unit to private (non-utility)
gas wells. This gas is commonly known
as wellhead gas.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for replaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is not unusual for gas replace to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your replace for
at least ten (10) hours the rst time you use it. Place
the fan switch in the “OFF” position during this time.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER

20306750 5
Designer Series Direct Vent Gas Fireplace
INSTALLATION INFORMATION
PRODUCT SPECIFICATIONS
•This appliance has been certied for use with either
natural or propane gas. See appropriate data plates.
• This appliance is not for use with solid fuels.
•The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
•This appliance is mobile home approved.
•The appliance must be properly connected to a venting
system.
•The appliance is not approved for closet or recessed
installations.
GAS PRESSURES
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
FP2815
designer controls
Figure 1 -
Designer Controls
FP2815
Control Box Gas Valve
Command
Center
GAS SPECIFICATIONS & ORIFICE SIZE
Max. Min.
Input Input Orice
Model Fuel Controls BTU/h BTU/h Size
PFLDVNS Nat. SCS 37,000 25,000 #31
PFLDVPS LP SCS 35,000 27,000 1.8 mm
STLDVNS Nat. SCS 37,000 25,000 #31
STLDVPS LP SCS 35,000 27,000 1.8 mm
CLLDVNS Nat. SCS 37,000 25,000 #31
CLLDVPS LP SCS 35,000 27,000 1.8 mm
CRLDVNS Nat. SCS 37,000 25,000 #31
CRLDVPS LP SCS 35,000 27,000 1.8 mm

INSTALLATION INFORMATION
FIREPLACE DIMENSIONS
620306750
Designer Series Direct Vent Gas Fireplace
Figure 2 -
STLDV (See-thru) Fireplace Dimensions
3³⁄₁₆”
(81 mm)
38⁹⁄₁₆” (979 mm)
49⁹⁄₁₆” (1259 mm)
7⁷⁄₈”
(200 mm)
FP2851
LDV see thru dims
12"
(305 mm)
47⁷⁄₈”
(1216 mm)
41⁷⁄₈”
(1064 mm)
37⁷⁄₈”
(962 mm)
23" (584 mm)
35⁹⁄₁₆” (903 mm)
28¹⁄₄”
(718 mm)
25³⁄₄”
(654 mm)
33¹⁄₁₆” (840 mm)
1¹⁄₄"
(32 mm)
34”
(864 mm)
11³⁄₄”
(298 mm)
3³⁄₄”
(95 mm)
24” (610 mm)
27³⁄₄” (705 mm) 46³⁄₈” (1178 mm)
38⁹⁄₁₆” (979 mm) 7⁷⁄₈”
(200 mm)
FP2852
LDV corner dims
12"
(305 mm)
47⁷⁄₈”
(1216 mm)
41⁷⁄₈”
(1064 mm)
37⁷⁄₈”
(962 mm)
23" (584 mm)
1¹⁄₄"
(32 mm)
35⁹⁄₁₆” (903 mm)
28¹⁄₄”
(718 mm)
25³⁄₄”
(654 mm)
18¹⁄₂" (470 mm)
21” (533 mm)
7⁷⁄₈”
(200 mm)
5¹⁄₈”
(130 mm)
1¹⁄₈”
(29 mm) 33¹⁄₁₆" (840 mm)
27³⁄₄” (705 mm)
1¹⁄₄"
(32 mm)
34”
(864 mm)
11³⁄₄”
(298 mm)
Figure 3 -
CLLDV/CRLDV (Corner) Fireplace Dimensions
FP2851
FP2852
Centerline of Flue
Outlet
Centerline of Flue
Outlet

INSTALLATION INFORMATION
FIREPLACE DIMENSIONS
20306750 7
Designer Series Direct Vent Gas Fireplace
21”
(533 mm)
18¹⁄₂”
(470 mm)
28¹⁄₄”
(718 mm)
25³⁄₄”
(654 mm)
7⁷⁄₈”
(200 mm)
5¹⁄₈”
(130 mm)
1¹⁄₈”
(29 mm)
33¹⁄₁₆” (840 mm)
38⁹⁄₁₆” (979 mm)
46³⁄₈” (1178 mm)
7⁷⁄₈”
(200 mm)
12"
(305 mm)
47⁷⁄₈”
(1216 mm)
41⁷⁄₈”
(1064 mm)
37⁷⁄₈”
(962 mm)
23" (584 mm)
Fp2853
LDV Penin dims
35⁹⁄₁₆” (903 mm)
28¹⁄₄”
(718 mm)
1¹⁄₄"
(32 mm)
1¹⁄₄"
(32 mm)
34”
(864 mm)
11³⁄₄”
(298 mm)
FP2853
Figure 4 -
PFLDV (Peninsula) Fireplace Dimensions
Centerline of Flue
Outlet

STLDV FRAMING
INSTALLATION INFORMATION
820306750
Designer Series Direct Vent Gas Fireplace
48³⁄₁₆”
(1224 mm)
C
L
27³⁄₈” (695 mm)
50¹⁄₁₆” (1272 mm)
23" (1/2" Drywall)
or Adjustable to
22³⁄₄” (5/8” Drywall)
FP2848
See thru framing
22¹¹⁄₁₆” (576 mm)
8¹¹⁄₁₆”
(221 mm)
Min.
7”
(178 mm)
Min.
4”
(102 mm)
Min.
Remove box and
Insulation for Top
Vent Congurations
Noncombustible
Material
Fold Outer Tabs
and Nail to Framing
Members
If using 5/8" drywall, remove
framing tabs and re-install
on 2nd set of holes
positioned slightly inwards
Figure 5 -
STLDV (See-thru) Framing
If using 5/8" drywall, remove
noncombustible supports,
rotate 180° and reinstall to
achieve 5/8" depth
The replace must be secured to the oor and/or to framing
studs as shown in Figure 5 . Use four (4) wood screws or
masonry/ concrete screws to secure replace to the oor.
Use four (4) screws to attach replace to framing. The side
brackets or nailing anges are designed to accommodate
two wall boards thicknesses, 1/2" or 5/8".
NOTE
Never install combustible materials over
front face of replace.
NOTE
The area above and on the sides of the
replace must be a noncombustible material.
Figures 5, 6, 7
NOTE: Glass cen-
terline is off center
from rought framing
dimensions.

CRLDV/CLLDV FRAMING
INSTALLATION INFORMATION
20306750 9
Designer Series Direct Vent Gas Fireplace
27¹⁄₂” (699 mm)
(1/2” Drywall)
or
27³⁄₈” (696 mm)
(5/8” Drywall)
46¹⁄₈” (1172 mm)
(1/2” Drywall)
or
46” (1168 mm)
(5/8” Drywall)
27⁷⁄₈” (708 mm)
46⁵⁄₈” (1184 mm)
48³⁄₁₆
"
(1224 mm)
FP2849
corner framing
8¹¹⁄₁₆”
(221 mm) Min,
7”
(178 mm)
Min.
4¹⁄₂”
(114 mm)
Min.
Remove box and
Insulation for Top
Vent Congurations
Noncombustible
Material
Fold Outer Tabs
and Nail to Framing
Members
Figure 6 -
CRLDV and CLLDV (Corner) Framing
If using 5/8" drywall, remove
framing tabs and re-install
on 2nd set of holes
positioned slightly inwards
If using 5/8" drywall,
remove framing
tabs and re-install
on 2nd set of holes
positioned slightly
inwards
The replace must be secured to the oor and/or to framing
studs as shown in Figure 6 . Use four (4) wood screws or
masonry/ concrete screws to secure replace to the oor.
Use four (4) screws to attach replace to framing. The side
brackets or nailing anges are designed to accommodate
two wall boards thicknesses, 1/2" or 5/8".
NOTE
Never install combustible materials over
front face of replace.
NOTE
The area above and on the sides of the
replace must be a noncombustible material.
Figures 5, 6, 7
If using 5/8" drywall, remove
noncombustible supports, rotate
180° and reinstall to achieve
5/8" depth

46¹⁄₈” (1172 mm)
(1/2” Drywall)
or
46” (1168 mm)
(5/8” Drywall)
23” (584 mm)
(1/2” Drywall)
or Adjustable to
22³⁄₄” (578 mm)
(5/8” Drywall)
48³⁄₁₆”
(1224 mm)
46⁵⁄₈” (1184 mm)
FP2850
Peninsula framing
7”
(178 mm)
Min.
8¹¹⁄₁₆”
(221 mm) Min,
NOTE: The Vermont Castings Group Model BPWC500
mantel is specially designed to comply with all mantel
temperature requirements. Any custom-built mantels must
comply with the framing clearances and the use of non-
combustibles as shown in Figures 5, 6 and 7.
STLDV FRAMING
INSTALLATION INFORMATION
10 20306750
Designer Series Direct Vent Gas Fireplace
Remove box and
Insulation for Top
Vent Congurations
Noncombustible
Material
Fold Outer Tabs
and Nail to Framing
Members

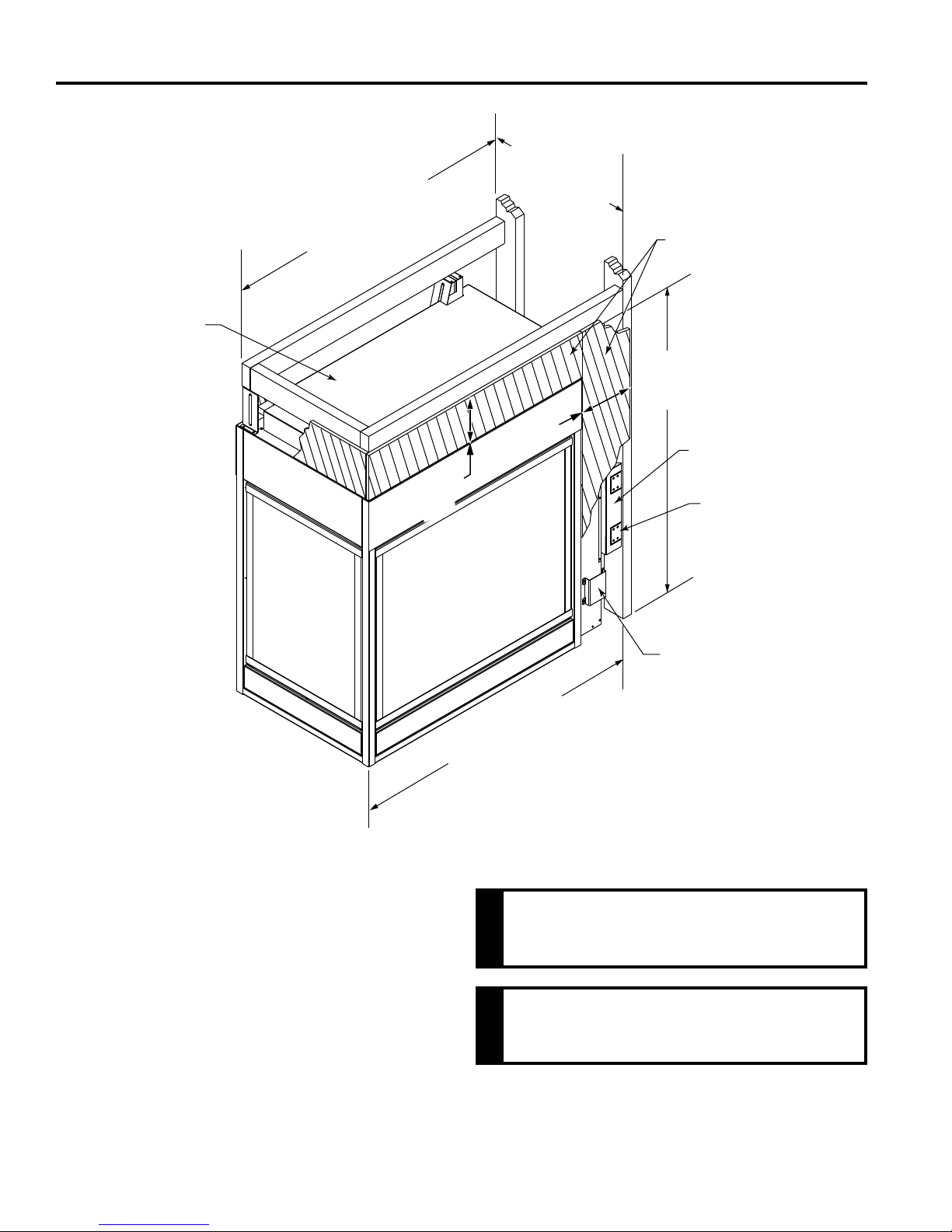

Figure 7 -
PFDV (Peninsula) Framing
If using 5/8" drywall, remove
framing tabs and re-install
on 2nd set of holes
positioned slightly inwards
The replace must be secured to the oor and/or to framing
studs as shown in Figure 7 . Use four (4) wood screws or
masonry/ concrete screws to secure replace to the oor.
Use four (4) screws to attach replace to framing. The side
brackets or nailing anges are designed to accommodate
two wall boards thicknesses, 1/2" or 5/8".
NOTE
Never install combustible materials over
front face of replace.
NOTE
The area above and on the sides of the
replace must be a noncombustible material.
Figures 5, 6, 7
If using 5/8" drywall, remove
noncombustible supports,
rotate 180° and reinstall to
achieve 5/8" depth

INSTALLATION INFORMATION
20306750 11
Designer Series Direct Vent Gas Fireplace
BEFORE YOU START
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
•Fireplace (Firebox and Burner System)
•Log Set • Fasteners
• Rock Wool • Restrictor Plate/Disc (2)
• White Toggle Switch • Switch Cover Plate
ITEMS REQUIRED FOR INSTALLATION
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Measuring Tape • Pliers
• Electric Drill and Bits • Square
• Pipe Wrench • Tee Joint
• Noncombustible Panel
• Caulking Material (noncombustible)
• Fireplace Surround Material (noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to sulfur compounds)
WARNING
Do not fill spaces around firebox with
insulation or other materials. This could
cause a re.
FIREBOX FRAMING
Firebox framing can be built before or after the appliance
is set in place. Construct rebox framing following Figure
5, 6 or 7 for your specic installation requirements. The
framing headers may rest on the top of the rebox stand-
offs. Do not bring headers below top of standoffs. NOTE:
When planning your framing and installation, keep in mind
that the gas line and electric power come in on the same
end of the replace. Refer to Figures 2, 3 & 4 for replace
dimensions.
The rebox may be installed directly on a combustible oor
or raised on a platform of an appropriate height. When
the rebox is installed directly on carpeting, tile, or other
combustible material, other than wood ooring, the rebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.
COLD CLIMATE INSULATION
If you live in a cold climate, seal all cracks
around your appliance, and wherever cold air
could enter the room, with noncombustible
material. It is especially important to insulate
the outside chase cavity between the studs
and under the oor on which the appliance
rests, if the oor is above ground level.
NOTE
FINISHING MATERIAL
NOTE: Any remote wiring (i.e. remote control, wall switch,
and optional fan) must be done prior to nal nishing to
avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel,
or other materials with a UL re rating of Zero) may be
used to cover the black surface of the appliance. A 300°F
minimum adhesive may be used to attach facing materi-
als to the black surface. If joints between the nished wall
and the replace surround are sealed, a 300°F minimum
sealant material (General Electric RTV103 or equivalent)
must be used.
NOTE: Refer to cold climate pilot information on Page 46
for more information on standing pilot vs. intermittent pilot
options.

12 20306750
Designer Series Direct Vent Gas Fireplace
FIREPLACE LOCATION
Plan for the installation of your appliance. This includes
determining where the unit is to be installed, the vent con-
guration to be used, framing and nishing details, and
whether any optional accessories (i.e. blower, wall switch,
or remote control) are desired. Consult your local building
code agency to ensure compliance with local codes, includ-
ing permits and inspections.
The following factors should be taken into consideration:
• Clearance to side-wall, ceiling, woodwork, and windows.
Minimum clearances to combustibles must be main-
tained.
• This replace may be installed along a wall, across a
corner, or use an exterior chase. Refer to Figure 8 for
suggested locations.
• Location should be out of high trafc areas and away
from furniture and draperies due to heat from appli-
ance.
Y
B
C
Y
X
LU586
Locating unit
D
A
** Island (C) and Room Divider (D) installation is possible as long
as the horizontal portion of the vent system (X) does not exceed
20’ (610cm). See details in Venting Section.
* When you install your replace in (D) Room divider or (E) Flat
on wall corner positions (Y), a minimum of 6” (152mm) clearance
must be maintained from the perpendicular wall and the front side
edge of the replace.
A Flat on wall
B **Island
C *Room divider
D *Flat on wall corner
Y 6” minimum
Figure 8 -
Locate Fireplace
• Never obstruct the front opening of the replace.
•Do not install in the vicinity where gasoline or other
ammable liquids may be stored.
•Vent pipe routing. See Venting section found in this
manual for allowable venting congurations.
•These units can be installed in a bedroom. See National
Fuel Gas Code ANSI Z233.1/NFPA 54 — (current
edition), the Uniform Mechanical Code — (current edi-
tion), and Local Building Codes for specic installation
requirements.
•These units can be installed in a bathroom.
INSTALLATION INFORMATION

20306750 13
Designer Series Direct Vent Gas Fireplace
CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must
not protrude more than 1/2" from the facing. If it does,
it is considered a mantel and must meet the mantel
requirements listed in this manual.
NOTE: Vermont Castings Group Model BPWC500
Mantel is designed to comply with all mantel temperature
requirements.
Follow these instructions carefully to
ensure safe installation. Failure to follow
instructions exactly can create a fire
hazard.
The appliance cannot be installed on a
carpet, tile or other combustible material
other than wood ooring. If installed on
carpet or vinyl flooring, the appliance
shall be installed on a metal, wood or
noncombustible material panel extending
full width and depth of the appliance.
WARNING
FP2817
mantel clearances
16”
12”
10”
12”
6”
2¹⁄₂”
Side View
Noncombustible
Material to Top of
Standoffs
FP2817
Top of Fireplace
Opening
Never obstruct or modify the air inlet or
outlet grilles (louvers). This may create
a re hazard.
WARNING
45°
1”
4”
5”
6”
2”
3”
FP2818
mantel leg clearance

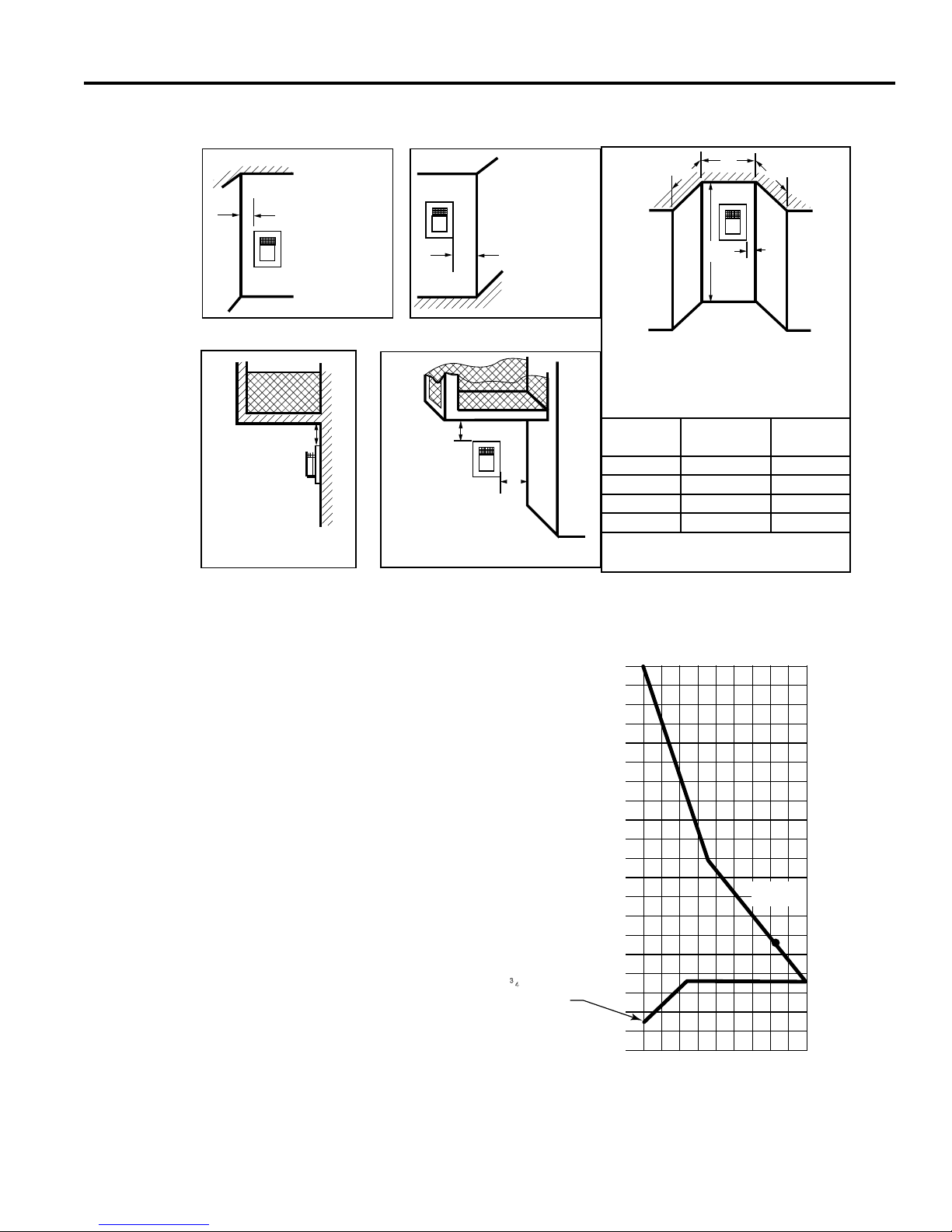

Figure 10 -
Mantel Clearance
Stud
Combustible
Material Area
FP2818
Top View
Spacer
Side of Fireplace
Opening
72”
(1829 mm)
Min.
Ceiling
6”
(152 mm)
Min.
FP2832
ceiling wall clearance
Figure 9 -
Ceiling and Side Wall Clearances
FP2544
12"
(305 mm)
Max. Depth
16"
(406 mm)
Min.
Combustible Mantel
INSTALLATION INFORMATION

14 20306750
Designer Series Direct Vent Gas Fireplace
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the
installation. The installer must make sure to select the
proper vent system for installation. Before installing vent
kit, the installer must read this replace manual and vent
kit instructions.
Only a qualied installer/service person should install the
venting system. The installer must follow these safety
rules:
•Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on
rooftops.
• Be aware of electrical wiring locations in walls and ceil-
ings.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured or
approved by Vermont Castings Group
• Installation other than permitted by these instructions.
Read all instructions completely and
thoroughly before attempting installation.
Failure to do so could result in serious injury,
property damage or loss of life. Operation
of improperly installed and maintained
venting system could result in serious injury,
property damage or loss of life.
WARNING
Failure to follow these instructions will
void the warranty.
NOTICE
OPTIONAL TOP VENT APPLICATION
The appliance is shipped as a rear vent unit. If the installa-
tion layout requires the unit to be a top vent conguration,
the appliance can be converted by following the steps
below.
When removing and retting the plates and adapter, be
sure the associated gaskets are undamaged and retted
as required.
1. Remove the eight (8) screws securing the ue pipe
adapter to the replace body. Figure 12
2. Set the ue pipe adapter aside, complete with the
gasket. Do not damage the gaskets as the adapter and
gasket must be retted.
3. Remove the eight (8) screws securing the ue pipe cover
to the top of the intake box and remove the cover and
gasket. Figure 12
FP2895
remove top cover
Remove for Top Vent
applications
FP2895
Figure 11
VENTING INSTALLATION

20306750 15
Designer Series Direct Vent Gas Fireplace
After conversion to top vent conguration,
the 5" (127 mm) flue pipe should be
concentric with the 8" (203 mm) outer collar
within 1/4".
WARNING
FP1991
remove screws
Screws
Flue Pipe
Cover
Flue Pipe
Adapter FP2833

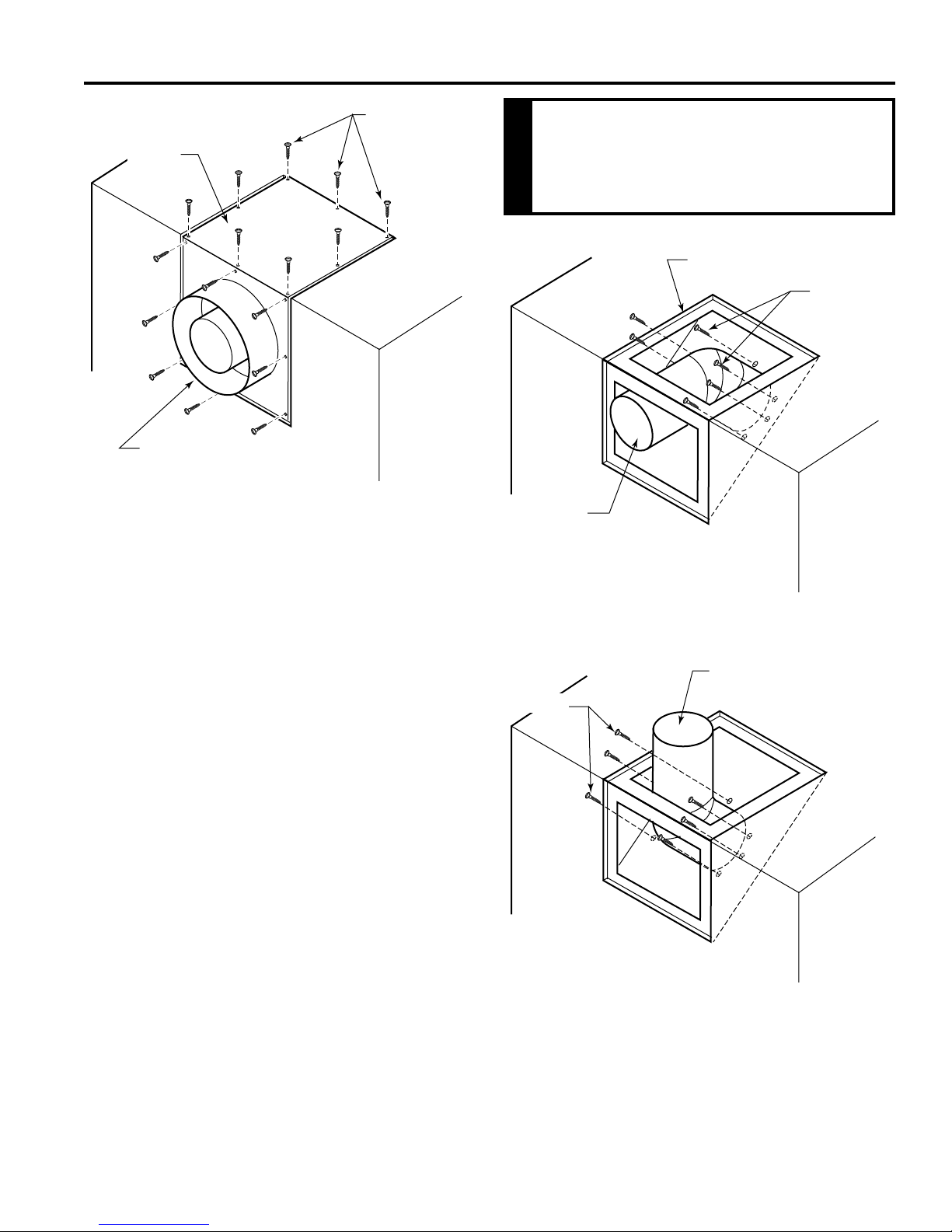

Figure 12 -
Remove 16 screws from Flue Pipe Adapter and
Flue Pipe Cover
4. Remove six (6) screws securing the ue pipe to the
back of the intake box and remove the pipe and gasket.
Figure 13
5. Replace the ue pipe to top of rebox. Ensure the gasket
is in place and undamaged. Secure with six (6) screws.
Figure 14
6. Place the ue pipe cover and gasket removed in Step
3 over the ue opening in bottom of the intake box.
7. Ret the ue pipe adapter and gasket to the top of re-
place. Secure the adapter with six (6) screws removed
in Step 1.
FP1992
remove flue pipe
Flue Cover
Screws
Flue Pipe
FP2834
Figure 13 -
Remove Flue Pipe
FP1993
replace flue pipe
Screws
Flue Pipe
FP2835
Figure 14 -
Attach Flue Pipe to Top Vent Conguration
VENTING INSTALLATION

16 20306750
Designer Series Direct Vent Gas Fireplace
**1"
**1”
*3"
37⁷⁄₈”
(962 mm)
Flue Pipe
Centerline
to Floor
FP2819
vent clearance
**1"
*3"
**1”
51³⁄₈”
(1305 mm)
Flue Pipe
Centerline
to Floor
This replace must be vented to the outside.
The venting system must NEVER be attached
to a chimney serving a separate solid fuel
burning appliance. Each gas appliance must
use a separate vent system. Do not use
common vent systems.
WARNING
Figure 15 -
Combustible Clearances for Vent Pipe with Minimum Rise
* A minimum of 3" clearance to the top is required along horizontal
length until ue pipe penetrates outside wall.
** A minimum 1" clearance to combustibles permitted all around
ue at outside wall
FP2819
WARNING
Horizontal sections of this vent system
require a minimum of 3" clearances to
combustibles at the top of the ue and 1"
clearance at the sides and bottom until the
ue penetrates the outside wall. A minimum
1" clearance all around the ue is acceptable
at this point of penetration. Unless the
vertical run is 71⁄2' or higher from oor of
replace, the clearance for horizontal run
is 1" on all sides.
Vertical sections of this vent system require
a minimum of 2" clearance to combustibles
at the top of the unit directly above the
stand-off. A minimum of 1" clearance all
around the ue is acceptable thereafter.
VENTING INSTALLATION

20306750 17
Designer Series Direct Vent Gas Fireplace
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
•Vertical Termination
It is important to select the proper length of vent pipe for
the type of termination you choose. It is also important to
note the wall thickness.
FOR HORIZONTAL TERMINATION
Select the amount of vertical rise desired. All horizontal run
of venting must have 1/4" rise for every 12" of run towards
the termination below 71⁄2' of vertical rise from oor of re-
place. With 71⁄2 feet or more of vertical rise from the oor
of the replace, the horizontal run may be level. NEVER
run vent piping down.
You may use up to three 90° elbows in this vent congura-
tion. Refer to Vertical/Horizontal Termination Congurations
on Page 21.
Horizontal venting which incorporates the twist lock pipe
must be installed on a level plane without an inclining or
declining slope.
FOR VERTICAL TERMINATION
Measure the distance from the replace oor to the ceil-
ing. Add the ceiling thickness, the vertical rise in an attic
or second story, and allow for sufcient vent height above
the roof line.
NOTE: You may use two 45° elbows in place of a 90°
elbow. You must follow rise to run ratios when using
45° elbows. The appliance is approved for use with
three 90° elbows maximum or a combination of 90°
and 45° elbows up to a maximum of 270°.
NOTICE
When installing in a chase, you should
insulate the chase as you would the outside
walls of your home. This is especially
important in cold climates. Insulation
should be considered a combustible
material. Maintain proper clearances to all
combustible materials.
WARNING
Always maintain minimum clearances around
vent systems. The minimum clearances to
combustibles for horizontal vent pipe are 3"
at the top* and 1" at the sides and bottom
of the vent system until the pipe penetrates
the nearest vertical wall (1" required). A 1"
minimum clearance all around the pipe must
be maintained at outside wall and on vertical
runs. Do not pack the open air spaces with
insulation or other materials. This could
cause high temperatures and may present
a re hazard.
*Unless the vertical run is 71⁄2feet or higher
from oor of replace, the clearance for the
horizontal run is 1" on all sides.
Treatment of restops and construction of
the chase may vary from building type to
building type. These instructions are not
substitutes for the requirements of local
building codes. You must follow all local
building codes.
NOTICE
Never run the vent pipe down. This may
cause excessive temperatures which could
cause a re.
WARNING
For two-story applications, restops are required at each
oor level. If an offset is needed in the attic, additional pipe
and elbows will be required.
You may use a chase with a vent termination with exposed
pipe on the exterior of the house. See Installing Vent
System in a Chase below. If pipe is enclosed in chase, it
is not exposed.
It is very important that the venting system maintain its bal-
ance between the combustion air intake and the ue gas
exhaust. Certain limitations apply to vent congurations
and must be strictly followed.
INSTALLING A VENT SYSTEM IN AN
OUTSIDE CHASE
A chase is a vertical boxlike structure built to enclose
venting that runs along the outside of a building. A chase
is required for such venting.
VENTING INSTALLATION

18 20306750
Designer Series Direct Vent Gas Fireplace VENTING INSTALLATION
V
X
X
X
D
E
B
B
B
C
B
M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Operable
Operable Fixed
Closed
B
CFM145a
DV Termin Location
5/01/01 Rev. 12/05/01
sta
INSIDE
CORNER DETAIL
A
G
CFM145a
V
V
V
VV
V
V
V
TERMINATION LOCATION
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel
Gas Codes
† A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings and
serves both dwellings
‡ Only permitted if veranda, porch, deck or balcony is fully open on a
minimum 2 sides beneath the oor.
NOTE: 1. Local codes or regulations may require different
clearances.
2. The special venting system used on Direct Vent
Fireplaces are certied as part of the appliance, with
clearances tested and approved by the listing agency.
3. Vermont Castings Group assumes no responsibility for
the improper performance of the appliance when the venting
system does not meet these requirements.
Termination Locations
CANADIAN INSTALLATIONS1US INSTALLATIONS2
A = Clearance above grade, veranda, porch,
deck or balcony
12" (30cm) 12" (30cm)
B = Clearance to window or door that may be
opened
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
C = Clearance to permanently closed window 12" (305mm) recommended to prevent
window condensation
12" (305mm) recommended to prevent win-
dow condensation
D = Vertical clearance to ventilated soft locat-
ed above the terminal within a horizontal
distance of 2' (610 mm) from the center
line of the terminal
18" (458mm) 18" (458mm)
E = Clearance to unventilated soft 12" (305mm) 12" (305mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner see next page see next page
H = Clearance to each inside of center line
extended above meter/regulator assembly
3' (91cm) within a height of 15' (5m) above
the meter/regulator assembly
3' (91cm) within a height of 15' (5m) above
the meter/regulator assembly
I = Clearance to service regulator vent outlet 3' (91cm) 3' (91cm)
J = Clearance to non-mechanical air supply
inlet to building or the combustion air inlet
to any other appliance
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
K = Clearance to mechanical air supply inlet 6' (1.83m) 3' (91cm) above if within 10' (3m) horizontally
L = Clearance above paved sidewalk or
paved driveway located on public property
7' (2.13m)†7' (2.13m)†
M = Clearance under veranda, porch, deck or
balcony
12" (30cm)‡12" (30cm)‡

20306750 19
Designer Series Direct Vent Gas Fireplace
VENTING INSTALLATION
HOW TO USE THE VENT GRAPH
The Vent Graph should be read in conjunction with the
following vent installation instructions to determine the
relationship between the vertical and horizontal dimensions
of the vent system.
1. Determine the height of the center of the horizontal vent
pipe exiting through the outer wall. Using this dimen-
sion on the Sidewall Vent Graph below, locate the point
intersecting with the slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the re-
place in accordance with same.
Example: If the vertical dimension from the oor of the
replace is 11' (3.4 m) the horizontal run to the face of
the outer wall must not exceed 16' (4.9 m).
Sidewall Vent Graph showing the relationship between
vertical and horizontal dimensions for a Direct Vent ue
system.
Figure 18 -
Rear Wall Venting Graph
Horizontal dimension from the nished outside wall
to the center of the pipe on the replace
Vertical Dimension From the Floor of Unit to the Center of the
Horizontal Vent Pipe
Dimensions in
Feet
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 1214 16 1820
eg: A
FP2132
sidewall vent graph
323⁄4" to Center
of Horizontal
Pipe
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 12" (305 mm)
P = 6” (152 mm)
M
F
Alcove Applications*
C
D
C
E
V
V
Combustible &
Noncombustible
E= Min. 2” (51 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O= 8’ (2.4 m) Min.
O
P
V
V
V
584-15
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions specied for vinyl or
non-vinyl siding and softs. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All mechanical air intakes within 10’ (1 m) of a
termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All gravity air intakes within 3’ (914 mm) of a termination cap must
be a minimum of 1’ (305 mm) below the termination cap.
Figure 17 -
Termination
Clearances

20 20306750
Designer Series Direct Vent Gas Fireplace
REAR WALL VENT INSTALLATION (5" x 8"
VENTING ONLY)
When installed as a rear vent unit, this appliance may be
vented directly to a termination located on the rear wall
behind the appliance. Only an Vermont Castings Group
brand termination is allowed for this application.
• The maximum horizontal distance between the rear
of the appliance and the termination is 20" (508 mm).
Figure 19
FP2836
rear wall vent
Figure 19 -
Rear Vent Application Maximum
Horizontal Distance
Maximum
20"
(508 mm)
Top View Flat
Installation
• Only one 45 degree elbow is allowed in these installa-
tions.
1. Rigid vent pipes and ttings have special twist-lock
connections. Assemble the desired combination of pipe
and elbows to the appliance adapter.
Twist-Lock Procedure: The female ends of the pipes
and ttings have three (3) locking lugs (indentations).
These lugs will slide straight into matching slots on
the male end of adjacent pipes and ttings. Push the
pipe sections together and twist one section clockwise
approximately one-quarter turn until the sections are
fully locked. Figure 20
NOTE: Seal-
ant is not
required to
assemble
fireplace
venting. Do
not use sili-
cone sealant
at the inner
ue exhaust
connec-
tions.
FP1953
rigid pipe
Female Locking
Lugs
Male Slots
NOTE: Horizontal runs of
vent must be supported
every three feet (914
mm). Use wall straps for
this purpose.
Figure 20 -
Rigid Vent Pipe Con-
nections
2. Refer to venting and termination instructions for further
instructions.
3. Locate and cut the vent opening in the wall. For com-
bustible walls rst frame in opening.
Combustible Interior Walls: Cut a 121/2" x 101/2" hole
through the interior wall.
Combustible Exterior Walls: Cut a 101/2" x 101/2"
square hole through the exterior wall frame. Figure 21
Noncombustible Walls: Hole opening should be 81/2"
(216 mm) in diameter.
4. The center of the hole should align with the center line
of the horizontal rigid vent pipe end. Allow 1/4" minimum
rise per foot. Figure 21
VO584-100
Vent Opening
2/99 djt
Vent Opening for Combustible Walls
101⁄2”
(267 mm)
Min.
Fireplace Hearth Framing Detail
Opening for Noncombustible Wall
81⁄2”
(216 mm)
Fireplace Hearth
FP2293
Figure 21 -
Locate vent opening on wall
101⁄2”
(267 mm) Min.
5. Apply a bead of non-hardening mastic around the
outside edge of vent cap. Position the vent cap in the
center of hole on the exterior wall with the word "UP"
on the vent cap facing up. Insure proper clearance of
1" to combustibles is maintained. Attach the vent cap
with four (4) wood screws supplied. Figure 22
NOTE: Replace the wood screws with appropriate
fasteners for stucco, brick, concrete or other types
of siding.
For vinyl siding, stucco or wood exterior, use vinyl
siding standoffs between vent cap and exterior wall for
Duravent or Selkirk Terminations only. The vinyl siding
standoff prevents excessive heat from melting the
vinyl siding material. NOTE: Vermont Castings Group
Termination does not require standoff. Bolt the vent
cap to the standoff or wall. Apply non-hardening mastic
around outside edge of the standoff instead of the vent
cap assembly. Use wood screws provided to attach the
standoff. Figure 23
VENTING INSTALLATION
