Vermont Castings Chateau DVT38S2IN Assembly instructions

Installation Instructions and
Homeowner’s Manual
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch;
• Do not use any phone in your
building.
• Immediately call your gas supplier
from your neighbor’s phone. Follow
the gas suppliers instructions.
• If you cannot reach your gas
supplier call the fire department.
INSTALLER/CONSUMER
SAFETY INFORMATION
Chateau™
Direct Vent Gas
Fireplace
Model: DVT38S2IN


















20011957 9/07 Rev. 1
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.




2
Chateau™ Direct Vent Gas Fireplace
20011957
Please read the installation & operating instructions before using this appliance.
Thank you and congratulations on your purchase of a CFM Corporation fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
Table of Contents
Installation & Operating Instructions
Important Curing/Burning Instructions .................................................................................................3
Fireplace Dimensions ..........................................................................................................................4
Locating Your Fireplace .......................................................................................................................5
Clearance to Combustibles .................................................................................................................5
Mantels .............................................................................................................................................5
Hearth .............................................................................................................................................6
Framing & Finishing .............................................................................................................................6
Final Finishing .....................................................................................................................................6
Gas Specifications ...............................................................................................................................6
Gas Inlet and Manifold Pressures .......................................................................................................7
High Elevations ....................................................................................................................................7
Gas Line Installation ............................................................................................................................7
Electrical Junction Box ........................................................................................................................7
Control System ....................................................................................................................................8
Control System Installation ..................................................................................................................8
Special Features for Cold Climates .....................................................................................................9
Remote Control Transmitter Operating Instructions ..........................................................................10
General Venting Information
General Venting .................................................................................................................................14
General Venting Information - Termination Location .........................................................................15
General Information Assembling Vent Pipes .....................................................................................16
SK8 Venting Pipes .............................................................................................................................16
Restrictor Plate Guide .......................................................................................................................17
Horizontal Termination .......................................................................................................................18
Vertical Termination ...........................................................................................................................18
Sidewall Applications & Installation ...................................................................................................18
Sidewall Installation with Stationary Glass Facing Outside ...............................................................20
Installing the 38S2VDK Door .............................................................................................................21
Vertical Through-the-Roof Applications & Installation ........................................................................22
Use of Restrictor Plates for Vertical Venting Application ...................................................................22
Flue Restrictor Plate Installation ........................................................................................................22
Chimney Components .......................................................................................................................26
Operating Instructions
Glass Information ..............................................................................................................................27
Glass Frame Assembly Removal ......................................................................................................27
Glass Cleaning ..................................................................................................................................27
Ceramic Refractory Installation .........................................................................................................27
Log, Lava Rock and Ember Placement .............................................................................................28
Flame Characteristics ........................................................................................................................32
Trim Installation .................................................................................................................................33
Lighting and Operating Instructions (American Flame Automatic Control System) ...........................34
Troubleshooting .................................................................................................................................35
American Flame Gas Control System Error Codes ...........................................................................37
Fuel Conversion ................................................................................................................................38
Maintenance
Cleaning the Control System .............................................................................................................41
Replacement Parts .......................................................................................................................................42
Optional Accessories ...................................................................................................................................45
Warranty .........................................................................................................................................................47
Energuide ......................................................................................................................................................48

3
Chateau™ Direct Vent Gas Fireplace
20011957
This gas fireplace should be installed by a qualified
installer, preferably NFI or WETT (Canada) certified, in
accordance with local building codes and with current CSA-
B149.1 Installation codes for Gas Burning Appliances and
Equipment. For USA Installations follow local codes and/or
the current National Fuel Gas Code. ANSI Z223.1/NFPA 54.
In the Commonwealth of Massachusetts:
• All gas fitting and installation of this heater shall only be
done by a licensed gas fitter or licensed plumber.
• A carbon monoxide detector must be installed in the same
room as the fireplace. (Refer to Regulation 248CMR 4.00 &
5.00 for more information.)
FOR SAFE INSTALLATION AND OPERATION PLEASE NOTE
THE FOLLOWING:
1. This fireplace gives off high temperatures and should be
located out of high traffic areas and away from furniture
and draperies.
2. Children and adults should be alerted to the hazards of the
high surface temperatures of this fireplace and should stay
away to avoid burns or ignition of clothing.
3. CAUTION: Due to high glass surface temperature chil-
dren should be carefully supervised when in the same
room as fireplace.
Installation & Operating Instructions
This appliance may be installed in an aftermarket
permanently located, manufactured home or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
The DVT38S2 has been approved for mobile home
installations.
Proposition 65 Warning: Fuels used in gas, woodburning or
oil fired appliances, and the products of combustion of such
fuels, contain chemicals known to the State of California to
cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
IMPORTANT:
PLEASE REVIEW THE FOLLOWING CAREFULLY
Remove any plastic from parts before turning the
fireplace ON.
It is normal for fireplaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your gas fireplace to give off some
odor the first time it is burned. This is due to the curing
of the paint and any undetected oil from the manufac-
turing process.
Please ensure that your room is well ventilated-
open all windows.
It is recommended that you burn your fireplace for at
least ten (10) hours the first time you use it.
WARNING: Check with your electronics manufac-
turer before installing a television or other electronic
device above this fireplace.
this fireplace must be installed on a metal or wood panel
extending the full width and depth of the fireplace.
12. This fireplace requires adequate ventilation and
combustion air to operate properly.
13. This fireplace must not be connected to a chimney flue
serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended that the
gas control valve be left in the “OFF” position.
DVT38S2
Certified To
ANSI Z21.50b-2005 / CSA 2.22b-2005
Vented Gas Fireplace

�






4. Under no circumstances should this fireplace be modified.
Parts removed for servicing should be replaced prior to
operating this fireplace again.
5. A professional service person should be contacted to
inspect the fireplace annually. More frequent cleaning may
be required due to excess lint and dust from carpeting,
bedding material, etc.
6. Control compartments, burners and air passages in this
fireplace should be kept clean and free of dust and lint.
Make sure that the gas valve and pilot light are turned off
before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace should be
checked at least once a year and if needed your venting
system should be cleaned.
8. Keep the area around your fireplace clear of combustible
materials, gasoline and other flammable vapor and liquids.
This fireplace should not be used as a drying rack for cloth-
ing, nor should Christmas stockings or decorations be hung
on or around the fireplace.
9. Under no circumstances should any solid fuels (wood, coal,
paper or cardboard etc.) be used in this fireplace.
10. The flow of combustion and ventilation air must not be
obstructed in any way.
11. When the fireplace is installed directly on carpeting,
vinyl tile or any combustible material other than wood,
NOTE: We recommend that you install the Battery
Back-up Kit, DVTBBK, which must be installed at the
time of fireplace installation. The use of this kit will allow
your fireplace to continue to operate in the event electric
power is lost such as during a severe snow, ice or thun-
der storm. Refer to Item 16 on Page 8.

4
Chateau™ Direct Vent Gas Fireplace
20011957
Y
DA
B
C
E
Y
X
LU584
Locating unit
DVT38S2
3/17/04 djt
Locating Your Fireplace
LU584-1
Fig. 2 Locate gas fireplace.
A) Flat on wall B) **Island C) *Room divider
D) *Flat on wall corner E) Chase installation
Y) 6” minimum
Note (Fig. 2):
** Island (B) and Room Divider (C) installation is possible as long
as the horizontal portion of the vent system (X) does not exceed 20’
(610cm). See details in Venting Section.
* When you install your fireplace in (C) Room divider or (D) Flat on
wall corner positions (Y), a minimum of 6” (152mm) clearance must
be maintained from the perpendicular wall and the front side edge of
the fireplace.
24"
(622 mm)
C
L
10"
(267 mm)
3/4"
(19 mm)
C
L
51" (1299 mm)*
3/4" (19 mm)
34" (876mm)
29"
(746 mm)
32"
(829 mm)
33"
(854 mm)*
49"
(1245 mm)
1"
(35 mm)
1/2"
(13 mm)
5/8" (16 mm)
44" (1121 mm)
37" (962 mm)
5" (143 mm)
6" (152 mm) 1"
(25 mm)
* When framing unit on outside wall, flush with the wall,
a 1/4" (6mm) clearance must be allowed on both sides and top of surround.
11957
DVT38s2 specs
5/07
Sides and Top
of Surround
C
L
25”
(649 mm)
Glass
25”
(649 mm)
Gas Line
Connection
15”
(403 mm)
10”
(262 mm)
Noncombustible Material in This Area
Fireplace Dimensions
Fig. 1 Fireplace specifications and framing dimensions for DVT38S2.
Finished Wall 24¹⁄₂” (622 mm)
for Flush Install 16” (406 mm)
I.D. Minimum Clearance to
Combustibles
Standard Framing
NOTE: Noncombustible insula-
tion may be placed behind the
facing material.
Only
Noncombustible
Material in
This Area
Exterior Side
(If installed on
outside wall)
Interior
Side

5
Chateau™ Direct Vent Gas Fireplace
20011957
Top of Unit to Ceiling ................................ 36” (914 mm)
Front of Unit to Combustibles (both sides) 36” (914 mm)
Appliance
Top Standoffs .............................................. 0” (0 mm)
Bottom* ....................................................... 0” (0 mm)
Side Standoffs ............................................. 0” (0 mm)
Back Standoffs ............................................ 0” (0 mm)
Venting
Horizontal Termination through-a-side wall:
Vertical Sections:
Sides ................................................ 2¹⁄₂” (64 mm)
Horizontal Sections:
Top .................................................. 3¹⁄₂” (89 mm)
Bottom ............................................. 1¹⁄₂” (38 mm)
Sides ................................................ 2¹⁄₂” (64 mm)
Vertical Vent Application:
Sides ............................................... 1¹⁄₂” (38 mm)
* To prevent the potential for odors, do not use epoxy-
filled particle board directly under this fireplace.
Clearance to Combustibles
Mantels
The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figs. 3a and 3b, the following Mantel Charts.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using paint or lacquer to finish the mantel, such
paint or lacquer must be heat resistant to prevent
discoloration.
   









Fig. 3a Combustible mantel minimum installation.
Mantel Chart
Mantel Shelf Mantel from Top
Ref. or Breast Plate Ref. of Comb. Chamber
Depth
V 10” (254 mm) A 10” (254 mm)
W 9” (229 mm) B 9” (229 mm)
X 8” (203 mm) C 8” (203 mm)
Y 7” (178 mm) D 7” (178 mm)
Z 6” (152 mm) E 6” (152 mm)
CFM146d
Combustible
Framing and
Finish Wall Above
Standoffs
Standoff
Top of Sheet Metal
Noncombustible Finish Material
(Such as Dura Rock)
Fireplace Front
May use com-
bustible facing
material in this
area









Mantel Leg
CFM164c









CFM170a
Fig. 3b Combustible mantel leg minimum installation.
Mantel Mantel Leg from Side
Ref. Leg Depth Ref. of Comb. Opening
F 12” (305 mm) K 12” (305 mm)
G 9” (229 mm) L 9” (229 mm)
H 6” (152 mm) M 6” (152 mm)
I 4” (102 mm) N 4” (102 mm)
J 3” (76 mm) O 3” (76 mm)
Side of Fireplace
Noncombustible
Finish Material

6
Chateau™ Direct Vent Gas Fireplace
20011957
A hearth is not mandatory but is recommended for
aesthetic purposes. We recommend a noncombustible
hearth which projects out 12” (305 mm) or more from
the front of the fireplace. The hearth cannot exceed 1¹⁄₂”
(38 mm) in height from bottom of fireplace for ease of
door accessibility. (Fig. 4)
Cold climate installation recommendation:
When installing this unit against a non-
insulated exterior wall or chase, it is
mandatory the outer walls be insulated to
conform to applicable insulation codes.
Hearth
Framing and Finishing
1. Choose the unit location.
2. The unit is shipped with four (4) nailing flanges
mounted near the front corners on the side with the
valve box assembly . (Fig. 4)
3. Frame the fireplace with a header across the top of
the standoff. (Fig. 5) It is very important to allow for
the finished wall face along with marble, tiles or any
other noncombustible face finish material desired
when setting the depth of the framing.
4. Attach the fireplace nailing flanges to the frame as
shown in Figure 4.
FP1357b
DVT38s2nailing flanges
3/17/04 djt
6"
(152 mm) Min.
1"
(25 mm) Min.
1"
(38mm)
Max. Hearth Height
FP1357c
Fig. 4 Nailing flanges.
Bend
Line
5. The gas components are located in the valve box as-
sembly attached to the side of the unit.
6. The U-channel located on the top of the unit as well
as the nailing flanges on the sides that were men-
tioned in Step 1, are designed to accommodate non-
combustible board (recommended Dura-Rock). They
are positioned 1” (25mm) back from the face of the
unit. NOTE: The U-channel depth can be adjusted
by loosening the hex nut inside the channel.
If marble, tile or any other noncombustible decora-
tive face finish material is desired, a 3” (76mm) wide
noncombustible board (recommended Dura-Rock)
is to be nailed to the nailing flanges on both sides
of the unit. Also, 12” (305mm) of noncombustible
board is to be nailed to the front face of the U-chan-
nel and the top framing member above the standoff.
Combustible material can then be brought to the
outside edges of the noncombustible board installed
earlier. Any noncombustible decorative face finish
could be brought to the sides and top of the unit and
can cover the framing and sheet rock. If a decora-
tive facing is not desired, then the noncombustible
boards must be double thickness and brought flush
with the face of the unit.
Final Finishing
Noncombustible materials such as brick or tile may be
brought to the edges of the face of the appliance.
Gas Specifications
Max. Min.
Gas Input Input
Model Fuel Control BTU/h BTU/h
DVT38S2IN Natural Gas AF-4034 w/ 56,000 38,000
DVT38S2IP Propane 7.5 DC Hi/Lo 56,000 45,500
FP1467b
DVT38s2
framing
5/07 djt
1"
(25 mm)
6"
(152 mm)
Fig. 5 Fireplace framing.
FP1467b
This side of fireplace
must be facing interior
of home

7
Chateau™ Direct Vent Gas Fireplace
20011957
Gas Inlet and Manifold Pressures
Natural LP (Propane)
Minimum Inlet Pressure 5.5” w.c. 11.0” w.c.
Maximum Inlet Pressure 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1/NFPA 54 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
WARNING: Improper installation, adjust-
ment, alteration, service or maintenance
can cause injury or property damage. Refer
to this manual for correct installation and
operational procedures. For assistance or
additional information consult a qualified
installer, service agency, or the gas supplier.
Gas Line Installation
When purging gas line the front glass must
be removed.
A gas shut off valve must be installed on
the gas pipe line going into the appliance
within easy access.
The gas pipeline can be brought in through the top of
the valve box assembly.
The gas line connection can be made with properly
tinned 1/2” copper tubing or 1/2” gas tight. Some
municipalities have additional local codes, it is always
best to consult your local authority and the CSA-B149.1
installation codes.
For USA installations consult the current National Fuel
Gas Code, ANSI Z223.1/NFPA 54.




FP297A 1/2” Gas Supply
1/2” NPT X 1/2” Flare
Shut-off Valve
1/2” Gas Tight or
Tinned Copper
(from valve)
(Not provided)
Fig. 6 Typical gas supply installation.
Always check for gas leaks with a mild
soap and water solution applied with a
brush no larger than 1” (25mm). Never ap-
ply soap and water solution with a spray
bottle. Do not use an open flame for leak
testing.
The fireplace valve must not be subjected
to any test pressures exceeding 1/2 psi.
Isolate or disconnect this or any other gas
appliance control from the gas line when
pressure testing.
The gas control is equipped with an inlet and manifold
pressure test point, therefore it is not necessary to pro-
vide an 1/8” test point up stream of the control.
When using copper, use only approved fittings. Always
provide a union when using black iron pipe so the gas
line can be easily disconnected for burner servicing. A
union may not be behind a wall. (Fig. 8) See the gas
specifications for pressure details and ratings.
The fireplace, when installed, must be elec-
trically connected and grounded in accord-
ance with local codes or, in the absence
of local codes, with the current CSA C22.1
Canadian Electrical Code or the national
electrical code ANSI/NFPA No. 70 in the
USA.
It is strongly suggested that the wiring of
the Electrical Junction Box be carried out
by a licensed electrician. The box should
be near the valve box assembly to plug the
cord into.
Ensure the power to the supply line has
been disconnected before commencing
this procedure.
Electrical Junction Box

8
Chateau™ Direct Vent Gas Fireplace
20011957
Control System
The gas control system is located on the right hand side
of the firebox behind an access panel and the decora-
tive brick panel. The fireplace is operated using only
the hand held remote control unit. The system wiring
diagram is shown in Figure 11. NOTE: If you choose
to install the battery back-up, Model DVTBBK, refer
to Item #16 in the next section.
Control System Installation
1. Locate the fireplace in the desired location.
2. Remove the glass. Refer to Glass Frame Assembly
Removal section.
3. If installed, remove the lava rock, volcanic rock,
andirons, embers and logs, making note of each
log’s location.
4. If installed, remove the refractory brick panel on
gas supply side.
5. Using a back-up wrench, disconnect the gas supply
fitting. (Fig. 7)
11. Connect a 120V AC electrical supply to the junc-
tion box duplex outlet. Use a Romex-type strain
relief connector when running wires out through the
box knockout. Replace the duplex outlet and cover
plate.
12. Plug the AC adaptor plug into the duplex outlet.
13. This control system must now be programmed to
the hand held remote control transmitter. To pro-
gram the remote control, make sure the 120V AC is
connected and powered to the fireplace.
14. Remove the battery door on the back of the hand
held remote control and install two (2) supplied
“AAA” batteries. Be sure to note correct polarity.
Replace battery door.
15. Locate the learn button on the main module. (Fig.
9) Press and release the learn button using a pencil
point. There will be a beep sound from the module.
Then press any key on the remote control transmit-
ter. Once the module’s internal receiver accepts the
transmitter code, there will be a series of confirming
beeps.
16. If you chose to install the optional back-up battery
pack (No. DVTBBK), you must install a wall box
from 3’ (914 mm) to within 15 feet (4.6 m) of the
fireplace. Assemble the connectors on one end of
the supplied extension wire harness to the mating
connectors on wire harness within the control box.
Make sure to connect black coded wire to black
and red coded wire to red.
17. The other end of the extension wire harness should
be connected to the wiring of the back-up battery
holder located within a wall box.
18. Insert the supplied four (4) “AA” batteries into the
battery older. Be sure to note correct polarity for
each battery.



Cover
Plate
Gas Sup-
ply Fitting
FP1801
Fig. 7 Disconnect gas supply fitting and remove 13 screws
securing the cover plate.
6. Remove pilot assembly from burner assembly by
removing two (2) screws.
7. Carefully slide the burner assembly out of the way,
taking care not to bend or break the pilot tubes or
wiring.
8. Remove 13 screws around the perimeter holding
large access panel on the side of the firebox.
9. Carefully pull back the panel just enough to gain
access to control box.
10. Connect the gas supply to the valve. (Fig. 8) Be
sure to use a back-up wrench when tightening sup-
ply fitting.



Gas Supply
Fitting
Learn Button
FP1802
Fig. 8 Connect gas supply to valve.
Pressure
Test
Ports

9
Chateau™ Direct Vent Gas Fireplace
20011957
Pilot
Main AF-4000
DC Motor
Red
Black
White or Green
Green or White
Orange or White
Black
Brown
Red
Orange
Main
Module
Black Gnd
Brown
Brown
Black
Red
(SWI)
(SWI)
Extension Harness
FP1795
Chateau wiring diagram
3/07
White or Orange
S I
AC Adaptor
Power
Module
To Pilot Ignitor
To Pilot
Flame Sensor
Remote Battery
Back-Up Pack
Red
Black
Learn
Button
Remote/Off
Switch
Continuous
Pilot ON/OFF
Switch
(Optional
ON/OFF Switch)
Pulse/Continuous
Button
FP1795
Fig. 9 DVT38S2 wiring diagram.
19. Mount electrical wall box containing back-up bat-
teries at a convenient location from 3’ (914 mm) to
15’ (4.6 m) of the fireplace. Cover wall box using a
blank wall plate.
20. The fireplace remote system is ready for use.
21. Reassemble access panel, burner assembly, gas
supply connector, brick panels, logs, embers,
andirons and lava rock in reverse order of removal.
(Refer to Log, Lava Rock and Ember Placement
section.
22. Turn on gas supply and check that all connections
are tight and leak free.
NOTE: If you need to test the inlet pressure and/or
manifold pressure, there are two (2) test ports available
along the front edge between the firebox side and outer
casing. The upper test port is inlet pressure. The lower
test port is manifold pressure. (Refer to Figure 8)
CAUTION: Turn off the gas supply before
removing test port plug.
23. Using a 7/16” nut driver, remove the threaded plug
from the test port.
24. Thread the supplied extension adaptor into the
open test port.
25. Attach a 1/4” diameter pressure gauge flexible hose
fully onto the barb of the adaptor.
26. Turn on gas supply and operate valve with remote
control as needed to indicate gas pressure.
CAUTION: Turn off the fireplace and gas
supply before removing test port adaptor
and replacing plug.
27. After test, remove extension adaptor and replace
plug securely.
28. Turn on gas supply and check that plugs are tight
and leak free.
Special Feature for Cold Climates
This gas control system has the option of a continu-
ous pilot feature. This allows the user to change from
a spark to pilot system to a standing pilot system for
direct vent appliances during cold climate conditions to
keep the firebox warm.
When the continuous pilot mode is activated and the
fireplace is turned ON, the pilot will spark and light.
When the fireplace is turned OFF, the pilot will stay ON
when the main burner shuts OFF.
The continuous pilot mode can be activated or de-acti-
vated by the hand held remote control transmitter.

10
Chateau™ Direct Vent Gas Fireplace
20011957

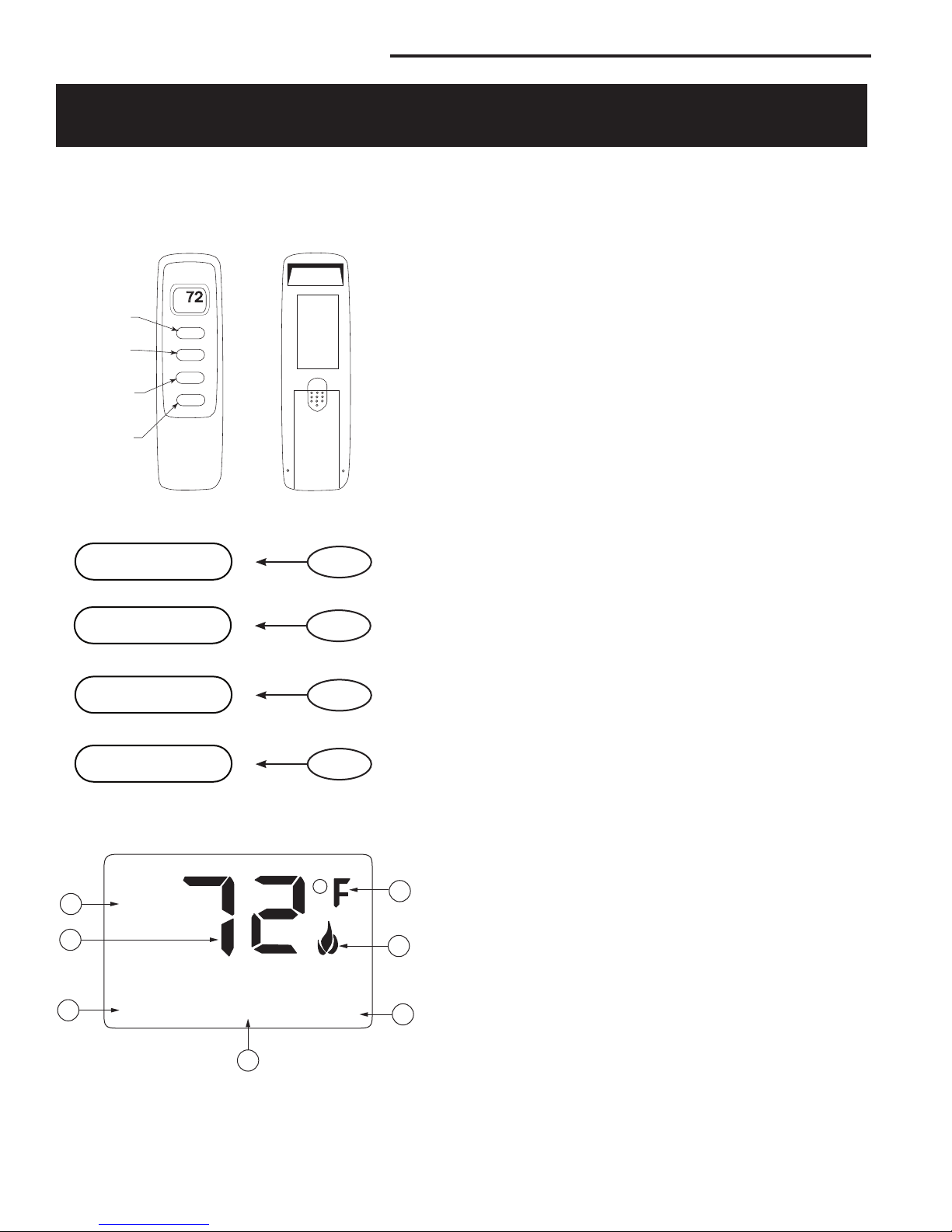

Remote Control Transmitter
Operating Instructions
Introduction
This transmitter operating range is approximately 20 feet (6 m). The transmitter operates on one of 1,048,576 security
codes that are programmed into the transmitter at the factory; this transmitter operates on radio frequencies with non-

ON H/L
OFF/CONTINUOUS
PILOT BUTTON
MODE
SET
Wall Clip
Slot
Battery
Compartment
FP1818
Skytech remote
9/07
Transmitter
On H/L
Button
Off
Continuous
Pilot Button
Mode Button
Set Button
FP1818
The transmitter operates on (2) 1.5V AAA batteries. It is recom-
mended that ALKALINE batteries always be used for longer
battery life and maximum operational performance.
Before using the transmitter, install the (2) AAA transmitter bat-
teries into the battery compartment. (Use caution that batteries
are installed in the proper direction.)
ON H/L 1
2
OFF
Continuous
Pilot
MODE 3
SET 4
Key Settings
1. ON H/L — Turns unit to ON and operates
the flame control HI or LO.
2. OFF
CONTINUOUS PILOT — Shuts the unit OFF and acti-
vates the continuous pilot on
feature.
3. MODE — Changes unit from manual
mode to thermostatic mode.
4. SET — Sets temperature in thermo
mode.

  
1
2
3
4
7
6
5
FP1819
LCD display
9/07
LCD - Liquid Crystal Display
1. DISPLAY Indicates CURRENT room temperature.
2. ° F or ° C Indicates degrees Fahrenheit or Celsius
3. FLAME Indicates burner/valve in operation
4. ROOM Indicates remote is in THERMOSTATIC mode
5. TEMP Appears during manual operation
6. SET Appears while setting the desired tem-
perature in the thermostatic mode
7. PILOT Appears in the Continuous Pilot mode

11
Chateau™ Direct Vent Gas Fireplace
20011957

 




 
FP1820
F-C display
9/07
Screen while de-
pressing ON key
Screen while de-
pressing OFF key
Screen after 3 sec-
ond default
Screen after 3 sec-
ond default
Screen whild de-
pressing OFF key Screen after 3
second default
Screen after de-
pressing MODE key Screen while de-
pressing SET key
Setting ° F / ° C Scale
The factory setting for temperature is ° F. To change this
setting to ° C;
Press the ON H/L key and the OFF CONTINUOUS PILOT
key on the transmitter at the same time. This will change
from ° F to ° C. Follow this same procedure to change from
° C to ° F.
Manual Function
To operate the system in the manual “MODE” do the follow-
ing:
ON - HI Flame Operation
Press and release the ON H/L key. The appliance flame will
come ON and display will show “HI”.
ON - LO Flame Operation
Press the ON H/L key. The appliance flame will modulate
down to low flame and display will show “LO”.
Changing Flame Height
Press and hold the ON H/L key to raise or lower the flame
height.
OFF Operation
Press the OFF Continuous Pilot key and the appliance
flame will shut off. During this time the LCD screen will show
“OF”. After 3 seconds, the LCD screen will default to display
room temperature and the word “TEMP” will also show on
the screen. (Flame icon will NOT appear on the LCD screen
in OFF mode)
Thermostat Function
Setting Desired Room Temperature
This remote control system can be thermostatically con-
trolled when the transmitter is in the THERMOSTATIC
mode. To set the MODE and DESIRED room temperature;
Press the MODE key until the LCD screen shows the word
“ROOM”. The remote is now in the thermostatic mode.
NOTE: When the word “ROOM” is displayed on the
screen, the transmitter is in the thermostatic mode.

12
Chateau™ Direct Vent Gas Fireplace
20011957

FP1821
set temp
9/07


  



To Change the Set Temperature
Press and hold the SET key until the desired set tem-
perature is reached. (By pressing and holding the set
key, the LCD screen set numbers will increase from 45°
to 99°, then restart at 45°)
Release the SET key. The LCD screen will display the set
temperature for 3 seconds, then will flash the set tem-
perature for 3 seconds, then the LCD screen will default
to display the room temperature.
To Disengage Thermostatic Mode
Press and release the MODE key or press the OFF
CONTINUOUS PILOT key to disengage the thermostatic
mode. The word “ROOM” on the LCD screen will not
show when the thermostatic mode is not in operation.
NOTE: The highest SET temperature is 99° Fahrenheit
(32° Celsius) and the lowest temperature is 45° Fahren-
heit (6° Celsius).
CONTINUOUS PILOT FEATURE
This feature allows you to change from a spark to pilot
system to a standing pilot system for appliances during
Cold Climate to keep the firebox warm.
To operate the CONTINUOUS PILOT FEATURE do the
following:
On or Off Operation
Press and hold the OFF CONTINUOUS PILOT key for
approximately 5 seconds, until the word “PILOT” appears
on the LCD screen.
NOTE: The word “PILOT” will appear on the LCD screen
in ON mode.
CP (CHILDPROOF) FEATURE
This SKYTECH remote control includes a CHILDPROOF
“LOCK-OUT” feature that allows the user to “LOCK-OUT”
operation of the appliance from the transmitter.
SETTING “LOCK-OUT” - (CP)
• To activate the “LOCK-OUT” feature, press and hold
the ON H/L key and the MODE key at the same time
for 5 seconds. The letters “CP” will appear in the
TEMP frame on the LCD screen.
• To disengage the “LOCK-OUT”, press and hold the
ON H/L key and the MODE key at the same time for
5 seconds and the letters “CP” will disappear from
the LCD screen and the transmitter will return to its
normal operating condition.
• To verify the transmitter is in the CP lock-out mode,
press any key and the LCD screen will show “CP”.
NOTE: If the appliance is already operating in the ON or THERMOSTATIC modes, engaging the “LOCK-OUT” will not
cancel the operating mode. Engaging the “LOCK-OUT” prevents only the manual operation of the transmitter. If in the
auto modes, the THERMOSTATIC operation will continue to operate normally. To totally “LOCK-OUT” the operation of
the transmitter’s operating signals; the transmitter’s mode must be set to OFF.

13
Chateau™ Direct Vent Gas Fireplace
20011957
Operational Notes:
The Thermostatic feature on the transmitter operates the appliance whenever the ROOM TEMPERATURE varies a
certain number of degrees from the SET TEMPERATURE. This variation is called the “SWING” or TEMPERATURE
DIFFERENTIAL. The normal operating cycle of an appliance may be 2-4 times per hour depending on how well the
room or home is insulated from the cold or drafts. The factory setting for the “swing number” is 2. This represents a
temperature variation of +/- 2° F (1° C) between SET temperature and ROOM temperature, which determines when
the fireplace will be activated. This function is pre-set at the factory.
The transmitter has ON and OFF manual functions that are activated by pressing either button on the face of the
transmitter. When a button on the transmitter is pressed the word “ON” or “OF” will appear on the LCD screen to show
while the signal is being sent. Upon initial use, there may be a delay of three seconds before the remote receiver will
respond to the transmitter. This is part of the system’s design.
NOTE: The fireplace receiver will only respond to the transmitter when the 2-position slide button on the module is
in the REMOTE position. If the system does not respond to the battery transmitter on initial use, refer to MATCHING
SECURITY CODES, and recheck battery positions in the remote receiver.
Thermostatic Updating Feature
This remote control has a THERMOSTATIC UPDATING feature built into its software. The THERMOSTATIC UPDAT-
ING feature operates in the following manner, while in the THERMOSTATIC mode.
The transmitter reads the ROOM temperature every 2 minutes checking the ROOM temperature against the SET
temperature and then sends a signal to the receiver.

14
Chateau™ Direct Vent Gas Fireplace
20011957
General Venting
Your fireplace is approved to be vented either through
the side wall, or vertical through the roof.
• Only CFM Corporation venting components spe-
cifically approved and labelled for this fireplace
may be used.
• Venting terminals shall not be recessed into a wall or
siding.
• Horizontal venting must be installed on a level plane
without an inclining or declining slope.
There must not be any obstruction such as bushes, gar-
den sheds, fences, decks or utility buildings within 24”
(610mm) from the front of the termination hood.
Do not locate termination hood where excessive snow
or ice build up may occur. Be sure to check vent termi-
nation area after snow falls, and clear to prevent ac-
cidental blockage of venting system. When using snow
blowers, make sure snow is not directed towards vent
termination area.
Location of Vent Termination
It is imperative the vent termination be located observ-
ing the minimum clearances as shown on following
page.

15
Chateau™ Direct Vent Gas Fireplace
20011957
V
V
V
V
V
V
V
X
X
X
D
E
B
B
B
C
B
M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I


Operable
Operable Fixed
Closed
V
B
CFM145a
DV Termin Location
5/01/01 Rev. 12/05/01
sta
INSIDE
CORNER DETAIL
V
A
G
N
N
CFM145a
General Venting Information - Termination Location
A = Clearance above grade, veranda, porch, 12” (30 cm) 12” (30 cm)
deck, or balcony
B = Clearance to window or door that may be 6” (15 cm) for appliances 6” (15 cm) for appliances
opened < 10,000Btuh (3kW), 12” (30 cm) < 10,000 Btuh (3kW), 9”
for appliances > 10,000 Btuh (3kW) and (23 cm) for appliances > 10,000
< 100,000 Btuh (30kW), 36” (91 cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30 cm) for
appliances > 50,000 Btuh (15kW)
C* = Clearance to permanently closed window 12” (305 mm) recommended to 12” (305 mm) recommended to
prevent window condensation prevent window condensation
D* = Vertical clearance to ventilated soffit located
above the terminal within a horizontal 18” (458 mm) 18” (458 mm)
distance of 2’ (610mm) from the center
line of the terminal
E = Clearance to unventilated soffit 24” (610 mm) 24” (610 mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner (see next page) see next page see next page
H = Clearance to each inside of center line 3’ (91 cm) within a height of 15’ (5m) 3’ (91 cm) within a height of 15’
extended above meter/regulator assembly above the meter/regulator assembly (5 m) above the meter/regulator
assy
I = Clearance to service regulator vent outlet 3’ (91 cm) 3’ (91 cm)
J = Clearance to nonmechanical air supply inlet 6” (15 cm) for appliances < 10,000 6” (15 cm) for appliances
to building or the combustion air inlet to any Btuh (3kW), 12” (30 cm) for < 10,000 Btuh (3kW), 9”
other appliances appliances > 10,000 Btuh (3kW) and < (23 cm) for appliances > 10,000
100,000 Btuh (30kW), 36” (91 cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for
appliances > 50,000 Btuh (15kW)
K = Clearance to a mechanical air supply inlet 6’ (1.83 m) 3’ (91 cm) above if within 10’
(3 m) horizontally
L = Clearance above paved sidewalk or paved 7’ (2.13 m)† 7’ (2.13 m)†
driveway located on public property
M = Clearance under veranda, porch, deck or 12” (30 cm)‡ 12” (30 cm)‡
balcony
N = Clearance above a roof shall extend a minimum of 24” (610 mm) above the highest point when it passes through the roof
surface, and any other obstruction within a horizontal distance of 18” (450 mm).
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes
† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and
serves both dwellings
‡ only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the floor:
NOTE: 1. Local codes or regulations may require different clearances.
2. The special venting system used on Direct Vent Fireplaces are certified as part of the appliance, with clearances tested and
approved by the listing agency.
3. CFM Corporation assumes no responsibility for the improper performance of the appliance when the venting system does not meet
these requirements.
Canadian Installations1 US Installations2

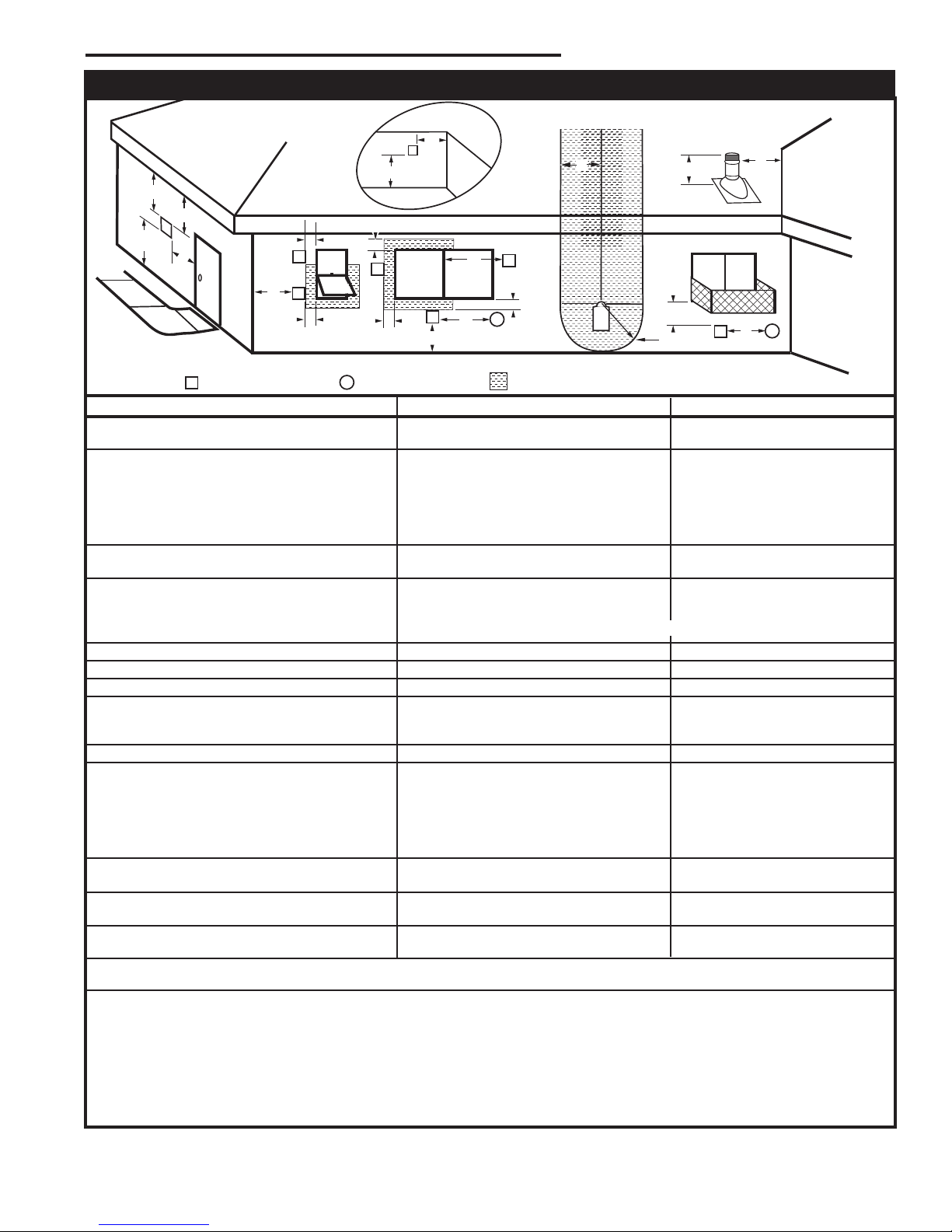

Fig. 10 Vent termination clearances.
*CAUTION: Clearances to soffit do not apply to “vinyl soffits”.
CFM145

16
Chateau™ Direct Vent Gas Fireplace
20011957
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 24" (610 mm)
P = 20” (508 mm)
M
F
Alcove Applications*
C
D
C
E
V
V
Combustible &
Noncombustible
V
V
V
E = Min. 6” (152 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O = 8’ (2.4 m) Min.
O
P
584-15
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All
mechanical air intakes within 10’ (1 m) of a termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All
gravity air intakes within 3’ (914 mm) of a termination cap must be a minimum of 1’ (305 mm) below the termination cap.
Fig. 11 Termination clearances.
General Information Assembling Vent Pipes
SK8 Venting Pipes
Canadian Installations:
The venting system must be installed in accordance
with the current CSA-B149 .1 installation code.
USA Installations:
The venting system must conform with local codes and/
or the current National Fuel Gas code ANSI Z223.1/
NFPA 54.
Only venting components manufactured by CFM Cor-
poration can be used in Direct Vent systems.
NOTE: The joints of the inner pipe (flue pipe) must be
taped with 550°F or higher temperature metal adhesive
tape that meets the requirements of F.A.R. 25.853(a).
High temperature sealant milpack or stove cement
of 550°F or higher could be used instead. The joints
of The outer pipe (fresh air pipe) must be taped with
315°F or higher temperature metal adhesive tape or the
use of high temperature milpack or stove cement would
be applicable. When using the unitized 30°, 45° or 90°
elbows, apply 1/4” bead of high temperature, 550°F or
higher, sealant (milpack or stove cement) to the joint of
the inner pipe (flue pipe) and the straight section as it is
impossible to be taped. The outer pipe must be taped
with 315°F high temperature metal adhesive tape for
proper sealing.
Start by attaching the first vent pipe section to the collar
on top of the fireplace. In order to attach the first pipe
section, it may be necessary to remove the top shield.
Remove four (4) screws securing top shield, install first
pipe section and replace top shield.
Install the pipe as shown in Figure 12. When you get a
good lock, you will hear the pipe clearly snap together.
Once sections are snap-locked in place, it is extremely
difficult to get them apart. Make sure the pipe is firmly
snapped and locked together as each pipe section is
mounted.
When installing elbows, follow the same procedure.
The joints of inner and outer elbow must be taped with
UL approved high temperature metal adhesive tape for

17
Chateau™ Direct Vent Gas Fireplace
20011957
Horizontal Termination
The vent must rise vertically a minimum of 24”
(610 mm) off the top of the unit, before the first elbow.
The horizontal run may extend up to 20’ (6 m) and
include a vertical rise of up to 40’ (12 m). (Fig. 14) Hori-
zontal termination must also meet the criteria shown in
Figures 10 & 11.
• Approved vent systems must terminate above and
including the heavy line in Figure 13.
• Two 45° elbows may be substituted for each single
90° elbow.
• With a rise between 2’ - 4’, one (1) 90° or two (2) 45°
elbows may be used.
Vertical Termination
A vertical vent system must terminate no less than 12’
(3.66 m) and no more than 40’ (12 m) above the appli-
ance flue collar. A 2’ (610 mm) vertical section must be
installed before any offset. A maximum of 20’ (6.1 m)
horizontal and three (3) 90° elbows may be installed
with a minimum of 12’ (3.66 m) vertical section above
the flue collar of the unit. Refer to Page 18, Figure 14
for more information.
A vertically terminated vent system must also conform
to the following criteria:
• No more than three (3) 90° elbows may be used.
• Two (2) 45° elbows may be substituted for one (1)
90° elbow. No more than six (6) elbows may be
used.




















                   
Vertical Run (in feet)
(Measured from the appliance flue collar to the top of the vent pipe.)
Horizontal Run (in feet)




















••••••••••••
••••••••••
• • ••• • • •• •••••••••••
• • • ••• • •••••••••
••••••••••
• •• • •• • ••• ••••••••••••••
May use up to
three (3) 90°
elbows, but must
not have two (2)
consecutive 90°
elbows in horizon-
tal plane
Unacceptable vent-
ing configuration
FP1359a
Fig. 13 Horizontal vent termination window.
May use
one (1)
elbow
only
proper sealing. Be sure to always attach straps on up-
per elbow to a structural framing member.
For vertical installations, continue installing the pipe as
required until pipe is installed up through the ceiling. At
this point, you must install a firestop spacer.
• Vent must rise a minimum of 2’ (610 mm) before
offset is used.
• Termination height must conform to roof clearance
as specified in Figure 37.
•• ••• •••••••
••••••••••••••
••••••••••••••••••••••••
• •• • • • • •
Pipe Section
Pipe
Rim
Pipe
Rim
Hem
Lance
FP1468
Fig. 12 Install pipe, listening for the snap-lock to fasten.
UP
Sidewall Applications
Since it is very important that the vent-
ing system maintain its balance between
the combustion air intake and the flue
gas exhaust, certain limitations as to vent
configurations apply and must be strictly
adhered to.
The vent graph showing the relationship between verti-
cal and horizontal side wall venting will help to deter-
mine the various dimensions allowable.
Minimum clearance between vent pipes
and combustible materials is 3¹⁄₂” (89 mm)
on top, 2¹⁄₂” (64 mm) on both sides and 1¹⁄₂”
(38 mm) on the bottom.

18
Chateau™ Direct Vent Gas Fireplace
20011957
When the vent termination exits through foundations
less than 20” (508mm) below siding outcrop, the vent
pipe must be flush with the siding.
It is always best to locate the fireplace in such a way
that minimizes the number of offsets and horizontal
vent length of vent pipe from the flue collar of the fire-
place to the face of the outer wall.
Horizontal plane means no vertical rise exists on this
portion of the vent assembly.
FP1453
DVT38s2
Top vent max run
3/17/04 djt
NOTE: Apply high temperature sealant or UL approved
high temperature metal adhesive tape as directed on Page
16.
14’ (4.3m)
Pipe Straps
Every 3’
(914mm) Firestop/Zero
Clearance Sleeve
Pipe
Straps
Every 3’
(914mm)
20’ (6m)
FP1453
Fig. 14 Support straps for horizontal runs.
Minimum 2’
(610mm) Section
Unitized Elbow
(SK890)
• The maximum number of 90° elbows per side wall
installation is three (3), but must not have two (2)
consecutive elbows in the horizontal plane.
• A minimum of 2’ (610mm) vertical section off the top
of the unit is required, an elbow and a 1’ (305mm)
maximum horizontal run to get through a wall. (Fig.
15)
• The maximum number of 45° elbows permitted per
side wall installation is two (2). These elbows can be
installed in either the vertical or horizontal run. (Fig.
15)
3'
(914mm)
FP1454
DVT38s2
horizontal plane
3/17/04 djt
2'
(610mm)
6'9"
(2080mm)
C
L
FP1454
Fig. 15 Minimum vertical run / maximum horizontal run.
Wall Opening
10'
(3m)
A
A + B = 17' (5.2m)
B
FP1238b
Fig. 16 Maximum vent run with elbows.
Example:
Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total angular variation = 270°
FP1455
Fig. 17 Maximum number of elbow degrees.
1
2
4
••••••••••••
••••••••••••••••••••••••••••••••
• • • • • • • • • •
• •••••••••••••
• •• • •• • ••• ••••••••••••••
3
STEP 1
Locate vent opening on the wall. It may be necessary
to first position the fireplace and measure to obtain hole
location. Depending on whether the wall is combustible
or noncombustible, cut opening to size. (Fig. 18)
For combustible walls first frame in opening.
Combustible Walls: Cut a 16¹⁄₄”H x 16¹⁄₄” W (413 x
413 mm) hole through the exterior wall and frame as
shown.
Noncombustible Walls: Hole opening must be 11¹⁄₄”
(286 mm) in diameter.
Sidewall Installation
• For each 45° elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by
18” (45 cm). This does not apply if the 45° elbows
are installed on the vertical part of the vent system.
For each 90° elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by
36” (914 mm).
• The maximum number of elbow degrees in a system
is 270°. (Fig. 17)

19
Chateau™ Direct Vent Gas Fireplace
20011957
STEP 2
Measure wall thickness and cut zero clearance sleeve
parts to proper length (MAXIMUM 12”/305 mm). As-
semble sleeve using #8 sheet metal screws (supplied).
(Fig. 19) Install firestop assembly. (Fig. 34)
VO584-100
Vent Opening
2/99 djt
Vent Opening for Combustible Wall
16¹⁄₄”
(413mm)
Fireplace Hearth
Framing
Detail
Vent Opening for Noncombustible Wall
11¹⁄₄”
(286mm)
VO584-100
Fig. 18 Locate vent opening on wall.
16¹⁄₄”
(413mm)
ZCS101
Zero Clearance Sleeve
3/11/99 djt
Adjustable Zero
Clearance Sleeve Max. Length
12” (305mm)
#8 Screws (2)
#8 Screws (2)
ZCS101a
Fig. 19 Adjustable zero clearance sleeve.
STEP 3
Slide the zero clearance sleeve through the wall and
install the firestop on the inside surface of the wall.
Secure with four (4) #8 sheet metal screws.
STEP 4
Place fireplace into position. (Fig. 20) Measure the ver-
tical height (X) required from the base of the flue collars
to the center of the wall opening. NOTE: If using the
SK8DVSK Kit, the vertical section of pipe is telescopic
and could provide adjustment from 24” up to 40” (610
mm to 1016 mm).
Zero clearance sleeve is only required for
combustible walls.
STEP 5
Tape the inner and outer flue collars of the fireplace
using UL approved metal adhesive tape to ensure the
joints are sealed. Attach an appropriate length of vent
pipe to the fireplace. Follow with the installation of the
inner and outer elbow, tape elbow joints and secure
joints as described on Page 16.
STEP 6
Measure the horizontal length requirement including
a 2” (51 mm) overlap, ie from the elbow to the outside
wall face plus 2” (51 mm) (or the distance required if
installing a second 90° elbow). (Fig. 21)
Always install horizontal venting on a level
plane.
X
FP1456
Fig. 20 Vertical height requirement.
Firestop
Zero Clear-
ance Sleeve
STEP 7
Use appropriate length of pipe sections and install the
horizontal vent sections. You may need to cut 1’ wall
section to size to be flush with the outside wall. The
sections which go through the wall are packaged with
the starter kit, and can be cut to suit if necessary. (Fig.
22)
Sealing firestop gaps with high temperature sealant
will restrict cold air being drawn in around fire-
place.
STEP 8
Guide the vent terminations 8” and 11” collars into their
respective vent pipes. Double check that the vent pipes
overlap the collars by 2” (51 mm). Secure the termina-
tion to the wall with screws provided and caulk around
the wall plate to weatherproof. (Fig. 23) As an alterna-
tive to screwing the termination directly to the wall you
may also use expanding plugs or an approved exterior
construction adhesive.

20
Chateau™ Direct Vent Gas Fireplace
20011957
FP1458
Fig. 22 Through the wall.
FP1457
Fig. 21 Horizontal length requirement.
X
FP1460
Fig. 23 Secure termination to wall.
Support horizontal pipes every 3’ (914 mm)
with metal pipe straps.
Check fireplace to make sure it is levelled
and properly positioned.
Sidewall Installation with
Stationary Glass Facing Outside
CAUTION: Unit must be installed with station-
ary glass facing outside. (Control housing will be
located on the left side of the unit when facing the
unit from inside the house.)
Failure to do so will result in a major reconstruction
and CFM Corporation will not be responsible for
costs associated with incorrect installation..
STEP 1
Locate vent opening on the wall. It may be necessary
to first position the fireplace and measure to obtain hole
location. Depending on whether the wall is combustible
or noncombustible, cut opening to size. (Fig. 18)
For combustible walls first frame in opening.
Combustible Walls: Cut a 16¹⁄₄”H x 16¹⁄₄” W (413 x 413
mm) hole through the exterior wall and frame as shown.
Noncombustible Walls: Hole opening must be 11¹⁄₄”
(286mm) in diameter.
STEP 2
Measure wall thickness and cut zero clearance sleeve
parts to proper length (MAXIMUM 12”/305 mm). As-
semble sleeve using #8 sheet metal screws (supplied).
(Fig. 19) Install firestop assembly. (Fig. 34)
Zero clearance sleeve is only required for
combustible walls.
STEP 3
Slide the zero clearance sleeve through the wall and
install the firestop on the inside surface of the wall.
Secure with four (4) #8 sheet metal screws.
STEP 4
Place fireplace into position. (Fig. 20) Measure the
vertical height (X) required from the base of the flue
collars to the center of the wall opening. NOTE: If using
the SK8DVSK Kit, the vertical section of pipe is tele-
scopic and could provide adjustment from 24” up to 40”
(610mm to 1016mm). Through the wall section shipped
with the starter kit will not be used when going through
the wall.
STEP 5
Tape the inner and outer flue collars of the fireplace
using UL approved metal adhesive tape to ensure the
joints are sealed. Attach an appropriate length of vent
pipe to the fireplace. Follow with the installation of the
inner and outer elbow, tape elbow joints and secure
