Verona VECTGV365SS User manual

VECTGV304SS
VECTGV365SS

ENGLISH
Installation Manual
3
Table of Contents
Page
Special Warnings .............................................................. 4
Product Dimensions and Cutout Requirements............. 5
Important Preparation Suggestions ..................................... 5
Mobile Home Installation..................................................... 7
Cooktop Installation.......................................................... 8
Gas Requirement ............................................................ 10
Gas Connection ................................................................ 11
Pressure Testing ............................................................... 13
Electrical Requirements ................................................. 14
General Information .......................................................... 14
Electrical Connection ........................................................ 14
Electrical Requirements .................................................... 14
Conversion for LP or NG Gas ........................................ 16
Converting Appliance for Use with LP Gas ....................... 16
Converting Appliances for Use with NG Gas..................... 17
Low Flame Adjustment...................................................... 19
Electric gas ignition ........................................................... 20
Pay attention to these symbols present in this
manual:
DANGER
You can be killed or seriously injured if you don't
IMMEDIATELY follow instructions.
WARNING
 This is the safety alert symbol. This symbol
alerts you to potential hazards that can kill or
hurt you and others.
 You can be killed or seriously injured if you
don't follow these instructions.
READ AND SAVE THESE INSTRUCTIONS.
To installer:
Leave these instructions with the appliance.
To customer:
Retain these instructions for future reference.
WARNING
 If the information in this manual is not followed
exactly, a fire or explosion may result in per-
sonal injury or death.
 Do not store or use gasoline or other flamma-
ble vapours and liquids in the vicinity of this or
any other appliance.
IMPORTANT: Save these instructions for the local electrical inspector use.
INSTALLER: Please leave this manual with owner for future reference.
OWNER: Please keep this manual for future reference.

ENGLISH
Installation Manual
4
IMPORTANT
Special Warnings
Please read all instructions before using this appliance.
Proper installation is your responsibility. Have a quali-
fied technician install this cooktop.
Important:
 Observe all governing codes and ordinances.
 Write down the model and serial numbers before
installing the cook top. Both numbers are on the
serial rating plate located on bottom of cooktop
box.
Before Starting Installation
 Check location where cooktop will be installed.
The location should be away from strong drafty
areas, such as windows, doors and strong heating
vents or fans.
 Electrical grounding is required.
See "Electrical Requirements"
 Assure that electrical installation is adequate and
in conformance with National Electrical Code,
ANSI/NFPA 70 - latest edition**, or Canadian
Electrical Code, part 1 C22.1 (latest edition)***
and all local codes and ordinances.
 Assure that gas connection conforms with local
codes and ordinances. In the absence of local
codes, installations must conform with American
National Standard, National Fuel Gas Code ANSI
Z223/NFPA 54 - latest edition** Canadian
CAN/CGA_B 149.1 or CAN/CGA-149.2 latest edi-
tion**
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch Park
Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd. Cleveland, OH
44131-5575
NOTE:
This cooktop is manufactured for use with Natural gas
or Propane.
To convert to LP (propane) or NG (natural gas), see
instruction in the gas conversion kit provided in litera-
ture package. Proper gas supply connection must be
available. See gas supply requirements.
WARNING
BEFORE CONNECTING THE APPLIANCE ON
THE GAS LINE SUPPLY, ENSURE THAT ITS
GAS SETTING IS APPROPRIATE.
THE TYPE OF GAS ADJUSTED AND SHIPPED
FROM THE FACTORY IS INDICATED ON THE
RATING PLATE LOCATED ON BOTTOM OF
THE BURNER BOX.
Cooktop Installed over Oven Installation
Only certain specified cooktop and oven models are
approved for cooktop over oven installations.
Cooktops approved for this type of installation will
have an approval label located on the outside of the
burner box.
If you do not find this label, contact your dealer to con-
firm that cooktop is approved.
The label on the bottom of your cooktop lists the cook-
top and oven combinations that are approved for this
type of installation.

ENGLISH
Installation Manual
5
Product Dimensions and Cutout Requirements
Important Preparation Suggestions
1. Chamfer all exposed edges of decorative laminate
to prevent damage from chipping.
2. Radius corners of cutout and file to Insure
smooth edges and prevent corner cracking.
Recommend 1/4"or 3/8" diameter drill In each
corner.
3. Rough edges, inside corners which have not been
rounded and forced fits can contribute to cracking
of the countertop laminate.
Figure 1. Product dimensions
Figure 2. Coutout dimensions
CUT OUT
WIDTH A B C D
30” MIN.28-1/2”
(72.4 cm)
MAX.29”
(73.6 cm)
MIN 19”
(48.3 cm)
MAX 19-5/8”
(49.8m cm)
2-1/2”
(6.35 cm)
MIN 1-1/2”
(3.8 cm)
36” MIN 34-1/2”
(87.6 cm)
MAX 35”
(88.9 cm)
MIN 19”
(48.3 cm)
MAX 19-5/8”
(49.8m cm)
2-1/2”
(6.35 cm)
MIN 1-1/2”
(3.8 cm)
30-3/4”
(78.2 cm)
21”
(53.4cm)
4”
(10.2 cm)
2-13/16”
(7.1 cm)
7-3/16”
(18.4 cm)
30”
36-3/4”
(93.3 cm)
21”
(53.4 cm)
4”
(10.2 cm)
2-13/16”
(7.1 cm)
7-3/16”
(18.3 cm)
36”
Product Dimensions and Cutout Requirements
Important Preparation Suggestions
1. Chamfer all exposed edges of decorative laminate
to prevent damage from chipping.
2. Radius corners of cutout and file to Insure
smooth edges and prevent corner cracking.
Recommend 1/4"or 3/8" diameter drill In each
corner.
3. Rough edges, inside corners which have not been
rounded and forced fits can contribute to cracking
of the countertop laminate.
Figure 1. Product dimensions
Figure 2. Coutout dimensions
CUT OUT
WIDTH A B C D
30” MIN.28-1/2”
(72.4 cm)
MAX.29”
(73.6 cm)
MIN 19”
(48.3 cm)
MAX 19-5/8”
(49.8m cm)
2-1/2”
(6.35 cm)
MIN 1-1/2”
(3.8 cm)
36” MIN 34-1/2”
(87.6 cm)
MAX 35”
(88.9 cm)
MIN 19”
(48.3 cm)
MAX 19-5/8”
(49.8m cm)
2-1/2”
(6.35 cm)
MIN 1-1/2”
(3.8 cm)

ENGLISH
Installation Manual
6
Figure 3. Cutout requirements
A 13” (33 cm) Depth of unprotected overhead cabinets.
B 30” (76.2 cm) MIN. (Model 30“).
36” (91.4 cm) MIN. (Model 36”).
C 18” (47.7 cm) MIN. Height from countertop to nearest cabinet on either side of unit.
D 30” (76.2 cm ) MIN. (see Note*) Clearance from countertop to unprotected overhead surface.
E 5” (12.7 cm) min Clearance from cut out to side wall on the left and right of the unit.
F From the back corner of cut-out to hole center 2-9/32” (5.8 cm).
G From the right corner of cut-out to hole center 2-19/32” (6.6 cm).
H From the back corner of cut-out to hole center 2-9/32” (5.8 cm). Opening with oven under cooktop.
I From the top of countertop to hole center 4-25/32” (12.2 cm). Opening with oven under cooktop.
L Electric outlet from bottom of counter top and adjacent to the cabinet side 12” (30.5 cm).
– Hole 1-1/5” (3 cm).
* NOTE:
- If cabinet has a drawer, a 5-1/4"(13,35 cm) depth clearance from the top of the countertop to the top of the
drawer (or other obstruction) in base cabinet is required. The drawer depth may need to be shortened to avoid in-
terfering with the regulator.
- 24" (61 cm) min. clearance if bottom of wood or metal cabinets is protected by not less than 1/4" (0.6 cm) flame
retardant millboard covered with not less than No. 28 MSG sheet steel 0.015" (0.04 cm) stainless steel, or 0.024"
(0.06 cm) aluminium or 0.020" (0.05 cm) copper. 30" (76.2 cm) min. clearance between top of cooking platform
and bottom of unprotected wood or metal cabinet.

ENGLISH
Installation Manual
7
This cooktop has been designed with wide toler-
ances of cut-out to cover possible replacement
with other brands.
We recommend to that you consider the minimum
dimension of cut-out size �n the case of new �n-
stallation.
Some cut out sizes for possible replacements:
Mod. Inches Centimeters
30” 28-1/2" x 19 15/16" 72.4 x 50.6
36” 34-1/2" x 19 15/16" 87.6 x 50.6
Mobile Home Installation
The installation of this cooktop must conform to the
Manufactured Home Construction and Safety Stan-
dards, Title 24 CFR, Part 3280 (formerly the Federal
Standard for Mobile Home Construction and Safety;
Title 24 HUD part 280); or when such standard is not
applicable, the Standard for Manufactured Home In-
stallations (Manufactured Home Sites, Communities
and Setups), ANSI A225.1 - latest edition, or with local
codes.
In Canada, the installation of this cooktop must con-
form with the current standards CAN/CSA-Z240 - lat-
est edition, or with local codes.
Important:
 For solid surface material installations such as
Surel™ and Corian®, consult with solid surface
manufacturer. Apply heat reflective tape such as
Scotch® Aluminum Foil Tape #425 or #427
around the cutout so that it folds over on the top
and sides.
 DO NOT WRAP THE TAPE UNDERNEATH THE
COOKTOP.
 Be sure the tape extends beyond the outermost
flange of the cooktop. All corners should be cov-
ered with tape.

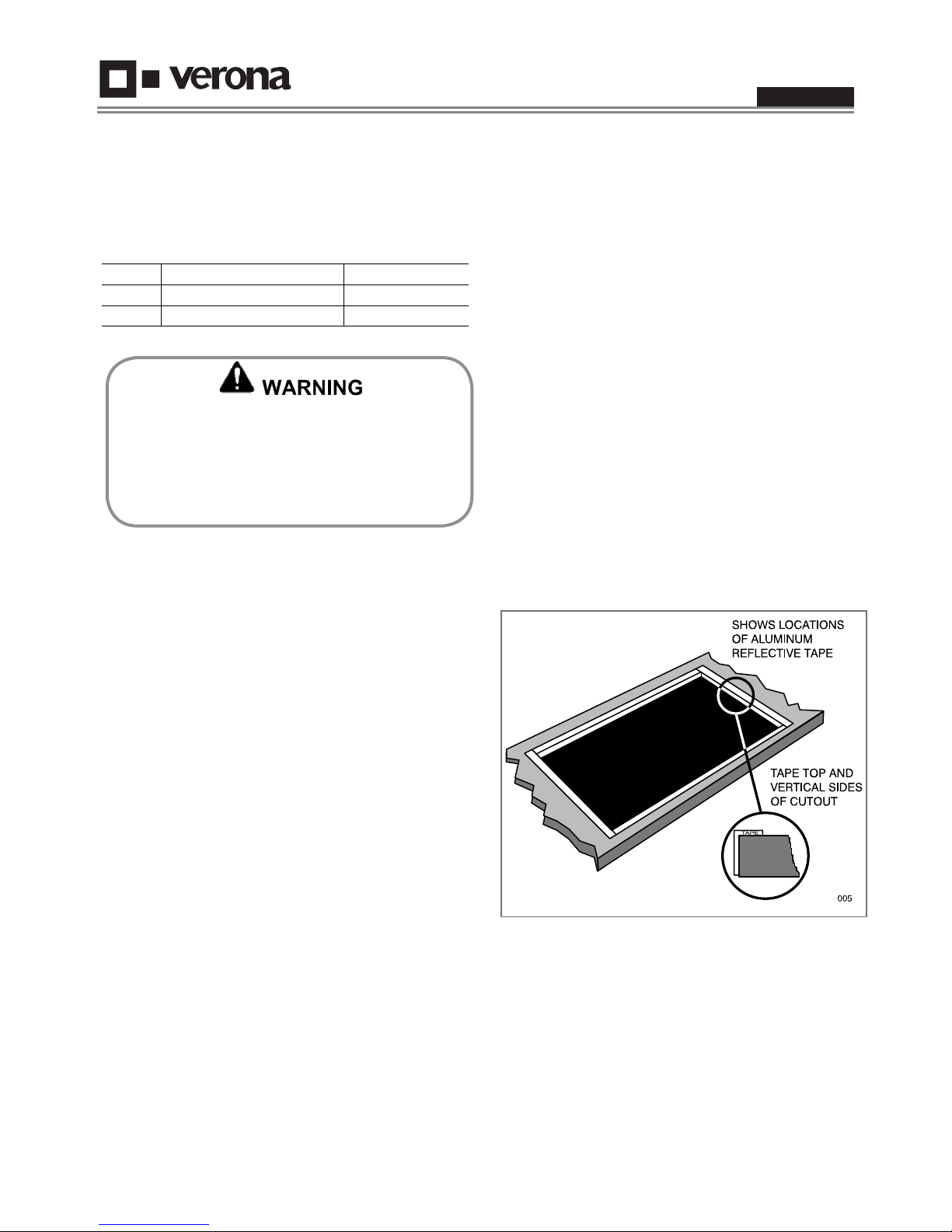

Figure 4. Solid surface countertop installation
The appliance should not be installed with a
ventilation system that blows air downward
toward the range. This type of ventilation system
may cause ignition and combustion problems
with the gas cooking appliance resulting in
personal injury or unintended operation.

ENGLISH
Installation Manual
8
Cooktop Installation
WARNING
 Excessive Weight Hazard
Use two or more people to move and install cook-
top.
Failure to do so can result in back or other injury.
 Cut Hazard
Beware of sharp edges. Use the polystyrene ends
when carrying the product. Failure to use caution
could result in minor injury or cuts.
 Always consult the countertop manufacturer for
specific instructions.
 Ensure the countertop is square and level and en-
sure no structural members interfere with space
requirements.
 Prepare the cut-out according to the instructions
(see cut-out dimensions).
 Make sure the wall coverings, countertop and
cabinets around the cooktop can withstand heat
(up to 200 °F).
006
Figure 5. Tools you will need
Step 1
Remove packaging materials and literature package
from the cooktop before beginning installation.
Remove Installation Instructions from literature pack
and read them carefully before you begin.
Figure 6. Parts
MANUAL
GASKET
GAS CONVERSION
KIT
SIMMER PLATE
PRESSURE
REGULATOR
TOP PACKAGING
COOKTOP
GRID
BOTTOM
PACKAGING
CARDBOARD

ENGLISH
Installation Manual
9
Step 2
Before installing apply the foam tape.
A tape is provided to seal the cooktop edges to the
countertop. Apply tape near inner underside cooktop
edge.
Use tape around the entire cooktop perimeter.
Cut off excess where tape butt ends.
Figure 7.
Step 3
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the counter top is parallel
to the cooktop. Make final check that all required
clearances are met.
Figure 8.
Step 4
Four clamp brackets are provided with your unit.
After cooktop has been installed into the countertop,
install the brackets on the burner box as shown in fig-
ure 9.
Install the clamp brackets on the front and back of the
burner box bottom (if the cabinet construction does
not provide clearance for installing brackets at the
burner box front back install the clamp brackets on the
lateral position of burner box).
step A place the clamping screws into brackets
step B attach brackets by using the attachment
screws on the selected location of burner box, tighten
screws just enough to hold brackets in place
step C position brackets so that they are with the
clamp screw in contact with the counter top bottom
step D tighten attachment screws securely.
step E check that the front edge of the cooktop is
parallel to the front edge of the countertop tighten the
screw clamping against the countertop.
DO NOT OVER TIGHTEN
Figure 9.

ENGLISH
Installation Manual
10
Gas Requirement
A QUALIFIED SERVICE MAN OR GAS APPLIANCE
INSTALLER MUST MAKE THE GAS SUPPLY
CONNECTION.
Leak testing of the appliance shall be conducted by
the installer according to the instructions given.
WARNING
If the line pressure supplying the appliance pres-
sure regulator exceeds 14 inches W.C. (any gas),
an external regulator must be installed in the gas
line ahead of the appliance regulator to reduce the
pressure to no more than 14 inches W.C. Failure
to do this can result in malfunction and damage to
the appliance.
Important Notes for Gas Connection
The appliance and its individual gas shutoff valve
must be disconnected from the gas supply piping sys-
tem during any pressure testing of that system at test
pressures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psi (3.5 kPa).
All supply piping, except as noted, should use com-
mon National Pipe Thread (N.P.T.). For all pipe con-
nections use an approved pipe joint compound resis-
tant to the action of LP gas.
This appliance is designed for use with NG gas or LP
gas.
The gas pressure regulator is supplied with this appli-
ance. It must be installed in the gas way ahead of the
manifold entrance. It is pre-set for use with natural
gas. To use it with different gas it must be converted,
as described in the Gas conversion paragraph (see
figure 17 and 18).
If at any time the appliance is to be used with a differ-
ent type of gas, all the conversion adjustments must
be made by a qualified technician before attempting
to operate the cooktop on that gas.
The gas should be supplied to the appliances pres-
sure regulator, at line pressure between 6 and 14
inches of water column for NG, and between 11 and
14 inches of water column for LP.
Important:
 NEVER REUSE OLD CONNECTORS WHEN IN-
STALLING THIS COOKTOP.
To reduce the likelihood of gas leaks, apply teflon
tape or a thread compound approved for use with
LP or Natural gases to all threaded connections.
Apply a non-corrosive leak detection fluid to all
joints and fittings in the gas connection between
the supply line shut-off valve and the cooktop
inlet.
Check for leaks!
Bubbles appearing around fittings and connec-
tions will indicate a leak. If a leak appears, turn off
supply line gas shut-off valve, tighten connections,
turn on the supply line gas shutoff valve, and re-
test for leaks. Never test for gas leaks with an
open flame.
 NEVER TIGHTEN TO MORE THAN 35 ft lbs OF
TORQUE.

ENGLISH
Installation Manual
11
Gas Connection
 Thread the appliances pressure regulator with
1/2” male end connection both supplied with this
appliance.
 Make the gas connection to the inlet of the pres-
sure regulator with 1/2” male pipe threads.
 Join the pressure regulator to the entrance
threads of the Gas Manifold with gasket supplied
with this appliance. The regulator is marked with a
directional arrow indicating correct direction of gas
flow. Ensure the appliance regulator is installed
with the arrow pointing toward the gas manifold
entrance and make sure the top of the regulator is
facing towards the cabinet front, easily accessible
through the cabinet doors.
 Connect a manual shut-off valve to the gas supply
in an accessible location for turning on or shutting
off gas to the appliance.
 Install a coupling between the regulator and the
shutoff valve to complete the connection.
 Assure all pipe joint connections are gas tight.
 Check alignment of valves after connecting the
cooktop to the gas supply to be sure the manifold
pipe has not been moved.
A misalignment could cause the valve knob stem
to rub on the control panel, resulting in a gas leak
at the valve.
If an oven is to be installed below this appliance con-
nect gas supply line as shown in figure 10 consider
the below cabinet clearance.
Figure 10.
012
ILLUSTRATIVE GAS SUPPLY PIPING
(NO OTHER APPLIANCE BELOW
COOKTOP)
BURNER BOX
(REAR OF APPLIANCE)
GASKET
FLARE UNION
ADAPTOR
APPLIANCE
PRESSURE
REGULATOR
ALL PIPE JOINTS
1/2" N.P.T.
GAS
MANIFOLD
SHUTOFF
VALVES
Figure 11.

ENGLISH
Installation Manual
12
FOR ALTERNATIVE PIPING METHODS TO CON-
NECT THE APPLIANCE TO THE GAS SUPPLY, A
TRAINED SERVICE MAN OR GAS APPLIANCE IN-
STALLER MUST MAKE THE GAS SUPPLY�CON-
NECTION. Leak testing of the appliance shall be
conducted by the Installer according to the In-
structions given.
Unless prohibited by local codes or ordinances, a new
A.G.A. - Certified, flexible metal appliance connector
may be used to connect this appliance to its gas sup-
ply. The connector must have an internal diameter not
less than nominal 1/2” NPT pipe and be no more than
5 feet in length. A 1/2” NPT x 1/2” flare union adapter
is required at each end of the flexible connector.
If a flexible connector is used assure that both the ap-
pliance pressure regulator and manual shut-off valve
are joined solidly to other permanent hard piping (ei-
ther gas supply or the appliance manifold) so as to be
physically stationary. See figure 12.
CAUTION
Do not attempt to attach the flexible connector directly
to an external pipe thread.
Connection requires flare union adapters.
For Massachusetts Installations:
1. Shut-off valve must be a "T" handle gas cock.
2. Flexible gas connector must not be longer than 36
inch.
3. Not approved for installation in a bedroom or a
bathroom unless unit is direct vent.
MANIFOLD
ENTRANCE
GASKET GASKET
FLARE
UNION
ADAPTOR
FLARE UNION
ADAPTOR 1/2" NPT
PIPE NIPPLE
ELBOW
1/2" NPT
PIPE NIPPLE
1/2" NPT PIPE
(STATIONARY
SUPPLY PIPE)
1/2" NPT PIPE
(STATIONARY
SUPPLY PIPE)
NO APPLIANCE
MOUNTED BELOW
THIS COOKTOP
WALL OVEN MOUNTED
IN CABINETRY BELOW
THIS COOKTOP
GAS
SHUT-OFF
VALVE
GAS
SHUT-OFF
VALVE
FLEXIBLE
APPLIANCE
CONNECTOR
5 FT. MAX
(1.52 m) MAX
()
FLEXIBLE
APPLIANCE
CONNECTOR
5 FT. MAX
(1.52 m) MAX
()
FLARE
UNION
ADAPTOR
FLARE
UNION
ADAPTOR
FLARE
UNION
ADAPTOR
APPLIANCE
PRESSURE REGULATOR,
SUPPLIED (OBSERVE
DIRECTIONALITY
OF GAS FLOW)
APPLIANCE
PRESSURE
REGULATOR,
SUPPLIED (OBSERVE
DIRECTIONALITY
OF GAS FLOW)
013
Figure 12.

ENGLISH
Installation Manual
13
Pressure Testing
The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 PSIG (3.5 kPa).
This appliance, as well as its individual shut-off valve,
must be disconnected from the gas supply piping sys-
tem during any pressure testing of the system at test
pressures in excess of 1/2 PSIG (3.5 kPa).
When checking appliance regulator function, make
certain pressure of natural gas supply is between 6
and 14 inches of water column or, if converted for LP
gas, between 11 and 14 inches.
THE PRESSURE TESTING SHOULD BE PER-
FORMED BY MEANS OF THE INJECTOR THREAD
ZONE
Figure 13.
Pressure Test Method
 Remove grate and burner cap
 Remove aluminum gas spreader
 Temporarily remove the injectors
 Connect the pressure Test instrument into injector
holder thread zone (M6x0,75)
 Check if the cooktop has the correct pressure
 Fix the injector removed for testing and replace
the parts in the right position.
1
Gas test inlet
Thread

ENGLISH
Installation Manual
14
Electrical Requirements
General Information
This appliance must be supplied with the proper volt-
age and frequency and connected to an individual,
properly grounded branch circuit, protected by a cir-
cuit breaker or fuse having amperage as noted on the
rating plate. We recommend you have the electrical
wiring and hookup of your cooktop connected by a
qualified electrician.
After installation, have the electrician show you where
your main cooktop disconnect is located. Check with
your local utilities for electrical codes which apply in
your area. Failure to wire your cooktop according to
governing codes could result in a hazardous condi-
tion.
If there are no codes, your cooktop must be wired and
fused to meet the requirements of the National Elec-
trical Code, ANSI/NFPA No. 70 - Latest edition. You
can get a copy by writing:
National Fire Protection Association
Battery march Park
Quincy. MA 02269
In Canada your cooktop must be wired and fused to
meet the requirements of the Canadian Electrical
Code.
Be sure the installation of this product in a mobile
home conforms with the Manufactured Home Con-
struction and Safety Standard, Title 24 CFR, Part
3280.
If this standard does not apply, you must follow the
standard for Manufactured Home Installations, ANSI
A225.1 and Manufactured Home Installations, Sites
and Communities and ANSI/NFPA 501A or with local
codes.
You can get a copy of the Federal Standard by Writ-
ing:
Office of Mobile Home Standards
HUD Building
451 7th Street, S.W.
Washington, D.C. 24010
Figure 13a. Location of rating plate
Electrical Connection
An adequate electrical supply and outlet must be used
to operate the electrical parts of your cooktop.
WARNING
Electrical Grounding Instruction
Plug into a grounded 3 prong outlet. Do not re-
move ground
prong. Do not
use an adapter.
Do not use an
extension cord.
Failure to follow
these instruc-
tions can result
in death, fire, or
electrical shock.
Important:
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with a 3-
prong (grounding) plug which must be used with a
properly grounded 3-hole outlet with a standard 120
Volt, 60 cycle AC household current. If you do not
have a 3-hole grounded outlet, have a qualified elec-
trician change your old one. A grounding adaptor will
be needed to convert the old one until the outlet can
be replaced. This method is only temporary, and a
qualified electrician should test it to be sure it meets
requirements.
Electrical Requirements
Do not under any circumstances cut or remove
grounding prong from the cooktop cord.
015
Figure 14.
GROUNDING PRONG
GROUNDING PRONG

ENGLISH
Installation Manual
15
Figure 15. Wiring diagram (30” wide)
Figure 16. Wiring diagram (36” wide)

ENGLISH
Installation Manual
16
Conversion for LP or NG Gas
Converting Appliance for Use with LP Gas
WARNING
Conversion is to be performed by a AUTHOR-
IZED SERVICER (or other qualified agency) in
accordance with the manufacturer's instructions
and all codes and requirements of the authority
having jurisdiction. Failure to follow instructions
could result in serious injury or property damage.
The qualified agency performing this work as-
sumes responsibility for this conversion.
WARNING
Electrical power and gas must be turned off
prior to conversion.
If this appliance should be converted for use with gas
LP (propane or butane), each of the following modifi-
cation must be performed:
Replace injector on (one ring flame burners)
1. Remove the grates and burner cups.
2. Remove aluminum gas spreader.
3. Loosen injector by turning 9-32” nut driver counter
clockwise.
4. Install the injectors supplied with this appliances in
the appropriate burner. The injectors have small
number stamped on the side, this number codes
the orifice diameter and its correct burner location
(see figure on page 18).
5. Turn clockwise to tighten (tighten to a torque of 15
to 20 inch-lbs).
6. Replace all parts following the reverse order.
7. Save the orifices removed from the appliance
for future use.
Figure 17.
1

ENGLISH
Installation Manual
17
Converting Appliances for Use with NG
Gas
If this appliance should be converted for use with gas
NG (natural gas), each of the following modifications
must be performed.
1. Replace all injectors following the step described
on page 18, observe the number stamped on the
side, this number codes the orifice diameter and
its correct burner location (following the illustration
of injectors position).
2. Convert the pressure regulator on LP position (fol-
lowing the illustration of pressure regulator con-
version).
3. Adjust the burner flame (see Low Flame Adjust-
ment paragraph).
Check the appearance of each burner’s flame at HI-
LO settings, if the flame appearstoo large or too small
make sure that all steps were completed correctly.
Pressure regulator conversion
The appliances is designed for use with NG gas or LP
gas. The gas pressure regulator is supplied. It must
be installed in the gas way ahead of manifold en-
trance. It is pre-set for use with the gas supplied with
the appliances. For use with different gas must be
converted.
For the pressure regulator conversion following
the below instructions:
 Disconnect all electrical power, at the main circuit
breaker or fuse box.
 Shut off the gas supply to the cooktop by closing
the manual shut-off valve.
 Adjust the pressure regulator, by following the in-
struction (see figure)
1. Unscrew the regulator cap
2. Unscrew the plastic conversion plug from the cap
turn over and screw back (wide section away from
cap for LP and against cap for NG) see figures
below.
3. Replace the cap regulator.
Before replace the regulator cap.
Check the position of plug.
Suitable for the gas converted.
Figure 20. Pressure regulator conversion

ENGLISH
Installation Manual
18

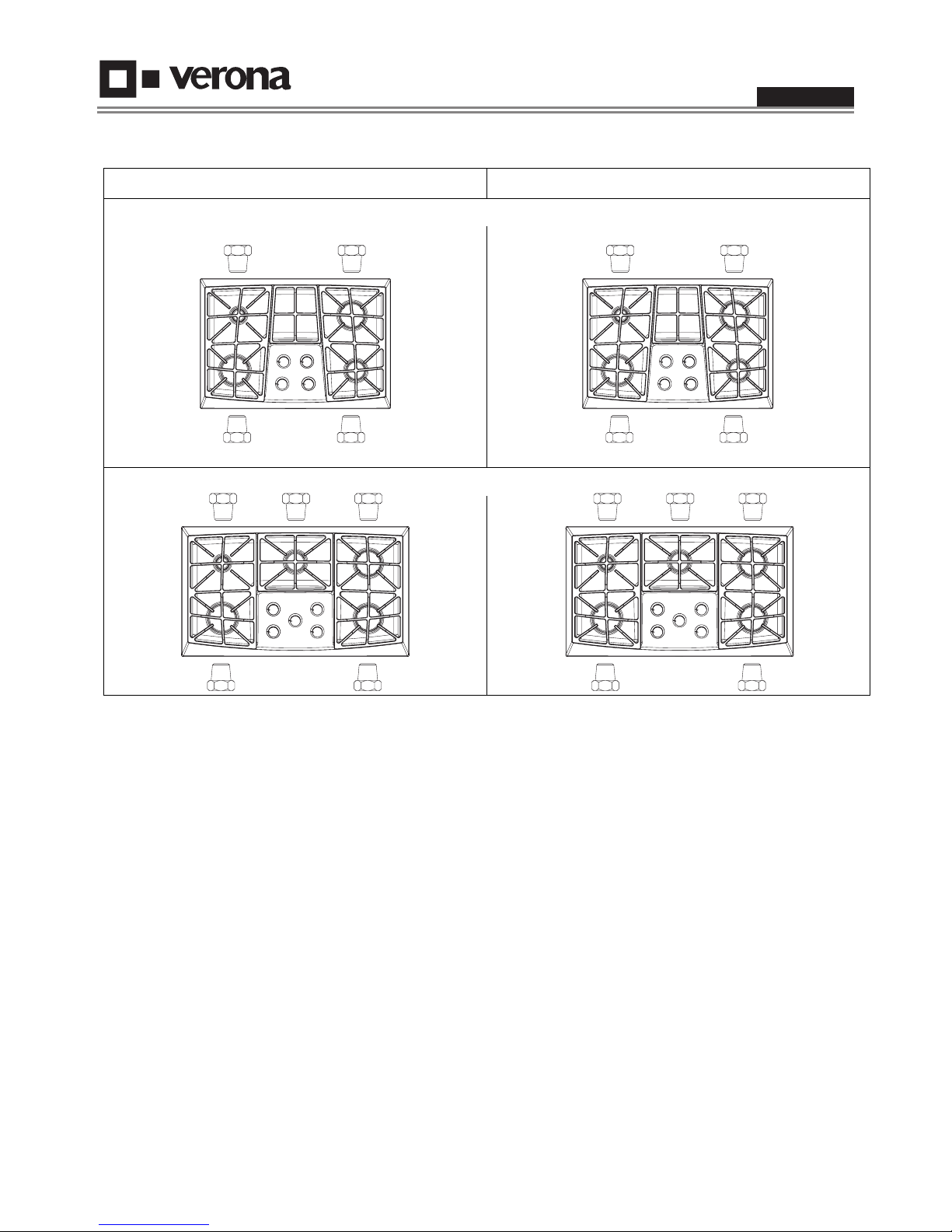

Injectors position
NG LP conversion
One ring flame burners 30”
Dual flame ring 36”
180
95
139
160
115
60
90
105
180
95 139 160
160 115
60 90 105
105

ENGLISH
Installation Manual
19

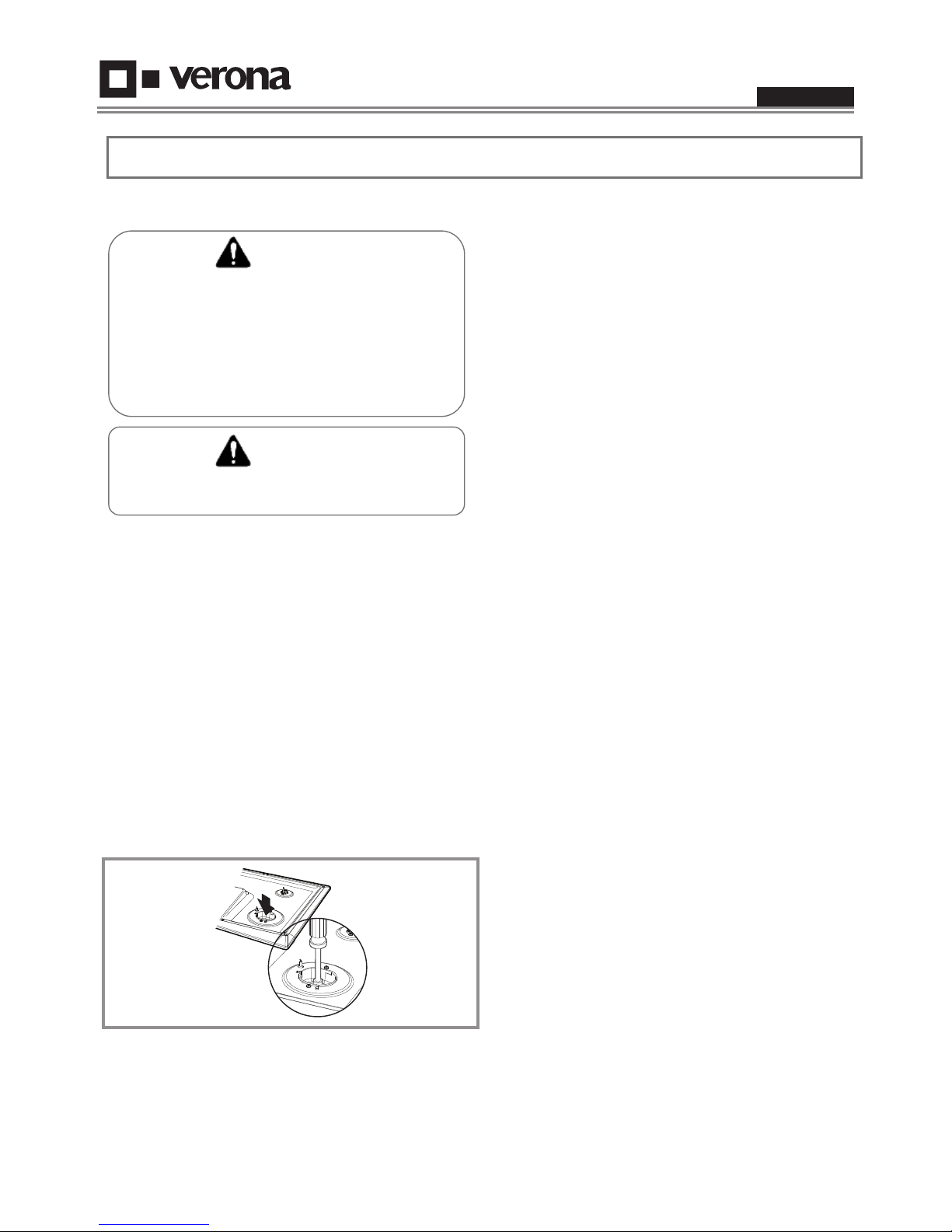

Low Flame Adjustment
DANGER
Lighting gas burners with a match is danger-
ous. You should match light the cooktop burn-
ers only In an emergency.
Light a match and hold the flame near the burner
you want to light. Wooden matches work best.
Push in and turn the control knob slowly.
Be sure you are turning the correct knob for the
burner you are lighting.
NOTE:
If the burner does not light within five seconds, turn
the knob off and wait one minute before trying again.
WARNING
If you attempt to measure the inner cone of the
flame, please use caution.
Burns could result.
This appliance is shipped from the factory with low
and medium flame settings adjusted.
If further adjustment is necessary, proceed as follows:
Adjustment for Burners with one or two rings
flame:
1. Light burner and set control knob for low flame.
2. Remove control knob from valve stem.
3. Insert a slender, thin-blade screwdriver into the
recess at centre of valve stem and engage blade
with slot in adjusting screw.
4. Turn center stem adjusting screw to set flame
size:
• clockwise to reduce
• counterclockwise to increase
5. Replace control knob when adjustment is com-
pleted.

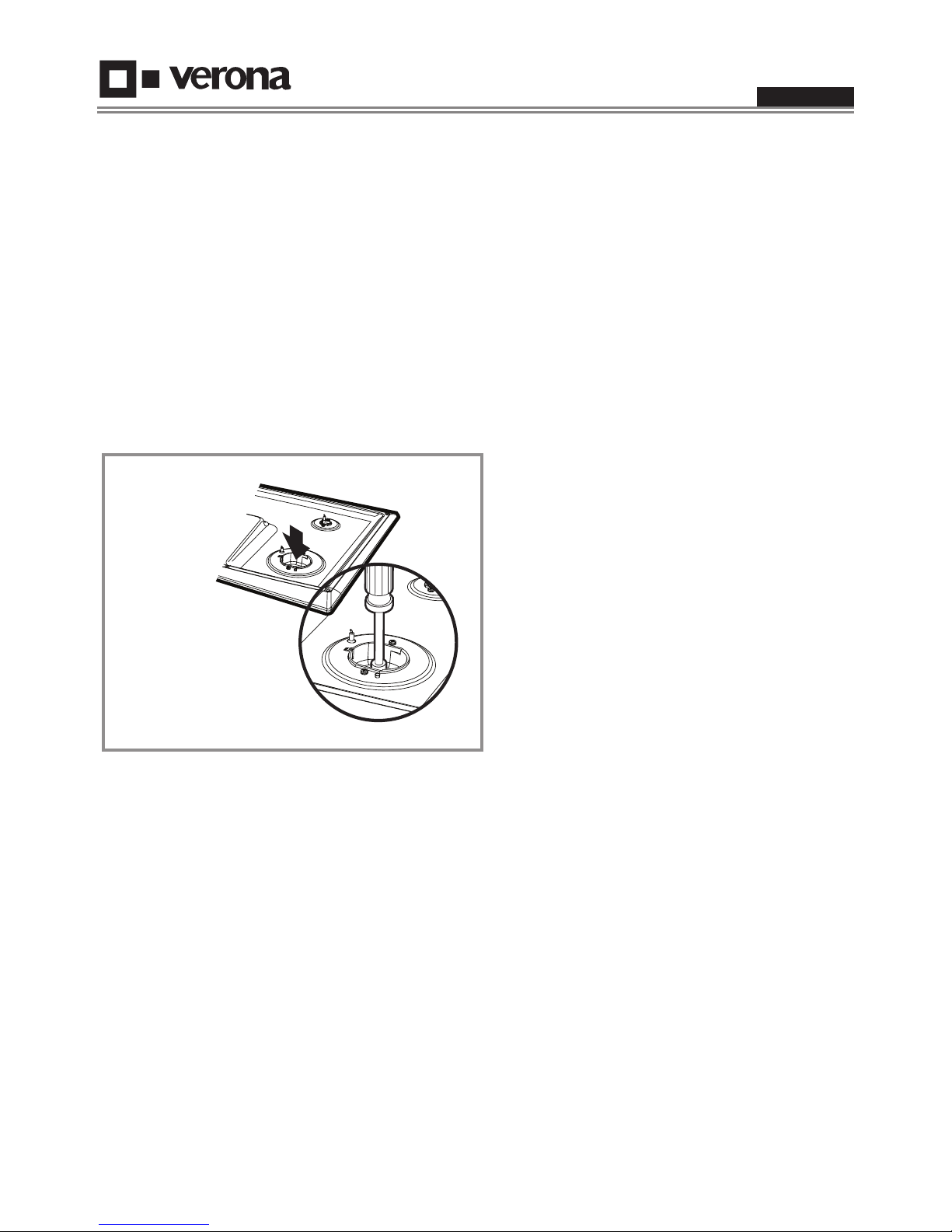

Figure 21. Low flame adjustment
A

ENGLISH
Installation Manual
20
Proper adjustment will produce a stable, steady blue
flame of minimum size.
The final adjustment should be checked by turning
knob from high to low several times without extin-
guishing the flame.
This adjustment, at low setting, will automatically pro-
vide the proper flame size at medium setting.
After Conversion steps have been completed, check
the appearance of each burner's flame at the HI and
LO settings, if the flames appear too large or too small
review each step to make sure it was completed cor-
rectly.
Electric gas ignition
The gas burner use an electric ignition device located
near each burner that by means a spark igniters en-
sure its surface light automatically.
Figure 22. Electric ignition
See Use & Care manual for better explanation and
its control.
The Burner Flames
Turn each burner on. Flames should be blue in color
with no trace of yellow. The burner flames should not
flutter or blow away from the burner The inner cone of
the flame should be between 1/2" and 3/4" long.
Figure 23. Burner flames
NOTE:
To obtain the correct minimum setting with LP gas,
turn clockwise tightening the valve fully by the
thin-blade screwdriver into the recess at centre of
valve stem.
COOKTOP
BURNER -1/2” to 3/4”
Burner flames
