INSTRUCTIONS
FOR VERSONEL CARBON INFRARED HEATER
Model No. VSLWMH200
Model VSLWMH200
Voltage(V) 120
Wattage(W) 1500
Amps(A) 12.5
Btu(HR) 5115
Dimensions W×H×D(in) 34.6 x 7.7 x 3.3
Weight(LB) 6.6
Versonel | New Holland, PA
www.versonel.com

Warning
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE!
We cannot be liable for any damages caused by failure to observe these instructions.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY-The infrared heater is designed for safe operation; however installation,
maintenance and operation of the heater can be dangerous. Observing the following procedures
will reduce the risk of fire, electric shock and/or injury to persons. and keep installation time to a
minimum. Save these instructions for future used.
1. Read all instruction before using this heater.
2. Remove the unit from its packaging and check to make sure it is in good condition before using.
3. Do not let children play with parts of package (such as plastic bags).
4. Check the household voltage to ensure it matches the heater’s rated specification.
5. Check the power cord and plug carefully before use, to make sure that they are not damaged.
6. Before unplugging the power cord, be sure to turn off the power. When turning on the unit, be
sure your hands are dry to prevent from electric shock.
7. Do not use flammable objects near heater. Objects like furniture, pillows, bedding, paper,
clothes and curtains must stay at least 3 ft away from the front, sides and rear of heater.
8. Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
9. To protect against electric shock, do not immerse cord or plug in water or any other liquid.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
11. Always unplug the heater when not in use.
12. Do not allow cord to overhang the counter top where it can be easily pulled by children.
13. Do not put fingers or foreign objects into the grill while in operation.
14. Do not leave the appliance unattended when in use.
15. This heater is not intended for use in bathrooms, laundry and similar indoor locations. Never
place heater where it may fall into a bathtub or other water container.
16. No liability can be accepted for any damage caused by non -compliance with these instructions
or any other improper use or mishandling.
17. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure they do not play with the appliance.

18. If the supply cord is damaged in any way, it must be replaced by the manufacturer or a service
agent or a similarly qualified person in order to avoid a hazard.
19. To prevent overheating of this appliance, keep the air inlets and outlets clean and free of
anything that may cause blockage. Check all inlets and outlets from time to time to ensure it is
clear of any dirt or dust accumulation. DO NOT COVER.
20. Parts of the heater may exceed 200℃. Contact with the heating tube, reflector, or mental
parts near the heating tube, may cause severe BURNS . To avoid burns, do not let bare skin touch
hot surface.
21. NEVER place hands under the heating elements. ALWAYS allow heating element to cool at
least 10 minutes before touching the heating tube or adjacent parts.
22. This product contains recyclable materials. Do not dispose this product as unsorted municipal
waste. Please contact your local municipality for the nearest collection point.
Introduction
The VERSONEL Carbon Infrared Heater with Remote produce instant and comfortable heat like the
sun. These robust and weatherproof heaters are designed for domestic and commercial heating
applications within indoor and outdoor areas.
INSTALLATION
Tools Needed:
* Pencil *Hammer *Level *Screw Driver *Power Drill and drill bits
A wall mounting bracket is provide with the heater which has been specifically designed to allow
this product to be fitted to a wall or ceiling before drilling the holders for the wall/ceiling is solid
and that there are no hidden water pipes or electric wires. The heater must be installed no less
than 16’’ from side walls and no less than 6’ off the floor.
ATTENTION! The appliance must be installed on the solid surfaces like concrete, wood or metal
etc.
Important: Ensure that the supply cables are wall mounted and that it does not come into contact
with reflector of the heater or that does not trail into heated area. The supply cable can be fixed to
the metal mounting bracket behind heater with plastic zip ties.
1. This heater should be installed by a qualified person, i.e. an electrician.
2. Always disconnected the heater from the electricity supply and allow it to cool before
installation.
3. This heater can be mounted in a horizontal or vertical manner, but for a higher efficiency we
recommend horizontal usage.

4. For both wall and ceiling mounting, the lowest part of the heater must be located at or above a
minimum height of 6FT from ground level, so that the heater cannot be touched when in
operation.
5. For wall mounting, there must be a 6FT distance from your appliance to the ground. For ceiling
mounting, there must be a 9FT distance from your appliance to the ground.
6. For both horizontal and vertical mounting on the wall, there must be a min. distance 1.5FT
between the appliance and the ceiling.
7. The distance from your appliance from the corners should be min. 1.5FT for vertical use and
min. 1.5FT for horizontal use.
8. When installed to the ceiling, there must be a distance of 1.5FT between corners and the
appliance.
9. The distance of your appliance from the living beings is to be min 3FT.
10. The distance from the front side of the heater to materials such as wood, carton, cloth etc.,
must be min 3FT
11. When mounting horizontally or to a ceiling, do not position the heater at an angle more than
90°and less than 45°.
12. The supply cable must be at the lower end of the heater if the heater is installed at an angle or
vertically.
13. Keep the supply cord away from the body of the heater which will get hot during use.
14. Do not install the heater on an inflammable surface.
15. Observe the minimum safe distance between the heater body and the inflammable surfaces
when mounted.
16. The heater should always have a minimum clearance of 1.5FT from a ceiling and adjacent walls.
17. If the heater is to be used outside, a weatherproof outlet is recommended.
18. Before drilling, ensure that there are no wires or water pipes in the area where the heater is to
be installed.
19. The heater must be installed on the mounting brackets provided.
20. Fasten the brackets securely to the mounting surface and the backside of the heater using the
nuts and screws supplied.
21. Fasten the heater securely on the brackets using the nuts and bolts supplied.
22. The brackets can be used to adjust the direction of the heater, adjust the heater angle by
loosening the two bolts on the wall mounting bracket. Tighten the bolts again when the
desired angle is reached.

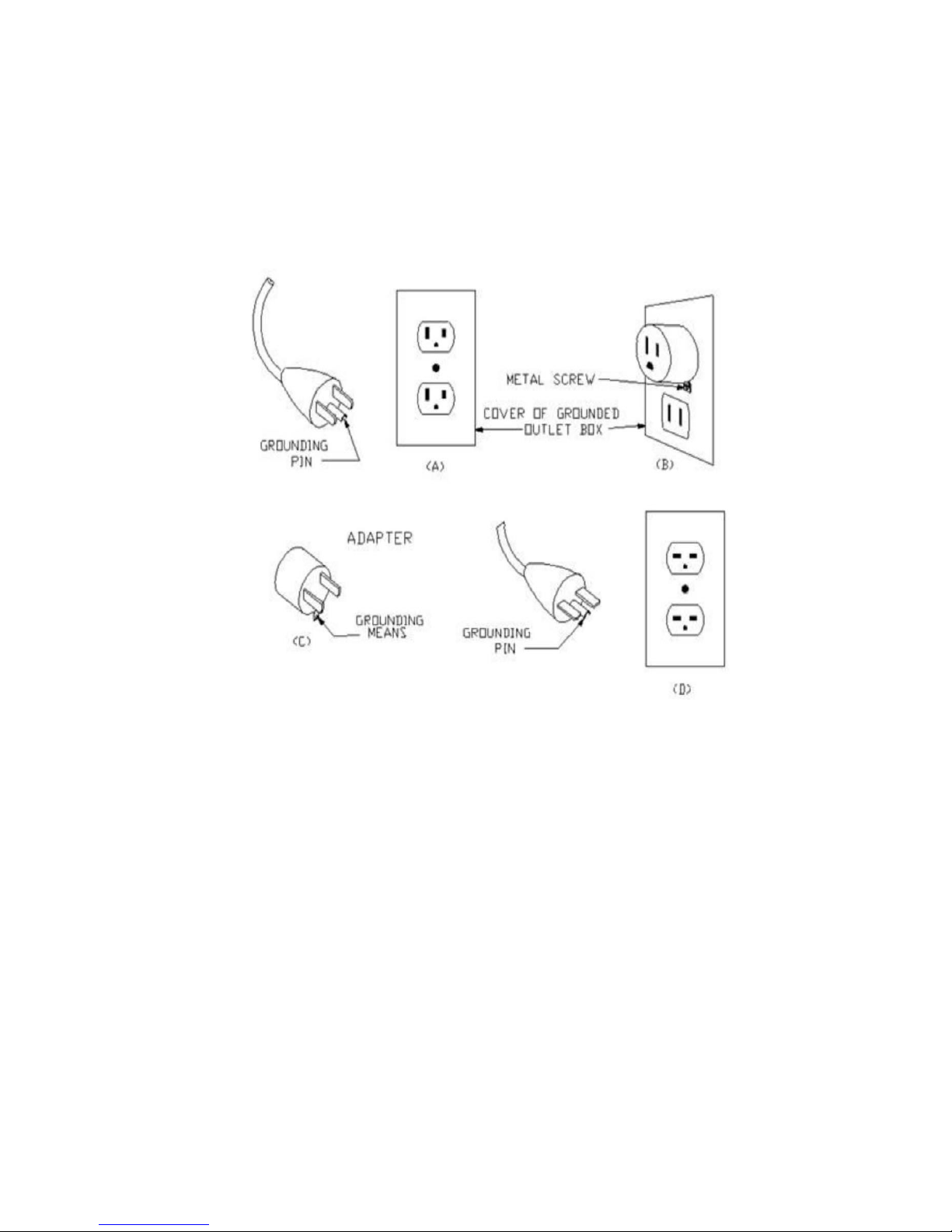

23. GROUNDING INSTRUCTION - This heater is for use on 120 volts. The cord has a plug as shown
at A in below Figure. An adapter as shown at C is available for connecting three-blade
grounding-type plugs to two-slot receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a properly grounded outlet box.
The adapter should not be used if a three-slot grounded receptacle is available.

Wall/Ceiling Installation
Wall mounted
1. Make holes on wall where heater is to be mounted with a pencil. Use a level to make sure
heater will be mounted straight.
2. Drill holes with a smaller diameter drill bit than the plastic anchor.
3. Insert the point end of the plastic anchor into the wall. Tap the anchor with a hammer until the
anchor is flush with the wall.
4. Using a screwdriver, attach the mounting bracket to wall using screws provided

Correct and incorrect installation way

Remote Control Instructions
POWER BUTTON: Turn the heater on
POWER BUTTON: Turn the heater off.
DOWN BUTTON: Decrease temperature, timer and level.
UP BUTTON: Increase temperature, timer and level.
LEVEL BUTTON: Use to adjust the 3 heat levels (L1-L3). Press the
Level button then use the up and down buttons (buttons 2 and
3) to increase or decrease the heating level.
TIMER BUTTON: To set the timer from 0H-9H, which is the
number of hours it will run. 0H will display and then adjust to the
number of hours you would like to set, using the up and down
buttons (2 and 3).
Noted: All VSLWMH200 heaters and their remote controls have the same frequency, so it is
possible to control several heaters with just one remote.
Remote Control Functions & Heater LED Response
1 Function
[Heater Power ON]
Function
[Heater Power
OFF]
Heater
LED Display
1 Turn Heater OFF
2
Increase
Temperature or
Timer
Turn Heater
ON
Level 1 [min]
L1 up to L3
or
0H up to 9H
3
Decrease
Temperature or
Timer
Turn Heater
ON
Level 3 [max]
4
Enable level setting
mode
[default start to last
level used]
L value
5
Sleep timer in hours
0H[off] – 9H[max] H value
L3 down to L1
or
9H down to 0H

Replacing the battery
1. Press the battery compartment release button and then slide out the battery tray.
2. Remove the old battery and put the new AAA battery in.
3. Slide the battery tray back into the remote control until is clicks.
Noted: Do not allow water or liquid to get into the remote control.
Caution:
When the appliance is not operated for a long period of time, when cleaning, when maintenance
is conducted or when the location of the heater is changed, the heater should be turned to OFF
and unplugged from the electrical connection.
Periodic inspection and removal of dirt and contaminants will ensure that equipment can be
operated safely.
Troubleshooting
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse is working
3. Check to see it the thermostat knob to the ON position
4. Check the thermostat setting. The heater may be off because it has reached the desired
temperature setting.
MAINTENANCE
Attention! Careful and regular maintenance of your heater per our instructions assume great
importance so as to attain a long efficient operation of your appliance.
1. Check the filthiness of the Reflector and IR-Filament at least once a month. If necessary, apply
cleaning and maintenance instructions.
2. The number of checks may be increased considering the amount of the dust in the
environment.
3. Check the formation of the Reflector, Wire and Frame visually while cleaning the appliance. In
case of deformation, consult to your technical service.
4. Check the Power Cord and Plug visually while cleaning the appliance. In case of deformation,
consult to your technical service.

CLEANING
Regular and careful cleaning helps your infrared heater operate efficiently for many trouble free
years. To clean your heater follow steps below:
1. Unplug the power cord for your safety before cleaning your appliance.
2. Make sure the heater is cool before continuing.
3. To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth. (CAUTION: DO NOT let
liquids enter the heater).
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water
6. Wait until the heater is completely dry before use.
Storage: Store the heater in a cool, dry location when not in use to prevent dust and dirt build up.
Use packaging carton to store.
ATTENTION:
1. Always disconnect the heater from the electricity supply and allow it to cool before attempting
to work on it.
2. If the heater has collected dust or dirt inside the unit or around the heating element, have the
unit cleaned by a qualified service agent. Do not operate the heater in this condition.
3. The only maintenance required is cleaning of the external surfaces of the heater.
4. Do not touch the heating element with bare fingers, as residue from your hand could affect
the life of the lamp. If it is accidentally touched, remove the finger marks with a soft cloth
moistened with mentholated spirit or alcohol.
5. Do not attempt to repair or adjust any electrical or mechanical functions on this heater.
6. The heater contains no user serviceable parts. Should the product suffer damage or
breakdown, it must be returned to the manufacturer or its service agent.
7. Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified
person in order to avoid hazard.
RECYCLING
At the end of the electrical products useful life, it should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice
in your country.
