Vertex Standard VX-2500 User manual

VHF/UHF Mobile Radios
VX-2500 SERIES
POWER OUTPUT 25 W
128 CHANNEL (10 GROUPS) CAPACITY
INVERTIBLE ALPHA NUMERIC DISPLAY
(14 SEGMENTS x 8 DIGITS)
RUGGED
DIE-CAST CONSTRUCTION
CTCSS ENCODER/DECODER
DUAL 2-TONE DECODING
DCS ENCODER/DECODER
DTMF ANI ENCODER
DTMF ANI ID DISPLAY
DTMF PAGING
VERSATILE SCANNING
AUDIO COMPANDER INCLUDED
EMERGENCY FUNCTION
ENCRYPTION (OPTIONAL - FVP-25)
FRONT MOUNTED SPEAKER
ARTSTM FUNCTIONS
TOT, BCLO, BTLO FUNCTIONS
MIL SPEC RATED (MIL 810 C, D and E)
9 PROGRAMMABLE SOFT KEYS
PROGRAMMABLE ALERT TONES
DB9 ACCESSORY CONNECTOR
PC
PROGRAMMABLE

CTCSS/DCS
Subaudible (CTCSS) 50-tone Encoder and Decoder circuits are built into every
VX-2500, ensuring compatibility with modern repeater requirements.
For
applications requiring Digital Coded Squelch signaling, full-featured DCS Encoder
and Decoder circuits provide leading-edge protection from false decoding. Any
combination of CTCSS and DCS will be available on the same channel.
DTMF ANI Encoder / ID Display
Automatic Number Identification (ANI) via an automatic DTMF Encoder is also
provided among the VX-2500’s versatile signaling capabilities.
DUAL 2-TONE Decoding
For applications where a mobile may be receiving calls from more than one
dispatcher on a particular channel, the VX-2500 includes a built-in Dual Two-Tone
Decoder circuit.
Versatile Scanning
A wide range of set-up options are available during configuration of the VX-2500,
to ensure compatibility with the operating requirements of your system’s users.
Programmable Front Panel Keys
Custom assignment of important functions to front panel keys is available at the time of
programming, to provide the most ergonomically-friendly transceiver available today.
Programmable Alert Tones
Among the useful set-up options for the VX-2500 is the capability to customize the
"Alert" tones generated from the transceiver, for ease of recognition by the user.

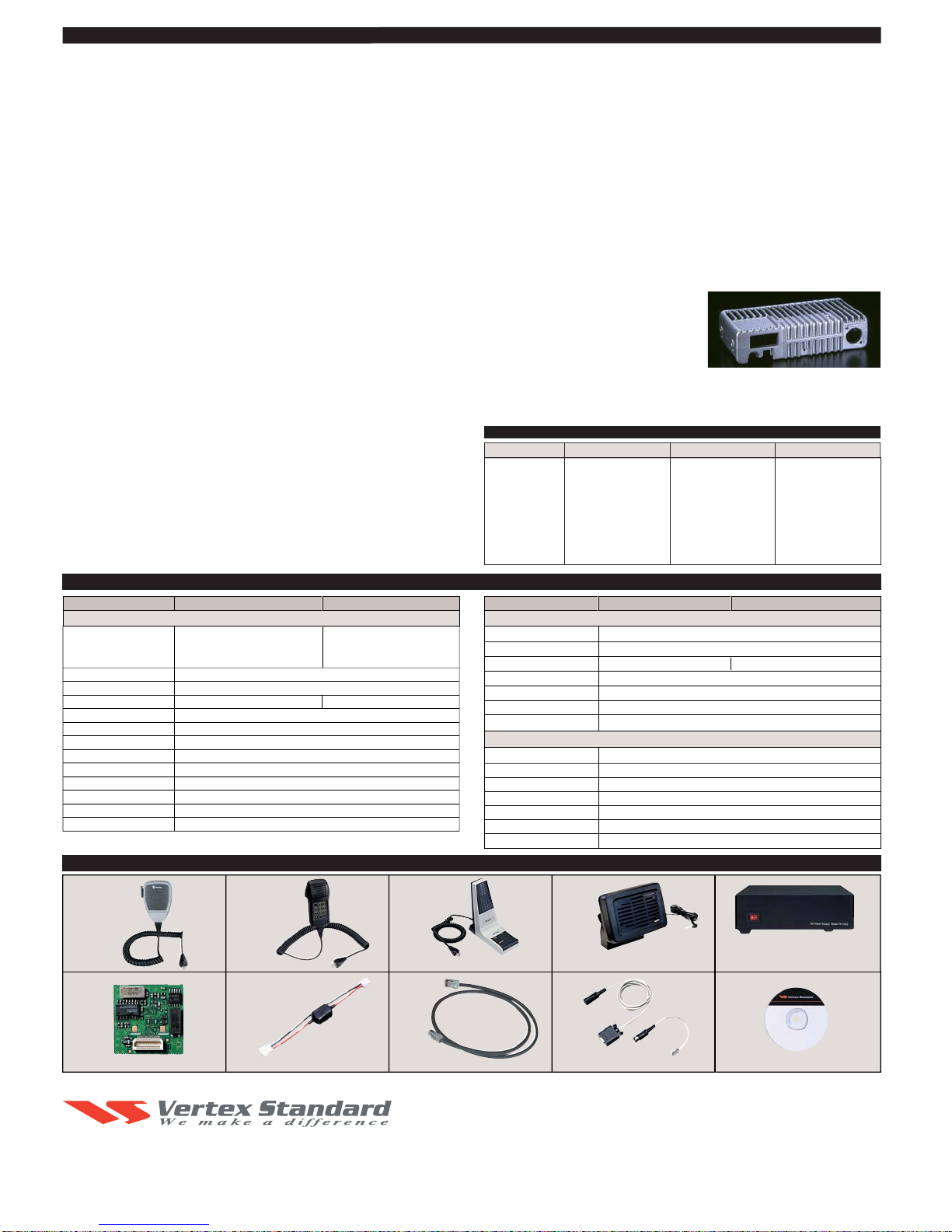

Accessories & Options
VX-2500 SERIES
APPLICABLE MIL-STD
Alpha-numeric Display (14 Segments x 8 Digits)
The 8-digit Alpha-numeric display allows quick channel identification by the user,
and is easy to read from a wide range of viewing angles.
LF-1
Line Filter
MLS-100
Mobile Loud Speaker (12 Watts Peak Power)
FP-1023A
External Power Supply (23 A)
MH-700D
DTMF Dial
Microphone
MH-25 A8J
Standard
Microphone
FVP-25
Encryption unit
VPL-1
Programming Kit (Computer to Radio)
CE52
PC-Programming Software
MD-11 A8J
Desktop Microphone
Rugged, Die-cast Construction
The VX-2500’s circuitry is housed within a
die-cast aluminum enclosure, which doubles
as a heat sink. This extraordinarily durable
construction ensures many years of reliable
operation, even in high-vibration installations
.
Emergency Mode
When activated, the "Emergency" feature sends out the DTMF ANI, and cycles
between transmit and receive, to serve as an emergency beacon to alert the
dispatcher as to the need for immediate aid.
Encryption (Optional FVP-25 required)
For applications requiring secure communications, the optional FVP-25 Paging/
Encryption Unit provides scrambling and descrambling functions.
DTMF Paging
DTMF Paging function is good for dispatch or network operations.
ARTSTM Feature
The Auto-Range Transponder System, a Vertex Standard exclusive, alerts the operator
when another ARTSTM-equipped station (for example, a hand-held unit) moves out of
communication range. You can then advise the other user to move to a better location.
TOT, BCLO, BTLO Features
Among the most useful protection features of the VX-2500 are the transmitter
Time-Out Timer (TOT), Busy Channel Lock-Out (BCLO), and Busy Tone Lock-Out
(BTLO), to ensure efficient network performance at all times.
MIL-Spec Rated (MIL 810 C/D/E)
The ultra-rugged design of the VX-2500 Series enables it to be fully compliant
with the exacting specifications of MIL 810 C, D, and E, pursuant to the test
procedures documented below.
Audio Compander Included
For narrow-band channel applications, the built-in Audio Companding system
compresses the voice waveform during transmission, and expands it during reception,
allowing full-sounding audio despite the restricted transmission bandwidth.
Cloning cable
CT-4
(T9101411)
MIL 810C Methods
501.1/Procedure I,II
506.1/Procedure II
507.1/Procedure II
514.2/Procedure I,VIII
516.2/Procedure I,IV
MIL 810D Methods
500.2/Procedure I
501.2/Procedure I,II
502.2/Procedure I,II
503.2/Procedure I
505.2/Procedure I
506.2/Procedure II
507.2/Procedure II
509.2/Procedure I
510.2/Procedure I
514.3/Procedure X
516.3/Procedure I,IV
MIL 810E Methods
500.3/Procedure I
501.3/Procedure I,II
502.3/Procedure I,II
503.3/Procedure I
505.3/Procedure I
506.3/Procedure II
507.3/Procedure II
509.3/Procedure I
510.3/Procedure I
514.4/Procedure X
516.4/Procedure I,IV
Standard
Low Pressure
High Temperature
Low Temparature
Temparature Shock
Soloar Radiation
Rain
Humidity
Salt Fog
Blowing Dust
Vibration
Shock
The 128-channel VX-2500 Series mobile transceivers are ideal for business and industrial applications. With 25 Watts of
power output, an easy-to-read 8-character invertible alpha-numeric display, nine programmable keys, and a host of signaling
formats, the VX-2500 will get your message through under the toughest conditions.
Measurements per EIA standards unless noted above. Specifications subject to change without notice or obligation.
VX-2500V VX-2500U
Specifications
VX-2500V VX-2500U
Frequency range 134-160 MHz(A) 400-430 MHz(AS1)
 148-174 MHz(C) 450-490 MHz(D)
480-512 MHz(F)
Number of Groups 10
Number of Channels
128 Channels
PLL Steps 2.5 kHz/5.0 kHz/6.25 kHz  5.0 kHz/6.25 kHz
Power Supply Voltage 13.8 V DC ±15 %
Channel Spacing  25 / 12.5 kHz
Current Consumption  TX: 6 A RX: 700 mA
Operating Temperature range  –22°F to +140°F (–30°C to +60°C)
Frequency Stability Better than ±2.5 ppm
RF Input-Output Impedance  50 Ohms
Audio Output Impedance 4 Ohms
Dimensions(WxHxD) 6.4" x 1.6" 4.4" (160 mm x 40 mm x 110 mm)
Weight(Approx) 1.87 lbs (0.85 kg)
General Specifications
Transmitter Specifications Measurements made per TIA/EIA-603-A
Receiver Specifications Measurements made per TIA/EIA-603-A
Circuit type Double conversion Super-heterodyne
Sensitivity (12 dB SINAD)  0.25 uV
Adjacent Channel Selectivity  80/70 dB  80/67 dB
Intermodulation 75 dB
Spurious and Image Rejection  90 dB
Audio Output 4 W @ 4 Ohms 5% THD
Audio Distortion <3 % @1 kHz
Power Output 25 W (Low: 5W)
Modulation 16K0F3E, 11K0F3E
Max Deviation ±5.0/2.5 kHz
Conducted Spurious Emission  70 dB below carrier
Audio Distortion <3 % @ 1 kHz
Microphone type Dynamic
Microphone impedance 600 Ohms
