Workzone Titanium+ TRD18MA.9 User manual

Xfinity Li-ION 20V
Instruction Manual
IMPORTANT
Read carefully before use
Keep for future reference
MODEL NUMBER
TRD18MA.9
Version number: 003
JOBSITE Radio
1300 889 028
[email protected]m
MODEL: TRD18MA.9 PRODUCT CODE: 8307 06/2019

2
2
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
Welcome
Congratulations in choosing to buy a Workzone® Titanium 20V Li-Ion
Jobsite Radio (battery / charger not included).
All products bought to you by Workzone® Titanium are manufactured
to the highest standards of performance and safety and, as part of our
philosophy of customer service and satisfaction, are backed by our
comprehensive 5 Year Warranty. We hope you will enjoy your purchase
for many years to come.
When you open your packaging, rst remove all items and check there
are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has
been rectied. Failure to do so could result in serious personal injury.

3
3
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. T conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage.You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Warranty Details
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
20V Li-Ion Jobsite Radio

4
4
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
Contents
Application 5
Package Content List 5
Parts description 6
Description of symbols 7
Product Safety 8
Important information – Product care 9
Assembly 9
Operation 12
Maintenance 18
Warranty 19
Environmental protection 20
FAQ/Troubleshooting 21
Technical specications 22

5
5
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
1. Application
20V LI-ION JOBSITE RADIO
2. Package Content List
First time users or inexperienced operators pay particular attention to the
operation of the 20V Li-Ion Jobsite Radio, including details of starting and
stopping and correct use of the 20V Li-Ion Jobsite Radio on pages 12-18, as
well as the maintenance instructions on pages 18.
Intended use of 20V Li-Ion Jobsite Radio (battery / charger not included)
NOTE: This product is for private domestic DIY use only. It is not suitable for
commercial or trade use.
This 20V Li-Ion Jobsite Radio is used for listening to AM/FM radio, playing
music via bluetooth, and charging USB devices.
The 20V Li-Ion Jobsite Radio is to be used only for its prescribed purpose.
Any other use is deemed to be a case of misuse.
1 x 20V Li-Ion Jobsite Radio Skin
1 x AC power adapter
1 x Instruction manual
1 x Quick Start Guide
1 x Warranty Card & Certicate
• Remove all packing materials
• Ensure all parts on the contents
list are present
• Check the appliance, and all
accessories for transportation
damages
WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your product
should only be passed on together with this instruction manual.
WARNING! To reduce risk of injury, only use ALDI 20V Li-Ion Xnity
Plus battery packs. Other type of battery packs may burst causing
personal injury and damage. The battery pack must be recharged
only with a ALDI 20V Li-Ion Xnity Plus battery charger.

6
6
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019

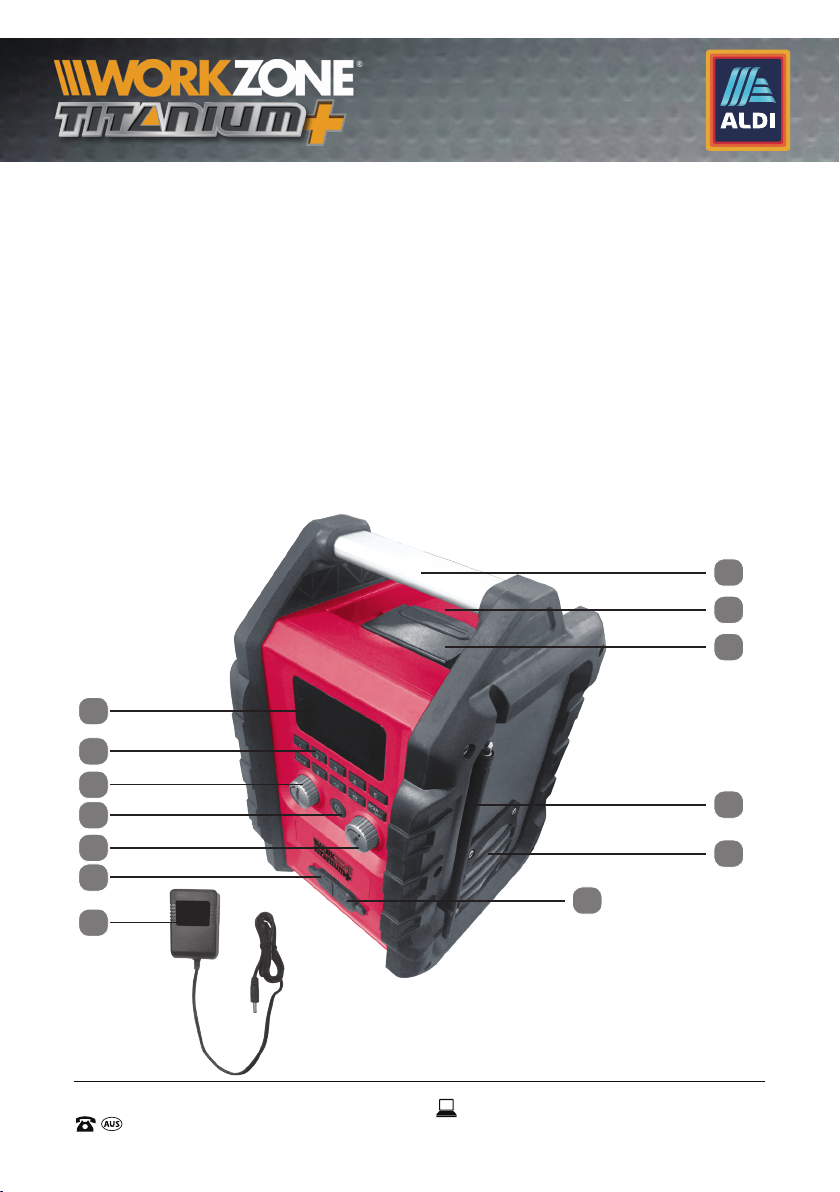

3. Parts description
1. Handle
2. LCD screen.
3. Control Panel
4. AC adapter port
5. Auxiliary port
6. Antenna
7. Speaker
8. Battery compartment area
9. AC power adapter
10. “Volume” adjustment knob
11. “Tune” adjustment knob
12. Battery compartment latch
13. AA Battery back up compartment
(See Fig. C)
14. 20V Battery port (See Fig. D)
15. 20V Battery (See Fig. E)
16. Power button
17. USB Charging port (See Fig. I)
* 20V Battery and 20V Charger not included. Shown only for instructional purposes.
3
2
11
16
10
4
9
6
7
5
1
8
12

7
7
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
4. Description of symbols
The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about
the product or instructions on its use.
To reduce the risk of injury, user must read instruction manual
Warning
Conforms to relevant standards for electrical safety and
electromagnetic compatibility.
60 Months Warranty
Double insulation
For indoor use only
SMPS incorporating a fail-safe safety isolating transformer
The output plug is with positive center pole and negative outer pole
Fuse
MEPS.
60

8
8
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
5. Product Safety
SAFETY WARNING
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
Safety instructions
WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below may result in
electric shock, fire and / or serious personal injury.
1) Do not use this apparatus near water.
2) Clean only with dry cloth.
3) The ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers, table-
cloths, curtains, etc.
4) Do not use near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
5) Only use attachments/accessories specified by the manufacturer.
6) Remove the battery during lightning storms or when unused for
long periods of time.
7) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
8) The apparatus shall not be exposed to dripping or, splashing and
that no objects filled with liquids, such as vases, shall be placed
on the apparatus
9) The batteries shall not be exposed to excessive heat such as
sunshine, fire or the like.

9
9
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
CAUTION: Danger of explosion if the incorrect battery is used. Use
only ALDI 20V Li-Ion Xfinity Plus batteries and chargers for this
product.
6. Important information – Product care
NOTE: Battery and Charger not included. For any issuses related
directly to your Battery / charger, contact the Customer Service
of the manufacturer as listed on the battery / charger packaging,
manual or on the label on the battery / charger.
This 20V Li-Ion Jobsite Radio uses Lithium Ion Battery Cells. Care
MUST be taken to ensure both the safety and life of the pack is
maintained. Ensure you have read all of the safety notes in the
previous pages before using the 20V Li-Ion Jobsite Radio.
Treat the battery pack with care and within the guidelines of this
manual.
If the battery pack does become immersed in water or any fluids,
or is subject to a severe drop or it does not operate within the
guidelines of this manual or the supplied manual, immediately STOP
using the battery pack and have it checked.
Use only ALDI 20V Li-Ion Xfinity Plus range of batteries and chargers.
7. Assembly
7.1 AA Back-up Battery installation (not supplied)
Keeping 2 x AA batteries inside the AA Battery compartment
prevents stored data in preset memories from being lost.
1. To open the battery compartment area (8), raise the battery
compartment latch (12) from the rear of the radio, push the
latch forwards to the front of the radio to release it from the
engagement tabs, and then open the battery compartment area (8)
by pulling the latch and cover backwards.
There are 2 battery pack compartments; (a) the AA battery back up
compartment and (b) the 20V battery port .(See Fig. C, D)
2. Using a philips head screwdriver (not supplied) loosen the screw
by rotating in an anti-clockwise direction. Remove the AA back up

10
10
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
battery compartment (13) cover and insert 2 new AA batteries (not
supplied). Make sure the batteries match with the correct polarity
markings inside the compartment. Replace the AA back up battery
compartment (13) cover (See Fig C, D). Secure the cover by re
inserting and tightening the screw in a clockwise direction.
WARNING: Batteries may leak chemicals or may explode if
used incorrectly. The following care should be taken to
prevent such an incident:
•Make sure the positive (+) and negative (-) battery terminals are
positioned correctly.
•Do not mix new and old batteries together, or mix different
types of batteries.
•Do not try to recharge non-rechargeable batteries.
If chemicals from the batteries come in contact with your skin, wash
them off immediately with water. If chemicals leak onto the radio,
clean the radio completely.
A
C
B
D
13
14
Loosen Tighten

11
11
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
3. Installing or removing 20V battery (not supplied)
1. To insert the 20V battery (15), push it into the 20V battery port.
Always insert it all the way until it locks in place with a click. (See Fig E)
2. Do not use force when inserting the battery. If the battery does not
slide in easily, it is not being inserted correctly. Remove and re-insert the
battery until ( ) appears on the screen.

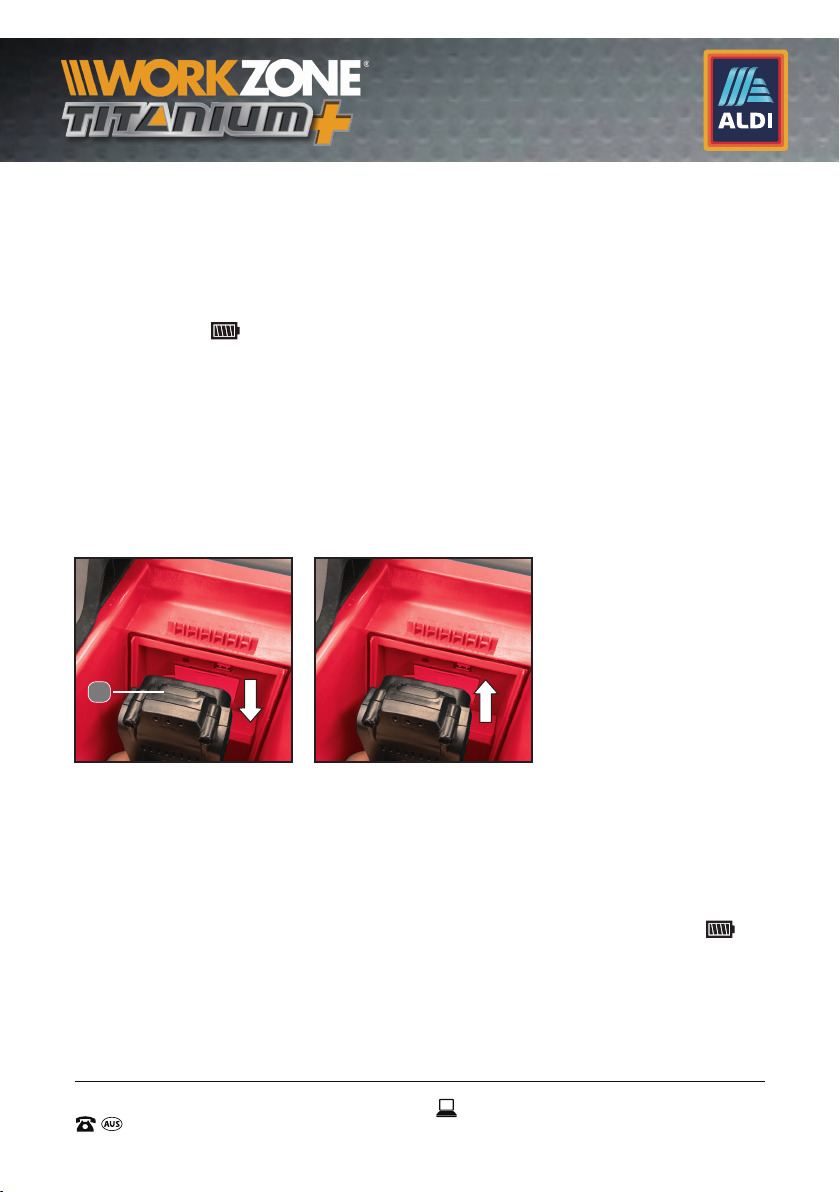

3. To remove the battery, depress the battery pack release button to
release and slide the battery pack out from the 20V battery port (14) .
(See Fig F)
4. When the low battery sign appears and keeps on flashing it is time
to recharge and replace the 20V battery (15).
NOTE: The 20V battery (15) cannot be charged via the supplied
AC power adapter. Remove the 20V battery (15) from the radio,
when not used for long periods of time.
4. Using supplied AC power adapter (9)
Remove the rubber cover over the AC adapter port (4) on the front
side of the radio and insert the AC power adapter (9) into the port
for the AC power adaptor (4). Plug the AC power adapter (9) into
a standard mains socket outlet. Whenever the AC power adapter
(9) is used, the battery pack is automatically disconnected, and
disappears. The AC power adapter (9) should be disconnected from
the main supply when not in use. (See Fig. G )
E F
Battery not included Battery not included
15

12
12
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
9. Operation
9.1 Radio
1. Press the power button (16) to switch on the radio.
You can choose the source AM or FM by pressing on the MODE button.
2. Turn the volume adjustment knob (10) to adjust the volume. Turn
the tune adjustment knob (11) to set the frequency.
3. Press the SCAN/SET button to search for a station automatically.
The LCD screen (2) display will flash the scanning symbol until
it detects a station. To find another station, press the SCAN/SET
button again.
4. This radio can save up to 5 stations per frequency. Once the station
you require has been detected, press and hold one of the number
buttons 1 to 5 to save. Repeat on the next number button for
further stations.
5. Press the button 1/2/3/4/5 to listen to stations that you have saved.
6. If required, the FM frequency band can be set from 87.5 to 108
MHz, the AM frequency band can be set from 520 to 1710 kHz.
While radio is switched off and then in standby mode for 15
seconds, long pressing of the MODE button for more than 3
seconds will first show current FM frequency band.
Continue pressing MODE button for approx. another 5 seconds
until display FM and 50 kHz (frequency band) is flashing. By
rotating the TUNE control, you can adjust to 100 kHz.
After FM frequency band is reset, pressing MODE button again,
display will show AM and flash 9 kHz.
G

13
13
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
By rotating the tune adjustment knob (11), you can adjust to 10 kHz.
Complete the setting by pressing mode button.
9.2 Setting the clock
1. Press and hold down the SCAN/SET button for 3 seconds. The
time is displayed in the middle of the LCD screen (2) and the hour
flashes. Turn the volume adjustment knob (10) to adjust the time.
2. Press SCAN/SET again; the minute flashes. Turn the volume
adjustment knob (10) for adjusting the minutes.
3. Finally, press SCAN/SET to validate and complete the setting of
the clock.
9.3 Setting the alarm clock
1. Press and hold the button for 3 seconds. The alarm time
is displayed in the middle of the LCD screen (2) and the hour
flashes.
Turn the volume adjustment knob (10) to adjust the time.
2. Press the button again, the minutes will flash. Turn the volume

14
14
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
adjustment knob (10) to adjust the minutes.
3. Finally, press to confirm and finish the setting of the alarm clock.
4. To activate/deactivate the alarm, press the button once. The icon
appears on the screen when the alarm is activated.
9.4 Setting the clock radio
1. Press and hold the button for 3 seconds. The alarm time
is displayed in the middle of the LCD screen (2) and the time
flashes. Turn the volume adjustment knob (10) to adjust the time.
2. Press on once, the minutes will flash. Turn the volume
adjustment knob (10) to adjust the minutes.

15
15
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
3. Press the mode button to choose the radio station. Turn the tune
adjustment knob (11) to choose among the 5 stations.
4. Finally, press to complete the setting.
5. To activate/deactivate the alarm, press the button once. The
icon is displayed on the screen when the alarm is activated.
9.5 Setting the off time
1. Turn on the unit by pressing the button .
2. Press and hold down the button , you will hear a sound of
«beep» and the screen appears in order:
01:00-00:45-00:30-00:15-02:00-01:30. Release the button at the
time you want to set the off time.
3. The display at the bottom right of the screen shows the
remaining time until it will stop automatically.

16
16
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
9.6 Bluetooth
The performance of the Bluetooth system depends on the brand
and the model of your device to be connected.
Compatibility with all types of devices is not ensured. To get the
best effect from transmission of data via Bluetooth, the distance
between the two devices must not exceed 8 m, and there must
be an open path between the radio and the bluetooth device. An
obstacle (for example, a wall of cement, a person or heavy furniture
etc.) between the devices can reduce the minimum distance of
connection or influence the performance of data transmission. In
this case, you can reset your device in position closer to the radio.
First, you should familiarize yourself with the function and method
of using the Bluetooth of your device.
1. Activate the Bluetooth function on your device (mobile phone,
iPod, computer etc).
You can refer to the manual of your device.
2. Place your Bluetooth device close to the radio. The distance
should not exceed 1 m.
3. Press to turn on the unit.

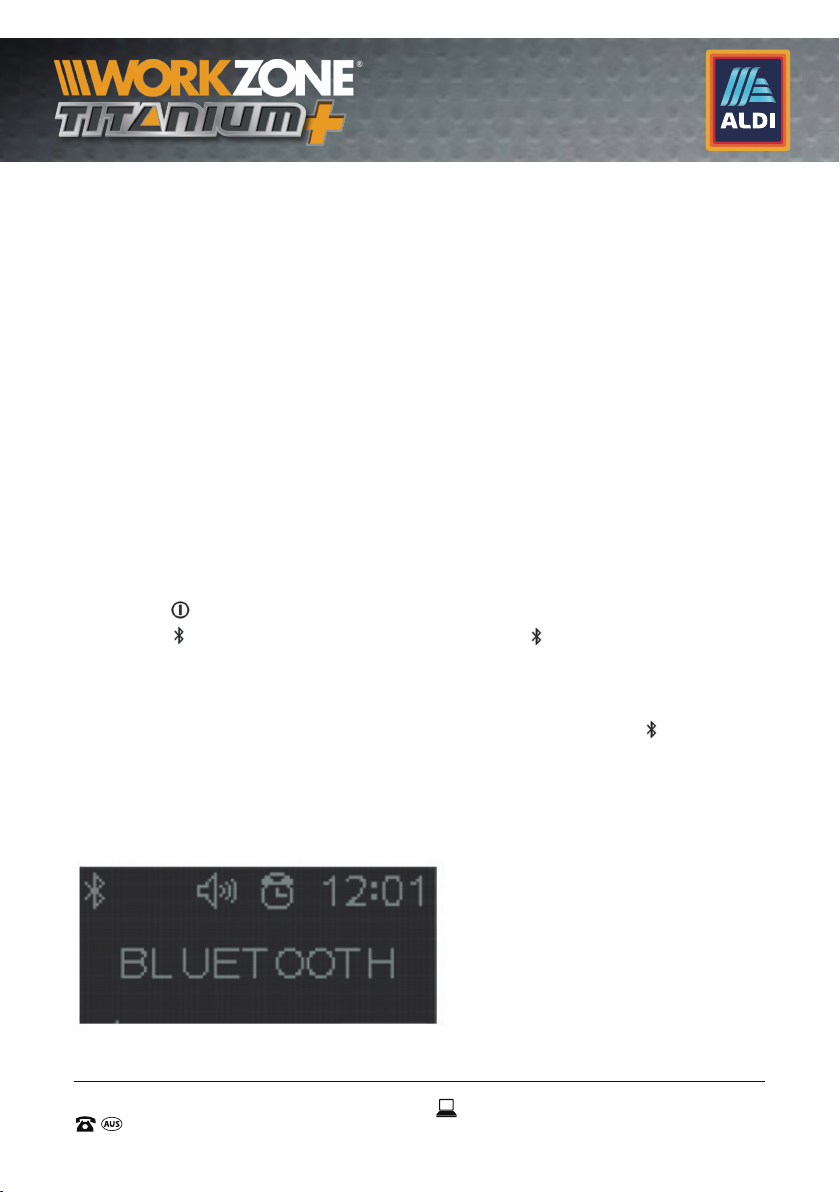

4. Press to enter the BLUETOOTH mode. is flashing on the
Upper left of the LCD screen (2). The word BLUETOOTH is
displayed in the middle of the LCD screen (2).
5. Select ‘TRD18-radio’ on your device.
6. The connection can be established in a few seconds. stops
flashing with a sound of «quick beep» . This means that the two
devices are properly connected. Now you can listen to music
from your own device with the speaker of the jobsite radio.
7. Turn the volume adjustment knob (10) to adjust the volume.
Turn the tune adjustment knob (11) to change the song.

17
17
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
9.7. Using an Auxiliary Device
1. Remove the rubber protector and insert the connector into
the auxiliary port (5) on the front side of the radio. It is for
connecting a cell phone, MP3 Player, CD player or other audio
device with the radio. (See Fig. H)
2. Open the battery compartment area (8) There is another
auxiliary port (e) (See Fig. I), It is also for connecting a cell
phone, MP3 Player, CD player or other audio device with the
radio.
3. When an external device is connected to the radio with an extra
cable (not supplied) into the AUX, the unit enters the mode AUX
automatically.
4. Press the mode button to change the source AUX1 or AUX2.
5. Turn the volume adjustment knob (10) to adjust the volume.
H I
e
17

18
18
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019

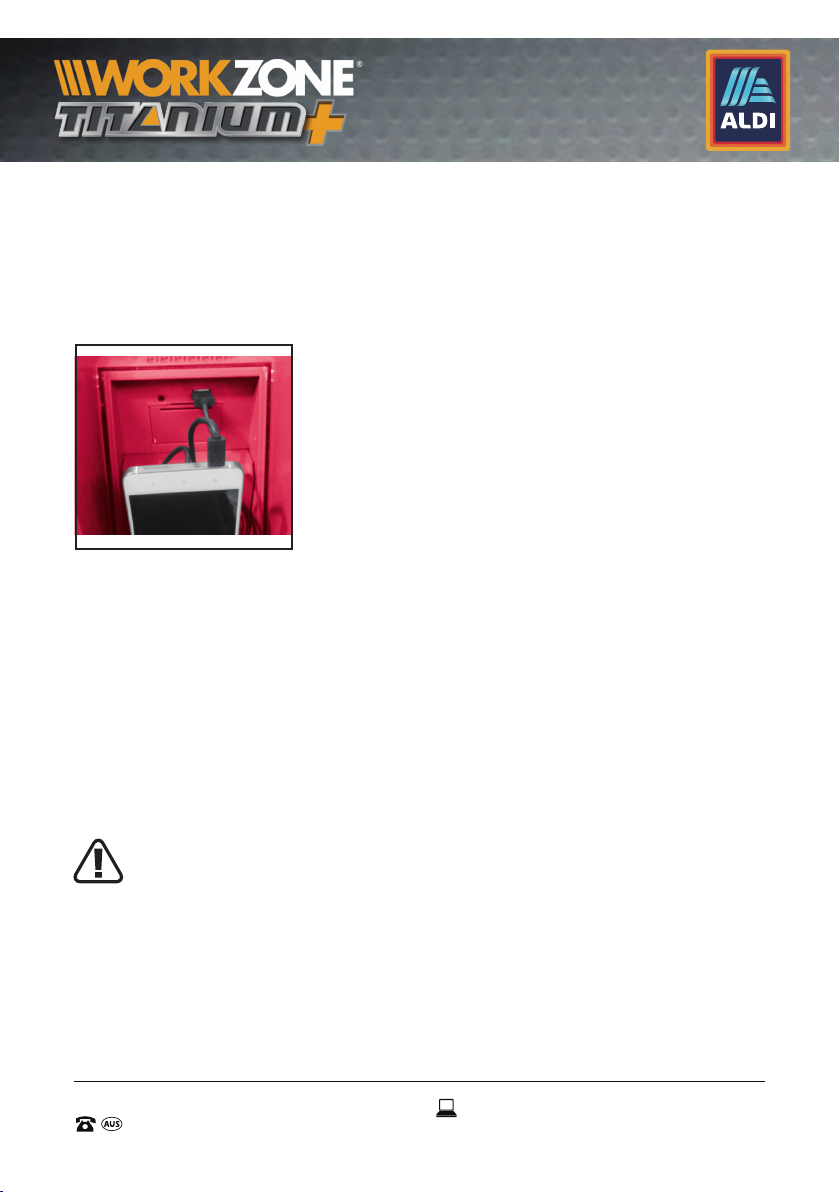

9.8. USB Power outlet
This radio includes a USB charging port located in the battery
compartment area (8). This can be used to charge phones and other
USB devices within the parameter of the USB output . Charging will
occur only when the radio is plugged into an outlet or running by a
battery pack. (See Fig J)
10. Maintenance
1. Always disconnect power source before any cleaning or
maintenance.
2. Clean the outside of the unit by gently rubbing with a soft damp
cloth.
3. In order to avoid any risk of fire and/or electric shock, do not
pour water or any other liquid to the interior of the appliance.
4. We recommend a periodic cleaning of the radio to remove any
dust or dirt that is accumulated inside or outside the appliance.
WARNING: NEVER USE DETERGENT, CHEMICAL AGENTS OR
SOLVENTS AS IT MAY DAMAGE THE PLASTIC PARTS.
Storage
When not in use, the radio should be stored in a dry, frost free
location not within the reach of children.
J

19
19
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
11.Warranty
Your new WORKZONE®TITANIUM 20V Li-Ion Jobsite Radio will more
than satisfy your expectations.
It has been manufactured under stringent WORKZONE®TITANIUM
Quality Standards to meet superior performance criteria.
You will find your new 20V Li-Ion Jobsite Radio easy and safe to
operate, and, with proper care, it will give you many years of
dependable service.
CAUTION. Carefully read through this entire instruction manual
before using your new WORKZONE®TITANIUM 20V Li-Ion Jobsite
Radio. Take special care to heed the Cautions and Warnings.
Your WORKZONE®TITANIUM 20V Li-Ion Jobsite Radio has
many features that will make your job faster and easier. Safety,
performance, and dependability have been given top priority in
the development of this 20V Li-Ion Jobsite Radio, making it easy to
maintain and operate.
Use only WORKZONE®TITANIUM replacement parts for your product. Non-
conforming parts or modifications made to parts will void your warranty.
What your 5 year warranty means
Great care has gone into the manufacture of this product and it
should therefore provide you with years of good service when used
properly. In the event of product failure within its intended use over
the course of the first 5 years after the date of purchase, we will
remedy the problem as quickly as possible once it has been brought
to our attention. In the unlikely event of such an occurrence, or if
you require any information about the product please contact us via
our after sales support services, details of which can be found in this
manual and on the product itself.
After Sales Support TEL: [phone]

20
20
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
TRD18MA.9 • 8307 • 06/2019
Service Support
If you have any issues with the operation of your product, please call us
on 1300 889 028 for advice, or email us at [email protected]
12. Environmental protection
Recycle unwanted materials instead of disposing of them
as waste. All tools, hoses and packaging should be sorted,
taken to the local recycling centre and disposed of in an
environmentally safe way.
