Vertex Standard VX-1700 Series User manual

HF Multi Mode Mobile Radio
VX-1700
Frequency Coverage :
RX: 30 kHz ~ 30.0000 MHz in 10 Hz Steps
TX: 1.600 ~ 30.0000 MHz
A1A (CW), J3E (LSB/USB), A3E (AM), J2B (USB/LSB),
200 Memory Channels (arranged in five banks)
Alpha-Numeric Labeling of Memory Channels
Power Output:
125 Watts
(A1A, J2B, J3E @1.6000 ~ 3.9999 MHz)
100 Watts (A1A, J2B, J3E @4.0000 ~ 30.000 MHz)
31 Watts AM Carrier (A3E @1.6000 ~ 3.9999 MHz)
25 Watts AM Carrier (A3E @4.0000 ~ 30.000 MHz)
Mobile Antenna (Optional)
Selcall / Telcall Built-in
Selcall
Telcall
Message Call
Position Request Call
Position Send Call
(with GPS receiver connected)
Beacon Request Call
ALE Operation (requires optional ALE-1 unit)
Dual Watch Operation
External Automatic Antenna Tuner,
FC-30 (Coax) and FC-40 (Wire) Available
VOX
Noise Blanker
Dimmer Function
CW Side Tone Function
CW Semi-break-in
Transcrypt®SSB Encryption Unit
SC20-455 Available (Optional)
PC Programmable
MIL-STD 810D / E / F

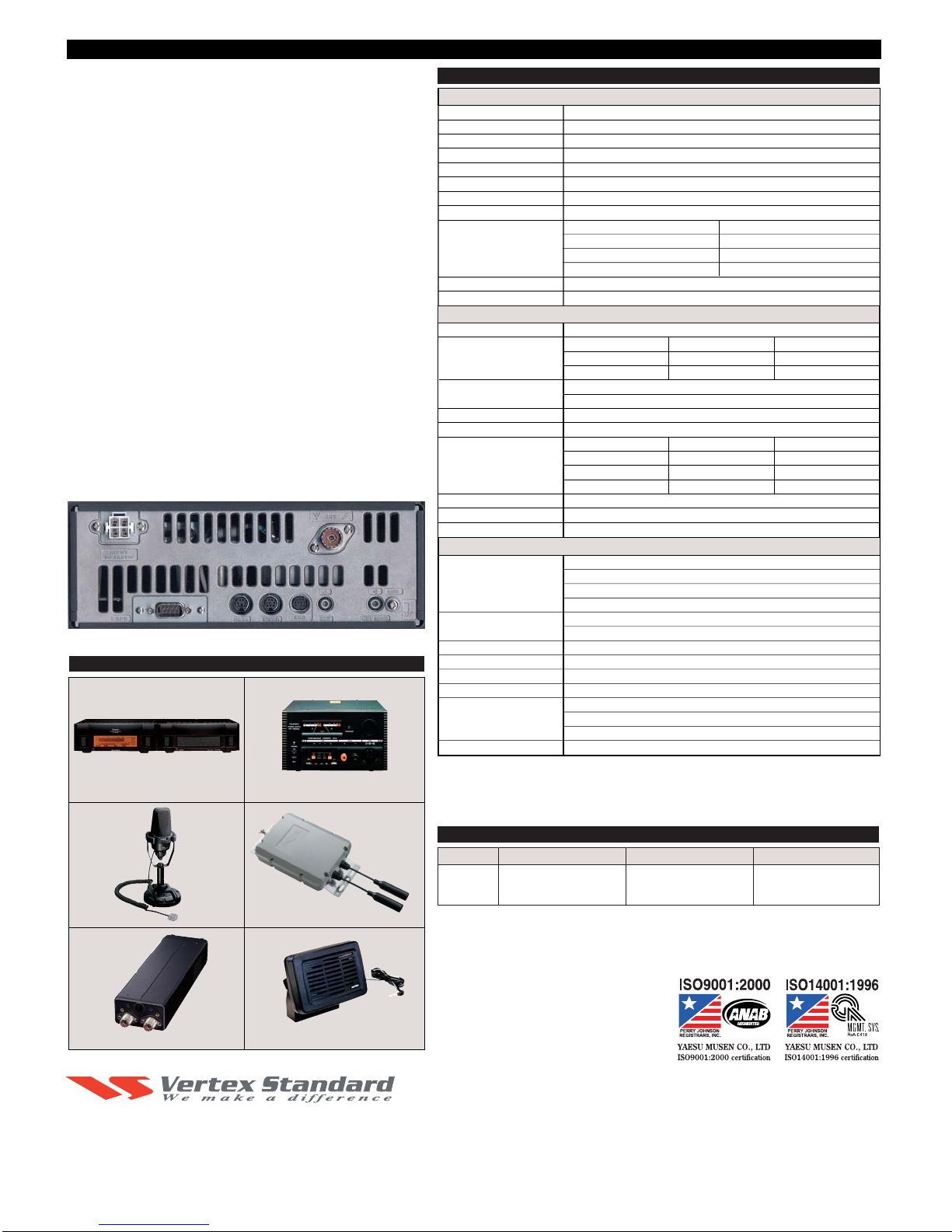

General Specifications
Receiver Frequency Range 30 kHz ~ 30.0000 MHz
Transmitter Frequency 1.600 ~ 30.0000 MHz
Emission Modes A1A (CW), J3E (LSB/USB), A3E (AM), J2B (USB/LSB)
Frequency Synthesizer Steps 10 Hz, 100 Hz, 1 kHz
Frequency Stability ±1 ppm (14°F ~ 131°F / –10°C ~ +55°C) TYP
Operating Temperature Range 14°F ~ 131°F (–10°C ~ +55°C)
Antenna Impedance 50 Ohms
Supply Voltage 13.8 Volts DC ±15%, negative ground
Power Consumption Standby 25 mA
Receive, no signal 1.0 A
Receive 1.5 A
Transmit 22 A (125 Watts output)
Dimensions (WxHxD) 9.5" x 3.9" x 11.2" (241 x 99 x 285 mm)
Weight (approx.) 9.5 lbs (4.3 kg)
Accessories & Options
Specifications
Various accessories listed may not be available in some countries.
ALE-1 Automatic Link Establishment Unit
SC20-455 Encryption Unit
YA-30 Broadband HF Antenna
YA-007FG HF Multi-Band Mobile Antenna for FC-40
MMB-89 One-Touch Mobile Bracket
MHG-1 Carrying Handle
CT-118 Linear Amplifier Control Cable
CE77 Programming Software
CT-62 Programming Cable
VL-1000 Linear Amplifier
VP-1000 AC Power Supply for the VL-1000
FP-1030A AC Power Supply
MD-200A8X
Desktop Microphone
FC-40
External Antenna Tuner
(Wire/Whip Antennas)
MLS-100
External Speaker
Receiver Specifications 
Intermediate Frequencies 1st: 45.274 MHz, 2nd: 24 kHz
Sensitivity A1A/J2B/J3E A3E
(A1A/J2B/J3E/A3E: S/N 10 dB) 0.5 ~ 1.6 MHz: 1.41 µV 8 µV
1.6 ~ 30 MHz: 0.16 µV 1 µV
Squelch Sensitivity 0.5 ~ 1.6 MHz: 2.5 µV
(A1A/J2B/J3E) 1.6 ~ 30 MHz: 2 µV
IF Rejection Better than 80 dB
Image Rejection Better than 80 dB
Selectivity –6 dB –60 dB
A1A(W), J2B(W), J3E > 2.2 kHz < 4.5 kHz
A1A(N), J2B(N) > 500 Hz < 2.0 kHz
A3E > 6 kHz < 20 kHz
Audio Output 2.2 Watts into 8 Ohms @ 10% THD
Audio Output Impedance 4 ~ 16 Ohms (8 Ohms Nominal)
Conducted Radiation Less than 4000 µµW
Rear Panel
HF Multi Mode Mobile Radio
VX-1700
FC-30
External Antenna Tuner (Coaxial Lines)
2005.1205NA(U) B9200494 Printed in Japan
Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Phone [phone]; Fax [phone]
http://www.vertexstandard.com
Vibration
Shock
514.3/Procedure I Cat. 10 514.4/Procedure I Cat. 10 514.5/Procedure I Cat. 20/24
Figure 514.5C-1
516.5/Procedure I
Applicable MIL-STD
Standard
MIL 810D Methods/Procedures MIL 810E Methods/Procedures MIL 810F Methods/Procedures
The Vertex Standard VX-1700 is a low-cost, integrated
HF communications transceiver designed for the Land
Mobile market.
The VX-1700 includes 200 memory channels (arranged
in five banks) with Alpha-Numeric labeling of Memory
channels. And the Selcall feature allows paging of a
single transceiver or groups of transceivers by a
dispatch center.
Available options include the VL-1000/VP-1000 1 kW Linear
Amplifier/Power Supply, FP-1030A AC Power Supply,
FC-30 Automatic External Antenna Tuner (for 50 Ohm
unbalanced antenna feedlines), FC-40 Automatic
External Antenna Tuner (for an end-fed random-length
wire or long whip antenna), YA-30 Broadband Dipole
Antenna, YA-007FG Mobile Antenna, MD-200A8X
Desktop
Microphone, MLS-100 External Speaker, and
the ALE-1
Automatic Link Establishment Unit which
automatically selects the channel with the best LQA
(Link Quality Analysis) score from the programmed
channels.
Specifications are subject to change without notice or obligation.
Transmitter Specifications 
Power Output*1125 Watts (A1A, J2B, J3E @1.6000 ~ 3.9999 MHz)*2
100 Watts (A1A, J2B, J3E @4.0000 ~ 30.000 MHz)
31 Watts AM Carrier (A3E @1.6000 ~ 3.9999 MHz)
25 Watts AM Carrier (A3E @4.0000 ~ 30.000 MHz)
Modulation Types J3E: PSN type modulator
A3E: Low-level (early stage)
Spurious Radiation –56 dB (Harmonics)
J3E Carrier Suppression Better than 50 dB below peak output
Undesired Sideband Suppression Better than 60 dB below peak output
J3E Audio Response Not more than –6 dB from 400 Hz ~ 2500 Hz
Occupied Bandwidth A1A: less than 0.5 kHz
J3E: less than 3.0 kHz
A3E: less than 6.0 kHz
Microphone Impedance 200 ~ 10 k Ohms (600 Ohms Nominal)
*2100 Watts when using FC-30.
*1 Duty Cycle RX : TX = 4 min : 1 min
