Vertex Standard VX-3200 Series User manual

VHF/UHF Mobile Radios
VX-3200 SERIES
ALPHA NUMERIC DISPLAY
(14 SEGMENTS x 8 DIGITS)
RUGGED
DIE-CAST CONSTRUCTION
CTCSS ENCODER/DECODER

DUAL 2-TONE DECODING
DCS ENCODER/DECODER 
DTMF ANI
ENCODER 
VERSATILE SCANNING 
COMPANDER INCLUDED
EMERGENCY FUNCTION
ENCRYPTION (OPTIONAL - FVP-25)
DTMF PAGING (OPTIONAL - FVP-25)
DB9 CONNECTOR BUILT-IN
FRONT MOUNTED SPEAKER
ARTSTM FUNCTIONS ON THE 
CONVENTIONAL MODE
TOT, BCLO, BTLO FUNCTIONS
MIL SPEC RATED (MIL 810 C, D and E)
KEY ASSIGNMENT AVAILABLE 
PROGRAMMABLE ALERT TONES
PC
PROGRAMMABLE 



CTCSS Encoder/Decoder
Subaudible (CTCSS) 50-tone Encoder and Decoder circuits are built into every
VX-3200, ensuring compatibility with modern repeater requirements.
DCS Encoder/Decoder
For applications requiring Digital Coded Squelch signaling, full-featured DCS
Encoder and Decoder circuits provide leading-edge protection from false decoding.
DTMF ANI Encoder
Automatic Number Identification (ANI) via an automatic DTMF Encoder is also
provided among the VX-3200's versatile signaling capabilities.
DUAL 2-TONE DECODING
For applications where a mobile may be receiving calls from more than one
dispatcher on a particular channel, the VX-3200 includes a built-in Dual Two-Tone
Decoder circuit.
Versatile Scanning
A wide range of set-up options are available during configuration of the VX-3200,
to ensure compatibility with the operating requirements of your system's users.
Programmable Front Panel Keys
Custom assignment of important functions to front panel keys is available at the time of
programming, to provide the most ergonomically-friendly transceiver available today.
Programmable Alert Tones
Among the useful set-up options for the VX-3200 is the capability to customize the
"Alert" tones generated from the transceiver, for ease of recognition by the user.
Measurements per EIA standards unless noted above. Specifications subject to change without notice or obligation.
VX-3200V has not been authorized as required by the rules of the Federal Communications Commission.
VX-3200V is not, and may not be, offered for sale or lease, or sold or leased, until authorization is obtained.
VX-3200V VX-3200U 


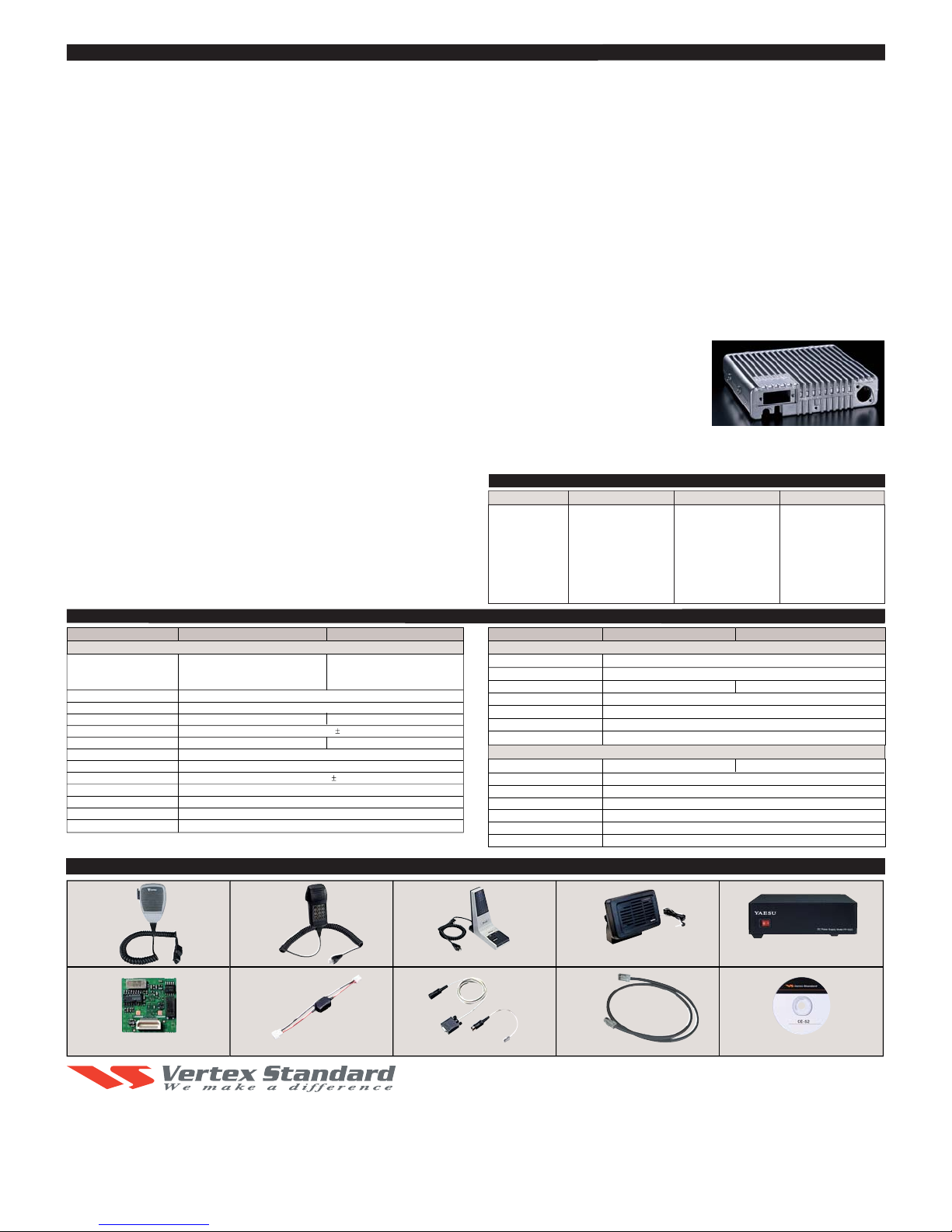

Accessories & Options
Specifications
VX-3200 SERIES
APPLICABLE MIL-STD

Alpha-numeric Display (14 Segments x 8 Digits)
The 8-digit Alpha-numeric display allows quick channel identification by the user,
and is easy to read from a wide range of viewing angles.
VX-3200V VX-3200U 

LF-1
Line Filter
MLS-100
Mobile Loud Speaker (12 Watts Peak Power)
FP-1023A
External Power Supply 23 A DC
MH-700D
DTMF Dial
Microphone
MH-25 A8J
Standard
Microphone
FVP-25
DTMF Paging + Encryption unit
VPL-1
Programming Kit (Computer to Radio)
CE 52
PC-Programming Software
MD-11 A8J 
Desktop Microphone
Rugged, Die-cast Construction
The VX-3200's circuitry is housed within a
die-cast aluminum enclosure, which doubles
as a heat sink. This extraordinarily durable
construction ensures many years of reliable
operation, even in high-vibration installations
.
Emergency Mode
When activated, the "Emergency" feature sends out the DTMF ANI, and cycles
between transmit and receive, to serve as an emergency beacon to alert the
dispatcher as to the need for immediate aid.
Encryption (Optional FVP-25 required)
For applications requiring secure communications, the optional FVP-25 Paging/
Encryption Unit provides scrambling and descrambling functions.
DTMF Paging (Optional FVP-25 required)
For dispatch or network operations where DTMF Paging is required, the optional
FVP-25 Paging/Encryption fulfills this requirement, as well.
ARTSTM Feature (Conventional Mode)
The Auto-Range Transponder System, a Vertex Standard exclusive, alerts the
operator when another ARTSTM-equipped station (for example, a hand-held unit)
moves out of communication range. You can then advise the other user to move
to a better location.
TOT, BCLO, BTLO Features
Among the most useful protection features of the VX-3200 are the transmitter
Time-Out Timer (TOT), Busy Channel Lock-Out (BCLO), and Busy Tone Lock-Out
(BTLO), to ensure efficient network performance at all times.
MIL-Spec Rated (MIL 810 C/D/E)
The ultra-rugged design of the VX-3200 Series enables it to be fully compliant
with the exacting specifications of MIL 810 C, D, and E, pursuant to the test
procedures documented below.
Compander Included
For narrow-band channel applications, the built-in Audio Companding system
compresses the voice waveform during transmission, and expands it during reception,
allowing full-sounding audio despite the restricted transmission bandwidth.
Frequency range 134-160 MHz 400-430 MHz
 148-174 MHz 450-490 MHz
480-512 MHz
Number of Groups 10
Number of Channels
128 channels
PLL Steps 2.5/5.0/6.25 kHz  5.0/6.25 kHz
Power Supply Voltage 13.6 VDC 15 %
Channel Spacing  12.5 /15.0 / 25.0 /30.0 kHz 12.5 / 25.0 kHz
Current Consumption TX: 10 A RX: 700 mA STBY: 250 mA
Operating Temperature range  -22 F to 140 F (-30°C to +60°C)
Frequency Stability Better than 2.5 ppm
RF Input-Output Impedance  50 Ohms
Audio Output Impedance 4 Ohms
Dimensions 6.3 in x 1.57 in x 6.7 in (160 mm x 40 mm x 170 mm)
Weight 3.09 lb (1.4 kg)
General Specifications
Transmitter Specifications Measurements made per TIA/EIA-603
Receiver Specifications Measurements made per TIA/EIA-603
Circuit type Double conversion Super-heterodyne
Sensitivity  0.25 uV (12 dB SINAD)
Adjacent Channel Selectivity  85/70 dB  80/67 dB
Intermodulation 80 dB
Spurious and Image Rejection  90 dB
Audio Output 4 W @ 4 Ohms 5% THD
Audio Distortion <3 % @1 kHz
Power Output 50 W (Low: 10W) 45 W (Low: 10W)
Modulation 16K0F3E, 11K0F3E
Max Deviation 5.0/2.5 kHz
Conducted Spurious Emission  70 dB below carrier
Audio Distortion <3 % @ 1 kHz
Microphone type Dynamic
Microphone impedance 600 Ohms
Cloning cable
2002.0410NA(U) B9200389 Printed in Japan
Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Phone [phone]; Fax [phone]
http://www.vxstdusa.com
International Division
8350 N.W. 52nd Terrace,Suite 201, Miami, FL 33166,U.S.A.
Phone [phone]; Fax [phone]
CT-4
(T99101411)
MIL 810C Methods/Procedures
501.1/Procedure 1,2
502.1/Procedure 1
503.1/Procedure 1
505.1/Procedure 1
506.1/Procedure 2
507.1/Procedure 2
514.2/Procedure 1,8
516.2/Procedure 1,4
MIL 810D Methods/Procedures
500.2/Procedure 1
501.2/Procedure 1,2
502.2/Procedure 1,2
503.2/Procedure 1
505.2/Procedure 1
506.2/Procedure 2
507.2/Procedure 2
509.2/Procedure 1
510.2/Procedure 1
514.3/Procedure 1,8
516.3/Procedure 1,4
MIL 810E Methods/Procedures
500.3/Procedure 1
501.3/Procedure 1,2
502.3/Procedure 1,2
503.3/Procedure 1
505.3/Procedure 1
506.3/Procedure 2
507.3/Procedure 2
509.3/Procedure 1
510.3/Procedure 1
514.4/Procedure 1,8
516.4/Procedure 1,4
Standard
Low Pressure
High Temperature
Low Temparature
Temperature Shock
Solar Radiation
Rain
Humidity
Salt Fog
Dust
Vibration
Shock
The 128-channel VX-3200 Series mobile transceivers are ideal for business and public safety applications. With 50 Watts of
power output on VHF (45 W on UHF), an easy-to-read 8-character invertible alpha-numeric display, nine programmable keys,
and a host of signaling formats, the VX-3200 will get your message through under the toughest conditions.
