TDT-100-LD SERIES MOLDED POLYURETHANE BINS (1YD3)
ASSEMBLY MANUAL
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: [phone] -or- Toll Free [phone]
Fax: [phone]
www.vestilmfg.com e-mail: [email protected]
Step 2: Fasten the undercarriage to the underside of the
bin at the four locations identified with light-colored arrows
using the large hex head screws provided with the
product. Insert the screws through slots in the crossbars
of the undercarriage
Step 3: Attach the wheels to the threaded posts
of the undercarriage. Secure each wheel to a
post with a hex nut.
Tighten hex
nut against
metal hub to
secure wheel
on post
Step 1: Fasten the casters (2) to the undercarriage.
[NOTE: Attach casters before attaching undercarriage
to bottom of bin.] Insert the threaded stem of each
caster into the bolt hole in the side rail (of the
undercarriage; then install hex nuts on the ends of the
stems and tighten the nuts against the side rail.
Undercarriage
Large hex head screw
Side rail of undercarriage

Rev. 12/15/2014 TDT-100-LD, MANUAL.doc
Copyright 2014 Vestil Manufacturing Corp. Page 2 of 2
LIMITED WARRANTY
Vestil Manufacturing Corporation (“Vestil”) warrants this product to be free of defects in material and workmanship during the warranty
period. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty, after we
receive a proper request from the warrantee (you) for warranty service.
Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or
from an authorized distributor AND Vestil has been fully paid.
What is an “original part”? An original part is a part used to make the product as shipped to the warrantee.
What is a “proper request”? A request for warranty service is proper if Vestil receives: 1) a photocopy of the Customer Invoice that
displays the shipping date; AND 2) a written request for warranty service including your name and phone number. Send requests by
any of the following methods:
Mail Fax Email
Vestil Manufacturing Corporation [phone] [email protected]
2999 North Wayne Street, PO Box 507 Phone
Angola, IN 46703 [phone]
In the written request, list the parts believed to be defective and include the address where replacements should be delivered.
What is covered under the warranty? After Vestil receives your request for warranty service, an authorized representative will contact
you to determine whether your claim is covered by the warranty. Before providing warranty service, Vestil may require you to send the
entire product, or just the defective part or parts, to its facility in Angola, IN. The warranty covers defects in the following original
dynamic components: motors, hydraulic pumps, electronic controllers, switches and cylinders. It also covers defects in original parts
that wear under normal usage conditions (“wearing parts”): bearings, hoses, wheels, seals, brushes, batteries, and the battery charger.
How long is the warranty period? The warranty period for original dynamic components is 30 days. For wearing parts, the warranty
period is 30 days. The warranty periods begin on the date when Vestil ships the product to the warrantee. If the product was purchased
from an authorized distributor, the periods begin when the distributor ships the product. Vestil may, at its sole discretion, extend the
warranty periods for products shipped from authorized distributors by up to 30 days to account for shipping time.
If a defective part is covered by the warranty, what will Vestil do to correct the problem? Vestil will provide an appropriate
replacement for any covered part. An authorized representative of Vestil will contact you to discuss your claim.
What is not covered by the warranty?
1. Labor;
2. Freight;
3. Occurrence of any of the following, which automatically voids the warranty:
Product misuse;
Negligent operation or repair;
Corrosion or use in corrosive environments;
Inadequate or improper maintenance;
Damage sustained during shipping;
Collisions or incidental contacts causing damage to the product;
Unauthorized modifications: DO NOT modify the product IN
ANY WAY without first receiving written authorization from
Vestil. Modification(s) might make the product unsafe to use or
might cause excessive and/or abnormal wear.
Do any other warranties apply to the product?
Vestil Manufacturing Corp. makes no other express warranties. All implied warranties are disclaimed to the extent allowed by law. Any
implied warranty not disclaimed is limited in scope to the terms of this Limited Warranty.

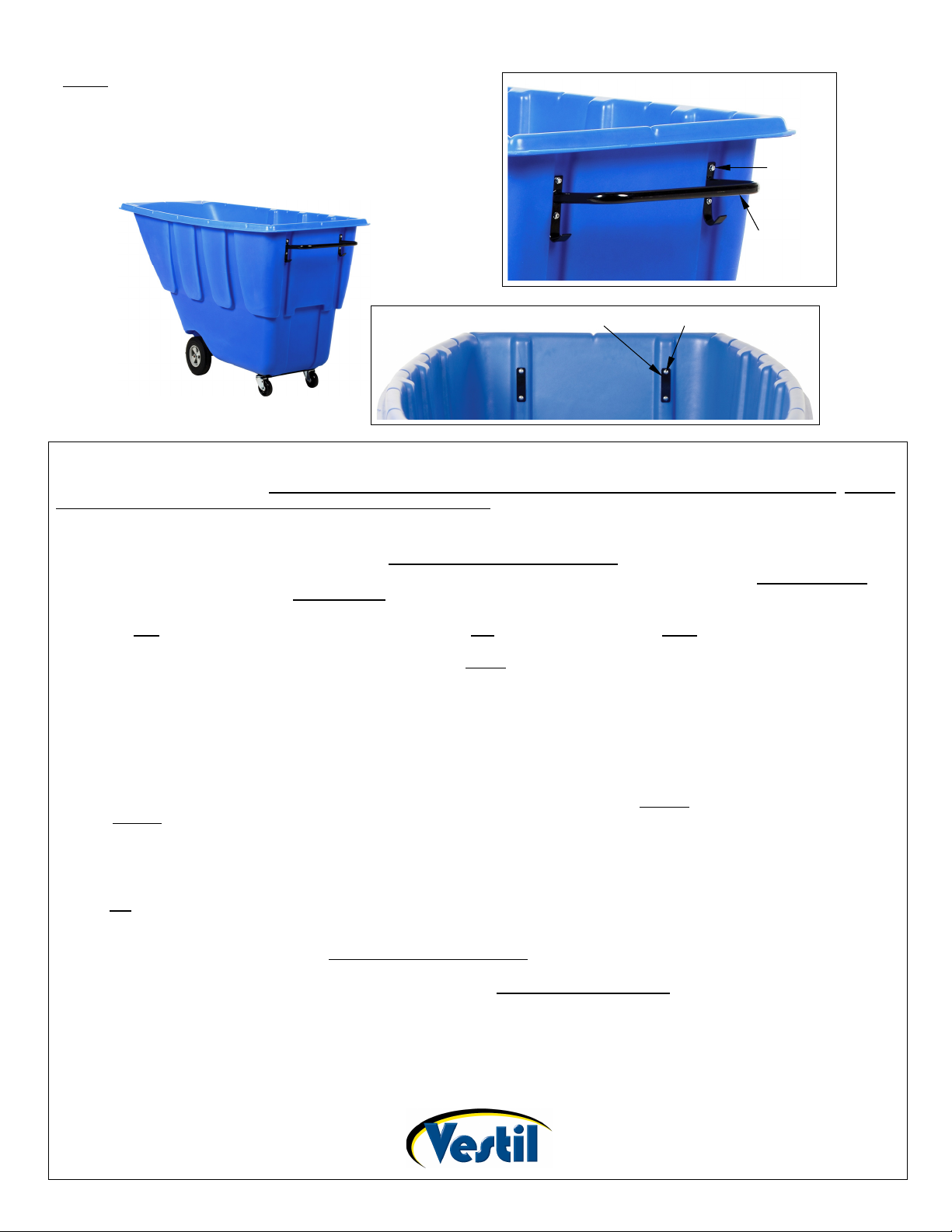

Step 4: Attach the handle assembly to the bin using the 4
