Vestil CJ-BEAM User manual

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 1 of 7

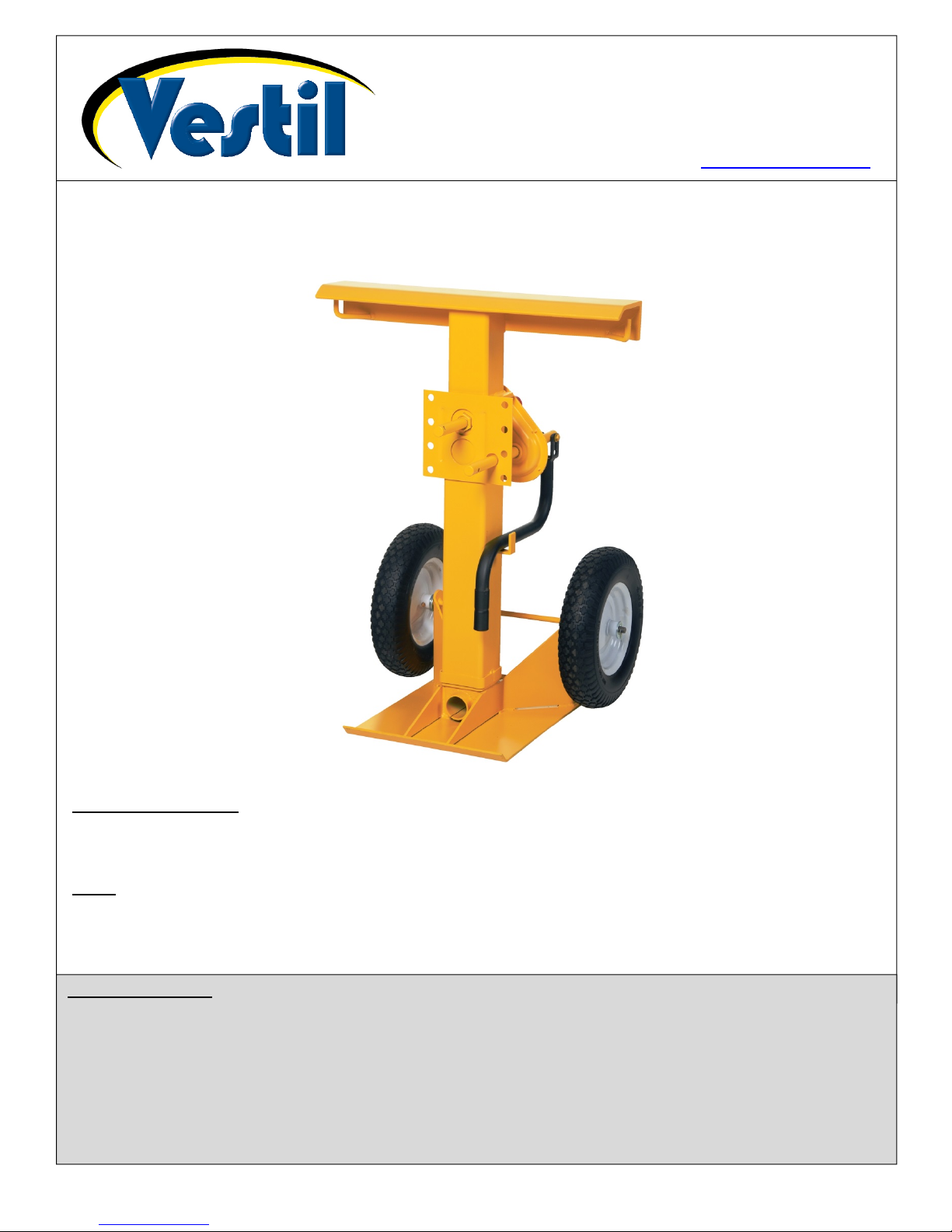

CJ-BEAM Trailer Stabilizing Jacks
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Then, inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of the damage on
the bill of lading. If the product is undamaged, discard the packaging.
Notes:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product
is used is exclusively the responsibility of the end-user.
2) VESTIL is not responsible for injury or property damage that results from failure to apply either instructions in this
manual, or information provided on product labels.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: [phone] -or- Toll Free [phone]
Fax: [phone]
www.vestilmfg.com
e
-
mail:
[email protected]
Table of Contents:
Signal Words……………………………………………..……………………………………………………………..…………..2
Safe Use Recommendations……………..……………………………………………..…………………………..…….………2
Specifications…………………………………..…………………………………………………………..…….………………… 3
FIG. 1: Exploded parts diagram & bill of materials………...……………………………………………………………………4
Using the jack………………………………………………………………………………………………………………………. 4
Installation of optional foam-filled wheels……………………………………………………………………………………….. 5
Inspections & Maintenance……………………………………………………………………………………………………….. 6
Labeling Diagram………………………………………………………………………………………………………………….. 6
Limited Warranty…...…………………………………………………………………………………………………………..….. 7

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 2 of 7
Signal Words:
This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the probable seriousness of
those injuries, if the product is misused in the ways described. Other signal words call attention to uses of the product likely
cause property damage.
The signal words used appear below along with the meaning of each word:
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the product.
Safe Use Recommendations:
Vestil strives to identify foreseeable hazards associated with the use of its products. However, material handling is
dangerous and no manual can address every conceivable risk. The most effective way to avoid end-user ultimately is
responsible for exercising sound judgment at all times.
Improper or careless use of this product might result in death or serious personal injury.
Failure to read and understand the entire manual before assembling, using or servicing the product
constitutes misuse.
Read the manual to refresh your understanding of proper use and maintenance procedures whenever necessary.
DO NOT attempt to resolve any issue with the product unless you are both qualified to do so and certain that it will
be safe to use afterwards. Improperly maintained jacks might become unsafe to use.
DO NOT perform maintenance on a loaded jack. Remove the jack from use before
DO NOT modify the product in any way. Unauthorized modifications automatically void the Limited Warranty (see p.
7) and might make the jack unsafe to use.
DO NOT exceed the capacity of your jack. Capacity information appears in the “Specifications” section on page 3 of
this manual as well as on label 287 (see “Labeling diagram” on p. 6).
Inspect the product before each use. Check the jack for damaged frame members and welds, corrosion, or severe
wear. Remove the product from service if damage is discovered. DO NOT use the product until it is fully restored to
normal condition. ONLY use manufacturer-approved replacement parts. If the jack cannot be restored to normal
condition, permanently remove it from service, i.e. DO NOT use a damaged jack.
Before installing a jack beneath a semitrailer confirm that: 1) The trailer is parked on an even, level concrete surface
to prevent the landing gear and jack(s) from sinking into the ground; 2) The trailer is entirely supported by its landing
gear; 3) The wheels of the trailer are immobilized to resist creep or roll; 4) The underside of the trailer is structurally
sound, especially where it will contact the jack; and 5) The net weight of the trailer and load is within the load ratings of
your jack.
ONLY use the jack on compacted surfaces (concrete or asphalt) that are level and even. The jack cannot stabilize
trailers parked on uneven or sloped ground.
ONLY use this jack to stabilize the front end of a fully supported trailer. DO NOT use this jack to support trailers! The
trailer must be completely supported by its landing gear.
DO NOT use this device UNLESS all labels are in place, readable, and undamaged. (See “Labeling Diagram” on. p.
6).

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 3 of 7
Specifications:
Dimensions and other specifications for each CJ-BEAM model jack appear in the diagrams below.
CJ-BEAM-PN:
Static capacity = 100,000 lb.
Lifting capacity = 50,000 lb.
Overall width = 293/4”
Overall length = 279/16”
Service range = 41” to 55”
Wheels (2) = 16” fully pneumatic
Net weight = 165 lb. (75kg)
CJ-BEAM-SN:
Static capacity = 100,000 lb.
Lifting capacity = 50,000 lb.
Overall width = 293/4”
Overall length = 279/16”
Service range = 41” to 55”
Wheels (2) = 16” solid foam filled
Net weight = 196 lb. (89kg)

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 4 of 7
FIG. 1: Exploded parts diagram and bill of materials
Using the jack:
This jack should only be used to help stabilize a trailer with intact landing gear. The trailer must be parked on a
flat, concrete surface. The landing gear provides support for the trailer. One or more jacks can be used to stabilize
the trailer.
The load rating is displayed on the information label applied to the side of the jack (see Label 233, 234, or 265,
“Labeling diagram” on p. 6). Two ratings appear on the label: 1) “Static rating” which indicates how much weight the
jack will stabilize (NOT SUPPORT); 2) “Lifting” which is the amount of weight the screw mechanism of the jack can
lift.
Tip the jack onto its wheels and roll it under the hitch end of the trailer. If only 1 jack is necessary, position the
jack along the (lengthwise) center line of the trailer. If 2 jacks are necessary, position a jack under each front corner
of the trailer.
NOTE: Jacks should also be placed under each rear corner of the trailer if the distance from the rear axle to the
back end of the trailer is more than 1/4of the overall trailer length.
Adjust the height of the jack to bring the top cap into firm
engagement with the underside of the trailer frame. Do not raise
the jack any higher than necessary because the landing gear
must always maintain solid contact with the ground in order to
provide support for the front end of the trailer. To adjust the height
of the jack, simply turn the crank handle clockwise. CJ-BEAM
model jacks have 2 raising/lowering speeds. To operate in high
speed mode, pull the crank handle toward you to extend the crank
shaft. To operate in low speed mode, push in the crank shaft.
Remove all jacks before hitching the trailer to a tractor. To
remove a jack, simply rotate the crank handle counterclockwise
until the top of the jack is no longer in contact with the underside
of the trailer. Grasp the handle, tip the jack onto its wheels, and
roll the jack out from underneath the trailer.
Item Part no. Description Quantity
1 13-514-055 Weldment, frame 1
2 16-132-126
16-132-246
Tire:
CJ-BEAM-PN: Pneumatic, 4” x 16”
CJ-BEAM-SN: Foam filled, 4” x 16”
2
2
3 33016 Flat washer, low carbon, USS, zinc
plated, 5/
8
” 4
4 65127 Cotter pin, zinc plated,
3
/
16
” x 2” 2
Crank
handle
Crank
shaft

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 5 of 7
Installation of optional foam-filled wheels (JACK-UFBL-KIT-REL)
To properly install optional foam-filled wheels, the hubs must face each other as shown in the diagram below.
10 inches in
diameter
21
/32
inch opening for
5/8inch axle
3
1
/8inches
wide
4
1
/32
inches
wide
overall
Wheel hub
(install wheel on
axle hub first)
NOTE: Wheel should not
wobble on axle. Use 1/2
inch flat washers to fill gap
between cotter pin and
wheel bearing if necessary
to prevent wobble.
Axle
Foam-filled
wheel
Cotter
pin
Wheel
hub
Model SP-TOP-BEAM
shown
Insert cotter pin through
closest accessible pin hole
to wheel to minimize back-
and-forth movement of
axle.

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 6 of 7
Inspections & Maintenance:
Regular inspections and maintenance are essential to keep this product in normal operating condition. If damage is
discovered during an inspection, do not return the jack to service until it is fully restored to normal condition.
Before using/installing a jack beneath a trailer,
Step 1: Tag the unit, “Out of Service.”
Step 2: Inspect the following:
a. Base, top cap, middle segment: examine for visible damage such as cracks, warps, broken welds, signs of
metal fatigue. Make sure that the top cap is rigidly welded to its post.
b. Crank mechanism (gear hub, crank shaft, and crank handle): Raise and lower the top cap in both speed
modes. Confirm normal operation.
c. Handle grips (if applicable): check each grip for looseness and damage. If a grip is loose, remove it, apply
adhesive to the inside of a grip, and reinstall it. Let the adhesive fully cure before moving the jack.
d. Labels: the jack should be labeled at all times as shown in the “Labeling Diagram” below. Replace labels
that are damaged, faded, or not easily readable.
e. Wheels, axle, and wheel bearings: inspect each component for looseness, severe wear, and damage in
general.
Step 3: Remove debris from all jack surfaces.
Step 4: Perform all other necessary adjustments and repairs. Use only manufacturer-approved replacement parts.
DO NOT modify the jack, i.e. never alter the jack from its original configuration.
Step 5: Make a dated record of all repairs, adjustments, and replacements.
Labeling diagram:
The jack should be labeled at all times as shown in the diagram below. Periodically clean the labels to maintain
legibility. Replace any label that is damaged and/or not easily readable.
A: Label 252
B: Label 265
A
B
B

Rev. 11/8/2016 CJ-BEAM, MANUAL
Copyright 2016 Vestil Manufacturing Corp. Page 7 of 7
LIMITED WARRANTY
Vestil Manufacturing Corporation (“Vestil”) warrants this product to be free of defects in material and workmanship
during the warranty period. Our warranty obligation is to provide a replacement for a defective original part if the part is
covered by the warranty, after we receive a proper request from the warrantee (you) for warranty service.
Who may request service?
Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an
authorized distributor AND Vestil has been fully paid.
What is an “original part”?
An original part is a part used to make the product as shipped to the warrantee.
What is a “proper request”?
A request for warranty service is proper if Vestil receives: 1) a photocopy of the Customer Invoice that displays the
shipping date; AND 2) a written request for warranty service including your name and phone number. Send requests
by any of the following methods:
Mail Fax Email
Vestil Manufacturing Corporation [phone] [email protected]
2999 North Wayne Street, PO Box 507 Phone
Angola, IN 46703 [phone]
In the written request, list the parts believed to be defective and include the address where replacements should be
delivered.
What is covered under the warranty?
After Vestil receives your request for warranty service, an authorized representative will contact you to determine
whether your claim is covered by the warranty. Before providing warranty service, Vestil may require you to send the
entire product, or just the defective part or parts, to its facility in Angola, IN. The warranty covers defects in the
following original dynamic components: motors, hydraulic pumps, electronic controllers, switches and cylinders. It also
covers defects in original parts that wear under normal usage conditions (“wearing parts”): bearings, hoses, wheels,
seals, brushes, batteries, and the battery charger.
How long is the warranty period?
The warranty period for original dynamic components is 30 days. For wearing parts, the warranty period is 30 days.
The warranty periods begin on the date when Vestil ships the product to the warrantee. If the product was purchased
from an authorized distributor, the periods begin when the distributor ships the product. Vestil may, at its sole
discretion, extend the warranty periods for products shipped from authorized distributors by up to 30 days to account
for shipping time.
If a defective part is covered by the warranty, what will Vestil do to correct the problem?
Vestil will provide an appropriate replacement for any covered part. An authorized representative of Vestil will contact
you to discuss your claim.
What is not covered by the warranty?
1.Labor;
2.Freight;
3.Occurrence of any of the following, which automatically voids the warranty:
Product misuse;
Negligent operation or repair;
Corrosion or use in corrosive environments;
Inadequate or improper maintenance;
Damage sustained during shipping;
Collisions or other incidental contacts causing damage to the product;
Unauthorized modifications: DO NOT modify the product IN ANY WAY without first receiving written
authorization from Vestil. Modification(s) might make the product unsafe to use or might cause excessive
and/or abnormal wear.
Do any other warranties apply to the product?
Vestil Manufacturing Corp. makes no other express warranties. All implied warranties are disclaimed to the extent
allowed by law. Any implied warranty not disclaimed is limited in scope to the terms of this Limited Warranty.
