H-SERIES HOPPERS
Instruction Manual
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at [phone]. The department can
also be contacted online at http://www.vestilmfg.com/parts_info.htm.
Electronic copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-
manuals.php.
Table of Contents Table of Figures
Specifications……………….…...… 2Exploded view & bill of materials: H-25 series hoppers…………... 4
Signal Words….………..………….. 3Exploded view & bill of materials: H-50 series hoppers…………... 5
Hazards………………...……….….. 3Exploded view & bill of materials: H-100 series hoppers…………..6
Loading the Chute…..….….……… 9Exploded view & bill of materials: H-150 series hoppers…………. 7
Using the Hopper…………………. 9Exploded view & bill of materials: H-200-HD………………………..8
Stacking hoppers……………….…. 10 Labeling Diagram………………………………………………………11
Inspections & Maintenance………. 10
Limited Warranty………………..…. 12
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: [phone] -or-Toll Free [phone]
Fax: [phone]
Web: www.vestilmfg.com e-mail: [email protected]

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 2 of 12
SPECIFICATIONS
Thank you for purchasing an H-series, self-dumping hopper made by Vestil Manufacturing Co.
(“Vestil”). Our hoppers are durable, high-quality products that provide many safety-enhancing features.
Standard H-series hoppers include (2) fork pockets, dump-actuating cable that allows the hopper to be
dumped by the forklift driver without having to dismount the forklift, and either a safety chain or safety
strap that attaches the hopper to the carriage of your fork truck. Dimensions, volume, and net weight of
each model H hopper are provided in the following table.
Model Volume Uniform Maximum
Rated Load
Overall Dimensions
(W x D x H)
Distance
between
Fork Pocket
Centers
Net Weight
H-series hoppers (low profile 90° self-dumping steel)
Light duty (12 gauge steel)
H-25-LD ¼ yd
3
(0.19 m
3
)
2,000 lb.
(909.1 kg)
27” x 46
1
/8”x 21
11
/16”
(68.6 x 117.2 x 55.1)cm
11
5
/8”
(29.5 cm)
167 lb.
(75.9 kg)
H-50-LD ½ yd
3
(0.38 m3)
2,000 lb.
(909.1 kg)
27” x 51
3
/16”x 28
1
/8”
(68.6 x 130.0 x 71.4)cm
11
5
/8”
(29.5 cm)
256 lb.
(116.4 kg)
H-100-LD 1 yd
3
(0.76 m3)
2,000 lb.
(909.1 kg)
51” x 51
3
/16” x 28
1
/8”
(129.5 x 130.0 x 71.4)cm
21
5
/8”
(55 cm)
347 lb.
(157.7 kg)
H-150-LD 1½ yd
3
(1.15 m
3
)
2,000 lb.
(909.1 kg)
48
5
/8” x 51
13
/16” x 40
1
/4”
(123.5 x 131.6 x 102.2)cm
21
5
/8”
(55cm)
377 lb.
(171.4 kg)
Medium duty (10 gauge steel)
H-25-MD ¼ yd
3
(0.19 m
3
)
4,000 lb.
(1,818 kg)
27” x 46
1
/8”x 21
11
/16”
(68.6 x 117.2 x 55.1)cm
11
5
/8”
(29.5 cm)
229 lb.
(104.1 kg)
H-50-MD ½ yd
3
(0.38 m3)
4,000 lb.
(1,818 kg)
27” x 51
3
/16”x 28
3
/8”
(68.6 x 130.0 x 72.1)cm
11
5
/8”
(29.5 cm)
276 lb.
(125.5 kg)
H-100-MD 1 yd
3
(0.76 m
3
)
4,000 lb.
(1,818 kg)
51” x 51
3
/16” x 28
1
/8”
(129.5 x 130.0 x 71.4)cm
21
5
/8”
(55 cm)
395 lb.
(179.5 kg)
H-150-MD 1½ yd
3
(1.15 m
3
)
4,000 lb.
(1,818 kg)
48
3
/4” x 51
13
/16” x 40
1
/4”
(123.8 x 131.6 x 102.2)cm
21
5
/8”
(55 cm)
463 lb.
(210.5 kg)
Heavy duty (8 gauge steel)
H-25-HD ¼ yd
3
(0.19 m3)
6,000 lb.
(2,727 kg)
27” x 46
1
/8”x 21
11
/16”
(68.6 x 117.2 x 55.1)cm
11
5
/8”
(29.5 cm)
216 lb.
(98.2 kg)
H-50-HD ½ yd
3
(0.38 m3)
6,000 lb.
(2,727 kg)
27” x 51
1
/4”x 28
3
/16”
(68.6 x 130.2 x 71.6)cm
11
5
/8”
(29.5 cm)
279 lb.
(126.8 kg)
H-100-HD 1 yd
3
(0.76 m
3
)
6,000 lb.
(2,727 kg)
51” x 51
1
/4” x 28
3
/16”
(129.5 x 130.2 x 71.6)cm
21
5
/8”
(55 cm)
462 lb.
(210 kg)
H-150-HD 1½ yd
3
(1.15 m3)
6,000 lb.
(2,727kg)
48
7
/8” x 51
13
/16” x 40
1
/4”
(124.1 x 131.6 x 102.2)cm
21
5
/8”
(55 cm)
540 lb.
(245.5 kg)
H-200-HD 2 yd
3
(1.52 m3)
6,000 lb.
(2,727kg)
67” x 56
9
/16” x 38
11
/16”
(124.1 x 131.6 x 102.2)cm
21
5
/8”
(55 cm)
578 lb.
(262.7 kg)
Options
Model Description Net Weight
H-DAMP-4
Hopper dumping speed regulator for 4,000lb (medium duty) models
30 lb. (13.6 kg)
H-DAMP-6
Hopper dumping speed regulator for 6,000lb (heavy duty) models
40 lb. (18.2 kg)
LEKP
“Leak proof” welded hopper
5 lb. (2.3 kg)
*H-DPLG-75
3
/
4
” drain plug option 2 lb. (0.9 kg)
*H-DPLG-2
2” drain plug option 2 lb. (0.9 kg)
LUG
4 welded lifting lugs (around perimeter of hopper mouth) 23 lb. (10.5 kg)
*Ordering a drum plug option automatically upgrades hopper to include leak-proof chute welds.

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 3 of 12
SIGNAL WORDS
This manual uses SIGNAL WORDS to draw attention to uses of the product that could result in
personal injuries, as well as the probable seriousness of those injuries. Other signal words call attention
to uses likely to cause property damage. Signal words used in this manual appear below along with the
definition of each word.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the hopper.
SAFETY INSTRUCTIONS
Vestil strives to identify all foreseeable hazards associated with the use of its products. However,
material handling is dangerous and no manual can address every conceivable risk. Ultimately, the most
effective way to prevent injury is to apply sound judgment whenever using this device.
Material handling is dangerous. Improper or careless operation might result in death or
serious personal injuries.
•Read & understand this entire manual before using or servicing the hopper.
•Inspect the hopper as directed in the INSPECTIONS & MAINTENANCE section on p. 10. DO NOT
use the hopper unless it is in SATISFACTORY CONDITION. See RECORD OF SATISFACTORY
CONDITION on p. 10.
•DO NOT use the hopper if the carriage chain is damaged or missing; DO NOT lift the hopper until it is
securely connected to the carriage of the fork truck with the carriage chain. ONLY use this hopper with
a powered forklift truck. DO NOT mount the hopper on stackers or manually propelled lift trucks.
•DO NOT fill the hopper with a load weighing more than its maximum rated load. See
SPECIFICATIONS tables on page 2.
•NO ONE should travel under the hopper at any time while it is elevated.
•NEVER wrap the release cable around your hand, fingers, or any other part of your body!
•Hoppers with lifting lugs can be lifted with overhead hoists and cranes. DO NOT lift a hopper
unless the chute is securely latched to the frame.
•DO NOT allow people to ride on or in the hopper.
•DO NOT use the hopper if any label is unreadable or missing. Apply replacement labels before
returning the hopper to service. See LABELING DIAGRAM on p. 11.
•ALWAYS apply proper lift truck operation techniques learned during your training program. Before
raising the hopper from the floor, tilt the (forklift) mast toward the cab of the truck to ensure that the
hopper will not slide off of the forks.
•DO NOT modify the hopper in any way without first obtaining express, written authorization!
Unauthorized modifications might make the hopper unsafe to use and automatically void the LIMITED
WARRANTY on p. 12.
•DO NOT dump the hopper UNLESS every person in the vicinity moves to a safe location away from
the dumping site.
•DO NOT dump the hopper if the forklift is on sloped terrain. Only dump the hopper while on level
surfaces.
•Do not exceed the load ratings or fill the hopper above the side walls. Injury to personnel or
permanent damage to the equipment could result from overloading.

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 4 of 12

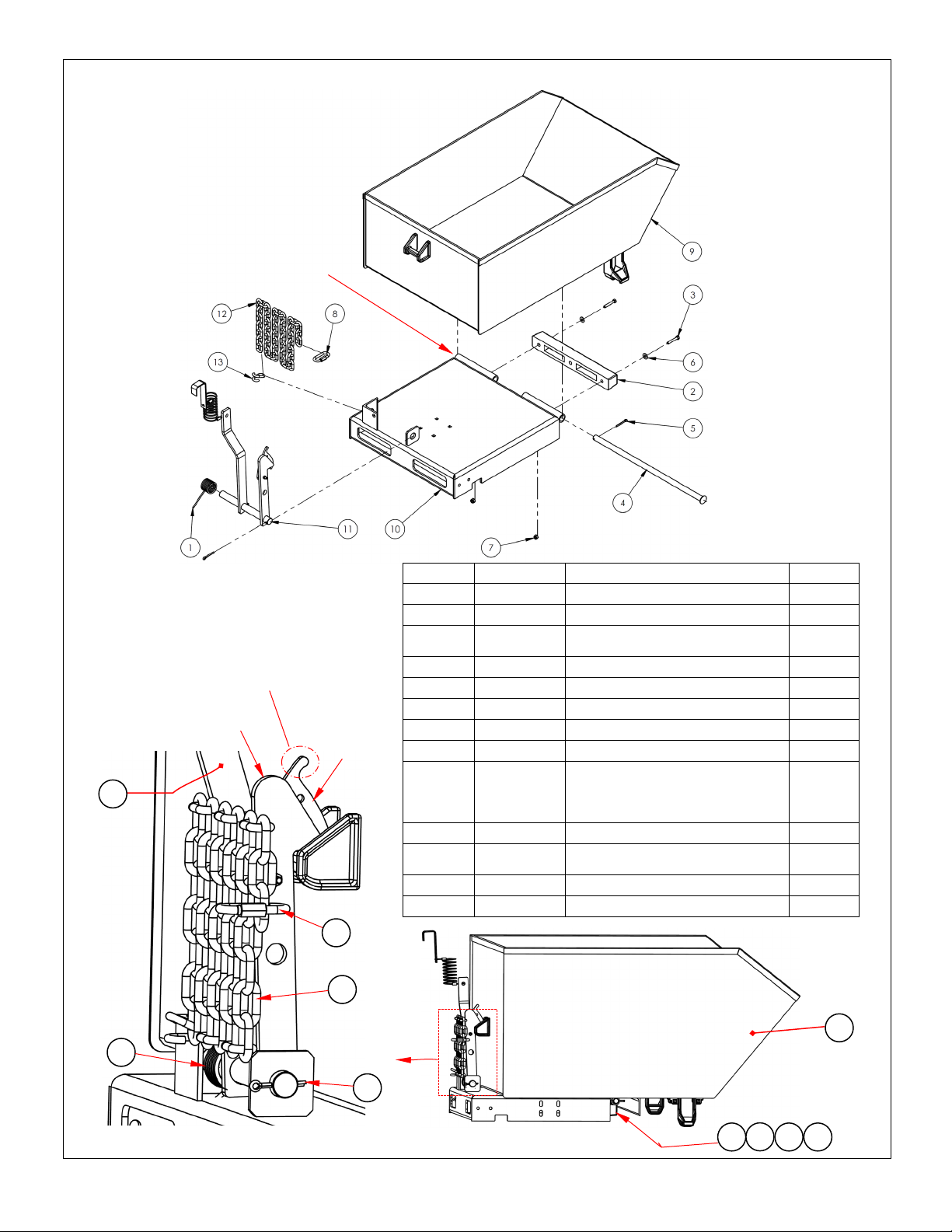

H-25 SERIES HOPPERS EXPLODED VIEW AND BILL OF MATERIALS
1
2
3
6
7
5
9
11
8
12
Item
Part no.
Description
Quantity
1 37-146-005 Spring, torsion, hopper release 1
2 29-048-061 Bumper, rubber 1
3 11061
5/
16
” – 18 x 2” HHCS #2 zinc-plated
bolt
2
4 37-112-046 Pin, hinge axle 1
5
65127
3/
16
” x 2” zinc-plated cotter pin
2
6 33006
5
/16” USS zinc-plated flat washer 2
7
37021
5/
16
”-18 Nylon lock nut
2
8 99-145-053
5
/16” quick link 1
9
37-545-032
37-545-003
37-545-037
Weldment, chute:
H-25-LD
H-25-MD
H-25-HD
1
1
1
10 37-514-082 Weldment, frame, base 1
11 37-537-021
Weldment, lock, release, lever
assembly
1
12
09-145-018
5/16” chain, 56” long
1
13 99-145-084 Lap link 1
Axle pin
receiver
Latch lever
Finger tab
Lock
toggle

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 5 of 12

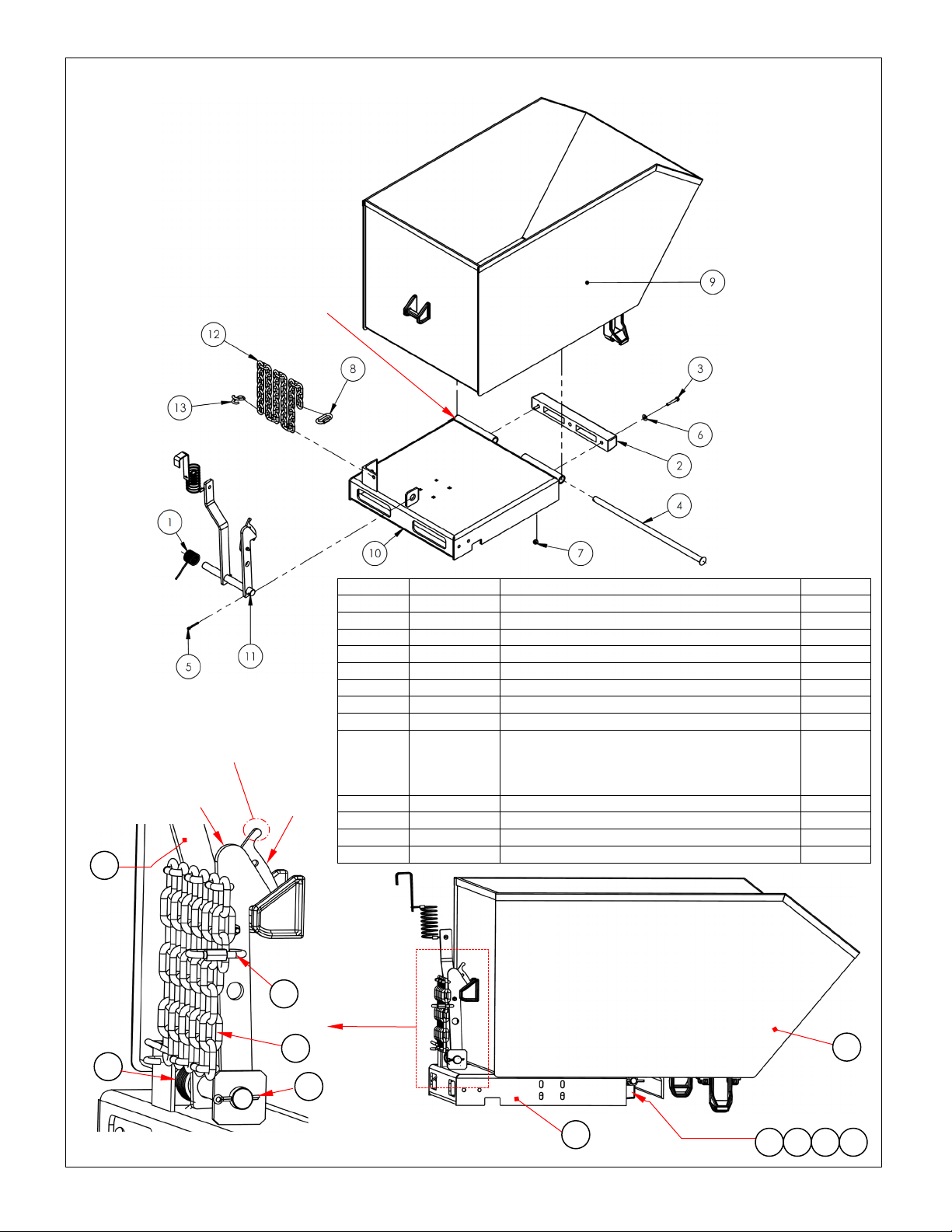

H-50 SERIES HOPPERSEXPLODED VIEW AND BILL OF MATERIALS
1
2 3 6 7
5
9
11
8
12
Item no.
Part no.
Description
Quantity
1
37-146-005
Spring, torsion, hopper release
1
2
29-048-061
Bumper, rubber
1
3
11061
5/16”-18x2” HHCS #2 zinc-plated bolt
2
4
37-112-046
Pin, hinge axle
1
5
65127
3/16”x2” zinc-plated cotter pin
2
6
33006
5/16” USS zinc-plated flat washer
2
7
37021
5/16”-18 Nylon lock nut
2
8
99-145-053
5/16” quick link
1
9
37-545-033
37-545-004
37-545-038
Weldment, chute:
H-50-LD
H-50-MD
H-50-HD
1
1
1
10
37-514-082
Weldment, frame, base
1
11
37-537-021
Weldment, lock, release, lever assembly
1
12
09-145-018
5/16” chain, 56” long
1
13
99-145-084
Lap link
1
Axle pin
receiver
10
Latch lever
Finger tab
Lock
toggle

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 6 of 12

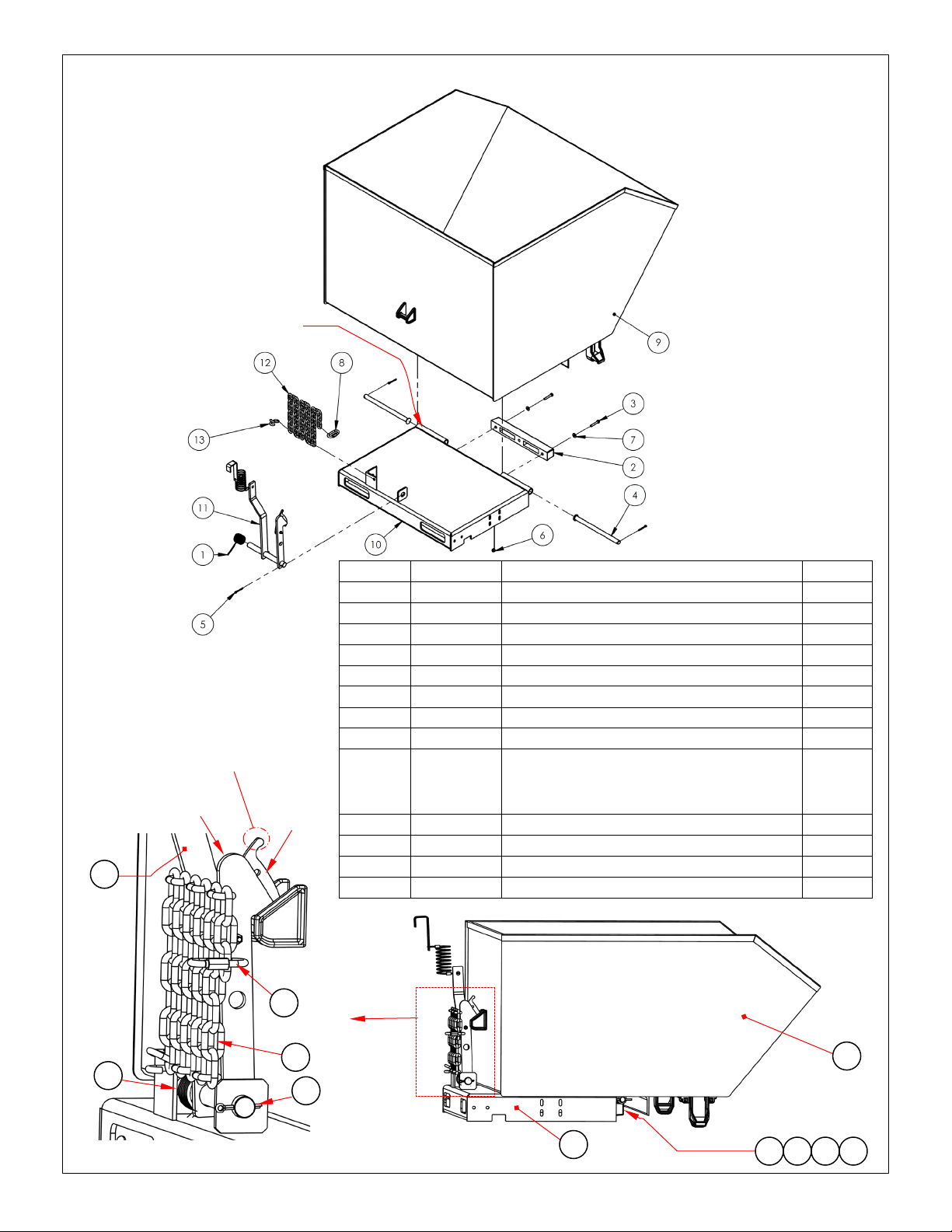

H-100-SERIES HOPPERS EXPLODED VIEW AND BILL OF MATERIALS
1
2
3
6
7
5
9
11
8
12
Item no.
Part no.
Description
Quantity
1
37-146-005
Spring, torsion, hopper release
1
2
29-048-061
Bumper, rubber
1
3
11061
5/16”-18x2” HHCS #2 zinc-plated bolt
2
4
37-112-045
Pin, hinge axle
2
5
65127
3/16”x2” zinc-plated cotter pin
3
6
33006
5/16” USS zinc-plated flat washer
2
7
37021
5/16”-18 Nylon lock nut
2
8
99-145-053
5/16” quick link
1
9
37-545-034
37-545-008
37-545-039
Weldment, chute:
H-100-LD
H-100-MD
H-100-HD
1
1
1
10
37-514-083
Weldment, frame, base
1
11
37-537-021
Weldment, lock, release, lever assembly
1
12
09-145-018
5/16” chain, 56” long
1
13
99-145-084
Lap link
1
Axle pin
receiver
10
Latch lever
Finger tab
Lock
toggle

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 7 of 12
H-150-SERIES HOPPERS EXPLODED VIEW AND BILL OF MATERIALS
1
2
3
6
7
5
9
11
8
12
Item no.
Part no.
Description
Quantity
1
37-146-005
Spring, torsion, hopper release
1
2
29-048-061
Bumper, rubber
1
3
11061
5/16”-18x2” HHCS #2 zinc-plated bolt
2
4
37-112-045
Pin, hinge axle
2
5
65127
3/
16
”x2” zinc-plated cotter pin
3
6
37021
5/16”-18 Nylon lock nut
2
7
33006
5/
16
” USS zinc-plated flat washer
2
8
99-145-053
5/16” quick link
1
9
37-545-035
37-545-009
37-545-040
Weldment, chute:
H-150-LD
H-150-MD
H-150-HD
1
1
1
10
37-514-083
Weldment, frame, base
1
11
37-537-021
Weldment, lock, release, lever assembly
1
12
09-145-018
5/16” chain, 56” long
1
13
99-145-084
Lap link
1
Axle pin
receiver
10
Latch lever
Finger tab
Lock
toggle

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 8 of 12
H-200-HD EXPLODED VIEW AND BILL OF MATERIALS
5
10
11
12
13
9
2
4
7
6
Item no.
Part no.
Description
Quantity
1
37-514-083
Weldment, frame, base
1
2
37-545-137
Weldment, chute
1
3
37-112-045
Pin, hinge axle
2
4
37-537-021
Weldment, lock, release lever assembly
1
5
37-146-005
Spring, torsion, hopper release
1
6
09-145-018
Chain, 5/16” x 56”
1
7
99-145-053
5/
16
” quick link
1
8
99-145-084
Lap link
1
9
65127
Cotter pin, zinc plated, 3/
16
” x 2”
3
10
29-048-061
Bumper, rubber
1
11
11061
Bolt, HHCS, gr. 2, zinc-plated, 5/16” – 18 x 2”
2
12
33006
Flat washer, zinc plated, USS, 5/16”
2
13 37021
Nylon insert lock nut, gr. 2, zinc finish, 5/
16
” –
18
2
Axle pin receiver
1
Latch lever
Finger tab
Lock
toggle

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 9 of 12
LOADING THE CHUTE
Verify that the hopper chute is securely latched and locked to the base frame before filling it with refuse.
Standard H-series self-dumping hoppers are suitable for use indoors and outdoors and in most industrial and
commercial settings. They are designed for use with rider forklift trucks. Use the hopper to collect and dump non-
hazardous wastes.
USING THE HOPPER
These hoppers have a low profile and rotate through a 90° dump angle. To dump the hopper chute, a forklift
operator must simply unlock the release lever and pull the release cable.
Step 1: Mount the hopper on the forks of your lift truck. Drive forward until the forks contact the ends of the fork
slots. Securely attach the hopper to the fork carriage with the carriage chain by wrapping the free end of the chain
around part of the carriage. Then, connect the quick link at the end of the chain to a link in the chain. There
should be little to no slack in the chain.
Step 2: Store the handle of the release cable within reach of the forklift operator. For example, the handle could
be hooked to the frame of the roll cage.
NOTE: Make sure that there is slack in the cable. If the cable is taut, bumps or sudden stops while driving might
cause the chute to be released.
Step 3: Raise the forks and tilt the mast back/towards the cab. Only raise the forks a few inches above the
ground. Drive the forklift to the trash dumpster. Pull the finger tab until the latch lock disengages the latch bar.
See diagrams included in Step 4 below. Elevate the hopper above the sides of the dumpster.
Step 4: Pull the release cable to release the chute and dump its contents. The chute will pivot about the dump
axis. If necessary, tilt the mast forward/away from the cab while pulling the release cable to encourage the chute
to dump.
NEVER WRAP THE RELEASE CABLE AROUND ANY PART OF YOUR BODY,
ESPECIALLY AN ARM OR HAND! When the chute dumps, the cable is pulled forward.
Step 5: Return the chute to the latched position. Tilt the forklift mast toward the cab; then back away from the
dumpster. Lower the forks until the hopper contacts the ground; then slowly lower the forks the rest of the way to
the ground until the chute latches to the base frame. Confirm that the chute is properly latched by raising the
forks. The chute should not rotate.If necessary, lower the forks completely and manually latch the chute to the
frame by pressing down on the back of the chute (see “H-series” diagram in Step 4). Alternatively, use the side of
the dumpster to pivot the chute back onto the base frame.
Step 6: Lock the latch. Press the latch lock forward until it firmly engages the latch bar.
Waste material
Latch lock
Finger tab of
latch lock
Latch bar
Latch lever
Front end
of chute
Manual
chute
release
lever
Back end
of chute
Front end
of chute
Dumpster (cross-section)
Dumping
axis
Base
frame
Carriage
chain

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 10 of 12
STACKING HOPPERS
H-series hoppers are designed to
stack on top of each other. Notches
in the base and rim grooves in
specially designed cast feet of one
hopper engage the rim of the hopper
supporting it as shown in the diagram
to the right.
Hoppers of identical width can be
stacked together, i.e. H-25 and H-50
series hoppers stack together. H-100
and H-150 series hoppers also stack
together. Always unload hoppers
before stacking them and NEVER
create stacks of more than 3
hoppers. The bottom hopper must
not be equipped with casters.
DO NOT move stacked hoppers! Only move one hopper at-a-time by properly mounting it to
your forklift as described in Step 1 on p. 9. All hoppers must be empty whenever they are stacked.
RECORD OF SATISFACTORY CONDITION
Before using this hopper for the first time, create a record OF its appearance and features. Include
descriptions of the chute, feet, base, carriage chain and quick link, pivot points and pivot point hardware,
and the chute release mechanism. Release the chute. Describe how the unit looks and sounds as the chute
rotates. Also describe the force necessary to release the chute using both the manual release lever and the
cable. Secure the chute to the base and describe how the latch mechanism works. Thoroughly photograph
the unit including all labels. Collate all writings and photographs into a single file. This file is a record of the
unit in satisfactory condition. Compare your results of all inspections to this record to determine if the
unit is still in satisfactory condition. Restore the hopper to satisfactory condition BEFORE using it again.
Purely cosmetic changes, like damaged surface coating (paint or powdercoat) are not changes from
satisfactory condition. However, touchup paint should be applied as soon as damage occurs to prevent
rusting.
INSPECTIONS & MAINTENANCE
At least once per month, tag the unit out of service. Inspect the hopper to determine if it is in satisfactory
condition. Compare your observations with the RECORD OF SATISFACTORY CONDITION. Replace all
items that cannot be repaired. Always err on the side of caution. If you are uncertain whether a component
should be replaced or if the unit should be used, contact TECHNICAL SERVICE.
Make a dated record of the inspection that includes all observations and described repairs and/or
replacements made.
1.) Pivot points: Look for excessive wear, warps, or other damage to pivot pins, cotter pins, and pin
receivers.
2.) Hopper chute and base frame: Examine the structure for damage, deformations, and corroded or
excessively rusted areas.
3.) Hardware (bolts, nuts, pins, cotter pins, retaining rings): inspect hardware for looseness and severe wear.
Tighten loose connections and replace all damaged hardware.
4.) Casters (if hopper is equipped with caster kit): check for looseness, excessive wear, or damage to the
casters, caster bearings, mounting brackets, and hardware.
5.) Release mechanism: the torsion spring should cause the latch lever to automatically recoil and the lever
should firmly engage the release lock bar. Check the release cable for fraying, thinning, and bird-caging
regions.
6.) Moving parts: listen for unusual noises and watch for irregular movement. Remove dirt and debris from
areas that could affect the hopper’s dumping motion.
7.)Carriage chain: examine the carriage chain, its point of attachment to the base frame, and the quick
links for damage.
8.)Labels: all labels must be firmly affixed in the locations shown in the LABELING DIAGRAM on p. 11.
Rim
groove
Notch
Cast
foot

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 11 of 12
LABELING DIAGRAM
The unit should be labeled as shown in the diagram. However, label content and location are subject
to change so your product might not be labeled exactly as shown. Thoroughly photograph the unit when
you first receive it as discussed in the Record of Satisfactory Condition section on p. 9. Make sure that
your record includes a photograph of each label. Replace all labels that are, or later become, damaged,
missing, or not easily readable (e.g. faded). To order replacement labels, contact the Parts Department
online at http://www.vestilmfg.com/parts_info.htm. Alternatively, you may call [phone] and ask the
operator to connect you to the Parts Department.
A: Label 375
Label 1023
Label 1037
Label 620: Left side in line
with release handle
A: Model specific label; See tables below
Label 208
Label 220
Model
Label
Model
Label
H-25-LD
627
H-100-LD
533
H-25-MD
549
H-100-MD
536
H-25-HD
538
H-100-HD
539
H-50-LD
629
H-150-LD
534
H-50-MD
535
H-150-MD
537
H-50-HD
628
H-150-HD
590
H-200-HD
1093
1023
1037
620
A
208
208
220
1023
995
Label 995

Table of Contents Rev. 3/10/2020 H-hoppers MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 12 of 12
LIMITED WARRANTY
Vestil Manufacturing Corporation (“Vestil”) warrants this product to be free of defects in material and workmanship
during the warranty period. Our warranty obligation is to provide a replacement for a defective, original part covered
by the warranty after we receive a proper request from the Warrantee (you) for warranty service.
Who may request service?
Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an
authorized distributor AND Vestil has been fully paid.
Definition of “original part”?
An original part is a part used to make the product as shipped to the Warrantee.
What is a “proper request”?
A request for warranty service is proper if Vestil receives: 1) a photocopy of the Customer Invoice that displays the
shipping date; AND 2) a written request for warranty service including your name and phone number. Send requests
by one of the following methods:
US Mail Fax Email
Vestil Manufacturing Corporation [phone] [e-mail]
2999 North Wayne Street, PO Box 507 Phone Enter “Warranty service request”
Angola, IN 46703 [phone] in subject field.
In the written request, list the parts believed to be defective and include the address where replacements should be
delivered. After Vestil receives your request for warranty service, an authorized representative will contact you to
determine whether your claim is covered by the warranty. Before providing warranty service, Vestil will require you to
send the entire product, or just the defective part (or parts), to its facility in Angola, IN.
What is covered under the warranty?
The warranty covers defects in the following original, dynamic parts: motors, hydraulic pumps, electronic
controllers, switches, and cylinders. It also covers defects in original parts that wear under normal usage conditions
(“wearing parts”), such as bearings, hoses, wheels, seals, brushes, and batteries.
How long is the warranty period?
The warranty period for original dynamic components is 1 year. For wearing parts, the warranty period is 90 days.
Both warranty periods begin on the date Vestil ships the product to the Warrantee. If the product was purchased from
an authorized distributor, the periods begin when the distributor ships the product. Vestil may, at its sole discretion,
extend a warranty period for products shipped from authorized distributors by up to 30 days to account for shipping
time.
If a defective part is covered by the warranty, what will Vestil do to correct the problem?
Vestil will provide an appropriate replacement for any covered part. An authorized representative of Vestil will
contact you to discuss your claim.
What is not covered by the warranty?
The Warrantee (you) are responsible for paying labor costs and freight costs to return the product to Vestil for
warranty service.
Events that automatically void the Limited Warranty.
•Misuse;
•Negligent assembly, installation, operation or repair;
•Installation/use in corrosive environments;
•Inadequate or improper maintenance;
•Damage sustained during shipping;
•Collisions or other accidents that damage the product;
•Unauthorized modifications: Do not modify the product IN ANY WAY without first receiving written authorization
from Vestil.
Do any other warranties apply to the product?
Vestil Manufacturing Corp. makes no other express warranties. All implied warranties are disclaimed to the extent
allowed by law. Any implied warranty not disclaimed is limited in scope to the terms of this Limited Warranty. Vestil
makes no warranty or representation that this product complies with any state or local design, performance, or safety
code or standard. Noncompliance with any such code or standard is not a defect in material or workmanship.
