Vetus GHX8 User manual

380502.01
Generator Sets
Owner’s Manual
GHX GLX

ii

1
Owner’s Manual
Please enter the serial numbers here.
These numbers should be quoted when inquiring about Customer Ser-
vice, Repairs or Spare Parts (see page 12).
We reserve the right to make any changes without previous notice.
Copyright © 2018 Vetus B.V. Schiedam Holland
Serial numbers
Engine serial number:
Generator serial number:
380502.01
Diesel Generator Sets 50 Hz 60 Hz
GHX8
GHX14 GHX17
GHX24
GLX6 GLX7
GLX14 GLX17
GLX20 GLX24

2
Please read and observe the information given in this operation manu-
al. This will enable you to avoid accidents, preserve the manufacturer’s
warranty and maintain the engine in peak operating condition.
Make sure that the manual will remain intact and damage is prevented.
Keep the manual away from humidity and heat.
Do not alter the content of the manual.
The manual is an integral part of the generator set. Hand over the man-
ual tot the new owner if boat or generator set is being sold.
For the Guarantee Conditions, see the Vetus Diesel ‘Service and War-
ranty Manual’ .
This generator set has been built exclusively for the application spec-
ied in the scope of supply and is to be used only for the intended
purpose. Any use exceeding that scope is considered to be contrary to
the intended purpose. The manufacturer will not not assume responsi-
bility for any damage resulting therefrom. The risks involved are to be
borne by the user.
Use in accordance with the intended purpose also implies compliance
with the conditions laid down by the manufacturer for operation,
maintenance and servicing. The generator set should only be oper-
ated, maintained and serviced by persons which are familiar with the
former and the hazards involved.
The relevant accident prevention guidelines and other generally ac-
cepted safety and industrial hygiene regulations must be observed.
Unauthorized generator set modications will invalidate any liability
claims against the manufacturer for resultant damage.
Manipulations of the injection and regulating system may also inu-
ence the performance of the engine, and its emissions. Adherence to
legislation on pollution cannot be guaranteed under such conditions.

3
Inhoud
1 Safety measures 4
Warning indications 4
Preventing re and explosion 5
Prevention of injury 6
When problems occur 8
2 Introduction 9
3 Description of the generator set 10
Connection and control panel 10
Remote control panel 12
Identication of the generator set 12
4 Operation 13
General guidelines 13
Initial Operation, Running-in 14
Starting 15
Running 16
Stopping 18
5 Maintenance 19
Introduction 19
Maintenance schedule 20
Check engine Speed/Adjust Fuel Pump 22
Generator 26
6 Winter Lay-up 27
Preparation for Winter 27
Preparation for Summer 27
7 Fault Finding, generator 28
General 28
8 Technical data 30
Winding resistances 34
9 Operating Media 35
10 Wiring diagrams 36
11 Overall dimensions 46

4
1 Safety measures
Danger
Indicates that great potential danger exists
that can lead to serious injury or death.
Warning
Indicates that a potential danger that can lead
to injury exists.
Caution
Indicates that the usage procedures, actions
etc. concerned can result in serious damage
to or destruction of the engine. Some CAU-
TION indications also advise that a potential
danger exists that can lead to serious injury or
death.
note
Emphasises important procedures, circum-
stances etc.
Symbols
Indicates that the relevant procedure
must be carried out.
Indicates that a particular action is for-
bidden.
Pass the safety precautions on to other peo-
ple who will use the engine.
General rules and laws concerning safety
and accident prevention must always be ob-
served.
Warning indications
The following warning indications are used in
this manual in the context of safety:
Warning indications

5
1 Safety measures
• Do not smoke if refuelling.
• Avoid spilling fuel on hot surfaces. Spilled
fuel must be cleaned up immediately.
• Do not use petrol or diesel to clean compo-
nents but make use of good quality, non-in-
ammable, non-poisonous solvents that
are available from dealers.
• Always be alert to possible fuel or oil leak-
age!
If you discover a leak, take counter-meas-
ures immediately. If fuel or oil is spilled on
a hot engine, re can break out. This can
cause physical injury or damage to the
equipment.
• Do not ll the fuel tank while the engine is
running!
Only refuel with the engine stopped.
• Never put ammable materials in the vicin-
ity of the engine!
• Keep the engine and engine compartment
clean!
Remove all inammable materials such as
fuel, oil and other litter before it builds up
in the vicinity of the engine.
• Connecting (emergency) extra starting bat-
tery
Proceed as follows when an extra starting
battery is used to jump start the engine:
-First connect the positive lead
-Lastly connect the earth cable (negative
pole) to the engine block
If this cable is connected in error to the
negative pole of the engine battery, a
spark can occur. The result of this could
be that explosive gas produced by the
battery explodes.
-Once the engine is started, rst remove the
earth cable.
Preventing re and explosion
Fire risk!

6
1 Safety measures Prevention of injury
• The moving parts of the engine are dan-
gerous. Never touch moving parts of the
engine while it is running, to prevent cuts
and other injuries.
• Stop the engine before carrying out main-
tenance!
• Always stop the engine before topping up
or replacing fuel, oil or coolant.
• Before carrying out inspection or mainte-
nance the main battery switch turned o.
• Satisfy yourself that everything is in order
before the engine is started again!
Make sure that no-one is working on or
close to the engine before you start it. Re-
move all foreign objects from around the
engine, such as litter, oil, tools and other
components that are not part of the engine.
• Install all protective covers!
To prevent injury, make sure that all protec-
tive covers and cover plates are replaced
over moving parts.
• Remove any tool used to turn the engine
over. If you leave this in position, serious
injury or damage to the equipment can re-
sult.
• NEVER open the cap of the expansion tank
when the engine is at working temperature.
• Only check the coolant level after the en-
gine has been stopped and the ller cap
on the heat exchanger is cool enough to be
removed with bare hands.
• Never attempt to adjust the fan belt on a
running engine.

7
1 Safety measures Prevention of injury
• Be careful with battery acid!
If battery acid comes in contact with the
eyes or skin, rinse the aected part imme-
diately with copious amounts of water. If
battery acid comes in contact with the eyes,
rinse them out immediately with plenty of
water and consult a doctor.
• Be careful with antifreeze!
If you accidentally swallow antifreeze, make
yourself vomit and consult a doctor imme-
diately. If antifreeze comes in contact with
your eyes, wash them out immediately with
plenty of water and consult a doctor.
• Make sure that you are wearing suitable
clothing before starting work!
For your own safety you will most likely
need special equipment – safety helmet,
eye protection, safety boots, safety gog-
gles, heavy gloves, ear protectors etc. Use
them when necessary.
• Carry out maintenance procedures safely
by only using suitable tools.
• Exhaust gases
Do not start the engine if the exhaust sys-
tem is not connected.

8
When the engine stops suddenly:
If the engine stops suddenly, do not start it
again immediately. Track down the cause and
carry out the necessary repairs before you
start the engine again. If you do not do this,
serious engine problems can develop.
If the oil pressure is too low:
Stop the engine immediately and check the
lubrication system. Running an engine with
low oil pressure can cause bearing and other
parts to seize.
lf the engine overheats:
If the engine should overheat, do not switch
it o immediately. If an overheated engine is
stopped suddenly, this can cause the coolant
temperature to rise rapidly and moving parts
to seize.
Switch o the main switch and let the gener-
ator set run for a short period of time to allow
the hot parts of the engine to cool down, stop
the engine and allow it to cool completely,
and then gradually top up the coolant.
Remember: adding coolant to an overheat-
ed engine can cause damage to the cylinder
head.
If the fan belt is broken:
Immediately stop the engine. If an engine is
used with a broken fan belt, this can lead to
the engine overheating, which in turn can
cause coolant to spray out of the expansion
tank.
If the engine behaves strangely:
Stop the engine.
Do not use the engine again until the cause of
the defect has been solved.
1 Safety measures When problems occur

9
Vetus generator sets are designed for marine
application. Consequently, a wide range of
variants are oered to meet the requirements
of specic cases.
Your generator set is appropriately equipped
for your vessel, which means that not neces-
sarily all components described in this manu-
al are mounted to your engine.
We have endeavoured to highlight any dier-
ences so that you will able to locate the oper-
ating and maintenance instructions relevant
to your engine quickly and easily.
Please read this manual before starting your
generator set and always observe the operat-
ing and maintenance instructions.
We are available to help with any additional
inquiries.
Sincerely,
Vetus b.v.
2 Introduction
Dear customer,

+
7 8 9
5 6
1
2
3
4
10

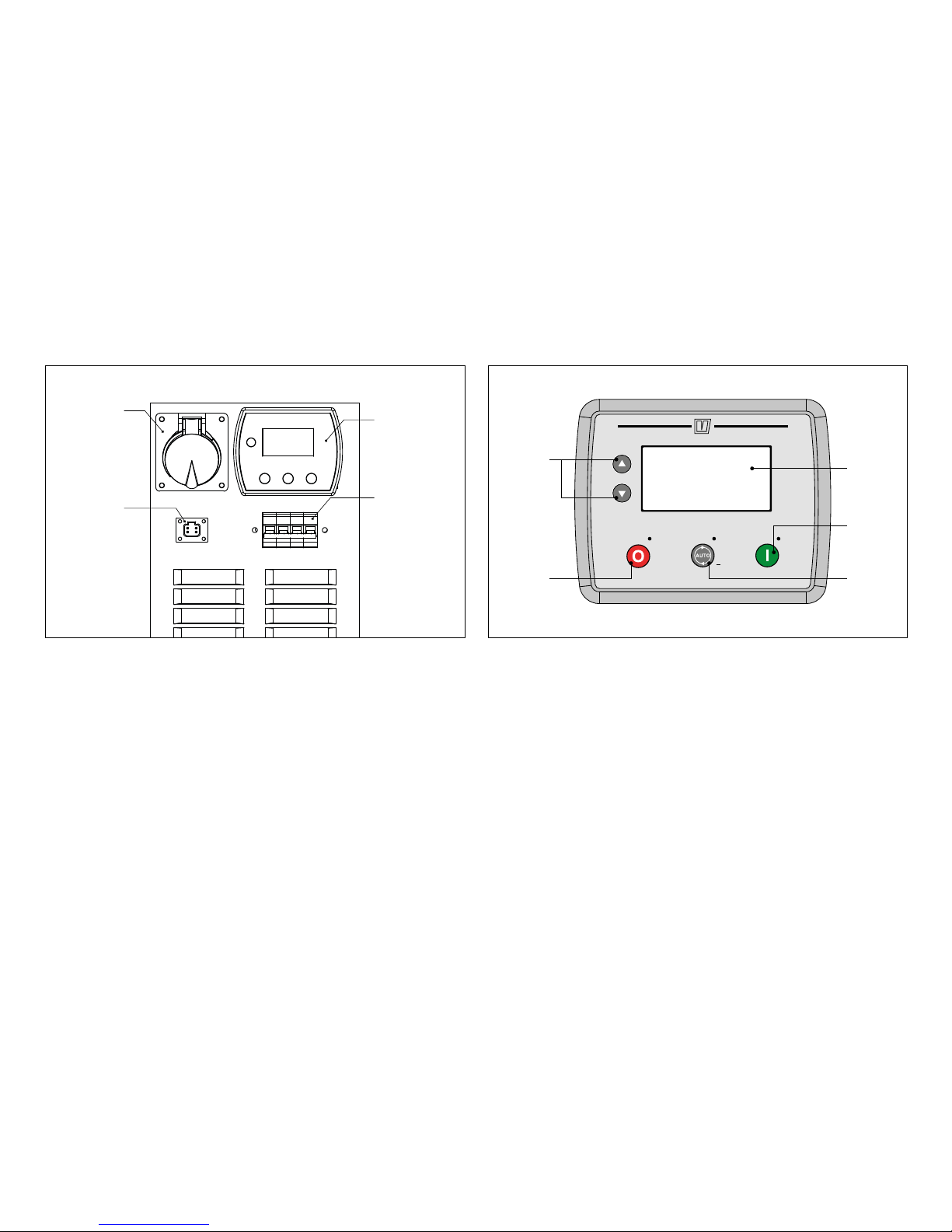

3 Description of the generator set Connection and control panel
Single Phase Generator
1 Power socket
2 Circuitbreaker
3 Control/operation panel
4 Connection for remote control panel
5 Navigation buttons menu
6 Display
7 Stop / Reset Mode
8 Auto Mode
9 Manual starting
1 Connection panel for single phase generator set 2 Control panel for single phase generator set

+
57
8
9
6
1
2
3
4
11
3 Description of the generator set Connection and control panel
Three Phase Generator
3 Connection panel for three phase generator set 4 Control panel for three phase generator set
1 Power socket
2 Connection for remote control panel
3 Control/operation panel
4 Circuitbreaker
5 Navigation buttons menu
6 Stop / Reset Mode
7 Display
8 Manual starting
9 Auto Mode

2
3
1
4
MARINE DIESEL ENGINE
SCHIEDAM HOLLAND
1580
Meets exhaust emission regulations
acc. 94/25/EC, 2003/44/EC
Light Diesel Fuel Only (B7Allowed)
123456 654321
Type:
Engine Nr.:
kW HP
Weight, approx.:
Power
BSO cert.:
kg
RPM
Mfg Date:
XXXX
XX XX
XX/XXXX
MXXX---A XXXXXXXXXXXX
XXX
XXXXXXXX
12

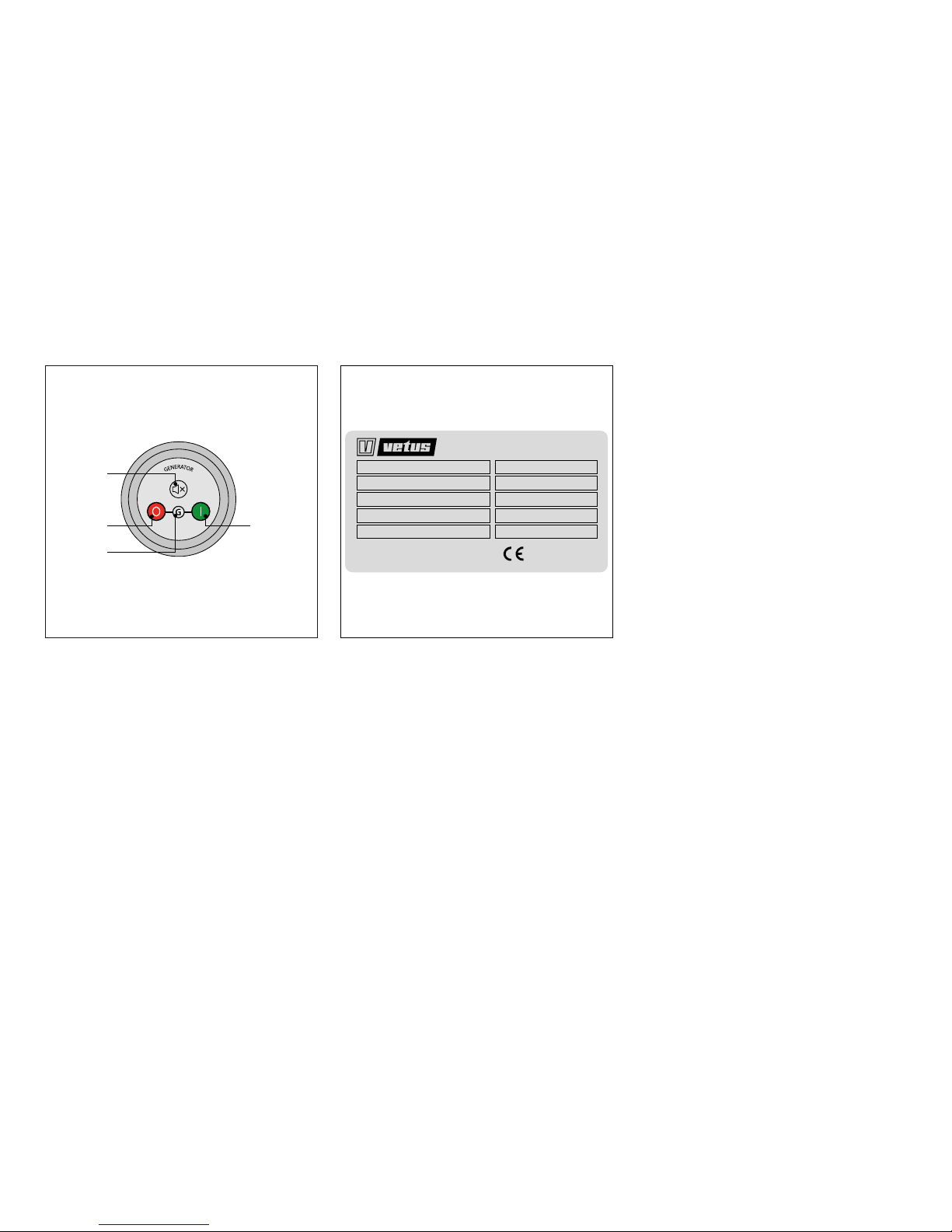

3 Description of the generator set Remote control panel
Identication of the generator set
5 Remote control panel
1 Alarm accept
2 Stop
3 Indication‘Generator in operation’
4 Start
See the ‘Overall Dimensions’ drawing for the
identication of the most important genera-
tor set connections.
To identify specic engine components, con-
sult the separate engine manual.
Which type of generator set suits which type
of engine is described in ‘Technical Data’.
This also provides a summary of the manuals
for the various engines.
6 Engine data tag
The Vetus engine serial number and perfor-
mance data are printed on the engine data
tag.
Model and engine serial number must be giv-
en when ordering spare parts.

13
4 Operation General guidelines
• Carry out the maintenance described regularly, including the ‘Daily
Procedure before Starting’.
• Use anti-freeze or coolant uid in the engine cooling system through-
out the year to protect against frost damage and prevent corrosion.
See the engine manual for the correct specication.
• Never allow the engine to run without thermostat.
• Always use a good quality lubricating oil.
Consult the relevant engine manual for the correct specication.
• Use a good quality diesel fuel that is free of water and other pollut-
ants.
• Avoid the generator set having to provide maximum power contin-
uously.
• Always follow the safety advice, see page 4.
General Guidelines for Use
Following the recommendations below will result in a longer operat-
ing life, better performance and more economical operation of your
generator set.

14
4 Operation Initial Operation, Running-in
Initial Operation - Engine
Before starting the engine for the rst time, carry out the following op-
erations:
• Fill the engine with oil.
Consult the relevant engine Manual for the quantity, specication
and location of the ller opening.
• Check the oil level with the dipstick.
• Fill the cooling system.
Consult the relevant engine Manual for the quantity, specication
and how to ll the cooling system.
• Ensure that the fuel tank is lled with diesel fuel.
Use only clean, water-free diesel fuel available commercially.
The fuel system is self-bleeding.
• Check the battery and battery cable connections.
• Start the generator set engine and allow it to run for 10 minutes
without load.
Check the engine and all connections (fuel, coolant and exhaust) for
leaks.
Check the voltage supplied by the generator.
Running-in
In order to achieve a long operating life for your engine, take care with
the following for the rst 50 operating hours:
• Allow the engine to reach operating temperature before applying
any load.
• Avoid long-term operation and generator full load.
Fire risk!
Only refuel when the engine is stopped. Do not spill fuel. Prevent un-
necessary pollution.

15
4 Operation Starting
Check the following points before starting:
• Engine oil level
• Coolant level
• Sea cock open
• Main switch between battery and generator set is ‘ON’
• All energy consumers are switched o.
After repair work
Check that all safety equipment is tted and all tools have been re-
moved from the engine and/or generator. When starting with pre-heat-
er plugs, do not use any extra starting aids (Quick-start sprays, etc.).
This could cause an accident.
Starting
After a starting command the starting procedure, pre-heating - start-
ing, will run completely automatically.

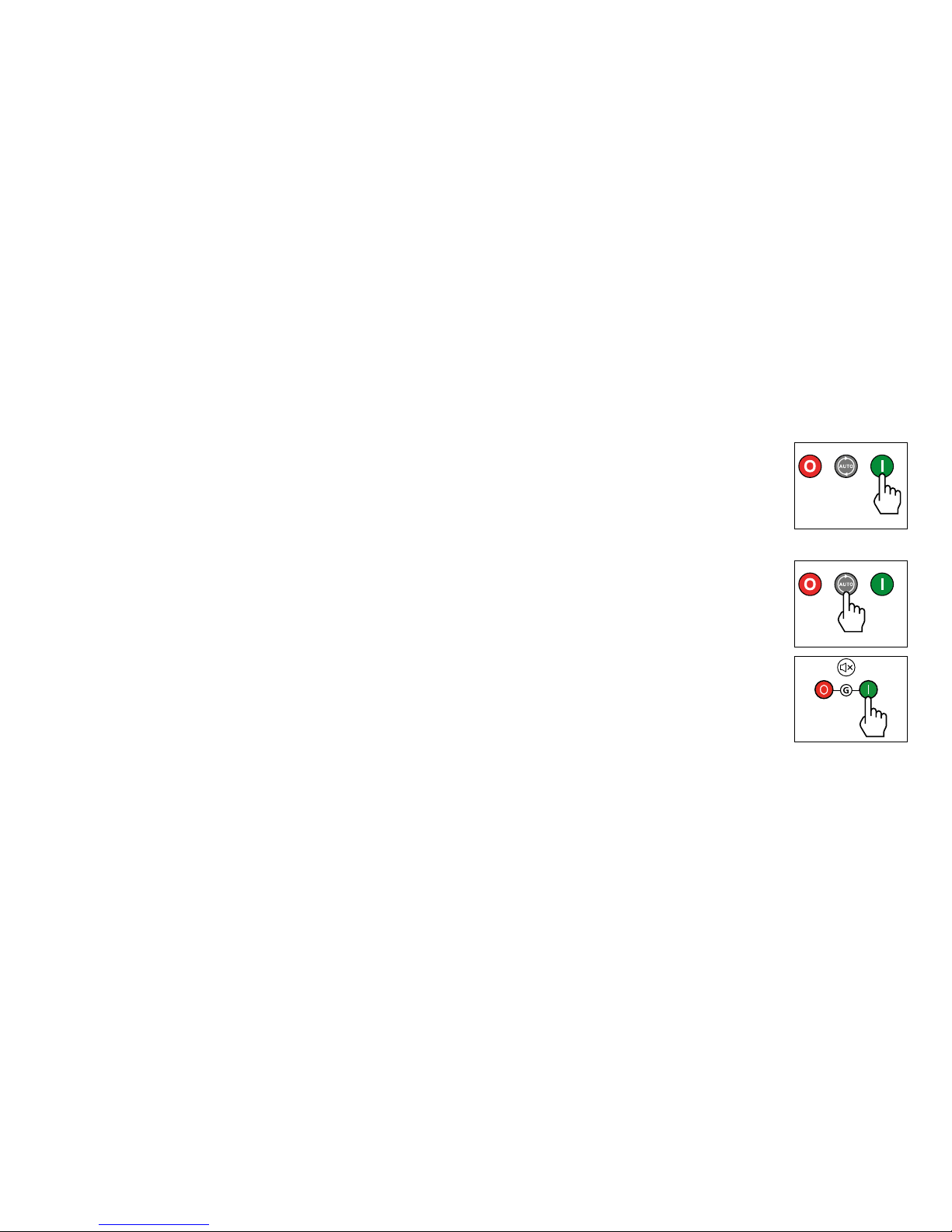

Starting, at the generator set
Press the button ( I ) at the generator panel to
start the generator immediately.
Starting, at the remote control panel
The generator panel must be in‘Auto Mode’.
1) Press the (AUTO) button to select ‘Auto Mode’.
2) Press the button ( I ) at the remote control pan-
el to start the generator set.
If selected the generator panel will remain in ‘Auto Mode’.

+
1500 rpm
230V
50.0 Hz
16.2
13.8V
Motortoerental
Generator-spanning
Generator-frequentie
Motor-draaiuren
Accuspanning
L1N
400 V
L2N
400
L3N
400
V
V
2
+
16

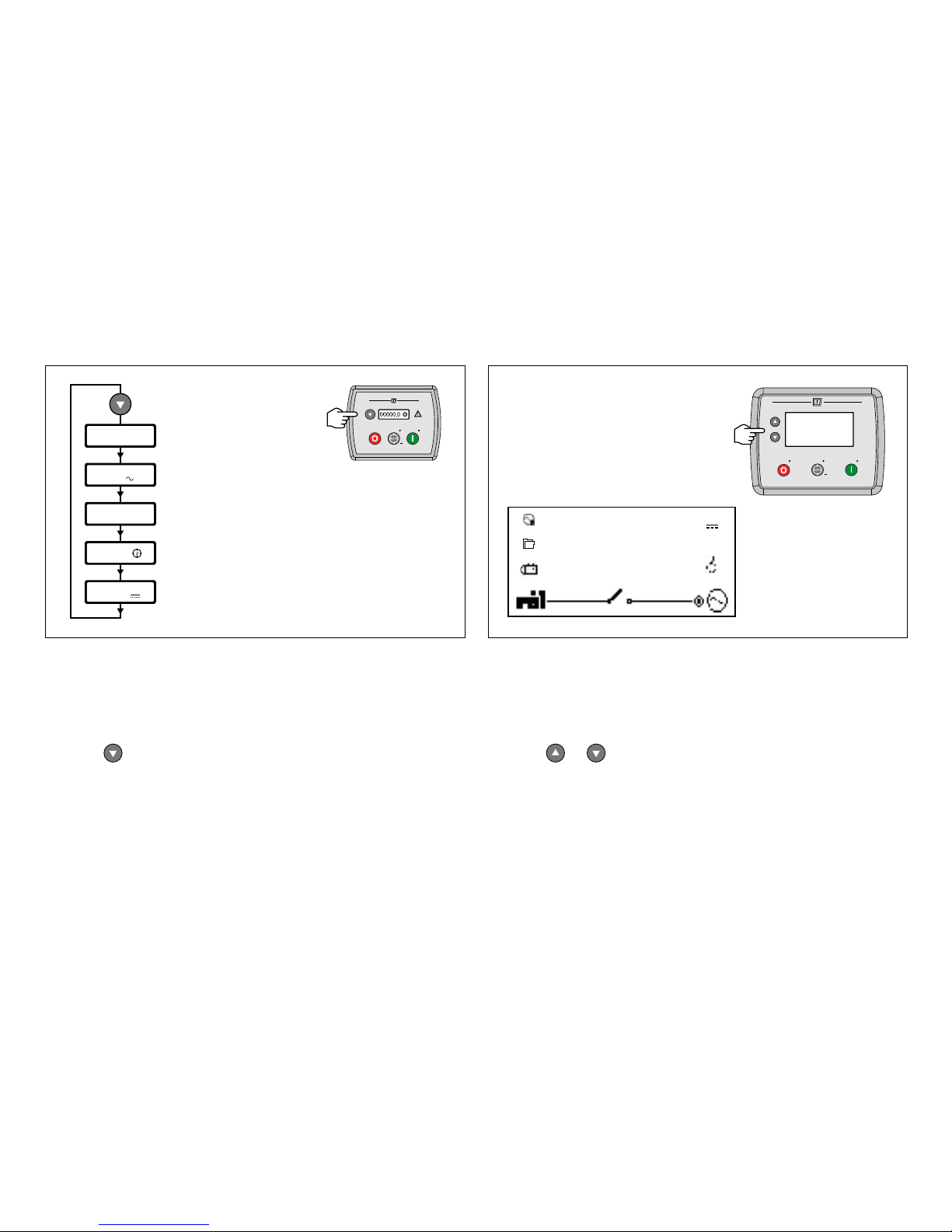

4 Operation Running
1 Single phase generator set
During operation of the generator set on the control panel information
can be requested.
Press the button to scroll through lines of information.
2 Three phase generator set
During operation of the generator set on the control panel information
can be requested.
Press the or button to scroll through lines of information.

Warning
Avoid running on no load or very light load for extended periods.
This can lead to carbon deposits in the combustion chambers and
incomplete combustion of fuel.
17
4 Operation Running
If one or more of the following faults occur, the generator set will be
switched o automatically:
-low oil pressure,
-over temperature coolant,
-over temperature exhaust,
-over or under frequency,
-over or under voltage.
In case of an alternator failure, a warning is generated but the engine
will continue running.
At the remote, if installed, a warning buzzer will sound.
On this panel is a ‘alarm accept’ button .
Press the button momentary and the buzzer will be switched o for
a period of 10 minutes.
Keep the button pressed for more than 3 seconds and the buzzer
will remain o as long as the alarm situation exists.
Warning
NEVER switch the main switch (between battery and generator set)
OFF while the engine is running.

18

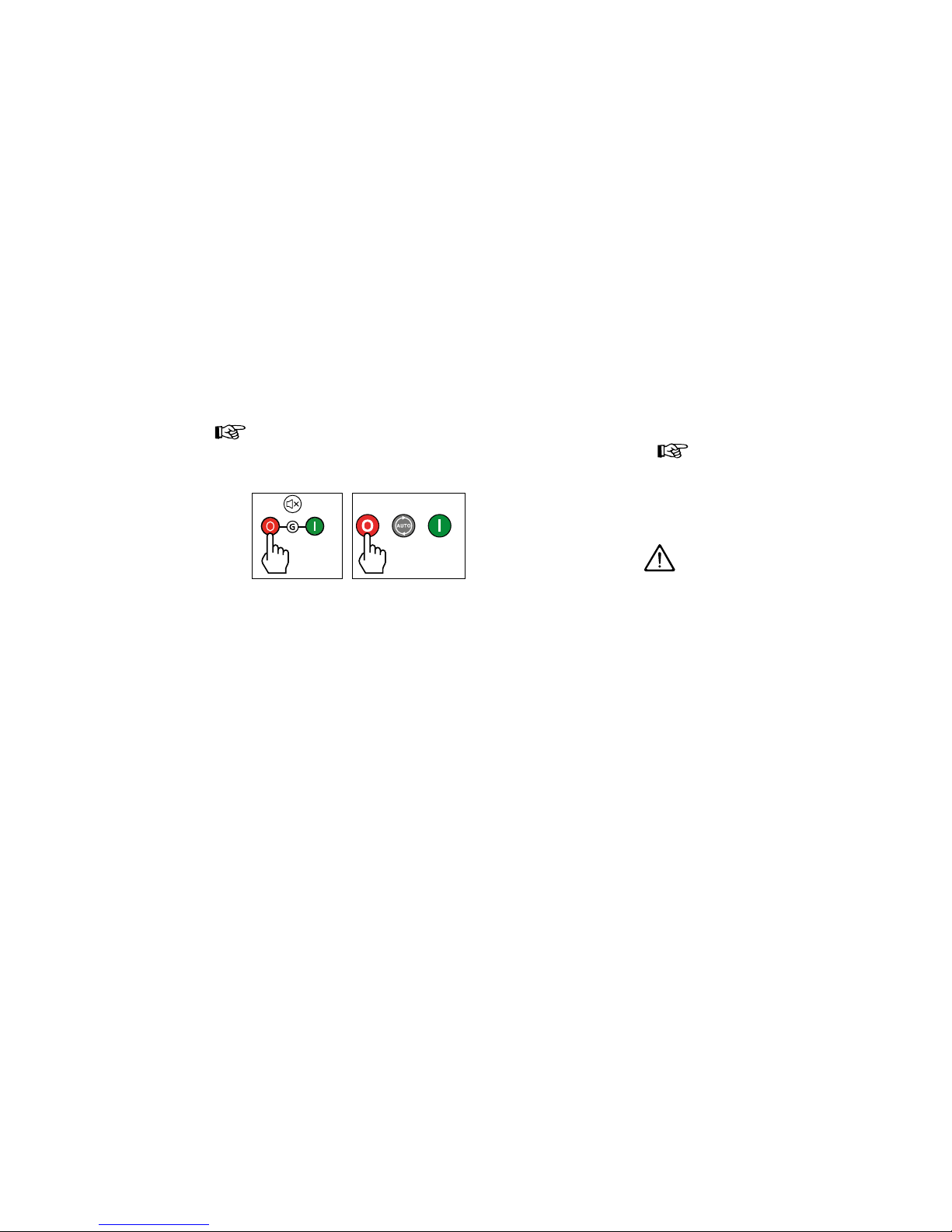

4 Operation Stopping
Stopping
Switch o all the ship’s electrical consumers.
note
Allow the generator set to run for about 1 minute without load.
Press at one of the panels the
(O) button to stop the genera-
tor set.
If selected the generator panel will remain in ‘Auto Mode’.
Stopping when the Electrical System (12 Volt) breaks down.
When the electrical system (12 Volt) breaks down, the engine will stop
immediately.
note
When the generator set is not going to be used for a longer period of
time, it is recommended that the seacock is closed and the main switch
is turned to the OFF position.
Warning
Always shut o the seacock if the generator set is not in use during
cruising.
