UNDERSTAND YOUR TOOL
Thanks for buying and using the Pex crimping tools FT-1824.The tool
integrates ergonomic design, has the features of perfect appearance,
light weight and easy operation, and is suitable for PEX pipe
construction.

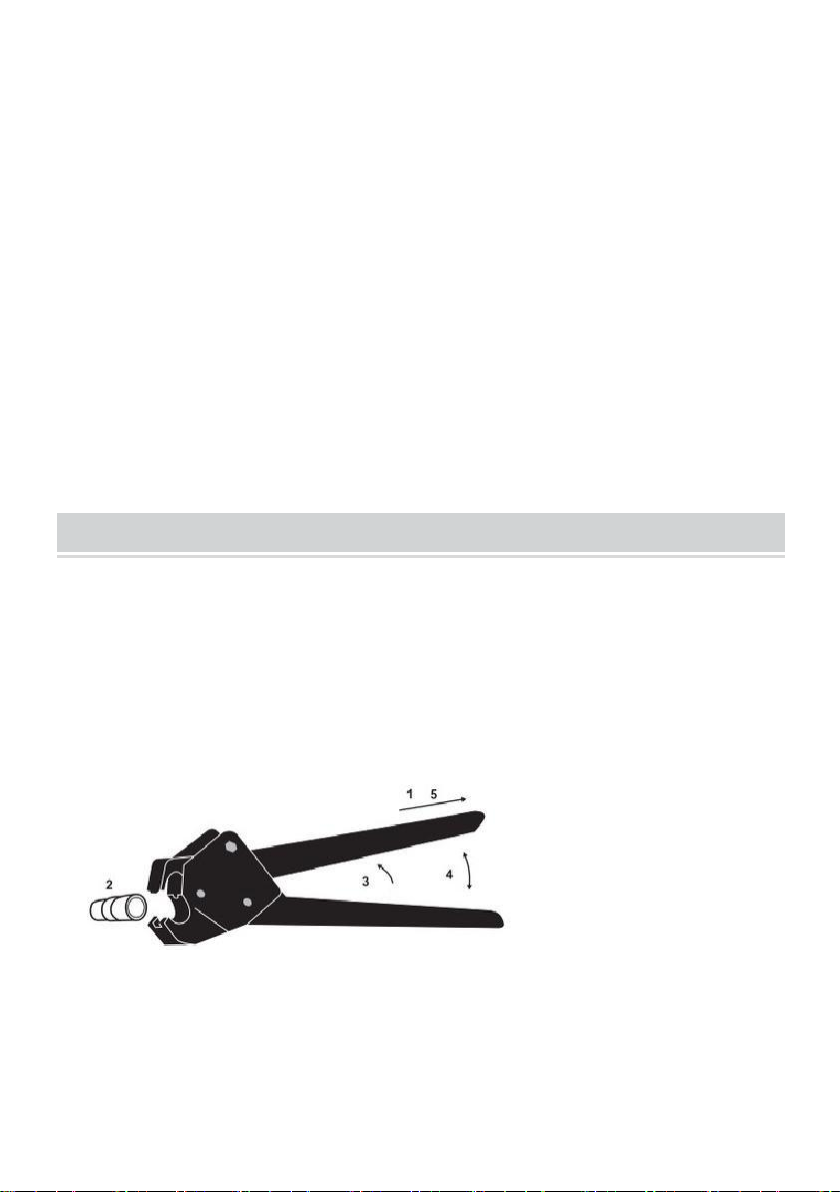

1. Installation Instructions:
1. Pull back on the moving handle and open the jaws fully (your crimping
tools does not work like pliers …don't force the handles apart).
2. Position the jaws squarely around the ring.
3. Gently let the handles open to close the jaw on the ring.
4. Squeeze handles together to get complete crimp, one crimp only!

- 5 -
5. Pull back on the moving handle to release the jaws from the crimped
ring.
6. Measure the crimped ring with the GO/NO-gauge supplied with your tool.
See the table below for
crimp specifications. Do not measure bumps on the ring where the jaws
meet. If he GO gauge does not fit, or the NO-GO gauge does fit, the nut out
the connection, replace the fitting and ring,adjust and calibrate the tool and
re-crimping the fitting with a new ring.
2. The following dimensions are the ASTM maximum and minimum
crimped ring diameters for PEX pipe installations.
ADJUSTING YOUR CRIMP TOOL
The 8524860 and 8524894 tools are adjusted using the back hexagonal
pin.
ITEM NO.
8524860
8524894
Pipe size
1/2"
3/4"
Min.diameter
0.700"
0.945"
Max.diameter
0.715"
0.960"

- 6 -

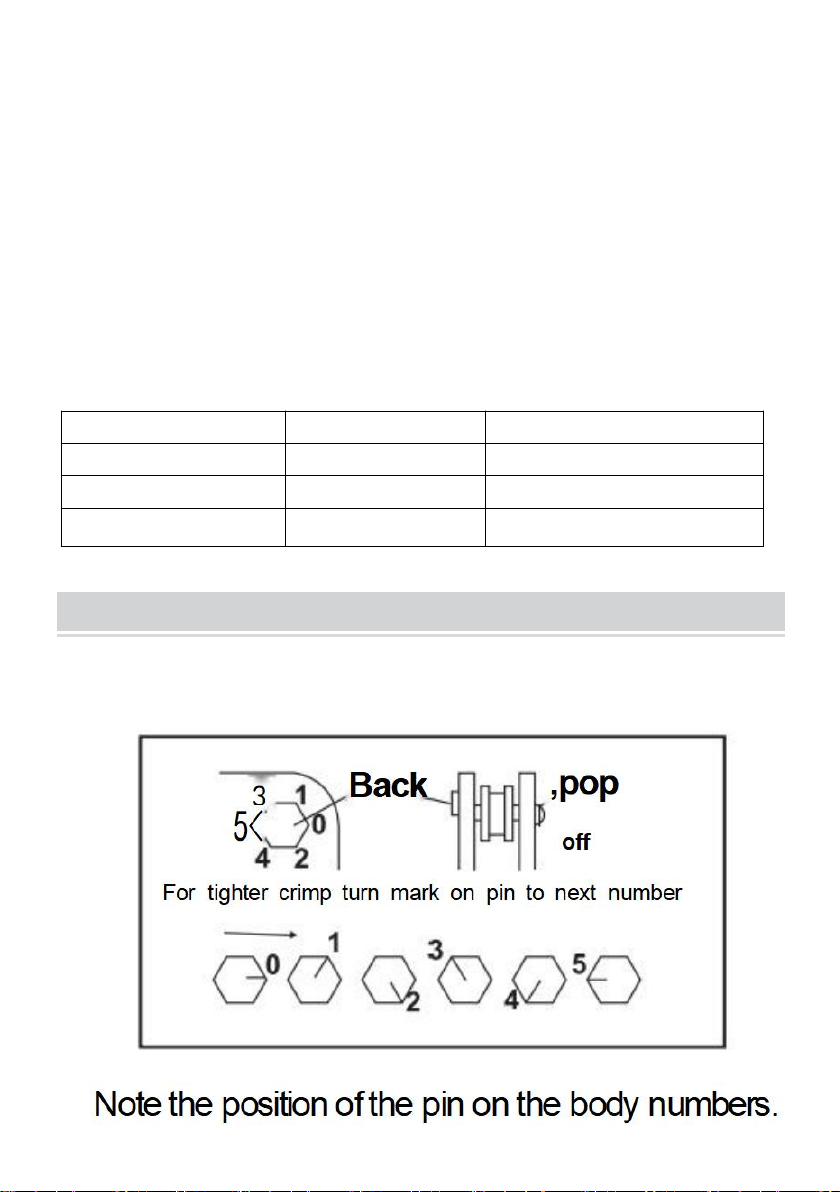

1. To adjust for a tighter crimp, remove the e-clip.
2. Slide the back pin head out about 1/4".
3. Rotate the back pin until the line on the hexagonal head points to the
next highest number on the tool body.
4. Push the pin back in and re-fit the e-clip.
Maintenance: For easier, better crimps and a longer tool life, keep tool
clean and rust free inside and out.
keep all moving parts lubricated with light oil!
MAINTENANCE AND SERVICING
1. Keep tools and spare parts dry. Rain, moisture, and various liquids or
moisture may corrode tool metal surfaces.
2. Do not store tools in places that are too cold or too hot.
3. Do not use strong chemical cleaners or strong detergents to clean tools.
4. If the tool is not used for a long time, wipe the surface of the tool, wipe
with anti-rust oil, and store it in the tool box.
5. After a long time using, the sealing kits will be damaged, if there is
leakage please contact with the manufacturer and/or the distributor to
change the sealing kits. Service to the tool should only be done by a
qualified Service Technician.
