PALLET FORK

- 2 -
SAFETY INSTRUCTIONS
WARNING:
1.Read this material before using this product. Failure to do so can result in
serious injury.
2. Do not exceed working capacity for pallet fork.
3. Be sure the Pallet Forks are full installed, screw rods are in proper
working order and clamped tightly to the bucket.
4. Before lifting, please check the load's weight ,never exceed the
maximum lift capacity of the forks or the machine.
5.Lower the pallet forks completely to the ground prior to dismounting from
the machine. Understand and comply with the manufacturer's
recommendations for dismounting and parking your machine.
6.Always evenly load and secure pallet forks in such a way that they will
not shift, tilt or fall.
7. After use, please dry before storage to avoid rusting of product.
8. Procedures not specifically explained in this manual must be performed
only by a qualified technician.
To prevent serious injury from tool failure,do not use when it is
damaged:
1) Please check the overall condition of the product before each use.
Is the screw thread damaged?
Is the fork deformed?
Is the weld cracked?
Whether there are cracks in all parts.
Before each use, check whether the pallet fork works properly before
actual use. If the pallet fork doesn’t work properly, please follow the
inspection instructions to see if the problem occurs.
2) To prevent serious injury,be careful when troubleshooting the faulty
pallet fork , solve all problems before use. If the solution provided in the

- 3 -
troubleshooting guide cannot be solve the problem, please ask qualified
technicians to check the pallet fork before use.
3) Make sure that the pallet fork is safe enough to continue to use it.
Wish that the pallet fork can bring you convenience at work.
CAUTION:
Carefully read instructions and procedures for safe operations.
Save This Manual
MODEL AND PARAMETERS
HC43-2000T
HC60-2000T
HC60-4000T
Material
Carbon Steel
Carbon Steel
Carbon Steel
Surface Treatment
black powder-coat finish
black powder-coat
finish
black powder-coat
finish
Working Capacity
2000lbs
2000lbs
4000lbs
Fork Size(L*W)
76*7cm
109*7cm
109*10cm
Stabilizer Bar
Adjustment Range
49.5~91.5cm
49.5~91.5cm
49.5~91.5cm
Screw Rod
M16*140mm
Grade 8.8
M16*140mm
Grade 8.8
M16*140mm
Grade 8.8
Model
SPEC.

- 4 -
COMPONENTS
HC43-2000T
HC60-2000T
HC60-4000T
Pallet fork
×2
×2
×2
Clamping Plate
/
×2
×2
Stabilizer Bar
×2
×2
×2
User Manual
×1
×1
×1

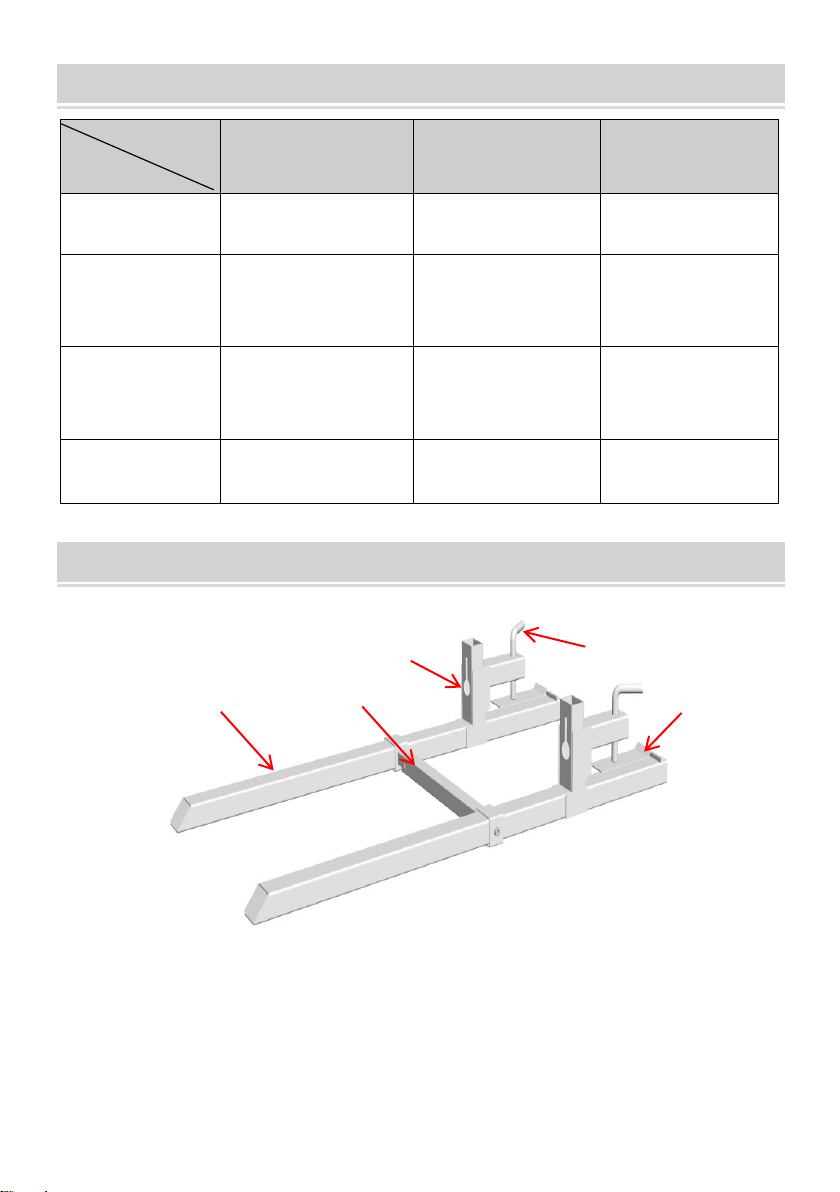

STRUCTURE DIAGRAM
1.Screw Rod 2. hole 3. Stabilizer Bar 4. Fork
5. Clamping Plate
2
1
4
3
Model
Parts.
5

- 5 -
INSTRUCTIONS
Notice:
1.Do not use pallet forks for digging, pushing or pulling objects.
2.It is recommended that all objects be secured and lifted on pallets.
Unsecured loads can cause damage to the forks or bucket.
3.Be sure that loads are evenly distributed and centered.Lifting loads that
are unevenly distributed can cause damage to the forks or bucket.
4.Keep load slightly tilted back to distribute weight towards the base of the
forks.
5.Do not lift loads that exceed the height of the bucket.
Step 1. Slide the fork into the edge of the bucket.

- 6 -
Step 2. twist the screw rod and clamp it down to lock.
Clamping Plate

- 7 -
Step 3. Assemble the two parts of the stabilizer bar, and then put it on the
forks, tighten the bolts.
Bolt
Bolt

- 8 -
Step 4. According to the actual conditions,the iron chain can be passed
through the two holes to strengthen the fixation and to increase the bearing
capacity.
Note:
Chain Holes Design for Heavy Lifting
You can use chains to secure loads and to act as a stabilizer for heavy
equipment or the larger load that you are moving.
Ensure you will get a secure lift, even when dealing with heavy objects,
provide higher work efficiency and safety for your clamp on pallet forks

- 9 -
Step 5. Usage caution: please put the loads behind the pallet so as not to
damage the bucket and fork.
Transport and placement
Keep the forks low, just a few inches from the ground is best.
Be aware of everything around you. Avoid obstructions and always
give pedestrians the right of way.
Drive at a safe speed at all times. Take it easy around corners and
avoid quick stops.
Travel in reverse if the load obstructs your view.
Avoid adjusting the height of a load while in motion.
Always be aware of changes in terrain. When working on inclines,
declines, or on a hill-side, do not raise the load too high.
Slowly move load into position.
Make sure load is square and straight.
Stop the movement completely when placing a load.

- 10 -
Be sure load is tilted forward to level.
Place load and relieve all weight from forks.
Scan area and be sure no pedestrians or obstructions are behind you.
Once load is settled, slowly back out.
Do not turn machine until both forks have cleared the pallet.
Lower forks to a safe traveling height before moving again. Three to
five inches is best.
MAINTENANCE
Do not exceed working capacity.
After use, please clean and dry the product and store in a dry
ventilated place.
Imported to USA:VEVOR STORE INC，9448 RINCHMOND PL #E
RANCHO CUCAMONGA, California, 91730 United States of America
Imported to AUS:SIHAO PTY LTD，1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Made In China
