VEVOR SX-2A User manual

Technical Support and E-Warranty Certificate www.vevor.com/support
GRINDER
USER MANUAL
MODEL: SX-2A SX-4A SX-6B SX-8B SX-10B
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
SX-2A SX-4A SX-6B SX-8B SX-10B
<Picture Only For Reference >
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
GRINDER
SX-2A SX-4A SX-6B SX-8B SX-10B

- 2 -
Note: Before beginning assembly of product, make sure all parts are present. Compare
parts with package content list and hardware contents. Do not attempt to assemble the unit
if any parts are missing or damaged.
Contact customer service for replacement parts.
Warnings
When using electrical appliances, basic safety precautions should always be
followed including the following:
SAVE THIS INSTRUCTION!
1.READ All OPERATING INSTRUCTIONS AND PRODUCT SAFETY LABELS! FAILURE
TO FOLLOW ALL INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY
DAMAGE!
2.CHECK FOR DAMAGED PARTS: Before using the grinder, check whether all parts work
normally and perform the expected functions. Check for alignment, binding and installation
of moving parts. and any other conditions that may affect the operation. If any parts, the
Power Cord or the Grinder are damaged, call the Customer Service number shown in this
manual.
3.Always unplug power cord from outlet when not in use, before putting on or taking off
parts or accessories, and before cleaning. After unplugging the unit, turn power switch ON,
then OFF to ensure that all power has been discharged from the grinder.
4.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
5.NEVER LEAVE GRINDER UNATTENDED WHILE IT IS RUNNING!
6.Wait until all moving parts have stopped and turn off power before removing any part
from the grinder.
7.DO NOT use outdoors, this product is intended for INDOOR USE ONLY.
8.DO NOT pull the power cord to disconnect.
9.DO NOT USE WITH EXTENSION CORD. Always plug directly into a grounded wall
receptacle.
10.This grinder uses a grounded, three prong plug (hot, neutral and ground), the grounding
plug is used for electrical appliances with metal shell to prevent electric shock. DO NOT

- 3 -
change or alter the plug in any way. NEVER break off a grounding prong from a
3--‐conductor plug. Doing so will invalidate the warranty and may cause electric shock.
11.Place the grinder on a firm and stable surface. Ensure that the grinder is not placed near
the edge of the worktop, where it can be easily pushed off or fall.
12.The Gear Housing and the Motor Cover may become HOT during operation. This is nor
mal. DO NOT TOUCH these parts while operating.
13.To reduce the risk of unintentional starting, check that the control is OFF before pluggin
g the cord into wall outlet. To disconnect, turn the controller to OFF, then remove plug from
wall outlet.
14.DO NOT operate your grinder under a wall cabinet. Always unplug the unit from the elec
trical outlet when storing
it. Not doing so could create a risk of fire, especially if the appliance touches the walls of th
e garage or the door touches the unit as it closes.
15.NEVER plug the grinder in where water may flood the area.
16.To protect against risk of electrical shock, DO NOT submerge the grinder in water or oth
er liquids. Be sure the grinder is disconnected from the power source before cleaning. NEV
ER rinse the Grinder Motor under running water, only use a moist cloth to clean the Grinder
Motor Unit.
17.The use of attachments or parts not specifically recommended or sold by the manufactu
rer for this grinder will void the warranty and may cause fire, electric shock or injury.
18.HANDS WASH ALL PARTS! DO NOT USE DISHWASHER. Never put the unit near a h
ot burner, in an oven, or in a dishwasher.
19.NEVER use abrasive cleaning agents or abrasive cloths when cleaning the grinder.
20.The Manufacturer disclaims any responsibility in the case of improper use of Grinder. Im
proper use of the Grinder voids the warranty.
21.DO NOT REMOVE WARNING LABELS FROM THE GRINDER. Doing so will void the
product warranty and may result in serious personal injury.
22.This appliance must be grounded while in use to protect the operator from electrical
shock. This grinder uses a grounded, three prong plug that should be connected directly to
a grounded 120V(US)/230V(EC), three prong grounded wall outlet receptacle. Grounded
plugs are used on metal-encased electric appliances in order to provide protection from an
electric shock. DO NOT change or alter the plug in anyway. NEVER break off a grounding
prong from a 3-conductor plug. Doing so voids the warranty and may result in electric
shock.

- 4 -
23.Type X attachment: If the supply cord is damaged, it must be replaced by a special cord
or assembly available from the manufacturer or its service agent.
24.Do not fill the grinding tank to full otherwise it will cause overload. The material you
gonna to grind one time must cover the long blade in the middle and no more than 2/3 of
the tank. Because this machine needs a space to complete the cycle of the blades and the
material to be grind.
25.Even if grinding stone, it only takes 2 minutes, so don't use it for too long. It takes 5-10
minutes to rest after every 3 minutes of work. If you grinding some hard items, there should
has a interval which is to prevent bearing overheating, damage to the motor. General
grains only need 30s to be ground into powder. If you are not satisfied with the grinding
effect, you can sieve out the coarse particles with a mesh screen and grind it again for finer
powder.
26.To ensure safety, the nut should be tightened before grinding. After long-term use,
blades and carbon brushes need to be replaced if they are worn.
27.The motor of the grinder is the brush motor, the sparks and the odor is normal when the
first several uses. The sparks and the brush frictional odor will disappear after you use the
machine some times later.
You can Grind some rice or tea leaves first for several times to eliminate the odor.
TECHNICAL PARAMETER
MODEL
Capacity
RATINGS
Continuous working time
SX-2A
100g
110V/60Hz
450W
≤5min
230V/50Hz
SX-4A
200g
110V/60Hz
900W
230V/50Hz
SX-6B
300g
110V/60Hz
1100W
230V/50Hz
SX-8B
400g
110V/60Hz
1300W
230V/50Hz
SX-10B
500g
110V/60Hz
1500W
230V/50Hz

- 5 -

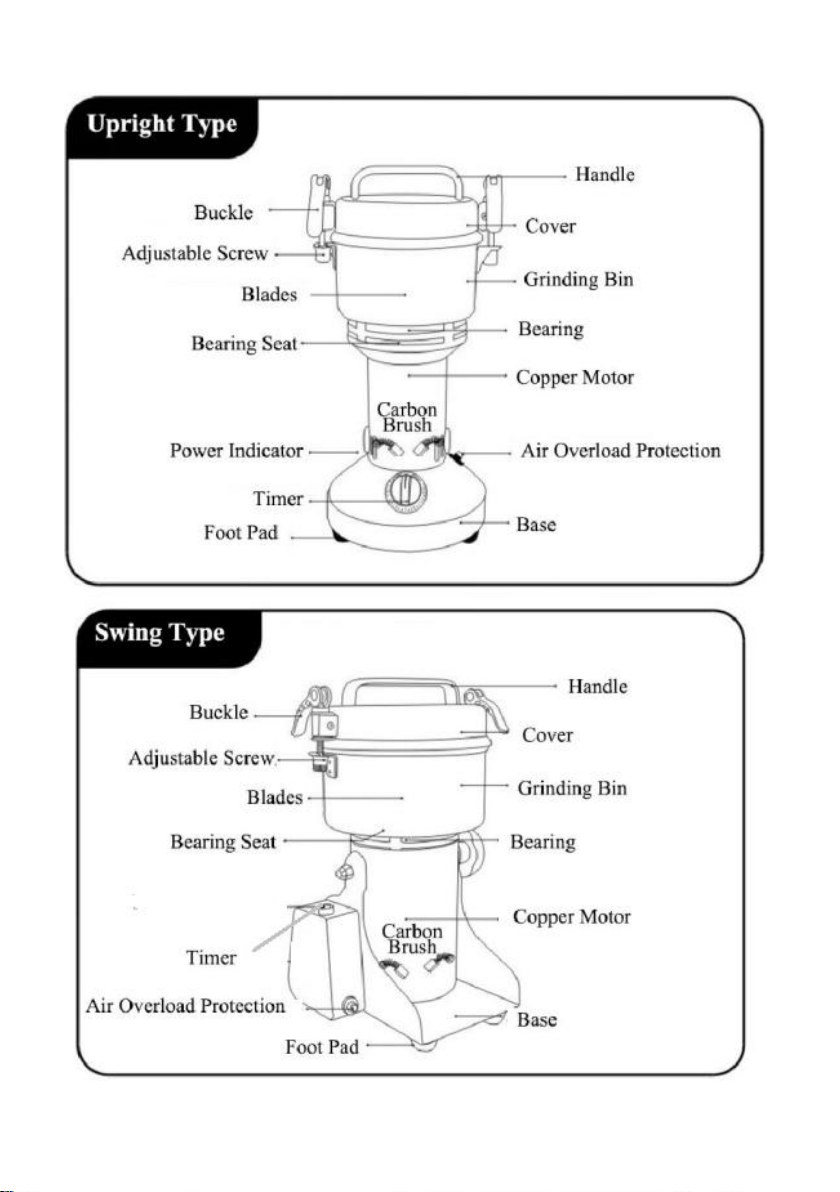

PRODUCT STRUCTURE

- 6 -
OPERATING INSTRUCTION
1. Operations Guide:
1)Open the upper cover and put the dried material inside;
2)Close the upper cover tightly; (Please make sure the lid is rotated to the end and locked
tightly on the top.)
3)Plug in and turn on the timer switch, then turn on the switch for grinding(Rolling sound
will be heard );
4)Turn off the switch; (When you hear the sound rolling evenly, the material has been
grinded into powder, then you can turn off the switch)
5)Disconnect power supply before opening

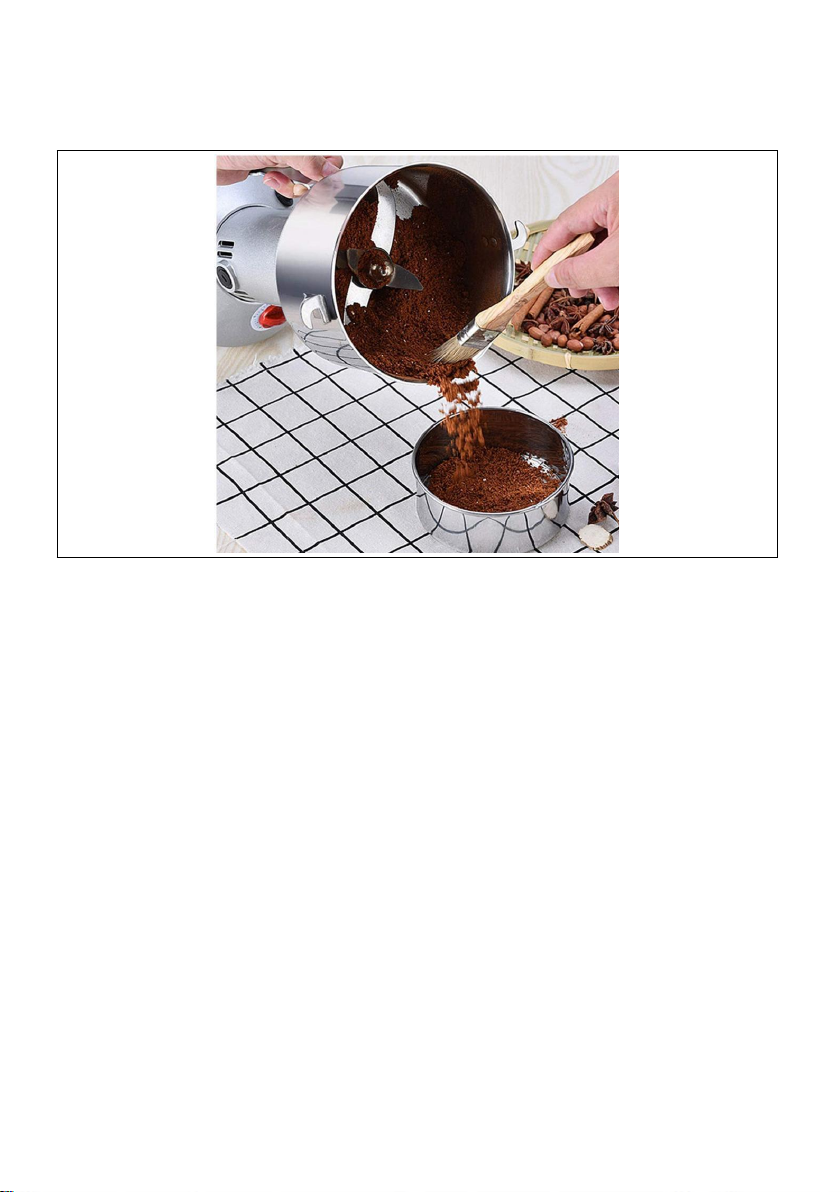

6)Open the upper cover and brush the powder out
2.Grinding Cautions:
It is not suitable for grinding something which is wet, fresh, soft ,strong toughness such as
meat, fruits, vegetables, etc.
1)To grind something more easily when the material is high-hardness, big in size, or has
the strong fiber, you need to cut them into small pieces, for example, to grind the
notoginseng better, you need to cut them into small pieces.
2)For the oily items , such as peanuts, sesame, walnut, etc. You should first dry, or fried-dry
them before grinding. If you just grind a small amount , usually grind for 15 seconds , then
stop for 10 seconds. If you need a better grinding effect, you could do this for several times.
Notice: When you first use the machine,you’d better clean the machine with cloth
moistened with vinegar or medical alcohol,and then put some rice and dried tea leaves into
grinding bin,grind them for 30~50 seconds,then pour the power out, clean the grinding bin.
3. Common Questions:
* Why the grinder cannot be started？
First check whether the indicator light is on.
If the indicator light is not on, check whether the power supply is plugged in tightly and
whether the power cord is damaged (you can replace the power cord of other household
appliances).
If the indicator light is on, the possible reason is that the induction switch in the two buckles
of the cover is not triggered yet.

- 7 -
* What to do if the grinder suddenly stops working?
If the grinder stopped working, the reason may be that the blades bottom is stuck or the
overload protector function works because of overload and the carbon brush is worn.
It's easy to solve this problem.
You just need clean the blades bottom or re-install the carbon brush on the both sides
again and then press the overload protector button again, then the grinder could work well,
Please see the overload protector and carbon brush in the attached pictures, please check
that.
*Why the motor becomes hot ？
It is normal for the grinding machine to be slightly heat, because the working principle of
the machine is to pulverize the material into powder through the high-speed rotation of the
blades. The whole process is carried out in the closed grinding bin, which will generate
heat and cause the machine to heat up.
There may be several reasons for machine overheat:
1）The materials ground is wet, moisture.
Please Dry the materials as much as possible before grinding, and then grind it when it is
completely cool.
2）Grinding time is too long.
The machine must take 5-10 minutes to rest after every 3 minutes of work. If you grinding
some hard items, there should has a interval which is to prevent bearing overheating,

- 8 -
damage to the motor.
3) Put too much materials into the grinding bin one time.
The material you gonna to grind one time must cover the long blade in the middle and no
more than 2/3 of the tank. Because this machine needs a space to complete the cycle of
the blades and the material to be grind.
If the machine overheat makes ono-working, you can also solve it by re-installing the
carbon brushes on the both sides again and then pressing the overload protector
button again, then the grinder could work well.

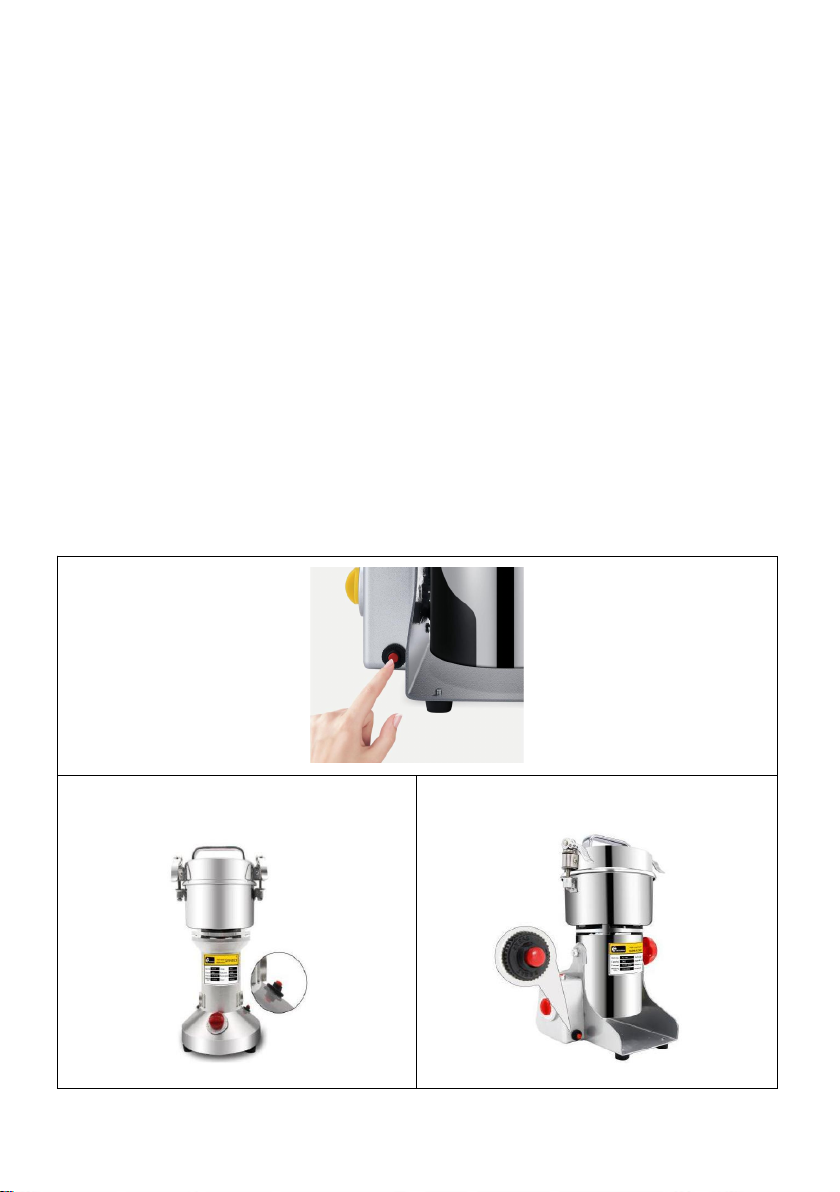

INSTRUCTIONS OF AIR OVERLOAD PROTECTOR
When blades are jammed in grinding bin, it will happen that air overload protector pop up
and the machine automatically cut off the power supply.
If this situation happens, turn off the power and check the grinding bin. You just need clean
the blades bottom and press the overload protector button again, then the grinder could
work well.
* Upright type grinder:
*Swing type grinder:

- 9 -
HOW TO CLEAN UP THE GRINDING BIN
You can clean up the grinding bin of grinder with a brush first,and then clean it with dry
cloth.
After using blades for a long time ,you can remove them and clean them with water.(The
blades of new grinder must be very tight,you need to use for a long time,then blades can be
removed.)
• Firstly, loosen the nut by using a pincer and remove the blade.
• Secondly, wipe the grinding bin with a dry rag after removal of the blade, and please do
not clean with water directly.
Please Note: If you clean the blades by using the wet rag or with water directly, please
make sure grinding bin and the blades be dry enough before re-install the blades.
• Lastly, install the blades and tighten the nut, it is finished.
HOW TO REPLACE THE BLADE
Blade Replacement
Use the Blade replacement auxiliary tool to fix the blade, preventing it from rotation. Then
rotate counterclockwise with the help of tool, loosen the hex screws on the blade, open the
blade to use.

- 10 -
OPERATING PROCEDURES OF REPLACING BLADES

- 11 -
HOW TO REPLACE CARBON BRUSHES
• The upright type grinder:
• The swing type grinder:

- 12 -
TROUBLE SHOOTING
Trouble
Cause
Elimination method (*Please cut off
the power when doing following)
The machine does not
operate after power on.
Poor contact between
the plug and socket.
Please plug in the power cord and
check whether the power indicator
lights is on.
If the indicator does not light, then
the power cord is faulty.
Poor contact between
the lid and induction
switched.
Adjust the position of the screws
on both sides of the lid in advance
so that they can trigger the
induction switches in the ears
when close the lid.
Air over-load protector
protecting.
Press the air over-load protector to
restart.
Carbon brush ware out.
Change the carbon brush.

- 13 -
Motor run slowly,or not
runs, even
vibrates,making noise.
Stuck inside of crush
cabin by material, or
foreign subject.
Remove the stuck stuff.
Low power voltage.
Insert the plug directly wall socket
instead of the terminal block. Then
try another place to see if the
machine can be turned on.
Motor cabin over heat.
Over load capacity.
Reducing the amount of grinding
and decreasing the working
pressure.
Material not dry
enough.
Dry the material in the sun or bake
it.
Low power voltage.
Insert the plug directly into the
wall socket instead of the terminal
block. Then try another place to
see if the machine can be turned
on.
Spark on the carbon
brush surface.
Carbon brush is not
smooth.
Change the carbon brush.
ENVIRONMENTAL PROTECTION
This product is subject to the provision of European Directive 2012/19/EC.
The symbol showing a wheelie bin crossed through indicates that the product
requires separate refuse collection in the European Union. This applies to the
product and all accessories marked with this symbol. Products marked with
this symbol cannot be discarded with normal household waste but must be
taken to an electrical and electronic equipment collection point for recycling.

- 14 -
Importer: WAITCHX
Address: 250 bis boulevard Saint-Germain 75007 Paris
Importer: FREE MOOD LTD
Address: 2 Holywell Lane, London, England, EC2A 3ET
Manufacturer: Anhui Xuzhong Intelligent Technology Co., Ltd.
Address: No.23, Lantian Road, Economic Decelopment Zone, Wangjiang County, Anqing
City, Anhui Provice, China
MADE IN CHINA
REP
UK
EUREP UK LTD
UNIT 2264, 100 OCK STREET, ABINGDON
OXFORDSHIRE ENGLAND OX14 5DH
REP
EC
EUREP GmbH
Unterlettenweg 1a, 85051
Ingolstadt, Germany

TechnicalSupport and E-Warranty Certificate
https://www.vevor.com/support
