BENCH GRINDER
OPERATING MANUAL
MODEL: SS3315-Ⅰ
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.

- 1 -
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Model: SS3315-Ⅰ
BENCH GRINDER
OPERATING MANUAL

- 2 -
Detailed parameters
Power supply
120V ~ 60Hz
Rated current
2.1A
Speed
n03550/ min
Diameter
6 inch
Power Connection
The grinders are fitted with a three-core flex and an earthed plug .
Therefore always use an earthed socket . In case an extension lead is
required use a three –core cable with an earthed extension plug and
extension socket.
Mounting On The Bench
The grinder can be secured with screws. The length of the screws
depends on the thickness of the bench . In case a steel bench is used it is
best to mount the grinder on a board attached to the bench to minimize
vibrations. Install the supplied supports and guards after the machine has
been secured to the bench . The machine is now ready for ase .
Safety
1. Keep children away while grinding .
2. Wear safety glasses during grinding .
3. Never grind without the guard covering the stone.
4. Always fasten the support securely.
5. The clearance between the support and the grinding stone should never
be more than 1.5mm.

- 3 -
Grinding Stone
A grinding stone is a very vulnerable piece of equipment. The stone will no
stand bumping. Always grind at the front side of the grinding stone, Never
mount a cracked stone. Replace a cracked stone immediately, it might be
shattered because of the high rotational velocity.
Grinding
Use the stone only for the work for which it is intended , for instance for
grinding tools. So not for heavy duties. Use the entire grinding face do
not grind grooves in the stone . For hard metals you should use a ‘ soft
stone’ . Do not ‘stuff’ the stone by holding for instance wood lead or
other soft materials against the grinding stone . Do not press the
objects to be grinded too firm against the stone. Regularly cool the
objects to be grinded in water. Wood chisels should never be grinded
‘ blue. Take care the object to be grinded does not slip out off your
hands and gets stuck between support and stone. This will cause the
stone to crack, wounding your hands.

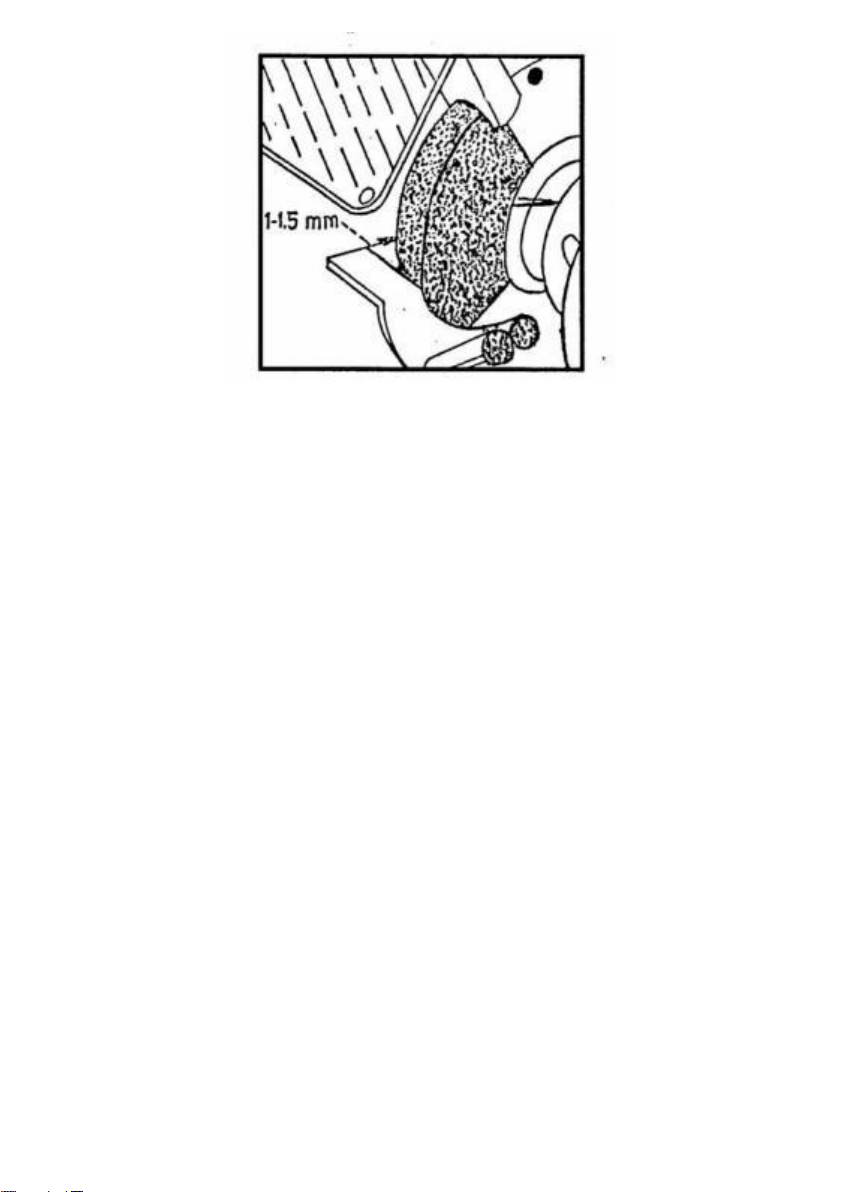

Support
The support should always be adjusted when the grinding stone is at a
still stand. Secure the support as best as possible with a maximum
clearance of 1.5mm between support and grinding stone. For this
purpose use a 14mm spanner.

- 4 -

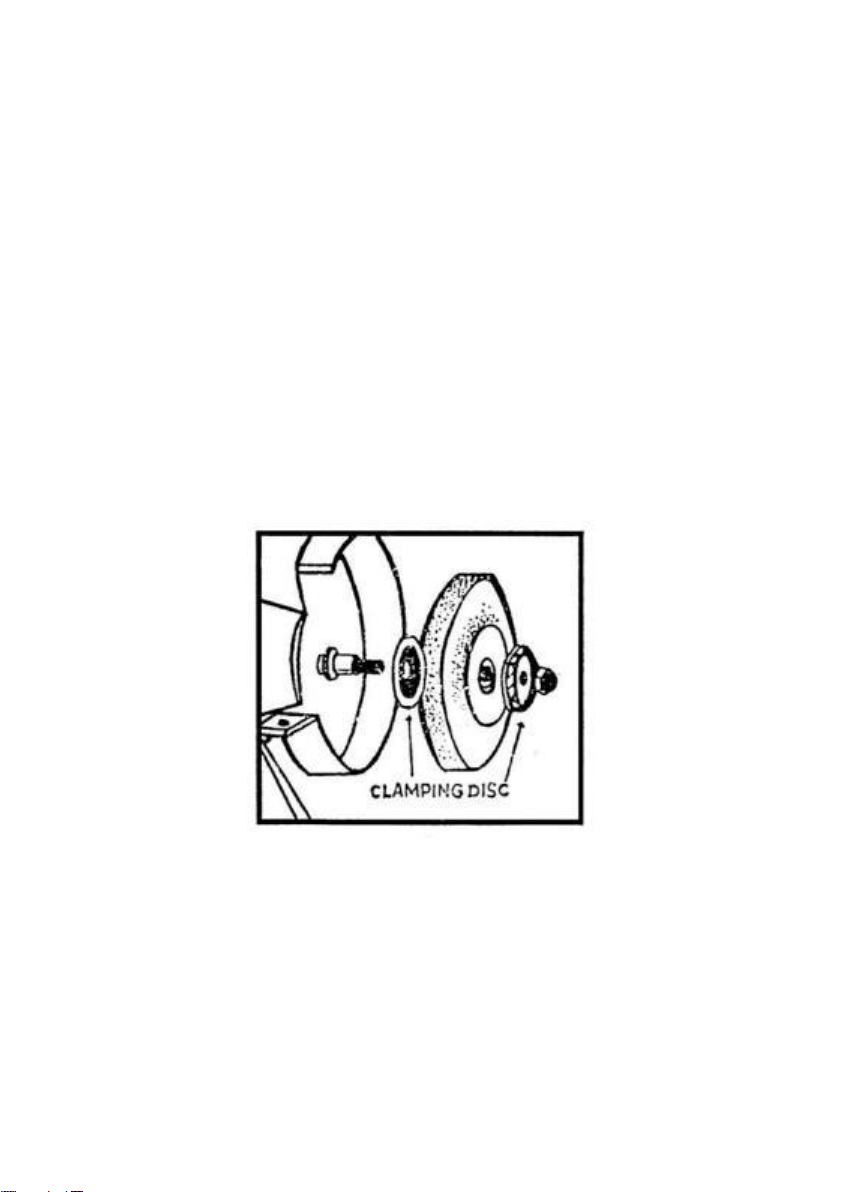

Changing The Stone
Tools required:
Spanner 24mm Spanner 8mm. Screwdriver
Disconnect the plug from the socket.
Remove the guards using the above mentioned tools. The right end of the
shaft fitted with right hand thread. The left end of the shaft is titled with left
hand thread . Bear this is mind when changing the stones.
Take the 24mm spanner and loosen the nut. Remove the old stone. Clean
the clamping discs. Remount one disc on the shaft with the concave side
towards the grinding stone. Slide the new stone on the shaft. Mount the
second clamping disc on the shaft also with the concave side towards the
grinding stone. Tighten the nut on the shaft , but not too fight !
Remount the guard and adjust the support . Run the motor for a few
seconds without grinding .
General safe operation warnings
1. Keep work area clear
- Cluttered areas and benches invite injuries.
2. Consider work area environment
- Do not expose tools to rain.
- Do not use tools in damp or wet locations.
- Keep work area well lit.

- 5 -
- Do not use tools in the presence of flammable liquids or gases.
3. Guard against electric shock
- Avoid body contact with earthed or grounded surfaces (e.g. pipes,
radiators, ranges, refrigerators).
4. Keep other persons away
- Do not let persons, especially children, not involved in the work touch the
tool or the extension cord and keep them away from the work area.
5. Store idle tools
- When not in use, tools should be stored in a dry locked-up place, out of
reach of children.
6. Do not force the tool
- It will do the job better and safer at the rate for which it was intended.
7. Use the right tool
- Do not force small tools to do the job of a heavy duty tool.
- Do not use tools for purposes not intended; for example do not use
circular saws to cut tree limbs or logs.
8. Dress properly
- Do not wear loose clothing or jewellery, they can be caught in moving
parts.
- Non-skid footwear is recommended when working outdoors.
- Wear protective hair covering to contain long hair.
9. Use protective equipment
- Use safety glasses.
- Use face or dust mask if working operations create dust.
10. Connect dust extraction equipment
- If the tool is provided for the connection of dust extraction and collecting
equipment, ensure these are connected and properly used.
11. Do not abuse the cord
- Never yank the cord to disconnect it from the socket. Keep the cord away
from heat, oil and sharp edges.
12. Secure work
- Where possible use clamps or a vice to hold the work. It is safer than
using your hand.
13. Do not overreach
- Keep proper footing and balance at all times.
14. Maintain tools with care

- 6 -
- Keep cutting tools sharp and clean for better and safer performance.
- Follow instruction for lubricating and changing accessories.
- Inspect tool cords periodically and if damaged have them repaired by an
authorized service facility.
- Inspect extension cords periodically and replace if damaged.
- Keep handles dry, clean and free from oil and grease.
15. Disconnect tools
- When not in use, before servicing and when changing accessories such
as blades, bits and cutters, disconnect tools from the power supply.
16. Remove adjusting keys and wrenches
- Form the habit of checking to see that keys and adjusting wrenches are
removed from the tool before turning it on.
17. Avoid unintentional starting
- Ensure switch is in "off" position when plugging in.
18. Use outdoor extension leads
- When the tool is used outdoors, use only extension cords intended for
outdoor use and so marked.
19. Stay alert
- Watch what you are doing, use common sense and do not operate the
tool when you are tired.
20. Check damaged parts
- Before further use of tool, it should be carefully checked to determine that
it will operate properly and perform its intended function.
- Check for alignment of moving parts, binding of moving parts, breakage
of parts, mounting and any other conditions that may affect its operation.
- A guard or other part that is damaged should be properly repaired or
replaced by an authorized service centre unless otherwise indicated in this
instruction manual.
- Have defective switches replaced by an authorized service centre.
- Do not use the tool if the switch does not turn it on and off.
21. Warning
- The use of any accessory or attachment other than one recommended in
this instruction manual may present a risk of personal injury.
22. Have your tool repaired by a qualified person
- This electric tool complies with the relevant safety rules. Repairs should
only be carried out by qualified persons using original spare parts,
otherwise this may result in considerable danger to the user.

- 7 -

- 8 -

- 9 -
SAFETY ALERT: Precautions that involve your safety.
PROHIBITION
WEAR EYE PROTECTION: Always wear safety goggles or safety glasses with side
shields.
WEAR A MASK:Always wear a face mask or dust mask.
WEAR HEARING PROTECTION: To reduce the risk of induced hearing loss, always
wear a hearing protection.
READ AND UNDERSTAND INTRUCTION MANUAL: To reduce the risk of injury,
user and all bystanders must read and understand instruction manual before using
this product.
KEEP HANDS AWAY FROM BLADE: Failure to keep your hands away from the
blade will result in serious personal injury.
Manufacturer: VEVOR STORE INC.
Address: 9448 RINCHMOND PL #E RANCHO CUCAMONGA,
California, 91730 United States of America
Made In China
