CONCRETE SAW
OWNER’S MANUAL
MODEL: DC355
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
DC355
<Picture Only For Reference >
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CONCRETE SAW
DC355

- 2 -

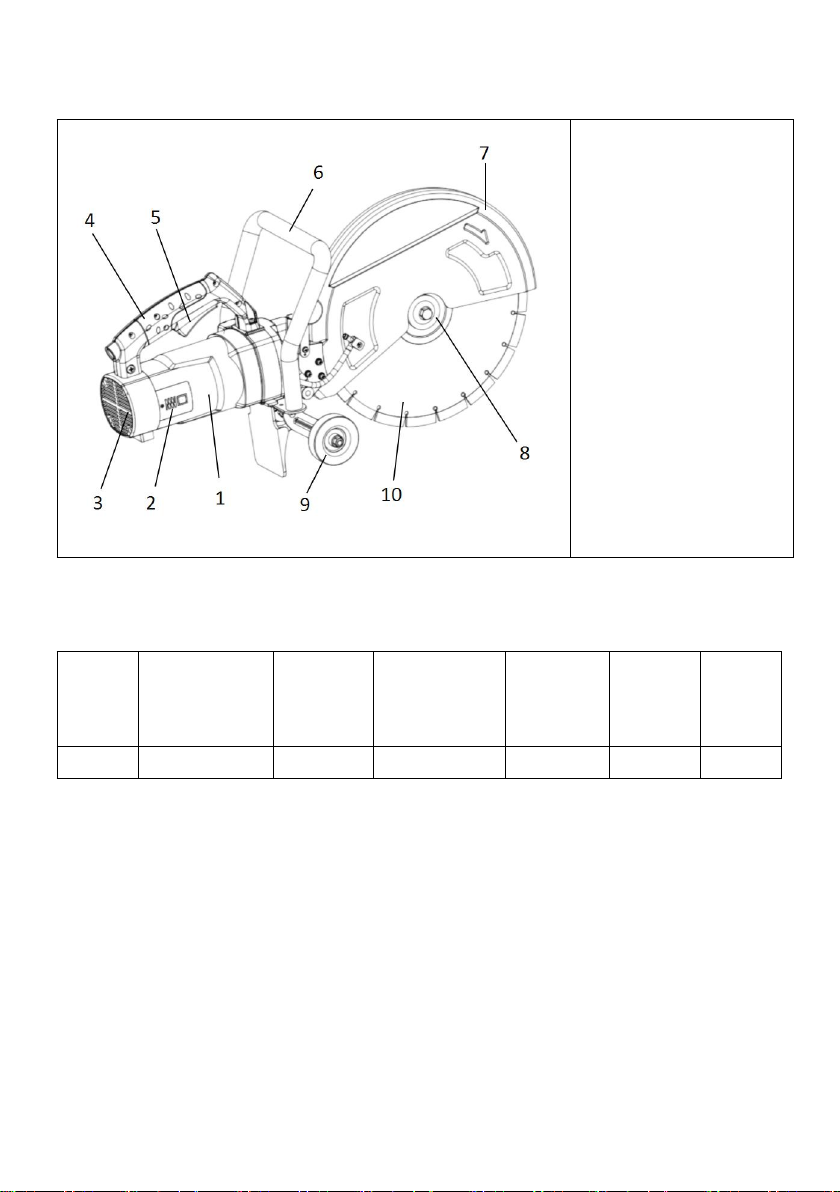

MAIN CONSTRUCTION
1. Motor casing
2. Carbon brush cover
3. Back cover
4. Handle
5. Switch
6. auxiliary handle
7. cover
8. flange
9. wheel
10. saw blade
MAIN SPECIFICATIONS
Model
Power
Supply(V/Hz)
Input(W)
Maximum
Cutting
Depth（inch）
Saw
Blade
Size(mm)
No-load
speed
（RPM）
G.W.
(kg)
DC355
120/60
2600
5
φ356
4200
17.4
MARKINGS
The manufacturer is required to apply the following markings:
• Products shall be marked with the markings specified by the particular product standard.
• Products certified for Canada shall have all Caution and Warning markings in both English
and French.
Additional bilingual markings not covered by the product standard(s) may be required by the
Authorities Having Jurisdiction. It is the responsibility of the manufacturer to provide and

- 3 -
apply these additional markings, where
[For products eligible to bear the cCSAus Mark, (i.e., the product is certified and
manufactured to the requirements of BOTH Canadian and U.S. Standards), the Markings
section of the report shall include the following statement:]
The products listed are eligible to bear the CSA Mark shown with adjacent indicators 'C' and
'US' for Canada and US (indicating that products have been manufactured to the
requirements of both Canadian and U.S. Standards) or with adjacent indicator 'US' for US
only or without either indicator for Canada only.
applicable, in accordance with the requirements of those authorities.
Tools shall be marked with:
- The submittor's name and/or master contract number “300374”, adjacent to the CSA
Monogram with the C US Indicator;
- model or type reference;
- Rated voltage(s) or rated voltage range(s), in volts;
- Symbol for nature of supply, unless the rated frequency is marked;
- Rated input, in watts or rated current, in amperes;
- name or trade mark or identification mark and address of the manufacturer or any other
agent
responsible for placing the tool on the market;;
- Any mandatory mark showing compliance with legislation by reference to this standard.
- "WARNING: To reduce the risk of injury, user must read instruction manual. «MISE EN
GARDE – Pour réduire le risque de blessures, l’utilisateur doit lire le manuel d’instructions»
or equivalent or symbol M002 of ISO 7010
- M002 of ISO 7010
- date of manufacture.
-rated speed in revolutions per minute;
-rated capacity in mm;
-tools provided with a threaded spindle shall be marked with spindle thread size;
-WARNING Always wear eye protection, “AVERTISSEMENT Toujours porter des lunettes

- 4 -
de sécurité” or equivalent or the sign M004 of ISO 7010 or the following safety sign:
The eye protection symbol may be modified by adding other personal protective equipment
such as ear protection, dust mask, etc
WARNING To reduce the risk of injury, use proper guard and use only accessories
rated at
least equal to the maximum speed marked on the tool.
In Canada, the equivalent French wording is as follows: “AVERTISSEMENT Pour
réduire le
risque de blessure, utiliser un carter approprié et uniquement les accessoires
convenant
au moins à la vitesse maximale indiquée sur l’outil.”
For cut-off machines with a permanently fixed guard, the following alternative
warning may be used:
WARNING To reduce the risk of injury, use only accessories rated at least equal to
the maximum speed marked on the tool.
In Canada, the equivalent French wording is as follows: “AVERTISSEMENT Pour
réduire le risque de blessure, utiliser uniquement les accessoires convenant au
moins à la vitesse maximale indiquée sur l’outil.”
Note: Minimum 2.4mm high letters for "WARNING".
INSTRUCTIONS See standard CAN/CSA-C22.2 No. 60745-1-07 + UPD 1, 2, 3, (UL
60745-1-4th (Nov.28, 2016) and CAN/CSA-C22.2 No. 60745-2-22-12+UPD 1 (reaffirmed
2017, (UL 60745-2-22-1st (June 19, 2014)) for details.
An instruction manual and safety instructions shall be provided with the tool and packaged
in such a way that is noticed by the user when the tool is removed from the packaging. The

- 5 -
safety instructions may be separate from the instruction manual. An explanation of the
symbols required by this standard shall be provided in either the instruction manual or the
safety instructions.
They shall be written in the official language(s) of the country in which the tool is sold.
They shall be legible and contrast with the background.
They shall include the name and address of the manufacturer or supplier or any other agent
responsible for placing the tool on the market.
The General Power Tool Safety Warnings and the specific tool Safety Warnings, if in
English, shall be verbatim and in any other official language to be equivalent.
Format of all Safety Warnings must differentiate, by font highlighting or similar means, the
context of clauses as illustrated below.
General Safety Rules
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term "power tool" in all of the warnings listed below
refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching

- 6 -
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools
with your finger on the switch or energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,

- 7 -
ensure these are connected and properly used. Use of dust collection can reduce
dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Special requirement for cutting off tool
Cut-off machine safety warnings
a) The guard provided with the tool must be securely attached to the power tool and
positioned for maximum safety, so the least amount of wheel is exposed towards the
operator. Position yourself and bystanders away from the plane of the rotating wheel.

- 8 -
The guard helps to protect operator from broken wheel fragments and accidental contact
with
wheel.
b) Use only bonded reinforced or diamond cut-off wheels for your power tool. Just
because an accessory can be attached to your power tool, it does not assure safe
operation.
c) The rated speed of the accessory must be at least equal to the maximum speed
marked on the power tool. Accessories running faster than their rated speed can break and
fly apart.
d) Wheels must be used only for recommended applications. For example: do not grind
with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding,
side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct diameter for your selected
wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel
breakage.
f) Do not use worn down reinforced wheels from larger power tools. Wheels intended for a
larger power tool are not suitable for the higher speed of a smaller tool and may burst.
NOTE The above warning does not apply for tools only designated to be used with diamond
wheels.
g) The outside diameter and the thickness of your accessory must be within the capacity
rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or
controlled.
h) The arbour size of wheels and flanges must properly fit the spindle of the power tool.
Wheels and flanges with arbour holes that do not match the mounting hardware of the
power
tool will run out of balance, vibrate excessively and may cause loss of control.

- 9 -
i) Do not use damaged wheels. Before each use, inspect the wheels for chips and
cracks. If power tool or wheel is dropped, inspect for damage or install an undamaged
wheel. After inspecting and installing the wheel, position yourself and bystanders away
from the plane of the rotating wheel and run the power tool at maximum no load speed
for one minute. Damaged wheels will normally break apart during this test time.
j) Wear personal protective equipment. Depending on application, use face shield, safety
goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves
and shop apron capable of stopping small abrasive or workpiece fragments. The eye
protection must be capable of stopping flying debris generated by various operations. The
dust
mask or respirator must be capable of filtrating particles generated by your operation.
Prolonged
exposure to high intensity noise may cause hearing loss.
k) Keep bystanders a safe distance away from work area. Anyone entering the work area
must wear personal protective equipment. Fragments of workpiece or of a broken wheel
may fly away and cause injury beyond immediate area of operation.
l) Hold the power tool by insulated gripping surfaces only, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory
contacting a “live” wire may make exposed metal parts of the power tool “live” and could
give
the operator an electric shock.
m) Position the cord clear of the spinning accessory. If you lose control, the cord may be
cut or snagged and your hand or arm may be pulled into the spinning wheel.
n) Never lay the power tool down until the accessory has come to a complete stop. The
spinning wheel may grab the surface and pull the power tool out of your control.
o) Do not run the power tool while carrying it at your side. Accidental contact with the
spinning accessory could snag your clothing, pulling the accessory into your body.

- 10 -
p) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the
housing and excessive accumulation of powdered metal may cause electrical hazards.
q) Do not operate the power tool near flammable materials. Sparks could ignite these
materials.
r) Do not use accessories that require liquid coolants. Using water or other liquid coolants
may result in electrocution or shock.
Further safety instructions for abrasive cutting-off operations
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging
causes rapid
stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in
the direction
opposite of the wheel’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the
wheel that is
entering into the pinch point can dig into the surface of the material causing the wheel to
climb out or kick
out. The wheel may either jump toward or away from the operator, depending on direction of
the wheel’s
movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or
conditions and can
be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to allow you to
resist kickback forces. Always use auxiliary handle, if provided, for maximum control
over kickback or torque reaction during start-up. The operator can control torque reactions

- 11 -
or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your
hand.
c) Do not position your body in line with the rotating wheel. Kickback will propel the tool in
direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and
snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the
rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a
peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent
kickback and loss of control.
f) Do not ″jam″ the wheel or apply excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to
twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
g) When wheel is binding or when interrupting a cut for any reason, switch off the power
tool and hold the power tool motionless until the wheel comes to a complete stop. Never
attempt to remove the wheel from the cut while the wheel is in motion otherwise
kickback may occur. Investigate and take corrective action to eliminate the cause of wheel
binding.
h) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed
and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is
restarted in the workpiece.
i) Support panels or any oversized workpiece to minimize the risk of wheel pinching and
kickback. Large workpieces tend to sag under their own weight. Supports must be placed
under the workpiece near the line of cut and near the edge of the workpiece on both sides of
the wheel.

- 12 -
j) Use extra caution when making a “pocket cut” into existing walls or other blind areas.
The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause
kickback.
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
INSTALLING/REMOVING A DISC
WARNING: Always disconnect the machine from the
power supply before attempting to install or remove a
Cutting Disc.
• Ensure that the machines arbor and the blade flanges
are clean and free from dust and debris.
• Ensure that the direction of rotation marked on the
blade matches the direction of rotation marked on
machines guard.
Note: this machine is supplied with
Note: The arbor bolt has a left hand thread .Turn
counter clockwise to tighten the arbor . turn clockwise
to loosen the arbor bolt.
To remove a cutting disc ,reverse the above installation
procedure.

- 13 -
USING A DUST EXTRACTION MACHINE
A workshop dust extraction manchine can be attached
to disc cutter.
WARNING:Dust can be very dangerous.We strongly
recommend that a suitable dust extraction machine (not
supplied) is used with this machine to keep the
workplace as clean and safe as possible.
The sucition hose from the dust extraction machine
should be attached to dust extraction port of the disc
cutter.
• Remove the rubber cap from the dust extraction pord
and store it safely for future use .
• Push the connection hose from the dust extraction
machine into the dust extraction port of the disc
cutter(FIG.4)
• Follow all instructions supplied with the dust extraction
machine when using such with the Disc cutter.
• Ensure that the hose and power cable of any attached
dust extraction machine do not pose or cause a trip or
any other from of hazard to the operator.
• when the dust extraction machine is no longer
required remove it from the disc cutter and replace cap
to the dust extraction port.
THE ON/OFF TRIGGER SWITCH
This machine is equipped with a safety start trigger
switch.
To start the tool:
• Push in the safety lock button (Fig.5a) on the side of
the handle with your thumb.
• Depress the main trigger switch (Fig.5b) to start the
motor.
WARNING: Never start the saw with the cutting edge of
the saw blade in contact with the workpiece surface.

- 14 -
CUTTING ADVICE
PRE-CUTTING ADVICE
• Ensure that the power supply matches the
requirements specified on the matches the
requirements specified on the machines rating plate.
• Ensure that the machine trigger switch is in the “OFF”
position. If the machine is connected to a power source
with trigger switch the “ON”position , the machine could
start operating immediately with the possibility of a
serious accident occurring.
• If an extension cable is required it must be a suitable
type for use outdoors and so labeled.
• The manufacturers instructions should be followed
when using an extension cable.
• Route any extension cable so that it does not pose a
trip (or any other ) hazard to the operator to any
bystanders.

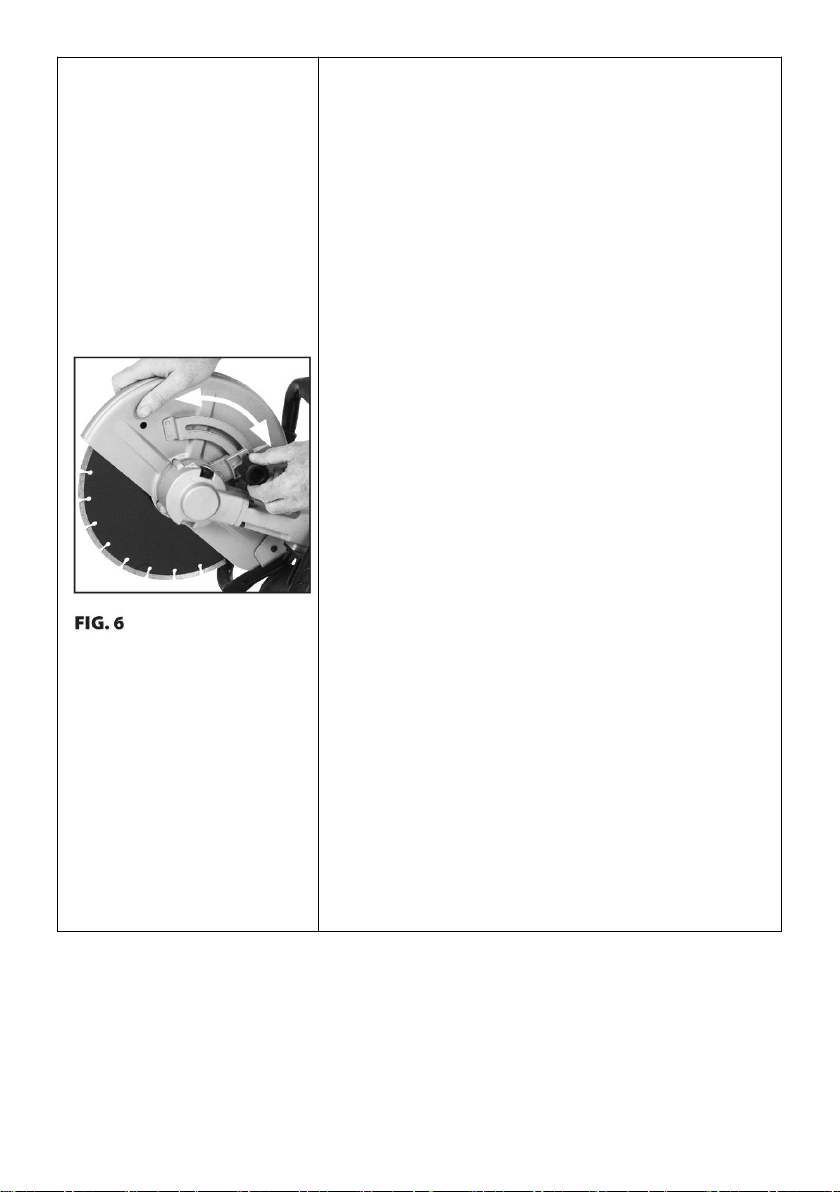

WHEEL GUARD ADJUSTMENT
The wheel guard is adjustable and should be positioned
to provide the operator with the best combination of
personal protection and visibility of cutting area.
• Loosen the wheel gard locking knob and rotate the
guard to the required position. (FIG.6)
• Securely tighten the wheel guard locking knob to lock
the guard in place.
Note: the tightness of this locking knob and the security
of the wheel guard should be checked regularly when
operations commence.

- 15 -

- 16 -
No
Part Description
Qty
No
Part Description
Qty
1
Cable wire
1
37
Gear washer
1
2
Nut M6
1
38
bearing pressure plate
1
3
Left handle
1
39
Screw M4x10
2
4
Screw M5x20
2
40
oil baffle
1
5
Cable sheath
1
41
Gear
1
6
Tension
1
42
Nut M8
1
7
wiring buckle
2
43
oil baffle
1
8
switch
1
44
Gear box
1
9
right handle
1
45
Screw M5x25
4
10
M6 washer
1
46
Handle
1
11
Screw M6x25
1
47
Sctew M6x45
4
12
Screw ST4x15
8
48
Key 4x4x14
1
13
Screw ST5x24
4
49
Drive shaft
1
14
Motor End Cover
1
50
Key 3x3x14
1
15
Screw ST4x15
2
51
Bearing 6301RS
2
16
Soft Starter
1
52
gear
1
17
Motor Housing
1
53
Nut M8
1
18
Bearing 609 RS
1
54
Breakwater
1
19
Stator
1
55
spring washer M12
1
20
Screw ST5x80
2
56
Screw M12x15
1
21
Spring
2
57
Fixed plate
1
22
Brush Holder
2
58
Screw M6x16
4
23
Screw ST4x10
2
59
Lockpin
1
24
Brush
2
60
Lockpin-spring
1
25
Brush cover
2
61
Circlip for shaft 6
1
26
Screw ST3x8
2
62
Gear box
1
27
Rotor
1
63
Bearing 6200Z
1
28
baffle
1
64
oil baffle
1
29
Bearing washer
1
65
Circlip for shaft 15
1
30
Bearing 6202 RS
1
66
Axle sleeve
1

- 17 -
31
Gear box
1
67
Bevel gear
1
32
Screw M4x10
1
68
Gear cover
1
33
Screw ST5x40
4
69
O-ringφ60x1.5
1
34
Bearing 6200 RS
1
70
Screw M6x16
4
35
Screw M4x10
2
71
Locking handwheel
1
36
Gear
1
72
Squar Bolt M8x24
1
No
Part Description
Qty
No
Part Description
Qty
73
Screw M5x10
2
98
Screw M5x10
2
74
Outlet
1
99
Bolt 35
2
75
Screw M5x10
6
100
wheel
2
76
Dust outlet （R）
1
101
Lock nut M8
2
77
Guard
1
102
1
78
Dust outlet（L）
1
103
1
79
Screw M4x30
1
104
1
80
Screw M4x10
1
105
1
81
Dust outlet cover
1
106
1
82
Outlet
1
107
1
83
Bearing 6302Z
1
108
1
84
Key 4x4x30
1
109
1
85
Spindle
1
110
1
86
Bearing pressure plate
1
111
Water pump
1
87
Screw M6x16
3
112
Pvc water pipe 6x8
1
88
Dustproof ring
1
113
Flange
1
89
Flange
1
114
Dust casing
1
90
saw blade
1
115
16#wrench
1
91
flange
1
116
washer
1
92
Washer
1
117
Hexagon Wrench
1
93
Screw
1
118
Bottom plate
1

- 18 -
94
Pvc water pipe 8x10
（230mm）
1
95
Pvc water pipe 8x10
（5000mm）
1
96
Tap
1
97
Breakwater -plate
1
Importer: WAITCHX
Address: 250 bis boulevard Saint-Germain 75007 Paris
Importer: FREE MOOD LTD
Address: 2 Holywell Lane, London, England, EC2A 3ET
Manufacturer: Wuyi Bohai Electric Tools Co., Ltd.
Address: Che Men Tou,Tongqin Industrial Park, Wuyi, Zhejiang, China
MADE IN CHINA

TechnicalSupport and E-Warranty Certificate
www.vevor.com/support
