VEVOR J1G-ZB-355G-3 User manual

Technical Support and E-Warranty Certificate
www.vevor.com/support
CUT-OFF MACHINE
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.

1
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions carefully
before operating. VEVOR reserves a clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there are any technology or software
updates on our product.
CUT-OFF MACHINE
J1G-ZB-355G-3

2
1. Important safety instructions
Warning - To reduce the risk of injury, user must read instructions
manual carefully.
Alternating current
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to
an accident. To reduce the risk of injury, fire, or electrocution,
please always follow the recommendation shown below.
Danger!
Risk of personal injury or environmental damage! Risk of electric
shock! Risk of personal injury by electric shock!
Warning- Be sure to wear ear protectors when using this product.
Warning- Be sure to wear eye protectors when using this product.
Warning- Be sure to wear dust masks when using this product.
Warning- Be sure to wear gloves when using this product.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
Disposal information:
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed through
indicates that the product requires separate refuse collection in the
European Union. This applies to the product and all accessories
marked with this symbol. Products marked as such may not be
discarded with normal domestic waste, but must be taken to a
collection point for recycling electrical and electronic devices

3
Please make sure to read the instructions carefully before using, and use
according to the instructions, so as to give full play to the maximum benefit of our
products, and avoid unnecessary occupational injury, our factory tools will be able
to provide you with the best quality service.
General Safety Warning for Power Tools When using power tools, the following
basic safety measures must be followed in order to prevent the operator from
receiving electric shock, injury and fire.
Before operating this power tool, read all the instructions and keep these safety
regulations in good condition.
General Power Tool Safety Warnings - Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite
the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
General Power Tool Safety Warnings - Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body
is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.

4
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
General Power Tool Safety Warnings - Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b)Use personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and
clothing away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection
can reduce dust-related hazards.
h) Don't neglect tool security principles because you use tools too often. A
careless action can cause severe injury within a fraction of a second.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was
designed.

5
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if
detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories, tool bits, etc., under these instructions,
considering the he working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous
situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control
of the tool in unexpected situations.
Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Other Safety regulations
1.1Do not cover up the warning mark on the power tool.
1.2.Do not stand on power tools. Serious injury can occur if a power tool is tipped
over or if you accidentally touch the saw blade
1.3.Check whether the function of the protective cover is normal and whether
friction will occur when the protective cover is moved. Do not secure the shield
while it is open.

6
1.4.This electric tool is only suitable for dry cutting. Electric shock may occur if
moisture enters power tools.
1.5.If the power tool is still turning, never attempt to remove chips, metal shavings
or similar debris from the cutting area. Be sure to retract the arm before turning off
the power tool.
1.6. After starting the machine, place the saw blade on the work-piece. Otherwise
when the saw blade is stuck in the work-piece, there will be a risk of rebound.
1.7.The wire must be kept away from the rotating tool. Wires can be cut or caught
in a knife.
1.8.Keep the handle dry, clean and free of grease. Greasy handles that are
slippery may make it impossible to control the machine.
1.9.Use only when the working surface (excluding the work-piece to be machined)
does not have all the adjustment tools, metal debris, etc. Small pieces of metal or
other objects that come into contact with the rotating blade can hit the operator at
high speed.
1.10. Keep floors free of metal debris and waste. Avoid slipping or tripping.
1.11.Be sure to fix the workpiece to be processed. Do not work a piece too small
to be fixed. Do not fix the workpiece by hand to prevent accidents.
1.12.Only suitable materials can be cut with this tool. Otherwise, power tools will
be overloaded.
1.13.If the saw blade is stuck, turn off the power tool and hold the workpiece firmly
until the blade completely stopped. To avoid counterattack,One must must wait for
the saw blade to stop turning before moving the workpiece. Before restarting the
power tool, the cause of the stuck saw blade must be checked and the obstacle
removed.
1.14.Do not use a saw blade that has become blunt, cracked, bent or damaged. If
the saw blade becomes blunt, or the sawtooth changes, it will increase the friction
when cutting because the saw seam is too small, and the saw blade is easy to be
clamped and cause a rebound.
1.15.Use a saw blade with a proper joint hole (columns, such as star or quad) and
the correct size. If the saw blade does not fit the socket of the saw, it will skew and
cause the operation to be out of control.
1.16.Saw blades made of high alloy rapid steel (HSS) should not be used. This
kind of saw blade breaks easily.

7
1.17.Do not touch the saw blade if it is not cooled after working. Saw blades can
get very hot when working.
1.18.Check electrical wiring regularly. The damaged wires can only be left to the
professional after-sales service personnel. Replace the damaged extension cable.
In this way, the safety performance of power tools can be ensured
1.19.Take good care of unused power tools. Storage must be kept dry and
lockable. This prevents damage to the appliance during storage or from being
used by people who cannot operate it.
1.20.Secure the workpiece. Fixing the workpiece with a retainer or vise is more
secure than holding it by hand.
1.21 .Do not leave the tool until it is completely stationary. If the tool continues to
rotate, it may cause damage.
1.22.Do not use power tools with damaged wires. If the power cable is damaged
during work, do not touch the damaged wire, and pull out the plug immediately.
Damaged wires increase the risk of electric shock to the user.Take protective
measures before the operation. You should wear protective gloves, a helmet, and
goggles, helmet and goggles to prevent being injured by flying iron filings.
2. Pay attention to the voltage
Before using a power tool, ensure that power supply voltage is consistent with the
rated voltage of the tool. If the power supply voltage exceeds the specification
voltage of the tool and is used by mistake, it will not only damage the machine but
also hurt people. If the voltage of the socket can not be determined, it must not be
used in a trial plug. In addition, if the power supply voltage is lower than the tool
specification voltage, the motor will be damaged.

8
3. Product specification
Description
Cut-off Machine
Remark
Model
J1G-ZB-355G-3
Rating(s)
AC120V 60Hz 2800W
For US user
Rating(s)
AC220-240V 50Hz 2800W
For European User
Rotational Speed
1200rpm
Cutting Blade
Dia:14inch
66 Teeth
Package Size
65×38.5×47cm
G.W.
26.6kg
4. Maximum cutting capacity
shape
0°
45°
φ130
φ90
120mmx120mm
85mmx85mm
85mm*210mm
43mmx135mm
130mm*130mm
80mmx80mm
Note: Our company reserves the right to modify the specifications without prior
notice.

9

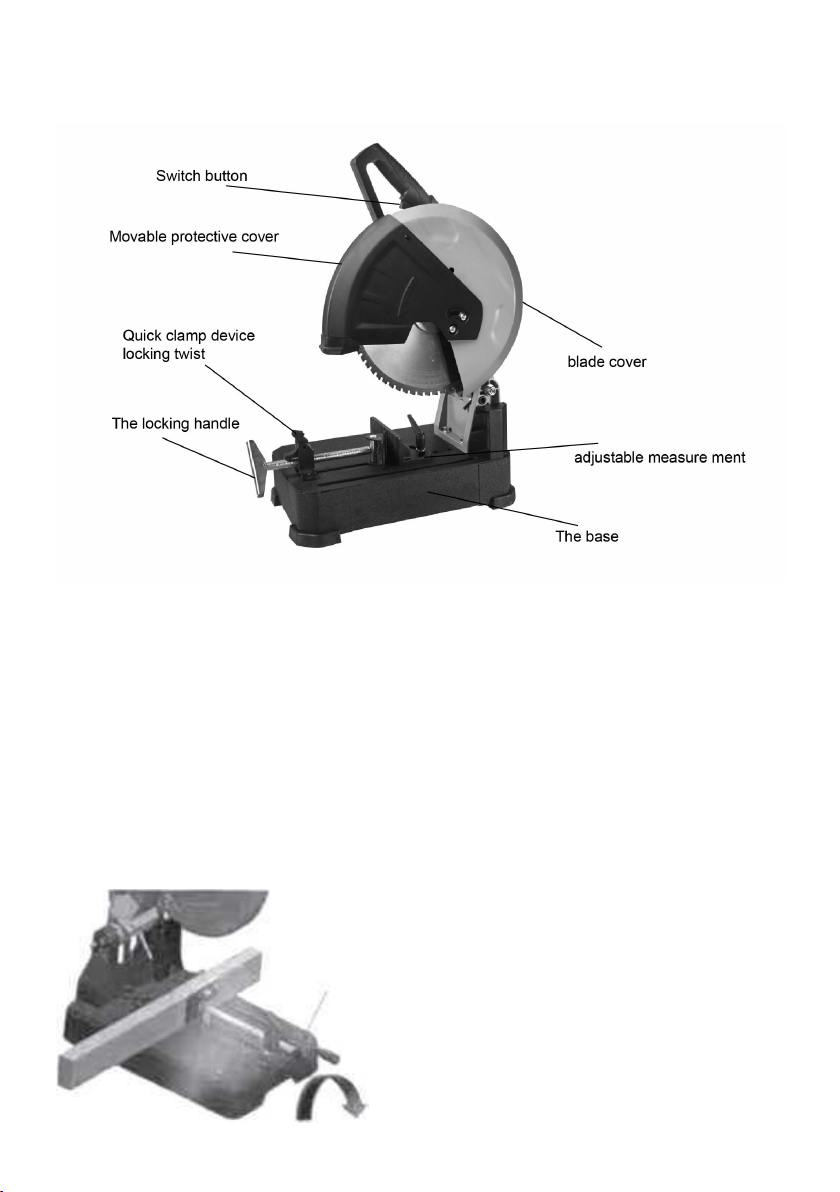

5. Product Structure
Note: Vise locking screws may be replaced by handles
6.Special note
6.1 When cutting, the locking handle must be tightened. The work-piece is easy to
produce cold slice tooth collapse.
6.2 Cutting the work-piece by hand, although the efficiency is improved, it will
affect the service life of the saw blade) Start the machine and wait until the speed
is normal (2-3 seconds), and then proceed to the next balanced cutting.

10
7. Category of Prohibited cutting
1hollow thin-wall stainless steel materials
2chromium plated metal materials
3metal materials with quenched hardness
4iron, steel wire and other special materials

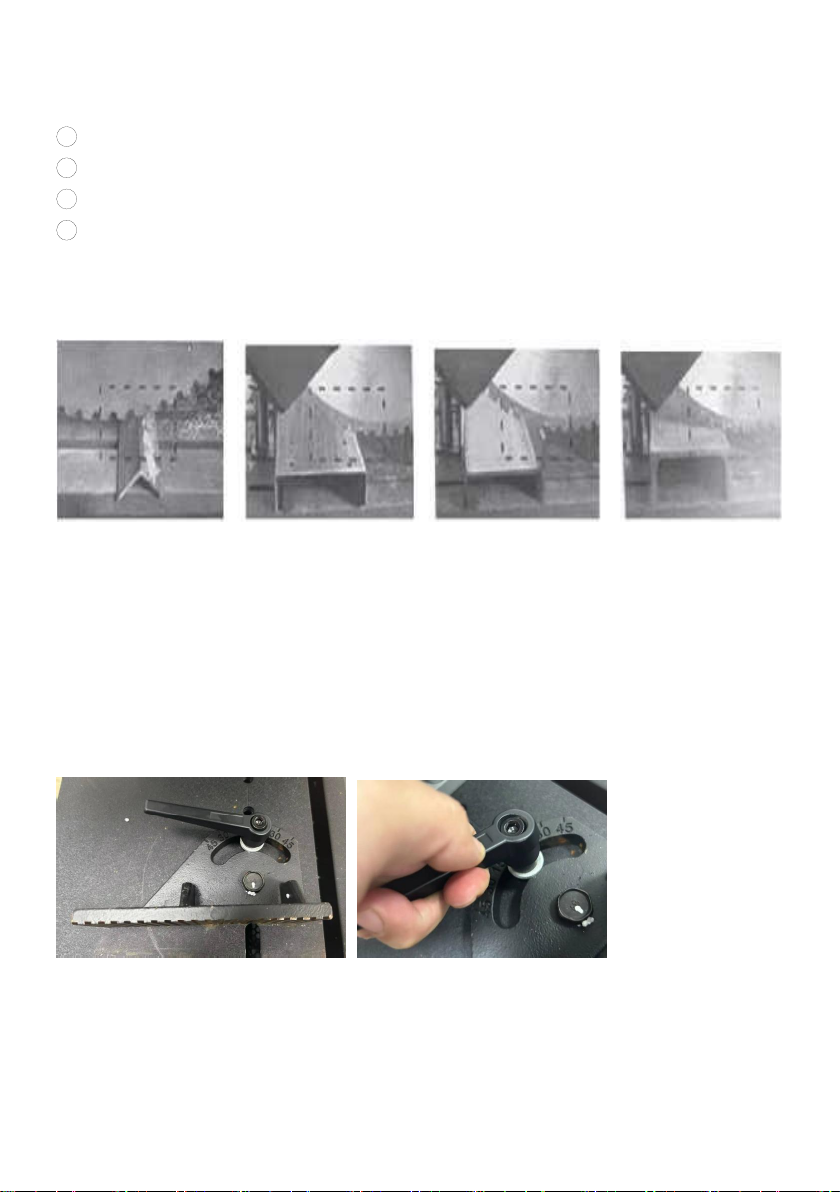

8.Special shape workpiece cutting (clamping) method
9.Handle operation
When adjusting the vise angle, turn the handle counterclockwise to release the
vise, and turn the needle handle clockwise to lock the vise. After turning the
handle for the first time, you need to pull the handle up, then rotate the handle to
the starting position, then lower the handle, and then turn the handle a second
time to release or lock the vise.
Release handle Pull handle up

11

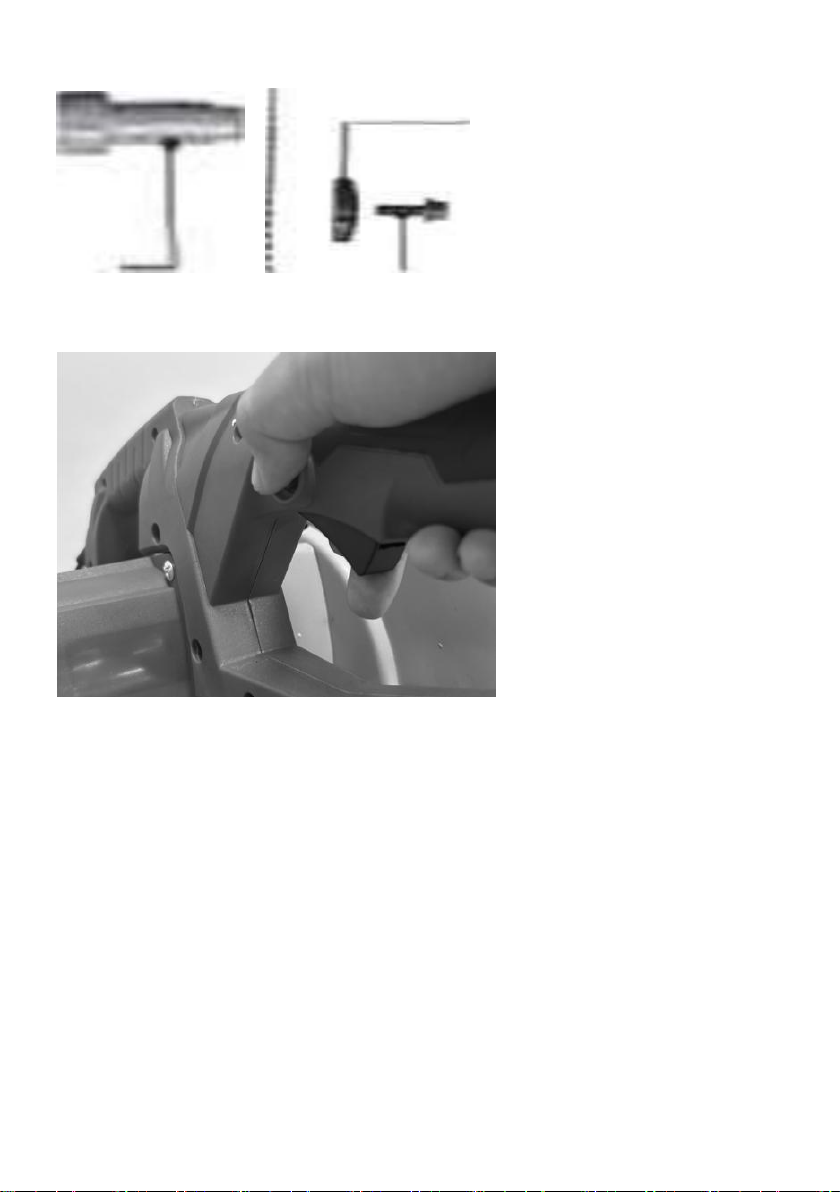

10.Instructions
10.1 Removing and Installing the saw blade Note: Before removing or installing
the saw blade, make sure that the tool switch is turned off and the powei plug is
unplugged. To remove the saw blade, use a phillips screwdriver to turn
counterclockwise to remove the small guard fixing plate screw, and then lift the
transparent cover and fixing plate.
10.2 Press the locking device of the shaft (self-locking pin) to prevent the shaft
from turning. Loosen the saw blade pressing bolt counterclockwise with a 7 hex
wrench, and then remove the saw blade pressing bolt, small pressing plate, upper
pressing plate and saw blade in turn.
10.3 When installing the saw blade, make sure that the arrow on the blade points
in the same direction as the arrow on the blade cover. When installing the saw
blade, make sure that the inner hole of the saw blade is flat on the output shaft.
10.4 Install the up per pressure plate, small pressure plate and pressure screw
bolt in turn, tighten them clockwise with a 7-type hexagonal wrench, and finally

12
confirm whether the self-locking pin springs back
10.5 Press both buttons at the same time to start the machine, release both
buttons to stop machine

13

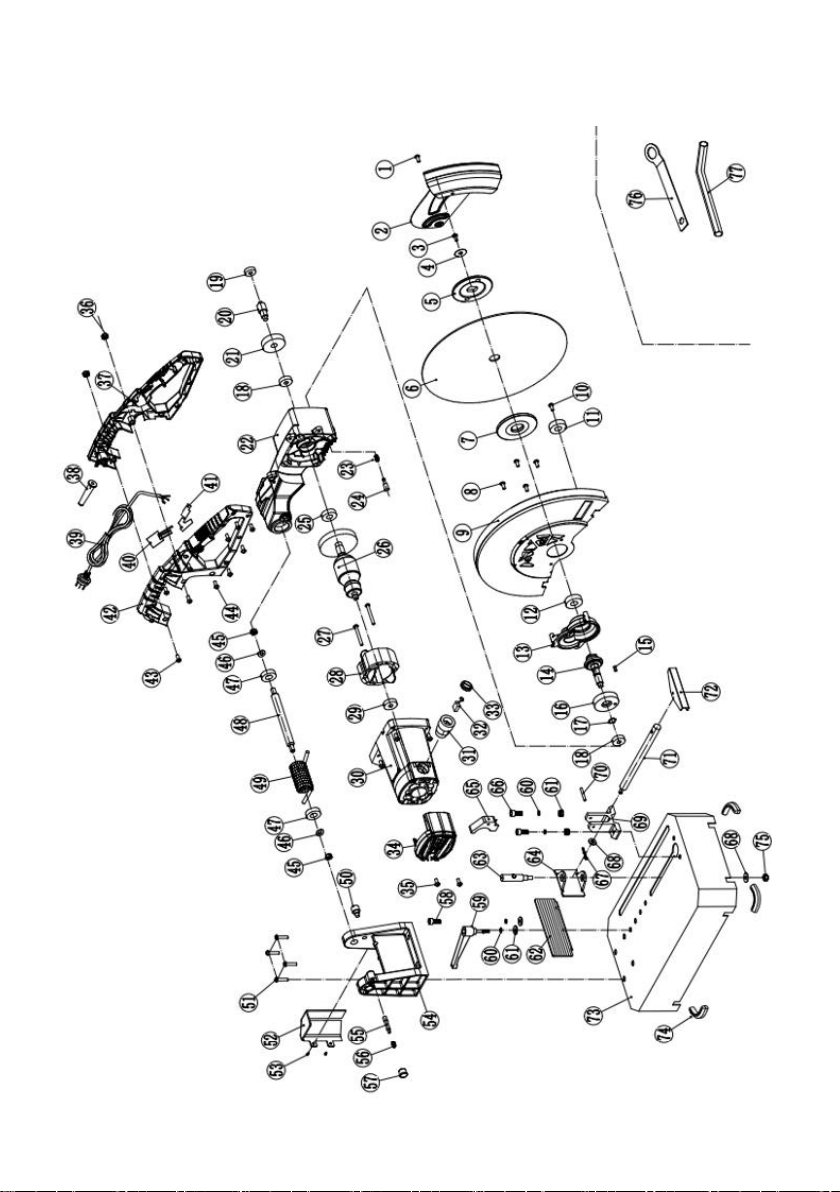

11. Explosion View

14
12. BOM list of Explosion view
BOM list
item
description
Qty
item
description
Qty
1
Cross recessed step screw
M6*16
1
23
Self-locking spring
1
2
Movable cover
1
24
Self-locking pin
1
3
Hexagon screw M10X20
1
25
Bearing6202
1
4
small plate
1
26
Rotor
1
5
big palte
1
27
Cross Recessed pan head
screws ST5*65
2
6
saw blade
1
28
stator
1
7
inner Plate
1
29
Bearing6201
1
8
Cross pan head screws M5*55
4
30
body cover
1
9
Wheel guard cover
1
31
Carbon brush holder
2
10
Cross pan head screws M6*12
1
32
Carbon brush
2
11
damping washer
1
33
Carbon brush cover
2
12
Bearing 6203
1
34
Plastic cover
1
13
front cover
1
35
Cross Recessed pan head
tapping screws ST4*14
2
14
Output shaft
1
36
Hexagon nut M5
3
15
button5*5*14
1
37
Right handle
1
16
big Gear
1
38
Cable cover
1
17
Elastic retaining ring φ17 for
shaft
1
39
Power cable
1
18
Bearing 6200
2
40
Soft start
1
19
Bearing 629
1
41
Switch
1
20
intermediate shaft
1
42
Left handle
1
21
middle Gear
1
43
Cross Recessed pan head
screws M5*40
3
22
Alumium Bracket
1
44
Cross Recessed pan head
tapping screws ST4*14
6

15
45
Hexagon lock nut M12
2
62
scaleplate
1
46
Washerφ12
2
63
Lead pin
1
47
Bearing6003
2
64
Small splint
1
48
Horizontal pin
1
65
Nut head
1
49
big Spring
1
66
Hexagon head bolt M10*16
2
50
limit screw
1
67
pin
2
51
Hexagon head bolt M10*40
4
68
￠10.5 for flat gasket
2
52
shield
1
69
holder
1
53
Cross Recessed pan head
screws M5*12
2
70
Cotter pin φ5
1
54
bracket
1
71
Vise screw
1
55
Self-locking pin
1
72
handle
1
56
Self-locking spring
1
73
Base
1
57
Self-locking Knob
1
74
Rubber
4
58
Outer hexagon screws M10*20
2
75
Lock nut M10
1
59
Quick press
1
76
External hexagonal wrench
1
60
Spring pad φ10
2
77
internal hexagonal wrench
1
61
Flat pad φ10
2

Technical Support and E-Warranty Certificate
www.vevor.com/support
