VEVOR HBS350 User manual

Support and E-Warranty Certificate https://www.vevor.com/support
BAND SAWR
USR MANUAL
MODEL:HBS350
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:HBS350
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
BAND SAWR

- 2 -
READ THESE INSTRUCTION CAREFULLY BEFORE
COMMISSIONING AND OPERATING THIS BAND SAW

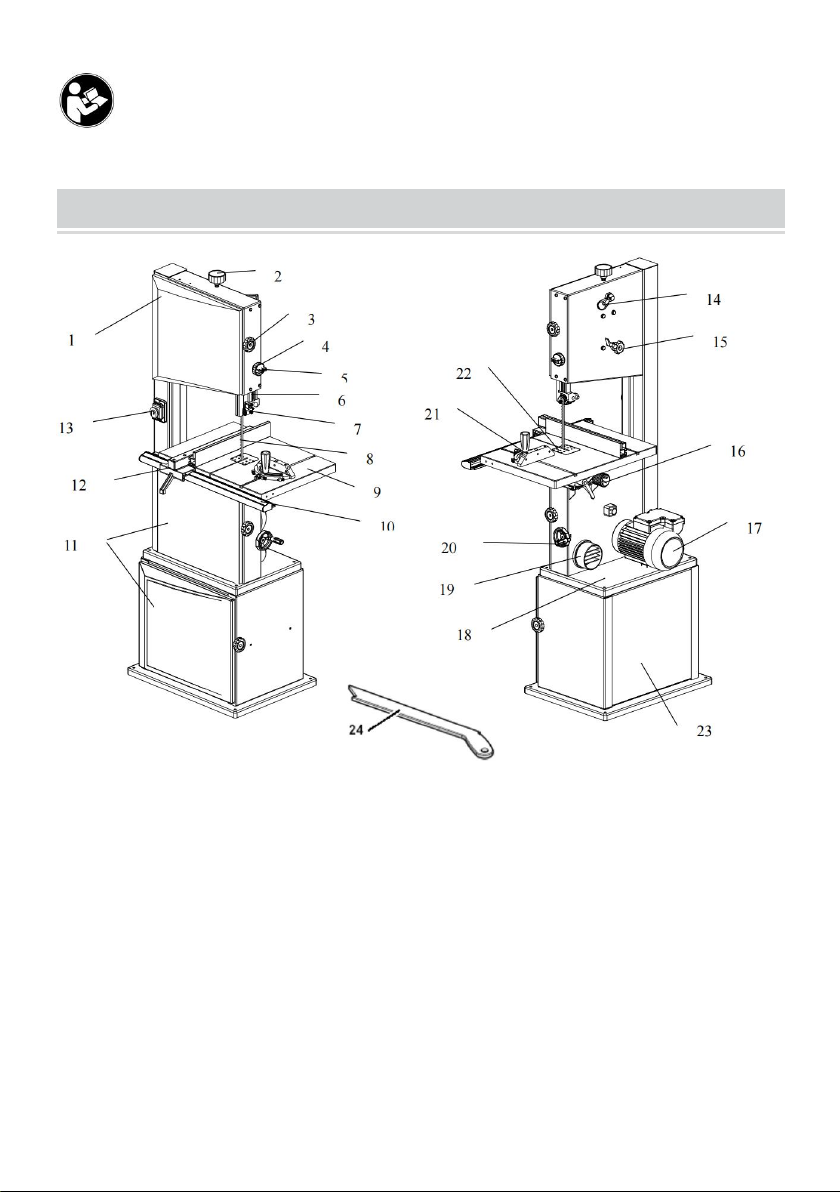

COMPONENTS AND PARTS (STANDARD DELIVERY )
Front
1. Upper Housing Door
2. Setting Knob for Band Saw Blade Tension
3. Turn-Lock Fastener, Housing Door
4. Setting Knob for Blade Guard
5. Setting Knob for Locking Blade Guard
6. Blade Guard
7. Upper Blade Guide
8. Band Saw Blade
9. Saw Table
10. Fence Guide Extrusion, Graduated
11. Lower Housing Door
12. Rip Fence
13.On/Off Switch With
Emergency Stop

- 3 -
Back
14. Quick Release Lever for Band Saw Blade
15.Setting Knob for Blade Tracking Adjustment
16.Setting Knob for Table Turning Adjustment
17.Motor
18.Machine Base
19.Dust Extraction Port
20.Setting Knob for Drive Belt
21.Mitre
22.Table Insert
23.Stand Cabinet
24.Push Stick
TABLE OF CONTENTS
Components And Parts(Standard Delivery)............................................2
Please Read First!.....................................................................................4
Safety ........................................................................................................6
Transport..................................................................................................15
Machine Details.......................................................................................16
Initial Operation.......................................................................................20
Operation.................................................................................................27
Care And Maintenance............................................................................31
Repairs ...................................................................................................39
Environmental Protection......................................................................39
Troubleshooting Guide..........................................................................39
Technical Specifications........................................................................41
Electric Wiring Diagram..........................................................................41
Exploded View and Part List..................................................................42

- 4 -
PLEASE READ FIRST!
These operating instructions have been written to make it easier for you,
the user, to learn how to operate this machine and to do so safely. These
instructions should be used as follows:
Read these instructions before use. Pay special attention to the safety
information.
These operating instructions are intended for people with basic
technical knowledge regarding the operation of a machine like this or
similar electrical power tools. Inexperienced persons are strongly
advised to seek competent advice and guidance from an experienced
person before operating this machine.
Keep all documents supplied with this machine for future reference.
Retain your proof of purchase in case of a future warranty claim.
This machine must not be sold or lent to someone else without being
accompanied by all machine documents supplied with it.
The manufacturer assumes no liability for any damage caused by
neglect of these operating instructions.
Information in these instructions is marked as under:
Warning - To reduce the risk of injury, user must read instructions
manual carefully.
Alternating current
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to an
accident. To reduce the risk of injury, fire, or electrocution, please
always follow the recommendation shown below.
Danger!
Risk of personal injury or environmental damage! Risk of electric
shock! Risk of personal injury by electric shock!
Entanglement hazard! Risk of personal injury by body parts or clothing
being drawn into the rotating saw blade.

- 5 -
Caution! Risk of material damage.
Note:Additional information.
Warning- Be sure to wear ear protectors when using this product.
Warning- Be sure to wear eye protectors when using this product.
Warning- Be sure to wear gloves when using this product.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
Disposal information: This product is subject to the provision of
European Directive 2012/19/EC. The symbol showing a wheelie bin
crossed through indicates that the product requires separate refuse
collection in the European Union. This applies to the product and all
accessories marked with this symbol. Products marked as such may
not be discarded with normal domestic waste, but must be taken to a
collection point for recycling electrical and electronic devices

- 6 -
SAFETY
WARNING:Read all safety warnings,instructions,illustrations and
specifications provided with this band saw.Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
General Power Tool Safety Warnings-Work Area Safety
a)Keep work area clean and well-lit. Cluttered or dark areas invite
accidents.
b)Do not operate power tools in explosive atmospheres,such as in the
presence of flammable liquids,gases or dust.Power tools create sparks
that may ignite dust or fumes.
c)Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
General Power Tool Safety Warnings-Electrical Safety
a)Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed(grounded)power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b)Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c)Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d)Do not abuse the cord. Never use the cord for carrying,pulling or
unplugging the power tool. Keep cord away from heat,oil,sharp edges or
moving parts.Damaged or entangled cords increase the risk of electric

- 7 -
shock.
e)When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f)If operating a power tool in a damp location is unavoidable,use a residual
current device(RCD)protected supply.Use of an RCD reduces the risk of
electric shock.
General Power Tool Safety Warnings-Personal Safety
a)Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs,alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
b)Use personal protective equipment.Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes, hard hat
or hearing protection used for appropriate conditions will reduce personal
injuries.
c)Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites accidents.
d)Remove any adjusting key or wrench before turning the power tool on.A
wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e)Do not overreach.Keep proper footing and balance at all times.This
enables better control of the power tool in unexpected situations.
f)Dress properly.Do not wear loose clothing or jewellery.Keep your hair and
clothing away from moving parts.Loose clothes,jewellery or long hair can
be caught in moving parts.
g)If devices are provided for the connection of dust extraction and
collection facilities,ensure these are connected and properly used.Use of
dust collection can reduce dust-related hazards.

- 8 -
h)Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles.A careless action can
cause severe injury within a fraction of a second.
Power Tool Use and Care
a)Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
b)Do not use the power tool if the switch does not turn on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c)Disconnect the plug from the power source and/or remove the battery
pack,if detachable,from the power tool before making any
adjustments,changing accessories,or storing power tools.Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d)Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate the
power tool.Power tools are dangerous in the hands of untrained users.
e)Maintain power tools and accessories.Check for misalignment or binding
of moving parts,breakage of parts and any other condition that may affect
the power tools operation.If damaged,have the power tool repaired before
use.Many accidents are caused by poorly maintained power tools.
f)Keep cutting tools sharp and clean.Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g)Use the power tool,accessories and tool bits etc.in accordance with
these instructions,taking into account the working conditions and the work
to be performed.Use of the power tool for operations different from those
intended could result in a hazardous situation.
h)Keep handles and grasping surfaces dry,clean and free from oil and
grease.Slippery handles and grasping surfaces do not allow for safe
handling and control of the tool in unexpected situations.
Service
a)Have your power tool serviced by a qualified repair person using only

- 9 -
identical replacement parts.This will ensure that the safety of the power
tool is maintained.
1. Specified Conditions of Use
The machine is suitable for cutting wood,wood-derived materials and
plastics.Do not cut round stock transverse to its longitudinal axis without
suitable jigs or fixtures.The rotating saw blade could turn the
workpiece.When sawing thin stock lay on edge,a suitable guide must be
used for firm support.
Any other use is not as specified.The manufacturer is not liable for any
damage caused by unspecified use.
Alteration of the machine or use of parts not approved by the equipment
manufacturer can cause unforeseeable damage!
3. General Safety Information
When using this tool observe the following safety instructions,to exclude
the risk of personal injury or material damage.Please also observe the
special safety instructions in the respective chapters.
Where applicable,follow the legal directives or regulations for the
prevention of accidents pertaining to the use of band saws.
General hazards!
Keep your work area tidy-a messy work area invites accidents.
Be alert.Know what you are doing.Set out to work with reason.Do not
operate tool while under the influence of drugs,alcohol or medication.
Consider environmental conditions:keep work area well-lighted.
Prevent adverse body positions.Ensure firm footing and keep your balance
at all times.When working long stock use suitable supports.
Do not operate tool near inflammable liquids or gases.
The saw shall only be started and operated by persons familiar with band
saws and who are at any time aware of the dangers associated with the
operation of such tool.
Keep bystanders,particularly children,out of the danger zone.Persons
under 18 years of age shall use this tool only in the course of their
vocational training,under the supervision of an instructor.

- 10 -
Do not permit other persons to touch the tool or power cable while it is
running.
Do not overload tool ¨C use it only within the performance range it was
designed for(see"Technical specifications").
Danger!Risk of Electric Shock!
Do not expose tool to rain.Do not operate tool in damp or wet
environment.Prevent body contact with earthed objects such as
radiators,pipes,cooking stoves,refrigerators when operating this tool.
Do not use the power cable for any purpose it is not intended for.
Risk of personal injury and crushing by moving parts!
Do not operate the tool without installed guards.
Always keep a sufficient distance from the band saw blade. Use suitable
feeding aids if necessary.
Keep sufficient distance to drive components when operating this tool.Do
not attempt to stop the band saw blade by pushing the workpiece against
its side.
Ensure tool is disconnected from power supply before servicing.Ensure
that when switching on(e.g.after servicing)no tools or loose parts are left on
or in the tool.
Turn power off if the tool is not used.
Cutting hazard,even with the cutting tool at a standstill!
Wear gloves when changing cutting tools.
Risk of kickback(workpiece is caught by the band saw blade
and thrown against the operator)!
Do not jam workpieces.
Cut thin or thin-walled workpieces only with fine-toothed saw blades.Always use

- 11 -
sharp band saw blades.
If in doubt,check workpiece for inclusion of foreign matter(e.g.nails or
screws).
Cut only stock of dimensions that allow for safe and secure holding while
cutting.Never cut several workpieces at the same time and also no bundles
containing several individual pieces.Risk of personal injury if individual
pieces are caught by the band saw blade uncontrolled.
When cutting round stock,use a suitable jig to prevent the workpiece from
turning.
Entanglement hazard!
Ensure that no parts of the body or clothing can be caught and drawn in by
rotating components(no neckties,no loose fitting clothes;contain long hair
with hairnet).
Never cut workpieces containing the following materials:
-Ropes
-Strings
-Cords
-Cables
-Wires
Hazard generated by insufficient personal protection gear!
Wear hearing protection.
Wear safety glasses.
Wear dust mask.
Wear suitable work clothes. When working outdoors, wearing non-slip
shoes is recommended.
Risk of injury by inhaling wood dust!

- 12 -
Dust of certain timber species(e.g.oak,beech,ash)can cause cancer when
inhaled:work only with a suitable dust collector connected to the saw.
Hazard generated by modification of the machine,or use of
parts not tested and approved by the equipment manufacturer!
Assemble tool in strict accordance with these instructions.Use only parts
approved by the equipment manufacturer.Use only tools(band saw
blades)conforming to EN 847-1:1997.
Do not change any parts.
Hazard generated by tool defects!
Keep tool and accessories in good repair.Observe the maintenance
instructions.Check tool for possible damage prior to any use:
Before operating the tool all safety devices,protection devices or slightly
damaged parts must be inspected for proper functioning as specified.
Check to see that all moving parts work properly and do not jam.All parts
must be correctly installed and meet all conditions necessary for the proper
operation of the tool.
Damaged protection devices or parts must be repaired or replaced by a
qualified specialist.Have damaged switches replaced by a service
centre.Do not operate tool if the switch cannot be turned ON or OFF.
Keep handles free of oil and grease.
3. Symbols on the Machine
Danger! Disregard the following warnings may lead to serious
personal injury or material damage.
Read instructions.

- 13 -
Band saw blade running direction.
4. Safety Devices
Upper Blade Guard
The upper blade guard(26)protects against unintentional contact with the
saw blade and from chips flying about.In order for the upper blade guard to

- 14 -
provide adequate protection against contact with the band saw blade,it
must always be set as close as possible to the workpiece (max.distance 3
mm).
Lower Blade Guard
The lower blade guard(27)protects against unintentional contact with the
saw blade.
The lower blade guard must always be in place and cover the band saw
blade while the band saw is running.
Housing Doors
The housing doors(25)protect against contact with the rotating parts inside
the machine.Both housing doors must be closed while the machine is in
use.
Push Stick
The push stick serves as an extension of the hand and protects against
accidental contact with the saw blade.
The push stick must always be used if the distance between band saw
blade and a rip fence is less than 120 mm.Guide the push stick at an angle
of 20°…30°against the saw table's surface.
When the push stick is not used it can be stored on the push stick holder
provided at the band saw frame.Replace push stick if damaged.
TRANSPORT
Set upper blade guide to its lowest position.
Remove projecting accessories.
When shipping,use original packing if possible.

- 15 -
MACHINE DETAILS
Note:In this chapter, the essential operating elements of the
machine are introduced.
The proper use of the machine is described in chapter"Operation".Read
this chapter before using the saw for the first time.

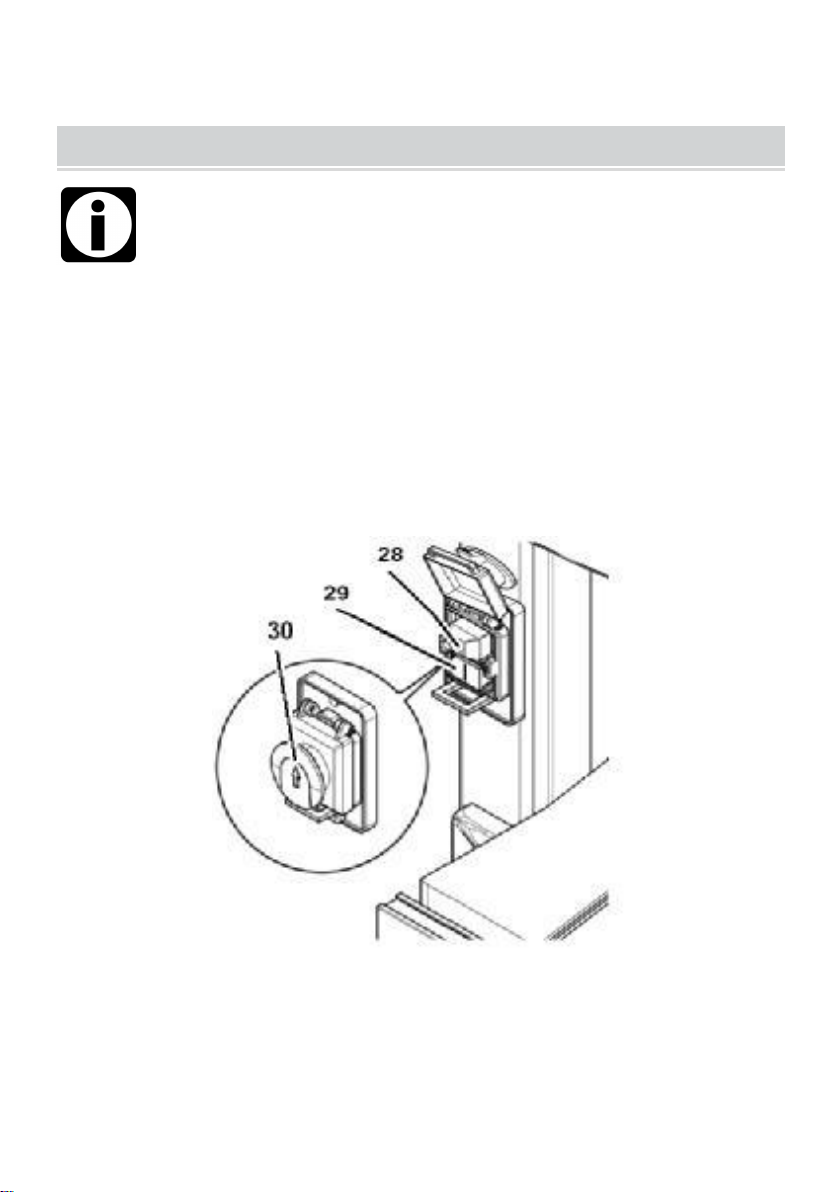

ON/OFF Switch with Emergency Stop
To start=press the green switch button(29).
To stop=press the red switch button(28)or the cover(30)of the ON/OFF
switch.
In the event of a voltage failure an undervoltage relay trips.This prevents
the machine from starting up when the power is restored.To restart,the
green switch button must be pressed.
The cover of the ON/OFF switch(30)can be safeguarded by a padlock.
Setting Knob for Band Saw Blade Tension

- 16 -
With the setting knob(31)the band saw blade tension is corrected,if
necessary:
-Turning the setting knob clockwise increases the blade tension.
-Turning the setting knob counterclockwise reduces the blade tension.
Quick Release Lever
With the quick release lever(32)the saw blade tension is released.

- 17 -

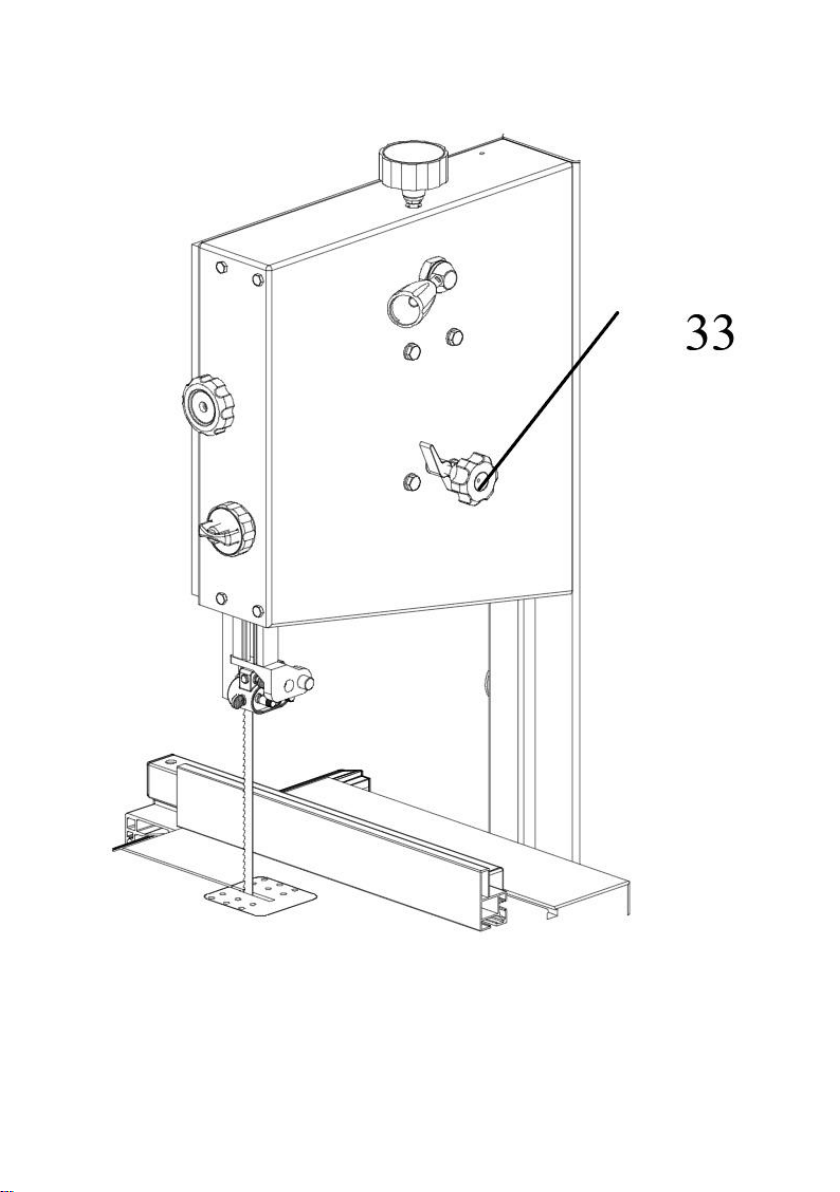

Setting Knob for Blade Tracking Adjustment
With the setting knob(33)the tilt of the upper band saw wheel can be
adjusted,if necessary.This tracking adjustment is required to have the
blade run dead center on the rubber tyres of the band saw wheels:
-Turning clockwise=blade moves to the rear.
-Turning counter-clockwise=blade moves to the front.

- 18 -
Speed Adjustment
Adjust the hand wheel to adjust the speed of the band saw:
low speed for hard wood,plastics.
high speed for all kinds of wood.
With the setting knob(34)the drive belt tension is corrected,if necessary
Turning the setting knob clockwise reduces the blade tension.
Turning the setting knob counterclockwise increases the blade
tension.

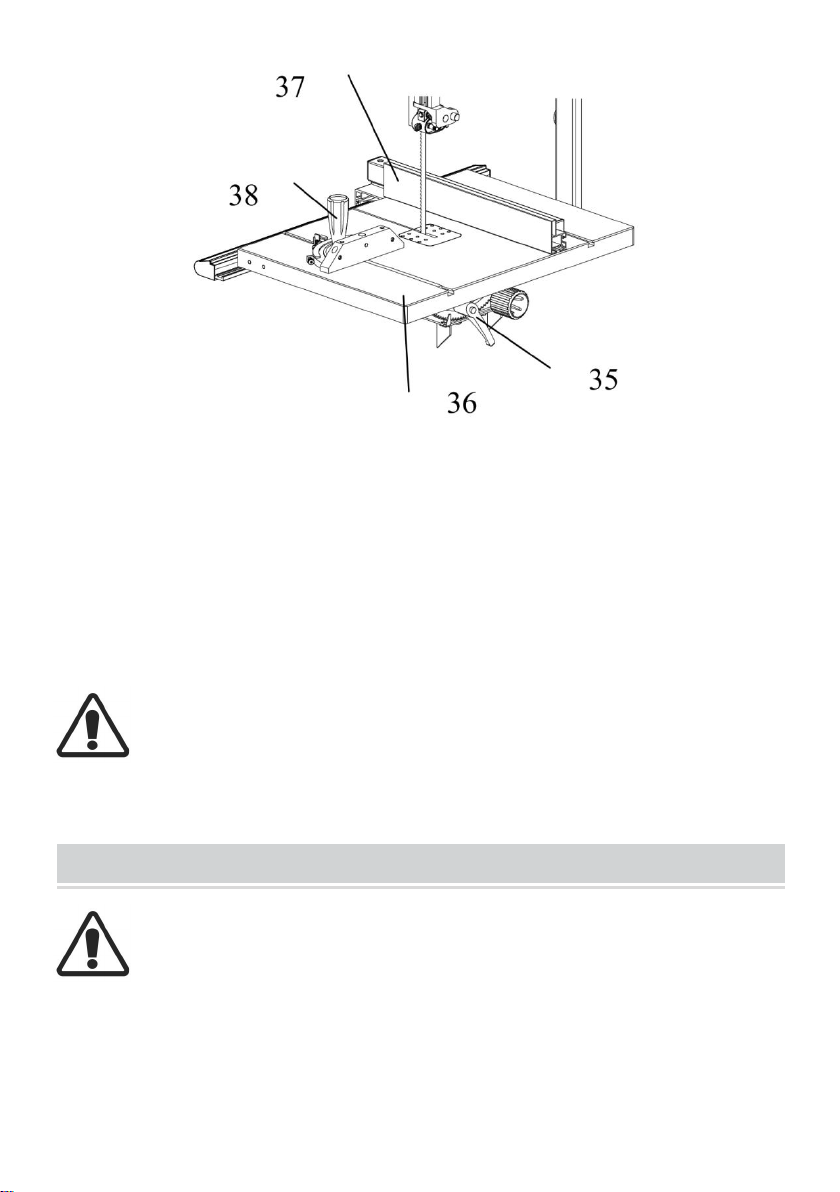

Saw Table Tilt
After loosening the lock screw(35)the saw table(36)tilts steplessly through
45°against the blade.

- 19 -
Rip Fence
The rip fence(37)clamps to the front of the bandsaw table;The rip fence
can be used on both sides of the blade.
Mitre Fence
The mitre fence is inserted into the table slot from the table’s front edge.For
mitre cuts the mitre fence turns to60°in both directions For 45°and
90°miters positive stops are provided.To set a mitre angle:loosen lock
handle(38)by turning it counter-clockwise.
Risk of injury!When cutting with the mitre fence the lock
handle must be firmly tightened.
INITIAL OPERATION
Danger!Start the saw only after the following preparations are
completed:
-The saw is securely mounted;
-The saw table is installed and aligned;
-The V-belt tension was checked;
Other VEVOR Saw manuals

VEVOR
VEVOR M1H-ZP7-254-1 User manual

VEVOR
VEVOR QH-03 User manual

VEVOR
VEVOR QH-50 User manual

VEVOR
VEVOR TC180II User manual

VEVOR
VEVOR TC250VI-I User manual

VEVOR
VEVOR DC425 User manual

VEVOR
VEVOR DC235 User manual

VEVOR
VEVOR RD03-4001 User manual

VEVOR
VEVOR M1H-ZP5-254D-1 User manual

VEVOR
VEVOR HC-210 User manual
