VEVOR TC250VI-I User manual

Technical Support and E-Warranty Certificate www.vevor.com/support
WET TILE SAW
MODEL:TC250VI-I
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

MODEL:TC250VI-I
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WET TILE SAW

Symbol description
Warning - To reduce the risk of injury, user must read
instructions manual carefully.
This symbol, placed before a safety comment, indicates a
kind of precaution, warning, or danger. Ignoring this warning
may lead to an accident. To reduce the risk of injury, fire, or
electrocution, please always follow the recommendation
shown below.
Warning- Be sure to wear eye protectors when using this
product.
１

2
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
2
3
4
6
11
11
27
42
44
45
46
Product Specifications.........................................................................................................
Package Contents ...............................................................................................................
Hardware Contents ..............................................................................................................
Safety Information ...............................................................................................................
Preparation ........................................................................................................................
Assembly Instructions .......................................................................................................
Operating Instructions .......................................................................................................
Care and Maintenance .....................................................................................................
Troubleshooting ................................................................................................................
Three-Year Warranty ........................................................................................................
Replacement Parts List .....................................................................................................
DESCRIPTION SPECIFICATIONS
Voltage 120~V, 60 Hz
Amperage 15 A
No Load Speed 4,500 RPM
Blade 10 in. x 5/8 in. (arbor)
Maximum Cutting Depth 3-3/4 in.
Rip Cut 36 in.
Diagonal Cut 24 in.
Bevel Cut Range 0°, 22.5°, 45°

3
AD
C
B
R
Q
S
P
H
L
K
G
E
F
J
I
M
O
N
T
PACKAGE CONTENTS
A
B
C
D
E
F
G
Rear Extension Tray-1 1
Rear Extension Table 1
Rear Rubber Flap 1
Side Rubber Flap 1
Motor Head Assembly
Cutting Wheel
1
1
Side Extension Tray 1
HSide Extension Table 1
ISliding Table 1
JFrame and Sliding
Table Assembly
1
PART DESCRIPTION QUANTITY
K
L
M
N
O
Sliding Table Lock Knob 1
Handle
1
2
Pump
2
Wheel
Miter Guide 1
1
PWater Tray
1
QStand Assembly
RRear Extension Tray-2 1
SArbor Wrench 1
THex Wrench 1
PART DESCRIPTION QUANTITY

4
GG

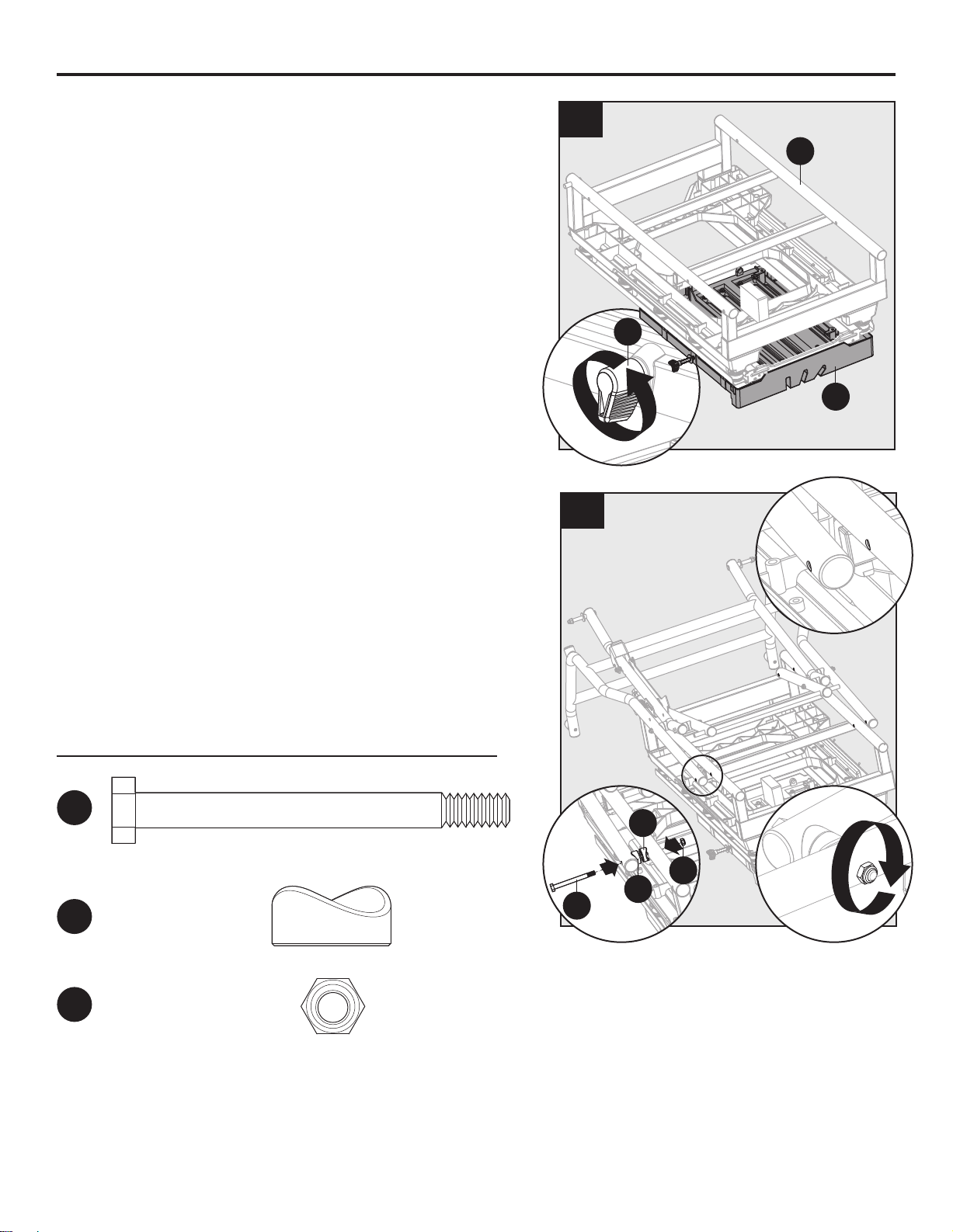

Hardware for Stand
Replacement Part #108505116
Hardware for Motor Head
Replacement Part #108505117

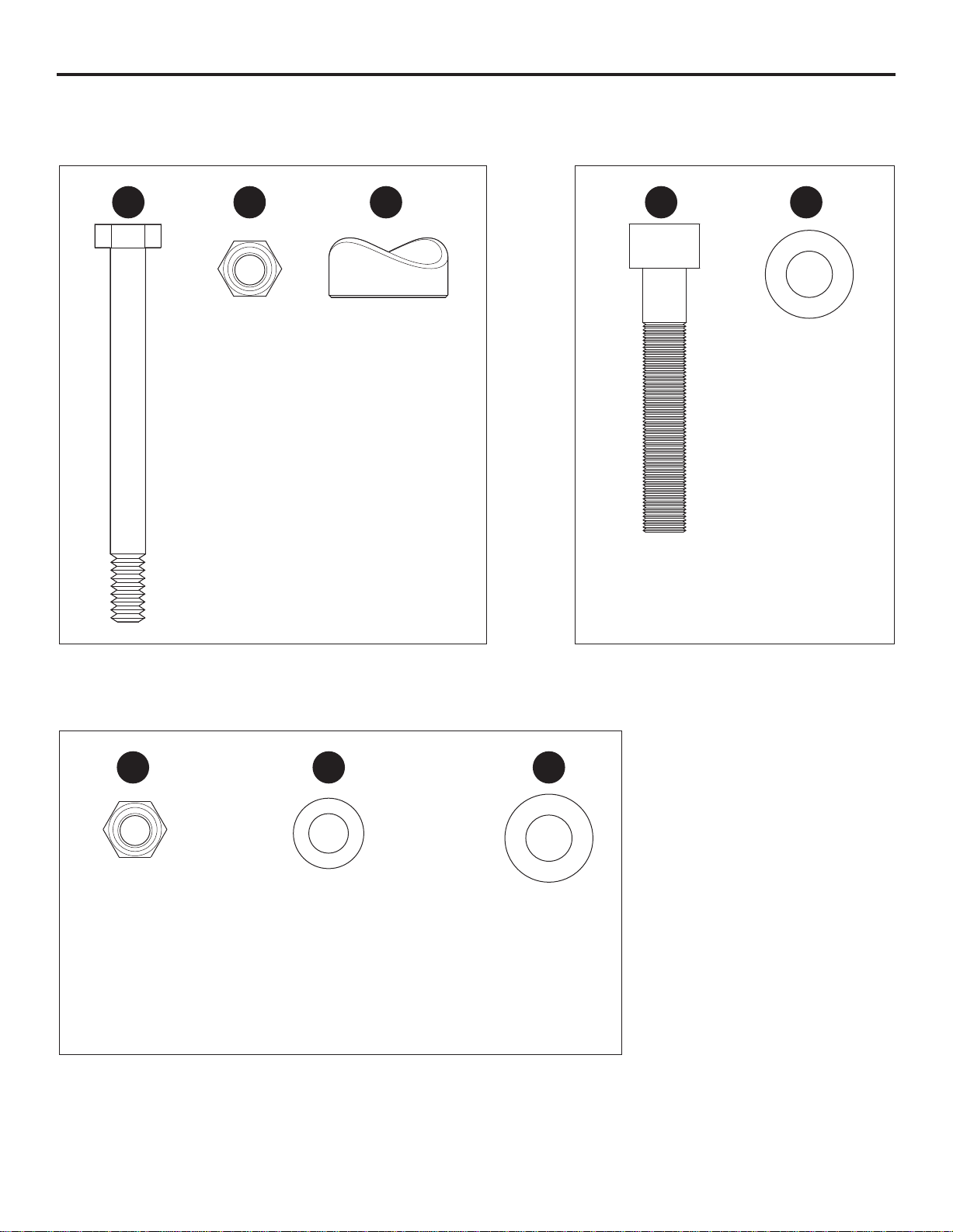

HARDWARE CONTENTS (shown actual size)
M10 x 60
Hex Cap Screws
Qty. 4
Flat Washer
Qty. 4
M8 x 85 mm
Hex Bolt
Qty. 4
Locking Nut
(preassembled
to stand
assembly Q)
Qty. 2
Flat Washer
(preassembled
to stand
assembly Q)
Qty. 2
Flat Washer
(preassembled
to stand
assembly Q)
Qty. 2
Hex Nut
Qty. 4
Spacer
Qty. 8
CC
HH II JJ
DD EE

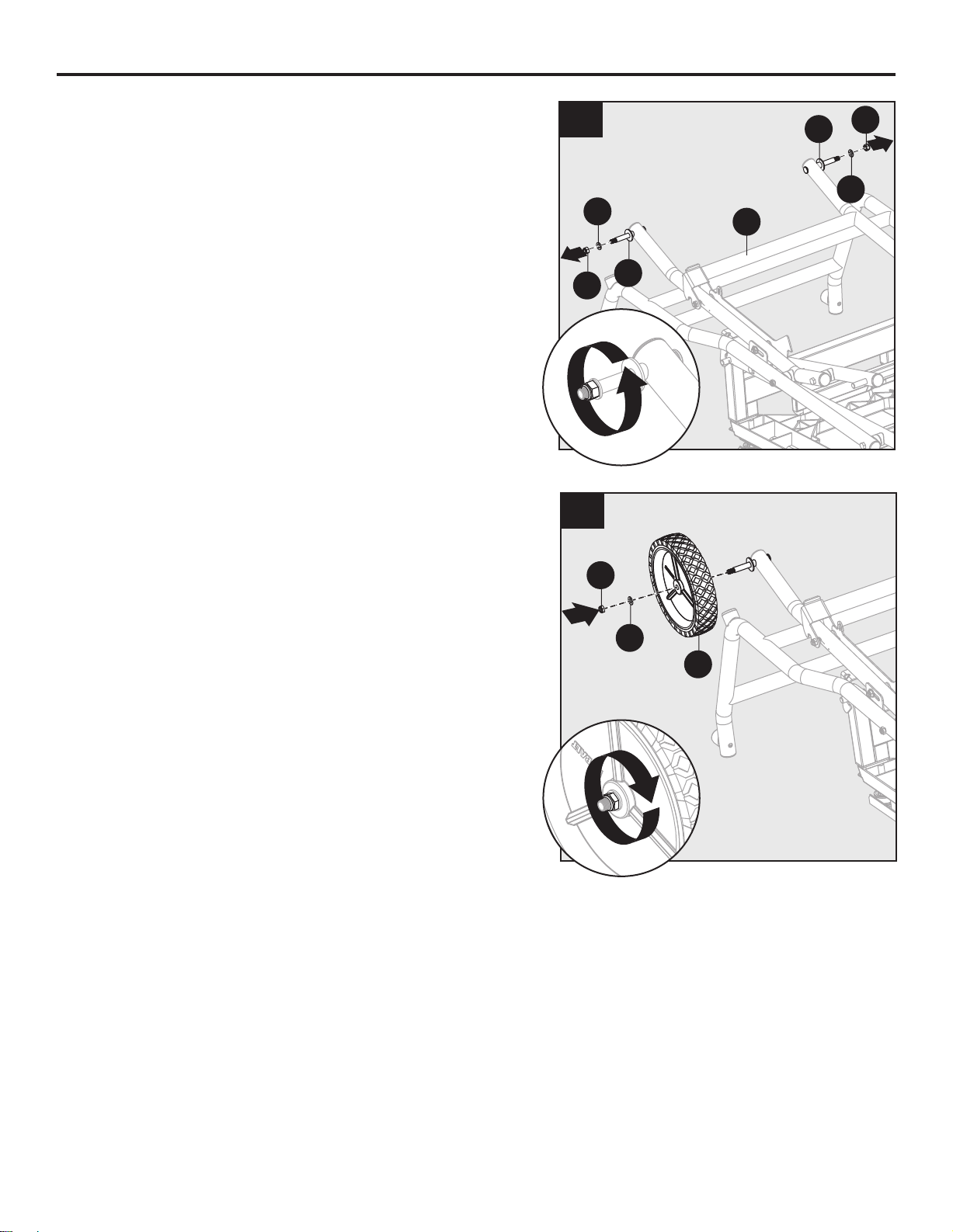

Hardware for Wheel
Replacement Part #108505118
FF

5
Hardware for Handle
Replacement Part #108505119
HARDWARE CONTENTS (shown actual size)
LL
Hardware for Rear Rubber Flap
Replacement Part #108505120
M5 x 12 mm
Cross Screw
(preassembled
to motor head
assembly E)
Qty. 1
Big Flat Washer
(preassembled
to motor head
assembly E)
Qty. 1
MM NN
M8 x 16 mm
Hex Bolt
(preassembled
to handle L)
Qty. 2
Blade Locking Assembly
Replacement Part #108505121
OO PP QQ
Arbor Nut
(preassembled to
tile saw CC)
Qty. 1
Inner Washer
(preassembled to
tile saw CC)
Qty. 1
Outer Washer
(preassembled to
tile saw CC)
Qty. 1

6
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
This manual contains information that relates to PROTECTING PERSONALSAFETYand PREVENTING
EQUIPMENTPROBLEMS. It is very important to read this manual carefully and understand it thoroughly
before using the product. The symbols listed below are used to indicate this information.
DANGER
Potential hazard that will result in serious injury or loss of life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury or damage to equipment.
Note: The word “Note” is used to inform the reader of something the operator needs to know about
the tool.
SAFETY RECOMMENDATIONS
These precautions are intended for the personal safety of the operator and others working with the
operator. Failure to follow these instructions may result in a permanent loss of vision, serious personal
or even fatal injury, property damage and/or tool damage. Please take time to read and understand
them. Safety is a combination of common sense, staying alert and knowing how your saw works.
WARNING
To avoid mistakes that could cause serious injury, DO NOT plug in the saw until you have read and
understood the rules.
BEFORE USE
• For safe handling of this product, the user must have read and understood the instructions for use
before using it for the first time.
• Observe all safety instructions! If you DO NOT observe the safety instructions, you will endanger
yourself and others.
• Keep all instructions for future reference.
•Attach the instructions for use, if you pass on the product to someone else.
• KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
• All parts of the product, safety devices in particular, must be correctly installed to ensure faultless
operation.
SAFETY INFORMATION

7
SAFETY INFORMATION
OPERATION/WORKPLACE
• KEEP GUARDS IN PLACE and in working order.
• REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
• KEEP CHILDREN AWAY. All visitors should be kept at a safe distance from work area.
• MAKE WORKSHOP CHILDPROOF with padlocks, master switches or by removing starter keys.
• DO NOT FORCE TOOL. It will do the job better and safer at the rate for which it was designed.
• USE THE RIGHT TOOL. DO NOT force tool or attachment to do a job for which it was not designed.
• DO NOT OVERREACH. Keep proper footing and balance at all times.
• REDUCE THE RISK OF UNINTENTIONALSTARTING. Make sure switch is in the off position before
plugging in.
• DIRECTION OF FEED. Feed work into a cutting disc against the direction of rotation of the blade or
cutter only.
• NEVER LEAVE TOOLRUNNING UNATTENDED. TURN POWER OFF. DO NOTleave tool until it
comes to a complete stop.
• The product may be used only when in a good working condition. If the product or part of the product
is defective, have it repaired by an expert.
• ALWAYS follow the applicable national and international safety, health and labor regulations.
• The product may only be used if no defects are found during the inspection. Ensure that any defective
parts are replaced before the product is used again.
• Position the product horizontally on a rigid, even surface with adequate load-bearing capacity.
• DO NOT leave any tools, objects, or cables lying in the working range of the device.
• Ensure that there is sufficient lighting during operation.
•Assume a natural and secure stance when working.
• Make sure that during operation, no body parts or clothing are caught and drawn in by rotating
components.
• The immediate environment must be free of combustible and other flammable or explosive substances.
• Young people under 18 years of age and users who are not sufficiently familiar with its operation must
not use the product.
• Persons unable to safely and carefully use the tool for any reason must not use the product.
• Work with caution. Do not operate this products if you are fatigued, ill, or are under the influence of
alcohol, medication and/or drugs.
SERVICE
• DISCONNECT TOOLS before servicing or when changing accessories, such as cutting discs.
• Have your electrical tool repaired only by qualified technicians, using only genuine spare parts. This
will maintain the safety of the electrical tool.
• DO NOTUSE IN A DANGEROUS ENVIRONMENT. DO NOTuse power tools in damp or wet locations,
or expose them to rain. Keep work area well lit.

8
SAFETY INFORMATION
• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance.
• Follow instructions for lubricating and changing accessories.
• Acutting disc can cause injuries, even when stationary! Use protective gloves to change the cutting
disc.
• NEVER use lateral counter pressure to bring the cutting disc to a standstill after switching off the drive.
• Replace table insert when worn.
• Use only diamond discs recommended by the manufacturer.
• NEVER use blades on this machine.
• Use only diamond discs for which the maximum possible speed is not less than the maximum spindle
speed of the tool and the material to be cut.
• Maximum size of working piece should be 10 sq. ft.
•This tile saw should be used at an ambient temperature between 59-80°F (15-50°C).

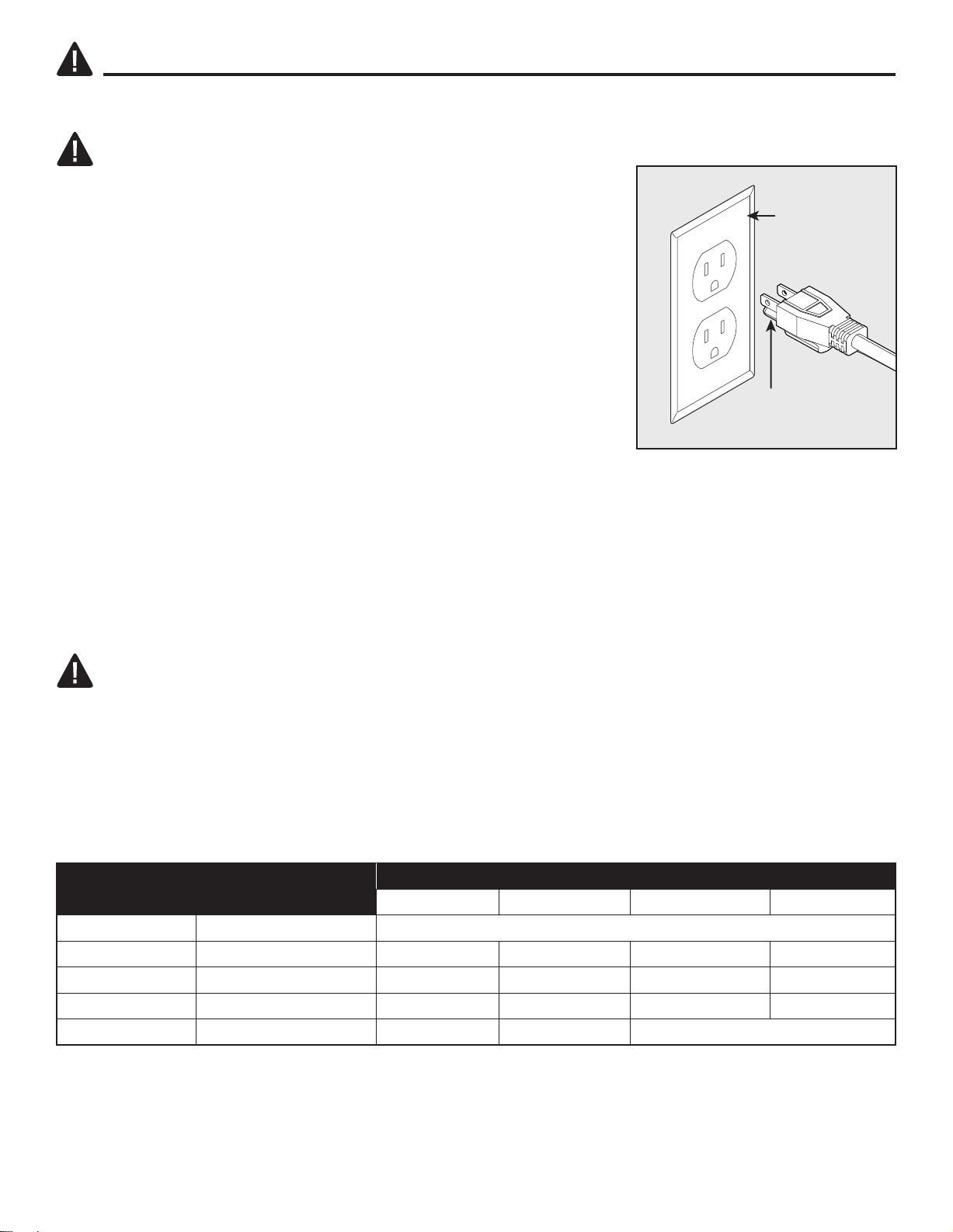

• USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The chart
on Page 10 shows the correct size to use depending on cord length and nameplate ampere rating. If
in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
STORAGE AND TRANSPORT
• ALWAYS store the product in a dry place.
• Store the product in a frost-free place.
• Protect the product from damage during transport.
• Keep the product away from children. Store the product in a place where it is safe from children and
unauthorized persons.
RESIDUAL RISKS
Even when the product is used properly and in compliance with all the safety precautions in these
instructions, the following residual risks can arise:
•Touching the cutting disc in the exposed area.
• Reaching into the spinning cutting disc.
• Rebound from workpieces and workpiece parts.
• Cutting disc breaks.
• Faulty cutting disc diamond attachment being flung out.
• Hearing damage through failure to wear the requisite hearing protection.
WARNING
For your own safety, read instruction manual before operating saw.
• Wear eye protection.
• Use splash guard for every operation for which it can be used.
• Disconnect saw before servicing, when changing cutting wheels, and cleaning.
• Use tool only with smooth edge cutting wheels free of openings and grooves.
• Replace damaged cutting wheel before operating.
• DO NOT fill water tank above water fill line.

9
SAFETY INFORMATION
WARNING
The tool is loud and the sound can cause hearing damage. ALWAYS wear ear protection to help
prevent hearing damage and loss. Failure to comply may result in moderate injury.
READ OPERATOR’S MANUAL
To reduce the risk of injury, user must read and understand operator’s manual before using this
product.
• USE SAFETY GOGGLES AND EAR PROTECTION
• ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH UL REQUIREMENTS.
FLYING DEBRIS can cause permanent eye damage.
USE DUST MASK
Some dust created by sawing contains chemicals that are known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals come from lead-based paints, crystalline silica
from bricks, cement and other masonry products, arsenic and chromium from chemically-treated lumber.
To reduce exposure to these chemicals, work in a well-ventilated area with approved safety equipment,
such as dust masks that are specially designed to filter out microscopic particles.

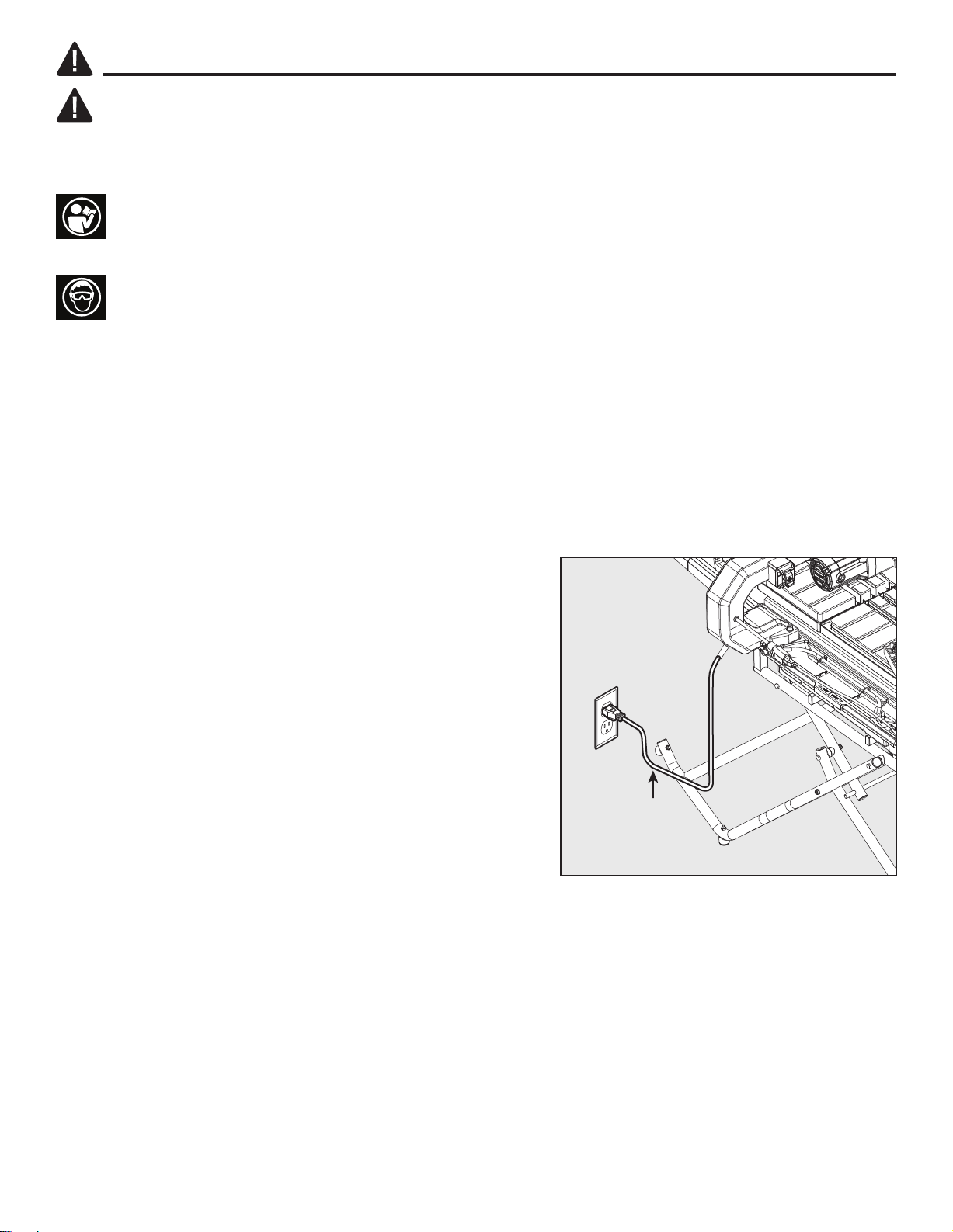

POSITION OF TILE SAW
• To avoid the possibility of the appliance plug or receptacle
getting wet, position tile saw to one side of a wall-mounted
receptacle to prevent water from dripping onto the
receptacle or plug. The user should arrange a "drip loop"
in the cord connecting the saw to a receptacle. The "drip
loop" is the part of the cord below the level of the
receptacle, or the connector if an extension cord is used,
to prevent water traveling along the cord and coming into
contact with the receptacle.
• If the plug or receptacle does get wet, DO NOT unplug
the cord. First, disconnect the fuse or circuit breaker that
supplies power to the tool. Then unplug and examine for
presence of water in the receptacle.
Drip loop

10
SAFETY INFORMATION
ELECTRICAL SAFETY
CAUTION
In all cases, verify that the outlet in question is properly grounded.
If you are not sure, have a licensed electrician check the outlet.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk
of electric shock. This tool is equipped with an electric cord that has
an equipment-grounding conductor and a grounding plug. The plug
must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DO NOT modify the plug provided. If it will not fit the outlet, have
the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. The conductor with a green outer surface, with or without yellow stripes,
is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary,
DO NOT connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician
or service technician if the grounding instructions are not completely understood, or if in doubt as to
whether the tool is properly grounded. Use only three-wire extension cords that have three-prong
grounding plugs and three-pole receptacles that accept the tool’s plug, as shown. Repair or replace a
damaged or worn cord immediately.
WARNING
• Use the proper extension cord. Make sure to use an extension cord that is heavy enough to carry the
current required by the tool. An undersized cord will cause a drop in line voltage, resulting in loss of
power and overheating of the tool.
• Use the extension cord only for intended purpose. DO NOT pull the extension cord to remove it from
the power socket.
Recommended size for extension cords
Grounding pin
Grounded
outlet box
Amperage Rating of the Tool
(120 V Circuit Only)
Total Length of the Extension Cord
25' (7.6 m)
MINIMUM GAUGE FOR THE EXTENSION CORD (AWG)
18
MORE THAN
0
6
NOT MORE THAN
6
10
10 12
12 16
18
16
14
50' (15.2 m)
16
16
16
12
100' (30.5 m)
16
14
14
150' (45.7 m)
14
12
12
Not recommended
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

11
SAFETY INFORMATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Tools Required for Assembly (not included): 13 mm open wrench, adjustable wrench.
ASSEMBLY INSTRUCTIONS
UNPACKING
This product requires assembly.
• Carefully lift the saw from the carton and place on a level work surface.
WARNING
• DO NOT use this product if any loose parts on the Package Contents or Hardware Contents sections
are already assembled to your product when you unpack it. Parts on this list are not assembled to the
product by the manufacturer and require customer installation. Use of a product that may have been
improperly assembled could result in serious personal injury.
1. Inspect the tool carefully to make sure no breakage or damage occurred during shipping.
2. DO NOT discard the packing material until you have carefully inspected and operated the tool.
3. The saw is factory set for accurate cutting. After assembling it, check for accuracy.
4. If any parts are damaged or missing, please call 1-888-3KOBALT (1-888-356-2258) for assistance.
WARNING
• If any parts are damaged or missing, DO NOT operate this tool until the parts are replaced. Use of
this product with damaged or missing parts could result in serious personal injury.
• DO NOT attempt to modify this tool or create accessories not recommended for use with this tool. Any
such alteration or modification is misuse and could result in a hazardous condition leading to possible
serious personal injury.
• DO NOT connect to power supply until assembly is complete. Failure to comply could result
in accidental starting and possible serious personal injury.

12
Installing Stand Assembly to Frame and Sliding Table
Assembly
1. Turn the sliding table lock knob (K) counter-clockwise
to horizontal position to lock the sliding table (I). Place
the frame and sliding table assembly (J) upside down
on the protective material.
Note: Place cardboard or an old blanket as protective
material on floor in order to protect the surface of the
sliding table.
2. Align the four stand holes with four frame holes, insert
hex bolt (CC) into one stand hole through two spacers
(EE), and frame hole, slightly tighten with hex nut (DD).
Repeat other three stand and frame holes. Tighten all
the hex nuts.
Note: The axles on stand are located on the opposite
side with the sliding table locking knob.
Note: Two spacers are opposite.
Hardware Used
ASSEMBLY INSTRUCTIONS
I
K
1
EE
CC EE
DD
J
2
1
2
1
Spacer
Hex Nut
x 8
M8 x 85 Hex Bolt x 4
DD
FF
x 4
FF

13
1
Q
1
2
3
II
HH
HH
JJ
HH JJ
II
N
II
4
2
2
ASSEMBLY INSTRUCTIONS
3. Remove lock nut (HH) and flat washer (II) preassembled
to stand assembly (Q) from each axle.
Note: Leave one flat washer (JJ) on each axle.
4. Slide wheel (N) and flat washer (II) (removed in previous
step) onto axle of stand assembly (Q). Secure with lock
nut (HH) (remove in previous step). Repeat for remaining
wheel.
Note: Kobalt logo on wheel should face outside of
stand.

14
2
2
5. Remove lock nut (UU) preassembled to handle (L)
from handle (L).
6. Attach handles (L) to Frame. Secure with lock nut (UU)
(removed in previous step).
ASSEMBLY INSTRUCTIONS
5
6
1
2
3
1
1

15
1
22
Press
with foot

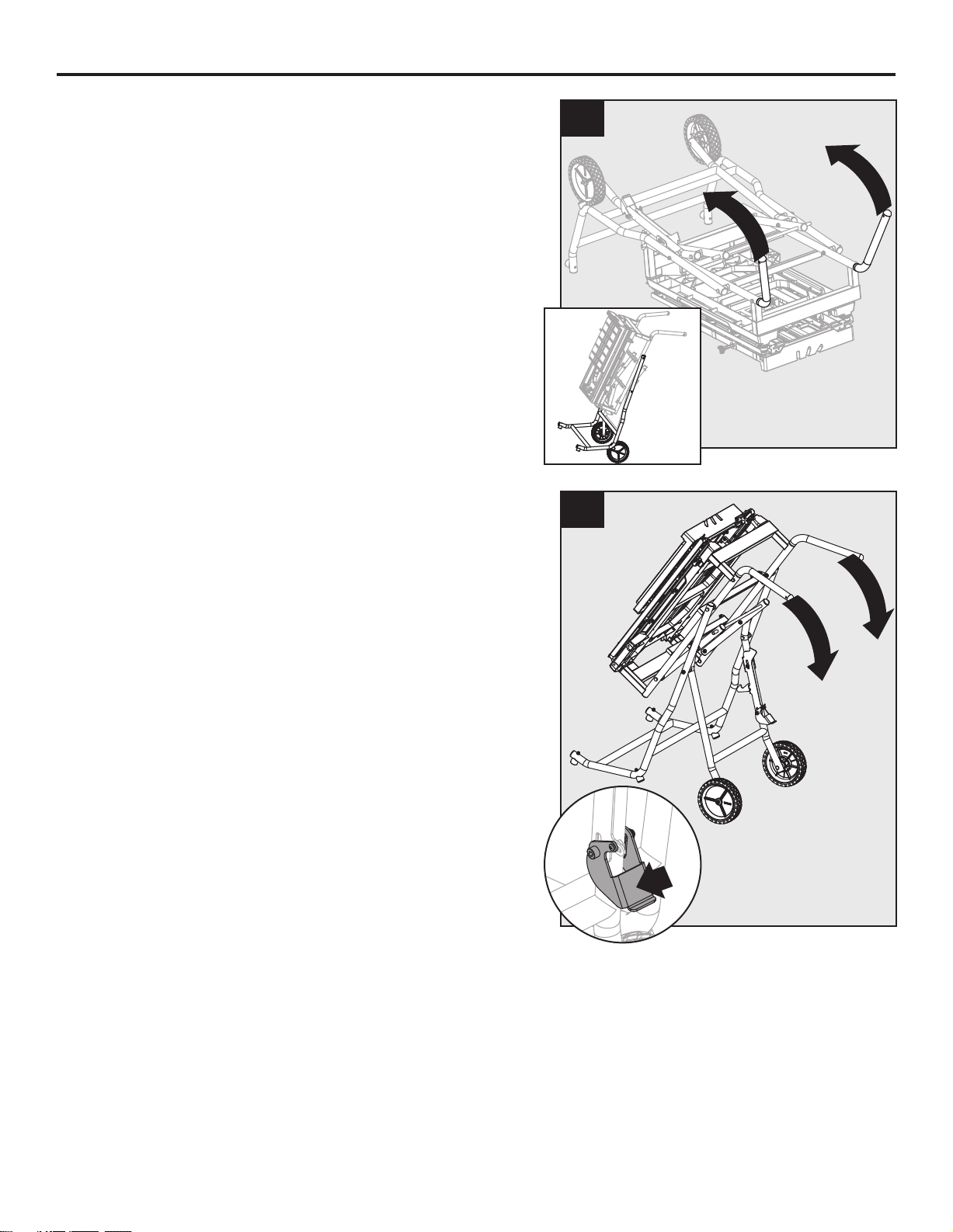

7. Grasp the handles and tilt stand, frame and sliding table
assembly back onto wheels until the stand is balanced
on the wheels and stand support assembly.
8. Step on the release lever and pull the handles toward
you at the same time. Once the stand is released from
the release lever, ease the stand toward the floor by
pushing the handles toward the floor.
ASSEMBLY INSTRUCTIONS
7
8

16
1
2
2
2
1
1
ASSEMBLY INSTRUCTIONS
9. With your hands on the handles, push the stand toward
the ground until the stand is in an open position.
Installing Motorhead to Sliding Table, Frame and Stand
Assembly
1. Align holes in motor head assembly (E) with holes on
side of metal frame. Insert hex cap screw (FF) through
flat washer (GG) into motor head assembly and side of
frame. Secure with hex wrench.
Hardware Used
9
M10 x 60 Hex Cap Screws
Flat Washer x 2
GG
x 2
FF
E
GG
FF

17
1
2
ASSEMBLY INSTRUCTIONS

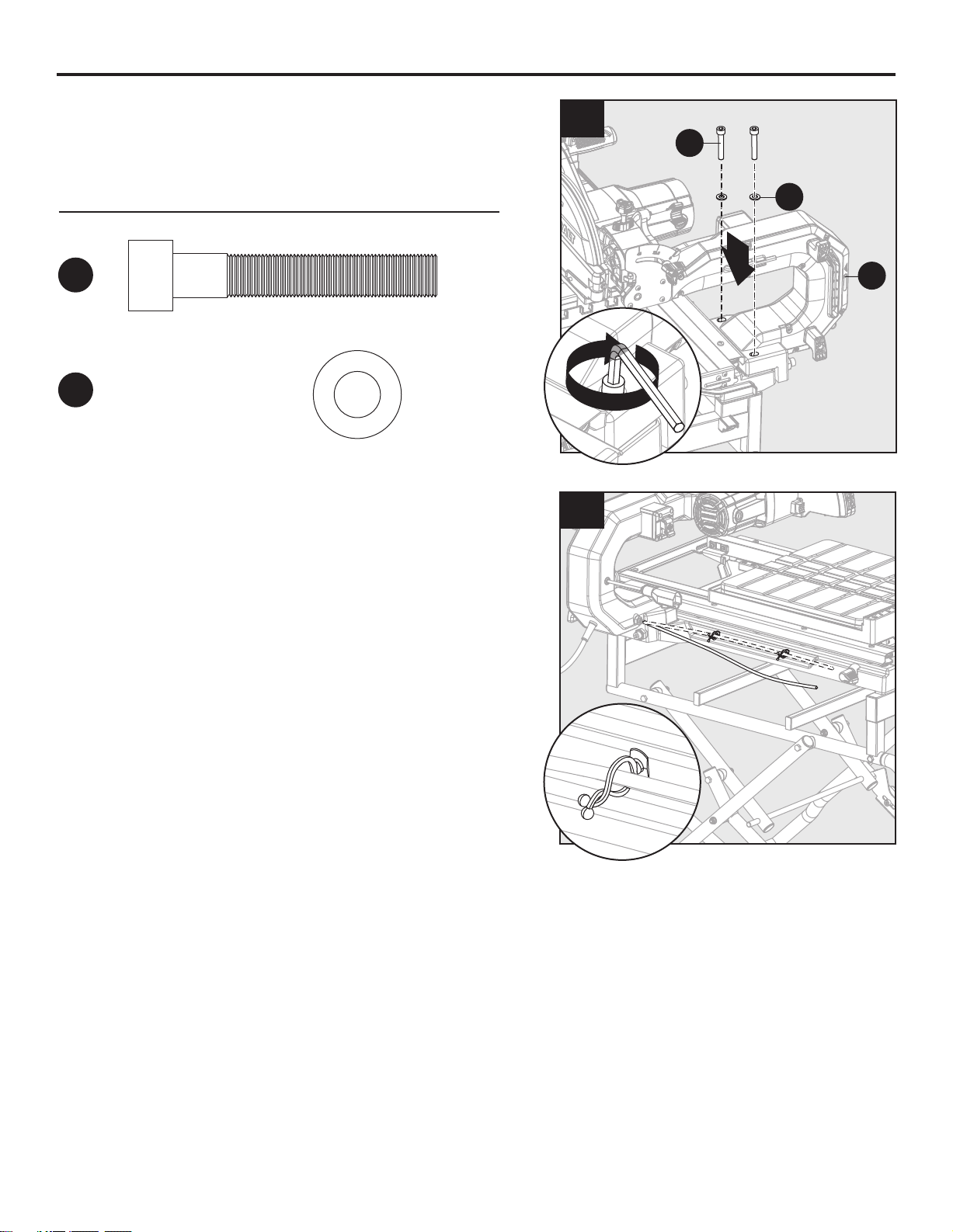

2. Insert hex cap screws (FF) through flat washers (GG)
and into holes of motor head assembly (E) and top side
of frame. Secure with hex wrench.
Hardware Used
3. Place clear tube from motor head assembly into two
hose clamps on frame. Squeeze clamp ends together
to secure tube.
2
3
M10 x 60 Hex Cap Screws
Flat Washer x 2
GG
x 2
FF
E
GG
FF
