21PCS MASTER BALL JOINT SET
WARNING: TO HELP PREVENT PERSONAL INJURY
1. Always wear ANSI approv ed goggles when using this product.
Normal use of this product is likely to expose the user to dust and/or
microscopic particles containing chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Always wear appropriates safety equipment and clothing when using this
product.
2. Study, understand, and follow all instructions provided with this product.
3. Before repairing vehicle, block the wheels to prevent the vehicle from
moving.
4. Check the final alignment of the C-frame press and all tooling with
components before exerting pressure to remove or replace a ball joint.
OPERATING INSTRUCTIONS
Brake Anchor Pin Removal and Installation
1. Remove all lock ring retainers from the brake anchor pins.

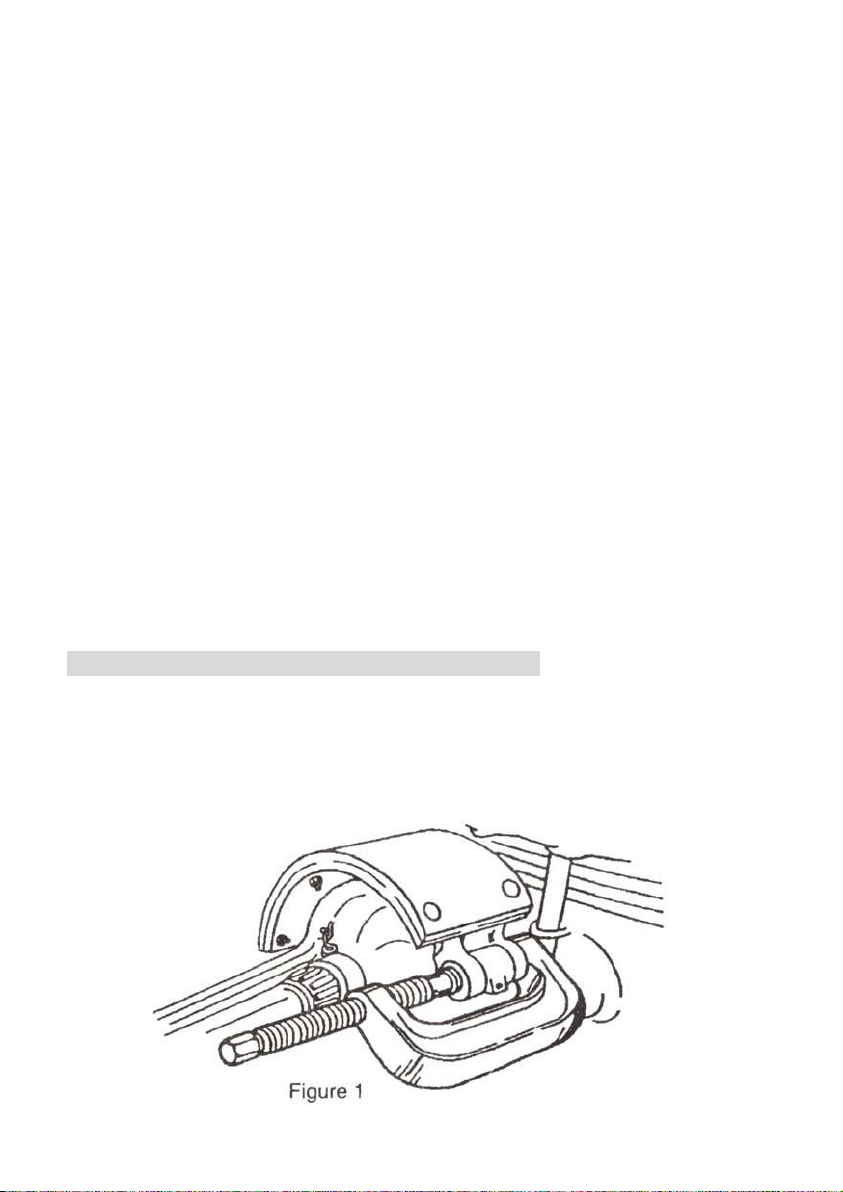

2. Position the C-frame press over the brake spider as shown in
Figure 1.
3. Tighten the forcing screw until the anchor pin is removed.

- 3 -
U-Joint Assembly and Disassembly The basic C-frame press is used to
service the U-Joints on most cars and light trucks. The U-Joints can be
serviced either on or off the vehicle.
Disassembly
1. Remove any external and/or internal lock rings.
2. Position the C-frame press around the drive shaft yoke, and tighten the
forcing screw until the first bearing is removed.
3. Reposition the C-frame and remove the second bearing.
Assembly
1. Clean all dirt and oil from the yoke area.
2. Align the replacement bearing and C-frame press as straight as
possible over the yoke. Press the replacement bearing into the yoke,
and reassemble the external / internal lock ring.
3. Reposition the C-frame press and second replacement bearing as
straight as possible over the yoke, and press the bearing into the
yoke. Reassemble the external / internal lock ring.

- 4 -
Ball Joint Removal and Installation
This tool set is designed for use on all cars and light trucks that have
press-fit type ball joints without the need to remove the control arm
from the vehicle.
NOTE: Some cars and light trucks may have the upper ball joint spot-
welded to the control arm. The weld must be cut before attempting to
remove the ball joint.
Removal
1. Assemble the ball joint press over the control arm as shown in
Figure 3. Select the correct size receiving tube (Item 6, 7, or 8),
and position it under the vehicle ball joint refer to Figure 3.
2. Tighten the forcing screw until the receiving tube contacts the
control arm. Check the alignment of all tooling and components,
and continue tightening the forcing screw until the ball joint is
removed.

- 5 -
Installation
1. Clean the control arm and coat the I.D. with a suitable lubricant.
2. Insert the replacement ball joint as straight as possible into the vehicle
control arm.
3. Assemble the ball joint press component as shown in Figure 4. Position the
receiving tube, and tighten the forcing screw. Check the alignment of all
tooling and components, and continue tightening the forcing screw until the
ball joint is firmly seated.

- 6 -
