VEVOR X585 User manual

AC SERVICE STATION
USER MANUAL
We continue to be committed to provide you tools with competitive price.
" Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.

-1-
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
AC SERVICE
STATION
USER MANUAL
Model: X585

- 2 -
1. Instructions
1.1 Safety cautions
1) WARNING ：Read all safety warnings, instructions, illustrations and
specifications provided with this electric appliance. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future reference.
2) ALLOW ONLY QUALIFIED PERSONNEL TO OPERATE THE
MACHINE. Before operation, read and follow the instructions and
warnings in this manual. The operator must have knowledges about air
conditioning and refrigeration systems, refrigerants, and the dangers of
pressurized components. If the operator cannot read this manual,
operating instructions and safety precautions must be read and discussed
in the operator’s native language.
3) USE THE MACHINE AS OUTLINED IN THIS MANUAL. Using the
machine in a manner for which it was not designed will compromise the
machine and nullify the protections provided.
4) AVOID BREATHING IN A/C REFRIGERANT OR LUBRICANT
VAPOR OR MIST. Exposure can irritate eyes, nose, and throat. To
remove refrigerant from the A/C system, use only equipment certified for
the type of refrigerant being removed. Use the unit in locations with
mechanical ventilation that provides at least four times ventilation per hour.
If accidental system discharge occurs, ventilate the work area before
resuming service.
5) TO REDUCE THE RISK OF FIRE, do not use the machine in the
vicinity of spilled or open containers of gasoline or other flammable
substances. Do not use an extension cord. Do not use the machine in the
vicinity of flames and hot surfaces. Refrigerant can decompose at high
temperatures and free toxic substances to the environment that can be
noxious to the user. Do not use the machine in environments containing
explosive gases or vapors. Do not use this machine in ATEX classified
zones or areas. Protect the machine from conditions that can cause
electrical failure or other hazards relating to ambient interaction.
NEVER remove ground prong from plug end. DISCONNECT POWER
before servicing or removing any panels and covers. Plug into a grounded
three-prong GFCI protected receptacle only.
NEVER modify this equipment in any way or warranty will be voided.

- 3 -
All repairs must be done by an authorized technician.
6) DO NOT PRESSURE TEST OR LEAK TEST EQUIPMENT AND/OR
VEHICLE AIR CONDITIONING SYSTEMS WITH COMPRESSED AIR.
Mixtures of air and R1234yf refrigerant can be combustible at elevated
pressures. These mixtures are potentially dangerous and can result in fire
or explosion causing personal injury and/or property damage.
7) NEVER START THE MACHINE IF IT WILL NOT BE USED
IMMEDIATELY. Disconnect the electrical supply before a long period of
inactivity or before internal maintenance is performed.
DO NOT MODIFY THE PRESSURE RELIEF VALVE OR CHANGE THE
CONTROL SYSTEM SETTINGS. Using the machine in a manner for
which it was not designed will compromise the machine and nullify the
protections provided.
8) HOSES CAN CONTAIN LIQUID REFRIGERANT UNDER PRESSURE.
Contact with refrigerant can cause personal injury, including blindness and
frozen skin. Wear protective equipment, including goggles and gloves.
Disconnect hoses using extreme caution. Ensure the phase is complete
before disconnecting the machine to prevent the release of refrigeration to
the atmosphere.
9) PRESSURIZED TANK CONTAINS LIQUID REFRIGERANT. Do not
overfill the internal storage vessel (ISV). Overfilling can cause explosion
resulting in personal injury or death. Do not recover refrigerants into
nonrefillable containers; use only type-approved refillable containers that
have pressure relief valves.
10) Please note that after FLUSHING HOSES, there may still be
2%-5% refrigerant remaining in the plumbing, which may cause the
mixing of different refrigerants.
11) This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
12)Type X attachment: If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the manufacturer or its
service agent.

- 4 -
1.2 Safety signs
Read carefully
Wear protection goggles
Don’t use it
outside when it’s
raining
Grounding protection.
Wear gloves.
Electrical shock hazard.
This product is subject to the provision of European
Directive 2012/ 19/EC. The symbol showing a wheelie bin
crossed through indicates that the product requires
separate refuse collection in the European Union. This
applies to the product and all accessories marked with this
symbol. Products marked as such may not be
discarded with normal domestic waste, but must be taken to
a collection point for recycling electrical and electronic
devices.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:(1)This
device may not cause harmful interference, and (2)this
device must accept any interference received,including
interference that may cause undesired operation.

- 5 -
1.3 Exemption clause
This device is a high-precision auto repair device, which can cause
damage if used improperly. Damage caused by the following
circumstances is not covered by the warranty:
1)Unauthorized unpacking and replacement of the components of the
product；
2)Improper installation and maintenance, calibration and use;
3)Electrical damage due to poor grounding;
4)The input signal is beyond the tolerance range of the product specification; 5)
The output load is beyond the tolerance range of the product specification; 6 )
Damage caused by such as lightning, flood or other disasters;
7)Other Reasons for Inappropriate Use

- 6 -
2. . Product details
2.1 Functions
1) Compatible with R134a and R1234yf Refrigerant；
2) Recovery, vacuum, recharge and leak detection of R134a and 1234yf
refrigerants are completely automatic ；
3) Compatible for electric car, gasoline vehicle and hybrid ；
4) Automatic internal system cleaning to avoid the mixing of different
refrigerants and compressor oils；
5) Fully digital display and 7 inches touch screen with service prompt；
6) 5 electronic scales for the weight measurement of R134a Tank,
R1234yf Tank, PAG oil, POE oil, used oil；
7) Benefit from the deep recovery program, recovery efficiency is up to 95%；
8) HP/LP/HP+LP charge mode is select able；
9) Up to 20000 vehicle A/C service data base, addible and editable；
10) Print-out of completed services information；
11) Search the service management and unit operation record；
New oils bottles with patent design prevent the oil from becoming
contaminated by air and humidity；
12)Use high-sensitivity sensors to realize the leak detection of A/C
systems and equipment; Intelligent reminder for filter and vacuum
pump oil changing；
2.2 Parameter
Refrigerant:R134a and R1234yf;
Power Supply:220-240V~, 50/60Hz
Power Consumption:1100W ;
Operating Temperature Range:-20C~+60C；Display:
7 inch touch screen；
Recovery efficiency:95% above；
Scale accuracy:10g(Refrigerant Tank)；Recovery capacity:3/8HP;

- 7 -
Vacuum capacity:180L/min；
Refrigerant Tank Capacity:15kg(For both 2)
Oil Bottles:3*350ml ，(Hermetically sealed, PAG/POE/UV/Drain oil) ；
Electronic Scales:5(134a Refrigerant Tank、1234yf Refrigerant Tank、
PAG/POE/Used oil)；
Filter Capacity:100kg；
Net Weight:130kg
Dimension (mm):620*740*1350mm

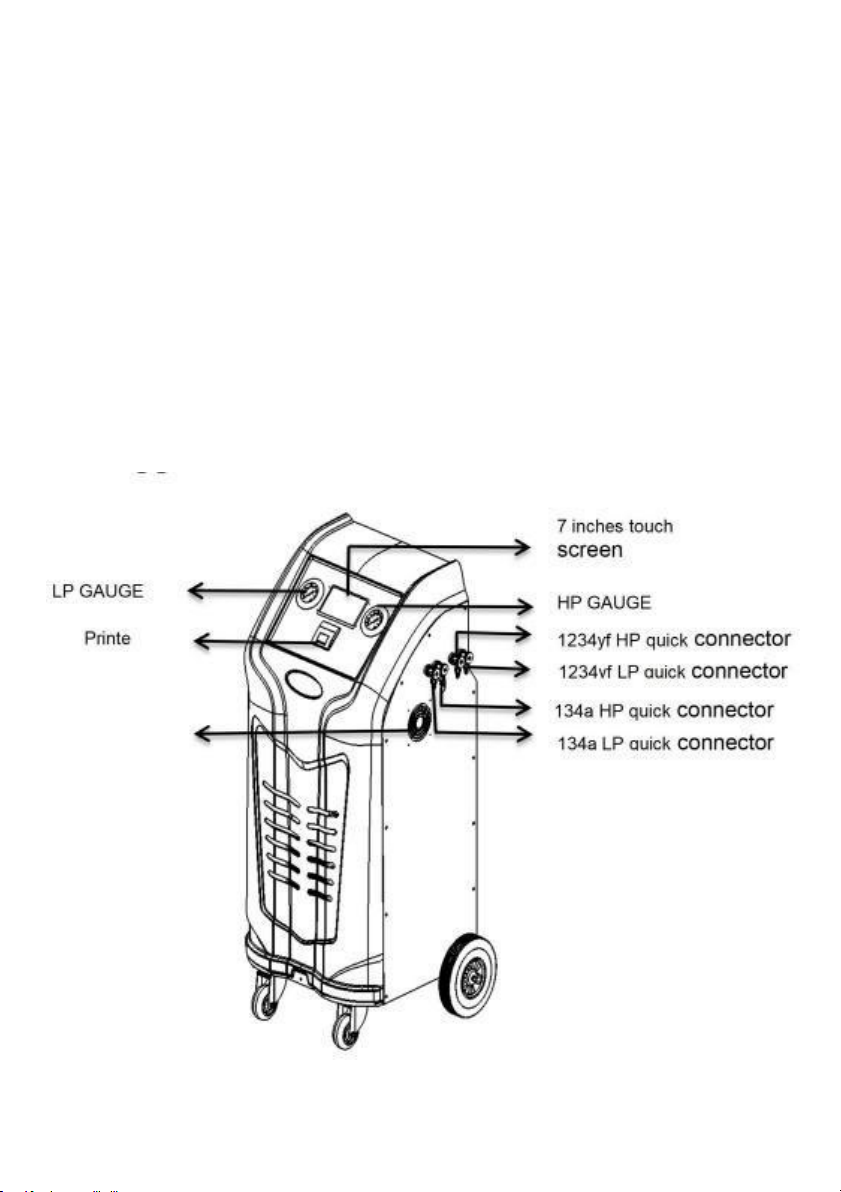

2.3 Appearance
Cooling
fan

- 8 -

- 9 -
Note: The above picture is for reference only, the specific
product appearance and color are subject to the actual product!

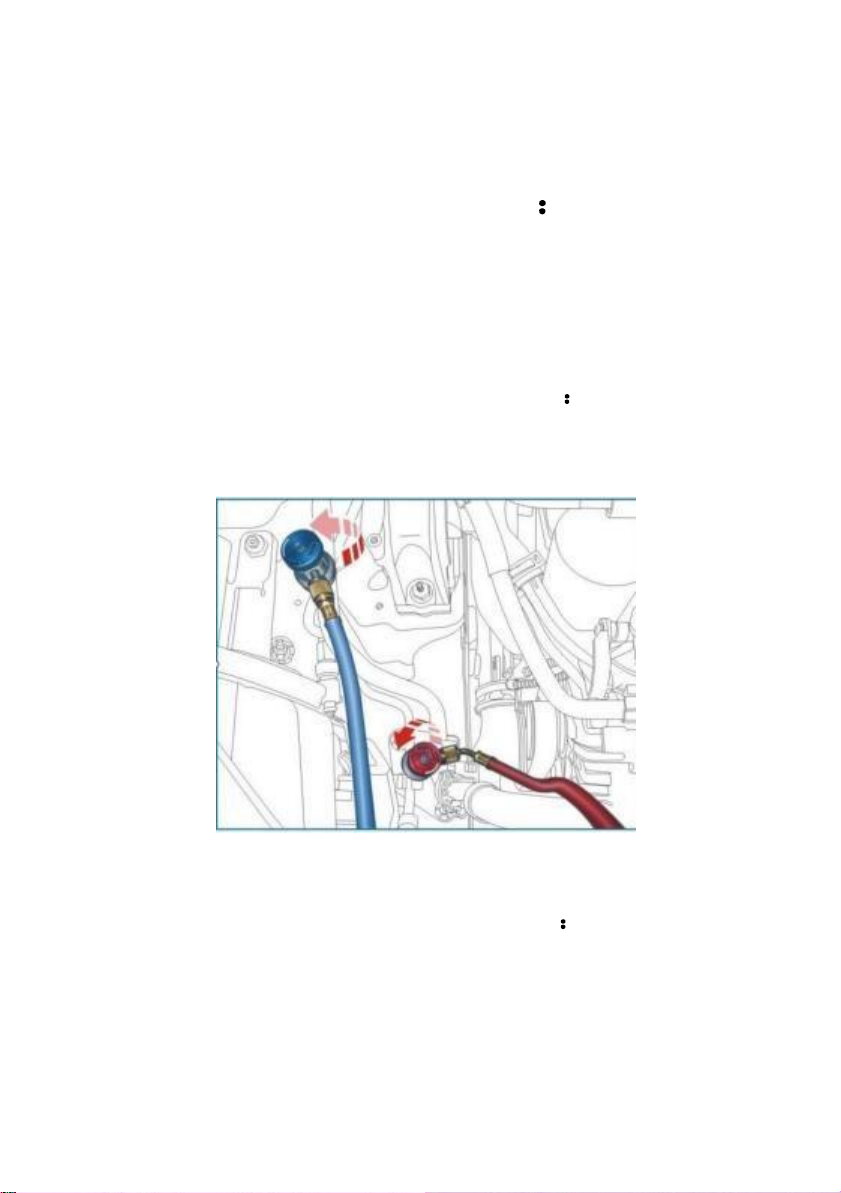

3. How to connect to the car
1. Fix red coupler on red hose, and blue couplers on blue hose.
2. Fix red coupler to high side end, and blue coupler to low side end.
Guidance for basic operation prompts:
“Close the high side and low side couplers”
Close the couplers anti- clockwise.
“Open the high side and low side couplers”
Open the high side and low side couplers clockwise.

- 10 -
4.Initial Setup Instruction
Please follow the steps to install a new machine.
4 .1 Electronic scale unlock
Unscrew the 4 screws on the rear door of the machine, find the tank
scale under the R134a and R1234yf tank.
Use a hexagon tool to loosen the protection screw.

- 11 -
4 .2 Tank Filling.
Before the first use, please refill 3 - 6 kgs/7-14 l b s refrigerant
in the new machine.

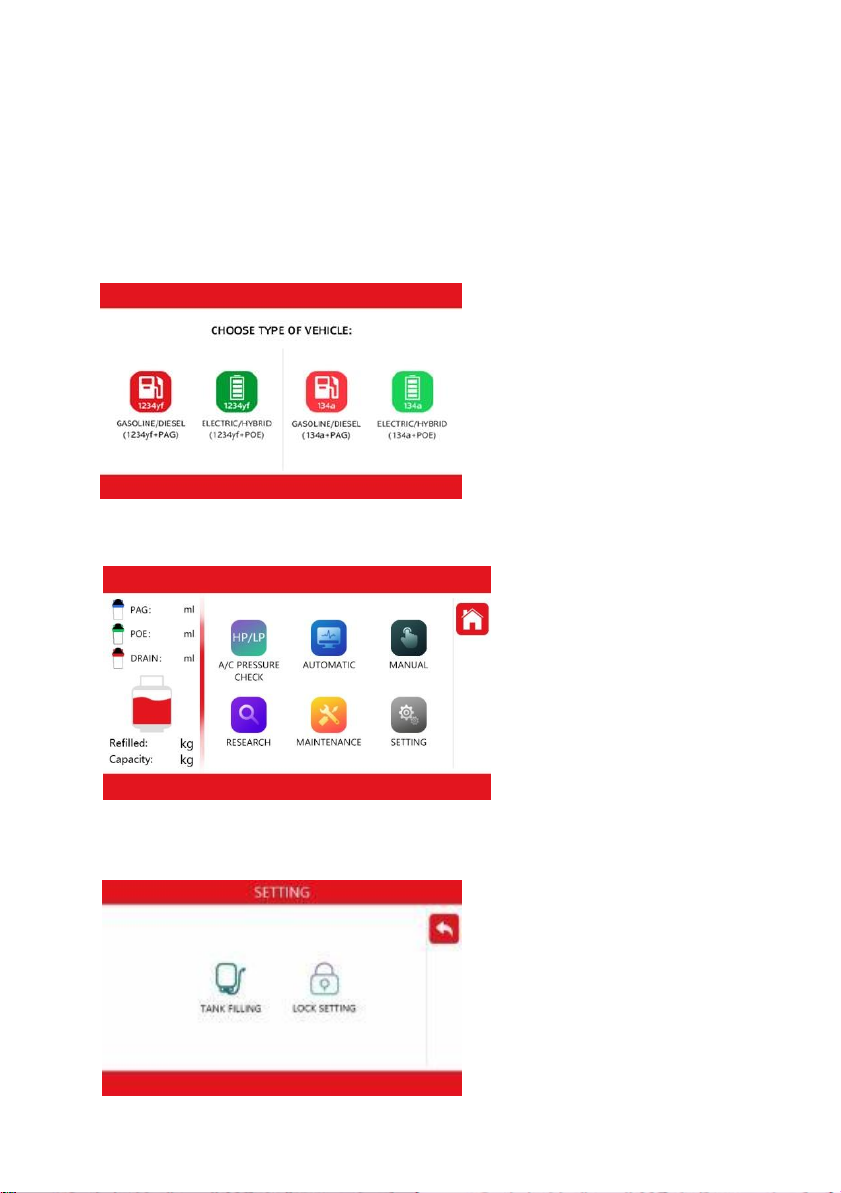

1) Start the machine and select the required refrigerant and oil
type.
2) )Choose the menu “ SETTING”
3) )Choose “Tank Filling”

- 12 -

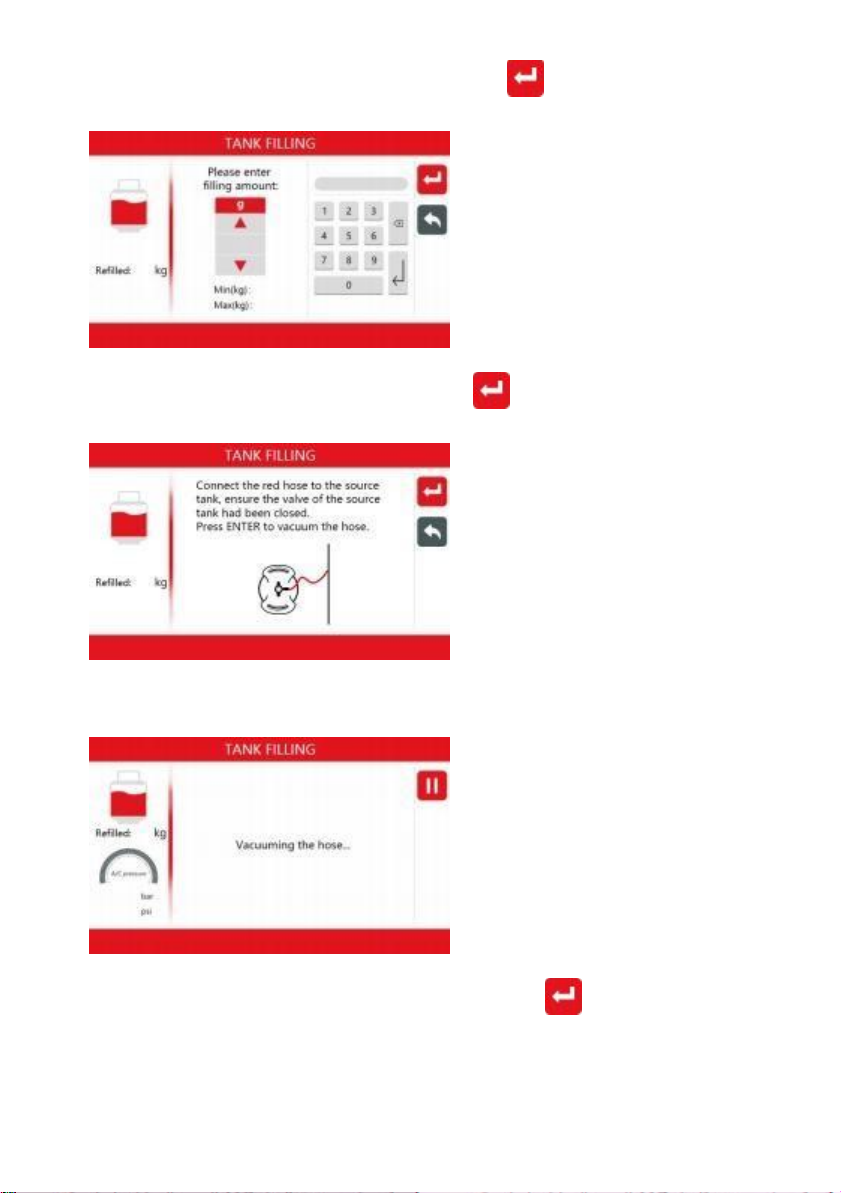

4) ) Set the amount for filling and press
5) )Follow the instruction and press
6) Doing vacuum, please wait.
7) Follow the instruction to next step. Press

- 13 -
8) ) Vacuum completed, follow the instruction and
press step.
9) Refilling, please wait.
10) Refilling amount completed, close valve and press
recover residue in hoses.
to next
to

- 14 -
11) Tank filling completed.Press back to MAIN MENU.
Select another type of refrigerant for TANK FILLING.
12）After R134a and R1234yf TANK FILLING.Initial Setup completed.
Back to MAIN MENU.You can use the machine now.
5. Basic Operations
5.1 Select the refrigerant type
1) The unit is compatible with R134a and 1234yf refrigerants,
please select the required type of refrigerant and oil.

-15 -
2) If the refrigerant and oil type selected this time is the same
as that selected in the previous operation, you can go to the
next step directly.
3) If the selection is different from the last used refrigerant or
oil, system will automatically prompt. Press to enter
automatic Flushing.
4) ) Flushing hoses.
5) ) Hose cleaning, please wait.
.

-16 -
6) ) Hose cleaning completed. Press to next step. Replace the
R134a/R1234yf HP hose and start to operate the unit.
7) )If you need to re-select the type refrigerant, click to back
to the interface for selecting the refrigerant.
5.2 A/C pressure test
1) ) Choose Main menu “A/C pressure check”
2) Follow the steps as instructed and press

-17 -
3) Cleaning the hoses.
4 ) Hose cleaning completed.
5) Choose the process you want to operate.

-18 -
6) ) Automatic: please refer to the
prompts. 7) Manual: Please refer to the
prompts.
8) Recovery residue: follow the steps as instructed and press to
next step.
9) ) Recovering residue, please wait.
10) Follow the instructions, then press

- 19 -
1 1 ) Recovering, please wait.
12) AC pressure check completed. Press
to exit.
5.3 Full automatic operation:
1) Choose “Automatic”
2) ) Choose whether to recovery the refrigerant as required,
and press to next step.
