Warning-To reduce the risk of injury, users must read the
instructions manual carefully.
Warning- Be sure to wear eye protectors when using this
product.
Warning- Be sure to wear gloves when using this product.
PRODUCT PAREMETERS
The height of the top automotive creeper can be adjusted. The heavy-duty steel
construction is powder coated for protection. A high density padded foam deck
provides additional comfort.
WARNING
WORK AREA
1.Operate in a safe work environment. Keep your work area clean, well-lit and free
of distractions. Place lights so you are not working in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away from the work
area.
3. Store tools properly in a safe and dry location. Keep tools out of the reach of
children.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association(CSA) or American National Standards Institute(ANSI).
Model
I-A
I-B
Adjustable Height
48-64 inch
48-76 inch
Weight Capacity
400 lbs
400 lbs

- 3 -
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection for the
eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSIZ87. 1
standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or reduce the
effects of tool vibration.
3. Wear protective clothing designed for the work environment and tool.
4. Non-skid footwear is recommended to maintain footing and balance in the work
environment.
5. Wear steel toe footwear or steel toe caps to prevent a foot injury from falling
objects.
PERSONAL PRECAUTIONS
Control the tool, personal movement, and the work environment to avoid personal
injury or damage to the tool.
1. Do not operate any tool when tired or under the influence of drugs, alcohol or
medications.
2. Do not overreach when operating the tool. Proper footing and balance enable
better control in unexpected situations.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with the product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use this tool
unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for a specific function. Do
not modify or alter this tool or use it for an unintended purpose.
2. DO NOT use the tool if any parts are damaged, broken, or misplaced. Repair or
replace the parts.
3. ALWAYS ensure the height adjustment bar is securely fixed in one of the three
position slots prior to using.
4. The maximum capacity listed includes the user (person), tools, equipment and
personal items. DO NOT exceed the maximum capacity.
5. Lean your chest onto the chest pad deck gently. Avoid causing a shock load by
jumping or falling onto the chest pad deck.

- 4 -
6. DO NOT stand or sit on the chest pad deck.
7. DO NOT use the foldable top automotive creeper to work over a running engine.
8. DO NOT get the foldable top automotive creeper wet or use it in damp locations
or areas where there is condensation.
9. Use the creeper on a smooth, level surface capable of withstanding the total
load.
10. ALWAYS lock the casters before using the foldable top automotive creeper.
PACKING LIST
Item
Item
QTY
Item
Item
QTY
A
Base Frame
1
L
Bumper Pads
3
B
Ladder Assembly
1
M
M Leg Lock Pin
2
C
Chest Deck Frame
1
N
Frame Bolts
4
D
Chest Deck Pad
1
P
Chest Frame Bolts
6
E
Base Leg
1
R
Height Adjustment Plate
Bolts
4
F
Connecting Column
1
S
Phillips Screws
2
H
Pouch
1
U
Flange Nut
4
I
Pouch Bracket
1
V
Lock Nut
4
J
Front Casters
2
W
Lock Nut M8
2
K
Rear Casters
2
X
Lock Nut M6
3
INSTALLATION
Letter references in parenthesis (A) refer to the contents.

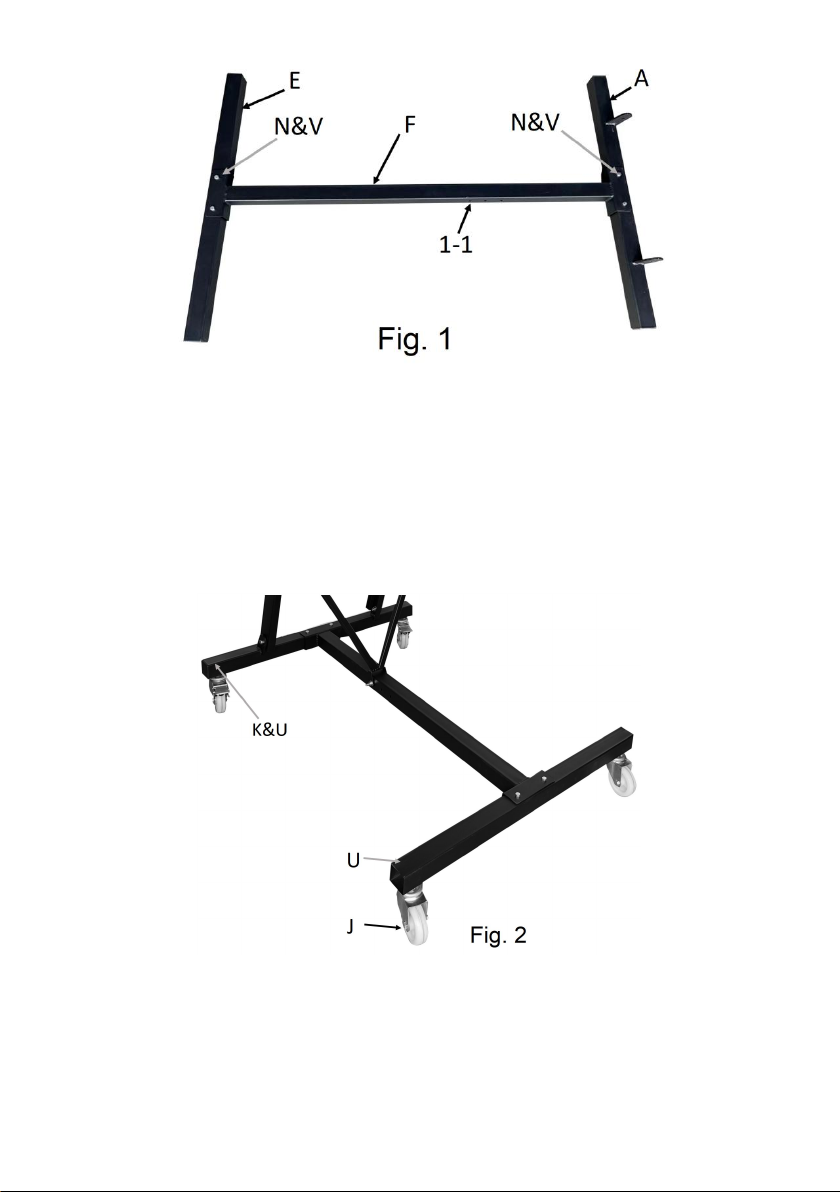

1. Assemble the Base leg (E) and the base frame (A) to the Connecting Column
(F). Insert the end of Connecting Column (F) into the base frame and the Base leg
(E) and align the bolt holes. The height adjustment holes (Fig.1 1-1) will be on the
inside. Secure each part with a frame bolt (N) and lock nut1 (V).

- 5 -
2. Attach the front casters (J) by inserting the stem of each caster through the end
of each leg and securing it with a flange nut (U). Install the rear locking casters (K)
to the base frame in the same manner. Lock the rear wheels in place for the
remainder of the installation.

- 6 -

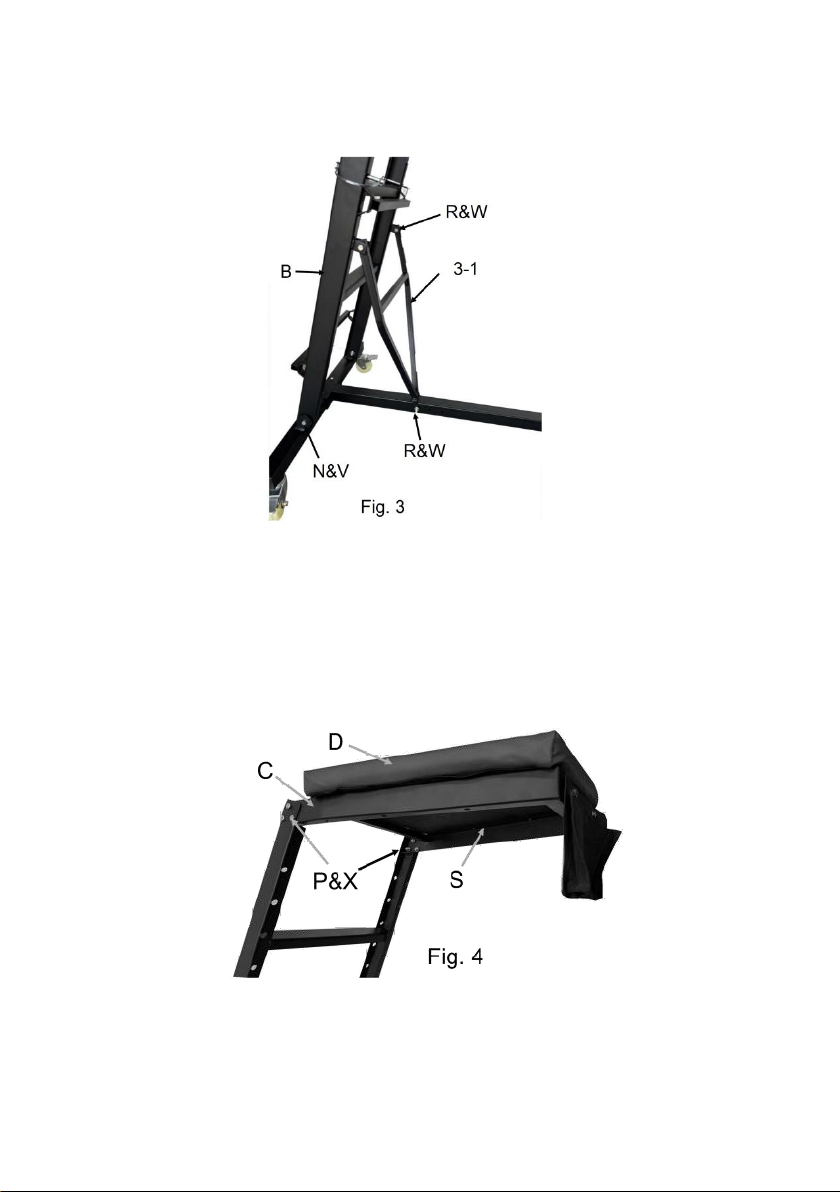

3. Install the ladder assembly (B) by inserting a frame bolt(N) through each side of
the base of a lock nut1 (V). Swing the ladder's angle support (Fig.3 3-1) into the
height adjustment holes (3-2). Make sure the crossbar is firmly in place.
4. Match the angled opening with the adjustment notches. Insert a height
adjustment plate bolt (R) through the bolt hole at each end of the plate. Secure
each bolt with a lock nut 2 (W). Repeat on the other side.
5. Attach the chest deck frame (C) to the top of the ladder assembly (B) using
three chest frame bolts (P) and lock nut3 (X) on each side. Attach the chest deck
pad (D) using two Phillips screws(S) from underneath.

- 7 -
7. Put the pouch (H) and align the screw holes. Insert two chest frame bolts (P)
and lock nut3 (X) through the screw holes.Line up the protruding screws with the
holes in the deck frame's front. Secure the pouch to the deck frame with the
screws.
8. Re-check and tighten all bolts and screws as necessary.
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is efficient, easier to control
and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace damaged or worn
components. Only use identical replacement parts when servicing.
3. Maintain the tool's labels and name plates. These carry important information.If
unreadable or missing, contact Princess Auto Ltd.for replacements.
WARNING!
Only qualified service personnel should repair the tool. An improperly repaired tool
may present a hazard to the user and/or others.
CLEANING
Wipe clean as needed.Use mild upholstery cleaner (not caustic) to clean the chest
deck pad as needed.
LUBRICATION
DO NOT lubricate casters.This can damage the mechanism.

- 8 -
STORAGE
1. Remove the leg lock pins from each leg. Hold the ladder when removing the
second pin, as the base frame will fall to the floor. Store the pins in the creeper's
pouch.
2. Push the ladder's angle support arms back towards the
ladder.
6. Lift each leg up until it rests next to the ladder assembly.
7. Store the creeper vertically. Make sure the rear casters are locked once it is in
place.
REMOVAL FROM STORAGE
1. Lower each leg.
2. Pull the ladder's angle support arms forward to settle in a height adjustment
notch.
3. Remove the leg lock pins from the pouch.
4. Lift the base frame and push the leg down until it the bolt holes align. Push the
leg lock pin through and turn the end down. Repeat with the other leg.
5. Unlock the rear casters, and it is ready for use.
