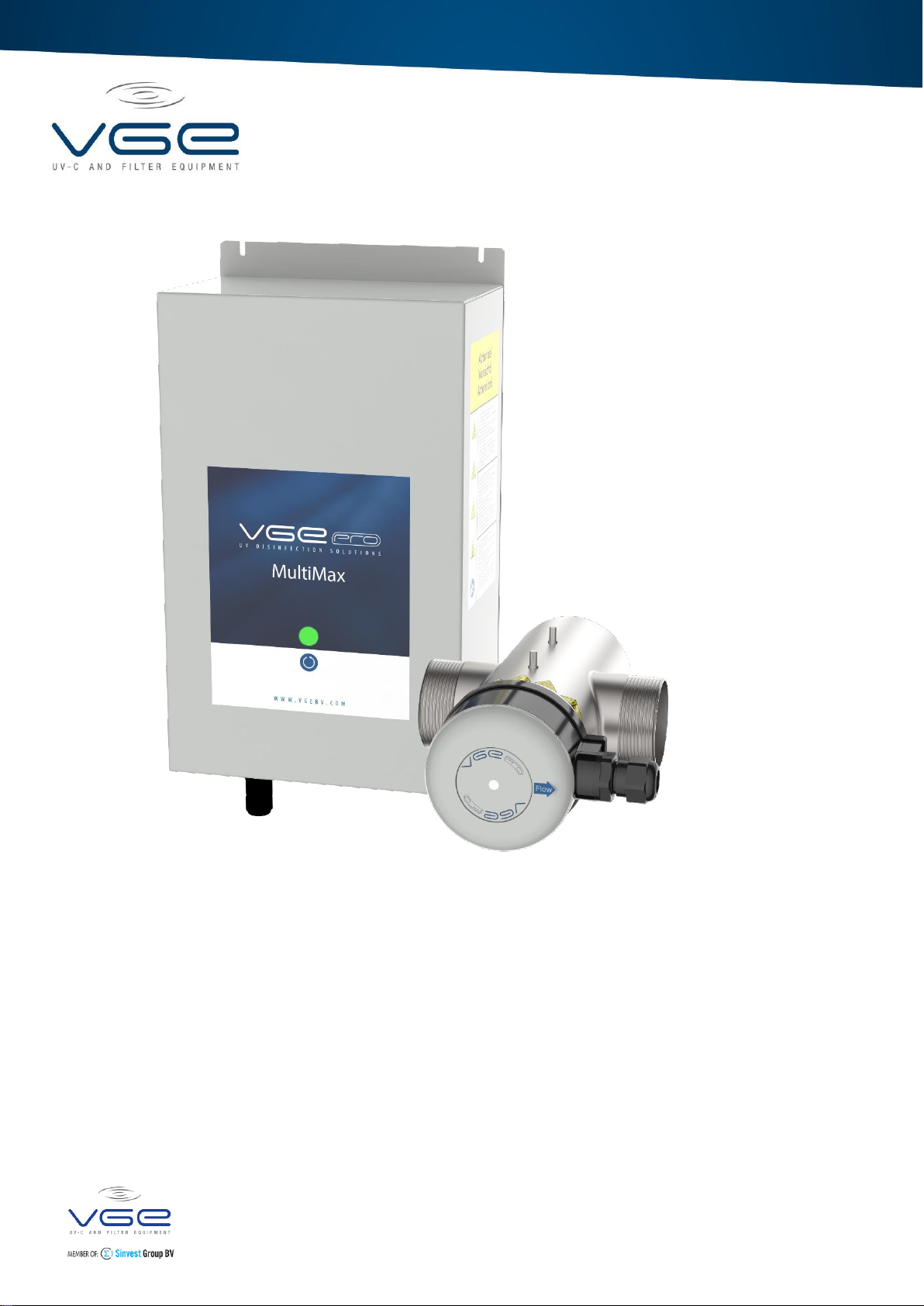

VGE MultiMax Pro Instruction Manual

Installation & User Manual
VGE Pro MultiMax
VGEM000-GB192

VGEM000-GB192
Pag. 2/68 VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●[e-mail] ●www.vgebv.nl
Installation & User Manual

VGEM000-GB192
VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●inf[email protected] ●www.vgebv.nl Pag. 3/68
Installation & User Manual
Content
1Introduction ...........................................................................................................................................6
1.1 Company introduction ....................................................................................................................7
1.2 Our passion....................................................................................................................................8
1.3 Manual is intended for....................................................................................................................9
1.4 Optical radiation...........................................................................................................................10
1.5 UV lamp types..............................................................................................................................11
1.6 UV disinfection.............................................................................................................................12

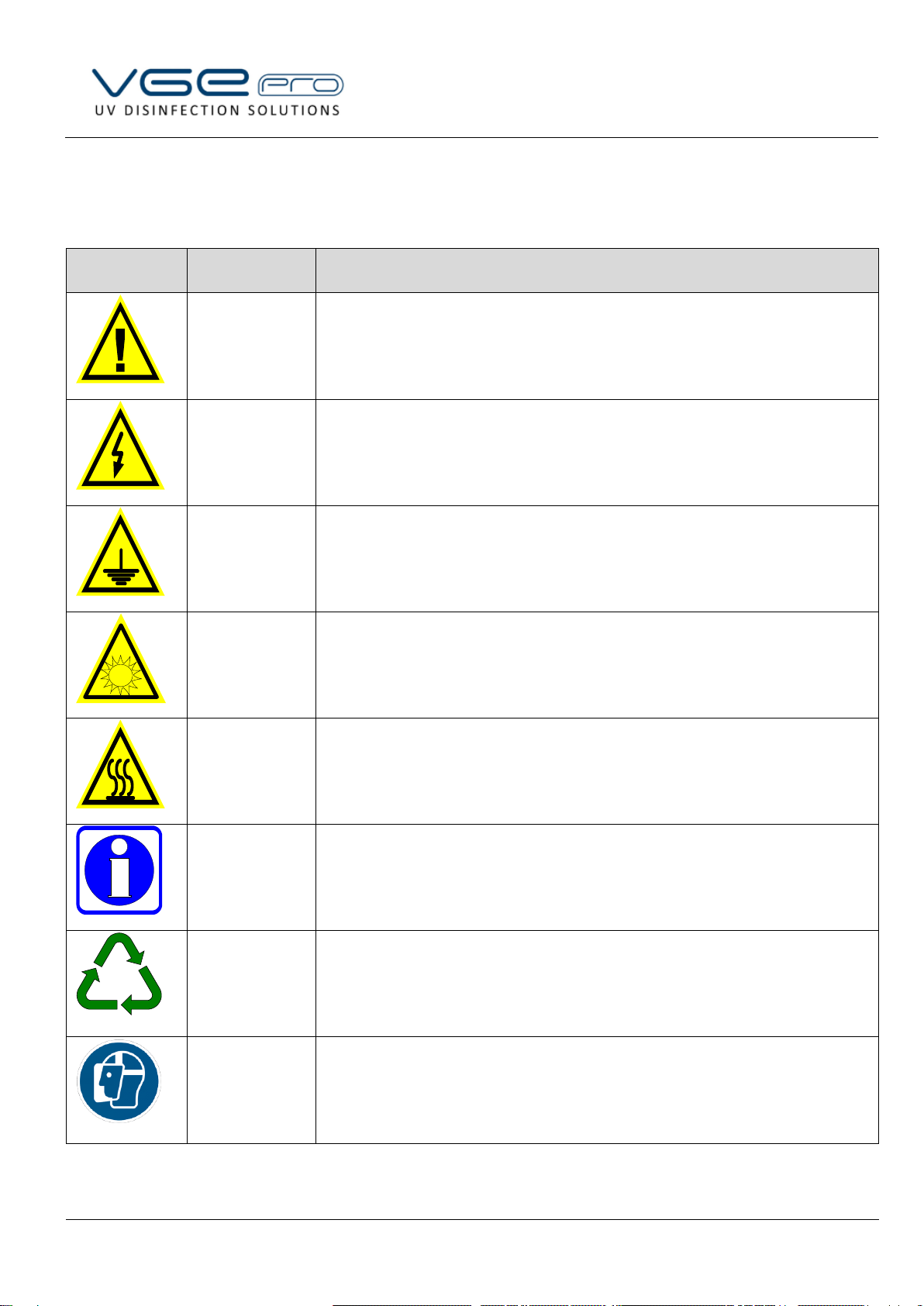

1.7 Icons ............................................................................................................................................13
2Safety instructions...............................................................................................................................15
2.1 Intended use ................................................................................................................................15
2.2 Safety instructions........................................................................................................................15
2.3 Environmental conditions .............................................................................................................17
2.4 Safety instructions on the UV-system...........................................................................................18
2.5 Handling of UV lamps and quartz sleeves....................................................................................19
2.6 Quartz tube breakage...................................................................................................................20
2.7 Lamp breakage............................................................................................................................21
2.8 Electrical isolation.........................................................................................................................21
2.9 Electrical grounding......................................................................................................................21
2.10 Operating conditions ....................................................................................................................22
3Scope of delivery, transport and storage.............................................................................................23
3.1 Scope of delivery..........................................................................................................................23
3.2 Transportation..............................................................................................................................23
3.3 Storage ........................................................................................................................................24
3.4 Warranty ......................................................................................................................................24
4The UV system....................................................................................................................................25
4.1 UV applications............................................................................................................................25
4.2 Product overview..........................................................................................................................26
4.3 UV system composition................................................................................................................27
4.4 Irradiation chamber ......................................................................................................................28
4.4.1 Irradiation chamber ...............................................................................................................28
4.4.2 Bimetallic switch irradiation chamber.....................................................................................28
4.4.3 Quartz tubes..........................................................................................................................28
4.4.4 UV lamps ..............................................................................................................................29
4.5 Control .........................................................................................................................................29
4.5.1 Control ..................................................................................................................................29
4.5.2 Operation..............................................................................................................................30
4.5.2.1 Bimetallic switch control panel........................................................................................30
4.5.2.2 Timer operation..............................................................................................................31

VGEM000-GB192
Pag. 4/68 VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●[e-mail] ●www.vgebv.nl
Installation & User Manual
4.5.2.3 Resetting the hours counter............................................................................................31
4.5.3 Messages..............................................................................................................................31
4.6 Accessories ..................................................................................................................................32
4.6.1 Lamp tester............................................................................................................................32
4.6.2 Mercury collector ...................................................................................................................32
4.6.3 Face protection......................................................................................................................32
4.6.4 Gloves ...................................................................................................................................33
4.6.5 Torque screwdriver................................................................................................................33
5Technical data .....................................................................................................................................34
5.1 Irradiation chamber.......................................................................................................................34
5.2 Control panel ................................................................................................................................34
6Installation............................................................................................................................................35
6.1 Application examples....................................................................................................................35
6.2 Mechanical installation..................................................................................................................36
6.3 Installation drawings .....................................................................................................................38
6.3.1 Vertical pipes.........................................................................................................................38
6.3.2 Horizontal pipes.....................................................................................................................39
6.4 Bypass installation........................................................................................................................40
6.5 Corrosive water.............................................................................................................................40
6.6 Lamp socket assembly .................................................................................................................42
6.7 Lamp installation...........................................................................................................................43
6.8 Electrical installation .....................................................................................................................45
7Starting up a VGE Pro UV system .......................................................................................................47
7.1 Mains voltage................................................................................................................................47
7.2 Water in the system......................................................................................................................47
7.3 Cooling of the UV system..............................................................................................................48
7.4 Start-up procedure........................................................................................................................49
8Maintenance........................................................................................................................................50
8.1 Who can perform which actions?..................................................................................................51
8.2 Maintenance schedule..................................................................................................................51
8.3 Quartz tube assembly...................................................................................................................52
8.4 Lamp replacement........................................................................................................................54
8.5 Lamp breakage.............................................................................................................................55
8.6 UV Lamp disposal.........................................................................................................................55
8.7 Decommissioning..........................................................................................................................56
8.8 Problem solving............................................................................................................................57
8.9 Logbook........................................................................................................................................59
8.10 Logbook example .........................................................................................................................60
9Spare parts and maintenance schedule...............................................................................................61

VGEM000-GB192
VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●inf[email protected] ●www.vgebv.nl Pag. 5/68
Installation & User Manual
9.1 Spare parts...................................................................................................................................61
9.2 Spare parts MultiMax ...................................................................................................................62
9.3 Spare parts sets...........................................................................................................................63
9.4 Consumable parts........................................................................................................................64
10 Drawings..........................................................................................................................................65
10.1 Dimensions ..................................................................................................................................65
10.2 Irradiation chamber, dimensions...................................................................................................65
10.3 Control panel, dimensions............................................................................................................66
11 Certificates and declarations............................................................................................................67
11.1 CE declaration..............................................................................................................................67

VGEM000-GB192
Pag. 6/68 VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●[e-mail] ●www.vgebv.nl
Installation & User Manual
1 Introduction
Thank you for choosing and purchasing a VGE International B.V. UV system.
Our UV systems are designed to reliably and safely treat your water for a long time with UV-C radiation. A
great deal of attention has also been paid to a service-friendly design so that it is easy for you as a user to
install and maintain the UV system.
Before you start installing the UV system in your water treatment process, you must first have carefully read
and understand the complete manual in order to use the system correctly and safely. Special attention must
be given to safety instructions and comments. You then check whether the delivery has arrived complete
and properly.
We wish you every success with the installation and use of your VGE Pro UV system!

VGEM000-GB192
VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●inf[email protected] ●www.vgebv.nl Pag. 7/68
Installation & User Manual
1.1 Company introduction
VGE INTERNATIONAL B.V.
Clean and safe water is of vital importance. Sustainable developments in the field of water disinfection is
therefore an important theme worldwide. VGE International B.V. is aware of this as a producer of UV-C
equipment. As a company, we are therefore focused on new, sustainable developments in the field of water
disinfection for the private, recreational and industrial sectors. VGE International B.V. supplies its customers
with a unique range of high-quality UV-C equipment and good service. We are proud that we are part of the
Dutch top technological region, Brainport Eindhoven. Innovation is our top priority. We have our own
product development department, which regularly introduces new products. The existing products are also
continuously examined critically and, where necessary, further developed. Our product developers ensure
that the products meet the wishes and needs of the current market and the applicable safety standards.
Sustainability, energy saving and environmental friendliness are central to the development and production
process. Thanks to our many years of experience (since 1982), we can offer you an extensive range of UV-
C equipment that is used worldwide.

VGEM000-GB192
Pag. 8/68 VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●[e-mail] ●www.vgebv.nl
Installation & User Manual
1.2 Our passion
Combination of our passion for water and technology
Clean and safe water is of vital importance. Sustainable developments in the field of water disinfection
is therefore an important theme worldwide. VGE International B.V. is there as a producer of UV-C
systems of awareness. As a company, we are therefore focused on new, sustainable developments,
solutions and technologies in the field of water disinfection. We do this by combining our passion for
technology and knowledge of water, which results in high-quality products and innovations.
VGE Pro: professional water disinfection systems
The VGE Pro range consists of a complete range of industrial UV-C disinfection systems.
The devices ensure reliable and efficient water radiation. VGE Pro UV-C disinfection systems are the
finishing touch in your water irradiation installation; they ensure that the water is treated efficiently against
bacteria, viruses, protozoa, algae and fungi. It is essential that the UV-C system seamlessly connects to the
design and the other components of a water treatment system. When you choose VGE Pro UV-C, you
choose guaranteed quality at a fair price.
What makes the VGE Pro UV-C systems unique?
- VGE Pro UV-C systems have a 316L stainless steel housing or a high quality HDPE housing;
- The lamp can be placed / replaced while the unit is under pressure (except for 3S / 3L / 8L);
- Each system is equipped with the possibility to visually check the irradiation chamber whether the UV
lamp (s) are (are) in operation;
- VGE Pro systems can be equipped with a UV-C sensor and/or temperature sensor;
- VGE Pro systems with low pressure UV lamps are equipped with the unique Smart Pin Technology
(S.P.T.) for easy and safe replacement/placement of the lamp without disconnecting the electrical
connection;
- VGE Pro systems with medium-pressure UV lamps in the are equipped with the unique Single-end
Bayonet Technology (S.B.T.) lamps, ensuring a safe and simple replacement/placement of the lamp
without disconnecting the electrical connection;
- Low pressure amalgam UV lamps have a high performance level in combination with a life expectancy of
16,000 hours;
- Our medium pressure UV lamps have a wide light spectrum and therefore many extensive applications,
are water temperature independent and have a long life expectancy of 9,000 hours!
- Single systems can handle a flow from 0.5 m³/h to 550 m³/h;
- It is possible to adjust the devices to your own specifications

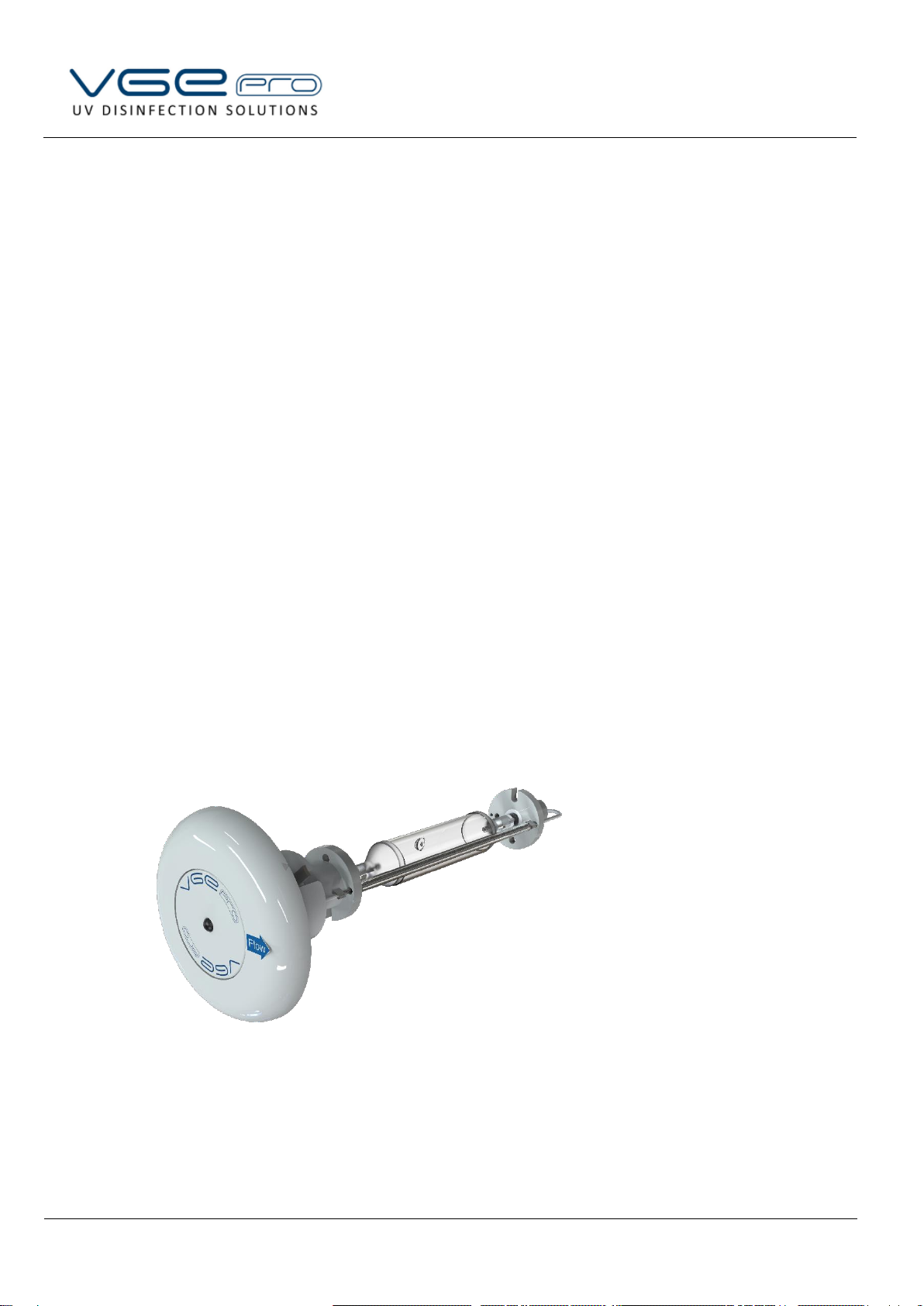

Medium pressure UV lamp, Single-end Bayonet Technology (S.B.T.)

VGEM000-GB192
VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●inf[email protected] ●www.vgebv.nl Pag. 9/68
Installation & User Manual
1.3 Manual is intended for
This manual is intended for everyone who has to work with and with the VGE Pro UV system such as:
- Installation staff;
- Operating staff;
- Service staff.
All persons who wish to work on or with the VGE Pro UV system must have carefully read and understood
this manual before they can use the system in a correct and safe manner. Special attention must be given
to safety instructions and comments.

VGEM000-GB192
Pag. 10/68 VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●[e-mail] ●www.vgebv.nl
Installation & User Manual
1.4 Optical radiation
Light is essential for humans. However, in some cases employees may be exposed to too much "light"
during their work, which may damage eyes and/or skin. For this type of situation, the EU Directive
2006/25/EC on artificial optical radiation (1) is intended. This describes what effects can occur and what the
exposure limit values are. The term optical radiation includes the visible, ultraviolet and infrared spectrum.
The term light is a looser term that generally refers to the visible part of the optical spectrum.
Optical radiation is part of the family of electromagnetic radiation (EM radiation). The electricity network
emits EM-fields with a very large wavelength. If we shorten the wavelength, we end up with the long wave,
medium wave, short wave, ultra short wave (FM radio) on TV, GSM, microwave and radar. The following is
the optical area starting with the far infrared. After the infrared, the (fairly narrow) visible area follows,
followed by the ultraviolet, which cannot be seen with the human eye. After the hard UV-C, the optical area
and also the non-ionizing part of the EM-spectrum ends. This is followed by the ionizing region with X-ray,
gamma and cosmic radiation.
Source: Optische straling in arbeidssituaties
Praktische aspecten bij implementatie in Nederland van de EU-richtlijn betreffende de blootstelling aan bronnen van kunstmatige
optische straling
F.P. Wieringa, C.J.P.M. Teirlinck en J.W.A.M. Alferdinck
Review: prof. D. van Norren
30 juni 2006
TNO-Rapportnummer KZ/2005.190
(1) EU. 2006. Directive 2006/25/EC of the European Parliament and of the Council of 5 April 2006 on the minimum health and safety
requirements regarding the exposure of workers to the risks arising from physical agents (artificial optical radiation) (19th separate
Directive in the meaning of Article 16 (1) of Directive 89/391/EEC). Official Journal of the European Union.

VGEM000-GB192
VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●inf[email protected] ●www.vgebv.nl Pag. 11/68
Installation & User Manual
1.5 UV lamp types
UV lamps (ultraviolet) radiate optical radiation in, among others, the range between 200 nm and 400 nm on
which the name "UV lamp" is also based. Low pressure (incl. Amalgam) UV lamps produce UV radiation
with a wavelength of 253.7 nm where medium pressure UV lamps radiate at a wide spectrum of
wavelengths (see graph with spectral data). Depending on the type of UV lamp, energy is also emitted in
the visible area of the electromagnetic spectrum:
- Low pressure (LP) UV lamps: blue light (400 nm)
- Low pressure (LPHO) UV lamps: blue light (400 nm)
- Amalgam UV lamps: blue light (400 nm)
- Medium pressure (MP) UV lamps: white light (400 nm - 750 nm)
UV lamps contain a small amount of mercury that is responsible for the UV radiation produced.
A properly working UV lamp needs a certain operating temperature in order to function reliably and
efficiently, with the lamps used in the VGE Pro UV series these temperatures are as follows:
- Low pressure (LP) UV lamps: approximately 45 °C
- Low pressure (LPHO) UV lamps: approximately 45 °C
- Amalgam UV lamps: approximately 95 °C
- Medium pressure (MP) UV lamps: 600 °C - 900 °C.
Spectral data of the medium pressure UV lamps:

VGEM000-GB192
Pag. 12/68 VGE International B.V. ●Ekkersrijt 4304 ●5692 DH Son Netherlands ●[phone] ●[e-mail] ●www.vgebv.nl
Installation & User Manual
1.6 UV disinfection
For non-chemical disinfection of liquids, disinfection with UV-C radiation is a proven and reliable technology
that has been used since the beginning of the 20th century. From around the middle of the 20th century, the
application of UV disinfection on liquids has seen a sharp increase because it then became possible to
produce good quality UV-C lamps on a large scale. The discovery of the by-products produced by chemical
disinfection of water also led to a strong growth in the demand for UV-C radiation for the disinfection of
(drinking) water.
UV radiation (see also the section on optical radiation) can be divided into four main categories: UV-A, UV-
B, UV-C and vacuum UV. The UV-C spectrum (wavelength range of 200 to 280 nanometre) is the most
effective range for controlling microorganisms. UV-C radiation is capable of causing permanent damage to
microorganisms. Each type of microorganism requires a certain amount of UV-C energy (UV fluence, also
known as the UV dose) for the disinfection process to be successful. The microorganisms must be directly
and long enough exposed to UV-C radiation, so that the radiation can penetrate the cell wall of the
microorganism to damage the DNA (deoxyribonucleic acid).
Depending on the intensity of the UV-C radiation, it only takes a short time (in some cases a fraction of a
second) to penetrate the cell wall, irreparably damage the DNA and inactivate the microorganisms in the
water . This causes the reproductive mechanism of the microorganisms to be damaged and in some cases
even killed.
UV-C disinfection is a non-selective process, as is the case with certain chemical disinfection processes.
UV-C disinfection can be used against bacteria, viruses, fungi, yeasts, algae and (chlorine-resistant)
protozoa.
