VIAIR 00071 User manual

IMPORTANT:
It is essential that you and any other operator of this
product read and understand the contents of this
manual before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
USER MANUAL
00071 – TLC LITE COMPRESSOR KIT

TLC LITE COMPRESSOR KIT
USER MANUAL
IMPORTANT SAFETY INSTRUCTIONS
CAUTION - To reduce risk of electrical shock:
- Do not disassemble or attempt to repair or modify unit while it is still connected to the vehicle.
- Do not use this product in an area where it can fall or be pulled into water or other liquids.
- Do not reach for this product if it has fallen into liquid.
- Use this compressor with 12-Volt DC systems only.
- This product should never be left unattended during use.
WARNING - To prevent injury:
- Close supervision is necessary when this compressor is being used near children. Never allow a
child to operate this compressor.
- This compressor will become very HOT during and immediately after use. Do not touch any parts
with bare hands, other than the ON/OFF switch during and immediately after use.
- Do not use this product near flames or explosive materials or where aerosol products are
being used.
- Do not operate this product where oxygen is being administered.
- Do not pump anything other than atmospheric air.
- Never use this product while sleepy or drowsy.
- Donotuseanytoolsorattachmentswithoutrstdeterminingmaximumairpressureforthattool
or attachment.
- Never point any air nozzle or air sprayer toward another person or any part of the body.
- This air compressor is equipped with an Automatic Reset Thermal Protector, and can
automaticallyrestartafterthethermalprotectorresets.Alwayscutopowersourcewhenthermal
protector becomes activated.
- Use only in well ventilated areas.
- Afteruse,alwaysreleaseexcesspressurefromthecoilhoseandtank.Turnotheunitandwith
theinatorstillconnectedtothehose,pullthetriggertoreleaseexcesspressure.
TLC LITE COMPRESSOR KIT COMPONENTS LIST:
Please familiarize yourself with the components list in this manual before you begin to use your
compressor.
A. B.
C. D.
E. F.
A. TLC LITE Compressor
B.TLCInatorwith120PSIgauge
C. Rebuildable Presta Head attachment
D.90-DegreeTwist-onSchraderattachment
E.30ft.InsideBraidedCoilHose
F. Inationtipskit

TLC LITE COMPRESSOR KIT
USER MANUAL
OPERATING INSTRUCTIONS:
Your TLC LITE is powered via the Aux-port of your vehicle. To avoid draining your battery and assure
the compressor is getting the proper amperage, make sure your vehicle’s engine is running during
operation, especially if using for a prolonged period of time.
USING THE COMPRESSOR:
The TLC LITE requires a power port rated for 15-Amps. Most automotive cigarette lighter/power
ports can handle 15-Amps, however, some vehicles’ power ports may have lower amp ratings.
Before purchasing and using this unit, inspect the amp draw limitations of your vehicle’s power port.
Never install fuses featuring amps beyond the original rating of the circuit. Consult your vehicle’s
manual for further details.
a.ConnecttheCoilHosetotheQuickConnectStudonyourTLCLITE.
b.ConnecttheTLCInatortotheotherendoftheCoilHose.
c. Connect the TLC LITE to an Aux-port in your vehicle.
d.TurnonyourTLCLITEbyippingtheswitchtotheON(I)position.
e.ThecompressorwillrunbrieyandautomaticallyshutowhentheCoilHosehasbeenlledto
max pressure. The cooling fan in the unit may run continuously, this is normal.
f. You’re now ready to perform your pneumatic tasks!
Important Note: This compressor is moisture & dust resistant, but NOT DIRT OR WATERPROOF. Do
not store the compressor in locations where the unit is likely to come in contact with the elements.
USING THE TLC TIRE INFLATOR
1. ConnectingtheTLCinator:
SelectaninationattachmentandconnectittotheTLCInatorQuick-ConnectCoupler.Then,
connecttheInatortoanairhosebyinsertingtheQuick-ConnectStudintotheairhosecoupler.
2. Inating/DeatingTires:
Toinate,squeezetheInationTriggerbypressingittowardsthehandleoftheinator,thiswill
allowairtoowintothetire.Todeate,presstheBleederValvelocatedonthesideofthebody,
this will release air from the tire.
3. Checking Tire Pressure:
Tochecktirepressureafterination/deation,simplyreleasetheInationTriggerortheBleeder
Valve. This will allow the needle in the gauge to settle and show the accurate pressure reading.
YoucanalsochecktirepressurebysimplyconnectingtheTLCInatortoatirevalvestem.
4. Storage:
AlwaysstoretheTLCInatorinthecarrybagprovidedtoprotectitfromimpactordamage.
WARNING:
•Neveroperateatanypressureexceedingthemaxreadingonthegauge.
•Usecautionwhenattachingorremovingairchuckfromvalvestems.
•Alwaysensurethattirevalvestemsaretightbeforeinating.
• Neverinateanytireorotherinatablepastitsratedpressuretoavoidexplosion,possibleinjuryordeath.
WARNING:Notintendedforusewithregularportablecompressors(unitsmeanttobeoperated
withanopen-endedairchuck).TheTLCInatorisequippedwithaclose-endedquickcoupler
(willholdpressureback).

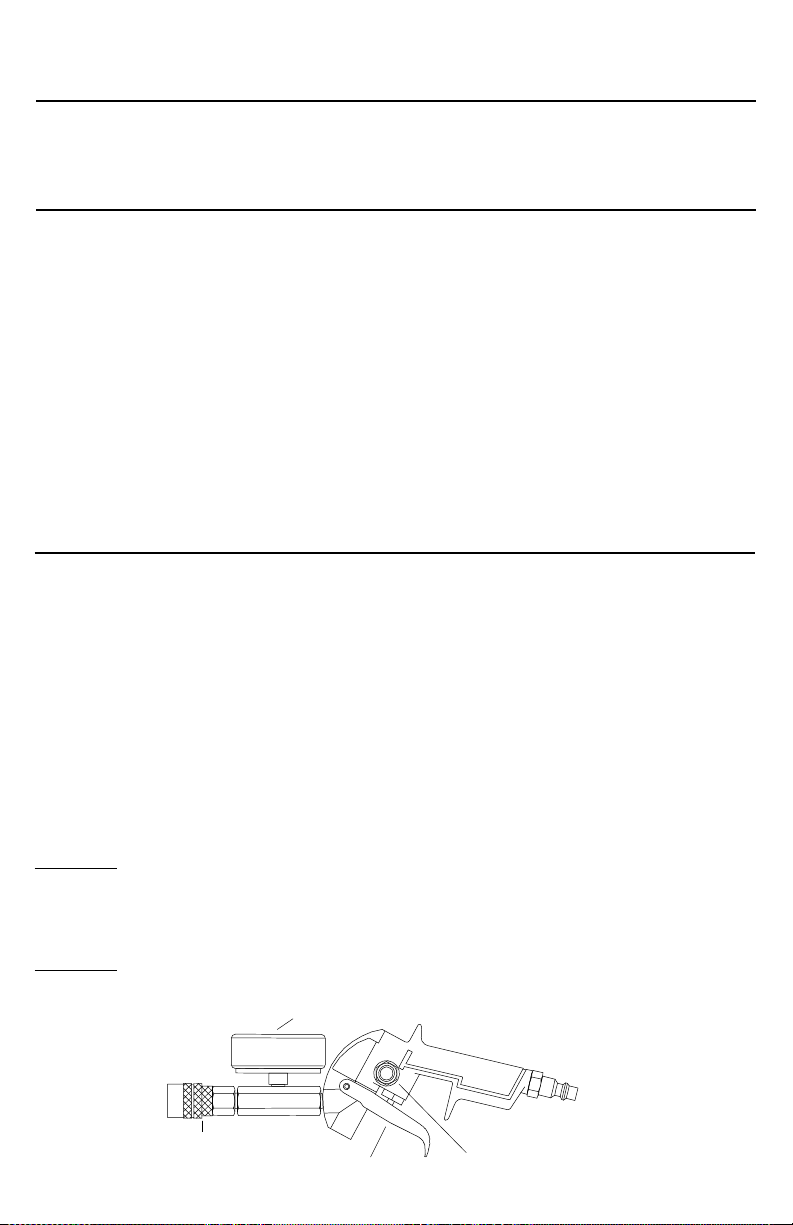

Bleeder Valve
Quick Connect Stud
Inflation Trigger
Quick Connect
Coupler
Gauge
*Tolerance: ±3%

TLC LITE COMPRESSOR KIT
USER MANUAL
REBUILDABLEPRESTAHEAD
Overtime,tubelesssealantcanclogtheinternalsoftheInatorandmakeithardtosetupyour
tires. That’s why we designed the Presta Head attachment to be easily rebuildable, so you can
clean it periodically and maintain maximum performance. Refer to the diagram below for assembly
instructions.
HEAD CAP
3MM O-RING
HEAD
1MM O-RING
QUICKCONNECTSTUD(M)
COMPRESSOR MAINTENANCE & REPAIRS
a. Drain Coil Hose and tank after each use.
b.Replacecompressorairlterelementperiodically.Replacementfrequencydependsonoperating
frequency and operating environment. For frequent use in dusty environment, we recommend that
youreplaceairlterelementatleastonceamonth.
c.Regularlycleandustanddirtfromcompressorcoolingnsand/ormotorhousing.
d. Your air compressor is equipped with a permanently lubricated, maintenance-free motor. Never
try to lubricate the compressor.
e.AllrepairsshouldbeperformedbyManufacturerorManufacturer’sAuthorizedService
Agencies only.
f. For complete information regarding VIAIR Warranty, please visit: www.viaircorp.com/warranty
SPECIFICATIONS:
00071–TLCLITECOMPRESSORKIT:(CECertied)
PartNumber: 00071/TLCLITE
Voltage: 12-Volts
Max. Amp Draw: 13-Amps
Recommended Fuse: 15-Amps
Motor Type: Oil-less, Permanent Magnetic
Max.WorkingPressure: 105PSI*
Max.DutyCycle(@72ºF&100PSI): 10%
MinutesOn/O(@72ºF&100PSI): 6On/54O
Max. Ambient Temperature: 158°F
Min.AmbientTemperature: -40°F
Auto. Reset Thermal Protection: Yes
* Do not exceed compressor’s max working pressure to prevent damage to the compressor.

TLC LITE COMPRESSOR KIT
USER MANUAL
PERFORMANCEDATA
PSI CFM A BAR LPM A
0 1.30 7 0 43.5 7
10 1.00 91.0 28.0 9
20 0.95 10 2.0 25.5 11
30 0.90 11 3.0 22.7 11
40 0.85 11 4.0 20.7 12
50 0.77 12 5.0 18.3 12
60 0.72 12 6.0 16.3 12
70 0.65 12 7.0 13.7 12
80 0.60 12 8.0 11.7 12
90 0.54 12 9.0 10.0 11
100 0.48 12

TLC LITE COMPRESSOR KIT
USER MANUAL
ABOUTCOMPRESSORDUTYCYCLE:
Duty cycle refers to the amount of time a compressor can be
operatedinagiventimeperiodat100PSI,andastandardambienttemperatureof72°F.Itis
commonlyexpressedinpercentageformat:Compressorontime÷(ontime+otime)=DutyCycle%.
ONE-HOURDUTYCYCLE  MINUTESON/
(100PSI@72°F) MINUTES OFF
9%    5Min.On/55Min.O
10%    6Min.On/54Min.O
15%    9Min.On/51Min.O
20%    12Min.On/48Min.O
25%    15Min.On/45Min.O
30%    18Min.On/42Min.O
33%    20Min.On/40Min.O
50%    30Min.On/30Min.O
100%    1HourRunTime
NOTE:Allcompressors,regardlessofrateddutycycle,requiresucientresttimeinbetweencycles
to allow for partial or complete heat dissipation. Heat dissipation rates may vary depending on
ambient temperatures and operating conditions.
ABOUTRATEDWORKINGPRESSURE:
To ensure trouble free service life of your compressor, always operate compressor within rated
workingpressureofthecompressor.Neveruseapressureswitchwithahighercut-opressure
than compressor’s rated working pressure.
WIREGAUGEGUIDE12-VOLT:
Amp Draw
Length of wire from battery to
compressor(infeet)
510 15 20
516 16 16 14
10 16 14 12 10
15 16 12 10 10
20 14 10 10 8
25 14 10 86
30 12 10 86
40 12 8 6 6
50 10 6 6 4
60 10 6 4 4

TLC LITE COMPRESSOR KIT
USER MANUAL
THISPAGEINTENTIONALLYLEFTBLANK

TLC LITE COMPRESSOR KIT
USER MANUAL
LIMITEDWARRANTY:
VIAIR® Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in
workmanship and materials for a period of one year from its original date of purchase. To receive warranty service or repair, please
contact VIAIR® Corporation.
Returnsshouldbemadewithinoneyearofthedateofpurchase,afteraReturnGoodsAuthorization(RGA)numberhasbeen
assigned by VIAIR® Corporation.ToobtainRGA,faxacopyofyourreceiptto(949)585-0188.Forcompletewarrantydetails,please
visit: www.viaircorp.com/warranty
PLEASE NOTE:
THISWARRANTYCOVERSPRODUCTDEFECTSONLY;ITDOESNOTCOVERINCIDENTALORCONSEQUENTIALDAMAGES
ASRESULTOFMISUSEORABUSE.
This Manual is proprietary to VIAIR® Corporation and no ownership rights are hereby transferred. No part of the Manual shall be used,
reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial
purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of VIAIR®.
VIAIR® does not make any representations, warranties or guarantees, express or implied, as to the accuracy or completeness of the
Manual. Users must be aware that updates and amendments will be made from time to time to the Manual. It is the user's responsibility
to determine whether there have been any such updates or amendments. Neither VIAIR® noranyofitsdirectors,ocers,employees
oragentsshallbeliableincontract,tortorinanyothermannerwhatsoevertoanypersonforanyloss,damage,injury,liability,costor
expense of any nature, including without limitation incidental, special, direct or consequential damages arising out of or in connection
with the use of the Manual.
15EDELMAN•IRVINE,CA92618
TEL:(949)585-0011•FAX:(949)585-0188
www.viaircorp.com
R1-031822© VIAIR® Corporation
