Vibradorm VFF/CDL-BF-07 User manual

For adjustable beds with a
VIBRADORM dual drive
V-MAT-Basic
Radio transmitter
VFF/CDL-BF-07
with Bluetooth-Technology
Operating Instructions

2
Foreword
Revision history
Version Date
1.0 0 1.04.2019
Change
First edition
In your own interest
Read these operation instructions and
keep them in a safe place. Observe the
safety instructions.
Disclaimer
We would like to point out that the
company VIBRADORM GmbH will not
assume any liability for injuries or damage
that occurs as a result of
■ non-observance of these operating
instructions,
■ changes to the product that were not
approved by VIBRADORM GmbH, or
■ the use of spare parts not
manufactured or released by
VIBRADORM GmbH, or
■ plug-in parts not manufactured or
released by VIBRADORM GmbH.
Manufacturer's address
VIBRADORM GmbH
Relystraße 38
64720 Michelstadt
GERMANY
Tel.: ++49 (0)6061 / 94 44 0
Fax: ++49 (0)6061 / 94 44 10
http://www.vibradorm.de
E-Mail: [email protected]
Foreword

3
Table of contents
Foreword 2
Revision history 2
In your own interest 2
Disclaimer 2
Manufacturer's address 2
Table of contents 3
1 General . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 How to use these instructions . . . . . . . . 4
1.2 Information about these operating
instructions. . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety instructions . . . . . . . . . . . . . . . . 4-6
2.1 Intended use. . . . . . . . . . . . . . . . . . . . . . 5
2.2 Improper use. . . . . . . . . . . . . . . . . . . . . . 5
2.3 Specific safety instructions . . . . . . . . . . 6
2.4 Information about radio operation . . . 7
2.5 Electronic medical equipment. . . . . . . 7
Remote control &
dual drive overview . . . . . . . . . . . . . . . . 8
3 Commissioning . . . . . . . . . . . . . . . . . . . . 9
3.1 Inserting the batteries . . . . . . . . . . . . . . 9
3.2 Teach-in process . . . . . . . . . . . . . . . . . . 9
3.3 Teach-in of a second
dual drive (optional) . . . . . . . . . . . . . . 10
4 Operation . . . . . . . . . . . . . . . . . . . . . . . 12
5 Reset to factory settings . . . . . . . . . . . 14
6 Malfunctions / troubleshooting . . . . . 15
7 Technical data . . . . . . . . . . . . . . . . . . . 15
8 Maintenance and cleaning . . . . . . . . 15
9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 16
10 Attachment . . . . . . . . . . . . . . . . . . . . . 17
10.1 Operation via a smartphone
or tablet PC . . . . . . . . . . . . . . . . . . . . . 17
Table of contents

4
1 General
1.1 How to use these instructions
Symbols used
Indicates about a dangerous situation;
potential consequences: death or
serious injury.
Potentially dangerous situation;
potential consequences: slight or
minor injuries.
General information;
Information that is important for the
function or operation, or that will
facilitate operation or assembly.
1.2 Information about these
operating instructions
These operating instructions serve the
successful and safe use of the radio
transmitter VFF/CDL-BF-07.
The operating instructions will help you
to avoid dangers, and minimise repairs
and failures.
These operating instructions were
compiled with great care. No liability
will be assumed for the accuracy and
completeness of the data, images or
drawings, unless prescribed by law.
Subject to technical amendments that
serve continuous product improve-
ment without prior announcement!
2 Safety instructions
The radio transmitter VFF/CDL-BF-07
can be used by children aged 8 and
upwards and by persons with limited
physical, sensory or mental aptitude or
lack of experience and/or knowledge if
they are supervised or have received
instruction from a person responsible for
their safety as to how the radio
General
Warning
Caution

5
Safety instructions
transmitter is used and the associated
risks.
Children may not play with the radio
transmitter.
Children may not clean or service the
device without supervision.
2.1 Intended usage
The radio transmitter VFF/CDL-BF-07 is
designed for:
• operating VIBRADORM dual drives.
• use within the home
The radio transmitter VFF/CDL-BF-07 is
only designed for the designated
purpose. Any other use is deemed
improper and can lead to accidents
or the destruction of the device.
This will lead to immediate invalidation
of the warranty and any warranty
claims by the end user with respect to
the manufacturer.
2.2 Improper usage
Please observe the following
information about improper usage.
The radio transmitter VFF/CDL-BF-07
may not be used
• with a medical product or installed
in a medical product,
• in an environment in which there
are inflammable or explosive gases
or vapours (e.g. anaesthetics),
• in damp environments,
• outdoors,
• in applications that are washed in
mechanical washing systems,
• for lifting and lowering of loads, in
craftsman or industrial areas or in
the household.
Caution
Warning

6
Safety instructions
2.3 Specific safety instructions
The following safety instructions serve
to protect you, third parties and the
equipment, and must therefore be
adhered to strictly.
Operating environment
• The radio transmitter may not come
into direct contact with damp or
water. The radio transmitter is only
suitable for dry indoor rooms.
• When switching from cold to warm
environments, allow the radio
transmitter time to adjust to the
ambient temperature for a few hours
before use, otherwise it may suffer
damage as a result of
condensation.
• Never use the radio transmitter close
to devices that emit strong
electromagnetic fields. This could
impact on its function.
• Also avoid environments exposed to
direct sunlight, high temperatures,
cold, damp or wet.
The device
• Check first whether the housing is
damaged. If this is the case, do not
use the radio transmitter but contact
the supplier for a replacement.
• For safety reasons, it is prohibited to
make any unauthorised changes to
the radio transmitter. Do not open
the housing of the radio transmitter,
except to change the batteries,
otherwise the warranty will become
void.
Operation
• The radio transmitter only functions
correctly if it is commissioned and
used properly.
• To avoid injury, never allow children
or other vulnerable persons to use
the radio transmitter unsupervised.
• Radio signals can pass through walls
and ceilings!. Only use the radio
transmitter in the room in which the
adjustable bed is located!
Caution

7
Safety instructions
2.4 Information about radio
operation
Please note that the transmitter range
depends on the local conditions. It
may impact on other devices
operated by radio, for instance
WLANs, cordless phones or microwave
ovens.
Transmission / receiving frequency:
2.4GHz ISM band.
Devices according to the standard of
the Bluetooth SIG transmit as Short
Range Devices (SRD) in a license-free
ISM band (Industrial, Scientific and
Medical band) between 2.402 GHz
and 2.480 GHz.
2.5 Electronic medical equipment
This product is designed and
manufactured according to the
Standard DIN EN 60335-1 (Safety of
Household and similar Electrical
Appliances) and carries the CE mark.
If you use a Medical Device such as
pacemaker you may wish to contact
your specialist to answer any questions.

8
Remote control & dual drive overview
111222
333444
555666
777
sss
ttt
s Status LED
1 All drives up
2 All drives down
3 Back drive up
4 Back drive down
5 Leg drive up
6 Leg drive down
7 Torch LED on/off
t Torch LED
b Battery compartment
l Teach-in button
lll
bbb

9
Commissioning
3 Commissioning
3.1 Inserting the batteries
Insert the supplied batteries (2x 1,5V
AAA LR03) into the battery compart-
ment as shown in the picture. Ensure
that the batteries are inserted in the
right direction (+/-)!
Once the batteries have been inser-
ted, close the battery compartment
lid again and the radio transmitter is
operational.
3.2 Teach-in process
A teach-in process must be carried
out to enable the radio transmitter
and the dual drive V-MAT-Basic to
communicate with each other.
This teach-in process is normally
carried out by the manufacturer and
you can skip this step.
After the batteries inserted, have been
the Status LED and the Keypad illu-s
mination are flashing.
• Briefly press any button.
• The status LED and the keypad s
illumination flash alternately.
• Press button on the dual drive for l
approx. 1 s.
• The back adjustment motor moves
briefly up/down.
• The status LED goes off, the s
keypad illumination lights up
constantly.
• The teach-in process has been
completed successfully.

10
3.3 Teach-in of a second dual
drive (optional)
The radio transmitter VFF/CDL-BF-07
can operate two dual drives
simultaneously (Parallel function).
For this purpose, a teach-in process for
the second dual drive must be carried
out.
After you carried out the teach-in
process for the first dual drive (see
page 9), you carry out the same
process for the second dual drive:
• Press the buttons and on the 1 2
radio transmitter at the same time
and keep them pressed for approx.
3 seconds until the status LED s starts
flashing.
• Release the buttons now.
• The status LED and the keypad s
illumination flash alternately.
• Press button on the second dual l
drive for approx. 1 s.
• The back adjustment motor moves
briefly up/down.
• The status LED goes off, the s
keypad illumination lights up
constantly.
• The teach-in process has been
completed successfully.
This function can only be switched off
by resetting the radio transmitter to its
factory settings (see page 9).
The parallel function will not
synchronize the drives, they will just
move simultaneously. Depending on
the load of each drive, over time there
might show differences of the tilt
angles of the back and leg motors.
In this case use button to move all 1
drives completely up. After that the
motors should move parallel again.
Commissioning

12
Operation
111222
333444
555666
777
sss
ttt

13
CommissioningOperation
4 Operation
Status LED s
When a button is pressed, this LED
lights up. If the button is kept pressed,
the LED flashes.
Background illumination (optional)
The radio remote control is equipped
with a keypad background illumi-
nation. It is switched on, when the
remote control is moved or any button
is pressed, and turns off after approx. 5
seconds if no other button is pressed,
the same button is kept pressed or the
remote control is moved again.
Bed adjustment
Before making any adjustments:
Check that neither you nor anyone
else or any pets are at risk from to the
moving parts of the adjustment
mechanics!
Both drives upwards.1
Both drives downwards.2
3 Back adjustment upwards.
4 Back adjustment downwards.
5 Leg adjustment upwards.
6 Leg adjustment downwards.
As long as you keep the buttons
pressed, the drives will move.
Torch function
Do not look directly into the torch LED!
Pressing button for approx. 3 7
seconds activates the torch LED . t
The LED will switch off automatically
after approx. 20 seconds.
Pressing button again shortly will 7
switch off the torch LED.
If you keep the button pressed, the
LED remains switched on. It then goes
off about 20 seconds after releasing
the button.
Caution
Caution

14
Reset to factory settings
LED
5 Reset to factory
settings
Resetting the remote control:
• Simultaneously press and hold the
buttons , and or , and 3 5 7 2 4
6.
• The status LED starts flashing.s
• When the status LED is steady, s
release the buttons.
• The status LED goes off, the s
remote control is reset.
Resetting the double drive:
• Press button on the double drive l
for approx. 10 s.
• The drive for the leg adjustment
moves briefly to confirm a reset to
the factory settings.

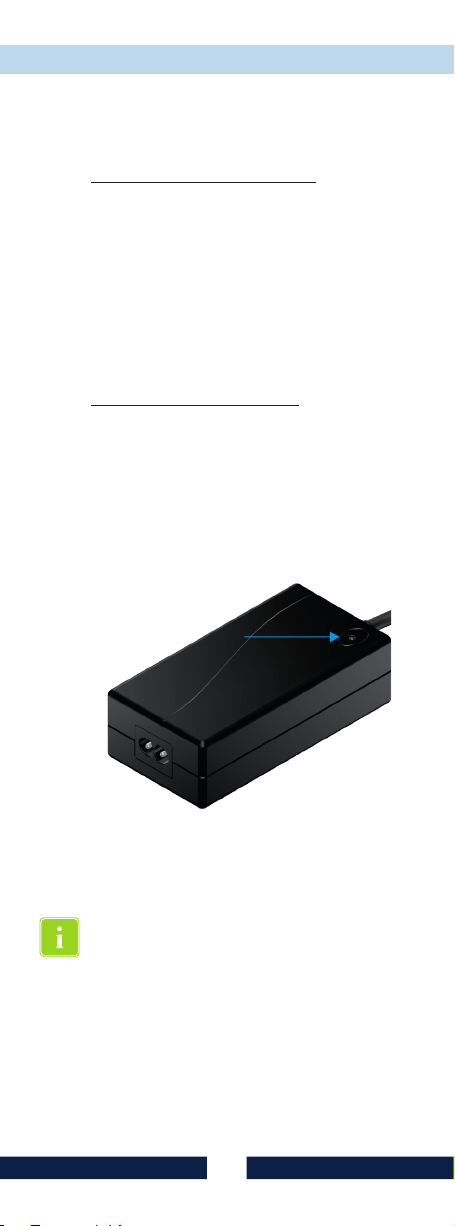

• Remove the plug from the mains
socket and wait until the green LED
on the power supply goes off.
• Then reconnect the mains plug.
• The double drive is now returned to
its default settings.
PLEASE NOTE:
After resetting the double drive to the
factory settings, the pairings of remote
controls and Apps are removed, the
pairing process has to be carried out
again.

15
Tech. data, maintenance, disposal
6 Malfunctions /
troubleshooting
Before contacting the service office of
the furniture manufacturing company,
please try the following in the event of
a malfunction:
• Check to ensure that the dual drive
VMAT-Basic is connected to the
mains supply (power socket).
• Check (e.g. with a lamp) that the
power socket actually works (fuse).
• Replace the batteries of the radio
transmitter (see page 8).
• Carry out the teach-in process
again (see page 9).
• Reset the dual drive to the default
settings (see page 14) and then
carry out the teach-in process again
(see page 9).
7 Technical data
Operating voltage . . . . . . . . . . . . 3VDC
via batteries
Power consumption
Idle. . . . . . . . . . . . . . . . . . . . . . . . typ.1µA
Operational . . . . . . . . . . . . . . . . . . . 2mA
Transmission freq. . . 2,4GHz (ISM-Band)
Transmission range . . . . . . . . . 10 - 50m
Housing material. . . . . . . . . . . . . . . . ABS
Protection grade . . . . . . . . . . . . . . . IP20
Battery type . . . 2 pcs. 1,5V AAA (LR03)
Weight (incl. batteries and
packaging) . . . . . . . . . . . . approx.. 80g
8 Maintenance and
cleaning
The radio transmitter is maintenance-
free, apart from the replacement of
the batteries.
Clean the housing with a slightly damp
cloth. Do not use any aggressive
detergents or scouring agents.

16
9 Disposal
This symbol on the product or its
packaging indicates that the product
may not be disposed of via the
household waste system. Users have a
duty to dispose of the old equipment
via the collection point for electronic
and electrical scrap. Separate
collection and correct disposal of your
old equipment helps conserve natural
resources and guarantees recycling,
which protects human health and
preserves the environment.
Please contact your local council or
waste disposal authority to find out
where the collection points are for
your old equipment.
Disposal of the manual radio
transmitter VFF/CDL-BF-07 in Germany
is subject to the Electrical Equipment
Act, internationally to the EU Directive
2011/65/EU RoHS or the respective
national laws.
(The product is not subject to the EU
Directive 2002/96/EC (WEEE) and its
supplement EU Directive
2003/108/EC.)
Disposal of batteries in the EU is
subject to the Battery Directive
2006/66/EU, in Germany to the Battery
Act (BattG) dated 25.6.2009, and
internationally to the respective
national laws.
Tech. data, maintenance, disposal

10 Attachment
10.1 Operation via a smartphone or
tablet PC
The smartphone or tablet must support
Bluetooth 4.0 (Bluetooth Smart, BLE,
Bluetooth Low Energy)!
You will need to download and install
an app to operate the dual drive via
your smartphone or tablet PC.
1)
The app is available for both Android
2)
and iOS systems.
Once the app has been installed,
please proceed as follows:
• Activate the Bluetooth function on
your smartphone or tablet PC. You
will usually find this in the menu
>Settings<. Please check that the
function is activated.
• Press the button on the dual drive l
for approx. 1 second (see page 8).
• Now start the connection process
on your smartphone / tablet PC.
Usually the message 'Searching for
devices' will be displayed.
• If the dual drive is still in its default
settings, the smartphone will find a
device called 'V-Mat-…', or a name
that the dual drive was previously
given.
• Now activate the connection
process (pairing; bonding) on your
smartphone. This may take a few
seconds. As soon as the connection
had been made, the app can be
used.
There is a description of the app on
the above-mentioned download
website.
1) The app for Android operating systems is
available on Google Play.
2) ® ®
The app for iOS (Apple ) operating systems is
® ®
available on Apple iTunes .
Attachment
17

Document is subject to change without prior
announcement.
© 2019 VIBRADORM GmbH. All rights reserved.
It is strictly forbidden to duplicate this
document in any form without the prior
consent of the company VIBRADORM GmbH.
VIBRADORM GmbH is not liable for any errors in
this document or for any ensuing damages
connected to the delivery, performance or
use of this material.
VIBRADORM GmbH
Relystrasse 38 • D-64720 Michelstadt
eMail: [email protected]
Internet: www.vibradorm.de
© VIBRADORM GmbH, April 2019
Drawing No. 080.000.509
Item No. 006115
