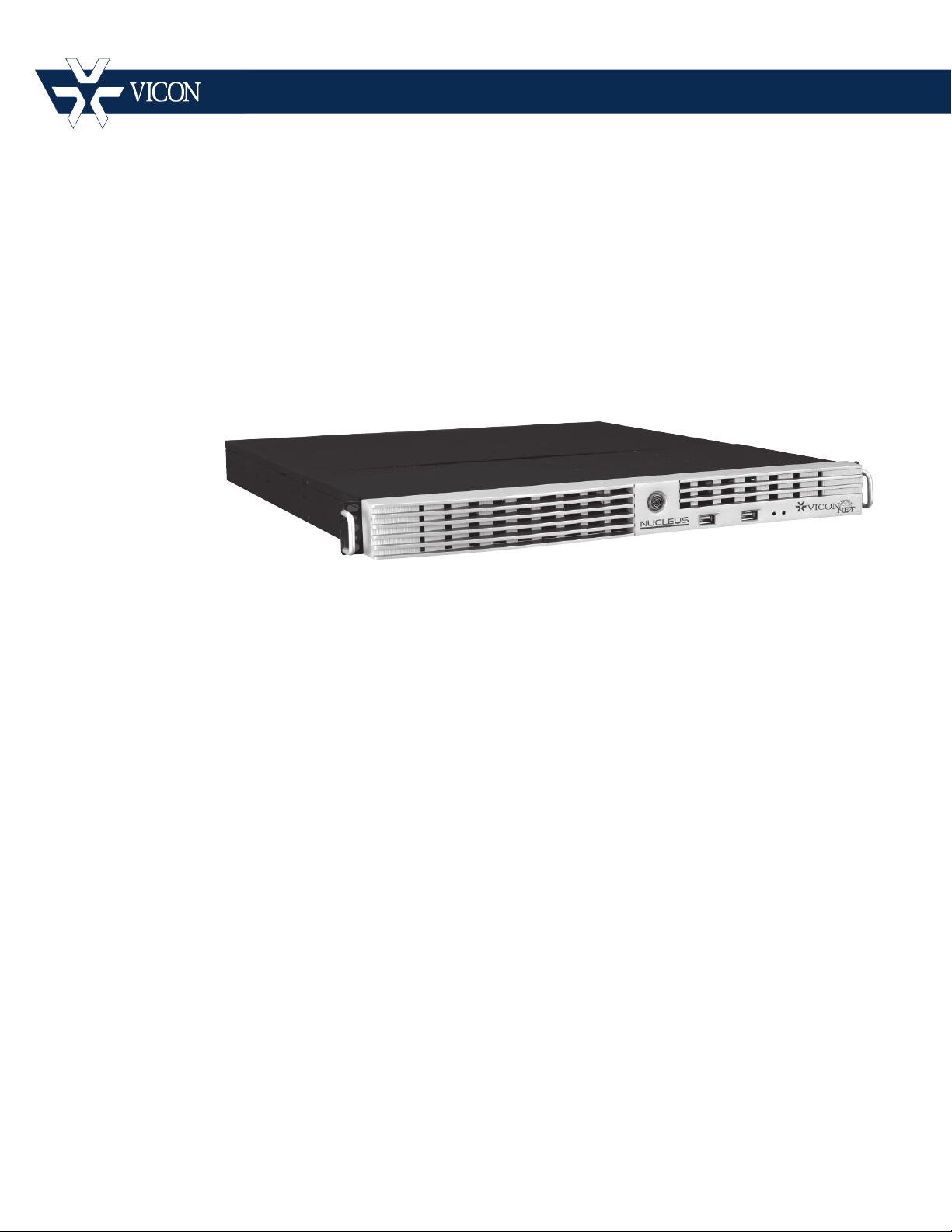

Vicon 239-03-00 Series User manual

www.vicon-security.com
Installation & Conguration Guide
XX239-03-00
ViconNet Nucleus
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
Vicon Industries Inc.
Tel: [phone] Fax: [phone] Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Document Number: 8009-8239-03-00
Product specications subject to change without notice.
Issued: 715
Copyright © 2015 Vicon Industries Inc. All rights reserved.

ViconNet
Nucleus Installation &
Configuration
Guide
Topic Page
General 3
Hardware Installation 4
Accessory Kit 4
Unpacking and Inspection 5
Unpacking the Unit 5
Required Items for Installation 5
Unit Components 6
Mounting 8
Installing the VNUC-PCV8 9
Operation 11
Powering On the Unit 11
Powering Off the Unit 11
Using the ViconNet Application 12
Accessing the Configuration Functions 12
Registering Your System 14
Modifying the System Configuration 14
Shipping Instructions 21
Technical Information 22
Vicon, ViconNet, and their logos are registered trademarks of Vicon Industries Inc.
Windows is a registered trademark of Microsoft Corporation. Other company and brand products and service names
are trademarks or registered trademarks of their respective holders

ViconNet Nucleus Installation and Configuration Guide | 3
General
This manual provides information for installing the ViconNet standalone
Nucleus preinstalled on a PC. It is available as a rack-mount unit, VNUC-
PCV8-RK, but will also be available as a tower if required, VNUC-PCV8. The
term VNUC-PCV8 is used in this manual to refer to both units unless
specifically stated otherwise.
This manual focuses installing this Nucleus unit in a ViconNet system. Refer
to the ViconNet software manual for details on setting up ViconNet. The
Nucleus software, VNUC-SWV8, is available and can be installed on a PC
that meets the minimum requirements. Refer to current datasheet.
Refer to our website, www.vicon-security.com, for the latest version of this
manual.

4| ViconNet Nucleus Installation and Configuration Guide
Hardware Installation
This system should only be installed by a qualified technician using common
hand tools and approved materials in accordance with the National Electrical
Code ANSI/NFPA 70, state and local wiring codes.
The rack-mount model, VNUC-PCV8-RK is a 1 RU unit; the VNUC-PCV8 is a
ITX mini chassis (desk-top unit). These units meet requirements for an FCC
Class A computing device and CE
Vicon requires the use of line conditioners, voltage regulators and
uninterruptible power supply (UPS) systems in the electrical power service.
Note
Read all instructions before beginning the installation.
Accessory Kit
The provided accessory kit contains necessary items needed to install and
wire the unit during installation:
Table 1: Accessory Kit
Part Description
CD and Manuals Provides documentation and software (including current
drivers)
Front Door Key Opens the front panel door
Power Cord Used for power connection
Rail Bracket Kit For rack mounting the VNUC-PCV8-RK

ViconNet Nucleus Installation and Configuration Guide | 5
Unpacking and Inspection
All Vicon equipment is tested and inspected before leaving the factory. It is
the carrier’s responsibility to provide suitable delivery.
Inspect the cartons upon delivery and, if damage is present, make detailed
notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a
damage claim as soon as possible.
Open the cartons and inspect the equipment for damage. Save the cartons
and packing material. If damage is present, contact the carrier and file a
damage claim immediately. If the equipment must be returned for repair,
follow the Shipping Instructions at the end of this manual.
Unpacking the Unit
Carefully open the carton. Remove the accessory kit and the VNUC-PCV8-
RK from the box and place them on a large, flat working surface. Open the
accessory kit and verify the contents against the list in Table 1.
Required Items for Installation
To properly install the VNUC-PCV8 there must be simple hand tools
available such as a screwdriver, wrenches, pliers and wire cutters/strippers.
To setup for operation there must be a keyboard and a mouse available to
operate the GUI.

6| ViconNet Nucleus Installation and Configuration Guide
Unit Components
This section describes the VNUC-PCV8-RK front and rear panels.
Note
Ports may vary subject to variations in hardware, but will be similar in
function.
Front Panel Controls and Connections
•Power Switch: Used to power on the unit.
•Power LED Indicator: Blue LED used to display the power status
(ON means unit on and OFF means unit off).
•DVD Drive: Used as a high-capacity removable data drive.
•LED Viewing Holes: Used to view the status of the LEDs without opening
the front door.
•Front Door: Used to protect the front panel from unauthorized use.
•Keyed Lock: Used with the provided key to lock the front door.
•HDD LED: Red LED, blinks when disk is in use.
•USB Ports: Used for optional devices.

ViconNet Nucleus Installation and Configuration Guide | 7

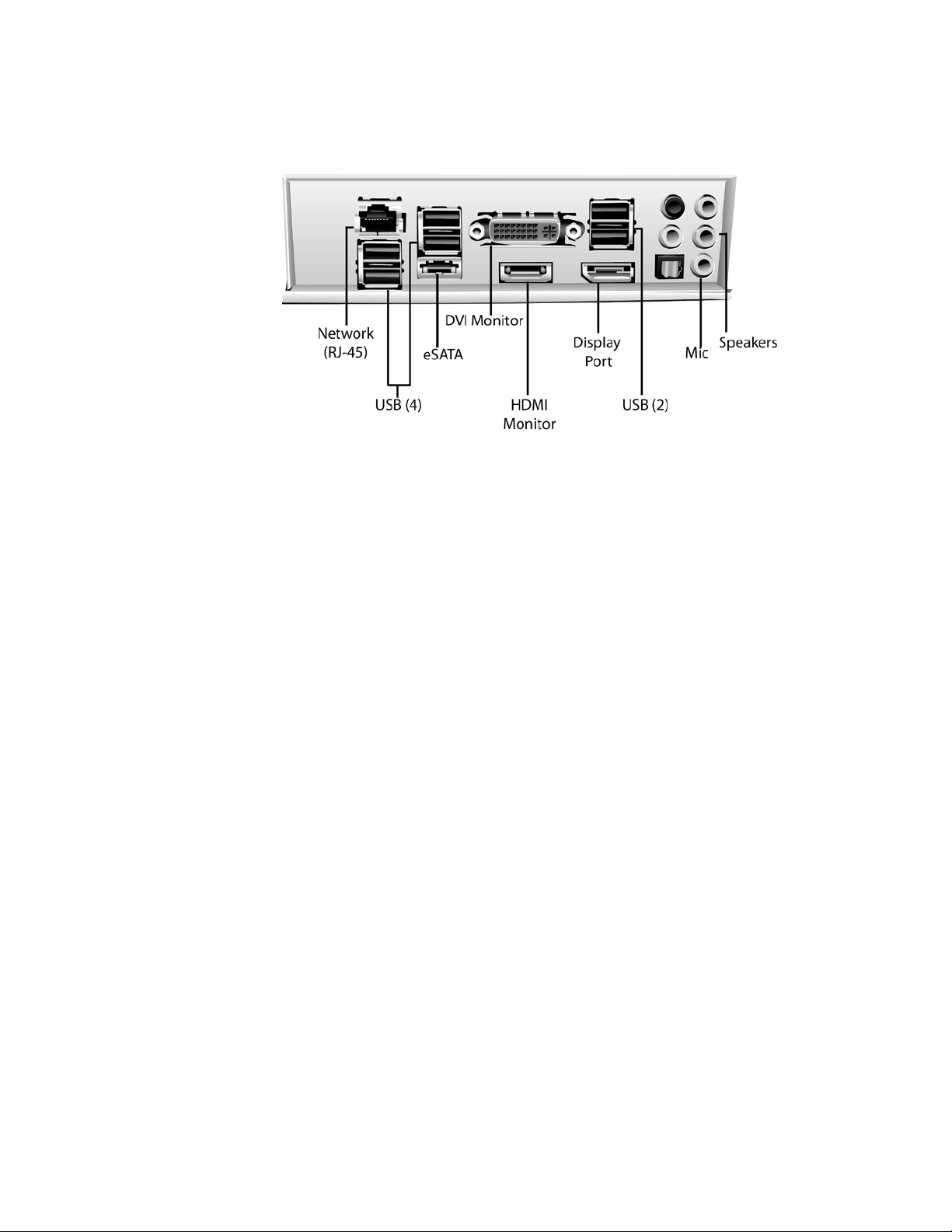

Rear Panel Controls and Connections
•Audio – Mic In/Speaker Output: Jacks used for audio input and output.
•Power Receptacle: Used to connect the provided power cable.
•Keyboard Port: USB connector used to connect a standard PC keyboard.
•Mouse Port: USB connector used to connect a mouse.
•USB Connectors: Used for optional devices.
•Network Port: RJ-45 connectors; use to connect to a LAN/WAN
(100/1000 Base T).
•Monitor: DVI and HDMI connectors provided. Display Port also available.
•External Storage: eSATA connector.
•Display Port: For monitors supporting the Display Port interface.

8| ViconNet Nucleus Installation and Configuration Guide
Mounting
There are two types of mounting, depending on the model, either ITX mini
chassis desktop or in a rack.
Desktop
The desk or table must provide a surface of suitable strength for the unit’s
weight. In addition, there must be area left around the cabinet to provide
suitable airflow for cooling. Do not place heavy items on the cover.
Rack
The rack-mount model is designed to be mounted in a standard 19-inch
(483 mm) wide vertical rack. A rail bracket kit is included to provide extra
support for the unit when it is installed into the rack.
There are two adjustable rail brackets (right and left) provided. Adjust the
length of the brackets so they can be secured to the front (1 screw) and rear
(2 screws) on each side of the rack cage with hardware appropriate for the
rack.
Slide the Nucleus into the rack on the brackets and secure with two screws
on each side through the rack-mounting ears.
Note
It is recommended that at least 1 RU of space [1.75 in. (44.45 mm)] be left in
between multiple units mounted in the same rack for cooling purposes.
Warning
Failure to leave space for cooling between recorders may result in
malfunctioning and possible failure of the unit.

ViconNet Nucleus Installation and Configuration Guide | 9
Installing the VNUC-PCV8
After the unit is mounted permanently, follow the steps in this section to
install the hardware.
•Step 1: Connecting the Hardware, below
•Step 2: Connecting the Power Supply
Important Notes
The connection of external hardware may require simple hand tools. Do not
apply power or plug-in the unit to any outlet until instructed to do so.
Disable the AC power to prevent installer injury and damage to the unit.
Before beginning the hardware installation, ensure that the following
environmental conditions have been met:
•The surface on which the ViconNet hardware is to be placed must be
level.
•The room or area designated for the ViconNet hardware installation
must be well ventilated.
Step 1: Connecting the Hardware
This procedure describes the various hardware connections that must be
performed in order to operate the system.
1. Perform the following connections: (refer to Front and Rear Panel diagrams).
1.1 Locate the keyboard on a flat surface near the unit. Connect the
keyboard by inserting its connector into the correct port.
1.2 Locate the mouse on a flat surface near the unit. Connect the mouse by
inserting its connector into the correct port.
1.3 Position the monitor in a permanent fixed location near the unit. Connect
the monitor by inserting its DVI or HDMI connector into the DVI Monitor
or HDMI port (a DVI-VGA adapter can be used if required).
1.4 Insert one side of a standard LAN cable to the Network Port’s RJ-45
connector. Insert the other RJ-45 connector into the LAN side of the
network.
1.5 Connect external hardware devices to the relevant terminal.
1.6 Insert the provided 120 VAC power cable into the unit's power
receptacle. Do not connect the remaining end to a power receptacle until
instructed. If using 230 VAC power, it is necessary to obtain a suitable
power cord for use. This cable is a standard computer 230 VAC power
cord.
2. Connect the monitor to the power source and power on.

10 | ViconNet Nucleus Installation and Configuration Guide

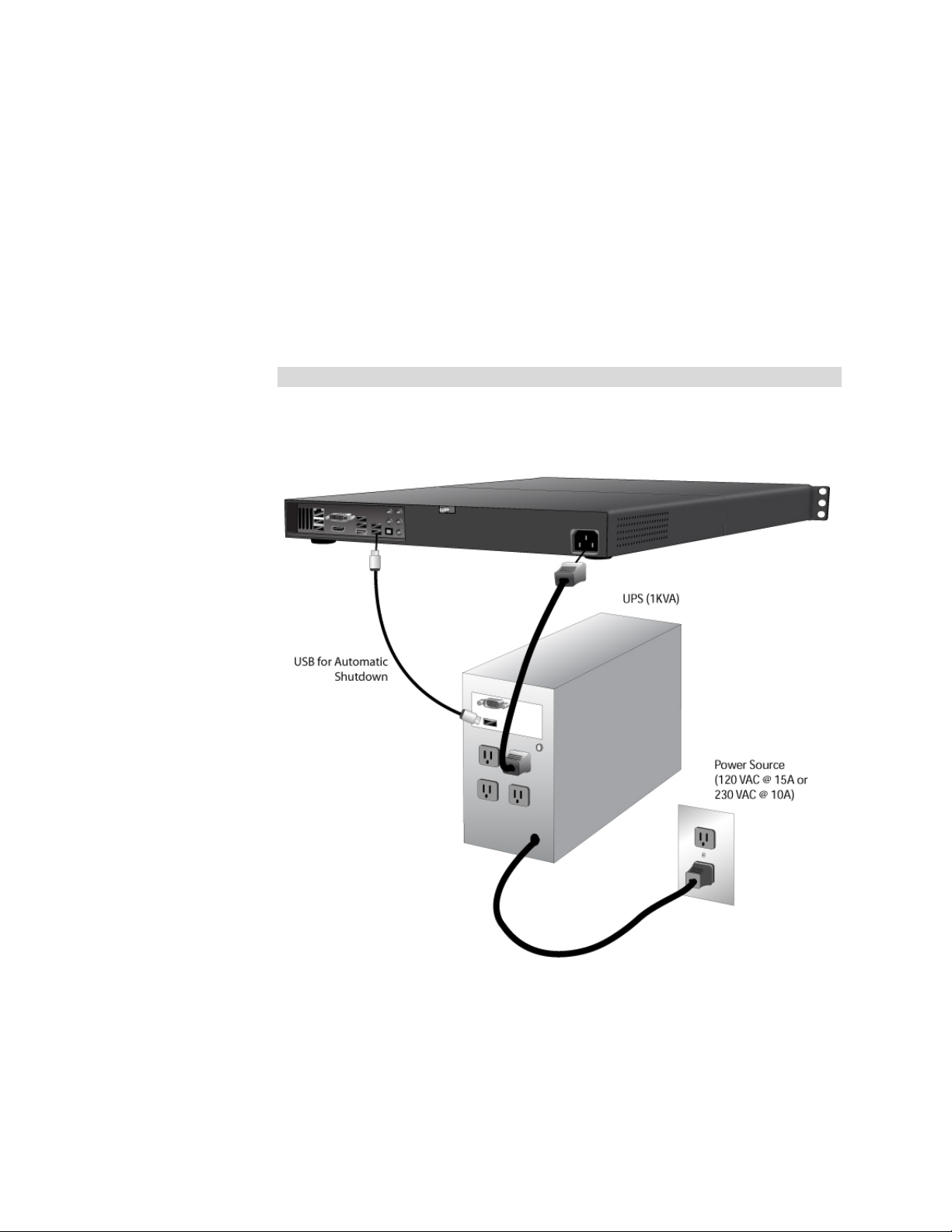

Step 2: Connecting the Power Supply
To ensure that the unit is protected during a power failure and that no
important data is lost, it must be connected to an uninterruptible power
source (UPS) before use.
To connect the UPS:
1. Connect the power cord to the UPS power receptacle.
2. Connect the UPS power cord to the wall outlet.
3. Power on the UPS and ensure that it is working properly.
Note
Refer to your UPS device’s User Manual for a more detailed explanation of
how to connect it properly.

ViconNet Nucleus Installation and Configuration Guide | 11
Operation
Powering On the Unit
To power on the system:
With the unit set up as shown in Installation, open the front panel cabinet and
press the front panel pushbutton Power Switch. The button does not lock into
position; it remains in the out position, which is its default position, even when
the system is running.
Important
Do not press any keyboard buttons at this time.
When the unit completes booting, the Main Screen is displayed.
Powering Off the Unit
To power off the system:
With the unit booted and operational, press the Shutdown button in the Site
Setup window. Follow the screen prompts and the system returns to the
ViconNet desktop. Use the Start button to completely shut down the system.
OR (this is not recommended, due to the possibility of data loss)
Momentarily press the power switch. The system switches off, component by
component.

12 | ViconNet Nucleus Installation and Configuration Guide
Using ViconNet
Accessing the Configuration Functions
The configuration functions are performed via the System Settings window
applicable to a selected site. This unit will be configured to be the Nucleus of
the system.
To access the System Settings window:

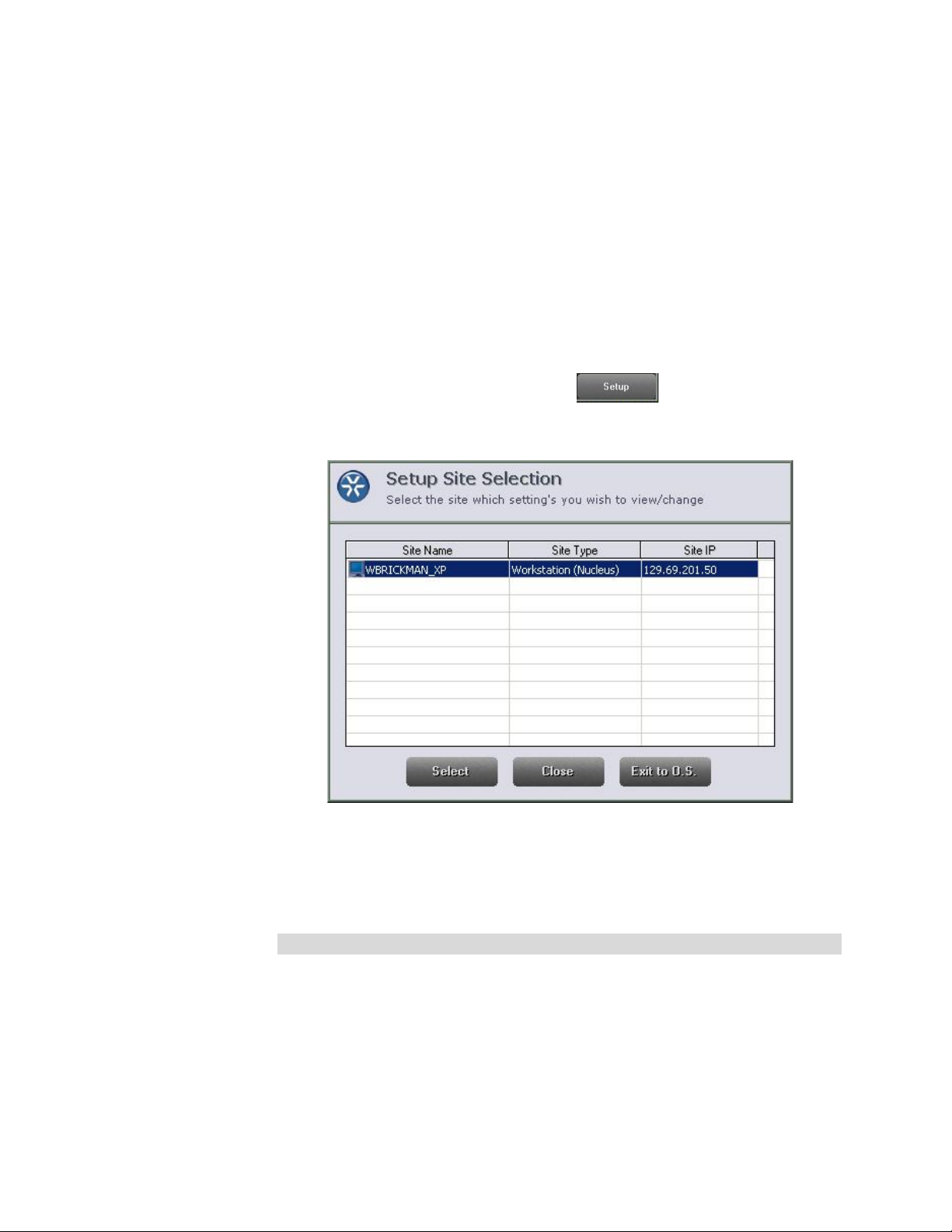

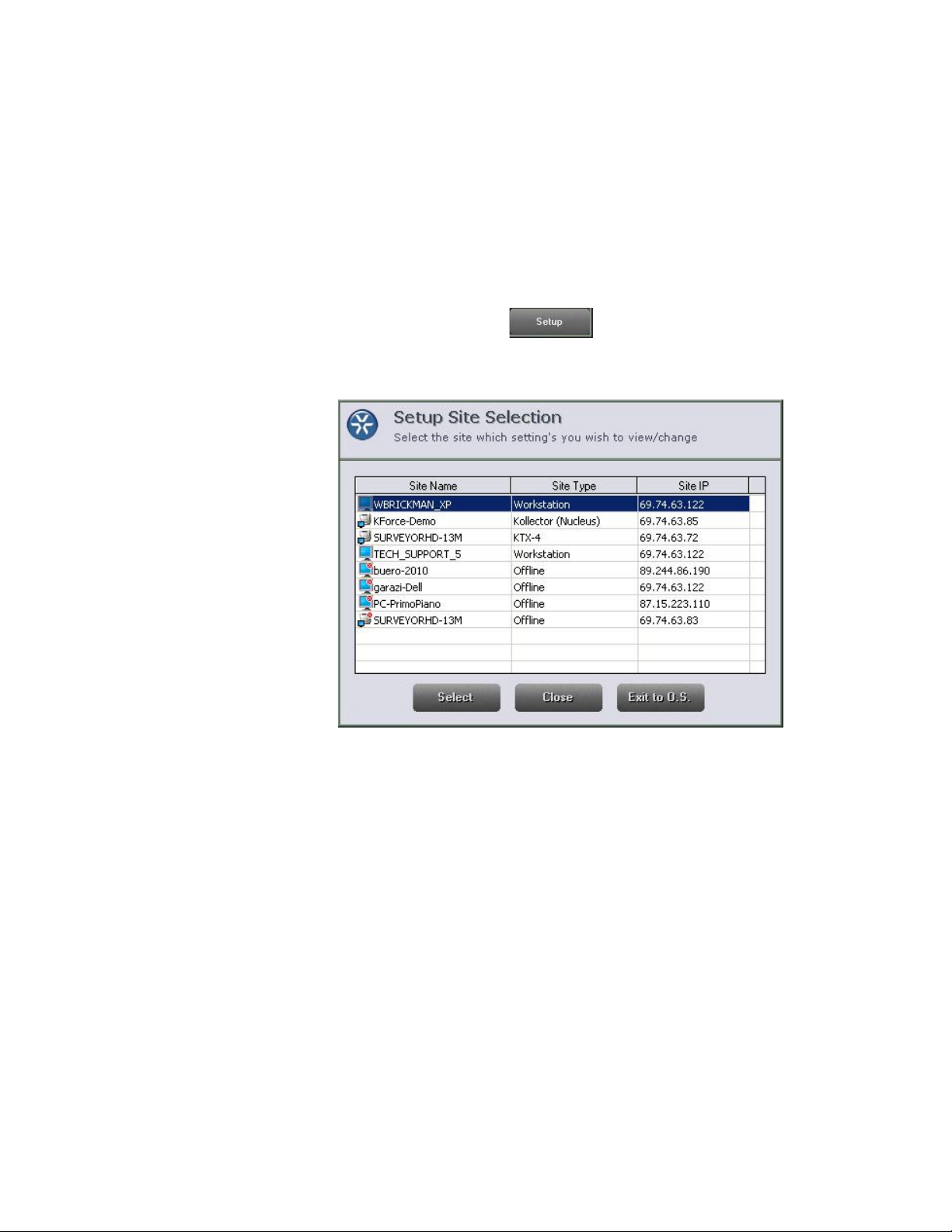

1. From the ViconNet Main window, click . The Setup Site
Selection window is displayed, showing a list of all currently connected
transmitters and Workstations:
The local site always appears at the top of the list. The Nucleus site is listed
second, displayed as (Nucleus), unless the local site is the Nucleus, as in
the case shown.
The Exit to O.S. button enables you to exit to the Operating System and to
close the ViconNet application.

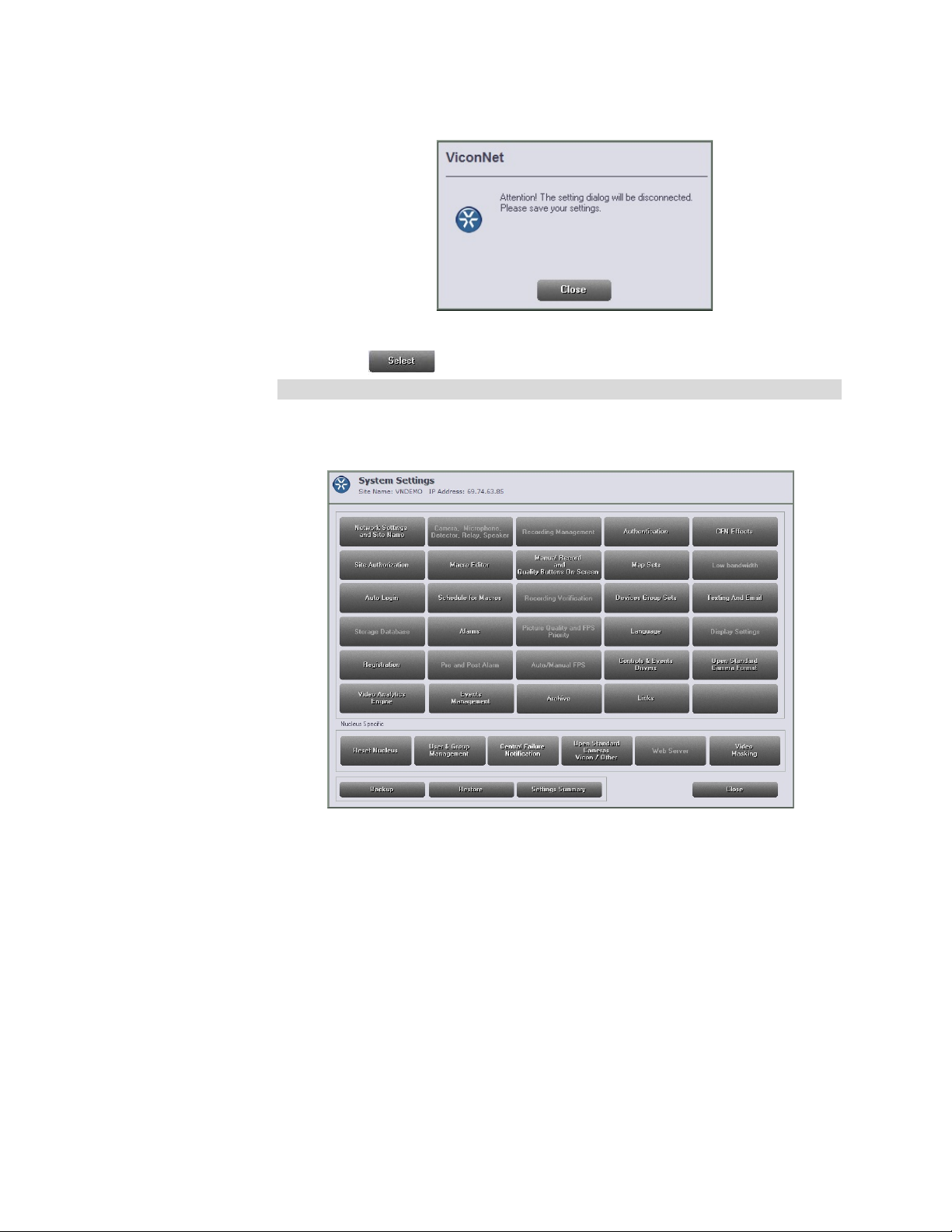

Note
There is a limit to the amount of time you can leave the setup screen open
without working in it. Therefore it is important to save your settings each time
you make a change. Before ViconNet will shutdown in this situation, the
following warning screen will display.

ViconNet Nucleus Installation and Configuration Guide | 13
2. Select the site for which you want to configure the network setup and
click . The System Settings window is displayed.
Note
The VNUC-PCV8 can configure all sites in the network.
The System Settings window has the following options:
When the function is not supported, the associated button is disabled (grayed
out). For example, the VNUC-PCV8 does not support:
•Pre- and Post-Alarm
•Auto/Manual FPS
•Camera, Microphone, Detector, Relay, Speaker
•Auto Record
•Picture Quality and FPS Priority
•Low Bandwidth
•Manual Record and Quality Buttons on Screen
•Record and Record and Display on the Macro Editor

14 | ViconNet Nucleus Installation and Configuration Guide
Note
The Site Name and Site IP information are displayed automatically on this
and subsequent windows.
Registration
The VNUC-PCV7 is delivered fully registered.
Note
If your system includes third party camera(s), they need a license (VN-CAM-
LIC) and to be registered. Third party cameras only need to be registered
once in the Nucleus for the entire system.
Modifying the System Configuration
The ViconNet system default configuration can be modified, depending on
your requirements, as described in the following sections. This site will be
configured as the Nucleus.
Configuring the Network Setup
The network setup parameters are configured individually for each device in
the system, using the ViconNet application installed on each device. When
setting up a network, this unit is assigned as a Nucleus and the other devices
in the network must point to it. Each device (either a transmitter or a
Workstation) has the option to input the Nucleus IP address.
Devices that share the network can connect to the same Nucleus and form a
system, which enables them to connect to each other. This includes the
ability to synchronize multiple devices with the Nucleus time or update all the
time settings to another time zone.
To configure the network setup, you must specify both the master Nucleus IP
on all devices and may choose to specify the backup Nucleus IP addresses
on the device running the master Nucleus. The backup Nucleus setup is
configured only on the master Nucleus device. Refer to instruction manual
XX231 for details on configuring the backup Nucleus.
Notes
If the Nucleus fails, any device that uses that master Nucleus will
automatically shift to local operation mode. This means that it will use the
latest Nucleus configuration from before losing the Nucleus and will keep
operating without a Nucleus.
The Nucleus and backup Nucleus must have fixed IP addresses. DHCP
cannot be used on the site running the Nucleus

ViconNet Nucleus Installation and Configuration Guide | 15
Configuring the Nucleus
The Nucleus takes an active role in the ViconNet system, acting as a central
station that connects all devices running the ViconNet application. This is
why the ViconNet system is designed in a way that will allow it full operation
even if the Nucleus is down. The information on the Nucleus is always sent to
all devices (after any update), so in a case where the Nucleus fails, they can
use that data to operate until the Nucleus is restored. In such cases, only
“new” actions that require the Nucleus, will not work (like adding a new site).
The more devices connected to the system, the more resources the Nucleus
requires. The device holding the backup Nucleus files, which runs at all
times, can also be configured as a safety mechanism for cases when the
system does not operate due to a problem, such as a power failure in the
Nucleus. When there is a failure on the Nucleus device, all systems that were
connected to the Nucleus will display as “not connected.”
Notes
It is not recommended to use a Nucleus with a lower ViconNet version than
the devices on the same network.
For most ViconNet systems, it is strongly recommended that the Nucleus be
run on a dedicated unit. In a large network (more than five sites), it is
required that the Nucleus and backup Nucleus be run on a dedicated unit.
Creating a New Network
This procedure provides a five-step example of how to create a new
ViconNet network using a field-proven method of setup and commissioning.
In this example, we will create a network made up of a number of sites.
•Step 1: Setting the Site’s IP Address
•Step 2: Configuring the Network Setup as a Master Nucleus System
•Step 3: Configuring a Site to Connect to Nucleus
•Step 4: Connecting the Master Nucleus to the Backup Nucleus
•Step 5: Testing the Network
Notes
To prevent problems, it is recommended that you methodically plan your
network ahead of time.
Do not use this procedure to modify an already existing network.
Before beginning, ensure that all CAT5 cables to the transmitters and
Workstations are connected to a hub or switch and that they are properly
wired on each end, per 568B (or 568A). It is important to not mix connection
methods or connect or disconnect cables when the application is running.

16 | ViconNet Nucleus Installation and Configuration Guide
Step 1: Setting the Site’s IP Address
In this step, you will configure the IP address of this site in the network.
1. Go to the site whose IP address you want to set. Then, from the ViconNet
Main window, click . The Setup Site Selection window is
displayed, showing a list of all currently connected transmitters and
Workstations.
2. Select the site name for which you want to configure the network setup and
click . The System Settings window is displayed, as previously
shown.
3. Click . The Network Settings window is displayed.
4. You can change the device's name, if required, by clicking to
open the Change Name window. After you have assigned a new name to the
site, click . The system will reboot.
5. (Optional) To manually synchronize the local device time with all sites
connected to it (the Nucleus), select the Synchronize Time on the Network
option (default=checked).
Note
The system also automatically synchronizes the time every one minute.

ViconNet Nucleus Installation and Configuration Guide | 17
6. (Optional) To synchronize the time with your local time settings, click
and update the time in the displayed Date/Time Properties
window. This is useful if you move from one time zone to another.
7. In the IP Address Settings area, select the Specify an IP address radio
button and set the Local IP address and the Subnet Mask.
Note
The option Obtain an IP address automatically, in the IP Address
Settings area, is only available for a DHCP server and should not be
selected for the Nucleus.
8. Click . The application will reboot.
Step 2: Configuring the Network Setup for a Master Nucleus System
The ViconNet system enables you to configure this Workstation to function
as the master Nucleus in the system.
1. Follow the steps in Registering your System to register your application and
ensure that the words WS FULL VERSION appear in the Current License
Usage area of the Registration window.
2. Go to the site you want as the master Nucleus and follow steps 1 through 3
in Step 1: Setting the Site’s IP Address.
3. In the Nucleus Settings area, select the This Site is the Master Nucleus
checkbox to indicate to the system that this device is running the ViconNet
master Nucleus. When you select this option, the following occurs:
•The local IP address and DNS are displayed automatically in the Nucleus
IP and Master Nucleus DNS name fields.
•The This Site is the Backup Nucleus option is disabled.
4. In the IP Address Settings area, select the Specify an IP address radio
button and set the Local IP address and the Subnet Mask.
5. Click . The application will reboot.

18 | ViconNet Nucleus Installation and Configuration Guide
Step 3: Configuring a Site to Connect to Nucleus
Follow the procedure below to connect a site to the Nucleus.
1. Go to the site you want to setup and follow steps 1 through 3 in Step 1:
Setting the Site’s IP Address.
2. In the Nucleus Settings area, deselect the This Site is the Master Nucleus
checkbox.
3. In the Nucleus Settings area, select the Nucleus IP radio button and enter
the IP address.
4. Click . The application will reboot and the Nucleus name will appear
in the top-left corner of the application, for example, Nucleus: Workstation-
1.
5. Repeat this procedure for each site in the network.
Step 4: Connecting the Master Nucleus to the Backup Nucleus -
optional
Follow the procedure below to setup a backup Nucleus and connect the
backup Nucleus to the master Nucleus.
1. Go to the site that you setup as the Nucleus in Step 1. In the Nucleus
Settings area, select the Backup Nucleus IP radio button and enter the IP
address of the backup Nucleus. By default, 0.0.0.0 is displayed as the
backup Nucleus IP.
2. Click . The application will reboot.
3. Repeat step 1. The name of the backup Nucleus should be grayed out so
that you cannot change it.
Note
If the Nucleus goes down, any device that uses that master Nucleus will
automatically shift to local operation mode. This means that it will use the
latest Nucleus configuration from before losing the Nucleus and will keep
operating without a Nucleus.

ViconNet Nucleus Installation and Configuration Guide | 19
Step 5: Testing the Network
In this final step, you will carry out a number of operational tests to ensure
that the network has been setup properly.
1. In the Main window, ensure that all sites appear in the Site List when they
come online and that you can select a camera from each site by clicking on
it.
2. From the Main window, click . The Setup Site Selection window
is displayed, showing a list of all currently connected transmitters and
Workstations:
3. Ensure that the Site Type column displays the following:
•Kollector for all Kollector types
•Workstation
•IP-Camera-xx
•Offline
If the Site Type column displays the word Other, it means that the
application is not communicating correctly with that site. This can occur if the
network connection is broken between that site and then reconnected (for
example, due to an unplugged network cable) or because of some other
network interruption. To correct this problem, go directly to that site, exit to
the operating system and then restart the application.
