Vicon V1411X-DVC User manual

XX074
V1411X-DVC
Variable Speed Keypad
Installation & Operation Manual
Vicon Part No. 8009-8074-00-00 Rev 101 Section 11
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon Industries Inc. does not warrant that the functions contained in this
equipment will meet your requirements or that the operation will be entirely
error free or perform precisely as described in the documentation. This
system has not been designed to be used in life-critical situations and
must not be used for this purpose.
Copyright © 2001 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.

ii •FCC Notice XX074 Rev 101 Variable-Speed Keypad
FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a
Class A digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
It has been type tested and found to comply with the limits for a Class A computing device in accordance with
the specification in subpart B of part 15 of the FCC rules, which are designed to provide reasonable protection
against such interference in a commercial installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio and television reception,
which can be determined by turning equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the equipment with respect to the receiver.
• Relocated the equipment away from the receiver.
• Plug the equipment into a different electrical outlet so that the equipment and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge.

XX074 Rev 101 Variable-Speed Keypad Contents •i
Contents
Introduction......................................................................................................................... 1
Configuration & Installation............................................................................................... 1
Keypad Setup...................................................................................................................... 4
Operation ............................................................................................................................ 6
Operating Modes............................................................................................................................................ 6
Alarms............................................................................................................................................................. 6
Auxiliary Function Control............................................................................................................................ 6
Communication Failure................................................................................................................................. 6
Crosspoint Reset ........................................................................................................................................... 7
Lens Operation............................................................................................................................................... 7
Presets............................................................................................................................................................ 7
Manual Switching .......................................................................................................................................... 7
Salvos and Tours : V1400 control systems only ....................................................................................... 7
Sequential Switching: V1300 and V1344 control systems only ............................................................... 8
Using the Joystick ......................................................................................................................................... 8
Technical Information........................................................................................................ 9
Shipping Instructions....................................................................................................... 10

ii •Important Safeguards XX074 Rev 101 Variable-Speed Keypad
Important Safeguards
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the unit.
1. Read Instructions - All the safety and operating instructions should be read
before the video product is operated.
2. Retain Instructions - All the safety and operating instructions should be retained
for future reference.
3. Heed Warnings - All warnings on the video product and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Step aapplies to equipment that can be disconnected from the CCTV system
without seriously jeopardizing security. Step b applies to equipment that must operate
continuously such as video switching equipment at military installations.
a. Disconnect this video product from its power source before cleaning. Do not
use caustic, abrasive, or aerosol cleaners. Use a damp cloth for cleaning.
b. Use a damp cloth to clean the equipment. Do not allow moisture or liquids to
enter any vents. Do not use caustic, abrasive, or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by Vicon as they may
cause hazards.
7. Water and Moisture - Do not use this video product in any location where it may
be exposed to water or moisture. This does not apply to outdoor camera housings,
outdoor pan-and-tilt drives, and other equipment designed for direct exposure to
outdoor environments.
8. Accessories - Do not place this video product on any unstable surface or table.
The video product may fall, causing serious injury to a person and serious damage
to the video product. Useonlywithamounting accessory recommended by Vicon, or sold
with the video product. Any mounting of the video product should follow Vicon’s
instructions, and a mounting accessory recommended by Vicon should be used.
9. Ventilation - Slots and openings in the cabinet are provided for ventilation and to
ensure reliable operation of the video product and to protect it from overheating,
and these openings must not be blocked or covered. The openings should never be
blocked by placing the video product on a rug or other similar surface. This video
product should never be placed near or over a radiator or heat register. This video
product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or Vicon’s instructions have been adhered to.
10. Power Sources - This video product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type of power
supplied to your installation site, consult your Vicon dealer or local power company.
For video products intended to operate from battery power, or other sources, refer
to the operating instructions.
11. Grounding - This applies to video products equipped with a 3-wire grounding-
type plug, a plug having a third (grounding) pin. This plug only fits into a grounding-
type power outlet. This is a safety feature. If you are unable to insert the plug into
the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
12. Power-Cord Protection - Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where
they exit from the video product.
13. Outdoor Cable Grounding - If an outside cable system is connected to the
video product, be sure the cable system is grounded so as to provide some
protection against voltage surges and built-up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA 70-1984, provides information with respect to
proper grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
14. Lightning - For added protection for this video product when it is not used for
long periods of time, disconnect it from its power source and from the cable system.
This prevents damage to the video product due to lightning and power-line surges.
15. Power Lines - An outside cable system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside cable system, extreme care
should be taken to keep from touching such power lines or circuits as contact with
them might be fatal.
16. Overloading - Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
17. Object and Liquid Entry - Never push objects of any kind into this video product
through openings as they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the video product.
18. Servicing - Do not attempt to service this video product yourself as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
19. Damage Requiring Service - Disconnect this video product from its power
source and refer servicing to qualified service personnel under the following
conditions. Note that step cdoes not apply to outdoor camera housings, outdoor
pan-and-tilt drives and other equipment specifically designed for direct exposure to
outdoor environments.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as an improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
video product to its normal operation.
e. If the video product has been dropped or the cabinet has been damaged.
f. When the video product exhibits a distinct change in performance - this
indicates a need for service.
20. Replacement Parts - When replacement parts are required, be sure the
service technician has used parts specified by Vicon or that have the same
characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
21. Safety Check - Upon completion of any service or repairs to this video
product, ask the service technician to performsafety checks to determine that
the video product is in proper operating condition.

XX074 Rev 101 Variable-Speed Keypad Introduction •1
Introduction
Note: Read all of the instructions completely before installing or operating this equipment.
The information in this manual covers installation, programming and operation for the V1411X-DVC Variable-
Speed Keypad. The installation procedures should only be performed by a qualified technician using approved
materials in accordance with national, state and local wiring codes. The unit complies with FCC standards for
a Class A device and with European Community EMC Directive 89/336/EEC and amendments 92/31/EEC.
The product was subjected to the testing outlined in European Normalization Standard (Emissions) EN 55022,
A1: 1995 and A2: 1997 Class B, (Harmonic Emissions) EN61000-3-2: 1995, A1: 1998 and A2: 1998, (Flicker)
EN61000-3-3: 1995 and (Immunity) EN50130-4: 1995 and A1: 1998.
The V1411X-DVC Variable-Speed Keypad operates as a standalone controller for dome/receivers without the
need for matrix switchers or in a multi-keypad installation using a NOVA control system. Compatible with any
of Vicon’s NOVA control systems, the V1411X-DVC may also be used with the V1411 series of video
switchers with telemetry control.
The V1411X-DVC features:
• Variable-speed joystick
• Small physical footprint takes up less desktop space
• Easily read LCD panel provides system status
• Large keypad buttons that are ergonomically designed
for accurate key strokes.
Configuration & Installation
Warning: Do not connect this unit to a power source until all connections are complete.
The V1411X-DVC is shipped with the following accessories:
• RJ-45 termination box
• RJ-45 cable
• power supply.
You will use these items as shown on the following pages, which describe the two system configurations
available when using the V1411X-DVC:
• Standalone (no control system, receivers/domes may be connected)
• NOVA (NOVA control system or matrix switcher).
V1411X-DVC

2 •Configuration & Installation XX074 Rev 101 Variable-Speed Keypad
Standalone
In a standalone system, there is no control system (CPU). You may connect receivers and domes directly to
the keypad in this configuration. The 4-wire half-duplex RS-422 protocol for the V1411X-DVC is driven in a
multi-drop, tri-state manner that allows you to connect directly to Surveyor2000 domes, which use RS-485,
without the need for a converter box.
UP TO 255 RECEIVER/DOMES
V1411X-DVC
POWER SUPPLY
(Refer to Technical
Information for details)
RJ45-to-RJ45 CABLE
110 VAC or
230 VAC
RJ-45
TERMINATION
BOX
Recommended Data Cable
Belden 8723 8000 ft (2400 m)
Belden 8162 15,000 ft (4600 m)
Belden 9729 15,000 ft (4600 m)
Belden 9182 25,000 ft (7600 m)
COM. OUT +
12 VDC or
9 VAC AC
INPUT
RESP. IN +
COM. OUT –
NOT USED
GROUND
RESP. IN –
The V1411X-DVC is shipped with the appropriate power supply for your installation. For 230 VAC, a 9 VAC
power supply is included. A 12 VDC power supply is included for 120 VAC. For illustration purposes, the power
supply shown is a desktop version (the 12 VDC power supply actually plugs directly into the wall outlet). The
two leads from the power supply will be connected to the RJ-45 termination box. You may connect the two
leads to either of the termination box screws shown below - polarity is not a factor for either the DC or the AC
supply.

XX074 Rev 101 Variable-Speed Keypad Configuration & Installation •3

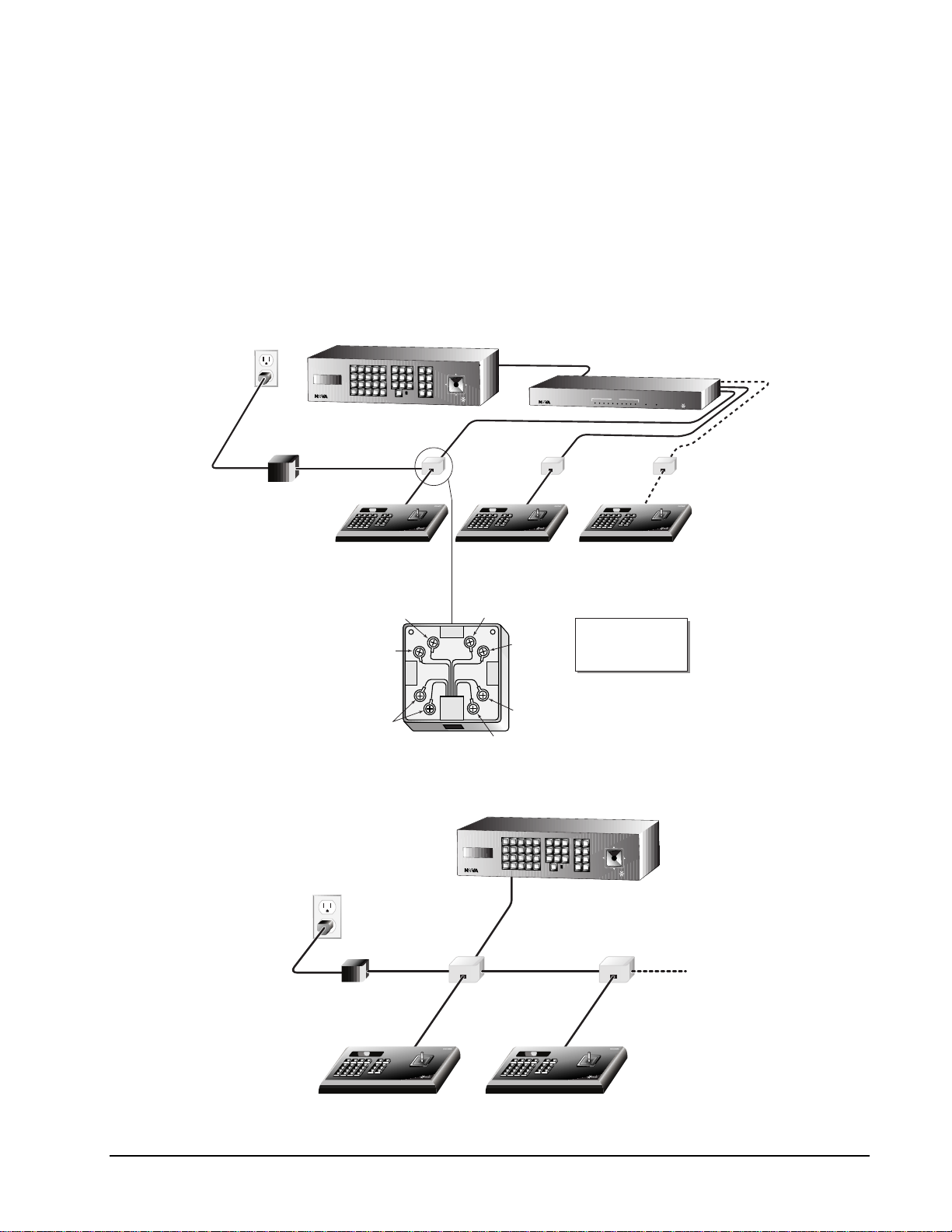

NOVA
To use any of Vicon’s NOVA control systems, including the V1411 and V1411EXP Video Switchers with
Telemetry Control, with the V1411X-DVC keypad, you will use NOVA configuration. You may connect multiple
keypads in this configuration, as shown in the example below.
The V1411X-DVC is shipped with a 9 VAC power supply for 230 VAC units and a 12 VDC power supply for
120 VAC. One power supply is required for each keypad in your system. Only the first keypad shows a power
supply in the figure below and the power supply shown is a desktop version (the 12 VDC power supply actually
plugs directly into the wall outlet). The two leads from the power supply will be connected to the RJ-45
termination box. You may connect the two leads to either of the termination box screws shown below - polarity
is not a factor for either the DC or the AC supply.
110 VAC or
230 VAC
NOVA Control System
Distribution Line Control
VI
C
ON
V1400X-IDL
POWERCPU10
9
8
7
6
5
4
32
1
STATION
VI
C
ON
A
U
X
V1422
RJ-45
TERMINATION
BOX
RESP. OUT +
COM. IN +
RESP. OUT –
NOT USED
GROUND
COM. IN –
V1411X-DVC V1411X-DVCV1411X-DVC
Up to 64 keypads (depends upon the control system
maximums). Multiple distribution line controls are
required to maximize the number of allowable keypads.
Recommended Data Cable
Belden 8723 8000 ft (2400 m)
Belden 8162 15,000 ft (4600 m)
Belden 9729 15,000 ft (4600 m)
Belden 9182 25,000 ft (7600 m)
RJ45-to-RJ45 CABLE
POWER SUPPLY
(Refer to Technical
Information for details)
12 VDC or
9 VAC AC
INPUT
You can also daisy chain keypads as shown below. Connect all like signals, for example, connect Command
In + on the first keypad’s RJ-45 box to Command In + on the second keypad’s termination box and so forth.
V1411X-DVC V1411X-DVC
RJ45-to-RJ45 CABLE
110 VAC or
230 VAC
RJ-45
TERMINATION
BOX
NOVA Control System
VI
C
ON
A
U
X
V1422
POWER SUPPLY
(Refer to Technical
Information for details)
Using RS-422 protocol,
connections are made
keeping like polarities and
opposite signal directions; for
example, Response Out - on
each keypad to Response In -
at the distribution line control.

4 •Keypad Setup XX074 Rev 101 Variable-Speed Keypad
Keypad Setup
Note: (For NOVA mode only) Before powering your control system, perform the keypad setup described in this
chapter. Make sure to define the keypad baud rate (all keypads in your CCTV system must have the
same baud rate) and keypad address (each keypad must have a unique address). After you have set
up the keypad completely, power your control system and refer to its documentation to set the Keypad
State to Auto in the control system programming menus.
To enter Keypad Setup mode, perform the following keystrokes:
Then use the following methods to navigate through and chose a parameter:
To exit Keypad Setup mode, perform the following keystrokes:
Setup Parameter Description Choices
Display Contrast Sets the LCD contrast. (view the LCD window)
Address Sets the address for this keypad. • -- (use this setting
for Standalone
mode).
• 1-64 (for NOVA mode).
Baud Rate Sets the communication baud rate. All keypads in
your NOVA system must have the same baud rate!
• 1200, 2400, 4800, 9600,
19200
Joystick Profile Determines the relative pan-and-tilt speed based
on how far the joystick is deflected from its center
position. As the joystick is deflected further from
center, the pan-and-tilt speed increases.
•
RELATIVE PAN AND TILT SPEED
JOYSTICK DEFLECTION
1-Linear
2-Square Law
3-Cube law
4
Press & Hold Press
PROG
Release
PROG
Setting Autopan Speed
Press & Hold
Note: This procedure does not change the manua
A/P
Deflect more/less
for faster/slower
speed.
de
Press f
SPEED
auto anning.
Toggle key to
automatically
adjust to ambient
lighting conditions
or deactivate.
Note that au
priority over
avoid excess
mechanism,
when you ar
Auto Iris
A/I
1
Press & Hold Press
PROG
Release
PROG
Tilt up/down to display
choices.
A/P to save your choice
and move to the next
parameter.
A/I to move to the next
parameter without savin
g
.

XX074 Rev 101 Variable-Speed Keypad Keypad Setup •5
cont’d from previous page
Setup Parameter Description Choices
Keypad Sounder Turns sound ON or OFF. Beeps once for:
• illegal key sequence
• key sequence not completed in 10 seconds
• number out of range for NOVA mode.
Beeps twice for:
• storing presets (operating mode 2).
• saving a choice during setup (operating
mode 4).
Beeps four times when:
• one or more alarms activate.
Beeps every 15 seconds when:
• there are unacknowledged alarms in the
system.
On, Off
Keypad Sounder Turns sound ON or OFF. Beeps once for:
• Illegal key sequence
• Key sequence not completed in 10 seconds
• Number out of range for NOVA mode.
Beeps twice for:
• Storing presets (operating mode 2).
• Saving a choice during setup (operating
mode 4).
Beeps four times for:
• Active alarm(s).
On, Off
Key Click Audible indicator for key presses. Keypad Sounder
must be ON. On, Off
Preset 1 ON Alarm Recalls preset 1 (home) on the receiver in an alarm
state (Standalone mode only). On, Off
Alarm Slf Clr Automatically clears an alarm if it spontaneously
disappears. If this is OFF, you must press Alarm
just as you would with active alarms.
On, Off
Pace Factor This applies to NOVA mode at 19,200 baud only.
Do not change this setting without direction from
Vicon Technical Support.
Additional Stops Causes additional stop messages to be sent from
the joystick or lens keys when this key is released.
Use 1 or 2 for receivers/domes using simplex.
Note: When you press A/P to store the contrast, the joystick center position will also be stored. Make sure that
the joystick is at its center position before pressing A/P.

6 •Operation XX074 Rev 101 Variable-Speed Keypad
Operation
Operating Modes
Accessing Operating Modes
5
0
...
Press the appropriate
number key.
Press & Hold
PROG
Release
PROG
Mode Description
Normal operating mode
Preset Store mode.
Set Dwell mode.
Setup mode.
1
2
3
4
Alarms
Acknowledging Alarms
Viewing Alarm Video
For control systems with an independent stack
mode, press ALARM again after all alarms are
cleared from the currently-selected alarm
monitor. This will select the next alarm monitor
if it has active alarms. Continue with the alarm
acknowledgment procedure to clear alarms.
To view but not acknowledge
alarms, press CANCEL or SEQ
to step through active alarms.
SEQ will step you through the
alarms from the first active
alarm to the last active alarm.
CANCEL will step you through
the alarms from the first active
alarm to the last active alarm.
If ALARM flashes in the display
window, press ALARM to view
the alarm video. (If alarms are
sequencing, the first press of
the ALARM key will stop the
sequencing.)
If ALARM continues
to flash in the display
window, press
ALARM until all
alarms are cleared.
Press
ALARM to
clear the
alarm.
Notes: If the currently-selected monitor is not defined as an alarm monitor, press ALARM before performing the procedure below in
order to select the lowest numbered alarm monitor. Monitors are defined as alarm monitors as discussed in the programming
manual for your control system.
ALARM
CANCEL SEQ
OR
Auxiliary Function Control
Controlling Auxiliary Functions
Which auxiliary functions are momentary
and which are latching depends upon
your receiver. Refer to your receiver
documentation if necessary.
Momentary functions
stay active as long as
the number key is
pressed.
To activate latching
auxiliary functions,
press an AUX key
and release.
9
1
...
Press Enter aux number
AUX
Communication Failure
Press
CANCEL
If the com fail is on a
camera that is NOT
currently selected,
COMFL and a block
caret will flash.
This selects the
camera having
the com fail. Press
CANCEL
This acknowledges
the failure. If the com fail is on
a camera that IS
currently selected,
COMFL flashes. Press
CANCEL
This acknowledges
the failure.
Mode 1 is automatically entered
after power is applied or if the
keypad is reset. Refer to
Indicators in Display in the
Technical Information chapter for
LCD status messages.

XX074 Rev 101 Variable-Speed Keypad Operation •7
Crosspoint Reset
99 9 9
Full System Reset
Press Press
DWELL
For any
control
system:
09 9 0
Single Cage Reset
Press Press
DWELL
For V1400
control
system:
Lens Operation
Controlling the Lens
Toggle key to
switch between
fast and slow
speeds.
Zoom Focus Iris
Lens Speed
Toggle key to
automatically
adjust to ambient
lighting conditions
or deactivate.
Note that autoiris operation has
priority over manual iris control. To
avoid excessive wear of the iris
mechanism, do not use the autoiris
when you are autopanning.
OUT IN
FAR
NEAR
CLOSE
OPEN
LENS
SPEED
Auto Iris
A/I
Presets
PROG
Programming Presets
Press & Hold
PROG
Release
PRESET
Press
PRESET
Press
2
Press
This stores a preset
for the currently
selected camera.
9
0
...
Enter preset number
Manual Switching
9
MON
0
...
Selecting a Monitor
Press
MON
Press
Enter monitor number
9
0
...
Selecting a Camera
PressEnter camera number
CAM
Clearing Input Errors
Press
CANCEL
Salvos and Tours : V1400 control systems only
9
0
...
Starting a Tour
Enter tour number
Press SEQ while a tour is
active to advance one
step in the tour.
Press
SEQ
9
0
...
Running a Salvo
Enter salvo's dial-up no. Press
CAM
99
0
...
Loading and Starting a Quick-Access Tour
Enter tour number
Press SEQ at any
time to run the
quick-access tour.
Press
Then
Cancelling a Running Tour or Salvo
Press
Use the joystick
to move to a
new position.
CANCEL
Press
PRESET
Press
PRESET
Recalling Presets
9
0
...
Enter preset number
This recalls a preset
for the currently
selected camera.

8 •Operation XX074 Rev 101 Variable-Speed Keypad
Sequential Switching: V1300 and V1344 control systems only
9
MON
0
...
Viewing Monitors in a Sequence
Press
MON
Press PressEnter monitor number
SEQ
9
0
...
Adding Cameras
Enter camera number Press
SEQ
Press SEQ
to start the
sequence.
99 9 9
Adding All Cameras
Press Press
SEQ
Press
1
Starting a Sequence
Press
SEQ
This starts a
sequence of
cameras that you
have already added.
Setting the Dwell Time
9
0
...
Enter dwell time in seconds Press & Hold
PROG
Press & Hold
PROG
Release
PROG
Press & Hold
PROG
Release
PROG
Press
A/P
Press
1
Release
PROG
Press
3
To access
Set Dwell
mode.
To return to
normal
operating mode.
99 9 9
Deleting All Cameras
Press Press
SEQ
Press
2
Press & Hold
Perform these steps if you
are not already in Mode 2.
PROG
Release
PROG
Using the Joystick
Setting Pan-and-Tilt Speed
Press
Note: This procedure does not change the autopan speed.
This reduces
the speed by a
factor of 4.
P/T
SPEED
To return to
full speed: Press
P/T
SPEED
Setting Autopan Speed
Press & Hold
Note: This procedure does not change the manual pan-and-tilt speed.
A/P
Release
A/P
Panning and Tilting
Use the joystick.
Deflect the joystick
farther in the
desired direction to
increase speed.
Deflect more/less
for faster/slower
speed.
Autopanning
Note: Manual pan
operations have priority
over the autopan function.
Panning or tilting during
autopanning will
deactivate autopanning.
Toggle the
A/P button to
start or stop
autopanning.
A/P

XX074 Rev 101 Variable-Speed Keypad Technical Information •9
Technical Information
PrePac Model Descriptions
Model Number Product Code Input Voltage Power Supply
V1411X-DVC 7518 120 VAC 12 VDC at 500 mA; wall mount.
V1411X-DVC-230 7518-01 230 VAC 9 VAC at 600 mA; desktop style.
Electrical
Input Voltage: See PrePac Model Descriptions above. Note that you may also use a 9.5 VAC power
supply at 600 mA with 120 VAC units (not included).
Fuse: Internal, self-resetting on power down.
Communications: RS-422, 4-wire half duplex.
Cabling: RJ45 socket on rear of keypad connected via 2m RJ45 cable to a breakout box. In
NOVA configuration, the connection from the breakout box to the matrix CPU must
be dual twisted pair; individually shielded cable such as Belden 8723. In Standalone
configuration, the cable requirements are the same although simplex communications
(a single twisted shielded pair) can be employed.
Controls
Numerical Keypad: Camera/monitor selection, dwell time input, mode selection, etc.
Camera Key: Assigns selected camera to selected monitor.
Monitor Key: For monitor selection enabling.
Cancel Key: Used to clear data entries.
Sequencing Key: Starts camera sequencing.
Programming Key: Used to change operating mode.
Preset Key: Recalls or stores preset position, depending on operating mode.
Zoom Keys: Manually zooms camera view closer or farther away.
Focus Keys: Manually focuses camera view. Momentary switch.
Iris Keys: Manually opens or closes camera’s iris. Momentary switch.
Alarm Key: Acknowledges alarms.
Auxiliary Key: Used to control auxiliary equipment.
Autoiris Key: Toggles automatic iris operation.
Autopan Key: Toggles automatic panning operation.
Lens Speed Key: Changes lens speed. Dependent upon receiver.
Joystick: Causes pan-and-tilt mechanism to pan and tilt at varying speed.
P/T Speed Key: Reduces maximum pan-and-tilt speed by a factor of 4.
Display: Backlit LCD displays 2 lines of 20 characters.
Indicators in Display: AI
ALARM
AP
AUX 1 2 3 4
CAM ####
COMFL (communication failure)
DWELL
MON ###
P (preset store mode)
PP ##
SNGL (standalone)
1300 (NOVA)
Mechanical
Construction: Zinc plated steel.
Finish: Black “walnut”.
Dimensions: Height: 2.25 in (57 mm).
Width: 11.5 in. (292 mm).
Depth: 6.9 in (175 mm).
Weight: 3 lb (1.4 kg).
Environmental
Operating Temperature:32° - 122 F (0-50° C).
Operating Humidity: Up to 90 % relative,
noncondensing.
