Teletek electronics LCD64 User manual
LCD64
Keypad LCD64
Operation Manual
Ръководство за Експлоатация
English
Български
C
2
- LCD Icon Display - 12 zones, 2
Partitions, trouble and status indica-
tion
- Status LED Indication
- Protective cover (open)
- Buttons
- Иконен LCD Дисплей - 12 зони,
2 групи, индикация за повреди и съ-
бития
- Светодиодна индикация за
състоянието
- Защитен капак (отворен)
- Бутони
3
Installation /
Connection /
J0, J1, J2 - Jumpers for key-
board address / Джъмпери за
адрес на клавиатурата
JT Jumper - set only in the last
device / JT Джъмпер - поставя
се само в последната клави-
атура
3
.............20
Светодиодна индикация.............21
Звукова сигнализация ..............21
Дисплей ..........................22
Бутони ...........................24
.............25
Включване Група А в режим “Full” .....25
Включване Група А в режим “Stay”.....25
Включване Група А в режим “Instant” ..26
.............27
..27
.....27
Спиране на алармата...............28
Паник бутони......................28
Код при опасност ..................28
Преглед на техническите проблеми ...29
Смяна на собствен код..............29
Преглед на събития от потребител ....30
Вкл./изкл. на камбанката ............30
Игнориране на зони от потребител ....30
Промяна на потр. права за дист. достъп 31
Достъп на инженера до менютата.....32
Изпращане на съобщ. “Ръчен тест” ...32
Блокиране на достъп по UDL.........32
Промяна на потребителски код .......33
Промяна на потребителски права .....33
Промяна на мениджърски код ........33
Промяна на мениджърски права ......34
Преглед на техническите проблеми ...34
Вкл./изкл. на камбанката ............34
Игнориране на зони от мениджър .....35
Настройване на часовника ..........35
Настройване на датата .............35
Добавяне на карта за достъп.........35
Изтриване на карта за достъп ........35
36
.........39
Contents
GENERAL INFORMATION ..........4
LCD64 DESCRIPTION
LED Indication ....................5
Keypad Sounder...................5
Display ..........................6
Buttons ..........................8
LCD64 OPERATION
Arming of Partition A ..............9
“Full ARM” Mode . . . . . . . . . . . . . . . . . .9
“Stay ARM” Mode. .................9
“Instant ARM” Mode . . . . . . . . . . . . . . . .10
Arming of Partition B ..............11
Arming Both Partitions A and B .....11
..11
Stopping the Alarm .................12
Panic Buttons .....................12
Ambush Code.....................12
Technical Troubles Review...........13
User Level Programming
Changing own user code ............13

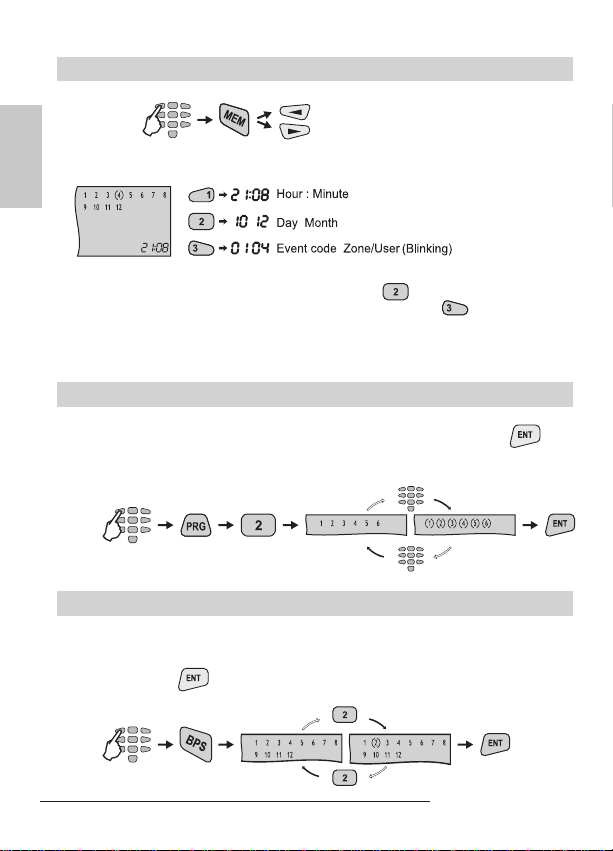

Memory LOG Review from User ......14
Chime Enable/Disable from User ......14
Zone Bypassing from user . . . . . . . . . . .14
Manager Level Programming
Changing User Rights for Remote access 15
Enable/Disable Engineer Code access .16
Sending of “Comm. test” message.....16
UDL Access Block .................16
Changing User Codes ..............17
Changing User Rights ..............17
Changing Manager Codes . . . . . . . . . . .17
Changing Manager Rights ...........18
Memory LOG Review from Manager ...18
Chime Enable/Disable from Manager...18
Zone Bypassing from Manager .......19
Setting the Clock ..................19
Setting the Date ...................19
Adding a Proximity Card.............19
Deleting a Proximity Card............19
..........36
System Information ...............39
4 LCD64 - Operation Manual
English
General Information
Limited Warranty
The manufacturer warrants that for period of 12 months from the date of purchase, the product
shall be free of defects in material and workmanship under normal use and that in fullment of
any breach of such warranty, The manufacturer shall, at its opinion, repair or replace the defective
equipment upon return of the equipment to its factory. This warranty applies only to defects in parts
and workmanship and not to damage incurred in shipping or handling, or damage due to causes
beyond the control of The manufacturer such as lightning, excessive voltage, mechanical shock, or
damage arising out of abuse, alternation or improper application of the equipment.
The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and
all other warranties, whether expressed or implied and of all other obligations or liabilities on the
part of the manufacturer. This warranty contains the entire warranty. The manufacturer neither as-
sumes, nor authorizes any other warranty or liability concerning this product.
In no event shall The manufacturer be liable for any direct or indirect or consequential damage,
loss of anticipated prots, loss of time or any other losses incurred by the buyer in connection with
the purchase, installation or operation or failure of this product.
The manufacturer recommends that the entire system be completely tested on a regular basis.
However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical
disruption, it is possible for this product to fail to perform as expected.
Warnings
Before using the LCD64 Keypad, please ensure that you have read and understood the following
instructions. Always ensure that the LCD64 Keyboard is operated correctly.
Do not attempt to disassemble or alter any part of the equipment that is not expressly described
in this guide. Internal inspections, alterations and repairs should be conducted by qualied service
personnel only.
Do not use substances containing alcohol, benzene, thinners or other ammable substances to
clean or maintain the equipment. The use of these substances may lead to re.
Do not allow liquids to enter the interior. The equipment is not waterproof.
Disclaimer
♦ The manufacturer reserves the right to change the specications of the equipment described in
this manual without notice.
♦ This document contains information proprietary to the manufacturer. No part of this publication
may be reproduced, photocopied, stored on a retrieval system or transmitted, without prior written
permission of the manufacturer.
♦ While every effort has been made to ensure that the information in this manual is accurate and
complete, no liability can be accepted for any errors or omissions.
ATTENTION
This manual contains information on limitations regarding the product use
manufacturer.
LCD64 - Operation Manual 5
English
Description
The LCD64 keyboard provides complete control and status of the CA62 control
panel.
The control panel can be fully programmed from the LCD64 keypad.
The alarm events and system status are visualized by an LED indication and icon
LCD display. A sound buzzer informs the user about correct and incorrect key entries
as well as activated alerts.
LED Indication
LED Light Blinking
READY (green) System ready Programming mode
ARM (red) System armed Exit time / Programming mode
TRBL (yellow) - Technical problem / Programming mode
Keypad Sounder
There are 7 different sound combinations that indicate seven different conditions:
- single short beep indicating button pressing.
- two long beeps, indicating the system conrmation to executed
operation (arming, disarming, settings change, etc.).
- single long beep, indicating incorrectly executed operation.
- continuous beep, indicating intrusion into the entrance zones.
- short beeps, indicating the system is armed and the user is required
to leave the area. 10 seconds before the exit time is over, beeps frequency is in-
creased.
- two short beeps at every 20 sec, indicating a technical trouble
(battery low, no supply voltage, etc.). To stop the signalization press sequentially the
buttons → .
- short beeps with subsequently increasing period indicating intrusion into
a zone with a “Chime“ option activated.
Display
An icon LCD display provides information for the status of the Partitions (A and
B) in the system, and also the type of ARMING mode - “Full ARM” (see page 9),
“Stay ARM” (see page 9) and “Instant ARM” (see page 10). The LCD64 keyboard
is equipped with blue backlight of the buttons and LCD display. The backlight is
activated easily with pressing a random button, opening of “Entry-Exit” or “Follow”
type zones.
6 LCD64 - Operation Manual
English
Icons for
status of the
control panel
Icons for
Partition status,
ARM mode and
events
Zones status
Clock; addresses
Icons for Partitions Status and ARMING mode
The animated icons for A and B partitions are situated in a house divided into two
groups. According the current status of the system the icons have the following per-
formance:
Icon Indication Description
A B
OFF Partition A / Partition B is not ready for ARMING.
ON Partition A / Partition B is ready for ARMING; or the par-
tition is ARMED, regardless of the ARMING mode.
Blinking “Alarm”, “Fire” or “Memory” event in the respective par-
tition.
OFF The respective partition is DISARMED.
ON The respective partition is ARMED.
Blinking Entry-exit time is running.
OFF The respective partition is DISARMED; or the partition
is ARMED in “Instant ARM” mode.
ON The respective partition is ARMED in “Full ARM” or
“Stay ARM” mode.
Blinking Entry-exit time is running.
OFF There are no bypassed zones in the system.
ON
There are bypassed zones in ARMED system.
The numbers of the bypassed zones are missing - only
the brackets are visible.
Blinking There are bypassed zones in DISARMED system.
The numbers of the bypassed zones are missing - only
the brackets are visible.
Example:
The Partition A is ready to be armed - the icon
“A” lights on. The Partition B is in “Stay ARM”
mode - the icons “clock”, “door” and “man” light
on. Zones 9 and 10 are bypassed - only the
brackets are visible.
LCD64 - Operation Manual 7
English
Icons for Status of the control panel
The status of the control panel is visualized with the following icons:
Icon Indication Description
ON The battery of the control panel works properly.
Blinking The Battery of the control panel is at low charge or is
missing; blinks together with the icon.
ON Power supply 220 VAC.
Blinking Power supply 220 VAC lost.
Blinking Technical trouble in the system - see page 13.
ON Memory events LOG - see page 14, 18.
ON The system is ready to be armed.
Blinking Blinking fast - programming mode;
Blinking slowly - partition A or B is not ready for ARMING.
Animation -
gun ring
BURGLAR alarm event in the system - the gun is ring
towards the house.
TAMPER alarm in the system - the gun is ring towards
the house and the icon is blinking.
The icon (A or B) of the partition in burglar / tamper alarm
is blinking.
Animation -
ames over
the house
FIRE alarm event in the system - the ames are blinking
over the house.
The icon (A or B) of the partition in re alarm is blinking.
The zone status is visualized with the following icons:
Zones Indication* Description
1, 2,
...
12
1Number only No activated detectors in the system; the
zone is closed.
(1)
Number with
blinking brackets Activated detectors in the system; the brack-
ets around the opened zones are blinking.
Number in
brackets (1 - 6) Technical trouble. The icon (A or B) of the par-
tition with trouble is blinking.
( ) Brackets only The zone is bypassed. The icon “man” blinks
slowly when the partition is DISARMED and
lights on when the partition is ARMED.
* Refers to all zones in the system - from 1 to 12.
- displays various information (time, date, codes, etc.)
8 LCD64 - Operation Manual
English
Buttons
Button Description
ARMING of Partition A, Partition B or both of them - this functionality of
the button is programmed from the installer.
Bypasses certain zone(s).
Reviews the system troubles.
Reviews the memory events LOG.
Clears entered data or transfers to previous menu level.
Conrms entered data or transfers to next menu level.
Entering the Manager or User programming menus.
Scroll the LOG memory or the system troubles review to the previous
event. ARMING or DISARMING of Partition A - this functionality of the
button is programmed from the installer.
Scroll the LOG memory or the system troubles review to the next
event. ARMING or DISARMING of Partition B - this functionality of the
button is programmed from the installer.
Used to enter different digital data, for example personal user or man-
ager access codes, settings, menu addresses, etc.
LCD64 Keypad Operation
Arming of Partition A
The system can be ARMED when the icon is displayed on the LCD and the icon
for Partition A is ON.
LCD64 - Operation Manual 9
English
“Full ARM” Mode for Partition A
Full arming means all zones are secured. Anyone coming into the entrance zone
is required to enter a valid code*. Otherwise an alarm will be generated after the
entrance time is over.
BARMING VARIANT for “Full ARMING” of Partition A
(with choosing the type of the ARMING Mode - default setting):
CARMING VARIANT for “Full ARMING” of Partition A (quick ARMING without
user code, but with choosing the ARMING Mode type - default setting):
DARMING VARIANT for “Full ARMING” of PartitionA (without choosing the type
of the ARMING Mode - programmed from the installer):
EARMING VARIANT for “Full ARMING” of Partition A (quick ARMING without
user code and ARMING Mode type - programmed from the installer):
At the end of the “Full ARM” procedure, re-
gardless of the used arming variant, the icons
of “Partition A”, “door” and “clock” are ON.
“Stay ARM” Mode for Partition A
Stay arming means the user is allowed to stay in certain bypassed zone(s) after arm-
ing the system, but the entrance zone is secured. Anyone coming into the entrance
zone is required to enter a valid code*. Otherwise an alarm will be generated after
the entrance time is over.
The zone bypassing is described on page 14 (user) and 19 (manager).
Note: Certain users may not be permitted to arm the system in “Stay ARM” mode.
* To the user code are assigned rights to operate with Partition A, otherwise the
system will reject the operation.
code*exit
time
code*
exit
time
exit
time
exit
time
10 LCD64 - Operation Manual
English
BARMING VARIANT for “Stay ARMING” of Partition A
(with choosing the type of the ARMING Mode - default setting):
CARMING VARIANT for “Stay ARMING” of Partition A (quick ARMING without
user code, but with choosing the ARMING Mode type - default setting):
DARMING VARIANT for “Stay ARMING” of Partition A (without choosing the
type of the ARMING Mode - programmed from the installer):
EARMING VARIANT for “Stay ARMING” of Partition A (quick ARMING without
user code and ARMING Mode type - programmed from the installer):
At the end of the “Stay ARM” procedure, re-
gardless of the used arming variant, the icons
of “Partition A”, “door” and “clock” are ON.
The icon “man” is ON in the Partition A. The
number(s) of the bypassed zone(s) are missing,
only the brackets around them are visible.
“Instant ARM” Mode for Partition A
Instant arming means the user is allowed to stay in certain zone(s) after arming the
system, but the entrance zone is secured. The difference with the stay arming is that
intrusion into the entrance zone immediately generates an alarm.
B ARMING VARIANT for “Instant ARMING” of Partition A
(with choosing the type of the ARMING Mode - default setting):
CARMING VARIANT for “Instant ARMING” of PartitionA(quick ARMING without
user code, but with choosing the ARMING Mode type - default setting):
* To the user code are assigned rights to operate with Partition A, otherwise the
system will reject the operation.
exit
time
exit
time
exit
time
exit
time
code*
code*
code*
LCD64 - Operation Manual 11
English
DARMING VARIANT for “Instant ARMING” of Partition A (without choosing the
type of the ARMING Mode - programmed from the installer):
EARMING VARIANT for “Instant ARMING” of PartitionA(quick ARMING without
user code and ARMING Mode type - programmed from the installer):
At the end of the “Instant ARM” procedure, re-
gardless of the used arming variant, the icons
of “Partition A” and “door” are ON. The icon
“man” is ON in the Partition A. The number(s)
of the bypassed zone(s) are missing, only the
brackets around them are visible.
Arming of Partition B
ARMING of the Partition В in the system is done in the same way, as shown above
for the Partition A, but the user presses the button. The user must have a valid
code for Partition B!
When the system is used to protect two independent sites, it is possible also to arm
Partition A in one ARMING Mode and Partition B in another.
Arming Both Partitions A and B
For ARMING both Partitions A and B together, the user can use the button, when
this function is programmed from the Installer.
Note: With the ARM Button the user can arm the system only in “Full ARM” Mode.
The user must have a valid code with rights to operate in both Partition Aand B.
ARMING Both Partitions A and B in “Full ARM” Mode (programmed from the installer):
Going into the entrance zone the user must introduce his personal code. A continu-
ous sound signal indicates intrusion in the entry zone and entry time starts running.
Note: Certain users may not be permitted to disarm the system.
code*
exit
time
code
12 LCD64 - Operation Manual
English
Disarming of Partition A
Disarming of Partition B
Disarming Both Partitions A and B
Stopping the alarm
The alarm is stopped by entering a valid personal code with assigned rights to oper-
ate with both Partitions in the system.
-
Panic Buttons
Use the panic buttons to send alarm signals to the control panel without sounding
the siren - press and hold the panic combinations for 2 seconds:
• PANIC Alarm - 1 + 3; • MEDICAL Alarm - 4 + 6; • FIRE Alarm - 7 + 9.
Ambush code is a personal code that disarms the system, but still sends alarm sig-
nal to a Central monitoring station. Its purpose is to indicate that the user is forced to
disarm the system against his will.
The ambush code is produced from a personal code by increasing the last number
by one. If the last number is 9, it is replaced by 0 in the ambush code.
Example: Personal code: 4615 → Ambush code: 4616
Personal code: 4619 → Ambush code: 4610
entry
time
entry
time
entry
time code
code
code
Note: To the user code are assigned
rights to operate with Partition A, other-
wise the system will reject the operation!
Note: To the user code are assigned
rights to operate with Partition B, other-
wise the system will reject the operation!
Note: To the user code are assigned
rights to operate with both Partitions A
and B, otherwise the system will DISARM
only that Partition for which the User code
are assigned rights!
LCD64 - Operation Manual 13
English
The technical troubles in the system are indicated with blinking icon .
To review the technical troubles in a system the user has just to press the TRBL
button. Each number in the LCD upper right corner correspond to a certain system
trouble. The “( )” icon surrounding a number indicates the respective trouble occur-
rence. The system will automatically exit the technical trouble review mode after 30
seconds. The technical trouble sound signalization will stop, but the icon “wrench”
will proceed blinking until the technical trouble is eliminated.
Every surrounded in brackets digit on the display indicates one technical trouble:
LCD
(1) No 220 V power supply
(2) Battery charge level is low
(3) Fuse blown
(4) No telephone line
(5) No communication available
(6) Active TAMPER within the system
User’s Programming Menu
General rules for programming parameters in the User’s Menu
Enter a valid user code → 4 or 6 digits
Single press the PRG button →
Enter an address number → (1 digit)
Change the parameter value
Conrm the change with → button / or reject it with → button
Exit from the User Programming Menu → press several times button
The blinking LEDs “Ready” and “ ”icon show that the system is in programming
mode.
Note: Certain users may not be permitted to program the system.
Changing Own User Code
The user is required to enter his current personal code before changing it.
Sequence of operations for changing user code:
Example: Two technical troubles
in the system - No power supply
of the control panel and low bat-
tery charge.
4 or 6 digits
new code
repeat
code
new code
14 LCD64 - Operation Manual
English
Memory LOG Review from User
To review the memory LOG le the user has to enter a valid code:
To view the code, the time and the date of the event use the following buttons:
Example: There has been an alarm event in the 4th zone at 21:08h - this is the rst
information displayed on the LCD screen. Press the button to see the day and
month of happening of the event - December, 10th. Press the button - the rst
two digits are the event code number (check it in the Appendix: Table of events on
page 36), the next two digits (blinking) are showing the zone / user number respec-
tively.
To turn the chime mode on or off the user is required a personal code. Pressing any
numeric key switches alternatively the chime mode on and off. Pressing con-
rms the selection. By default the chime is disabled.
Turning the chime ON and OFF key sequence:
To execute bypass operation the user is required a personal code. Pressing a nu-
meric key bypasses the respective zone. The zone number is surrounded by the “(-)”
icon. Pressing the same key once again restores the zone bypass. The “(-)” icon is
removed. Pressing conrms the selection.
Bypassing key sequence (zone 2 in the example):
code - previous event,
- following event
code
the chime is
the chime is
code
LCD64 - Operation Manual 15
English
• To bypass Zone 10 use button combination + .
• To bypass Zone 11 use button combination + .
• To bypass Zone 12 use button combination + .
Bypassing zone button sequence (zone 12 in the example):
Manager’s Programming Menu
General rules for programming parameters in the Manager’s Menu
Enter a valid user code → 4 or 6 digits
Single press the PRG button →
Enter an address number → (3 digits)
Change the parameter value
Conrm the change with → button / or reject it with → button
The blinking LEDs “Ready” and “ ”icon show that the system is in programming
mode.
Changing User Rights for Remote Access
To change the user rights for remote access, the manager is required to enter his
personal code rst.
code
* Default settings.
code
The display indicates the respective opera-
tions the user is allowed to execute. The num-
bers in brackets indicate the permitted opera-
tions. Pressing a numeric button alternatively
switches over the state of the respective re-
mote access right from disabled to enabled.
The selected programming is conrmed by
pressing the button.
default settings
ARM parameter
LCD Remote access rights
1Remote DISARM
(2) Remote ARM*
3Remote Code Access
(4) Remote Programming*
(5) Remote LOG Review*
6Remote Bypass
Note: Certain users
may not be permit-
ted to bypass zones
in the system.
16 LCD64 - Operation Manual
English
To enable / disable the Engineer code right to access the Engineer programming
menu, the Manager is required to enter a valid code rst:
code
Pressing any numeric button alternatively changes the state of the parameter from
enabled to disabled and vice versa. The selected state is conrmed by pressing the
button. By default the Engineer is allowed to enter the Engineer Menu.
Sending of “Comm. Manual test” Message
At this address the Manager can send a “Communication Manual Test” message to
a central monitoring station or test message with the voice dialer VD60 (just in case
there is integrated voice dialer VD60 to the CA62 control panel). The application
of this function is to test the communication part in the system from the manager,
without need of sending the Engineer to the site.
To send a “Comm. Test” message, the manager is required to enter his code:
The communicator will start transmitting test messages through the digital com-
municator to the central station rst (if there are entered telephone numbers) and
then through VD60 (if it is available in the system and there are entered telephone
numbers).
UDL Access Block
At this address the Manager enters a permissible number of valid access codes for
UDL (ARM / DISARM / BYPASS / PC ID) for a 24 hour period. Enter a number from
00 up to 99 (the default settings is ).
With reaching the permissible number of valid access codes, the system will be
blocked - there would be no UDL communication. The UDL communication will be
restored at 00:00h system time.
To enter a permissible number of codes, the manager is required to enter his per-
sonal code rst:
default setting
Engineer access
code
exit from
the menu
code
digit
LCD64 - Operation Manual 17
English
Changing of User Codes
To change a user code the Manager is required to enter his personal code rst.
User code change button sequence:
Numbers (3), (4), (5) and (6) are ON to indicate the number of code digits left to be
entered. Note: If 6-digit codes are used in the system, then numbers (1), (2), (3),
(4), (5) and (6) are ON. If the new code is repeated correctly the system will conrm
it with a sound signal.
Changing of User Rights
To change the User rights the Manager is required to enter his personal code rst.
User rights change button sequence:
code
The display indicates the respective operations the user is allowed to execute. The
numbers in brackets indicate the permitted operations.
* Default settings for User’s rights.
Changing of Manager Codes
code
new codenew code
4 or 6
digits repeat
user
default settings
programming
LCD User’s rights
(1) DISARM*
(2) Stay ARM*
(3) Bypass*
(4) Programming*
(5) Working with Partition A*
6Working with Partition B
Pressing a numeric button alternatively
switches over the state of the respective
user’s right from disabled to enabled. The se-
lected programming is conrmed by pressing
the button.
Note: Disabling all user rights will automatical-
ly erase the programmed code combination!
Addresses for Manager codes:
- Changing the Chief Manager code
- Changing the Manager code No1
- Changing the Manager code No2
- Changing the Manager code No3
Up to 4 different manager codes
can be programmed in the СА62
control panel, i.e. there can be up to
4 Managers in the system - 1 Chief
Manager and 3 sub-managers.
The changing of the different Man-
ager codes can be done at different
addresses in the system.
18 LCD64 - Operation Manual
English
To change his code the manager is required to enter his current manager code
before changing it.
Numbers in brackets (3), (4), (5) and (6) are ON to indicate the number of code digits
left to be entered.
Note: If 6-digit codes are used in the system, then numbers (1), (2), (3), (4), (5) and
(6) are ON. If the new code is repeated correctly the system will conrm it with a
sound signal and will exit automatically from the Manager programming menu.
Changing of Manager Rights
To change his rights the manager is required to enter his current manager code.
Pressing a numeric button alternatively switches over the state of the respective
manager’s right from disabled to enabled. The display indicates the respective op-
erations the manager is allowed to execute. The numbers in brackets indicate the
permitted operations:
LCD Manager rights
(5) Working with Partition A*
(6) Working with Partition B*
* Default settings for Chief Manager in the system. For sub-managers No 1, 2 and 3
there are no programmed rights by default.
NOTE: Disabling all manager rights will automatically erase the programmed code
combination!
Memory LOG review from Manager
To review the memory LOG of events the manager is required to enter his code.
See also the example on page 14.
To enter enable/ disable chime mode, the manager is required to enter his code.
code Manager
Address 2x
new codenew code
4 or 6
digits repeat
code
Manager
Address 2x
The selected programming is conrmed by
pressing the button.
code - previous event,
- following event
LCD64 - Operation Manual 19
English
Pressing a numeric button alternatively switches over the state of the chime from
disabled to enabled. The selected programming is conrmed by pressing the
button. By default the chime is disabled. See also the example for chime enable /
disable from User - page 14.
Zone Bypassing from Manager
To execute a bypass operation the manager is required to enter a valid code:
Pressing a numeric button bypasses the respective zone. The zone number is sur-
rounded by the “(-)” icon. Pressing the same key once again restores the zone by-
pass. The “(-)” icon is removed. Pressing conrms the selection. See also the
examples for zone bypassing from User - page 14.
Setting the Clock
To set the clock the manager is required to enter his personal code.
Setting the Date
To set the date the manager is required to enter his personal code.
Adding a Proximity card
To use proximity cards the system has to be equipped with a proximity card reader.
Manager Address 2x
Deleting a Proximity card
Manager Address 2x
code
code
code
new time
code
new date
code
code
Български
20 LCD64 - Ръководство за Експлоатация
Производителят гарантира, че ако в рамките на 12 месеца от покупката на изделието то по-
каже производствен дефект, ще бъде безплатно ремонтирано или заменено от производите-
ля. Тази гаранция покрива само фабрични дефекти и не покрива повреди в следствие на не-
правилно транспортиране и работа с изделието, събития извън контрола на производителя,
като мълнии, токови удари, механични удари, както и повреди, причинени от злоупотреба,
неправилна работа с изделието или ремонт от неупълномощени лица.
Настоящата гаранция се отнася само за първоначалния купувач. Тази гаранция е единстве-
ната. Производителят не приема и не упълномощава никакви други гаранции или отговорно-
сти, отнасящи се до това изделие.
Производителят не носи отговорност за преки или непреки щети, пропуснати ползи, загуба
на време или други загуби на потребителя, свързани с покупката, инсталацията, използва-
нето или повреда на това изделие.
Производителят препоръчва цялата система редовно да се проверява. Въпреки редовните
проверки, поради смущения в електрическата мрежа или престъпно вмешателство, е въз-
можно изделието да не работи правилно.
Преди да използвате клавиатурата LCD64, моля прочетете внимателно указанията и се
уверете, че сте ги разбрали. Използвайте клавиатурата LCD64 само по предназначение.
Не разглобявайте и не променяйте клавиатурата или нейните части. Проверки, ремонти или
промени във вътрешността на клавиатурата могат да бъдат извършвани само от обучени
специалисти.
Почиствайте клавиатурата само с вещества, несъдържащи алкохол, бензол или други запа-
лими материали. Използването им може да предизвика пожар. Не допускайте проникване на
течности във вътрешността на клавиатурата.
♦ Въпреки цялото старание информацията в това ръководство да бъде точна и пълна, про-
изводителят не носи отговорност за грешки и пропуски.
♦ Производителят си запазва правото да променя спецификациите на устройството, описа-
но в това ръководство без предизвестие.
♦ Този документ съдържа информация, която е собственост на производителя. Документът
или части от него не могат да бъдат възпроизвеждани, фотокопирани, записван в системи
за съхранение на информация или разпространявани без предварителното писмено разре-
шение на производителя.
-
Table of contents
Languages:
Other Teletek electronics Keypad manuals
