Vicon CE-IPS Series User manual

Vicon part number 8009-8245-00-00 Rev 0112
PAGE 1
INSTALLATION AND OPERATION MANUAL
CE-(X)IPS
HIGH-POWER POE MID-SPAN INJECTOR
The CE-8IPS and CE-16IPS are 8 and 16 port high power PoE midspans. They are
compatible with 10/100/1000 BaseT Ethernet networks.
They meet IEEE 802.3af and IEEE 802.3at standards and deliver up to 37 W per port
simultaneously on all ports without requiring power management. The PoE function can
be set up with Windows®GUI or use the default plug and play option. No IP settings
or configurations are required and they are completely transparent to the Ethernet
network and higher layer protocols.
LED indicators are provided for rapidly ascertaining the operating status of the device.
See Figures 3 and 4 on page 3 for LED explanations.
The CE-8IPS and CE-16IPS models are 1 RU high and can be easily installed in 19”
racks.See Figure A on page 4for mounting instructions.
See Figures 1 – 5 for complete installation details.

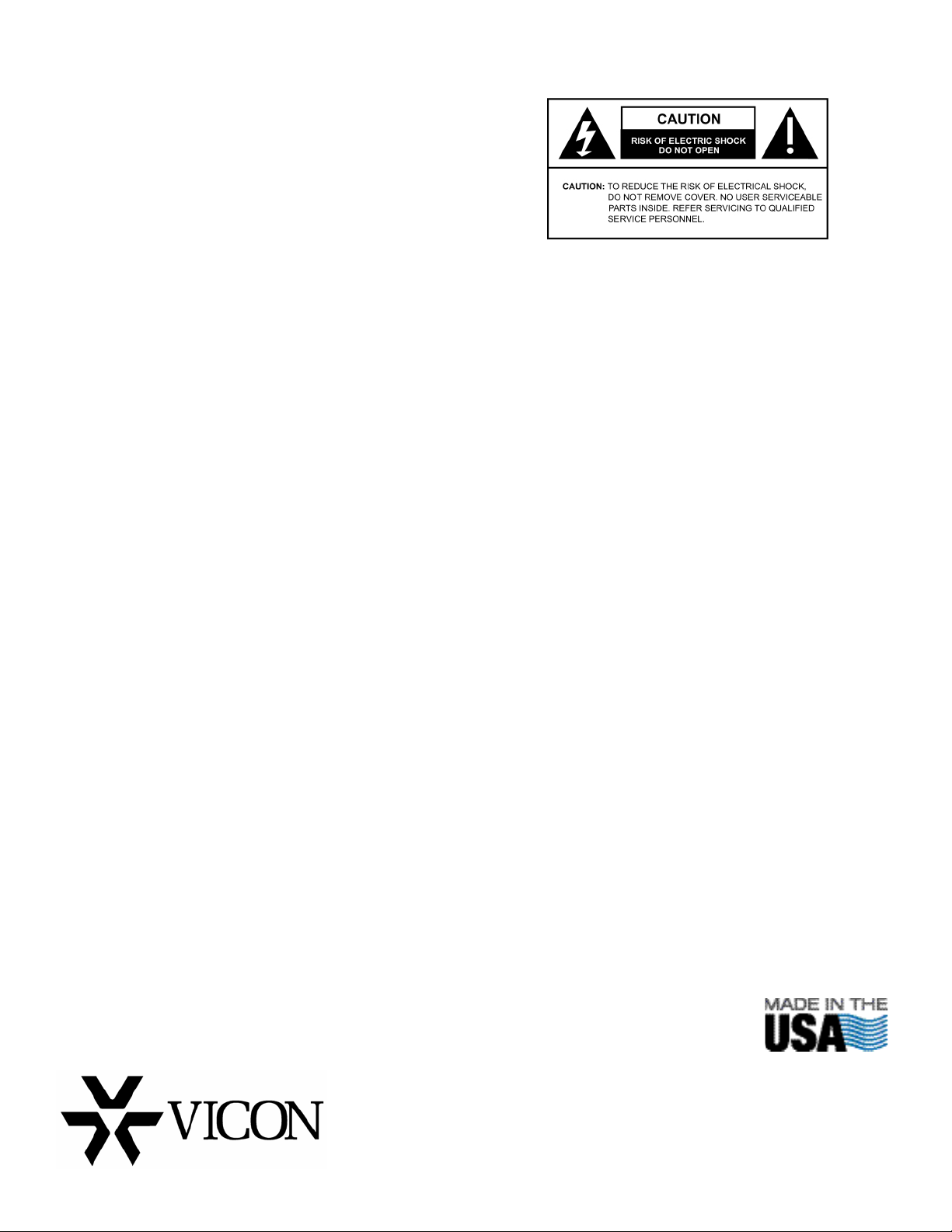

Important Safety Warning:
Read and keep these directions
Heed all warnings
Follow all instructions
Do not use this apparatus near water
Clean only with a dry cloth
Install in accordance with the
manufacturer’s instructions
This installation should be made by a

to all local codes
See further safety instructions on page 5

Vicon part number 8009-8245-00-00 Rev 0112
PAGE 2
FIGURE 1 – CE-8IPS
FIGURE 2 – CE-16IPS
INSTALLATION AND OPERATION MANUAL CE-(X)IPS
BACK
BACK
FRONT
FRONT
TECH SUPPORT: 800.34.VICON (800.348.4266)
CAT5/6
CAT5/6 CAT5/6
CAT5/6
CAT5/6 CAT5/6
CAT5/6
CAT5/6 CAT5/6
CAT5/6 USB RS-232
CAT5/6 USB RS-232 CAT5/6
POWER SUPPLY
CONNECTION
AC Power Cord Supplied
POWER SUPPLY
CONNECTION
AC Power Cord Supplied
CE-8IPS
CE-16IPS

Vicon part number 8009-8245-00-00 Rev 0112
PAGE 3
INSTALLATION AND OPERATION MANUAL CE-(X)IPS
TECH SUPPORT: 800.34.VICON (800.348.4266)
FIGURE 3 – POWER LED INDICATORS FIGURE 4 – ETHERNET LED INDICATORS
POWER
RED Power is on
OFF Power is off
TRAFFIC (Standard) Link
GREEN Flashing – Connection

–
YELLOW – Connection is OK
OFF No connection No connection
FIGURE 5 – POSSIBLE ETHERNET CONFIGURATION
Multiple Configurations are possible. Consult Vicon Sales Engineer


Coax
Copper Managed High Power Midspan
NVR
CE-16IPS
Switch
Data + Power
Data +Power
CE-1UTP CE-1UTP
CE-1UTP CE-1UTP PoE Camera
PoE Camera
INSTALLATION
Connect the unit to the included AC Power Adapter and plug into grounded power outlet.
Insert the network cable from the head end devices into Ethernet ports marked “Input”
Insert Network cable from PoE Device into Ethernet ports marked “Output.” The data from Input 1 will be



Vicon part number 8009-8245-00-00 Rev 0112
PAGE 4
MECHANICAL INSTALLATION INSTRUCTIONS CE-(X)IPS
TECH SUPPORT: 800.34.VICON (800.348.4266)
FIGURE A
Dimensions are for the CE-8IPS and CE-16IPS modules
17" (432 mm)
1.75"
(44.5 mm)
12"
(270 mm)
INSTALLATION CONSIDERATIONS
The CE-8IPS and CE-16IPS can be installed as Standalone modules
or can be rack-mounted with the addition of the provided 19-inch
rack-mounting ear brackets.

Vicon part number 8009-8245-00-00 Rev 0112
PAGE 5
© 2012 Vicon Industries Inc. All Rights Reserved. Vicon and its logo are registered trademarks of Vicon Industries Inc.

T: 631.952.2288 | F: 631.951.2288 | TOLL FREE: 800.645.9116
WEB: www.vicon-security.com
UK: [phone]
IMPORTANT SAFEGUARDS
Read and keep these directions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Install in accordance with the manufacturer’s instructions.
This installation should be made by a qualified service person
and should conform to all local codes.
           
high-voltage wiring.



the equipment.

temperature exceeds 50ºC.

recommended range.
          
       
produce heat.
         
       
the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
   
for long periods of time.
        
         
           
         

normally or has been dropped.

readily operable.
WARNING: 
expose this apparatus to rain or moisture. This
apparatus shall not be exposed to dripping or

vases shall be placed on the apparatus.
WARNING: This apparatus is a Class I product. This product
must be connected to a mains socket outlet through
an AC to DC power supply.
WARNING: The mains plug is used as the disconnect device and
shall remain readily operable.
