Power Plus is a power safety device which connects to car
battery to work with Dash Cam/Black Box, continuously
providing power after engine-off while parking, and monitoring
your battery status.
Please refer to professional assistance of vehicle original
manufacturer/maintenance if you are not able to install by
yourself. Vicovation takes no responsibility for incorrect wiring
malfunctions by user’s mistake/carelessness, or any other
damages due to incorrect installing/wiring.
Before installing Vico Power-PLUS, please make sure the
correct relative pin connection of your car fuse box. Power pin
contacts definition might be different depending on different
vehicles (Battery+/ACC+/GND).
While installing, please be sure to turn off the ignition/engine, to
switch your key to “off” position, and take the key out to ensure
the power is completely off.
After correct installation and wiring, please also check the other
electrical equipment are all in normal operation. Incorrect
installation (like short-circuit) might lead to damage, fire,
electrical shock or traffic accidents.
The state of vehicle may affect the performance of the product.
Vicovation is not responsible for any install/uninstall costs of the
product, regardless the product warranty status.
Don’t change any fuse to which is not the original rated capacity.
Otherwise, a danger of fire exists.
Car Battery efficiency may be in big different due to environment
(temperature sensitive). Dash Cam operation status may not be
constant due to battery performance and external temperature.
Vicovation takes no responsibility for car battery life
time/warranty.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Autogoods “130”
130.com.ua

Before installation
Firstly, please diagnose your car battery condition (may be
diagnosed by professionals, please refer to original vehicle
maintenance) or use electric Multimeter to have basic-check on
your car battery voltage status.
Normal Car battery should provide 12.2~12.8V DC with
engine-off for 20 minutes, and voltage goes up to 13~14V while
engine on (alternator on).
Normal Lead-Acid car battery life-time is averagely about 1~2
years, depending on usage rate, maintenance and environment.
If your battery status is not in good health diagnosis, you may
consider replacing your battery first. Or the performance of
Power-PLUS may be affected.
Besides basic voltage testing, there are some other detail
factors relative to car-battery diagnosis, including CA/CCA
(cranking amps), loaded voltage…etc. Please go to
professionals for detail diagnosis for new battery replacement
judged.
Check the fuse box definition on car manual and relative
instruction, make sure ACC+/Battery+/GND terminals can be
installed in correct position.
Avoid any short circuit happening while wiring, and also confirm
all contacts are in firm position during traffic vibration.
When installing/positioning product, please avoid any driving
interference. It may cause accidents.
1.
2.
3.
4.
English
04
Autogoods “130”
130.com.ua

English
05
What Vico-Power PLUS can do?
How it works?
Vico Power-PLUS
Your Smart Car-Battery Power Management Device!
Power-PLUS is a power management device connecting to car
battery which working with Dash Cam/Blackbox DVR,
continuously providing power after engine-off while parking, and
monitoring your battery status. Power-PLUS detects car battery
status to cut-off power to prevent car battery from being drained
out (discharged).
Together working with Vicovation Smart Parking Mode function,
your Marcus Dash Cam will enter motion-detection/G-sensor
trigger recording after 10mins you left the car, for full parking
protection. Unusual events in front of your car will be recorded by
motion-detection triggering.
If any unexpected impact occurs, recording can be also triggered
by G-Sensor. If there is no motion detection/G-Sensor triggering,
Dash Cam stays in standby to save memory space.
Dash Cam will come back to normal recording mode while you
start moving your vehicle again (G-Sensor detected). You get full
surveillance protection while driving and car parking.
Power-PLUS provides multiple protection to have better safety
coverage, including:
1. Low Voltage protection
2. Over Temperature protection
3. Timer protection
4. Over Current/Surge protection
Autogoods “130”
130.com.ua

Features
Low Voltage protection:
Power-PLUS will periodically auto-detect your battery
voltage status, to cut-off the power if the voltage drops
below the configured value (11.6/11.8/12.0/12.2/12.4V
or 23.2/23.4/23.6/23.8/24/24.2/24.4/24.6V) to prevent
car battery becoming excessively discharged.
Over Temperature protection:
During Summer daytime, inner car temperature raise
extremely high if you left your car outside with direct
sunlight. Over temperature operation might damage
your dash cam. Power-PLUS built-in thermo sensor will
cut-off power if temperature exceeded setup value.
(Off /50°/55°/60°/65°/70°/75°C)
*(Off /122°/131°/140°/149°/158°/167°F)
Timer protection:
If you switch into Timer mode, Power-PLUS will cut-off
power when time out, based on your setup schedule
(2/6/12/24/48/72hrs).
Over Current/Surge protection:
Power-PLUS will detect abnormal over current status and cut-off
power to prevent any damage on dash cam device. Additionally,
Power-PLUS built in with an extra fuse box (2A), to have extra
protection if anything goes wrong as incorrect installing or short
circuit.
The Most Perfect Power Device for Smart Parking Mode!
Vicovation Marcus series Dash Cam built in Smart
Parking Mode function, providing full protection /
continuous recording when car parked.
Power-PLUS is the best companion to enable this
continuous monitoring function.
Built-in Digital Display/Backlight LED, easier to
monitor/control
Backlight LED enables users to have clear display of car-battery
voltage monitoring and setup control, even at night. It’s easier to setup
configuration with 3 handy control buttons with clear LED friendly
display.
English
06
Autogoods “130”
130.com.ua

Features
Compatible with all kinds of Dash Cam/Car Cam!
Power-PLUS is 100% compatible with all Vicovation production, and
also it’s compatible with other car cam/black box DVR which equipped
standard cigar charger power supply.
Please Note: Other Dash Cam/Blackbox DVR may not include the
Smart Pakring Mode function.
Multi Input Power Type, DC12V/24V all
in one
No matter your car is running DC12V or 24V
battery, Power-PLUS will auto-detect the voltage
input to display different programmable menu
setting. It’s automatic.
Multi-Swtich to Select Normal mode and Timer mode
Normal mode provides low voltage and over temperature protection at
the same time. Timer mode provides original both low voltage and over
temperature, also additional timer cut-off when schedule time out. There
is a switch on the right side of Power-PLUS for you to switch under
different condition.
Programmable Setting, fitting your car environment
Users can select it’s own suitable parameter in different cut-off voltage,
temperature, and time. It’s all clearly displayed in comprehensive menu
and friendly user interface.
Main Switch to Select Activate/Bypass for Different Parking
Environment/Situation
You may select Power-PLUS power output depending on different
parking environment/situation. For example, you may switch to “Bypass”
while parking at home garage for saving memory space and car-battery
power. And switch to “Activate” while parking outside/unfamiliar place,
co-working with Smart Parking mode for parking surveillance.
Switch to Activate: Power-PLUS provides power output to Dash Cam
while engine on and also engine off, simultaneously with cut-off
protection based on low-voltage/timer/over-temperature.
Switch to Bypass: Power-PLUs provide power output to Dash Cam
ONLY when engine on (ACC on). When engine off (ACC off),
Power-PLUS provides NO power to Dash Cam. English
07
DC 12v
DC 24v
All-in-one
Autogoods “130”
130.com.ua

Package Contents
1. Power-PLUS main product
2. Adhesive Tape
3. Warranty & User’s Manual

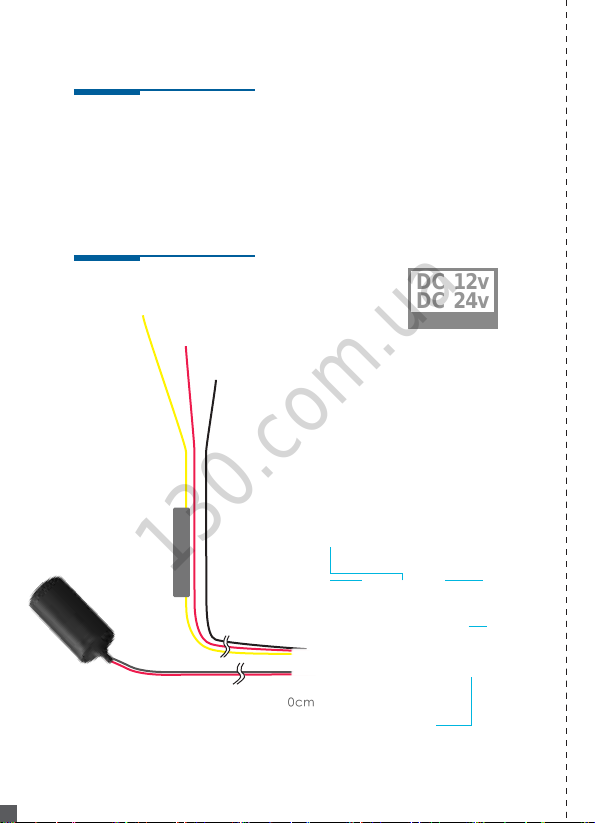

Main product detail
English
08
Cable length 150cm
(around 5 ft)
DC 12v
DC 24v
All-in-one
1 hole Cigar Socket
B+(Battery Power)
ACC
GND
Cable length 150cm
(around 5 ft)
Fuse
250 V/ 2A
Main switch
(Active/Bypass)
Ｍode
Switch
(Timer /
Normal)
Back Choose
Next
Autogoods “130”
130.com.ua

Installation Instructions
STEP 1. Make sure the engine turned off first.
Switch your key to “off” position, and take the key out to
ensure the power is completely off.
English
09
STEP 2. Make sure Power-PLUS Main Switch
turned to “Bypass” location first before
installing.
DO NOT switch to Activate before installation finished.
STEP 3. Allocate and open
your fuse box.(The
location of fuse box may
be different from
vehicles.)
and check the fuse chart.
Location of ACC+/Battery+/GND
may be different from vehicles.
Autogoods “130”
130.com.ua

English
10
STEP 4. Connect the red line (ACC+):
Use multimeter to find out the fuse which provides power ONLY after
engine turned on, such as audio system (ACC radio), or cigar lighter
jack.
Before wiring, make sure your car is completely off (ACC/engine off).
Pull out the fuse to and wire the red ACC+ line together with one of fuse
pins (only single pin binding), and make sure there is no short-circuit
between 2-pins of fuse when you insert the fuse back to original
position.
Installation Instructions
Autogoods “130”
130.com.ua

English
11
Special Notice:
It’s recommended to avoid connecting to high-capacity fuse over 10A
(such as 15A/20A/30A). You could wire-binding 5A/7.5A/10A fuses.
Special Notice3:
Important!! Do NOT connect to those fuses which relative to
car-safety (as TPMS, ABS, Fuel Pump, Air Bag, ALT, ECU, A/T, Brake
Light, Front Light, Engine Control, Cooling fan, EBD, TCS, ESP, TRC,
SRS, BAS and others), neither critical function (as Car Door, Hazard
light, and others).
Special Notice 4:
Instead of fuses located in Car fuse-box, there are other
wire/terminals (contacts) on vehicle may also directed to ACC+. You
can also modify it with extra fuse adaptor attached and connect it with
Power-PLUS ACC+.
Special Notice2:
Again, please refer to professional assistance of vehicle original
manufacturer/maintenance if you are not able to install by yourself.
Vicovation takes no responsibility for incorrect wiring malfunctions by
user’s mistake/carelessness, or any other damages due to incorrect
installing/wiring.
Autogoods “130”
130.com.ua

English
12
STEP 5. Connect the yellow line (Battery+):
Use multimeter to find out the fuse provides permanent power (no
matter engine on/off), such as indoor cab lights, fog lights, door
lights, or tail lamp.
Before wiring, make sure Power-PLUS Main switch located in
“Bypass” position. Pull out the fuse to and wire yellow Battery+ line
together with one of fuse pins (only single pin binding), and make
sure there is no short-circuit between 2-pins of fuse when you
insert the fuse back to original position.
Autogoods “130”
130.com.ua

English
13
Special Notice: It’s highly recommended to select indoor cab lamp or fog
lights in order NOT to affect any driving safety. Please avoid connecting
to brake lights, indicator lights, or headlights.
Special Notice2:
It’s recommended to avoid connecting to high-capacity fuse over 10A
(such as 15A/20A/30A). You could wire-binding 5A/7.5A/10A fuses.
Special Notice3:
Important! Do NOT connect to those fuses which relative to car-safety
(as TPMS, ABS, Fuel Pump, Air Bag, ALT, ECU, A/T, Brake Light, Front
Light, Engine Control, Cooling fan, EBD, TCS, ESP, TRC, SRS, BAS and
others), neither critical function (as Car Door, Hazard light, and others).
Special Notice4: If your car provides “Battery Saver” function, please
contact with original car manufacturer/maintenance professionals for
more assistance, or consider wiring the yellow line (Battery+) to the fuse
of Emergency lamps.
Special Notice5: Please make sure all 3 contacts (B+/ACC+/GND) are
correctly connected, or product can’t operate normally. And make sure
again there is no short circuit happening again.
Special Notice 6:
Instead of fuses located in Car fuse-box, there are other wire/terminals
(contacts) on vehicle may also directed to B+. You can also modify it with
extra fuse adaptor attached and connect it with Power-PLUS B+.
Autogoods “130”
130.com.ua

STEP 6. Connect the black line (GND) for grounding:
Find out the fuse which is connected with device which will be powered
ONLY after vehicle engine turned on, such as audio system, or cigar
lighter jack.
Pull out the fuse to and connect the red ACC+ wire and then insert
back together. Make sure there is no short circuit happening.
English
14
Special Notice:
Some metal snaps on vehicle may have no connection with car metal
ground together (like metal snap but connected on plastic parts, no
grounding). Use multimeter to ensure it’s the real grounding. Incorrect
grounding may cause fire or other serious damage.
Autogoods “130”
130.com.ua

English
15
There are multiple types of fuse based on different Cars, including
AMP-H/ATP-H/ASP-H/ASM-H/ATP-U/ATP-NS…etc. For wiring
B+/ACC connection, you may purchase an extra Fuse Block
Add-A-Circuit (Add-a-Circuit Fuse Adapter/Holder kit, as shown
below.) for better installation. Make sure your Car Fuse type and you
may purchase this kind of Adapter locally for better wiring instead of
basic binding wired on one pin of fuse. (This Add-a-Circuit adapter kit
is NOT including in the box.)
About Additional Fuse Block Modification
Notice: Please refer to professional assistance of vehicle original
manufacturer/maintenance if you are not able to install by
yourself. Vicovation takes no responsibility for incorrect wiring
malfunctions by user’s mistake/carelessness, or any other
damages due to incorrect installing/wiring.
Autogoods “130”
130.com.ua

STEP 8. Voltage Offset Adjust Calibration:
Car engine stays off (ACC off), use multimeter to check car-battery
voltage from fuse box, and calibrate Power-PLUS by Voltage Offset
adjust setting.
Long press any button on Power-PLUS for 2 seconds to wakeup
from dot-blinking mode. Compare Power-PLUS meter display with
your multimeter voltage measuring, and then setup the offset value
for better accuracy in voltage-detection. For more detail, please
check the Voltage Offset Adjustment pages.
STEP 9. Connect Dash Cam.
Connect the Dash Cam Cigar Charger into the Power-PLUS Cigar
socket. And check if the Dash Cam operates normally or not.
STEP 10. Start Engine and Double-Check all your Car
Electric function:
Important!! Please carefully check ALL your car electric function,
including headlight, direction light, break light, hazard, radio…etc.
And check if there is any abnormal signal showing from your
dashboard display. Make sure it’s 100% working well before your
driving. Incorrect installation leads to damages and accidents.
STEP 7. Turn Main Switch into Activate to
check:
Car engine stays off (ACC off), and turn the
Power-PLUS Main Switch into “Activate”.

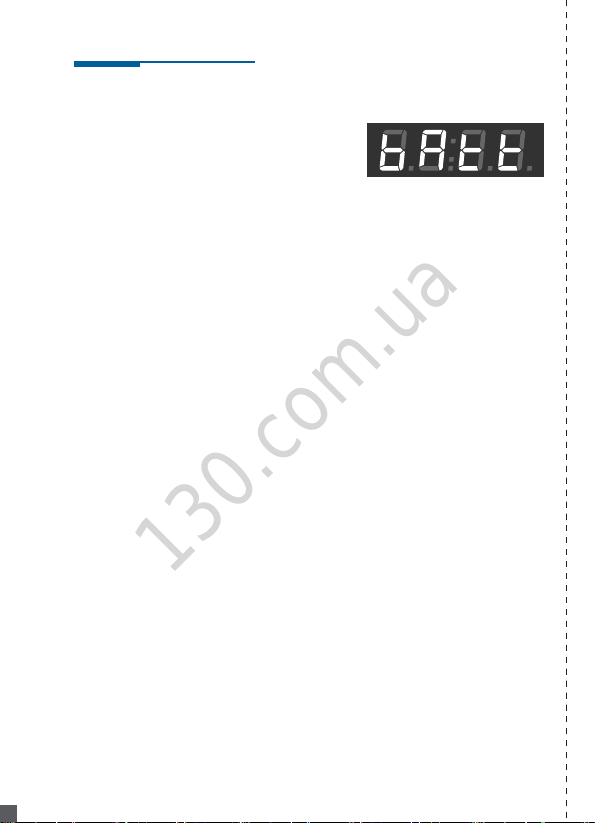

Power-PLUS LED display will show up “Batt” first,
and then entering dot cross-blinking display (due to
ACC off) afterwards, which is working properly.
English
16
Special Notice:
It’s commended to use extra tape to fix the connection between cigar
charger and Power-PLUS cigar socket, avoiding the detachment/loose
due to car vibration.
Autogoods “130”
130.com.ua

English
17
STEP 11. Configure Power-PLUS menu settings:
You may check the following instruction for more
detail and configure your Power-PLUS setting.
STEP 12. Power-PLUS is built-in with thermo
sensor, providing over-temperature cut-off
protection. Please avoid direct sunlight of
Power-PLUS placement. Do NOT place it on the front
dashboard or any spot of direct sunlight. Direct
sunlight heating might lead to electronic component
failure, or abnormal function/failure by incorrect
measurement.
For drive safety, please avoid any view-block while
installing Power-PLUS. And avoid any place where
might affect your driving control/handling/breaks.
Power-PLUS
Install
Position
Autogoods “130”
130.com.ua

English
18
Power-PLUS Menu Configuration
13.2V
- Display Volt
- Display Hour
Hour
Volt
TEMP
- Display Temp.
29.c
11.6V ~ 12.4V
default as 12.0V
Enter / Confirm
Next option
Go back / Press+Hold 8 sec. will RESET to default
23.2V ~ 24.6V
default as 24.2V
After staying at this menu
for 15 seconds (time out),
it will display Input
display
previous
setting
50.c ~ 75.c
default as OFF
122.F ~ 167.F
default as OFF
display
previous
setting
2 hr ~ 72 hr
default as 6 hr
display
previous
setting
11.6V.
23.2V.
done setting, an
extra point
shown.
Blink three times
done setting, an
extra point
shown.
Blink three times
done
setting, an
extra point
shown.
Blink three
times
Choose
Celsius or
Fahrenheit
24 hr.
55.c.
131.F.
- Set
Temperature
Protection
- Display
setting
temp.
- Display
Input
Celsius or
Fahrenheit
by choice
- Set Low
Voltage
Protection
- Set Timer
Protection
Autogoods “130”
130.com.ua
