Victorian Plumbing ME90103 User manual

Toilet Macerator
Installation and Utilization Instructions
ME90103
Warning
-The appliance is only ready for use after installation.
-The appliance must be supplied through a residual current
device (RCD) having a rated residual operating current not
exceeding 30mA.
-If the supply cord is damaged, it must be replaced by the
manufacture or its service agent or a similarly qualified
person in order to avoid a hazard.
-This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
-Children should be supervised to ensure that they do not play
with the appliance.
- This appliance is of domestic use only
The Waste Pump for toilet comprises a tank that receives the waste
to bedischarged and an electric pump that is automatically controlled
by a pressure switch.
The discharge action is triggered when the flushing system is actuated,
as with a conventional toilet.

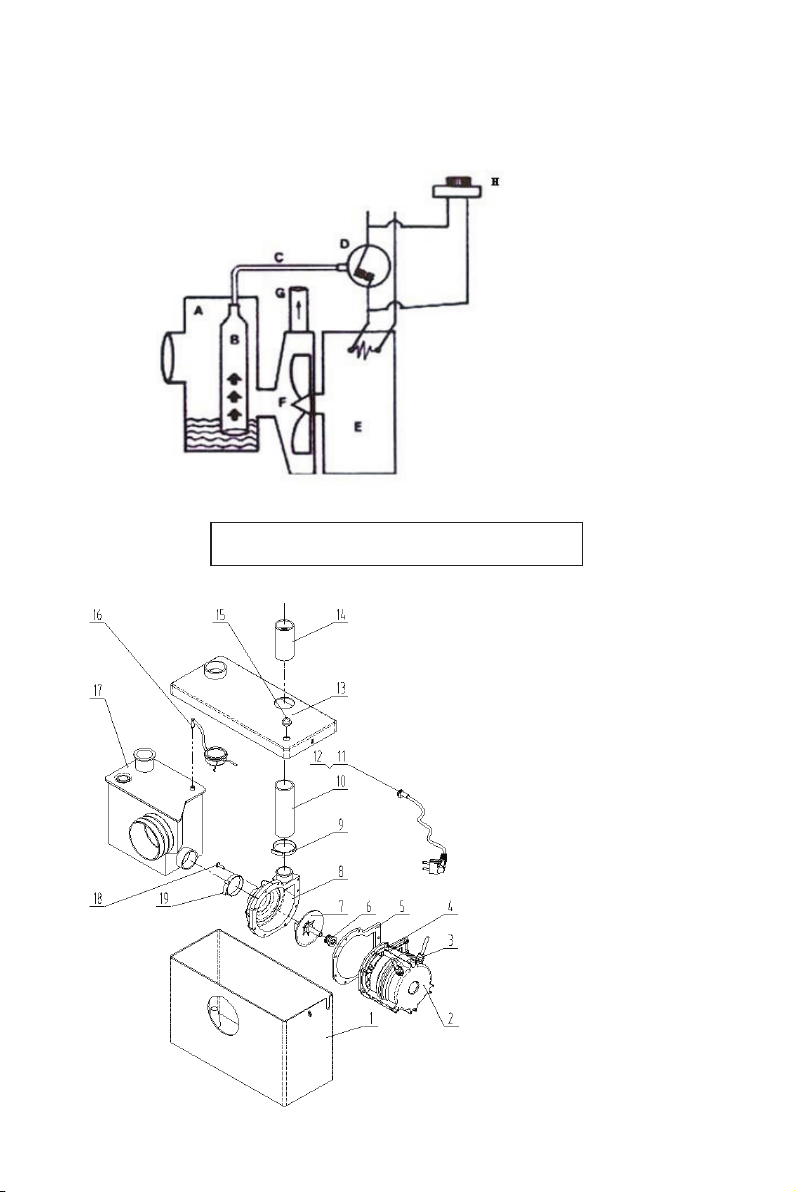

The products to be discharged are collected in tank A.
Air chamber B records the air pressure flowing through pipe C to
pressure switch D.
The pressure switch trips the motor E that drives the turbine F.
The waste is discharged through outlet G.
The mechanism is simple and manufactured from top quality
components. The operating principle is based on a proven design.
OPERATING PRINCIPLE
ADAPTABLE WASTE PUMP FOR TOILET
OPERATING PRINCIPLE
CONTROL COMPONENT 1 pressure switch
MECHANISM COMPONENTS 1 ELECTRIC MOTOR

1 TURBINE
CONTROL COMPONENTS1 MANUAL OVERRIDE SWITCH
AND SAFETY DEVICE1 CHECK VALVE
BREAKDOWN OF THE APPLINCE
1. CASE
2. MOTOR
3. LOCKNUT
4. FLANGE
5. GASKET
6. MECHANICAL SEAL
7. OPEN IMPELLER
8. INJECTOR
9. CLAMPING RING
10. OUTLET PIPE
11. CABLE AND PLUG
12. CABLE GLAND
13. COVER OF THE CASE
14. CHECK VALVE
15. PUSH SWITCH
16. AIR SWITCH
17. RUBBER TANK
18. BOLT
19. CLAMPING RING

INSTALLATION
ELECTRICS: Connected with an earthed plug to a 250V~16 amp socket in
accordance with current standards.
HYDRAULICS: The Waste Pump for toilet can only be used with a toilet with
horizontal outlet and equipped with a tank or flushing tap.
The center of the horizontal outlet must be 18cm above the floor in accordance
with European standards
DISCHARGING THE TOILET ONLY
a) Introduce the horizontal bowl into the rubber sleeve of the Waste Pump for
toilet and clamp with the pipe ring supplied – Fig.1
b) Introduce the discharge pipe into the rubber outlet. This shall be 40mm or
32mm in diameter. Clamp with the pipe ring.
CHECK VALVE
If the waste is to be expelled upwards, install the valve vertically as near as
possible to the Waste Pump for toilet.
DISCHARGING WASTE FORM TOILET AND OTHER APPLIANCES
Connect the discharge pipes of the other appliances to the rubber connectors
provided and clamp with the pipe ring – Fig. 2-
For bath or shower wastewater ,check that the slope form the siphon has a
gradient of at least 1 cm per
meter so that the waste flows by gravity to the Waste Pump for toilet.
If other appliance are connected along the discharge line near to the Waste
Pump for toilet, install check
valves on their discharge pipes in order to prevent waste return.
The slope of the horizontal parts of the discharge line must have a gradient of
1 cm per meter.
Fig.1

Fig.2
SAFETY INSTRUCTION
Before the use ,the appliance must be ensured that it is earthed reliably to
socket-outlet.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similar qualified
Persons in order to avoid a harzard.
The appliance is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with the
appliance.
The instructions concerning persons (including children) with reduced physical,
sensory or
mental capabilities, or lack of experience and knowledge and children playing
with the
appliance are not applicable. Children should be supervised to ensure that
they do not play with the appliance.
SPECIFICATIONS
Product type: ME90103
Power: 600W

Voltage: 220V~240V 50Hz
UTILIZATION
In order to ensure total satisfaction with your appliance for many years, only
toilet waste, water and paper should be discharged using the waste pump for
toilet. Discharge of any other materials than those mentioned will invalidate the
warranty.
ADAPTABLE MAINTENANCE
Our appliances are designed to discharge fecal matter and toilet paper only.
Some small items may however pass through the pump. But larger items
unfortunately can block the pump. This is the main cause of breakdown record
by our customer support department.
The appliance works
but Causes Remedies
Is not powerful enough
or too slow to
discharge the waste
Discharge pipes
long or too high
too
Discharge pipe
diameter too small
Partial blockage
Recalibrate the pipes
Recalibrate the pipes
Actuate the pump with
manual override switch.
If the problem
persists, the pump must be
blocked check the pump
the
Emits a humming
but does not discharge
the waste
noise
Start running and
discharging
accidentally
Runs continually
Pump blocked
Check valve installed
the wrong way round
Check the pump
Reinstall the right way
round
Check valve defect Check valve Valve
Leak in the flushing
tank that causes water
to flow into the waste
pump for toilet and sets
it running intermittently
Repair the leak
Vertical discharge
without check valve
Check valve defect
Install the check valve
Pressure switch defect
Check the valve
Check the pressure switch
Electrical connection defect Check the connection

No humming noise Pressure switch motor Press the manual
override switch several
times, if the appliance
starts running check
the electrical
connection of the
pressure switch and
the pressure switch
line (see method)
Pressing the manual
override switch has no
effect. Check the
motor.
PRESSCURE SWITCH INSPECTION
Plug the pressure tap chamber located in the rubber tank, press it down to
create pressure and listen to hear if there is a click indicationg that the motor
has switched on. If there is no click, also check that the air chanber of the
pressure switch pipe nozzle does not leak.
If the applinance is switched on , the motor should start running.
Before performing this operation, check that the opening or inside of the
pressure tap chamber are not blocked.
Disposal
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return you r used
device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this
product for environmental safe recycling.
