Victory BX42S User manual

Operator's Manual
BX42S PTO WOODCHIPPER With
Manual Infeed
VERSION 2.0 - EN 2022

Operator’s Manual Victory BX42S - Page 2 of 51 - Version 2.0
COLOPHON
Addresses:
Visitor and Postal address:
65 Pine Ave #857, Long Beach, CA 90802, United States.
Business hours:
Monday-Friday 9:00 am - 5:00 pm
Internet address:
https://etractorimplements.com
E-mail address:
[email protected]m
Phone:
[phone]
Manual info:
These are the original instructions. The English language is binding.
No part of this documentation may be reproduced without the written permission of Victory
Tractor Implements.
History of changes:
Operator’s Manual
Version:
Date:
Chapters:
Description:
V1.0
2019
-
First edition.
V2.0
June 2022
All
Editorial update. Layout update.

Operator’s Manual Victory BX42S - Page 3 of 51 - Version 2.0
Table of contents
1 PREFACE ........................................................................................................................................6
1.1 Identification .........................................................................................................................6
1.2 CE Type Plate.........................................................................................................................6
1.3 Warranty Provisions (See also Chapter 13)...........................................................................7
1.4 Liability ..................................................................................................................................7
2 INTRODUCTION .............................................................................................................................8
2.1 About This Manual ................................................................................................................8
2.2 Manual Update......................................................................................................................8
2.3 Explanation Documentation .................................................................................................8
2.4 List of Abbreviations..............................................................................................................8
2.5 Safety Warning Messages in this Manual .............................................................................9
2.6 Intended Users ................................................................................................................... 10
2.7 Intended Use ...................................................................................................................... 10
2.8 Unintended Use.................................................................................................................. 10
2.9 Intended Operating Conditions.......................................................................................... 10
2.10 Tools, Parts, and Accessories for assembling and adjusting.............................................. 10
3 SAFETY INFORMATION............................................................................................................... 11
3.1 Introduction........................................................................................................................ 11
3.2 Generally Applicable Safety Rules...................................................................................... 12
3.3 Personal Protective Equipment.......................................................................................... 12
3.4 General Safety Rules for Machines .................................................................................... 12
3.5 IMPORTANT SAFETY RULES FOR WOODCHIPPERS ............................................................ 14
3.6 More Safety Tips for Safe Operation.................................................................................. 14
3.6.1 Prepare For Emergencies ........................................................................................... 15
3.6.2 Practice Safe Maintenance......................................................................................... 15
3.7 Safe Machine Transport ..................................................................................................... 15
3.8 Driveline Safety .................................................................................................................. 16
3.8.1 Driveline Safety Checklist........................................................................................... 16
3.9 Hazard Reduction ............................................................................................................... 16
3.10 Guarding............................................................................................................................. 17
3.11 Warnings and Instructions ................................................................................................. 17
3.12 ASME standards ................................................................................................................. 17

Operator’s Manual Victory BX42S - Page 4 of 51 - Version 2.0
3.13 Not Allowed Use .................................................................................................................18
3.14 Safety Signs and Markings on the BX42S............................................................................18
3.15 Calamities............................................................................................................................20
4 ASSEMBLY INSTRUCTIONS ..........................................................................................................21
4.1 Assembly Info:.....................................................................................................................22
4.1.1 Determine the PTO Shaft Length, shorten if necessary..............................................24
4.1.2 Install the PTO shaft....................................................................................................26
4.1.3 Checking the PTO Shaft’s Interference .......................................................................26
4.2 Instructions before starting the Woodchipper...................................................................27
4.3 Preparation before Operating ............................................................................................28
5 OPERATION .................................................................................................................................28
5.1 Human.................................................................................................................................29
5.2 Operator..............................................................................................................................29
5.3 Workplace ...........................................................................................................................29
5.4 Pre-operation checklist.......................................................................................................29
5.5 Operating the BX42S...........................................................................................................30
5.6 Running-in the woodchipper ..............................................................................................31
5.6.1 Adjusting the Discharge Chute....................................................................................32
5.7 Bearing Lubrication Guide; Based on Environmental Conditions.......................................32
6 OTHER ACTIVITIES .......................................................................................................................33
6.1 Cleaning Flywheel Housing .................................................................................................33
6.2 Order Parts..........................................................................................................................34
7 MAINTENANCE ADJUSTMENT AND REPAIR................................................................................35
7.1 Preventive Maintenance.....................................................................................................36
7.2 Lubrication table: ................................................................................................................36
7.3 General Troubleshooting ....................................................................................................37
7.4 Flywheel Knives and Bed Knife Changing/Adjusting...........................................................37
7.4.1 Flywheel Knives Changing/Adjusting..........................................................................37
7.4.2 Stationary Counter Knife Changing/Adjusting............................................................41
8 TRANSPORT, STORAGE, AND ENVIRONMENT ............................................................................43
8.1 Transport and Storage ........................................................................................................43
8.2 Decommissioning and Environment...................................................................................44
8.2.1 Decommissioning Requirements ................................................................................44
8.2.2 Environment................................................................................................................44

Operator’s Manual Victory BX42S - Page 5 of 51 - Version 2.0
8.3 List of Consumables............................................................................................................ 44
9 SPARE PARTS AND WEARING PARTS.......................................................................................... 44
9.1 Wearing Parts..................................................................................................................... 44
10 EXPLODED VIEW DRAWINGS.................................................................................................. 46
10.1 Torque Specifications......................................................................................................... 48
11 FLYWHEEL KNIFE CARE........................................................................................................... 49
11.1 How long will my Woodchipper Knives last? ..................................................................... 49
12 VICTORY TRACTOR IMPLEMENTS WARRANTY....................................................................... 50
13 SPECIFICATIONS, FEATURES ................................................................................................... 51

Operator’s Manual Victory BX42S - Page 6 of 51 - Version 2.0
1PREFACE
Introduction
CONGRATULATIONS! You have just purchased the Victory BX42S Woodchipper, the strongest,
safest, and compact PTO Manual Feed Woodchipper in its category.
1.1 Identification
Our upgraded BX42S cuts wood up to 5″ thickness in diameter and has improved air suction for
improved woodchips output.
The new BX42S Woodchipper is robust, reliable, and easy to handle. It cuts all kinds of wood. The
BX42S includes the PTO shaft with a shear bolt and connects to your CAT I, 3-Point Hitch. The
upper and lower pins are included, and additional bushings for Cat II mounting are available.
Performance:
◼You can operate the woodchipper between 540 to 1,000 rpm, this means between 36 to 66
chips per second utilizing four hardened steel cutting knives against one bed/counter knife.
◼We recommend operating your tractor between 25 - 35 HP for maximum performance and
flexibility and a PTO shaft speed of 540 rpm. The direct PTO drive system turns the well-
balanced 37 kg (82 lb) rotor with its four 8¼″ knives, made from hardened tooling steel.
◼The counter knife setting produces cutted material from ¾”to 1½”in size.
◼The rotor speed and the specially designed rotor winglets create the air suction, which throws
out the chipped material and makes wood jams virtually impossible.
◼The heavy half-inch thick rotor disc also has branch breakers processing skinny branches. The
rotor is driven by the PTO shaft (included in the shipment).
◼The discharge funnel is 62” in height, and you can turn it at 230° with an adjustable throwing
angle. The chipped material can be thrown up to 20’ in the distance, making it easy to fill
trailers or containers.
◼The woodchipping capacity is 200 to 250 cu.ft./hr. depending on the type of material to be
chipped.
◼Victory’s BX42S machine complies with all safety standards and is CE tested following the
2006/42/EC machine directives.
1.2 CE Type Plate
The type plate shows the following data:
◼Name of the Manufacturer.
◼Address of the Manufacturer.
◼Machine Model and Type.

Operator’s Manual Victory BX42S - Page 7 of 51 - Version 2.0
◼Manufacturing date.
◼Serial Number.
◼Power.
◼CE Mark.
Using This Manual
The meaning of this Operator’s Manual is to help you familiarize yourself with Safety, Assembly,
Operation, Adjustments, Troubleshooting and Maintenance.
We have compiled this Operator’s manual to help you understand and appreciate your
woodchipper.
Taking some time to read this manual and understand the Safety and Maintenance instructions will
give you better performance and extend the life of your woodchipper. You must read this manual
before assembling and operating the device.
The information contained within this manual was current at the time of printing. Some parts may
change slightly to assure you of the best performance. To check for updates, refer to our website
at www.etractorimplements.com or call [phone] to speak to one of our representatives.
Owner Assistance
If customer service or spare parts are required, please contact Victory Tractor Implements at
[phone]. Victory has trained technicians, spare parts, and equipment to service the device.
The parts on your machine are specially designed; replace these parts always with genuine Victory
parts. Please reference your order number or serial number when calling.
1.3 Warranty Provisions (See also Chapter 12)
Victory Tractor Implements guarantees the proper functioning of the provided equipment.
However, Victory is not responsible for unsafe situations, accidents, or damage, which are the
result of:
◼ignoring warnings and regulations as stated on the machine or in this Operator's manual;
◼the use of the device for other applications or under other circumstances than stated in this
documentation;
◼mutations to the machine; this also includes the application of different replacement parts as
specified;
◼insufficient or careless maintenance.
1.4 Liability
Victory Tractor Implements can't be held liable for consequential damage (business interruption,
product damage, etc.).

Operator’s Manual Victory BX42S - Page 8 of 51 - Version 2.0

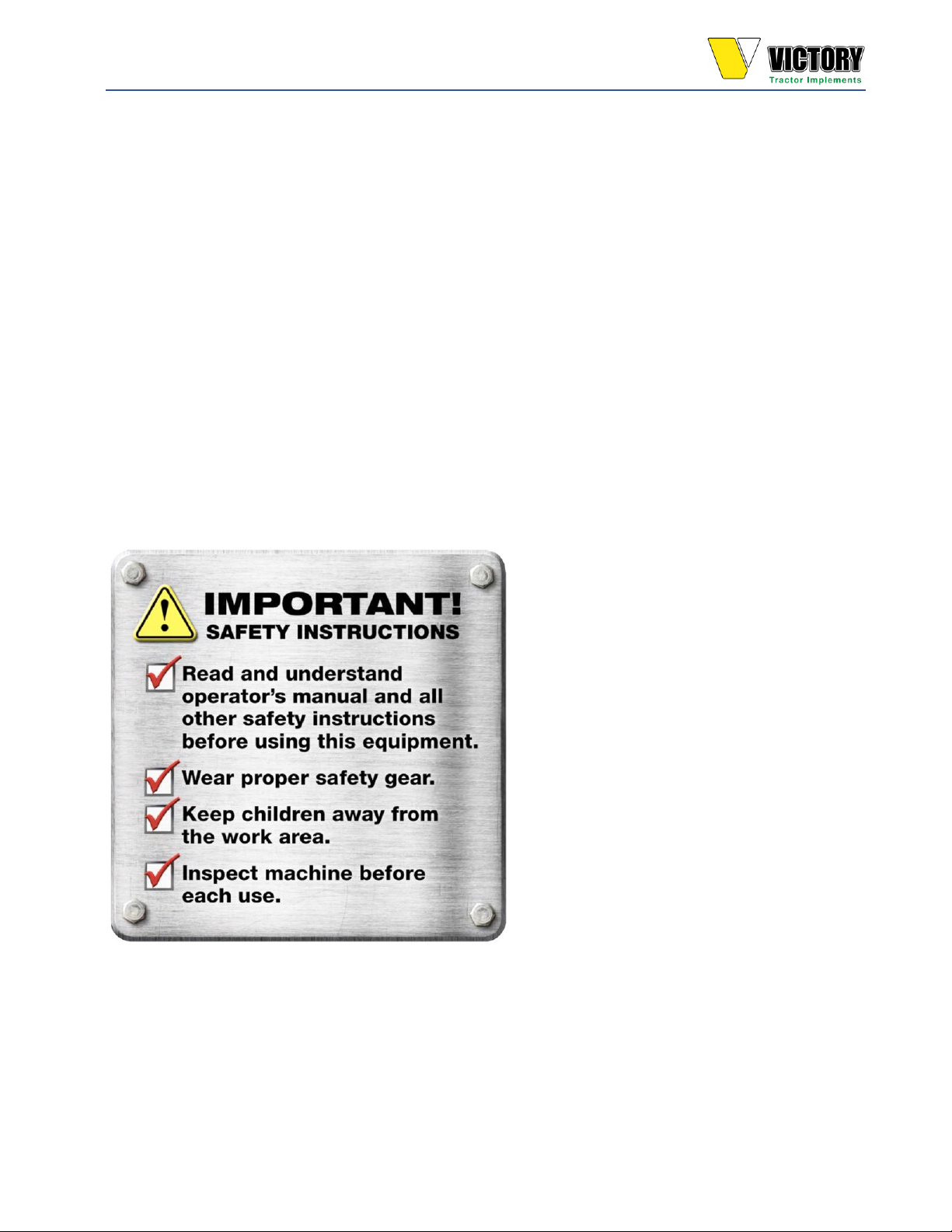

2INTRODUCTION
2.1 About This Manual
This Operator’s manual belongs to the owner of the Victory BX42S Woodchipper.
Read this Operator’s Manual before operating the BX42S
•Pay special attention to safety precautions presented in this manual, as
they prevent accidents causing machine damage, human injury, or
death.
•This machine can be dangerous. Therefore, reading this manual
entirely before the operation is essential.
•This manual describes characteristics unique to woodchipper BX42S.
•In this manual, Safety is a priority. You will become aware of the
dangers and hazards of operating this machine by reading it.
2.2 Manual Update
Reason for raising the Operator’s manual to version 2.0:
◼Editorial update according to CE Standard.
◼Graphics and layout improved.
2.3 Explanation Documentation
Chapter 3; 'Introduction' and Chapter 4, 'Safety' is essential for anyone working on the machine.
◼For operators is essential:
- Chapter 5; Operation.
◼For Service and Maintenance personnel is essential:
- Chapter 5; Operation.
- Chapter 6; Other activities.
- Chapter 7; Maintenance.
◼For Product management is essential:
- Chapter 13; Specifications.
2.4 List of Abbreviations
◼PTO: Power Take Off.
◼ASME: American Society of Mechanical Engineers.
◼PPE: Personal Protective Equipment.
◼CE: Conformité Européene.

Operator’s Manual Victory BX42S - Page 9 of 51 - Version 2.0
2.5 Safety Warning Messages in this Manual
Read this manual carefully before using the BX42S to understand how to use it correctly.
◼After reading, store the manual in a safe place, easily accessible for everyone working with the
machine.
◼Incorrect handling of the equipment could result in personal injury or physical damage.
◼The manufacturer assumes no responsibility for any damage caused by mishandling beyond
normal usage defined in this Operating manual.
DANGER!
•This symbol indicates a potentially and imminently hazardous situation
that, if not avoided, will result in death or severe injury.
This RED symbol indicates All DANGER notifications.
WARNING!
•This symbol indicates a potentially hazardous situation that, if not
avoided, could result in death or severe injury, or machine damage.
This ORANGE symbol indicates All WARNING notifications.
CAUTION!
•This symbol indicates a potentially hazardous situation that, if not
avoided, may result in minor or moderate injury.
This YELLOW symbol indicates All CAUTION notifications.
NOTICE:
•This Notice symbol shows special procedures or points out essential
facts.
◼Always adhere to the recommendations and warnings in this manual. They are the
recommendations of Victory Tractor Implements and several essential components
manufacturers. If you ignore these recommendations, there will be no warranty.
◼Any warranty claim will be rejected if you exceed the maintenance intervals for the essential
machine components claim.

Operator’s Manual Victory BX42S - Page 10 of 51 - Version 2.0
2.6 Intended Users
Intended users are well-trained, technically skilled operators.
2.7 Intended Use
The BX42S is a woodchipper for tree branches max 5” thick and other pruning waste.
2.8 Unintended Use
Unintentional use is any other use than described under 'Intended use.'
2.9 Intended Operating Conditions
◼Ambient temperature: 0° to + 40°C.
◼Temp. transport/Storage: –10° up to + 40°C.
◼Lighting: Normal ambient lighting.
2.10 Tools, Parts, and Accessories for assembling and
adjusting
◼Adjustable wrench 1” max.
◼18 mm socket; ½”.
◼17 mm socket; ½”.
◼6 mm Allen key bit socket; ½”.
◼Torque wrench ½”.
◼Awl, Pick.
◼New knife nuts, M10 with Nylon lock.
◼PTO Shear bolts.
◼Tape measure.
◼Feeler gauge; 0,03” (Credit Card thickness).
Accessories
◼Heavy leather gloves.
◼This manual.
Operator orientation
As mentioned throughout this manual, the directions left, right, front, and rear are determined
when sitting in the tractor driver's seat and facing in the direction of travel.

Operator’s Manual Victory BX42S - Page 11 of 51 - Version 2.0
3SAFETY INFORMATION
YOU, as an operator, are responsible for the SAFE operation and maintenance of your 3 Point Hitch
Wood Chipper. YOU must ensure that you and anyone else who will use, maintain or work around
the 3 Point Hitch Wood Chipper must be familiar with the operating and maintenance procedures
and related SAFETY.
YOU are the key to safety. Correct safety practices protect not only you but also the people around
you.
Be sure that EVERYONE using this equipment is familiar with the recommended Operating and
Maintenance procedures and follows all the safety precautions.
WARNING!
•Read and understand all Safety measures and Warnings before carrying
out any operation or adjustments.
•Untrained persons who have not thoroughly read and understood this
manual might never approach the machine.
•Refer to all safety signs in this manual. Read all instructions noted on
them.
•Never modify the equipment in any way. Unauthorized modification
may impair the function and/or safety and could affect the life of the
equipment.
•Have a first aid kit available and know how to use it.
•Have a fire extinguisher available and know how to use it.
3.1 Introduction
The machine design is such that safe use and maintenance are possible. Anyone who works with it
must know the instructions and regulations stated in this manual.
The owner ensures that users know the instructions, operating regulations, and observations.
In this Operator's Manual, there is a distinction between:
◼Normal / Intended use (see operating instructions).
◼Other activities such as service and maintenance.
This distinction is because operators must meet other (safety) requirements than the technical
service staff.
◼The operator performs the daily cleaning and service work described in the Maintenance
instructions.

Operator’s Manual Victory BX42S - Page 12 of 51 - Version 2.0
3.2 Generally Applicable Safety Rules
This list contains general safety measures which must be complied with for personal safety
reasons.
◼Make sure children and animals cannot come into the machine's vicinity.
◼Only persons who have read and understood the operating instructions might be in the
machine's vicinity.
◼Unauthorized persons may not perform acts if the machine is in use.
◼Never work alone; always ensure that at least one person is nearby.
◼Do not remove the brought warning stickers or markings.
◼Always clean the machine properly and keep the workplace free of dirt and obstacles.
◼Always ensure sufficient ambient lighting.
3.3 Personal Protective Equipment
While handling, assembling and maintaining the woodchipper, adhering to all recommended safety
instructions and ensuring that the correct Personal Protective Equipment (PPE) is used.
Always wear:
◼Suitable ear protection.
◼Safety helmet for head protection and prevention from falling objects.
◼Safety gloves; for hand protection and prevention of cuts from sharp edges.
◼Steel-tipped safety boots; for foot protection from falling objects.
◼Wrap-around safety glasses for eye protection and prevent damage caused by shooting
particles.
◼Safety vest for recognizable presence, visibility and safety.
◼Any other Personal Protection Equipment that might be required, specified, or dictated by the
working environment.
◼Your Company can prescribe additional (safety) instructions. This Manual does not describe
how to comply with this.
3.4 General Safety Rules for Machines
◼Incorrect practice or lack of care can cause burns, wounds, mutilation, suffocation, bodily
injuries, or death.
◼Ensure the work area around the equipment is smooth, clean and free from any obstacles.
Keep in mind that a dangerous situation can always arise.
◼Always wear personal protective equipment.
◼Long hair is not allowed.
◼Never wear loose or torn clothing. Permanently remove jewelry.

Operator’s Manual Victory BX42S - Page 13 of 51 - Version 2.0
◼When lifting heavy parts, use a hoist or ask for help, to prevent personal injury.
◼Ensure that all hoisting equipment such as lifting straps, hooks, or ropes are in a good state of
repair and that they can safely bear the equipment's weight.
◼Never bypass door interlocks or safety sensors and switches.
◼Leaking chemicals, oil, or water on electrical equipment can result in severe damage or fire.
◼Watch for hot parts on switched-off components and hot liquids in lines, pipes, and
compartments to prevent burns.
◼Never open any vent or drain valve or remove any plugs while the system is under pressure.
◼Ensure that oil pumps are isolated from the system and relieve the pressure before
disassembling a pump, removing plugs, or disconnecting piping.
◼Always use tools that are in a good state of repair. Ensure you know how to use the tools
before doing any work.
◼ONLY use replacement parts from the same brand as the relevant part.
◼Always use replacement fittings having the same part number (or equivalent). Do not use
fitting of inferior quality.
◼Do not make any repairs if you are tired or consume alcohol or drugs, affecting your ability to
work perfectly.
◼PROTECT THE ENVIRONMENT: The handling and cleaning of spent oil or chemicals may be
subject to national or local laws and regulations. Use authorized waste processing services,
including Municipal facilities and garages, which provide official facilities for collecting oil and
chemicals.
◼Contact the provincial or Municipal authorities or the Environmental Protection Service for
guidelines about handling correctly and cleaning up spent oil and chemicals if in doubt.
◼Parts that rotate can cause cuts, mutilations or strangulation.
◼Always switch OFF the main power before performing service and maintenance.
◼Do not allow water or any other fluid to contact electrical components.
◼Switch the power ON only after closing all machine protection guards and covers.
◼Never use a high-pressure water beam for cleaning electrical components and cabinets.
◼Do not aim a high-pressure water beam directly at wiring, breathers, or hydraulic components'
sealings of drive components.
◼Always protect venting spots from the inlet of large amounts of water.

Operator’s Manual Victory BX42S - Page 14 of 51 - Version 2.0
3.5 IMPORTANT SAFETY RULES FOR WOODCHIPPERS
◼The operator should be familiar with all functions of the device.
◼Start the implement from the tractor driver’s seat only.
◼Persons under 18 should NEVER operate or be near the woodchipper during operation.
◼Do not operate the Woodchipper under the influence of drugs or alcohol, as severe injury or
death could result. Consult your doctor about using this machine while taking prescription
medications.
◼Bystanders must keep a safe distance from an operating woodchopper (5 m.)
◼Ensure all guards and shields are secured before operating the equipment.
◼Do not operate the device for any purpose other than what it is meant for. (See Chapter
Warranty for details.)
◼Never open safety guards when the machine is working.
◼Never bypass safety sensors or switches (if present).
◼Immediately cut off the power if system parts emit smoke, unusual odor, or unusual sounds.
Otherwise, fire may start.
◼Never leave the woodchipper unattended while it is running.
◼Dismounting from a moving tractor could cause severe injury or death.
◼Do not stand between the tractor and the implement during hitching.
◼When raising and moving implements, watch for wires, trees, etc. Make sure all persons are
clear of the working area.
◼Visually inspect the infeed bin and the flywheel before starting. Ensure that the chipper head is
clear, all the bolts are tightened, and the knives do not touch the case and the counter knife.
◼Ensure the PTO shaft does not come apart or bottom out during the normal lifting range.
◼Check the chip pile to see if the knives need to be serviced. Long slivers in the chip pile are one
of the best indicators of dull knives.
◼It is NOT recommended to operate the woodchipper in temperatures below freezing. Hardened
steel (used on knives) can become brittle in temperatures below freezing and may result in
breakage.
◼Do not modify the equipment in any way. Unauthorized modification may result in severe
injury or death and may impair the function and life of the equipment.
3.6 More Safety Tips for Safe Operation
◼Always keep the guards and chip deflector installed properly while operating the chipper.
◼Do not attempt alterations, repairs, or adjustments while the flywheel turns. Always disconnect
the PTO, stop the tractor’s motor, and put the keys in your pocket before attempting any
alterations, repairs, or adjustments.
◼Keep hands, feet, clothing, and other extremities away from the hopper (infeed bin) and any
power-driven parts. Wear snug-fitting clothing to avoid entanglement with moving parts.
◼Do not wear loose clothing when working around the woodchipper. Personal injury can occur if
someone or something turns the flywheel over while checking the knives or adjusting the
cutter bar. The flywheel has enough residual energy to remove fingers easily.

Operator’s Manual Victory BX42S - Page 15 of 51 - Version 2.0
◼Point the discharge chute away from doorways, sidewalks, or areas obstructing your view.
Point the chute downwind when possible. This will keep the chips from blowing back in the
operator’s direction.
◼Keep Riders Off Machinery. Riders obstruct the operator’s view; they could be struck by foreign
objects or thrown from the machine.
◼Never allow children and animals around the woodchipper.
3.6.1 Prepare For Emergencies
◼Be prepared if a fire starts.
◼Keep a first aid kit and fire extinguisher handy.
◼Ensure you have telephone numbers for the doctor, ambulance, hospital, and fire department.
◼Know your controls and how to stop tractors and machines quickly in an emergency. Read also
the manual provided with the tractor.
3.6.2 Practice Safe Maintenance
◼Always work in a clean and dry environment.
◼Lower the implement to the ground, put the tractor in parking mode, turn off the engine and
remove the ignition key before performing maintenance.
3.7 Safe Machine Transport
Driving on public roads, slow-moving tractors, self-propelled equipment, and towed implements
can create a hazard. They are challenging to see, especially at night.
◼Comply with state and local laws.
◼Use flashing warning lights and turn signals whenever driving on public roads. Use lights and
devices provided with the implement.
◼The maximum transport speed for any Victory implement is twenty mph on paved surfaces and
ten mph maximum on an unpaved surface. Do not exceed. Never travel at a speed that does
not allow adequate control of steering and stopping. Rough terrain requires a slower speed.
Traveling excessively on uneven terrain that causes violent shaking or bouncing will damage
the attachment point on the implement and/or the tractor. This type of damage is not covered
under warranty.
◼Use the following maximum speed - for paved surfaces only:
-20 mph when weight is less than or equal to the weight of the tractor.
-10 mph when weight is more than the weight of the tractor.
◼Do not drink and drive.
◼Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including
narrow bridges, intersections, etc. Watch for traffic when operating near or crossing roadways.
◼Never allow riders on the implement.
Before transporting the woodchipper, do the following:
◼Ensure that the implement is securely attached to the tractor with retainers through the
mounting pins.
◼Fold up and secure the infeed hopper before transporting.

Operator’s Manual Victory BX42S - Page 16 of 51 - Version 2.0
◼Turn the discharge hood and point toward the rotor to reduce the width of the machine.
3.8 Driveline Safety
Agriculture and forestry are very hazardous occupations. Today’s farmer spends long hours close
to increasingly complex and powerful machinery.
Everyone from the component supplier and the company that manufacturers and assembles the
machinery to the dealers and ultimately the actual user must keep safety in mind to avoid
accidents.
The checklist below relates to the driveline of agricultural implements, general safety literature,
and the standards published by the American Society of Agricultural Engineers.
3.8.1 Driveline Safety Checklist
Driveline Specifications
The first step toward safe applications is to specify and test the PTO driveline to operate
appropriately under expected field conditions.
◼Specify and test the proper size joints and telescoping members based on the power required
by the implement, rotation speed, joint angles, shock loads, and expected lifetime.
◼Test the hitch geometry to prevent the driveline from:
•Extending beyond the recommended maximum length.
•Bottoming out.
•Reaching a position that allows universal joints to lock.
•Exceeding the maximum allowable angle for the constant velocity of the universal joints.
You can find information concerning these parameters in all driveline manufacturer’s catalogs.
◼Specify and test telescoping members to allow the lowest possible thrust loads, considering the
expected working conditions.
◼Specify and test torque limiters to control excessive shock loads.
◼Specify and test overrunning clutches to prevent inertial loads from overpowering the tractor.
3.9 Hazard Reduction
The second step in specifying a safe driveline application is to strive to eliminate as many hazards
as possible.
◼On a driveline with torque limiting or overrunning devices, specify that this device is positioned
at the end of the driveline near the implement.
◼To implement connections that require bolts or set screws, select and/or supply hardware that
minimizes protrusions. You can find Information concerning these parameters in all driveline
manufacturer’s catalogs.
◼For the tractor's PTO shaft connections, specify a safety type yoke (twist or slide collar) to
minimize protrusions.
◼Provide a proper clearance zone for the driveline operation to avoid damaging the shielding
components.

Operator’s Manual Victory BX42S - Page 17 of 51 - Version 2.0
Some common areas of interference are:
◼Three-point linkage.
◼Extended or eye loop hitch pins.
3.10 Guarding
To not effectively eliminated hazards, provide guarding whenever feasible.
The PTO master, critical driveline, and input connection shield should offer an interactive guarding
system.
◼Provide instructions by labels or manuals. Use the implement only with the tractor’s PTO
master shield.
◼Specify and test an integral driveline shield with end cones that overlap but do not interfere
with the PTO master shield or implement an input connection shield.
◼Provide an input connection shield to interact with the integral driveline shield to guard the
shaft coupling and any torque limiting devices installed on the driveline.
◼Check that all routine driveline maintenance can be done without removing the shields.
3.11 Warnings and Instructions
Provide warnings and instructions for hazards associated with the device. Provide instructions for
proper maintenance and repair.
◼Provide labels on the unit to advise the user of proper hitch dimensions and maximum safe
operating speed.
◼Check that proper danger labels are supplied with the driveline concerning these parameters
may be found in all driveline manufacturer’s catalogs.
◼The operator's manual provides instructions for proper driveline operation, maintenance, and
repair.
◼Advise against using PTO adapters, which may defeat the purpose of the tractor’s master shield
and adversely affect the driveline's performance.
◼Advise the user of locations of genuine original equipment spare parts.
3.12 ASME standards
You can obtain further information about driveline specifications and safety from your driveline
supplier and the following ASME standards and engineering practices:
◼S203 Rear power take-off for agricultural tractors.
◼S205 Power take-off definitions and terminology of farming tractors.
◼S207 Operating requirements for tractors and power take-off driven equipment implements.
◼S318 Safety for agricultural equipment.
◼S331 Implement power take-off driveline specifications.
◼S333 Agricultural tractor auxiliary power take-off drives.
◼S350 Safety alert symbol for agricultural equipment.
◼S441 Safety signs.
◼S493 Guarding for agricultural equipment.
◼EP363 Technical publications for agricultural equipment.

Operator’s Manual Victory BX42S - Page 18 of 51 - Version 2.0
Other standards may apply to particular types of implements. All driveline manufacturers strive to
produce a safe product.
Like most other components, drivelines must be appropriately used, including proper tractor
master shields and implement input connection shields. Please contact us if you have any
questions about your driveline applications.
3.13 Not Allowed Use
It is not allowed to use the BX42S other than for woodchipper activities.
3.14 Safety Signs and Markings on the BX42S
Your woodchipper comes equipped with all safety signs in place. The decals are designed to help
you safely operate your implement. Read and follow their directions.
◼Pay close attention to the Safety Signs affixed to the tractor and the woodchipper.
◼Keep all safety decals clean and legible.
◼Replace all damaged or missing decals or labels. To order new ones, call Victory Tractor
Implements.
◼New equipment installed during repair requires safety labels to be affixed to the replaced
component as specified. When ordering new components, ensure the correct safety labels are
included in the request.
DANGER decal
READ THE OPERATOR’S MANUAL BEFORE OPERATING
MAINTENANCE AND REPAIR.
DANGER decal
THROWN OBJECT HAZARD.

Operator’s Manual Victory BX42S - Page 19 of 51 - Version 2.0
DANGER decal
DO NOT STAND BEHIND THE TRACTOR OR IMPLEMENT.
DANGER decal
TURNING COMPONENTS.
•Danger of being caught by rotating parts.
WARNING decal
MAX. OPERATING PTO SHAFT SPEED 540 rpm.
DANGER decal
ROTATING KNIFE BLADES.
Keep Hands and Feet away.
CAUTION decal
KEEP HANDS OUT OF THE HOPPER.

Operator’s Manual Victory BX42S - Page 20 of 51 - Version 2.0
DANGER decal on PTO Shaft
ROTATING DRIVELINE HAZARD.
ATTENTION POINT Decal
•Ad grease regularly to the desired nipple.
3.15 Calamities
Calamities are unintended or unexpected events related to an activity's quality. These events have
severe harmful consequences, up to and including death. This includes any accident that directly or
indirectly results in device damage and personal injury to one or more persons.
◼Concerning this woodchipper, calamities arise when unauthorized persons use the machine.
Never lend the woodchipper without the Operator's manual. Ensure that people always read
and understand the manual content before use.
