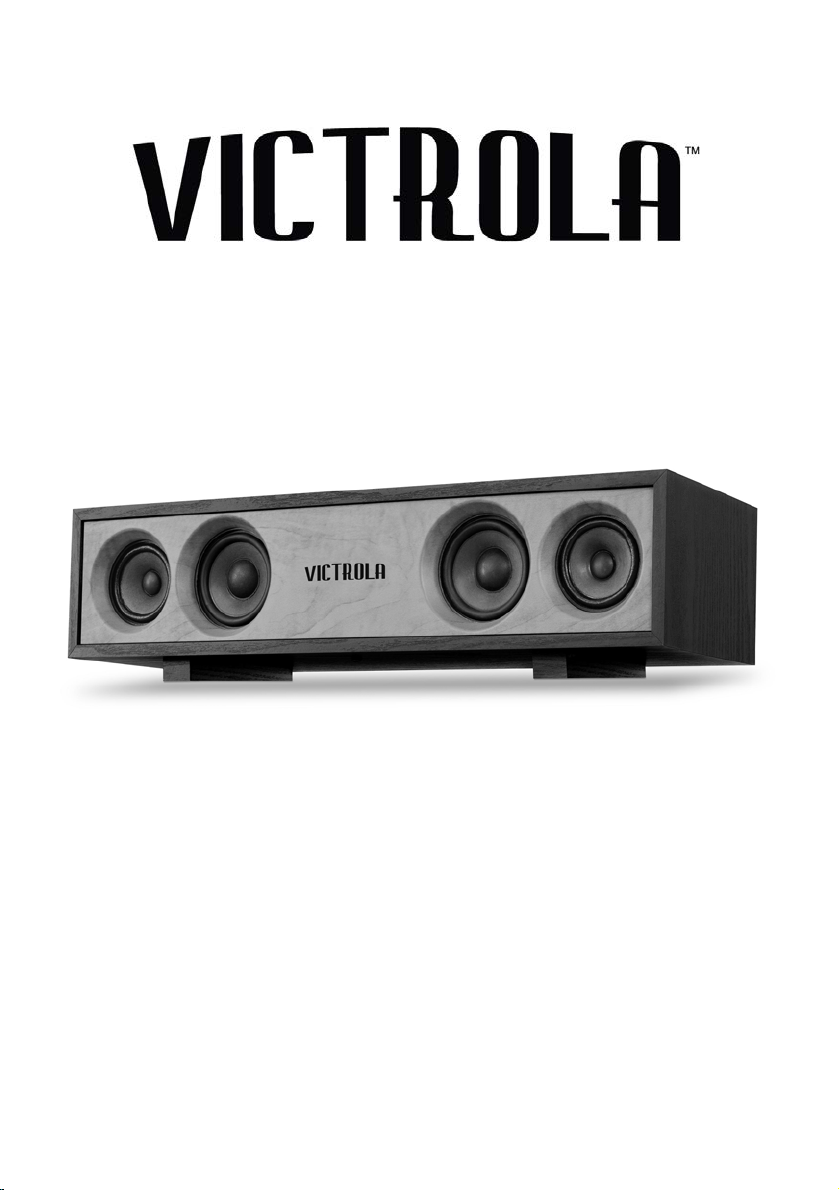

Victrola VS-130 User manual

MODEL: VS-130
Bluetooth Hi-Fi Speaker

CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle
or other outlet unless the blades can be fully inserted to prevent blade exposure.
WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to laser beam.
Important Safety Instructions
1. Read these instructions –All the safety and operating instructions should be read before this product is
operated.
2. Keep these instructions– The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be
adhered to.
4. Follow all instructions –All operating and use instructions should be followed.
5. Do not use this apparatus near water –The appliance should not be used near water or moisture –
for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades
with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug the apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

15.

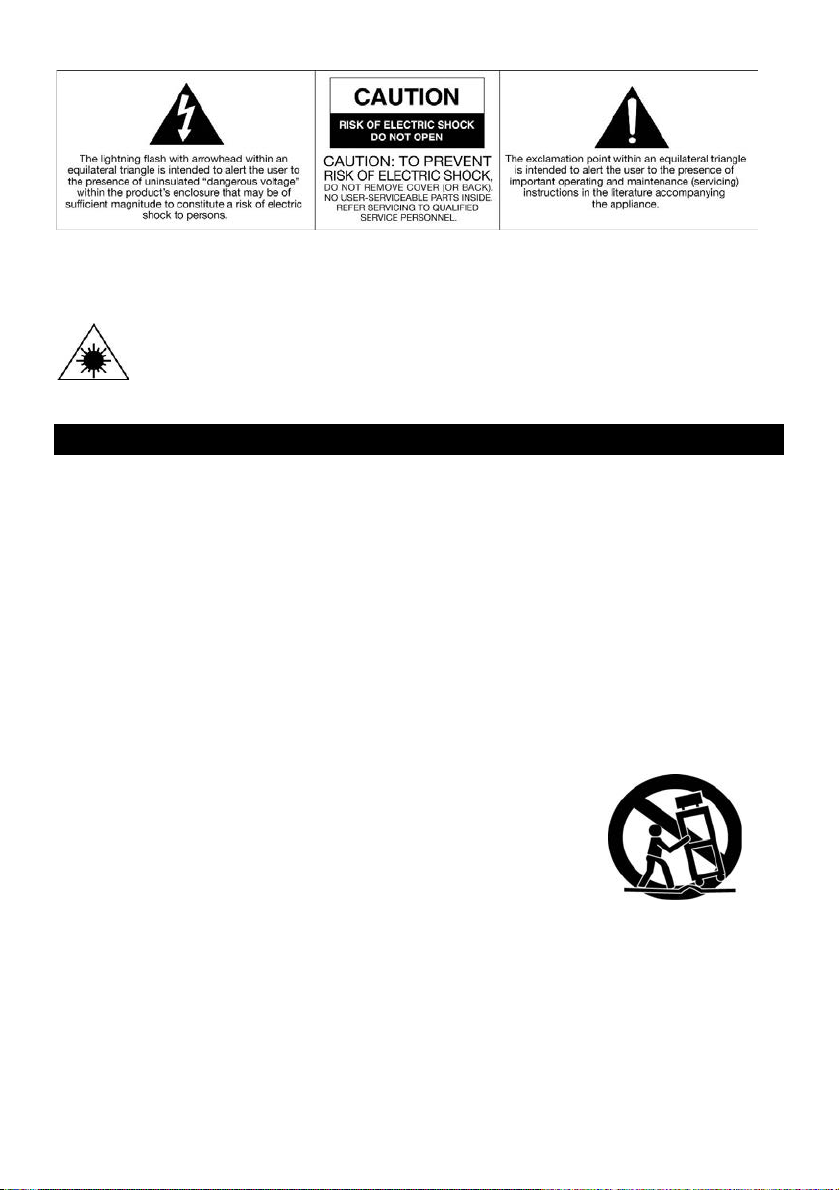

-This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage”within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
-Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable
parts inside. Refer servicing to qualified personnel.
-The exclamation point within and equilateral triangle is intended to alert the user to the presence of important
operating and maintenance instructions in the literature accompanying the appliance.
16.
This equipment is a Class Ⅱordoubleinsulatedelectricalappliance.Ithasbeendesignedinsuchaway
that it does not require a safety connection to electrical earth.
17. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
18. WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall not be placed on apparatus.
19. The use of the equipment in moderate climate.
20. The ventilation should not be impeded by covering the ventilation openings with items such as,
newspapers, tablecloths, curtains, etc.
21. No naked flame sources, such as lighted candles, should be placed on the apparatus.
22. The symbol with Indication AC voltage.
23. Attention should be drawn to the environmental aspects of battery disposal.
24. The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
25. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
ACCESSORIES INCLUDED
•Instruction Manual
•Bluetooth Speaker

Product Overview
Rear View
1. AC Power Cord
Connect the AC Plug into a wall outlet.
2. FUNCTION/PAIR
Press to switch between functions (Bluetooth, AUX).
3. AUX IN JACK
Connect your external device to the 3.5mm AUX IN jack.
4. BT INDICATOR
Blue light will flash when the unit is in pairing mode.
Blue light stay lit when the external device is connected to the unit.
5. ON/OFF SWITCH
Press to turn ON/OFF the unit.
Setup / Basic Operation
Setup
Connect the AC power cord to a wall outlet.
Note:
-It is strongly recommended that this product should be operated only from the type of power source
indicated on the marking label.
-To prevent interference, avoid bundling audio signal cables together with the AC power cord.
Basic Operation
1. Switch the ON/OFF Switch to turn ON/OFF the unit.
2. Press the Function/Pair Button to select function (AUX/ BT).
AUX-IN OPERATION
In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player,
Portable CD Player, etc.)
1. Press the Function button to select AUX IN Mode (BT Indicator LED will turn off).
2. Plug one end of the AUX IN cable (not included) into the AUX IN jack.
3. Plug the other end of the cable into the headphone jack of the external audio source.
NOTE: All playback operations are only available on your external device.

Bluetooth Operation
In BT (Bluetooth) mode, this unit can connect to external devices that have a built-in Bluetooth feature.
1. Press the Function/Pair button to select BT mode.
2. BT indicator will flash blue.
3. Open the Bluetooth Settings Menu on your external device.
Select “VS-130” from the Bluetooth Menu to connect.
If a window appears asking for a password, fill in “0000” then press “OK”.
NOTE: The effective distance between your external device and this apparatus is
about 33 feet (10 meters).
4. After a few seconds your device will be connected and the blue BT indicator will stay lit.
NOTE: All playback operations are only available on your external device.
Specifications
GENERAL
Power Requirements AC 120 V~ 60 Hz
Power Consumption 30W
Dimensions (W x H x D) Approx. 19.7” (500mm) x 6.3” (160mm) x 5.3” (134mm)
Weight Approx. 7lbs (3.15 kgs)
AMPLIFIER
Output Power 15 W + 15 W
Frequency Response 60 to 20,000 Hz
SPEAKER SYSTEM
Type 2-way
Impedance 6 ohms
Output Power Max 20W
BLUETOOTH
Bluetooth Version BluetoothV4.2
Bluetooth Profiles A2DP, AVRCP
Bluetooth Frequency range 2.402GHz-2.480GHz
Operating Distance 33 feet (10 meters)

Troubleshooting Guide
For further assistance with your product, call Innovative Technology at
TOLL FREE# 1-877-ITECH-97 (1-877-483-2497).
Please note: As a result of continual improvements, the design and specifications of this product are
subject to change without notice.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
Made in China.
Symptom
Possible Cause
Solution
•Unit will not power on.
•Unit is unplugged.
•Connect the unit to the AC
power supply.
•No sound output from
speakers.
•The volume level is set
too low.
•The input selector does not
match the playback source.
•Adjust the volume.
•Select the correct input
source.
•Noise/Distortion in
sound output.
•The unit is too close to a TV
set or another interfering
device.
•Turn off the TV or other
appliance, and relocate
the unit.
GENERAL
•Unit fails to respond.
•It might result from external
factors such as ESD
(Electro-static discharge).
•Disconnect the power cord
and external audio device.
Re-plug the power cord
after one minute.
AUX
•No sound output with
external audio device
plugged into rear AUX in
jack.
•AUX in cord is not properly
connected.
•Plug the AUX in cord
securely into the AUX in
Jack.
•No sound.
•The unit is not in Bluetooth
mode.
•Your device’s and/or the unit’s
volume is not turned up.
•Your device is too far from the
unit or there’re some obstacle
between your device and the
unit.
•Ensure the unit is switched
to Bluetooth mode.
•Turn up the volume on
your portable device
and/or the unit.
•Move your Bluetooth
device closer to unit.
•Turn off your Bluetooth
device and unit then power
them both back on.
•Sound is garbled.
•Your device’s and/or the unit’s
volume not adjusted properly.
•Turn down the volume on
your device/phone.
Bluetooth
•Unable to pair with a
Bluetooth device.
•Your device doesn’t have
Bluetooth connectivity.
•The Bluetooth pairing is not
successful
•Confirm that your device is
Bluetooth compatible.
•Disconnect and reconnect
the unit and device again.

FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
The device must not be co-located or operating in conjunction with any other antenna or transmitter.
To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from
nearby persons.
IC Statement
This device complies with RSS247 of Industry Canada. Cet appareil se conforme à RSS247 de
Canada d'Industrie. This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif
ne doit pas produire de brouillage prejudiciable, et (2) ce dispositif doit accepter tout brouillage recu, y
compris un brouillage susceptible de provoquer un fonctionnement indesirable.
The device must not be co-located or operating in conjunction with any other antenna or transmitter.
L'appareil ne doit pas être localisé ou fonctionner avec d'autres antennes ou transmetteurs.
This device complies with IC radiation exposure limits set forth for an uncontrolled environment.
Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC établies pour un
incontrôlé environnement.
The device should be installed and operated with a minimum distance of 20cm between the radiator
and your body.
L'appareil doit être installé et utilisé avec une distance minimale de 20cm entre le radiateu
et votre corps.

California PROP 65 Warning
WARNING: This product can expose you to chemicals including lead which is known to the
State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
WARRANTY
Victrola is a registered trademark of Innovative Technology Electronics LLC.
Innovative Technology Electronics LLC.
Limited Warranty: 90 Days Labor, One Year Parts
Innovative Technology Electronics LLC. (IT) warrants the product to be free from “Defects” in
materials under normal use for a period of “One Year” from the date of the original purchase. The
Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the
product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost
to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original
purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets,
headbands, ear-pads, or damage due to line power surges, connection to improper voltage supply or
settings, misuse, mishandling, accident, acts of God or attempted repair by an unauthorized service
agent.
To obtain service, the purchaser MUST present an original sales receipt / proof of
purchase. Please contact us at www.victrola.com to request an RMA (Return Material
Authorization) number to return products for service or replacement. Returns without an RMA
number on the package will be refused and returned to sender. Upon receipt of the returning item and
our full inspection (IT) may issue a replacement to customer for the same item or of one that has
equivalent value and features. To return an item, supply full name, return address, phone number, item
purchased, receipt of purchase and reason for return to obtain RMA number. All returns must be in the
original packaging or reasonable substitute to prevent damage. Customer “Must” include full name,
shipping address and telephone number inside of package. No return will be shipped back to a PO Box
or APO address. Please include your check or money order in the amount of
• USD $5.00 for items $10.00 to $39.99 (Price Paid Per Unit)
• USD $10.00 for items $40.00 to $99.99 (Price Paid Per Unit)
• USD $16.00 for items $100.00 and up (Price Paid Per Unit)
• Shipping fees are non-refundable
to be payable to Innovative Technology Electronics LLC. (for handling and return
shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting
from a purchaser’s failure to provide any / all of the necessary information.
Send all inquiries or RMA request via our website www.victrola.com/pages/technical-support.
Innovative Technology Electronics LLC.
1 Channel Drive
Port Washington, NY 11050
Toll free: 1-877-483-2497
Website for support: www.victrola.com/pages/technical-support
There are no express warranties except as listed above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CUSTOMER, (IT) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specific legal rights and you may also have other rights, which
vary from state to state.
